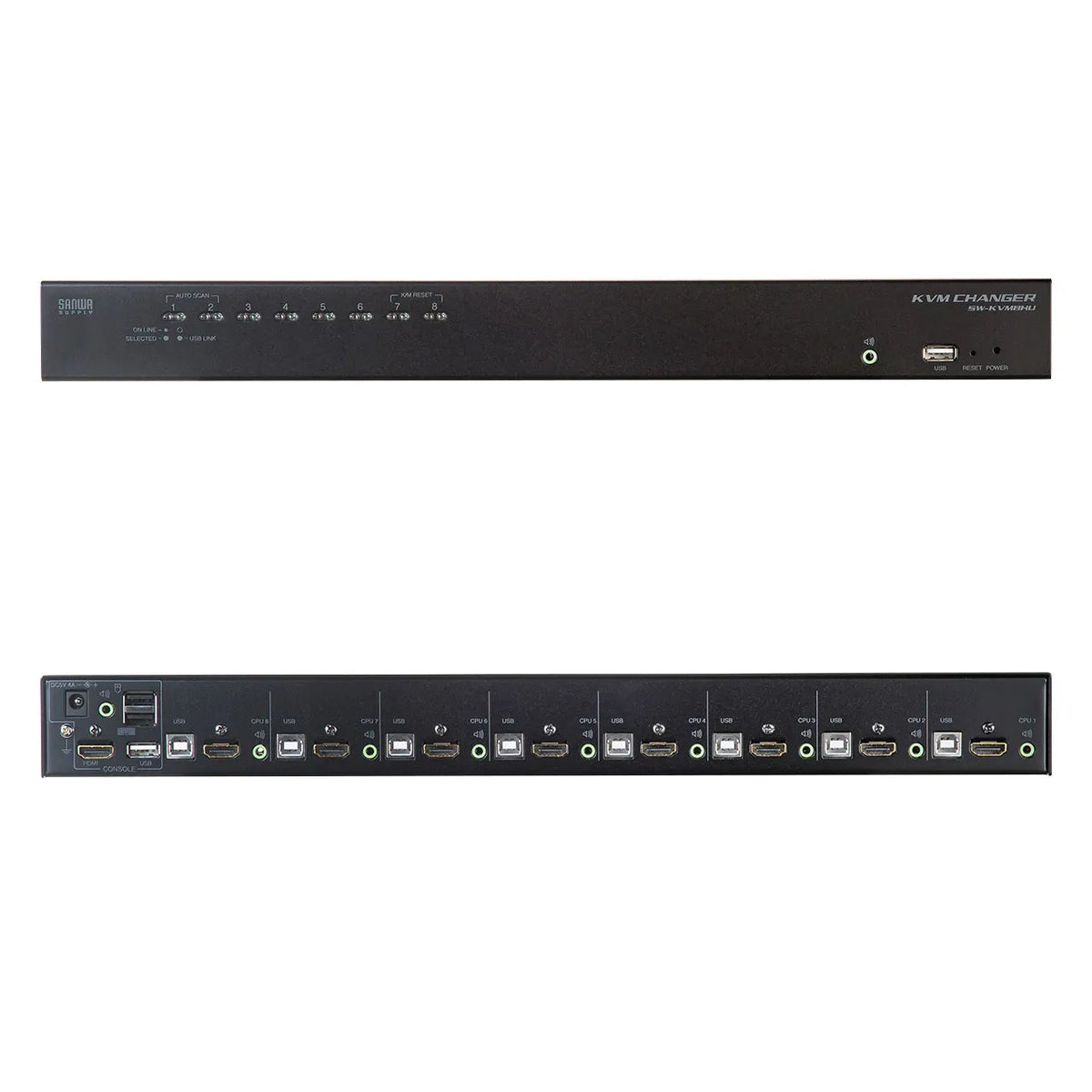

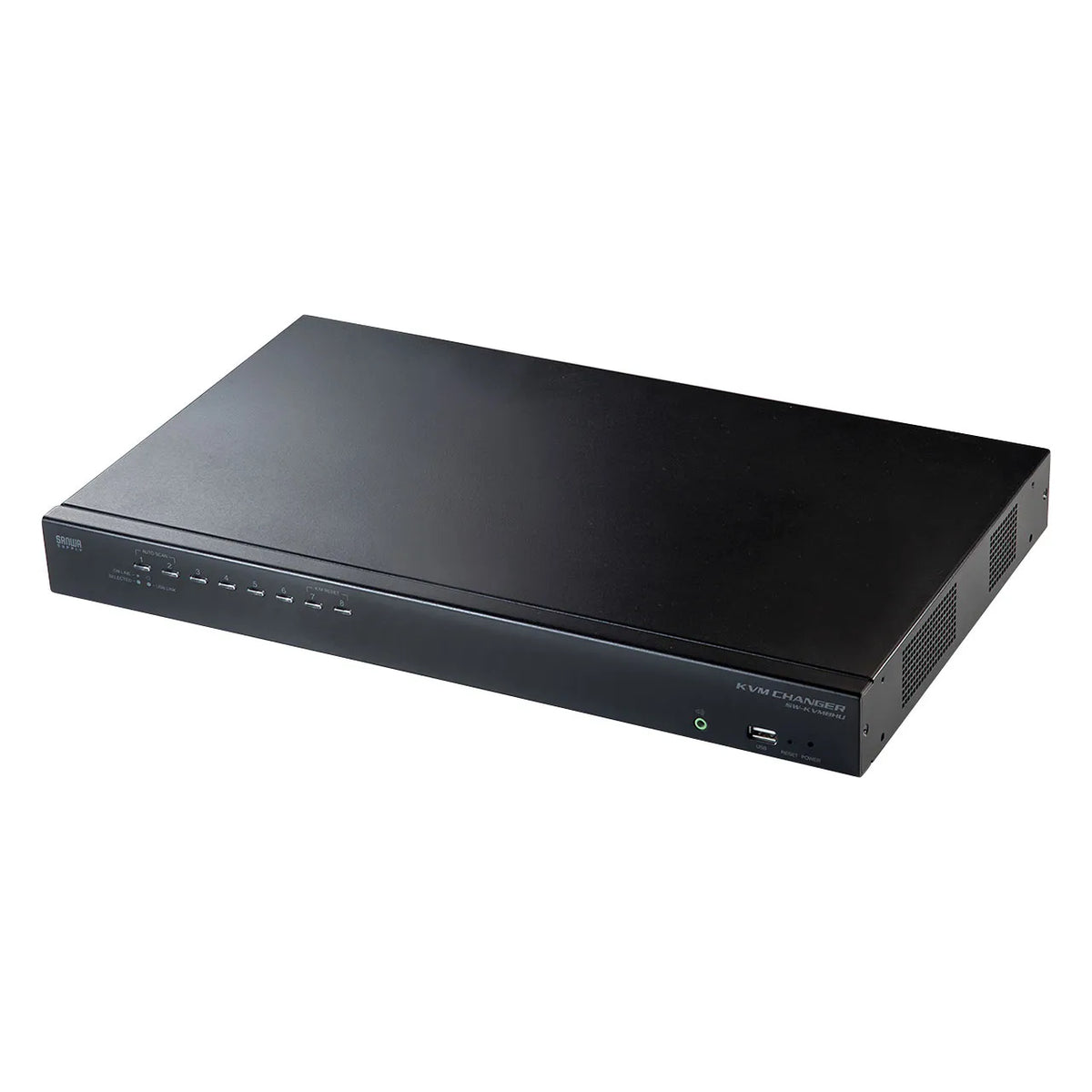

HDMI-compatible automatic PC switch (8:1) SW-KVM8HU

[19-inch server rack compatible 8-port KVM with OSD function that supports HDMI display, USB keyboard, USB mouse, and can switch USB 2.0 devices]

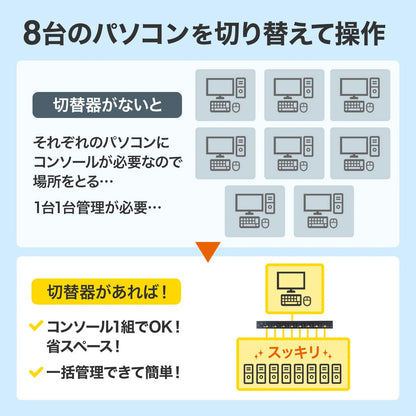

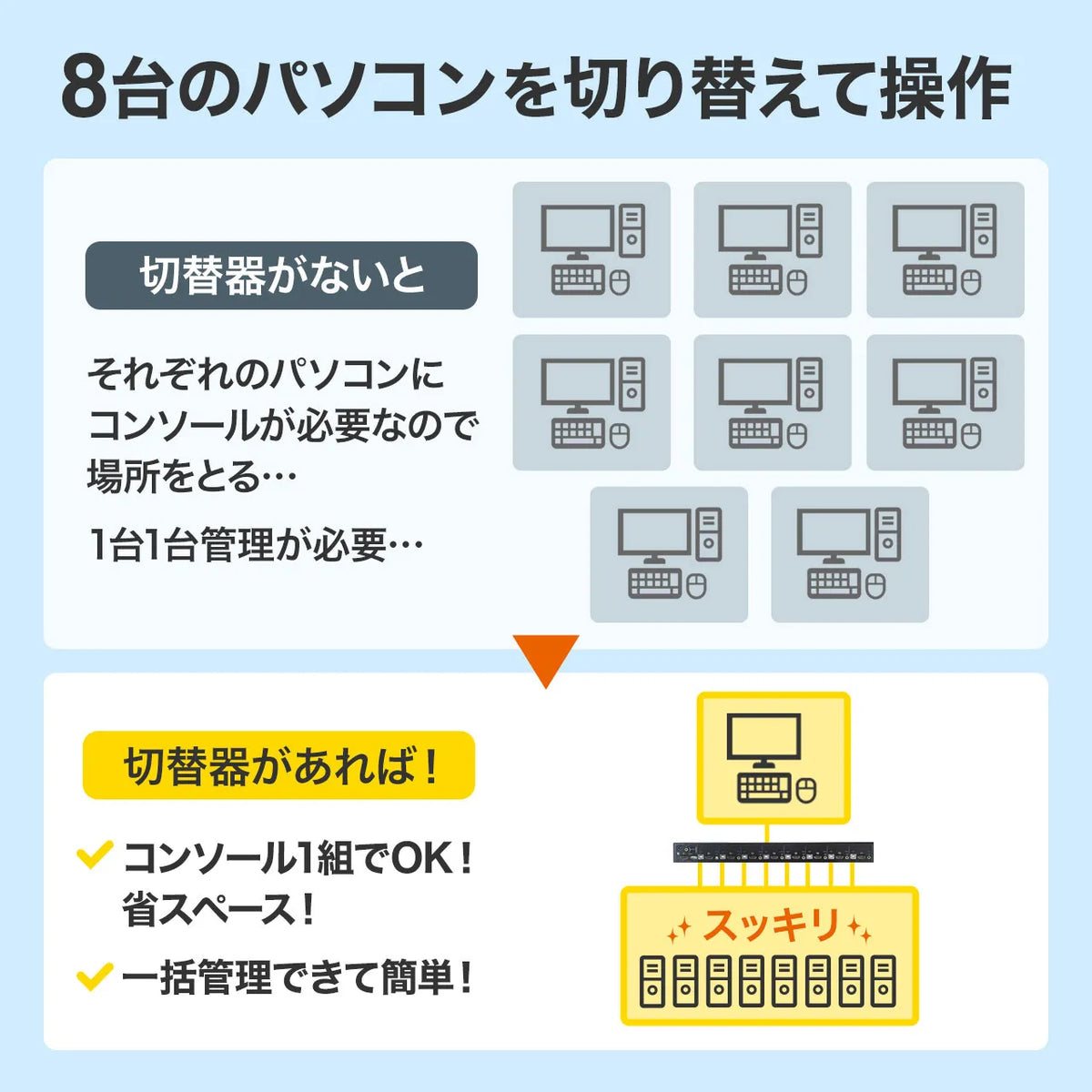

● You can switch and operate up to 8 computers with one console (keyboard, mouse, display).
● HDMI displays support a maximum resolution of 1920x1200 (WUXGA) and 1920x1080 (Full HD), and also support widescreen output.
● Equipped with a display emulation function (EDID reading circuit). By reading the EDID of the display and saving it to the KVM, and responding to each port during DDC communication, problems such as the screen resolution or screen size changing during background startup are prevented.
● Equipped with two USB 2.0 hubs, you can switch and share various USB devices such as USB memory.
● Independent switching of KVM, USB 2.0 hub, and audio is possible.
● Because the keyboard port is emulated, a full startup is possible without switching ports during restart (reboot).
●No software installation is required; all functions can be used simply by connecting.
●It can be mounted in a 19-inch server rack (1U size). Mounting hardware is included.
●Switching can be done via buttons on the front panel, hotkey switching via key input, or switching via the OSD screen.
●It is equipped with an auto-scan mode that automatically switches ports at regular intervals. Ideal for checking the operating status of PCs.
●It is equipped with a multi-functional OSD that is convenient for system management, such as restricting the OSD screen that can be operated depending on the user level, a broadcast function that shuts down all PCs simultaneously from the console, and a 2-level password security function.
●Compatible with Windows OS, MacOS, and Linux. It can be used even in environments where multiple OSs are mixed.
*May not be usable depending on the kernel version and distribution specifications.

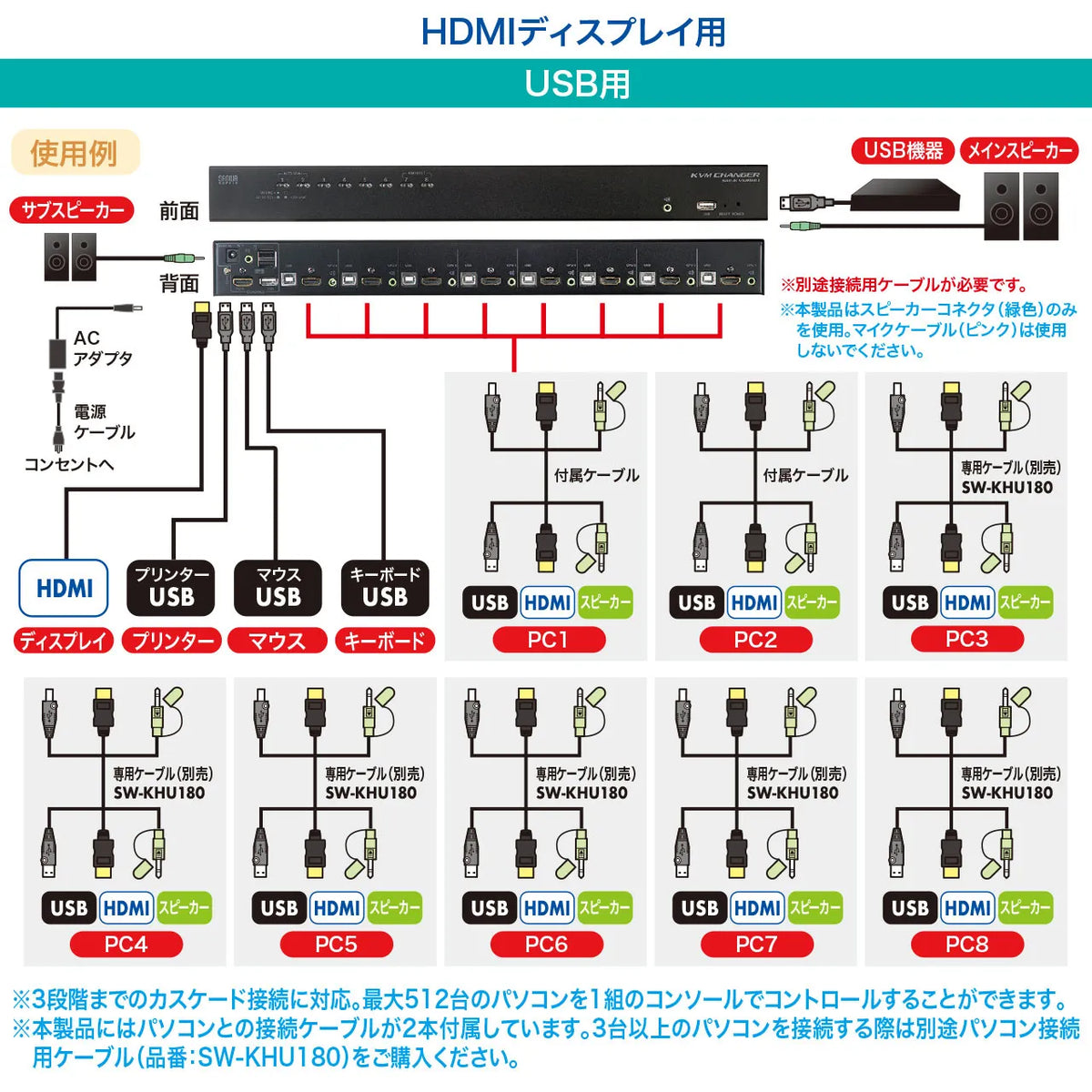

●Supports cascading up to 3 levels. Up to 512 PCs can be controlled with one console.
*This product comes with two connection cables to PCs. When connecting three or more computers, please purchase a separate computer connection cable (part number/SW-KHU180).

＜Caution＞
*This product requires the AC adapter to be connected. It will not operate when not connected.
*Operation with all computers, keyboards, and mice is not guaranteed.
*Special buttons and function keys on keyboards and mice that require driver installation may not work via this switch.
*One-touch resume/suspend function is not supported.

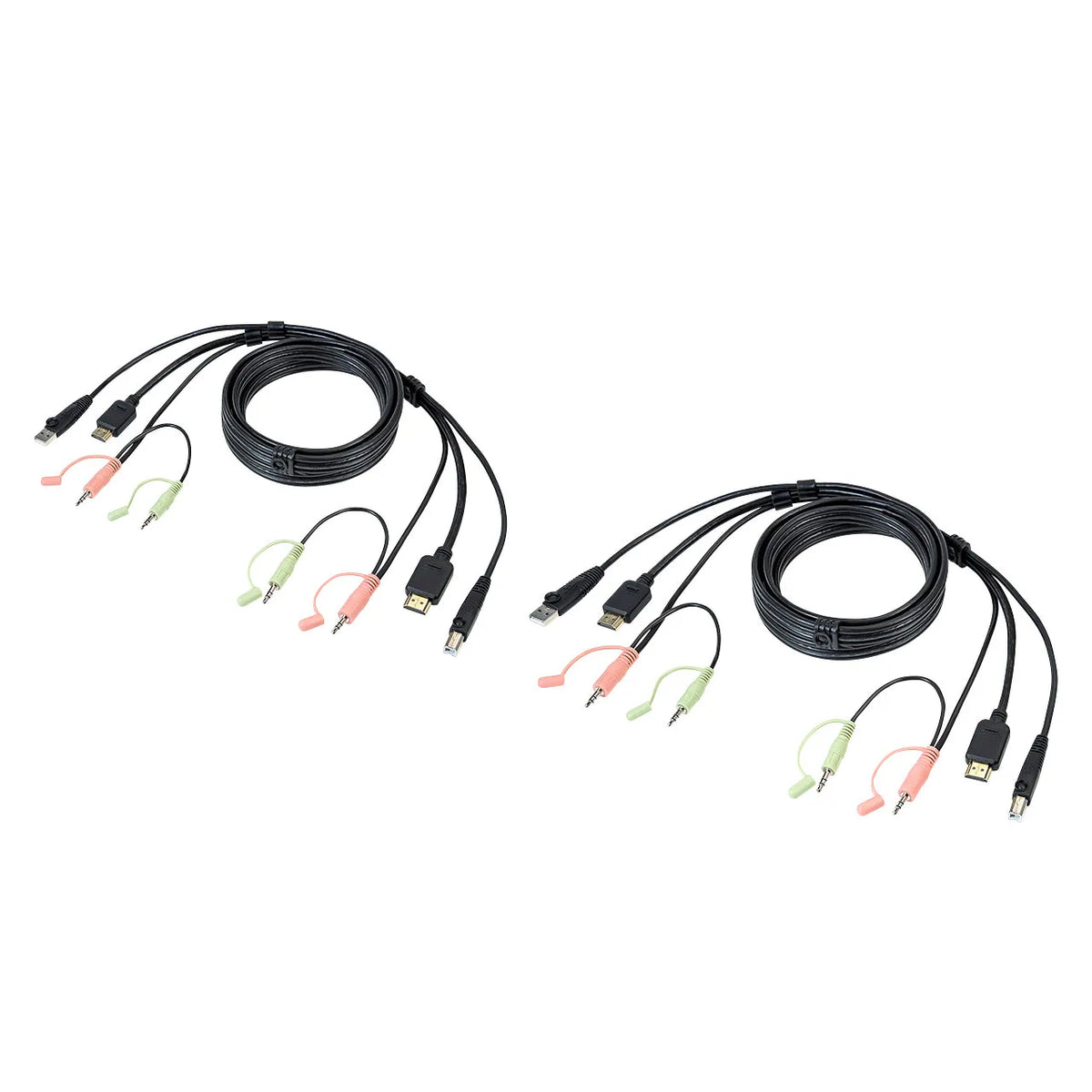

＜Switch-to-PC dedicated connection cable (for HDMI and USB connection)＞
Model number/SW-KHU180

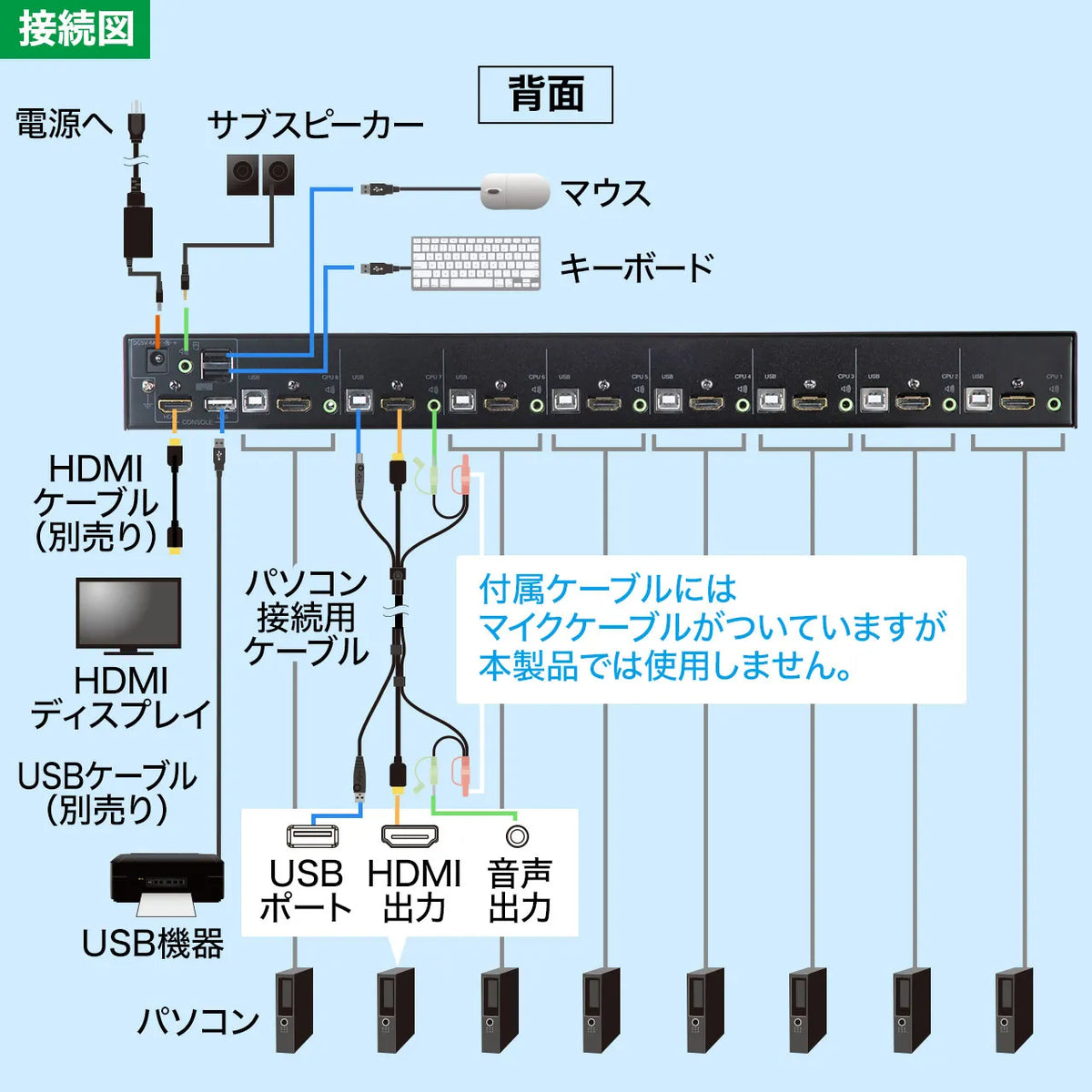

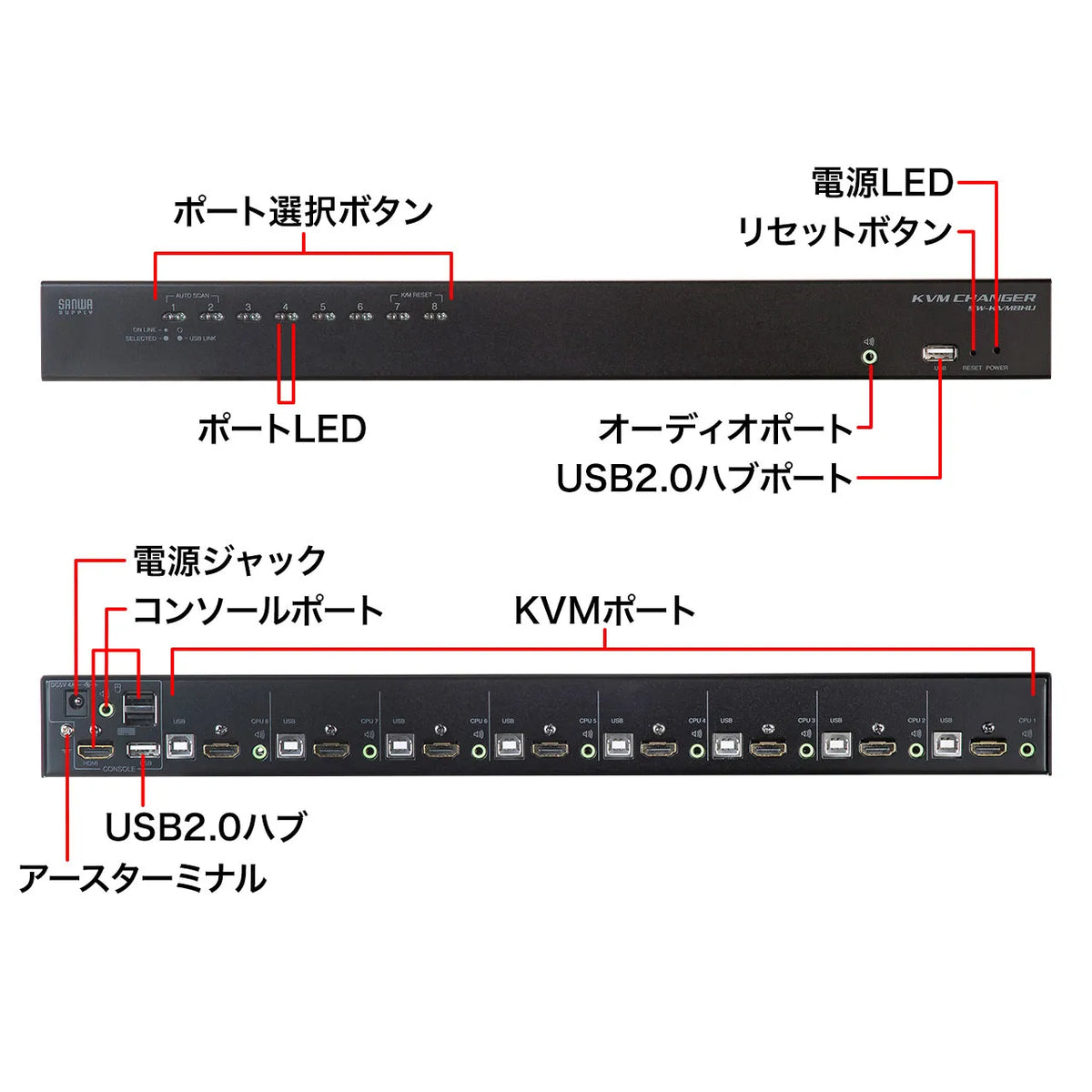

■Interface:【For PC】
Display/HDMI (Type A) female x8
Keyboard, mouse, USB2.0 hub/USB B connector female x8
Speakers/3.5mm stereo mini jack x8

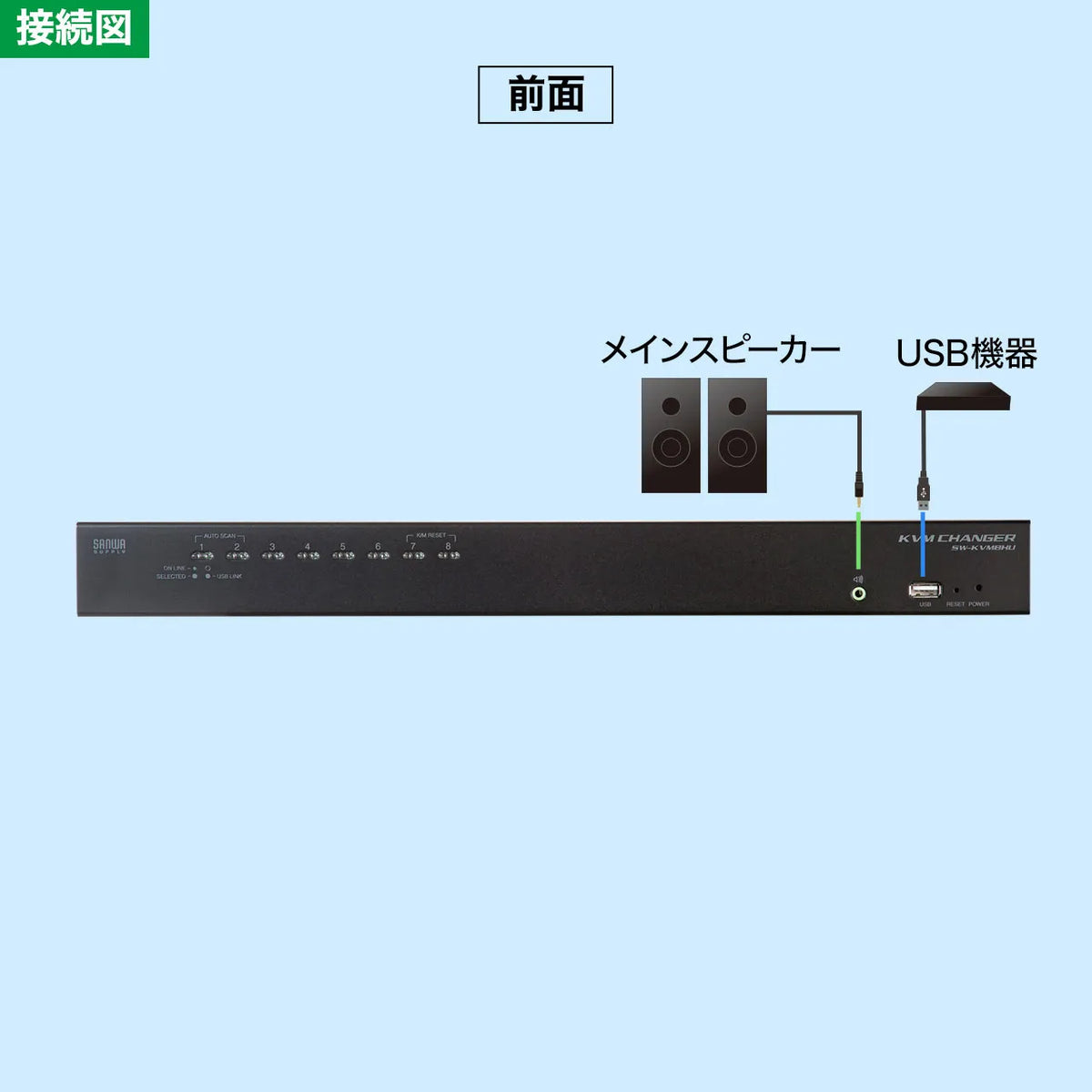

【Peripheral device side】
Display/HDMI (Type A) female x1
Keyboard/USB A connector female x1
Mouse/USB A connector female x1
Speakers/3.5mm stereo mini jack x2
USB2.0 hub/USB A connector female x2
■Switching method: Switching with main unit button, switching with hotkey, switching with auto scan, switching with OSD
■Switching sound: Beep sound ON/OFF setting possible

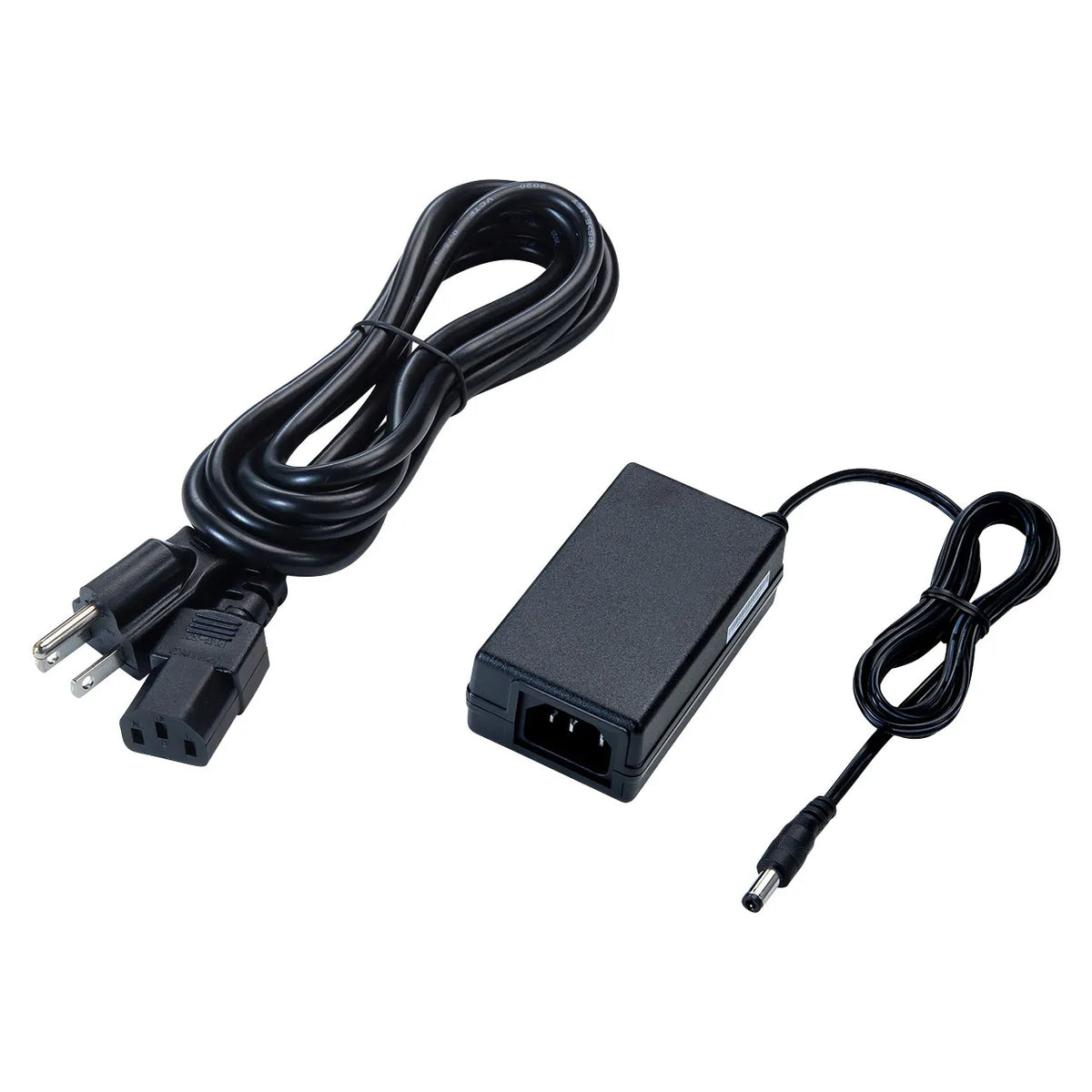

■Power supply: AC adapter (DC5V 4A)
■Power Consumption: 8.56W
■Environmental Conditions (No Condensation):
Operating: Temperature 0 to 50 degrees Celsius, Humidity 80% or less
Storage: Humidity -20 degrees Celsius to 60 degrees Celsius, Humidity 80% or less
■Maximum Number of Connected PCs: 8
■Display Emulation Function: Yes
■19-inch Rack Mounting: Yes
■Dimensions: W433 x D258 x H44 mm
■Weight: Approx. 3.49 kg
■HDCP: Supported
■Set Contents: Main unit x1, AC adapter (DC5V 4A) x1, Power cable x1, PC connection cable (1.8m) x2,

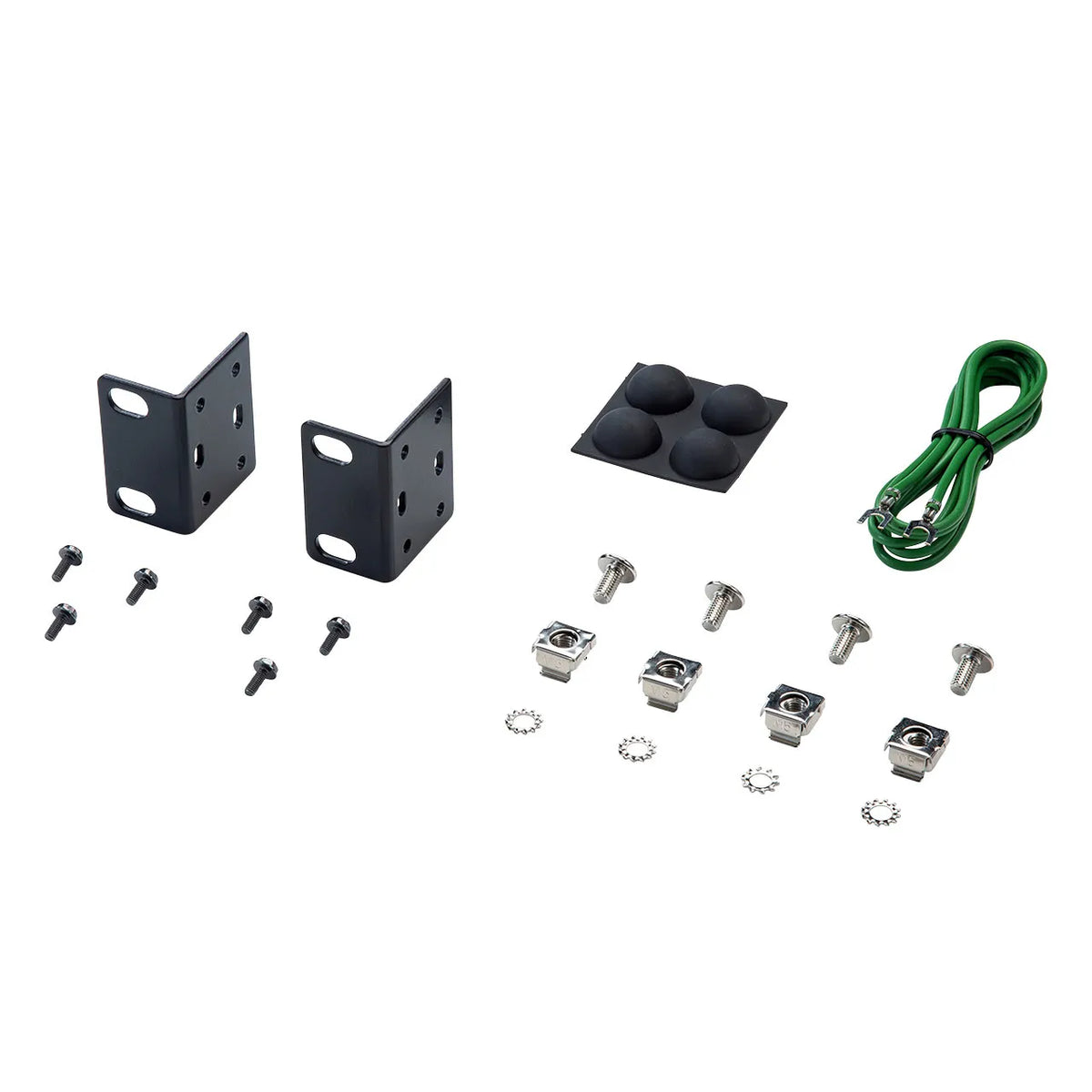

Rack mount kit (bracket x2, screws x6), Ground wire, Instruction manual (with warranty),
Rubber feet x4, Rack fixing screws x4, Rack fixing nuts x4, Rack fixing washers x4
