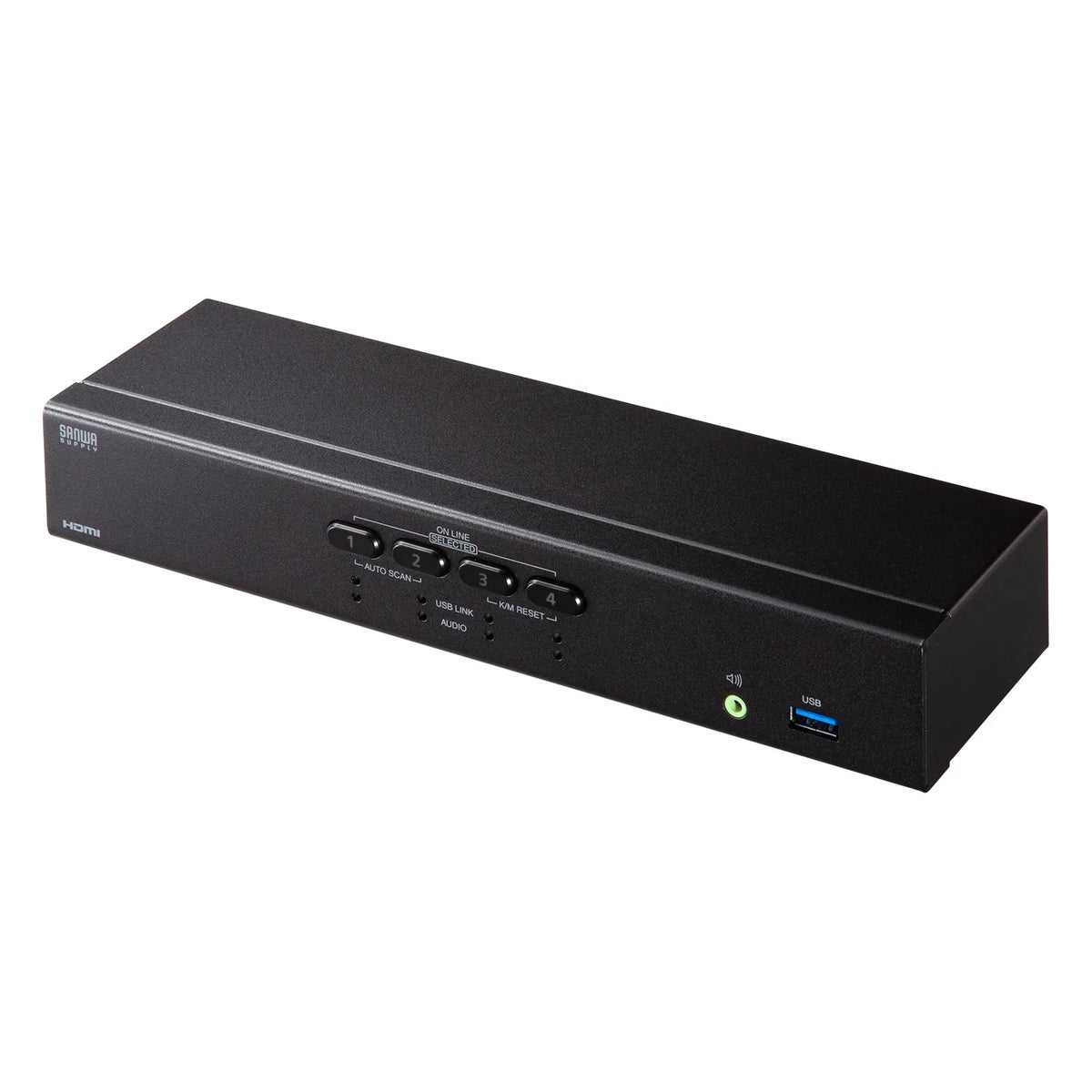

4K compatible HDMI PC automatic switch (4:1) SW-KVM4U3HD

[A user-friendly KVM switch that supports 4K resolution HDMI displays, USB keyboards, USB mice, and also allows switching between USB 3.2 Gen1 hubs.]

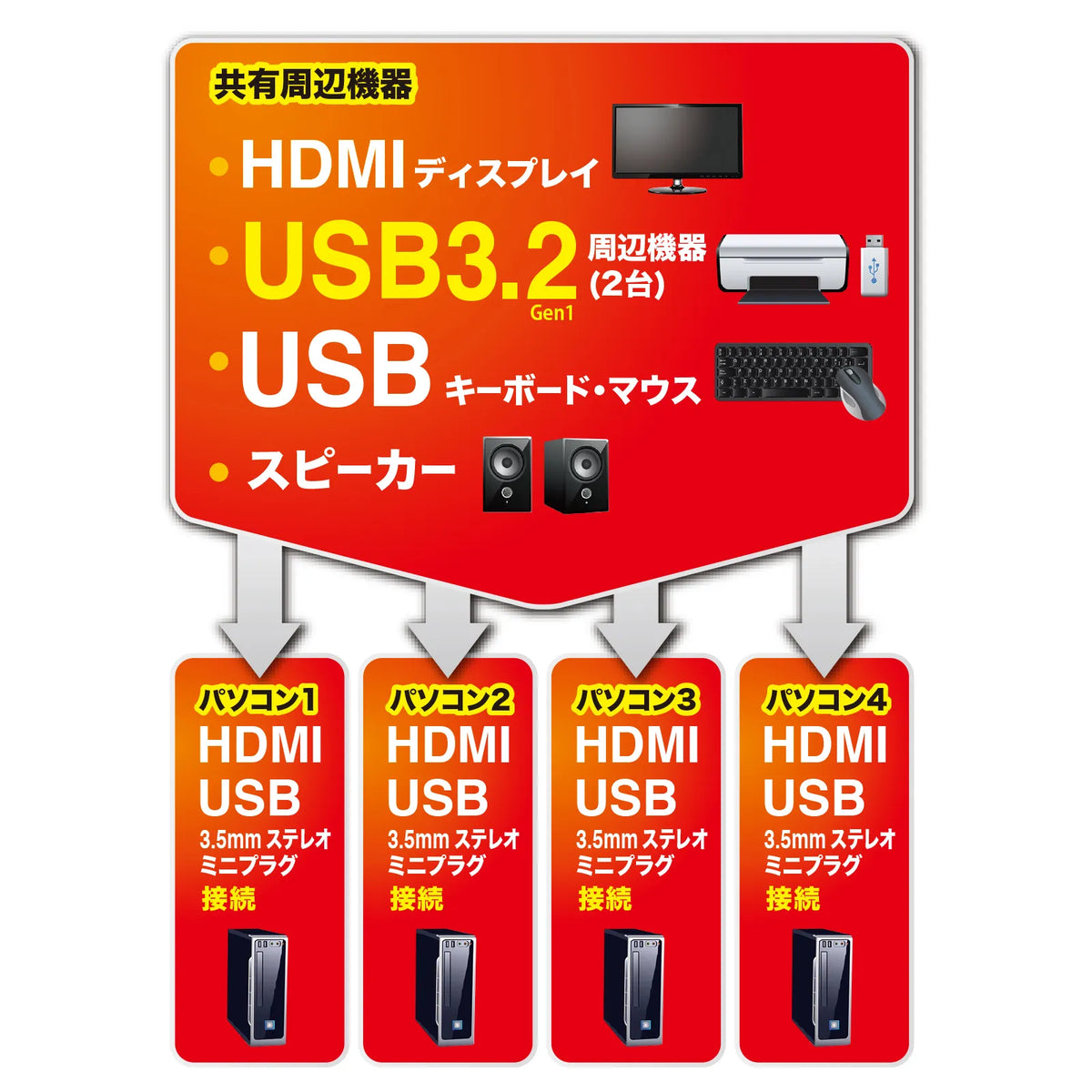

●One set of HDMI display, USB keyboard, and USB mouse can be used to switch between up to four computers.
●Supports 4K (3840x2160)/60Hz and 4K (4096x2160)/60Hz resolutions, allowing for the output of beautiful, high-definition HDMI signals.

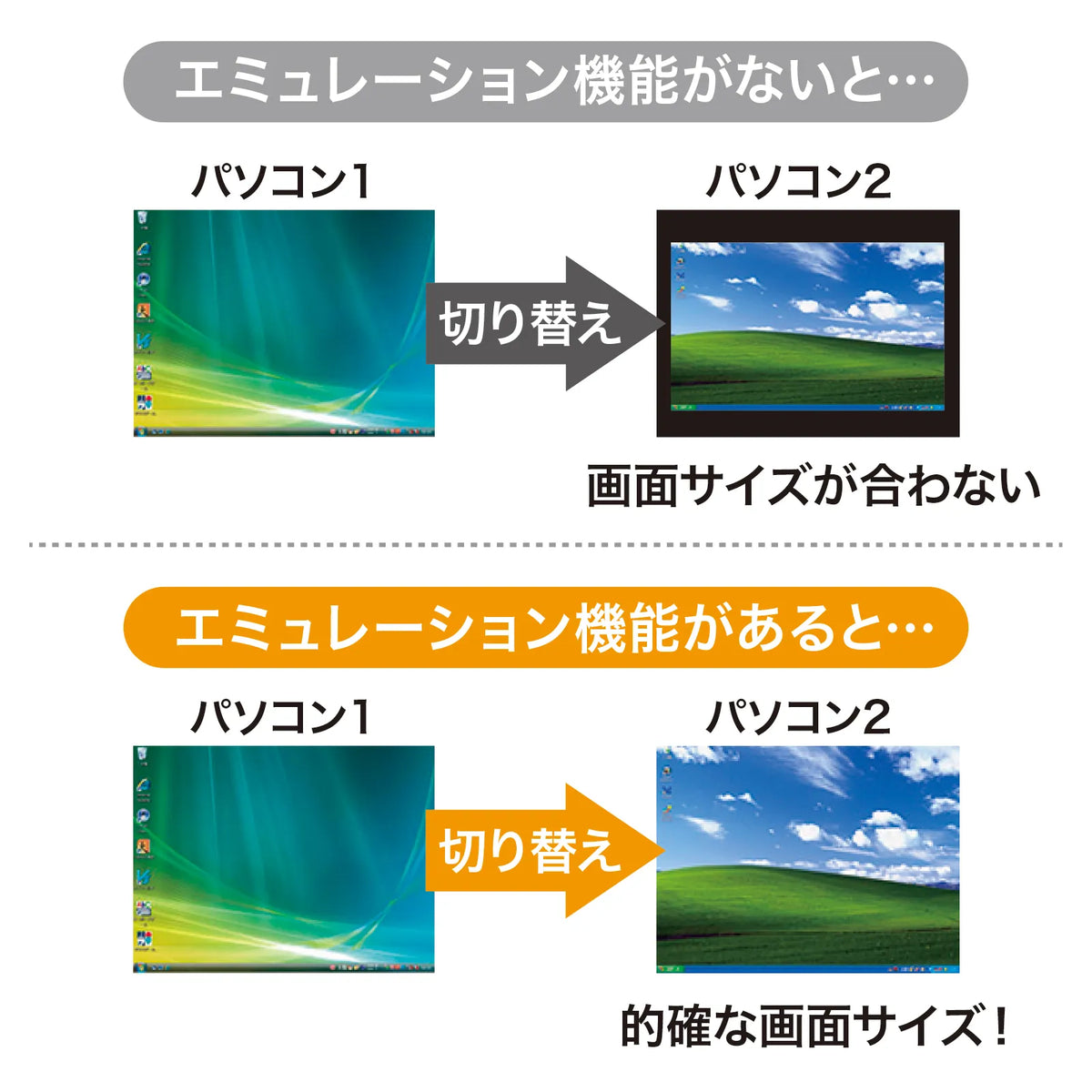

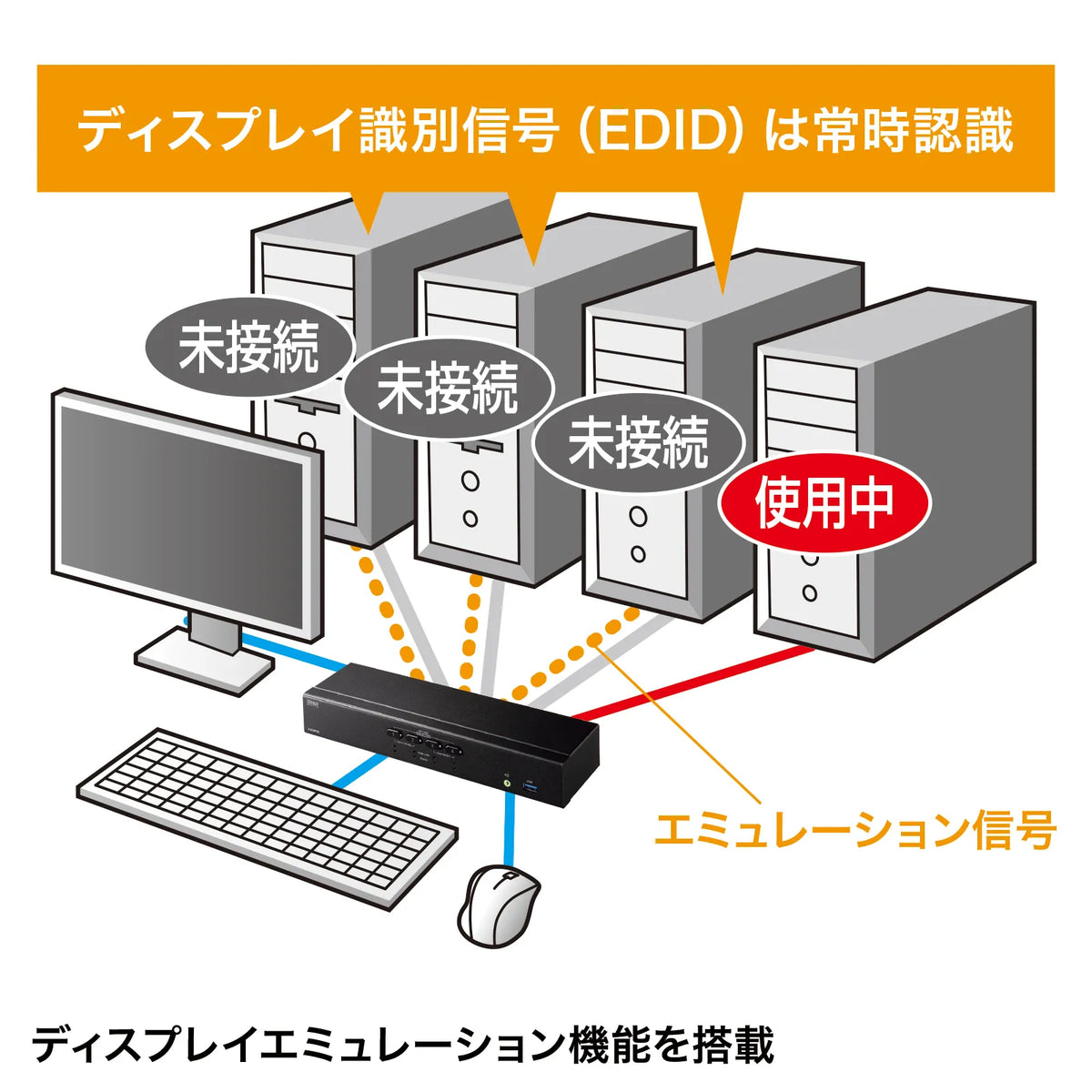

●Equipped with a display emulation function (EDID reading circuit). By reading the EDID of the display and saving it to the KVM, and responding to each port during DDC communication, problems such as changes in screen resolution or screen size during background startup are prevented.
●HDCP compatible, so it can play copyrighted video from digital terrestrial broadcasting and Blu-ray media.
●Equipped with two USB 5Gbps hub ports, allowing you to switch and share various USB devices such as card readers and printers among up to four computers. Furthermore, independent switching is possible, so you can operate USB devices on one computer while working on another.

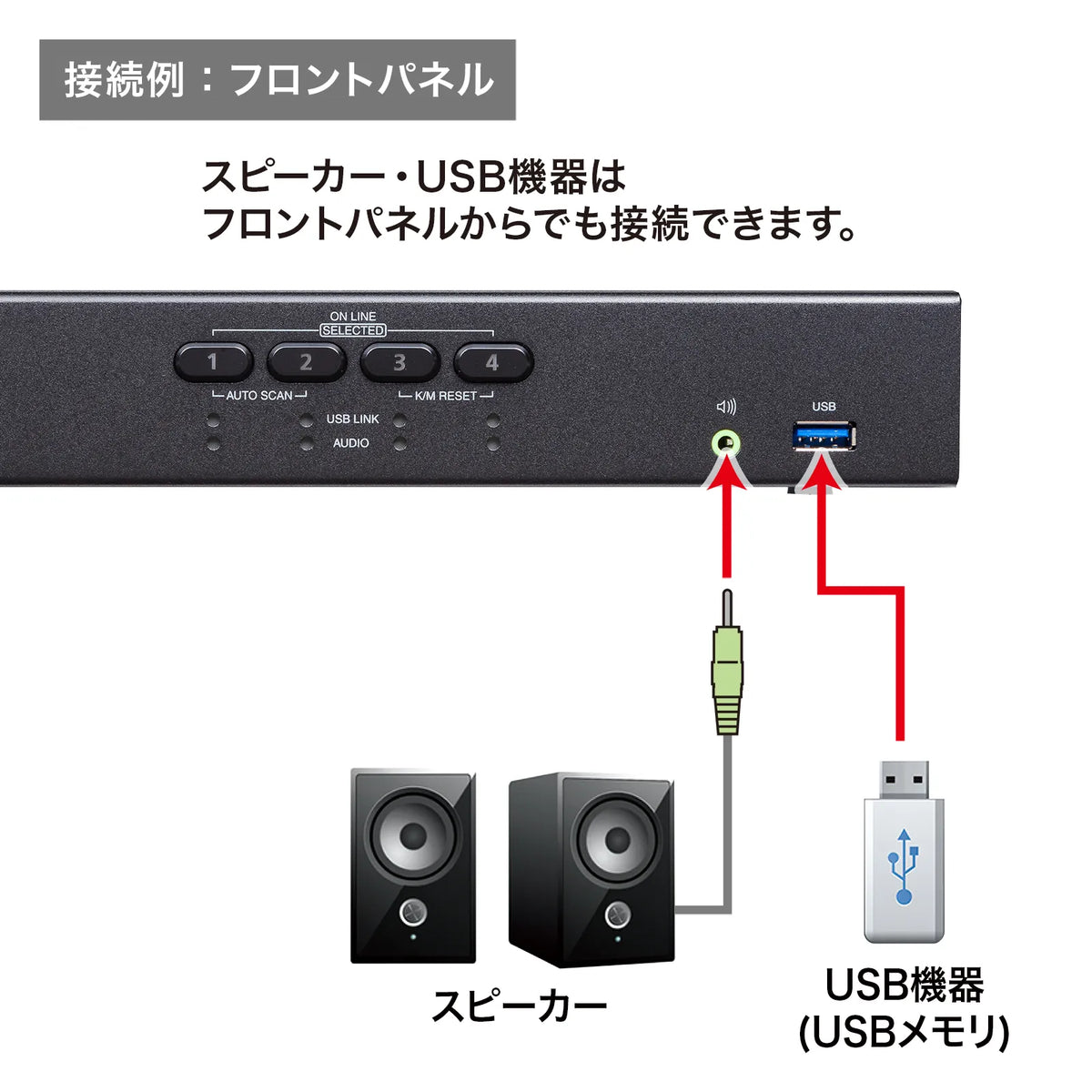

●Speaker sharing is also possible. Independent switching is supported, and the console device and speakers can be switched separately. You can play music from another computer while working on one computer, or check the work status by voice.
●Independent switching of KVM, USB 5Gbps hub, and audio is possible.
●Because the keyboard port is emulated, a full boot is possible without switching ports when restarting (rebooting).
●Supports two switching methods: hotkey and switch button on the unit.

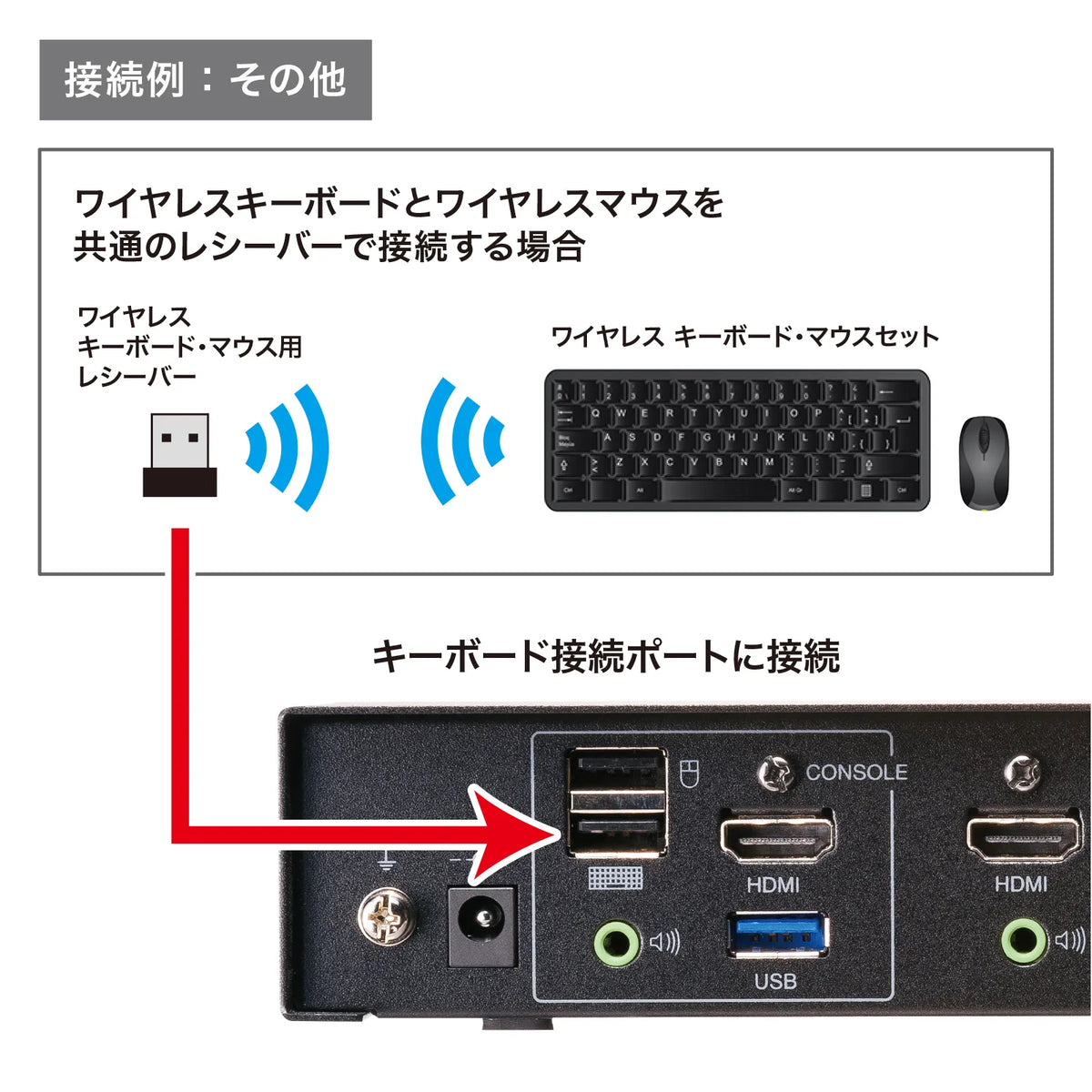

●Only mouse and keyboard can be connected. (HDMI display is used by connecting it directly to the computer)
●Only HDMI can be connected. (Keyboard and mouse are not connected. AC adapter connection is required. Only button switching operation is supported.)
●No software installation is required; all functions can be used just by connecting.
●Equipped with an auto-scan function that can monitor all computers.
●Equipped with an audio mix mode that can mix up to two audio sources and output them simultaneously. You can check system warning sounds and other information even when switching ports.
＜Caution＞
*This product requires the AC adapter to be connected. It will not work when not connected.
*We do not guarantee operation with all PCs, keyboards, and mice.
*Special buttons and function keys on keyboards and mice that require driver installation may not work through this switch.
*One-touch resume/suspend function is not supported.

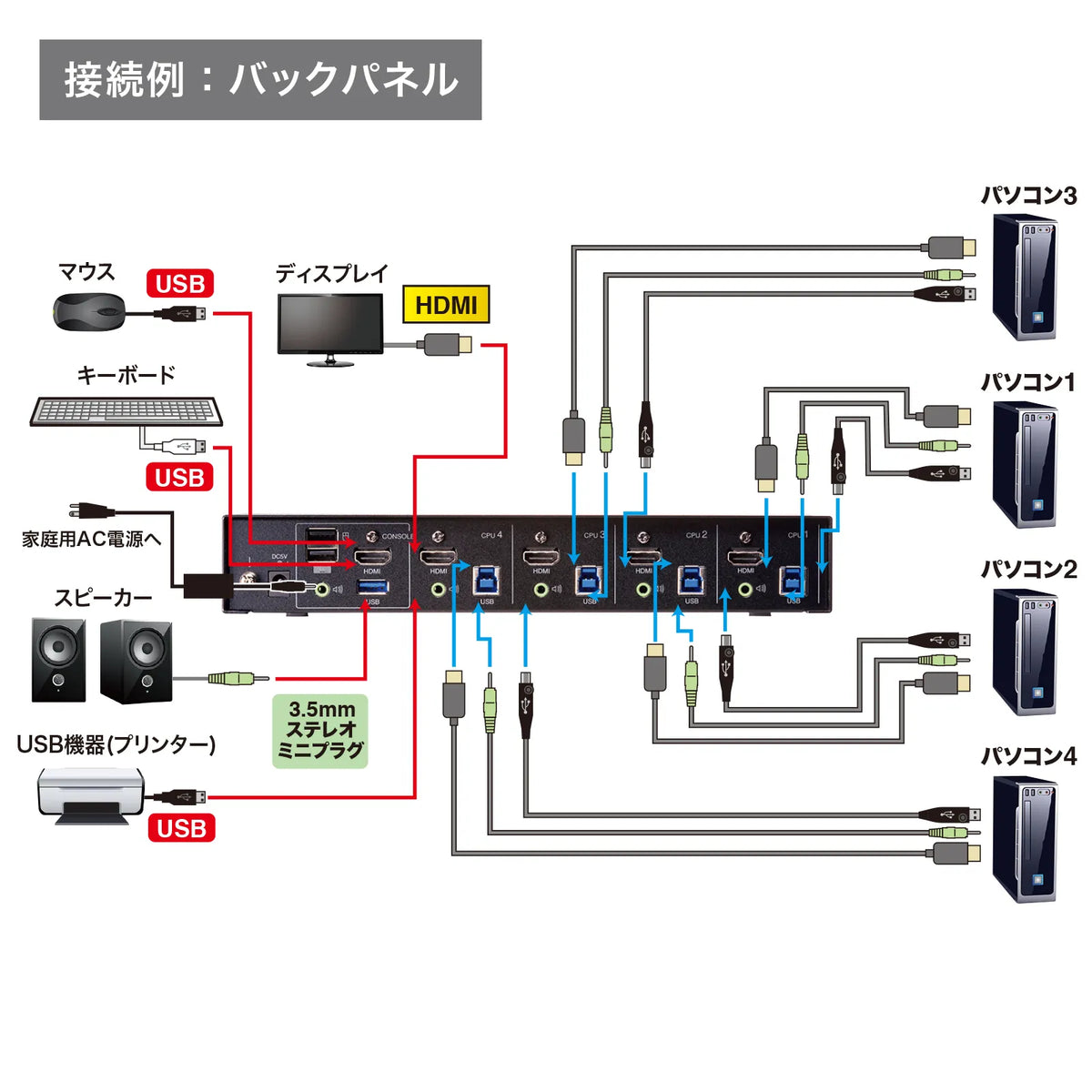

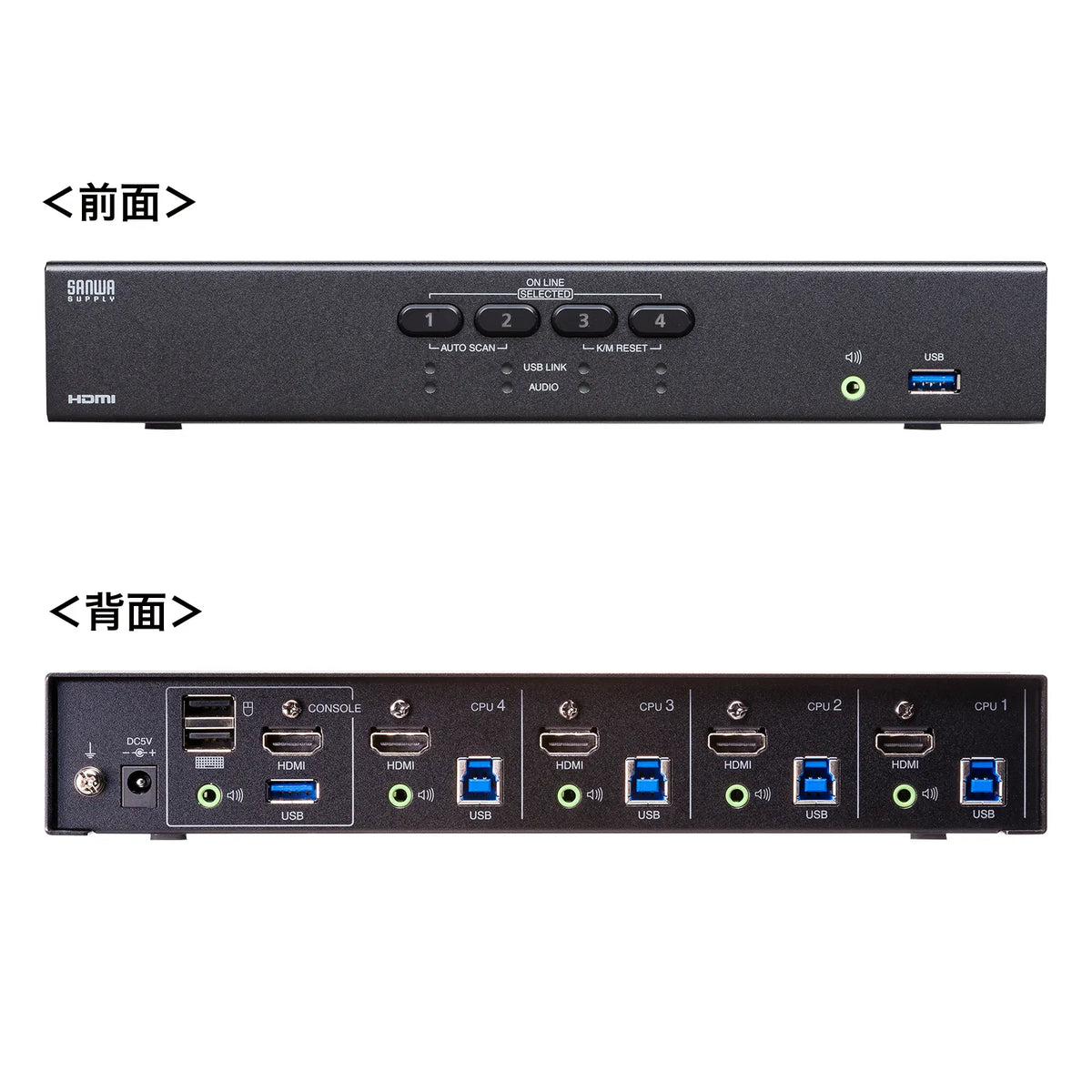

■Interface: (For PC)
Display/HDMI (Type A) female x4
Keyboard, mouse, USB 5Gbps hub/USB B connector female x4
Speaker/3.5mm stereo mini jack x4
(Peripheral side)
Display/HDMI (Type A) female x1
Keyboard/USB A connector female x1
Mouse/USB A connector female x1
Speaker/3.5mm stereo mini jack x2
USB 5Gbps hub/USB A connector female x2
■Switching method: Switching with main unit button, switching with hotkey, switching with auto scan
■Power supply: AC adapter (DC5V 4A)
■Current consumption: 507mA (maximum)
■Environmental conditions:
Operating/Temperature 0 to 40 degrees, humidity 80% or less (non-condensing)
Storage/Temperature -20 to 60 degrees Celsius, humidity 80% or less (no condensation)
■Size: W260 x D76.6 x H42 mm
■Weight: Approx. 856 g
■Cable length: 1.8 m
■Maximum number of connected PCs: 4
■Switching sound: Beep sound ON/OFF setting possible
■Display emulation function: Yes
■Shape: Desktop type
■Video output connector: HDMI

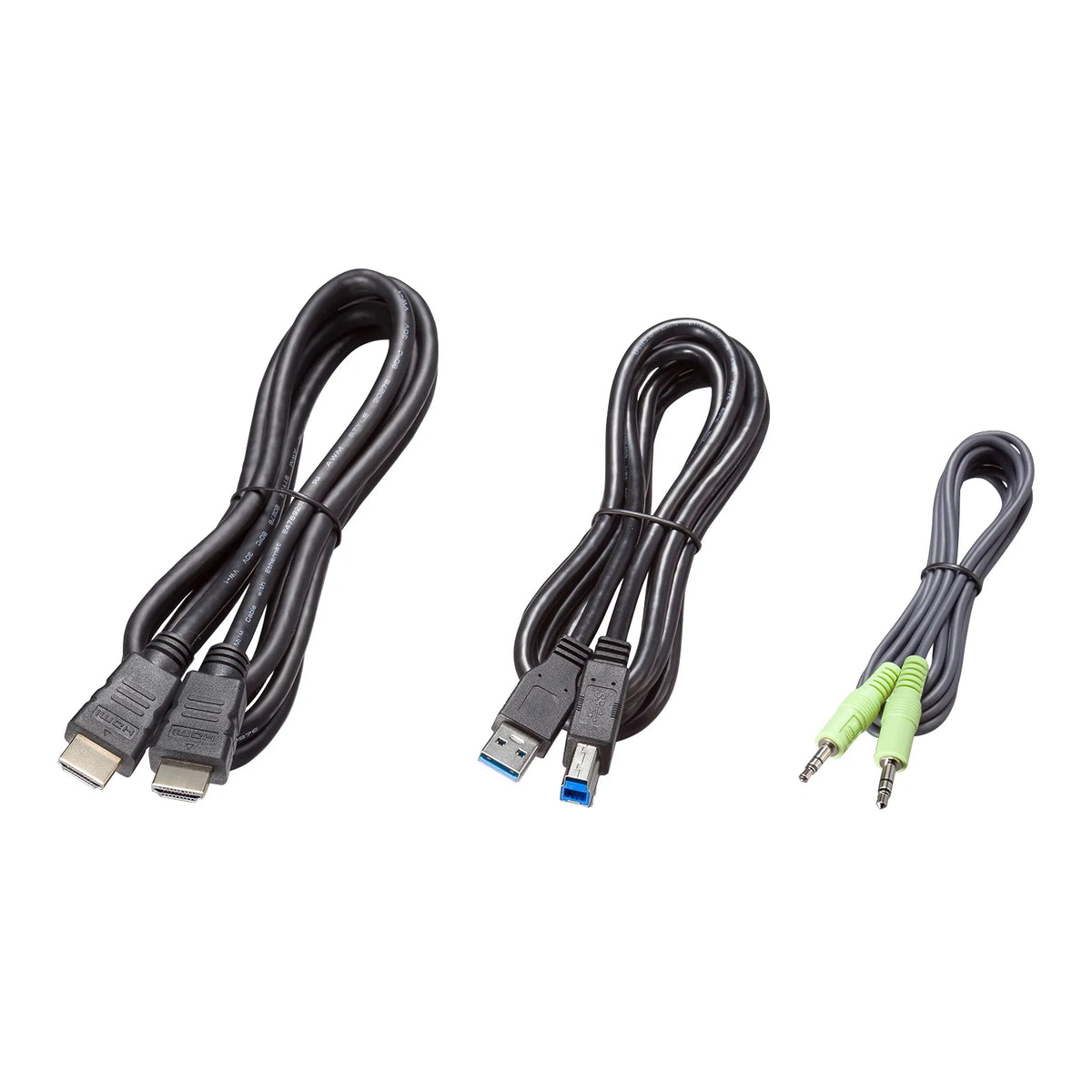

■Set contents: HDMI cable (1.8 m) x 4
USB 5Gbps cable (1.8 m) x 4
Audio cable (1.8 m) x 4

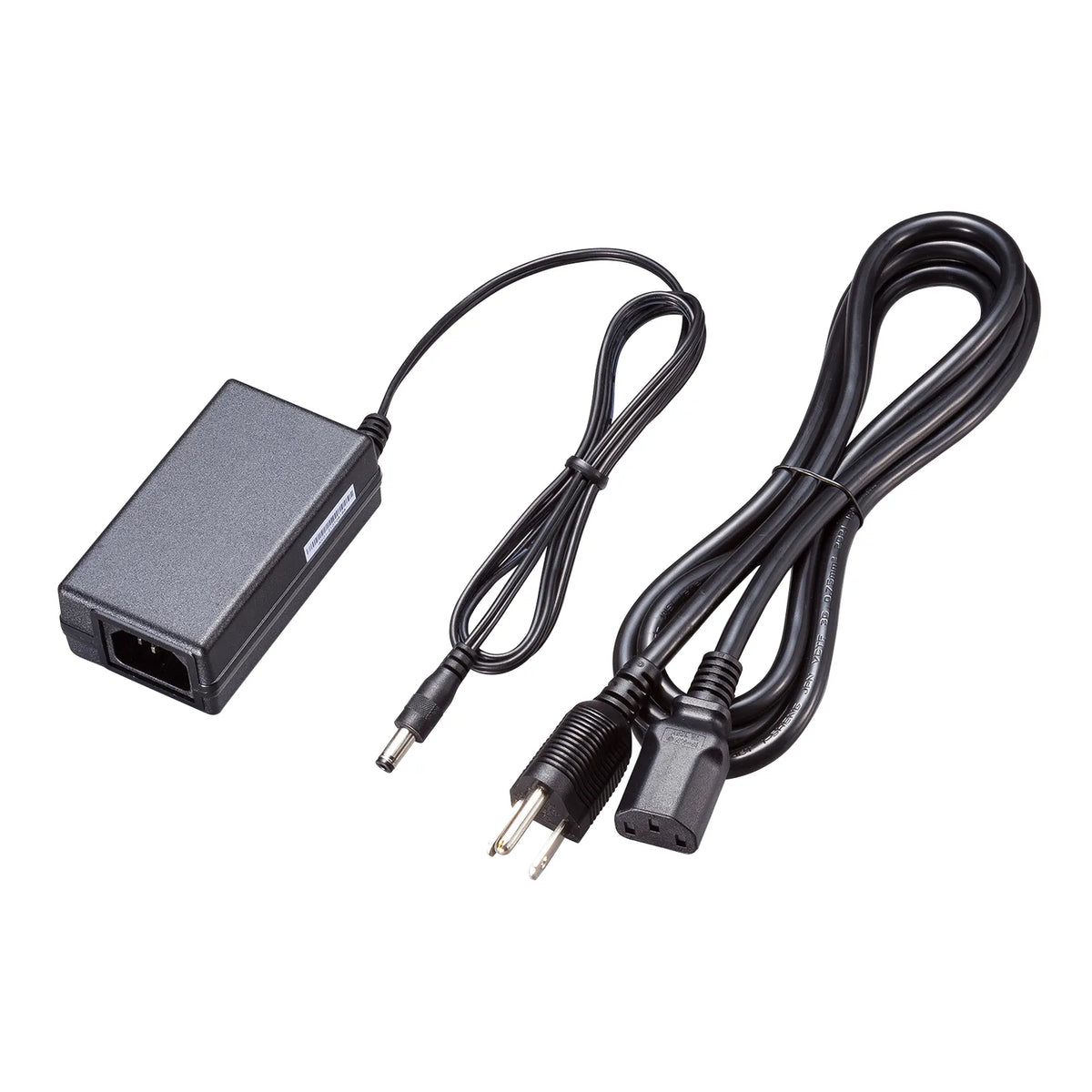

Power adapter (DC5V 4A) x 1
Power cord (1.8 m) x 1
Instruction manual (with warranty)
