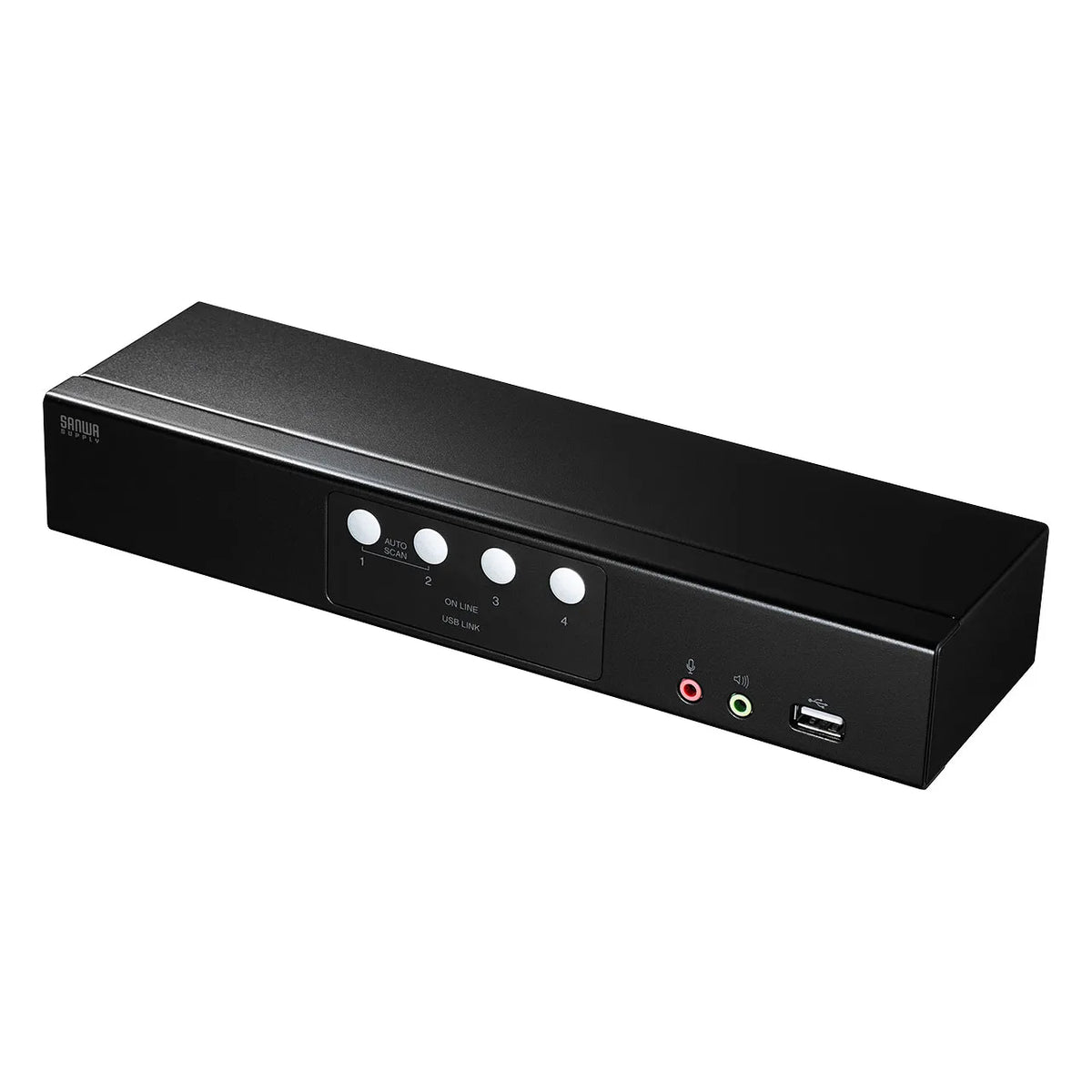

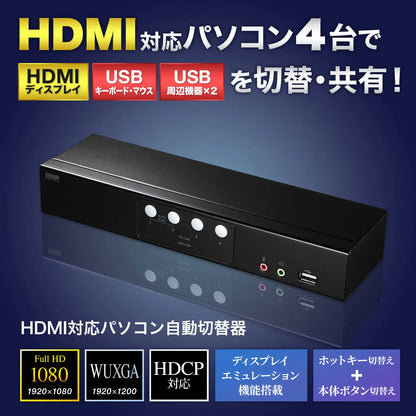

HDMI-compatible automatic PC switch (4:1) SW-KVM4HHC

[An easy-to-use box-type HDMI-KVM that supports HDMI displays, USB keyboards, USB mice, and also features a switchable USB 2.0 hub]

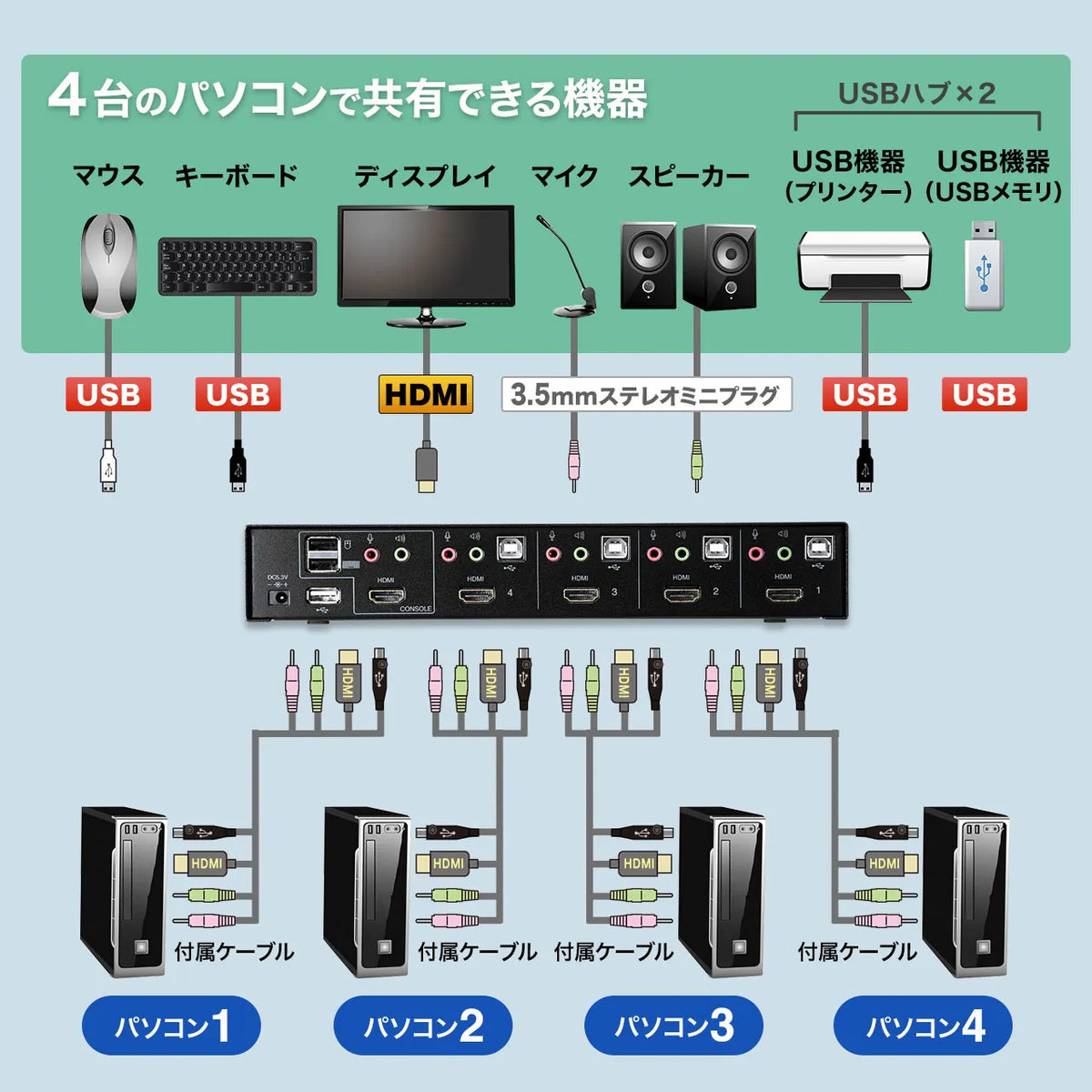

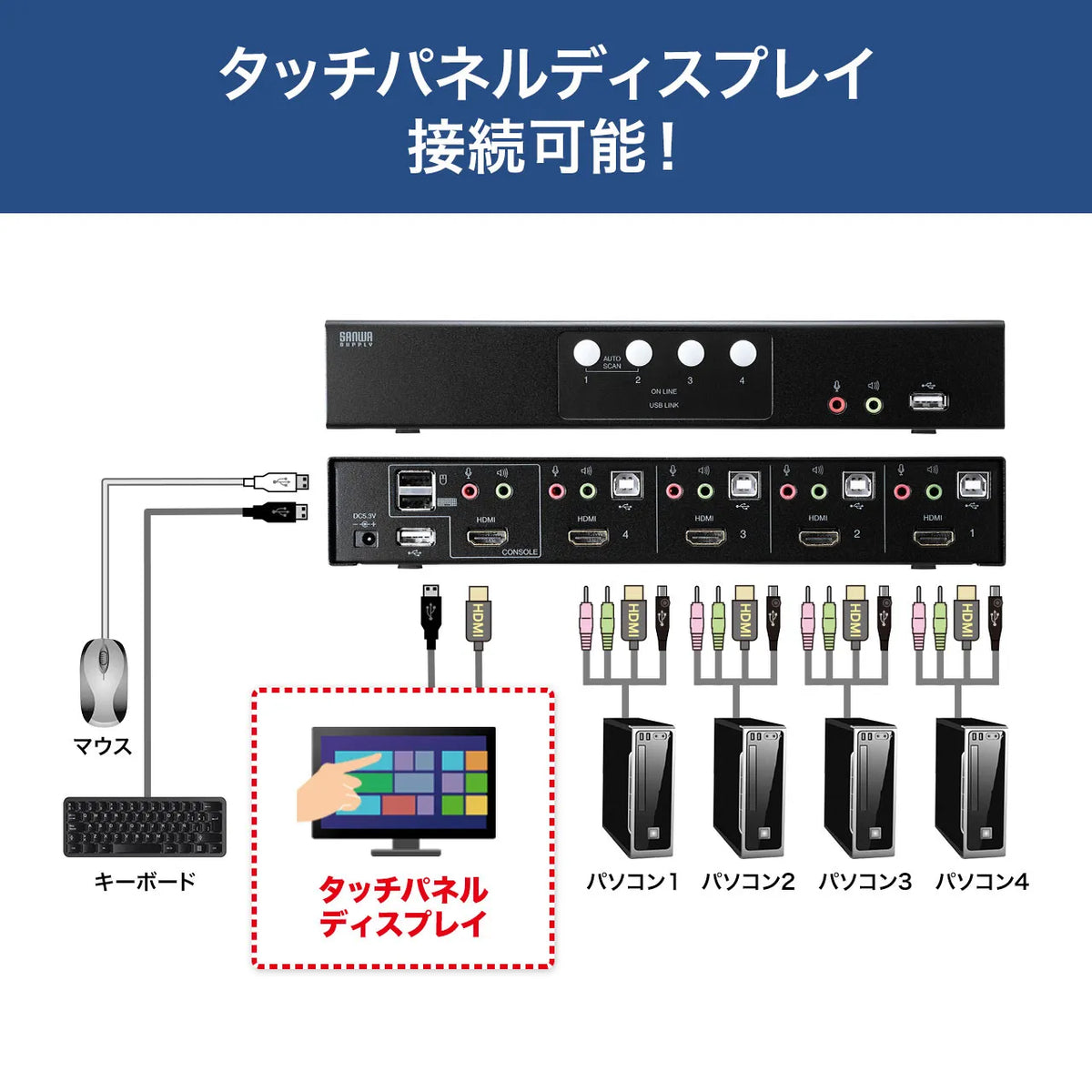

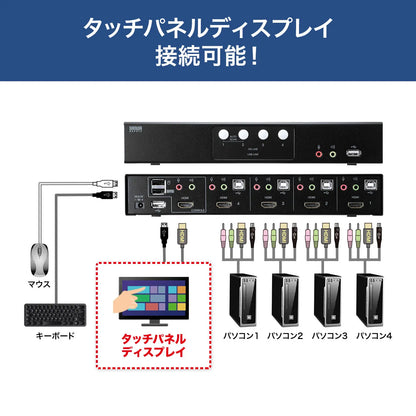

●One set of HDMI displays, USB keyboards, and USB mice can be used to switch between up to four computers.
●HDMI displays support a maximum resolution of 1920x1200 (WUXGA) and 1920x1080 (Full HD), and also support widescreen output.

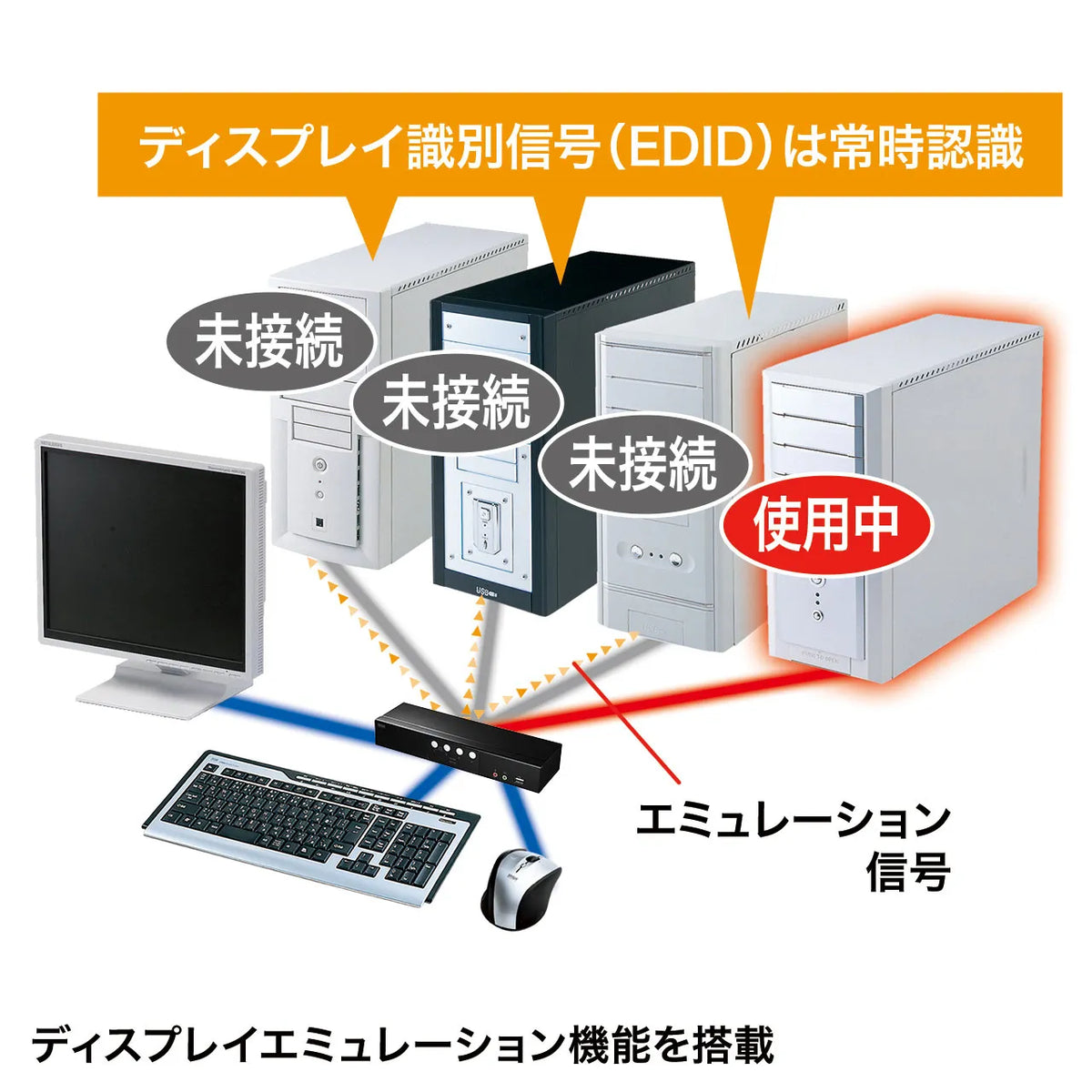

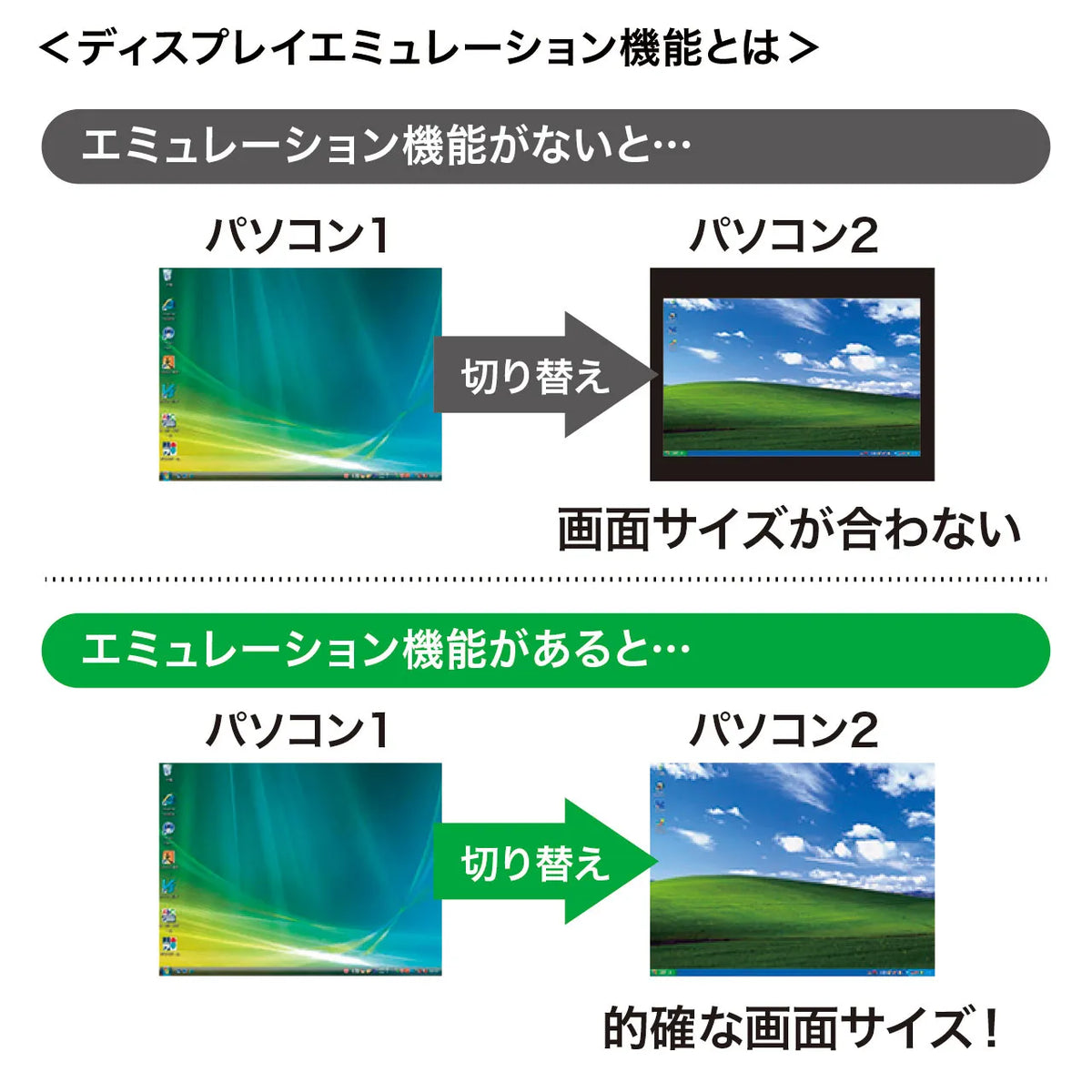

●Equipped with a display emulation function (EDID reading circuit). By reading the EDID of the display and saving it to the KVM switch, and responding to each port during DDC communication, problems such as changes in screen resolution or screen size when the system is powered on in the background are prevented.
●HDCP compatible, so you can play copyrighted videos such as digital terrestrial broadcasts and Blu-ray discs.

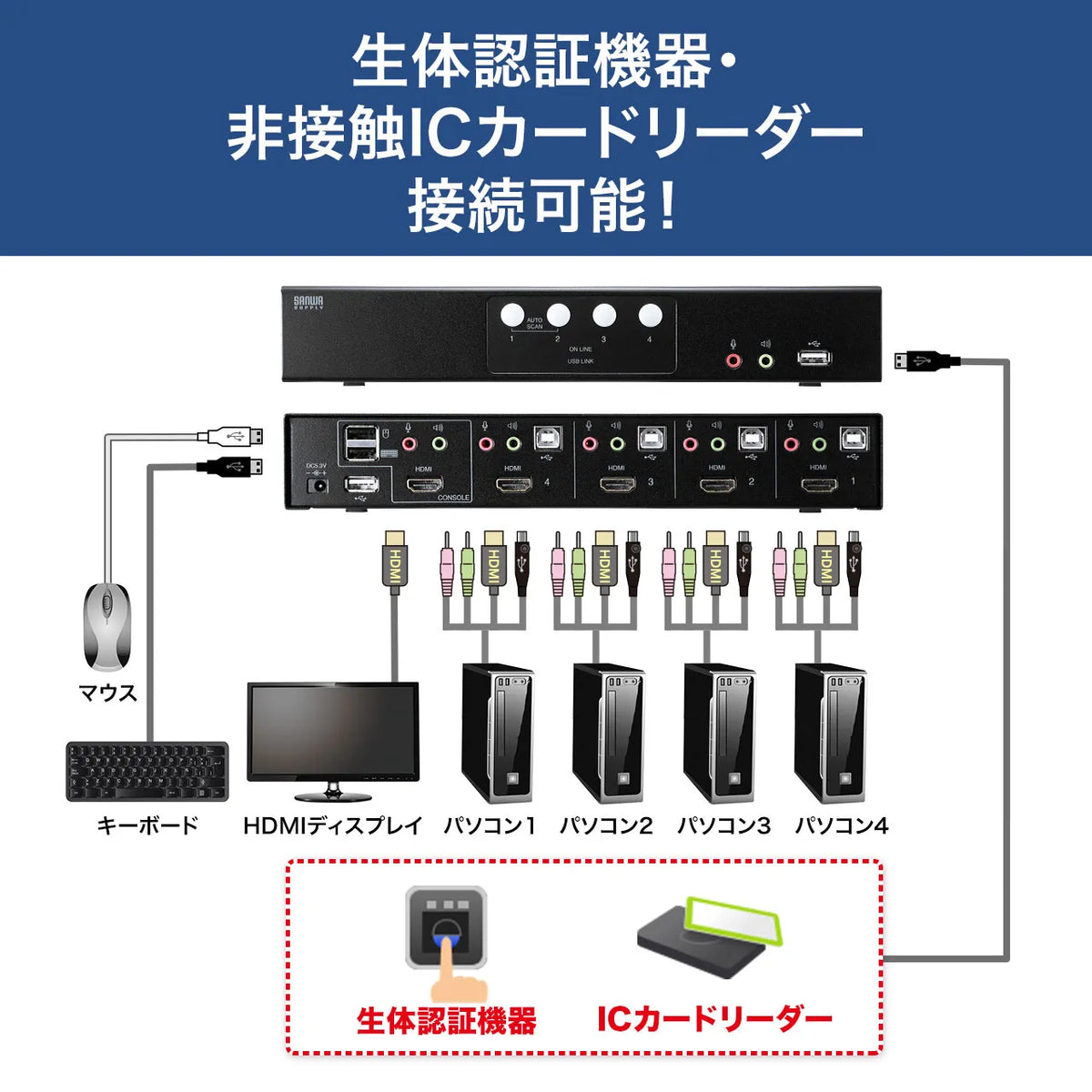

●Equipped with two USB 2.0 hub ports, you can switch and share various USB devices such as USB printers among up to four computers. Furthermore, independent switching is also possible, so you can operate USB devices on one computer while working on another.
●Speaker and microphone sharing is also possible. It also supports independent switching, allowing you to switch the console device and speakers/microphone separately. You can play music from another computer while working on your PC, or check the work status by voice.
●It also has speaker and microphone ports on the front panel. They can be easily connected and disconnected, making them convenient when using IP phones such as Skype.
●Independent switching of KVM, USB 2.0 hub, and audio is possible.
●Because the keyboard port is emulated, it can fully boot up without switching ports when restarting (rebooting).
●Supports two switching methods: hotkeys and a switch button on the unit.
●It is also possible to connect only a mouse and keyboard. (HDMI display is used by connecting it directly to the PC)
●No software installation is required; all functions can be used just by connecting it.
●Equipped with an auto-scan function that can monitor all computers.
＜Caution＞
※This product requires the AC adapter to be connected. It will not work when not connected.
※Operation is not guaranteed for all computers, keyboards, and mice.
*Special buttons and function keys on the keyboard and mouse that require driver installation may not work through this switch.
*One-touch resume/suspend functionality is not supported.

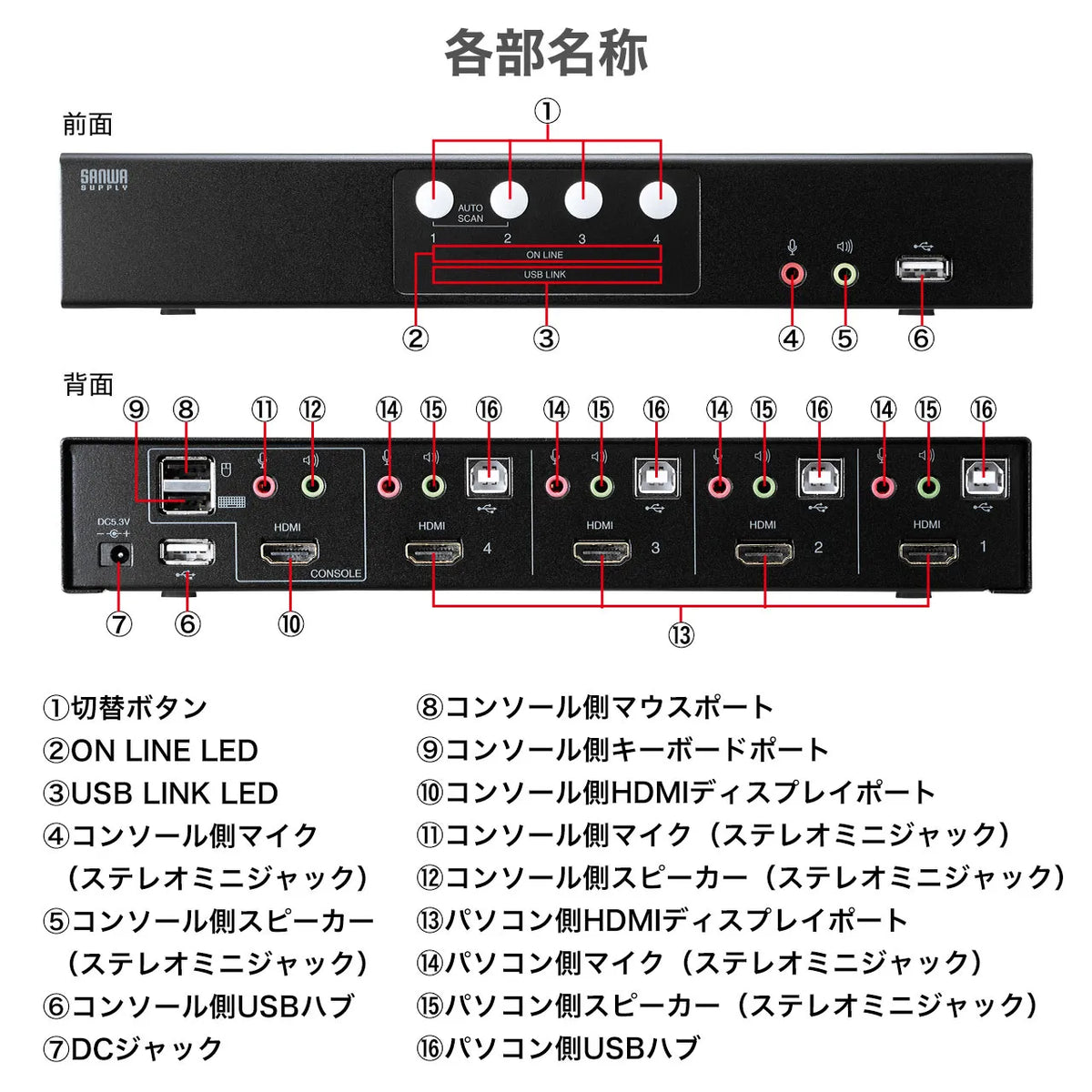

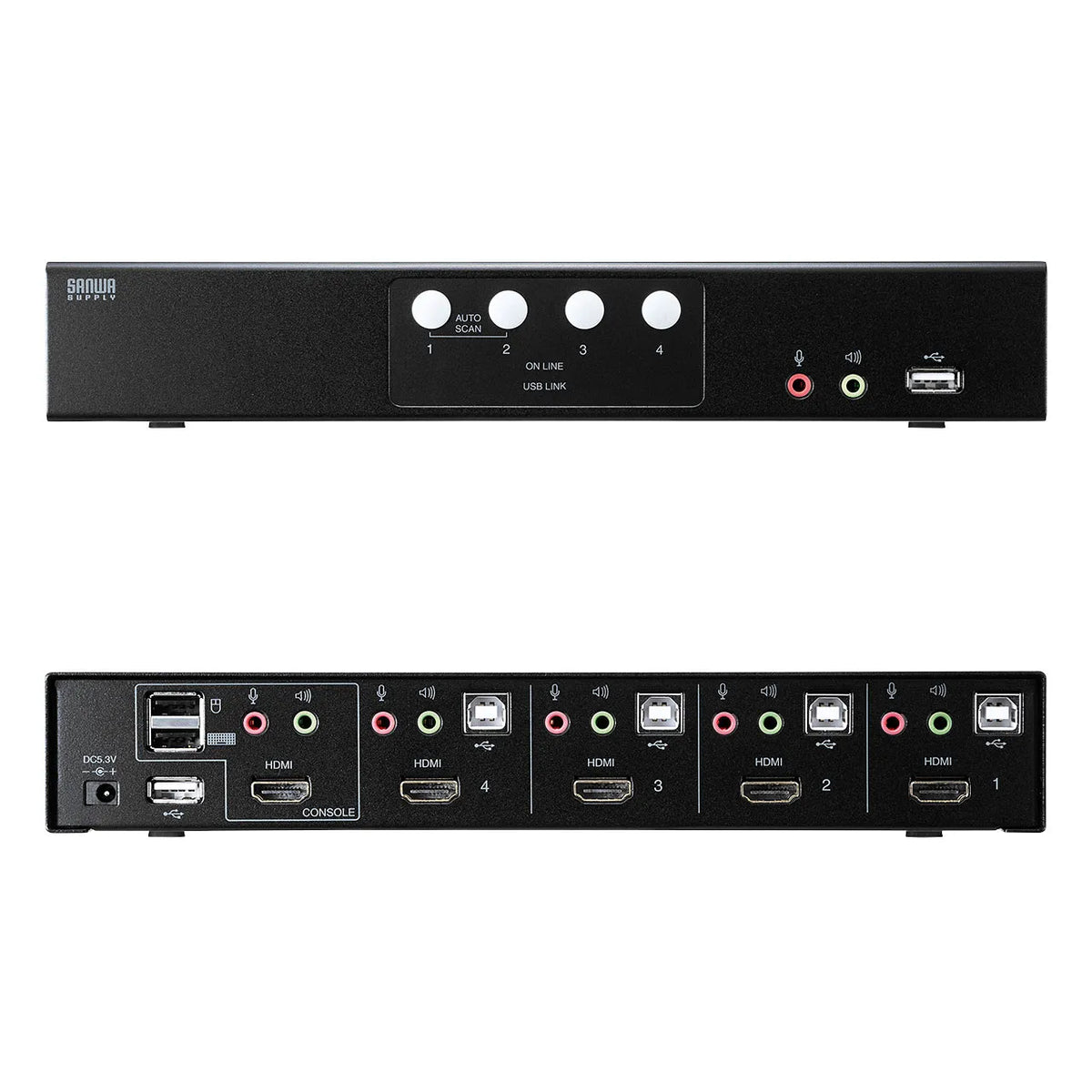

■Interface:
(For PC)
Display/HDMI (Type A) female x4
Keyboard/Mouse/USB2.0 hub/USB B connector female x4
Speaker/3.5mm stereo mini jack x4
Microphone/3.5mm stereo mini jack x4
(For console)
Display/HDMI (Type A) female x1
Keyboard/USB A connector female x1
Mouse/USB A connector female x1
Speaker/3.5mm stereo mini jack x2
Microphone/3.5mm stereo mini jack x2
USB2.0 hub/USB A connector female x2
■Switching method: Switching with main unit button, switching with hotkey, switching with auto scan
■Switching sound: Beep sound ON/OFF setting possible

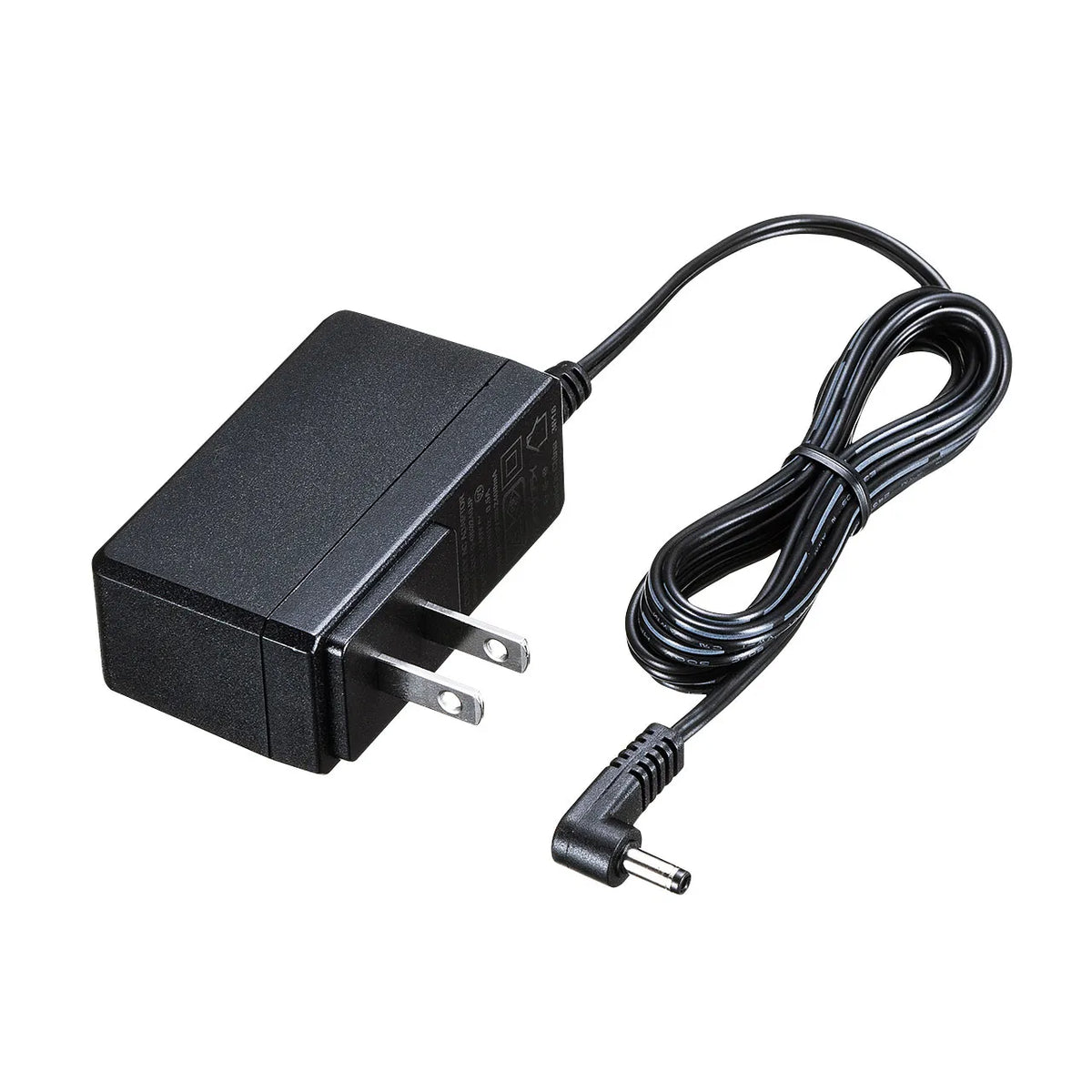

■Power supply: AC adapter (DC5.3V 2.4A)
■Current consumption: 0.69A (maximum)
■Operating temperature and humidity: 0 to 50 degrees Humidity 85% or less (no condensation)
■Storage temperature and humidity: -20°C to 60°C, humidity 90% or less (no condensation)
■Size: W260 x D74.5 x H42mm
■Weight: 841g

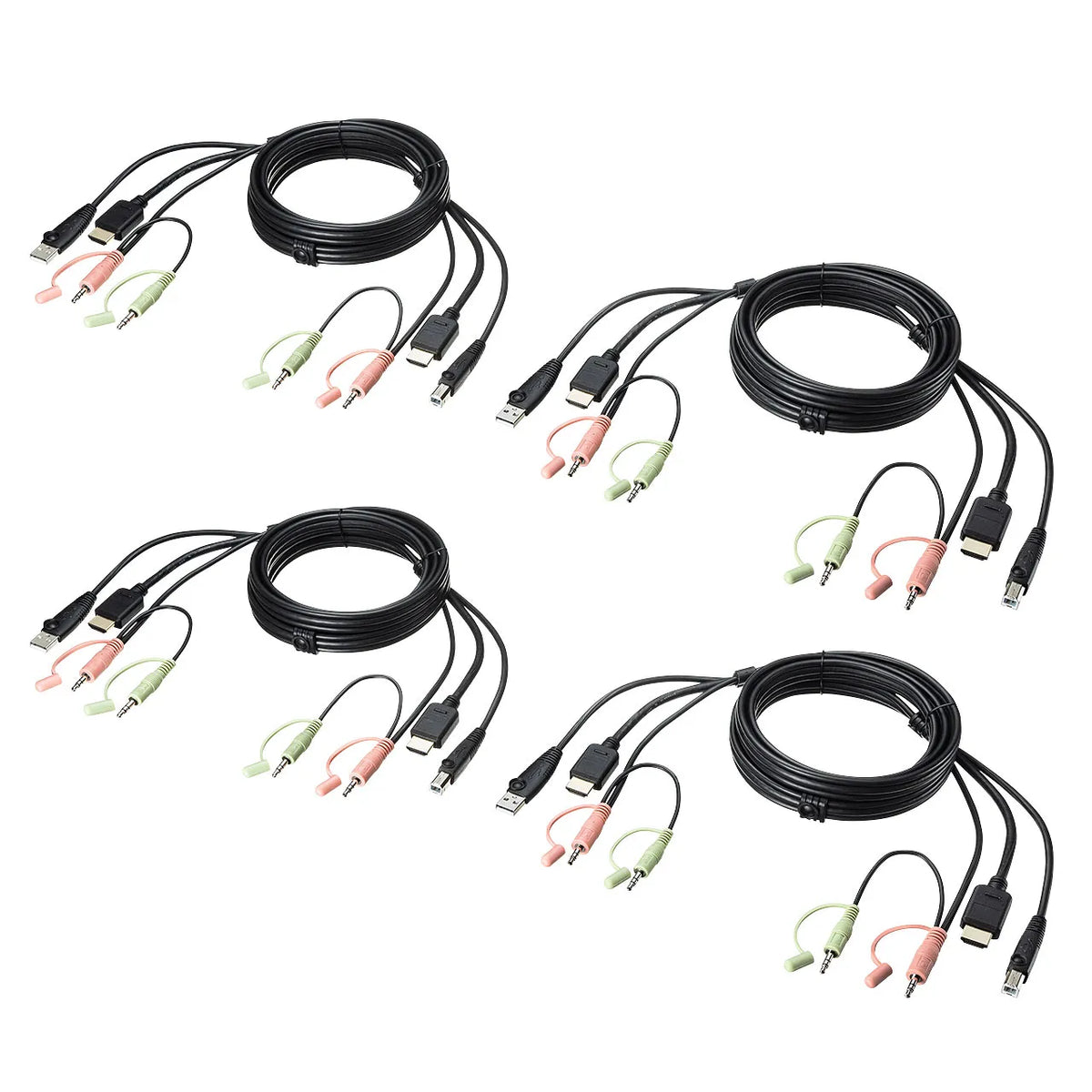

■Accessories: PC connection cable (1.8m) x4, AC adapter (DC5.3V 2.4A) x1, instruction manual (with warranty)
