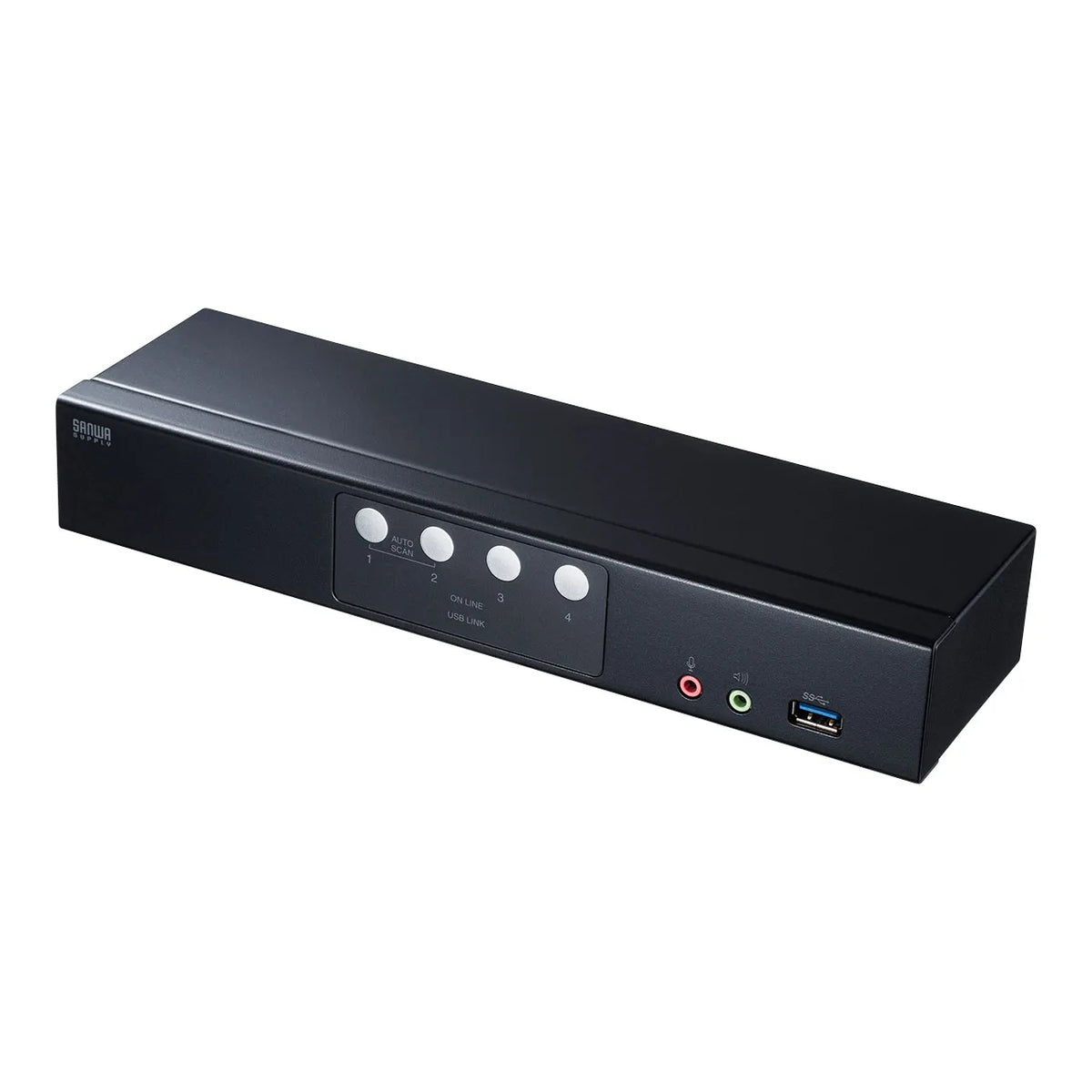

DisplayPort compatible KVM switch (4:1) SW-KVM4HDPU

[An easy-to-use automatic PC switch that supports DisplayPort displays, USB keyboards, USB mice, and also allows switching between USB 3.1 (3.0) hubs]

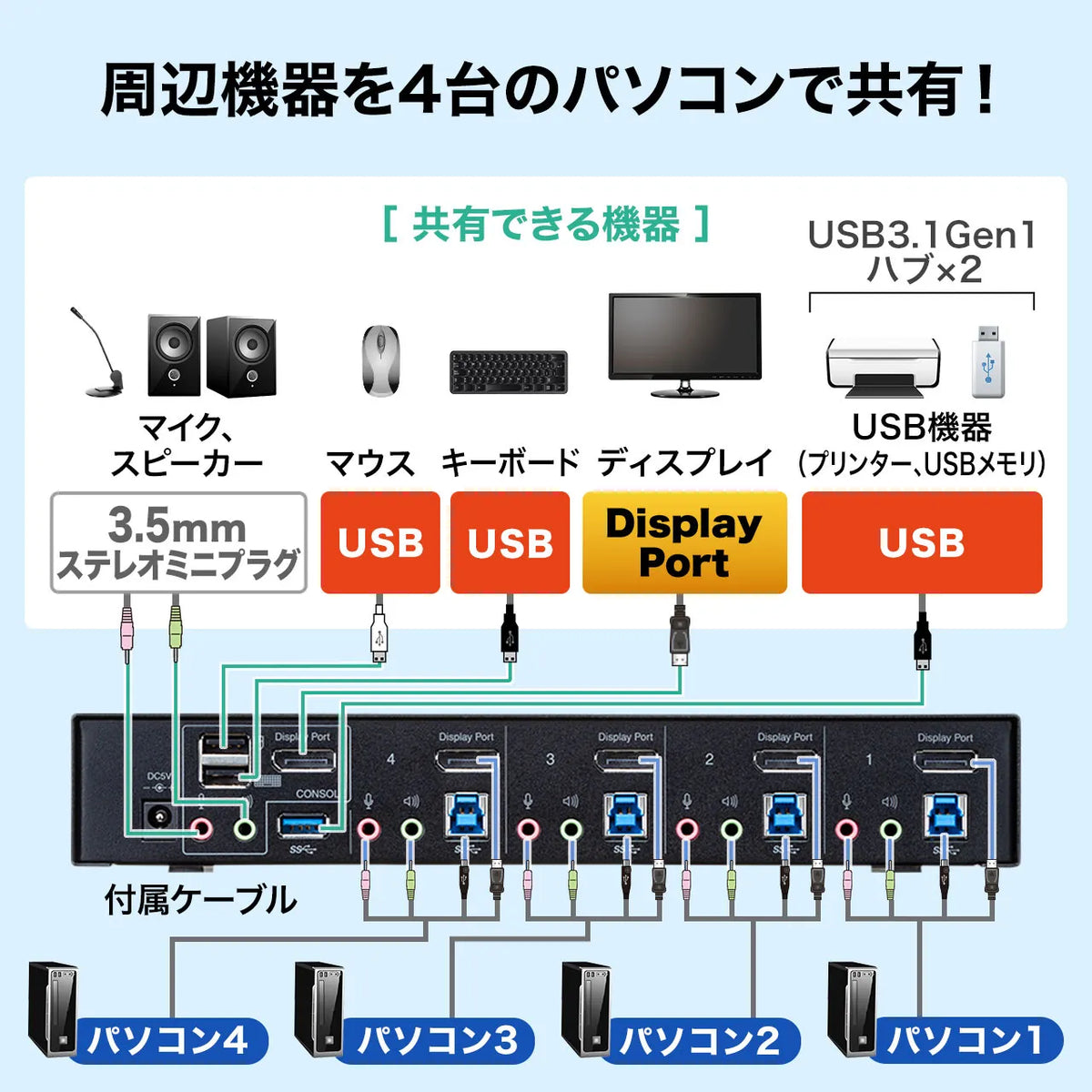

● You can switch between up to four PCs using one set of DisplayPort display, USB keyboard, and USB mouse.
● Supports a maximum resolution of 4K/3840x2160 (60Hz, 4:4:4) and 4K/4096x2160 (60Hz, 4:4:4). It also supports 1920x1200 (WUXGA) and 1920x1080 (Full HD), and supports widescreen output.
● HDCP compatible, so you can play copyrighted video such as terrestrial digital broadcasts and Blu-ray discs.

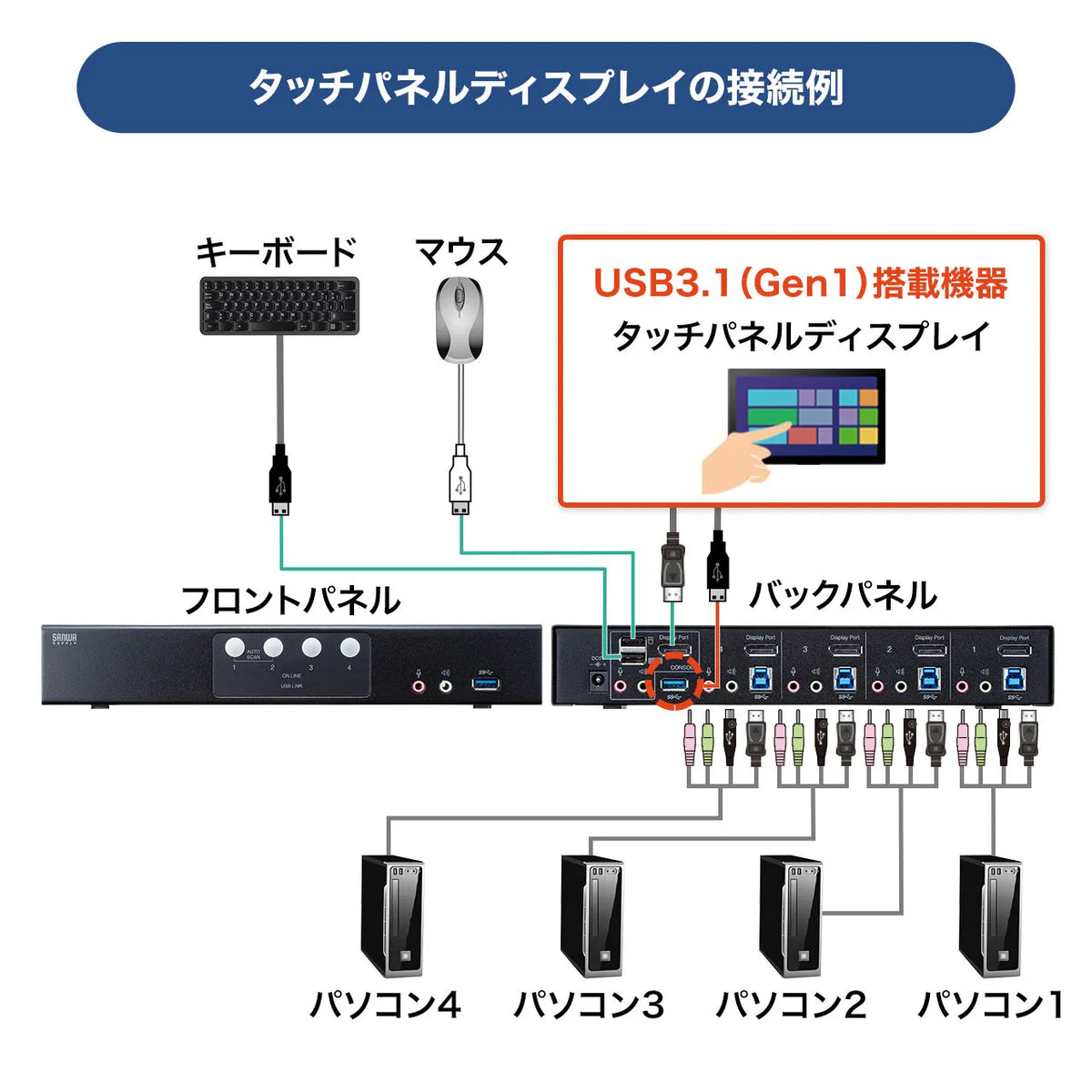

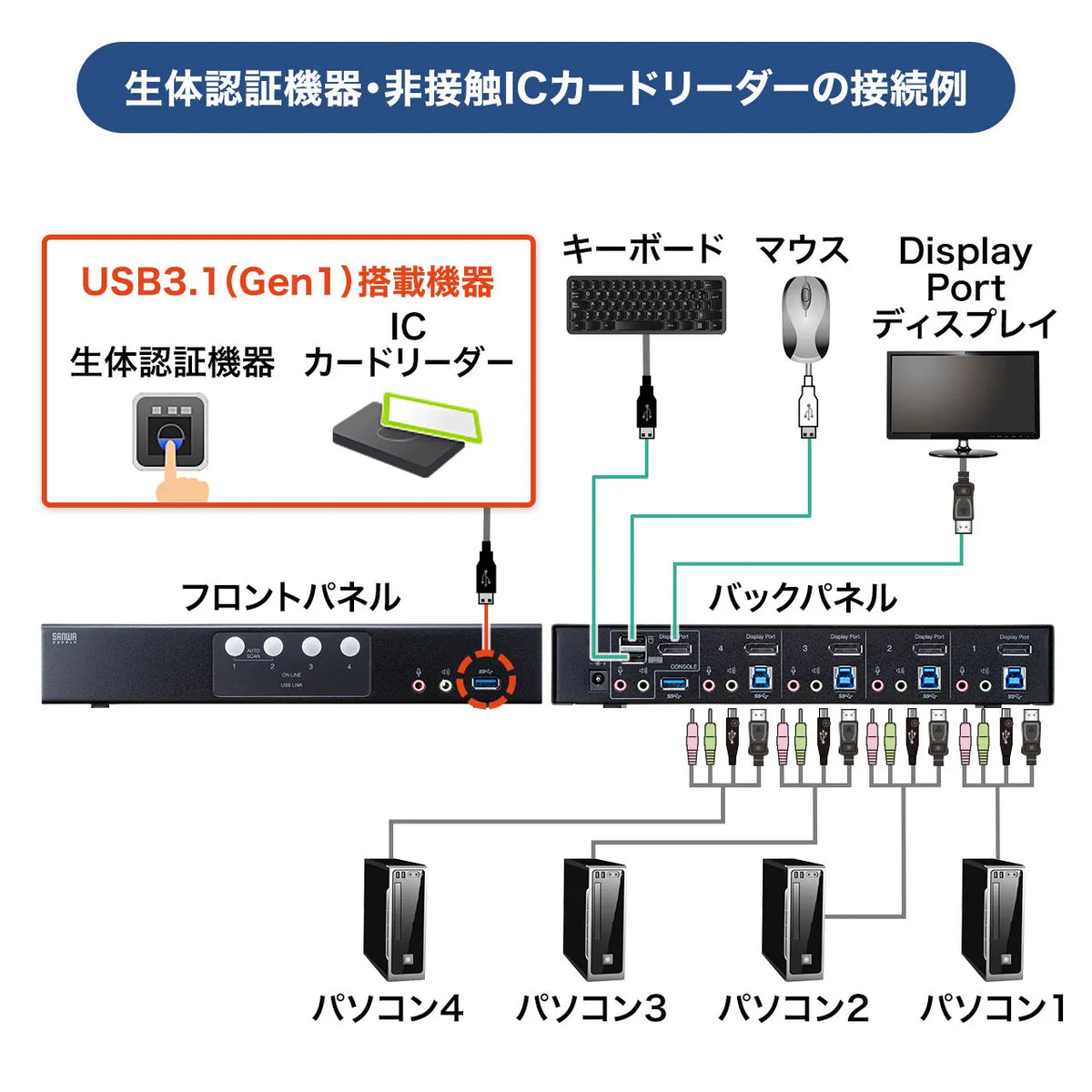

● Equipped with two USB 5Gbps compatible hubs, you can switch and share various USB devices such as USB 5Gbps compatible devices between two PCs. Furthermore, independent switching is also possible, so you can operate USB devices on one PC while working on another PC.
●Speaker and microphone sharing is possible. Independent switching is also supported, allowing you to switch the console device and speakers/microphone separately. You can play music from another computer while working on your computer, or check the work status by voice.

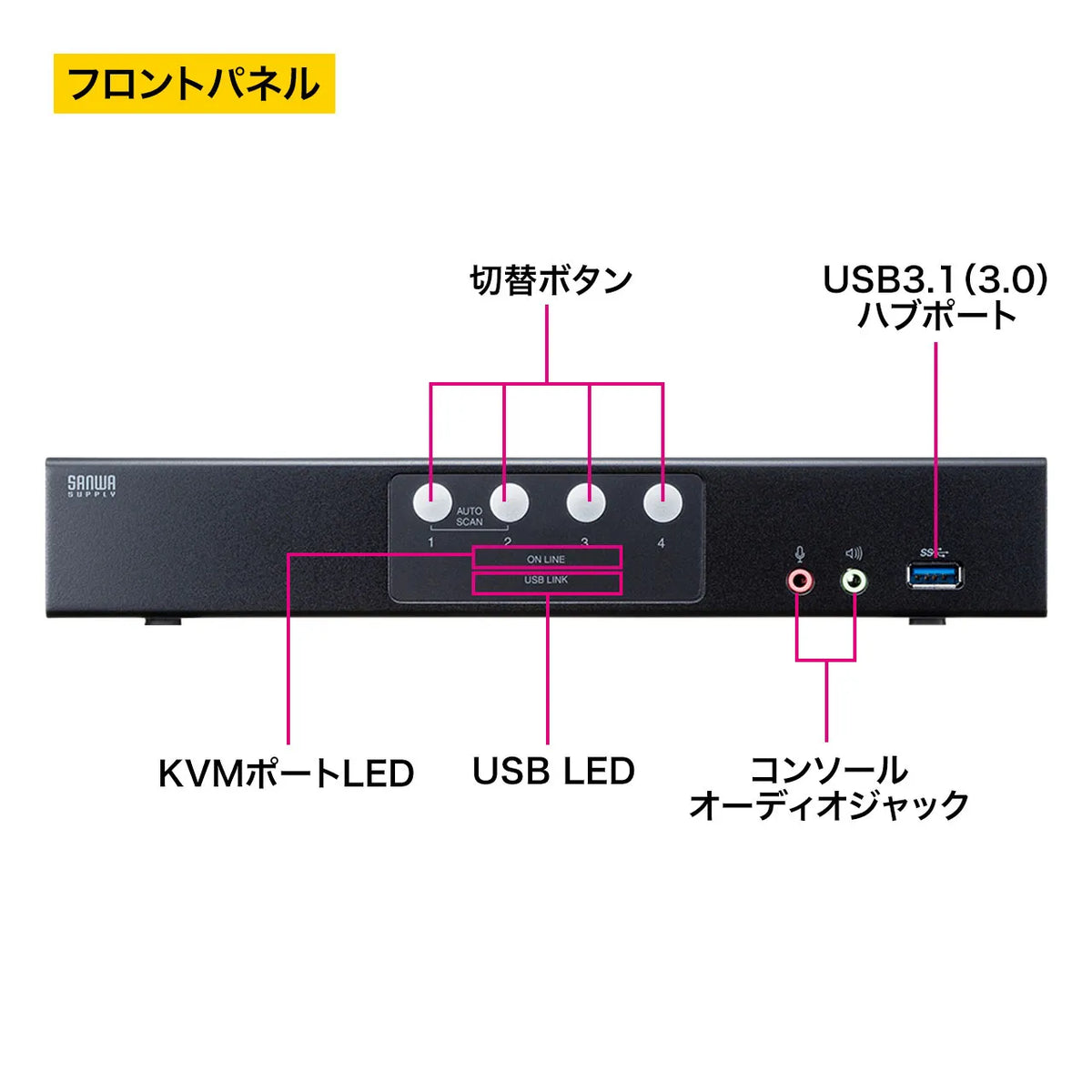

●Speaker and microphone ports are also located on the front panel. They can be easily connected and disconnected, making them convenient when using IP phones such as Skype.
●Independent switching of KVM, USB 5Gbps hub, and audio is possible.
●Because the keyboard port is emulated, a full boot is possible without switching ports when restarting (rebooting).
●Supports two switching methods: hotkeys and a switch button on the unit.
●Only mouse and keyboard can be connected. (DisplayPort displays are used by connecting them directly to the computer)
●No software installation is required; all functions can be used simply by connecting.
●Equipped with an auto-scan function that allows you to monitor all computers.
＜Caution＞
※The USB hub port on the keyboard cannot be used via this product. Functions that require drivers, such as special buttons on the keyboard, cannot be used via this product.
* May not work with keyboards with fingerprint authentication or trackpads.
* Not compatible with Bluetooth keyboards or mice.
* Keyboards with N-key rollover functionality, such as gaming keyboards, are not supported.
* This product requires an AC adapter connection. It will not work when not connected.
* Operation is not guaranteed with all computers, keyboards, and mice.
* Special buttons and function keys on keyboards and mice that require driver installation may not work via this switch.
* Resume/suspend functionality via one-touch buttons is not supported.

■Main supported resolutions:
4096x2160 (60Hz, 4:4:4)
4096x2160 (60Hz, 4:2:0)
3840x2160 (60Hz, 4:4:4)
3840x2160 (60Hz, 4:2:0)
1920x1200 (60Hz)
1920x1080 (60Hz)

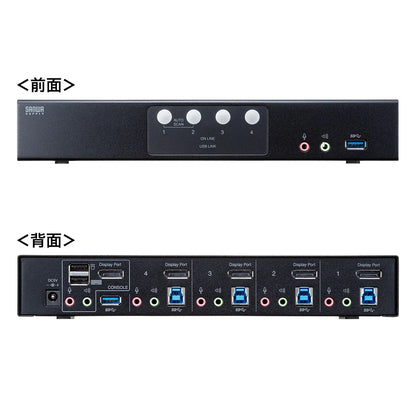

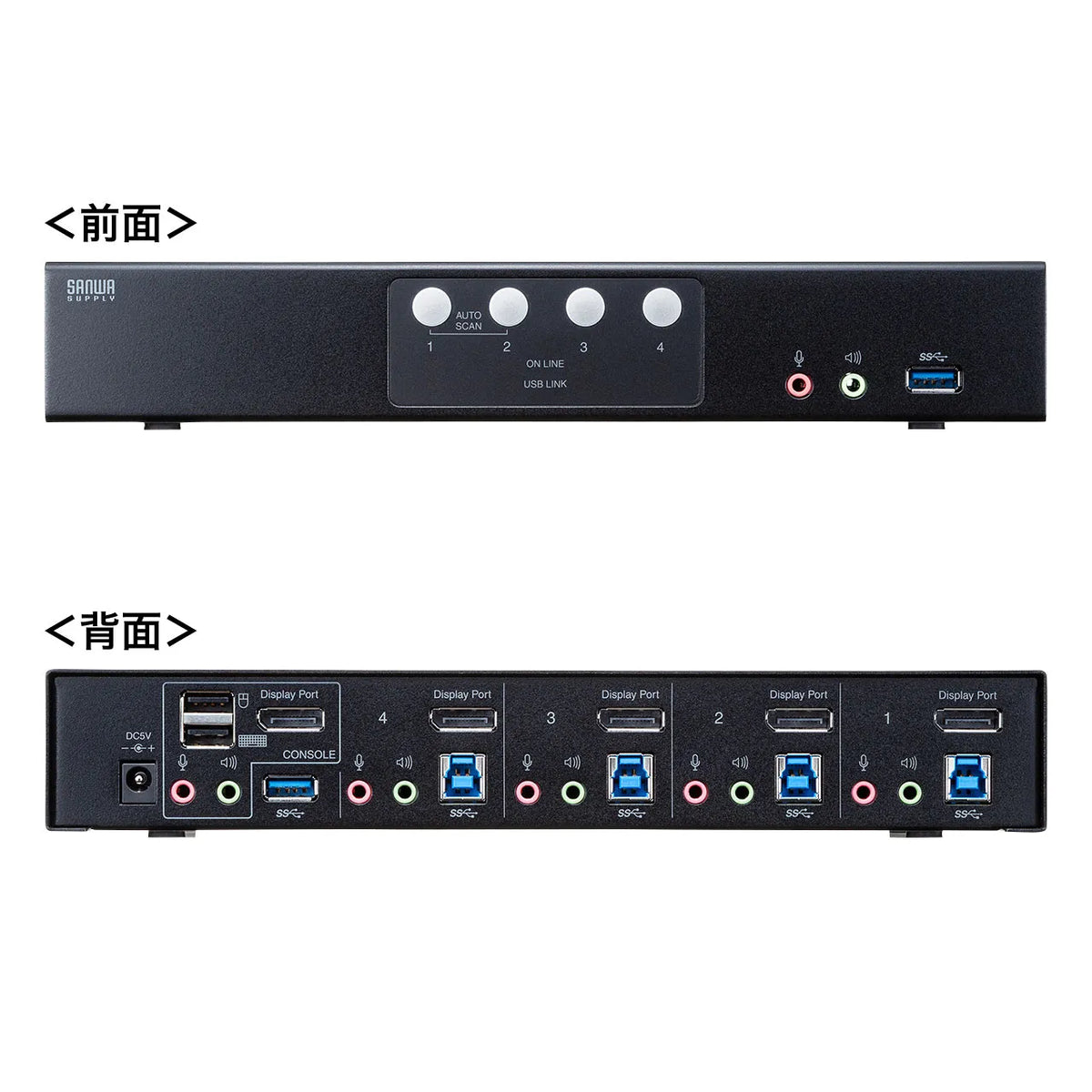

■Interface: (For PC)
Display/DisplayPort (Type A) female x4
Keyboard, mouse, USB 5Gbps hub/USB B connector female x4
Speakers/3.5mm stereo mini jack x4
Microphone/3.5mm stereo mini jack x4
(For console)
Display/DisplayPort (Type A) female x1
Keyboard/USB A connector female x1
Mouse/USB A connector female x1
Speaker/3.5mm stereo mini jack x2
Microphone/3.5mm stereo mini jack x2
USB 5Gbps hub/USB A connector female x2

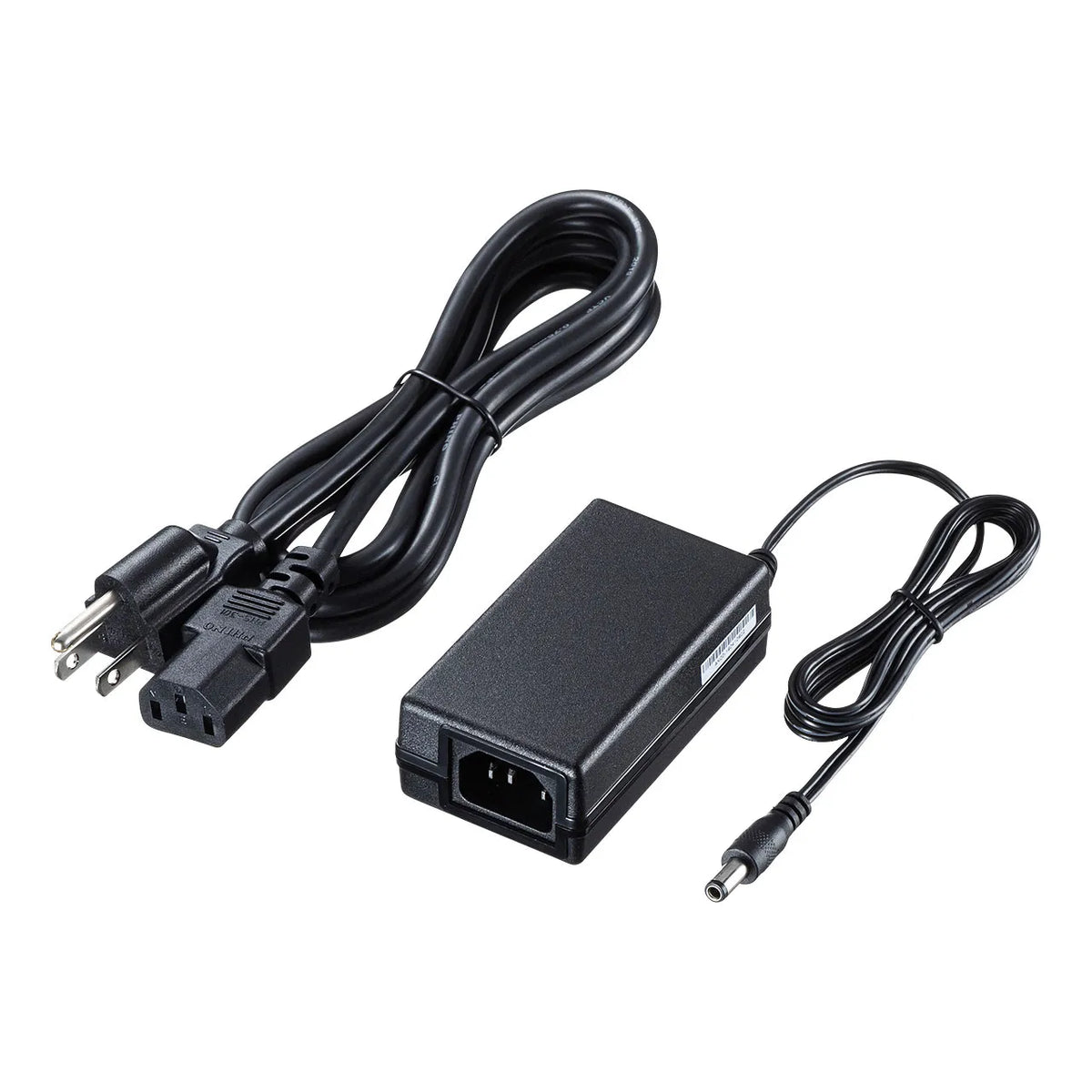

■Power supply: AC adapter (DC5V 4A)
■Current consumption: 460mA
■Switching method: Switching with main unit button, switching with hotkey, switching with auto scan
■Switching sound: Beep sound ON/OFF setting possible
■Operating temperature and humidity: 0 to 50 degrees Celsius, humidity 80% or less (non-condensing)
■Storage temperature and humidity: -20 to 60 degrees Celsius, humidity 80% or less (non-condensing)
■Maximum number of connected PCs: 4
■Dimensions: W260.3 x D74.7 x H42.9mm
■Weight: 851g

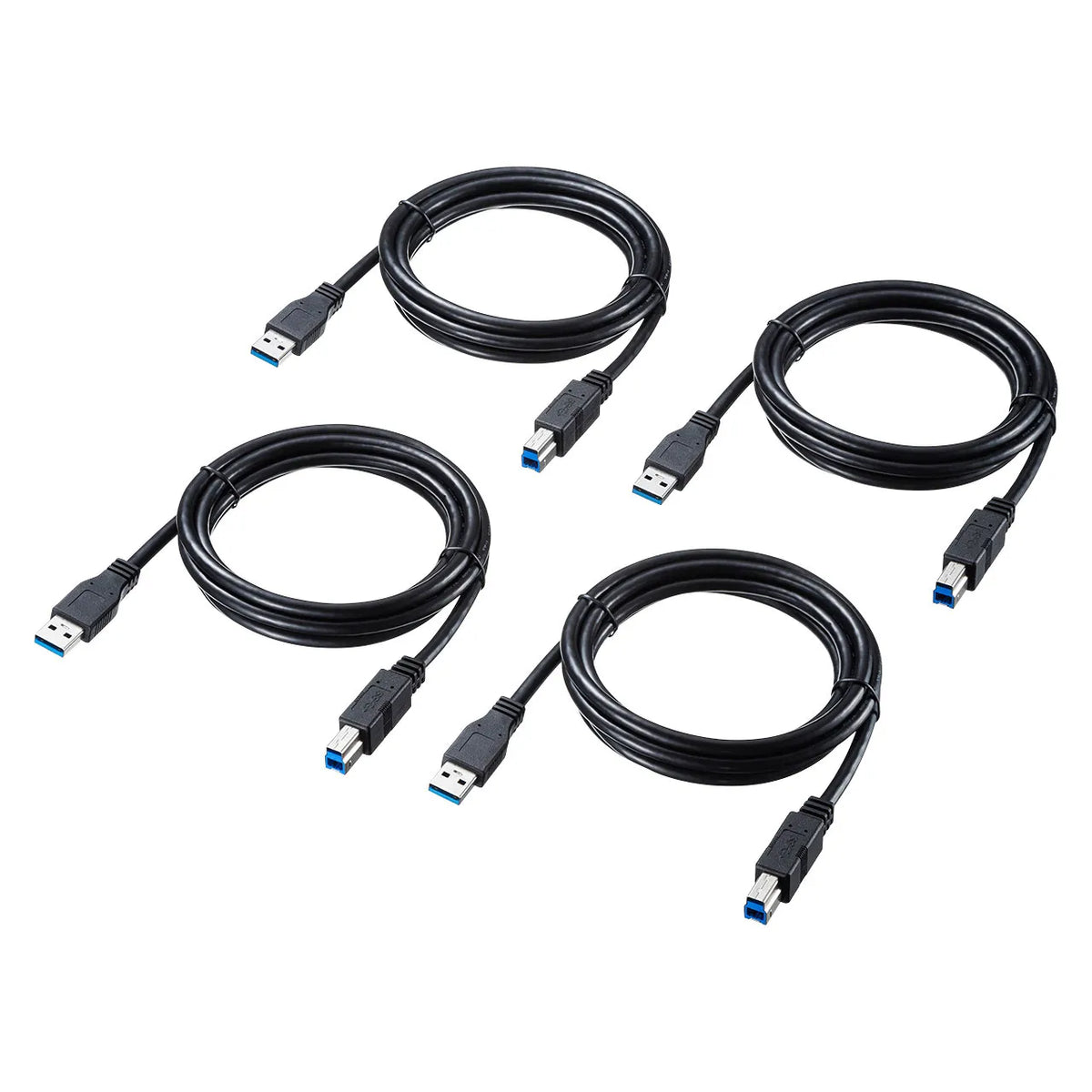

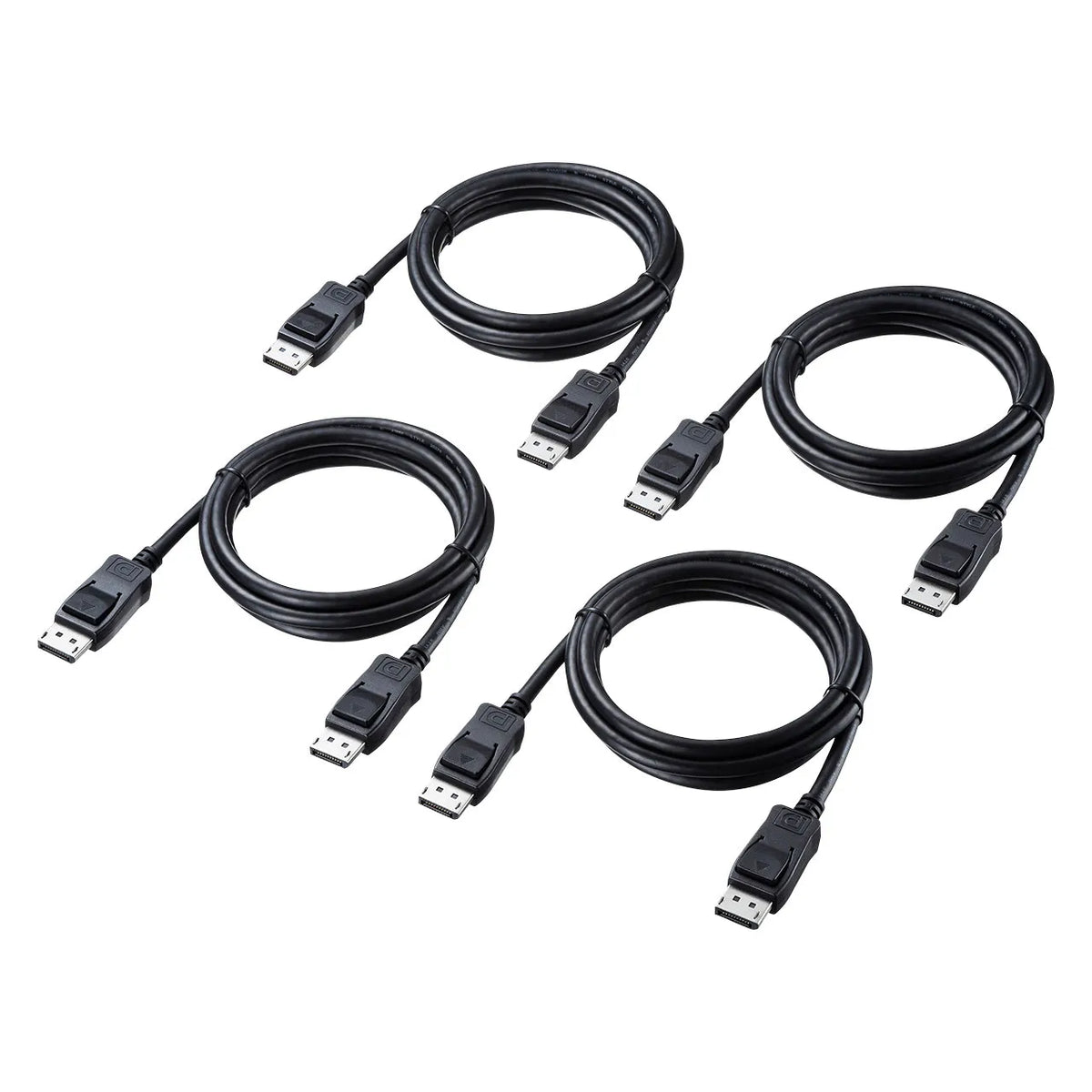

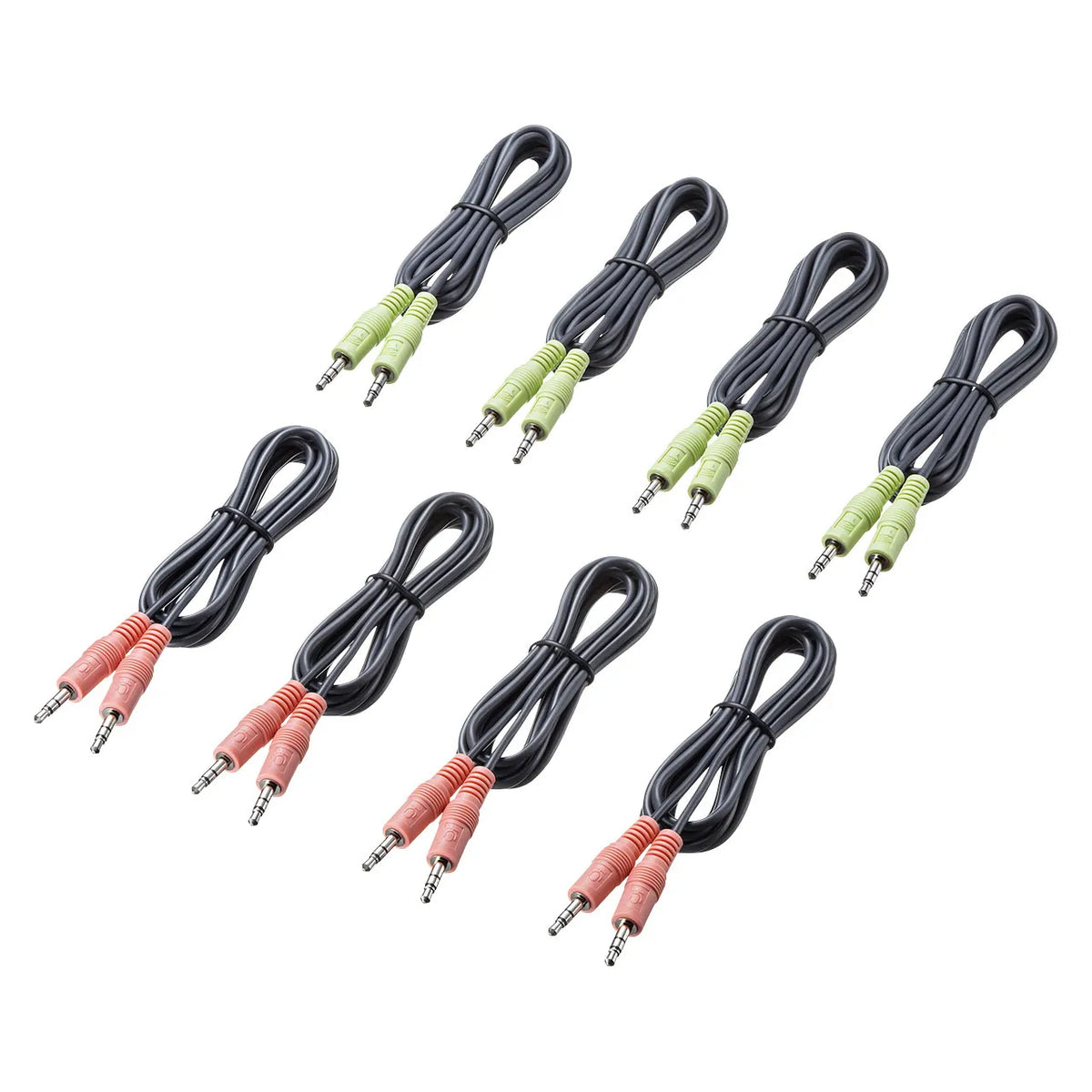

■Accessories: DisplayPort cable (1.5m) x4, USB Includes: 4 x 5Gbps cables (1.8m), 4 x audio cables (1.8m), 4 x microphone cables (1.8m), 1 x AC adapter, 1 x power cord, and instruction manual (with warranty).
