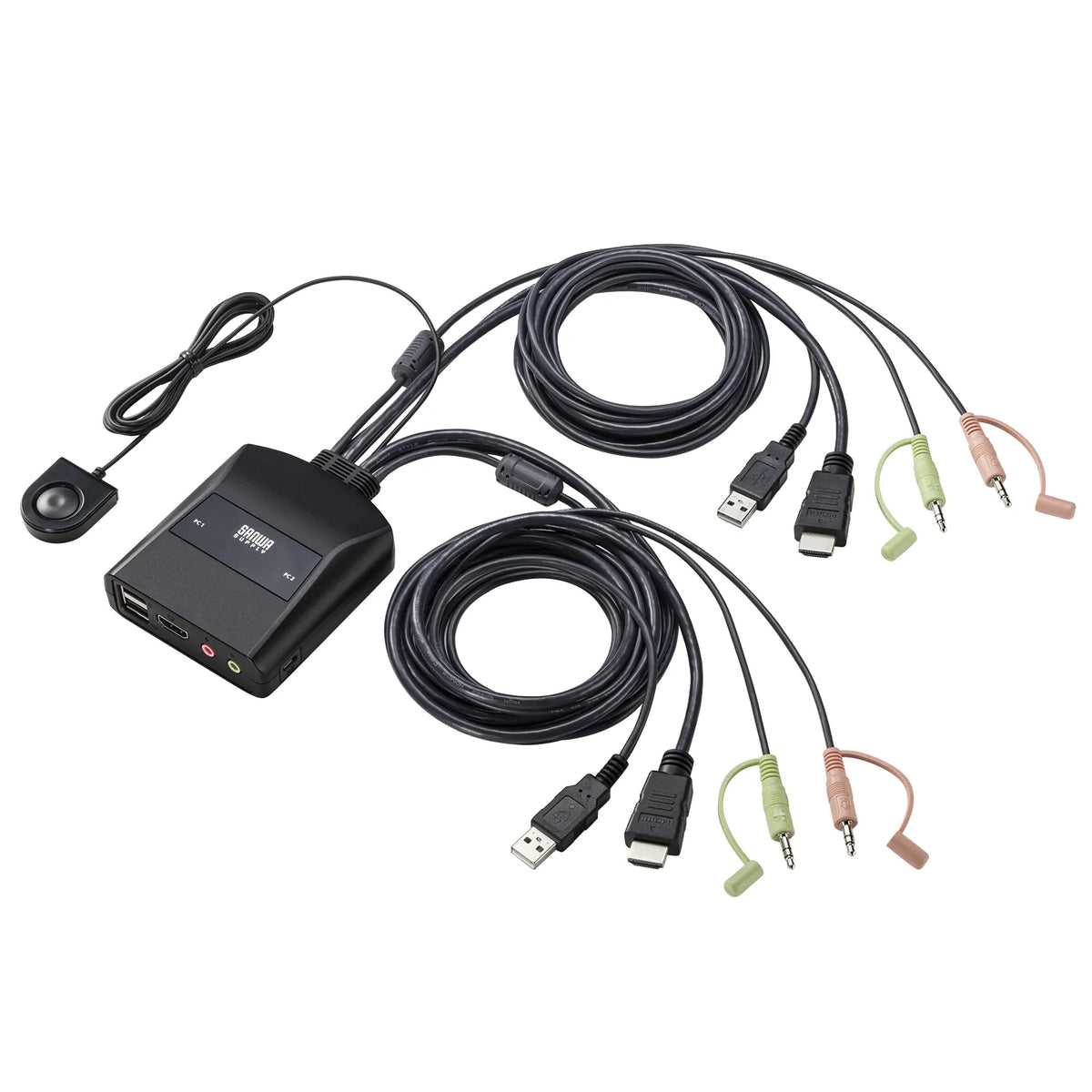

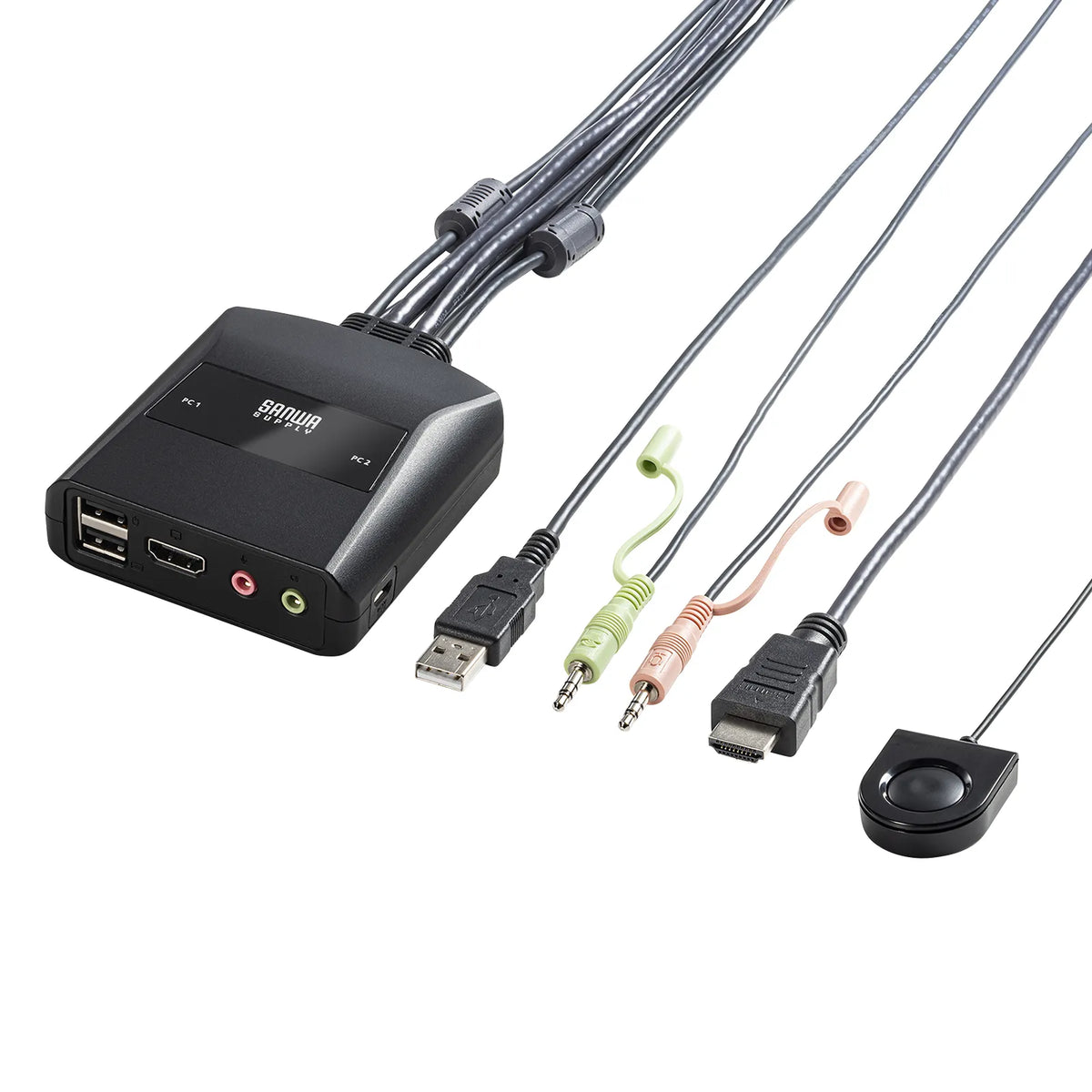

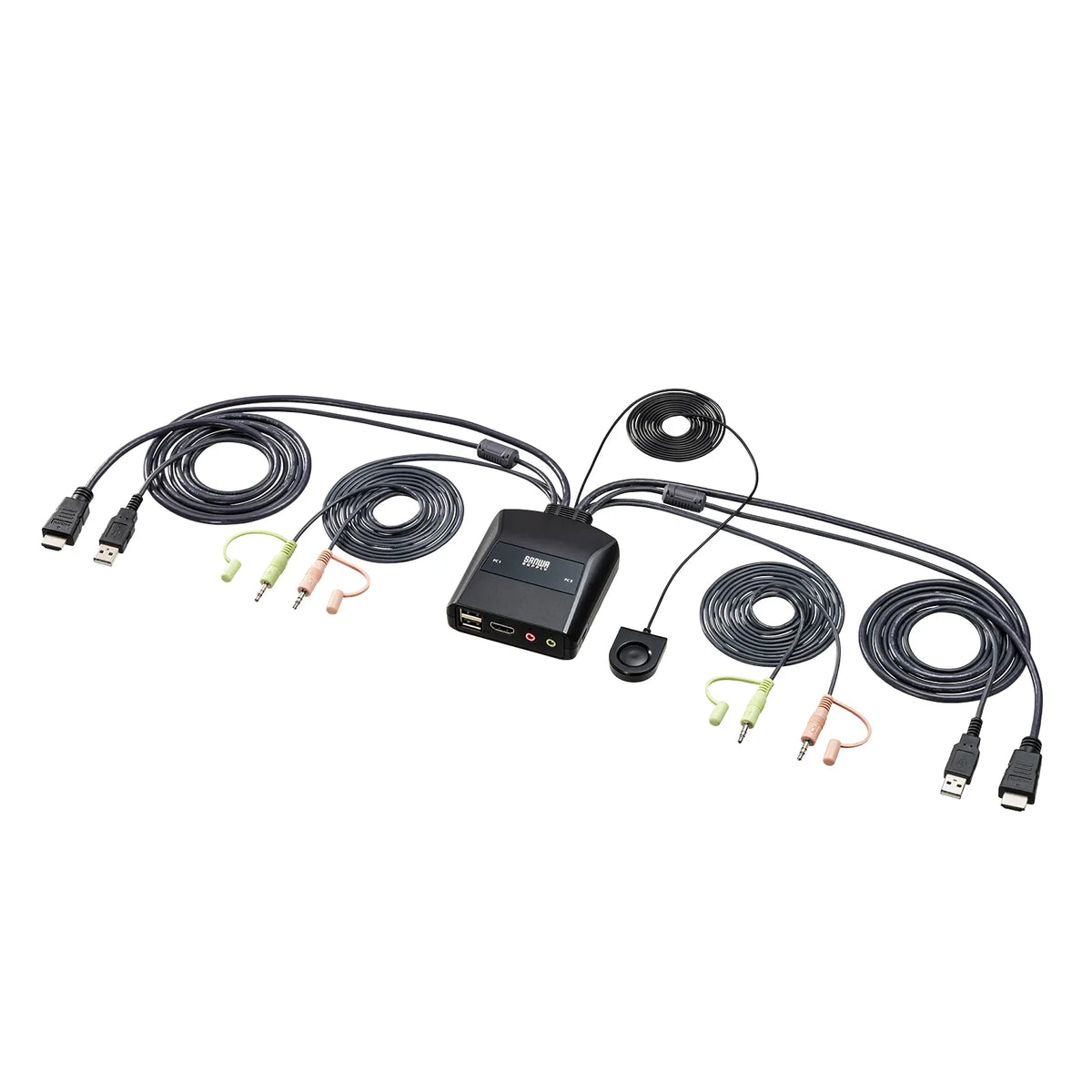

4K compatible HDMI PC switch (no emulation, with remote control) SW-KVM2WHUUS

[Compatible with 4K/HDMI displays, USB keyboards, and USB mice. A compact, cable-type KVM switch that allows for easy switching.]

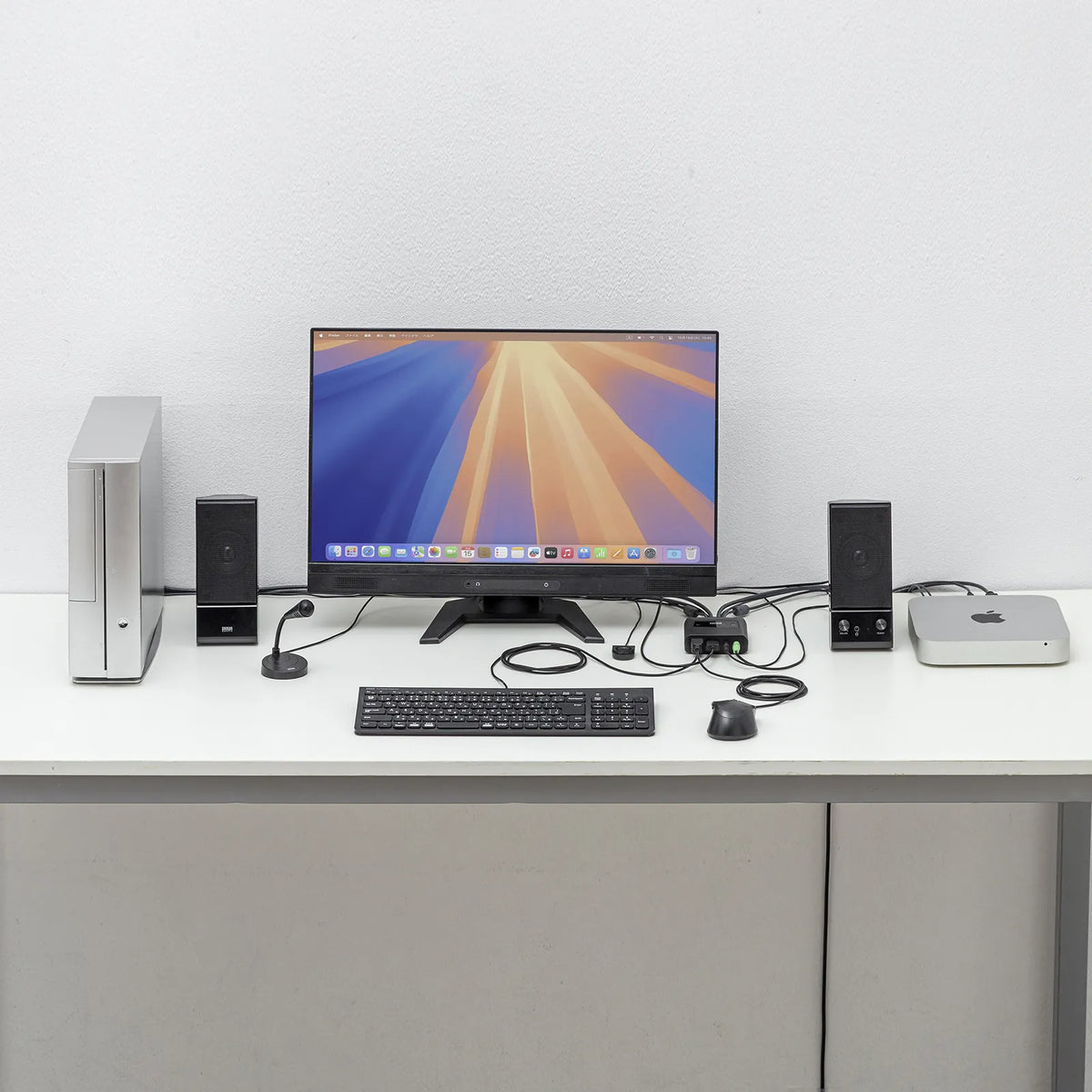

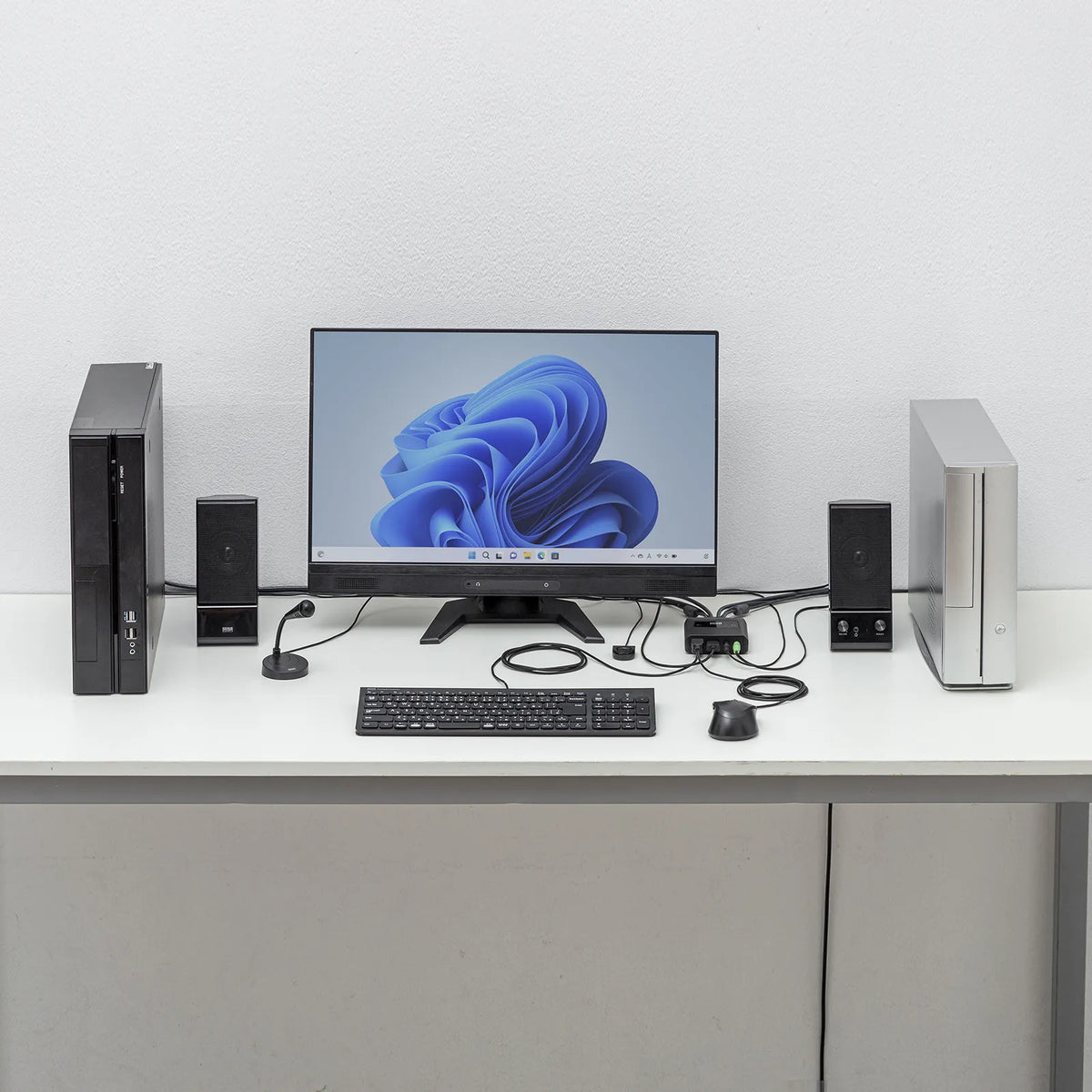

●Allows you to switch between two computers using one set of 4K/HDMI displays, USB keyboards, and USB mice.
●Supports high resolutions of up to 4K/3840x2160 (60Hz, 4:4:4) and 4K/4096x2160 (60Hz, 4:4:4). Also supports 1920x1200 (WUXGA) and 1920x1080 (Full HD), and widescreen output.
●Since it does not have keyboard/mouse signal emulation functionality, it is compatible with multi-function mice and multi-function keyboards with special drivers. *It takes a few seconds for the device to be recognized after switching.

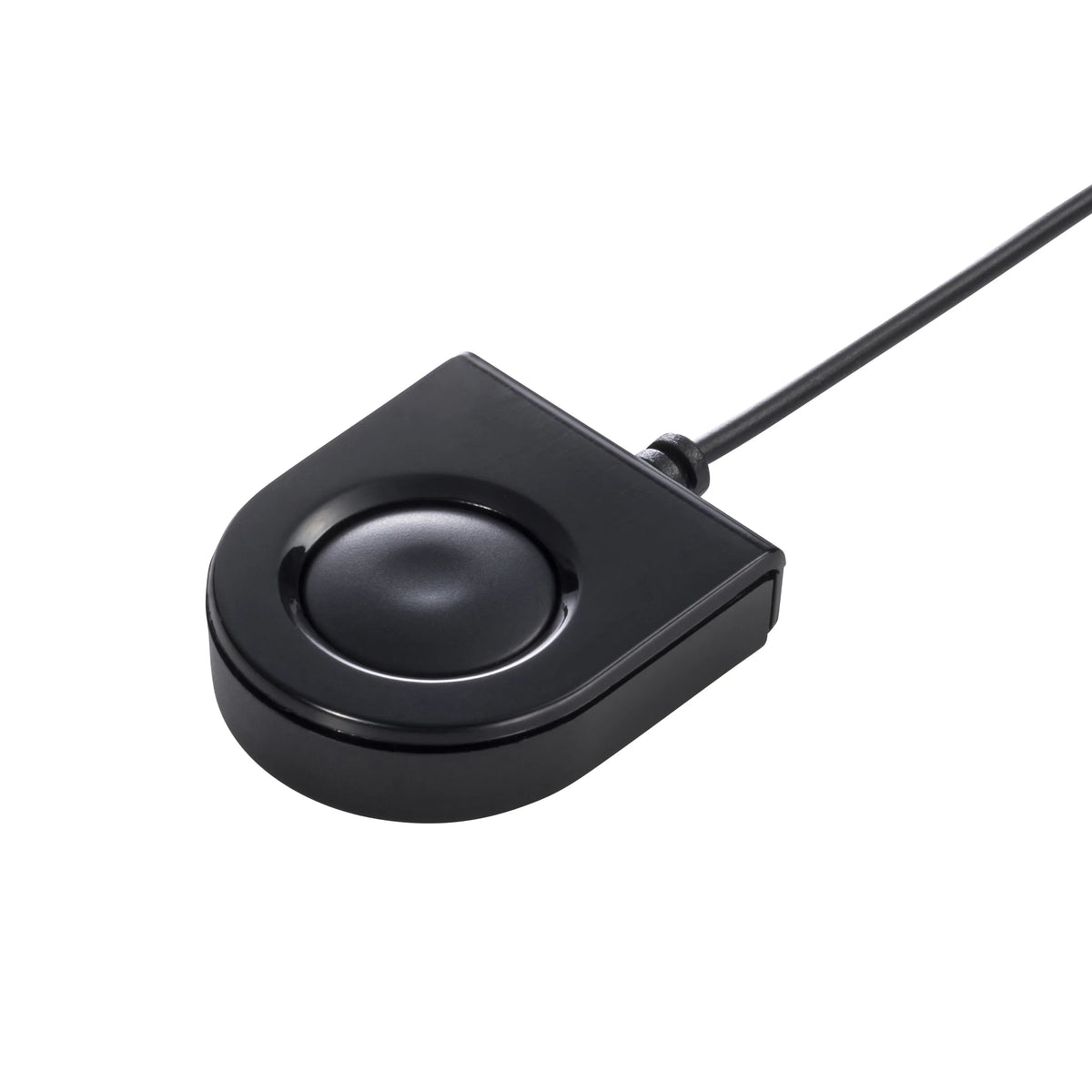

●Equipped with a hand-held switch that allows for easy switching with a single button. Anyone can easily switch.
●Audio and microphone can be switched, allowing for smooth use of audio equipment in online meetings, etc.
●No software installation is required; simply connect and switch between modes.
●Power is supplied from the computer's USB port, eliminating the need for an AC adapter.

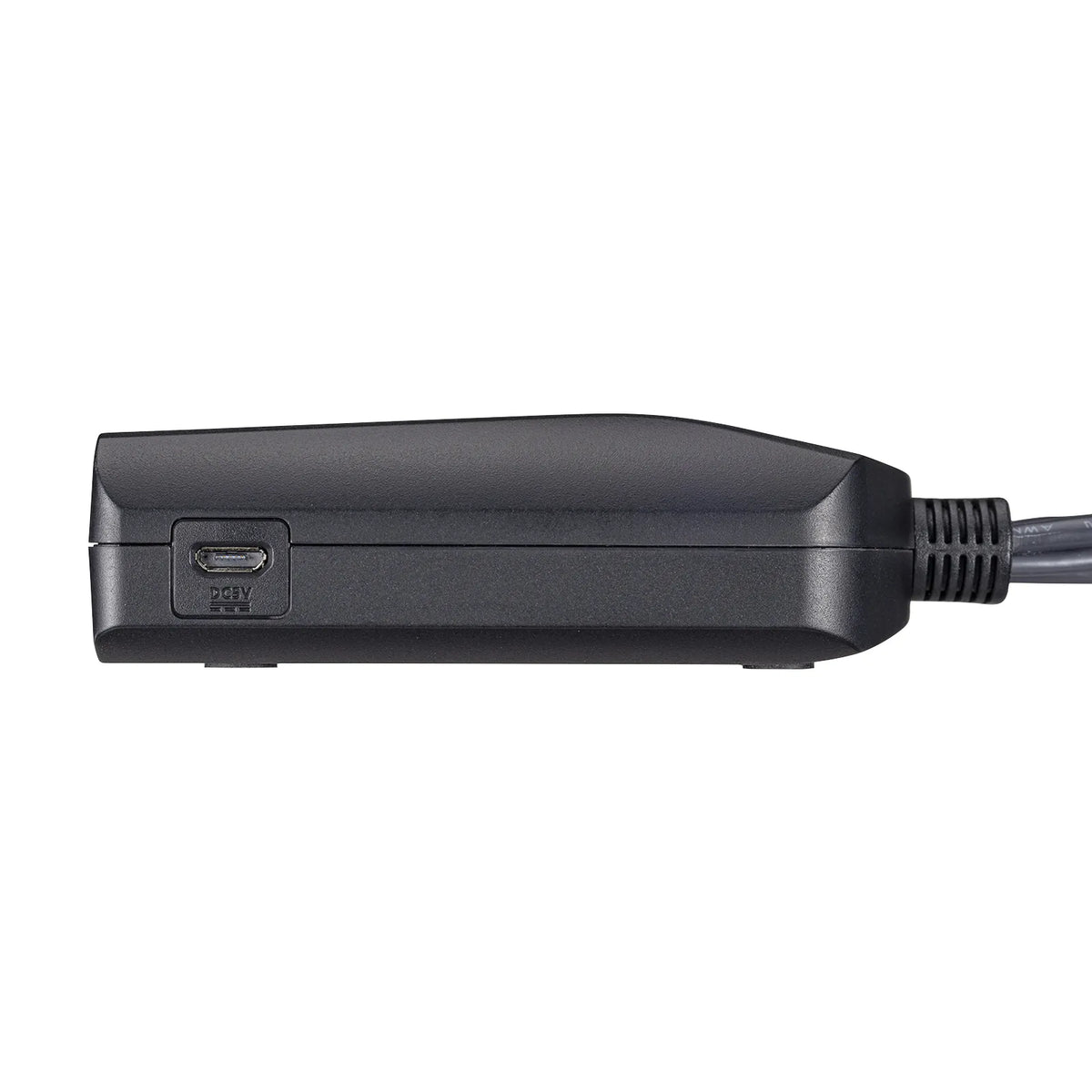

*If the power supplied from the computer is insufficient, power can also be supplied via the dedicated microUSB port.





■Compatible models: Windows-based (DOS/V) desktop or notebook computers, Apple Mac series
(Models with USB A connector female and HDMI output)
■Compatible keyboards: USB keyboards
*1, *2, *3, *4, *5
■Compatible mice: USB mice
*3, *5
■Compatible displays: TVs and computer displays with standard HDMI input terminals
*EIZO monitors are not guaranteed to work.
■Main supported resolutions:
4096x2160 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0)
3840x2160 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0)
1920x1080 (60/50/30/24Hz)
*Only 8-bit color depth is supported when outputting 4K/4096x2160 (60Hz, 4:4:4).

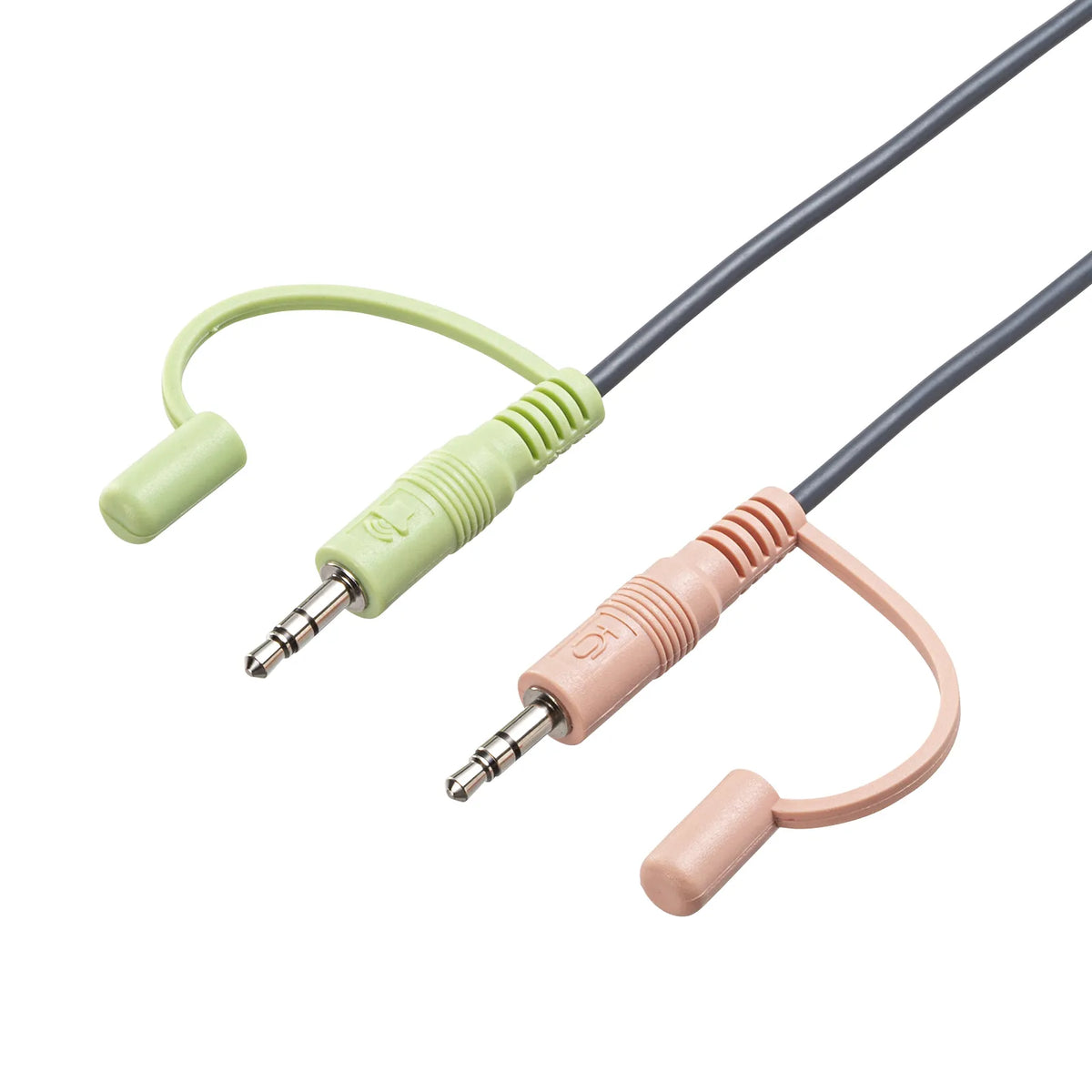

■Compatible devices (speakers/microphones): Speakers and microphones with 3.5mm stereo mini plug
*Analog audio output is not possible when the audio output setting is set to HDMI Audio. A separate setting change is required.

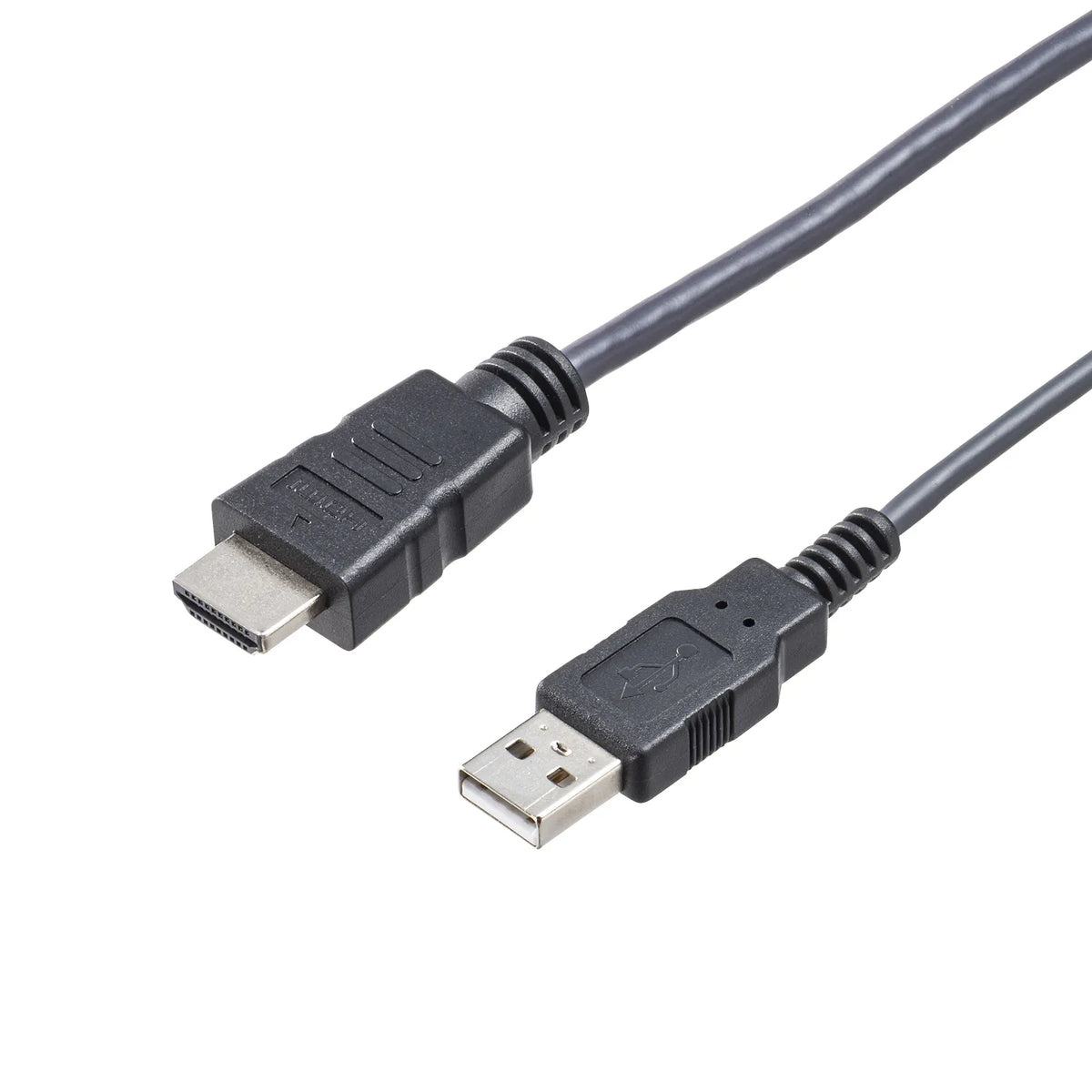

■Interface (PC side):
Display: HDMI (male) x2
USB A connector (male) x2
3.5mm stereo mini jack (speaker) x2
3.5mm stereo mini jack (microphone) x2
■Supported OS: Windows Server: 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003 R2, 2003

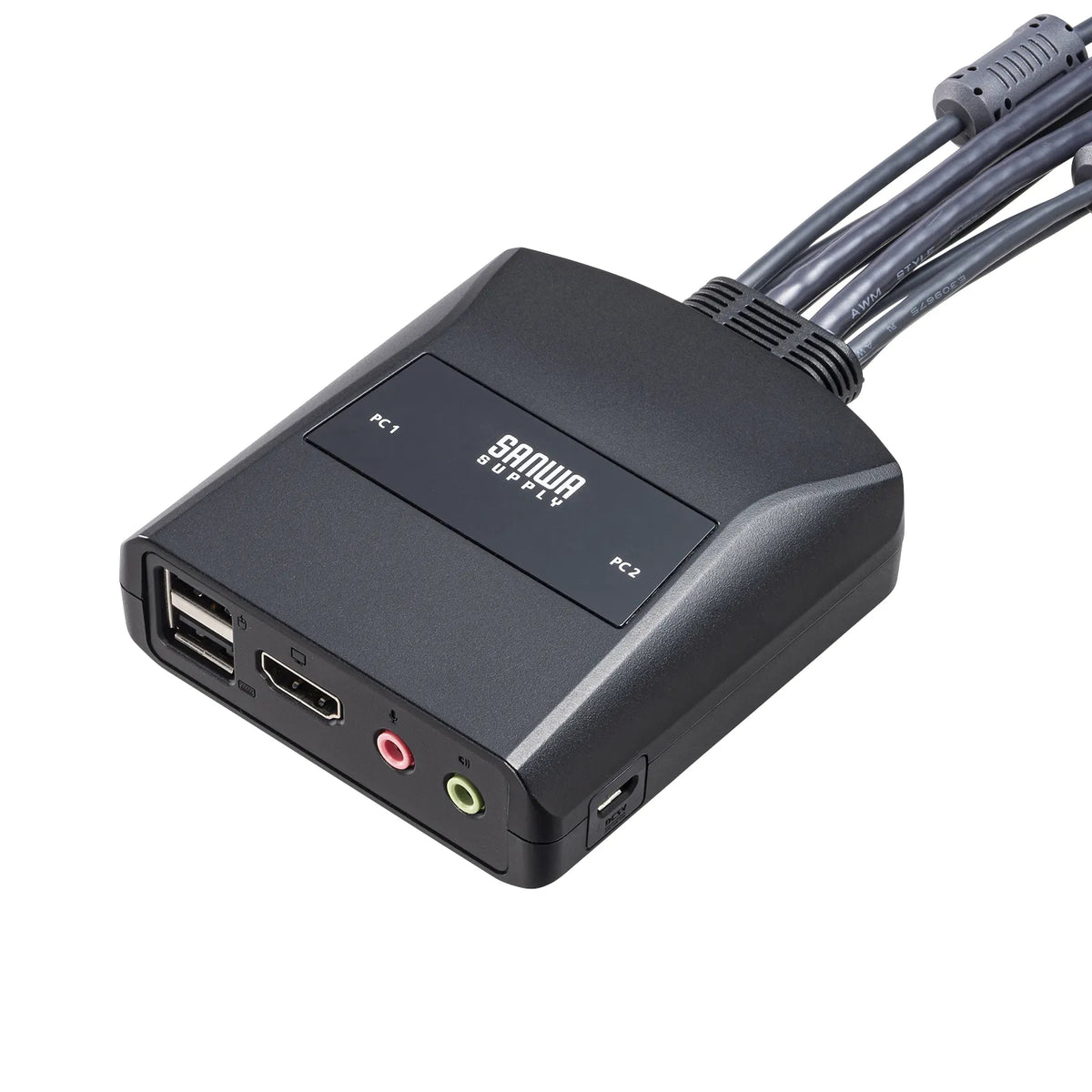

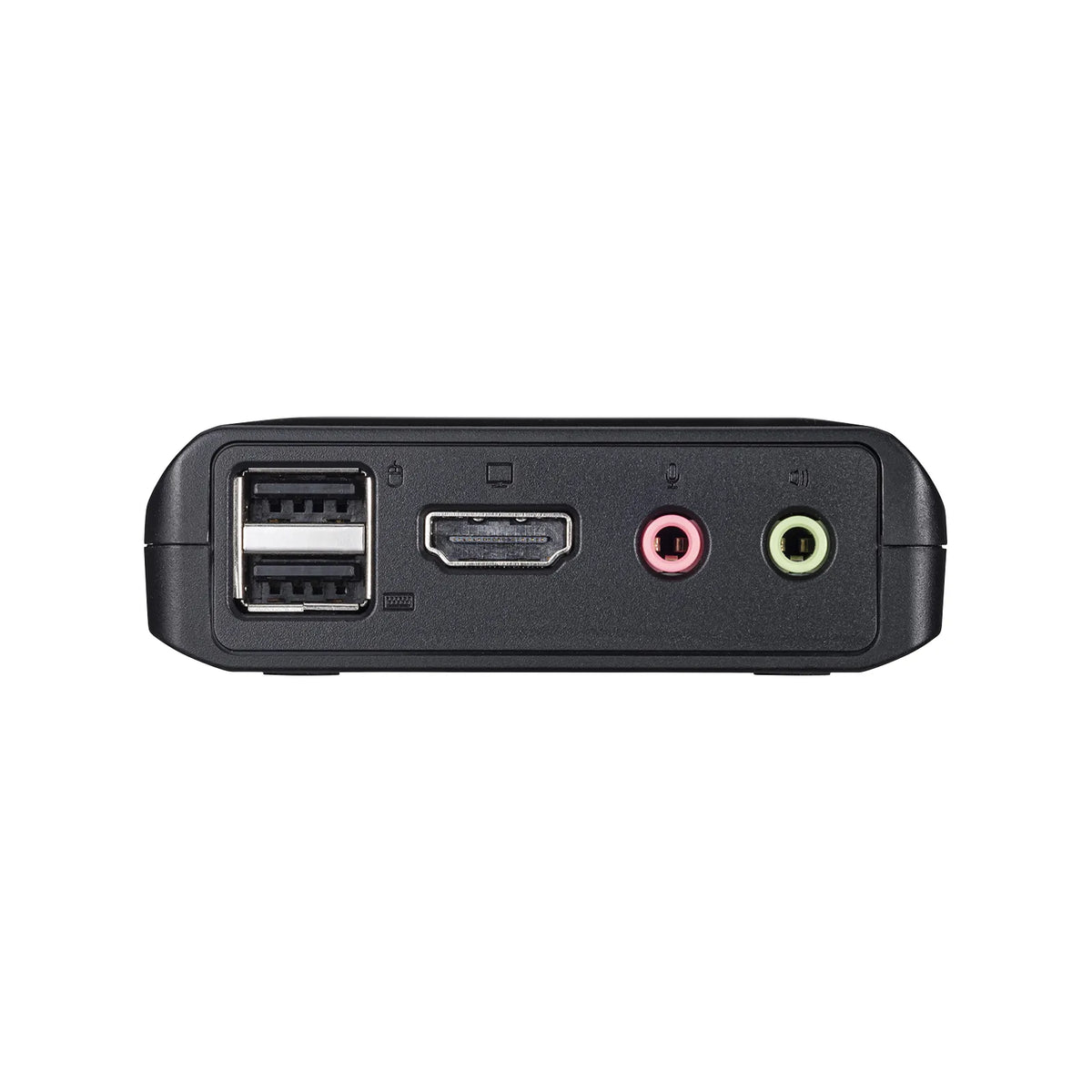

■Interface (Peripheral side):
Display: HDMI (Type A) female x1
Keyboard: USB A connector female x1
Mouse: USB A connector female x1
3.5mm stereo mini jack (speaker) x1
3.5mm stereo mini jack (microphone) x1
■Supported OS Mac: macOS (Sequoia) 15, macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11, macOS 10.12 to 10.15
■Cable length: PC1/1.2m, PC2/1.2m, Switch cable length/1.8m
■Shape: Integrated cable
■Video output connector: HDMI
■Supported OS Linux: CentOS, Ubuntu, openSUSE
■Maximum number of connected PCs: 2
■Switching method: Handheld switch
■Display emulation function: None
■19-inch rack mount: None
■Power supply: Power supplied from USB port: DC +5V
*If power is insufficient due to peripherals, power must be supplied from the microUSB port on the main unit.
■Current Consumption (Max): 280mA
■Power Consumption: 1.4
■HDCP: HDCP1.4, HDCP2.2
(Pass-through)
■Operating Temperature and Humidity: Temperature/0 to 50 degrees Celsius, Humidity/80% or less
(No condensation)
■Storage Temperature and Humidity: Temperature/-20 to 60 degrees Celsius, Humidity/80% or less
(No condensation)
■Set Contents: Main unit x1, Instruction manual (with warranty)
*1 The USB hub port on the keyboard cannot be used via this product.
Functions requiring drivers, such as special buttons on the keyboard, cannot be used via this product.
*2 May not work with keyboards with fingerprint authentication or trackpads.
*3 Bluetooth keyboards and Bluetooth mice are not supported.
*4 Keyboards with N-key rollover functionality, such as gaming keyboards, are not supported.
※5 Logitech Unification-compatible keyboards and mice, and Logi Bolt receiver products are not supported.

Caution
●Operation is not guaranteed for all PCs, keyboards, and mice.
●Special buttons and function keys on keyboards and mice that require driver installation may not work via this switch.
●One-touch resume/suspend function is not supported.
