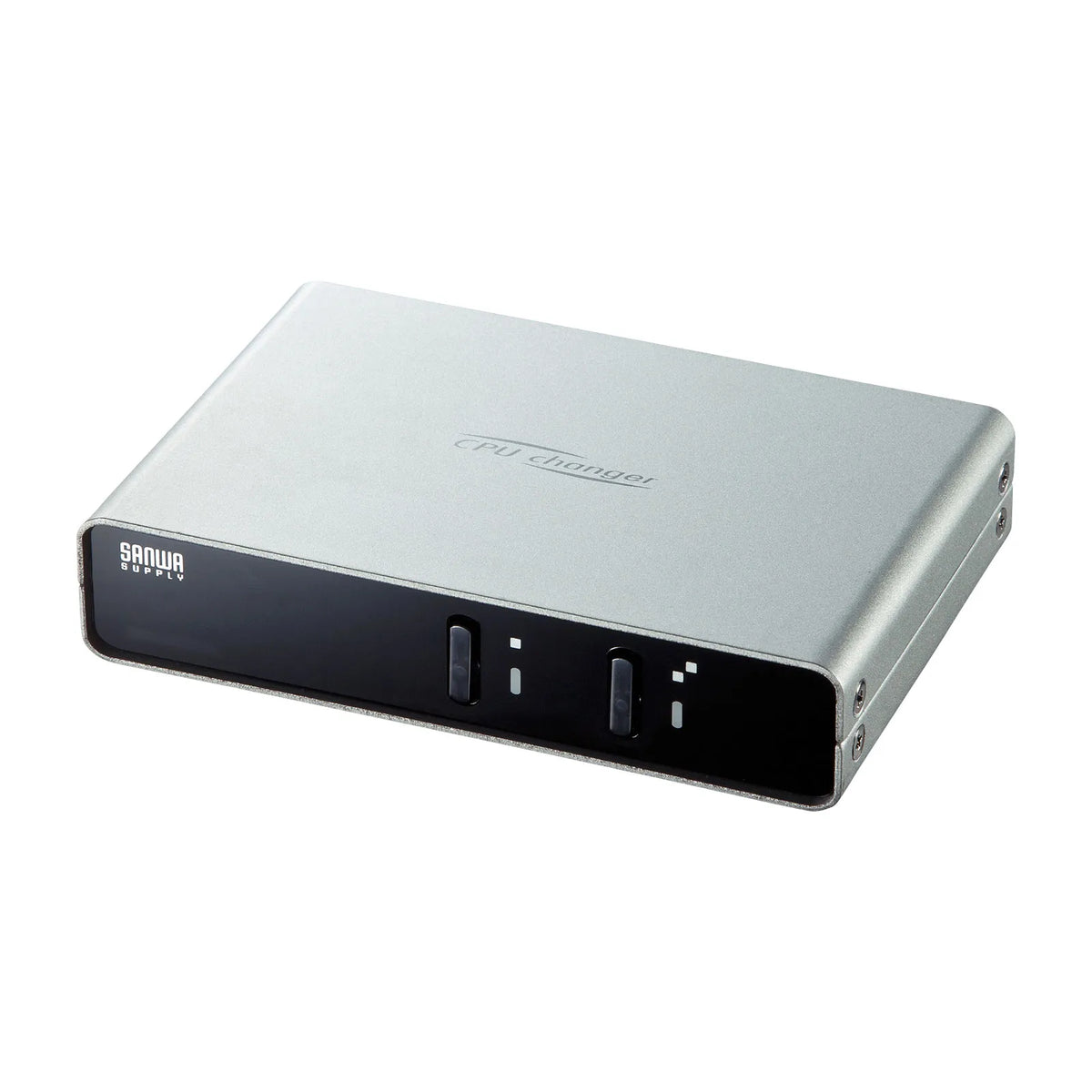

Automatic PC switch (2:1) SW-KVM2LUN2

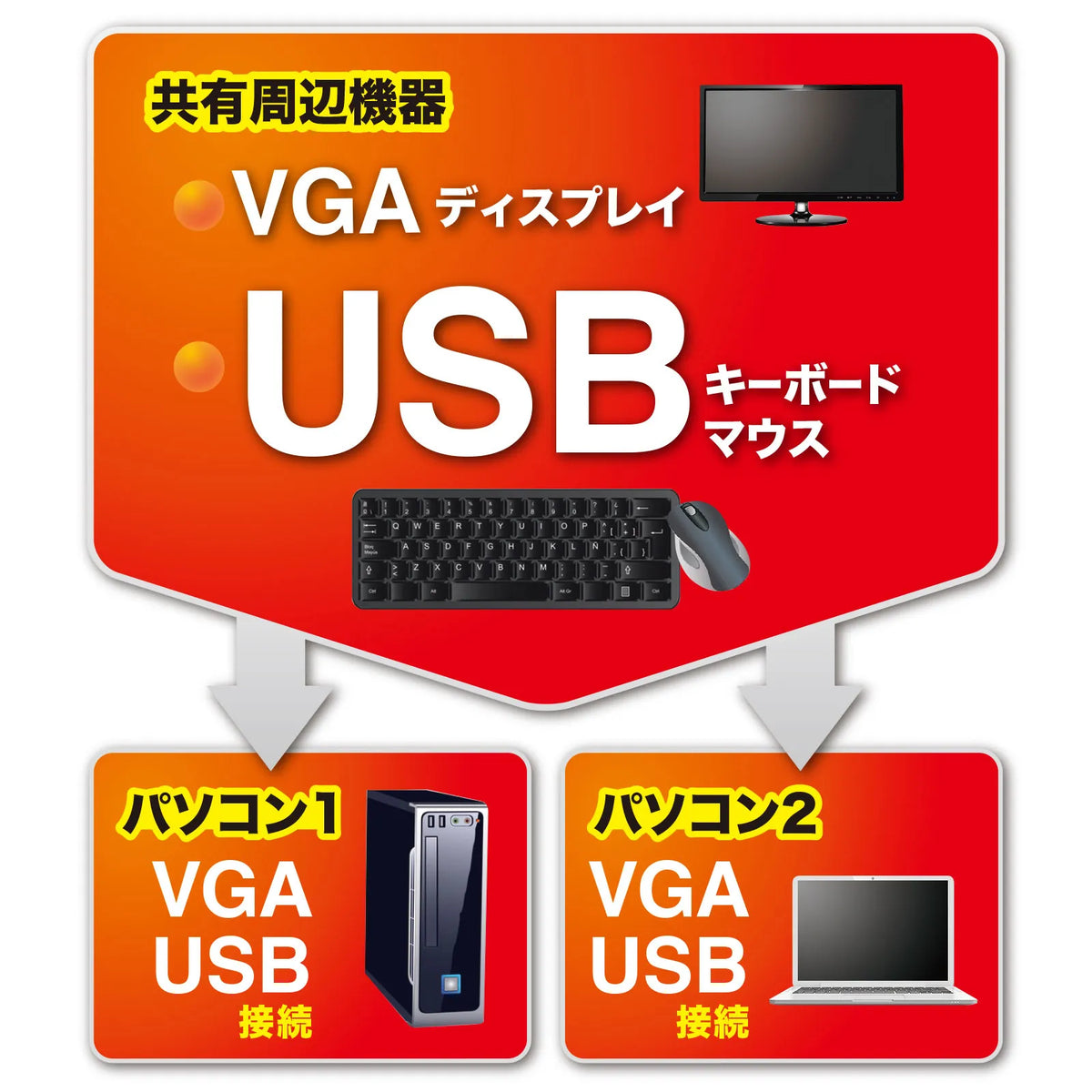

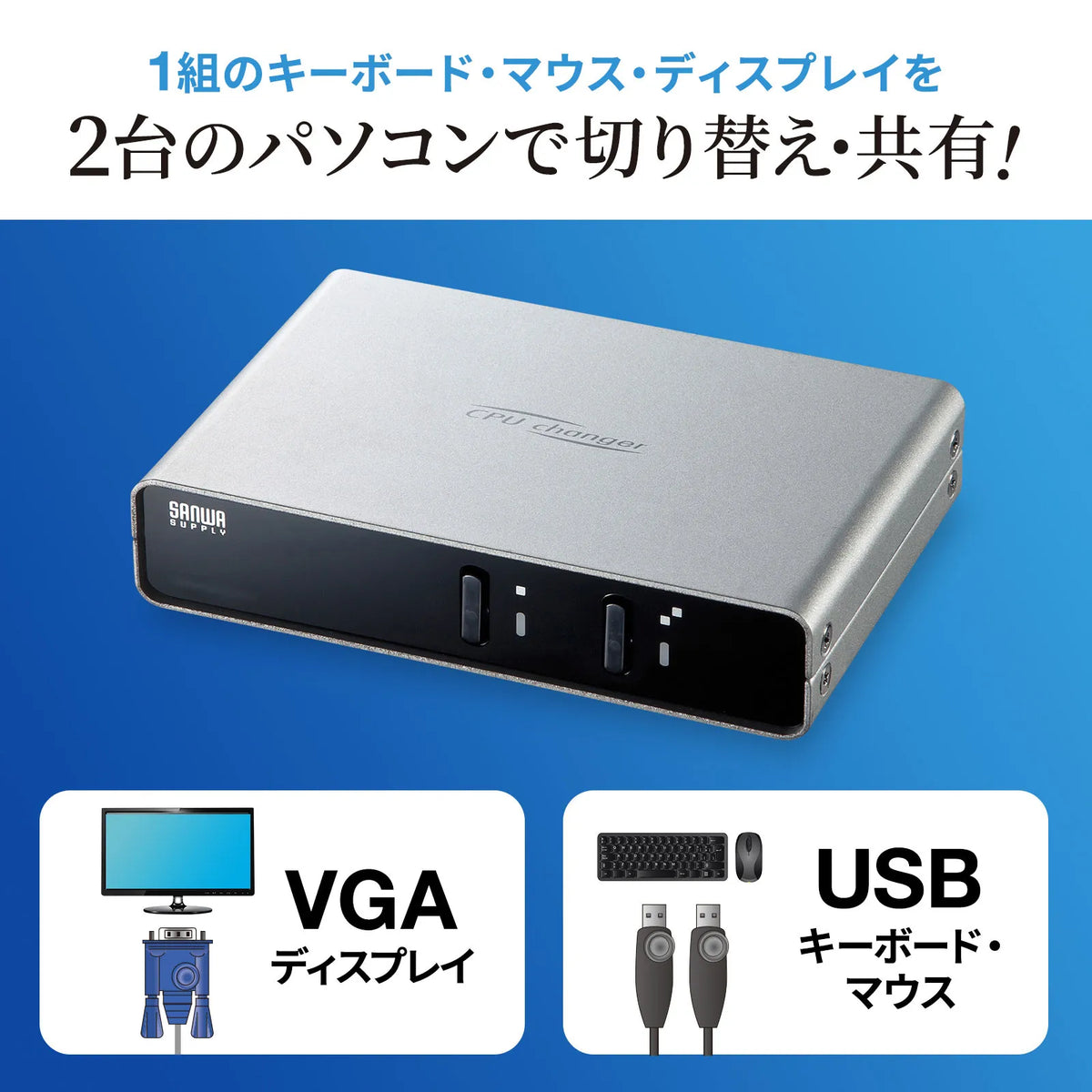

[Automatic PC Switcher that allows you to switch and share one set of USB keyboard, USB mouse, and display between two computers, with button switching also available]

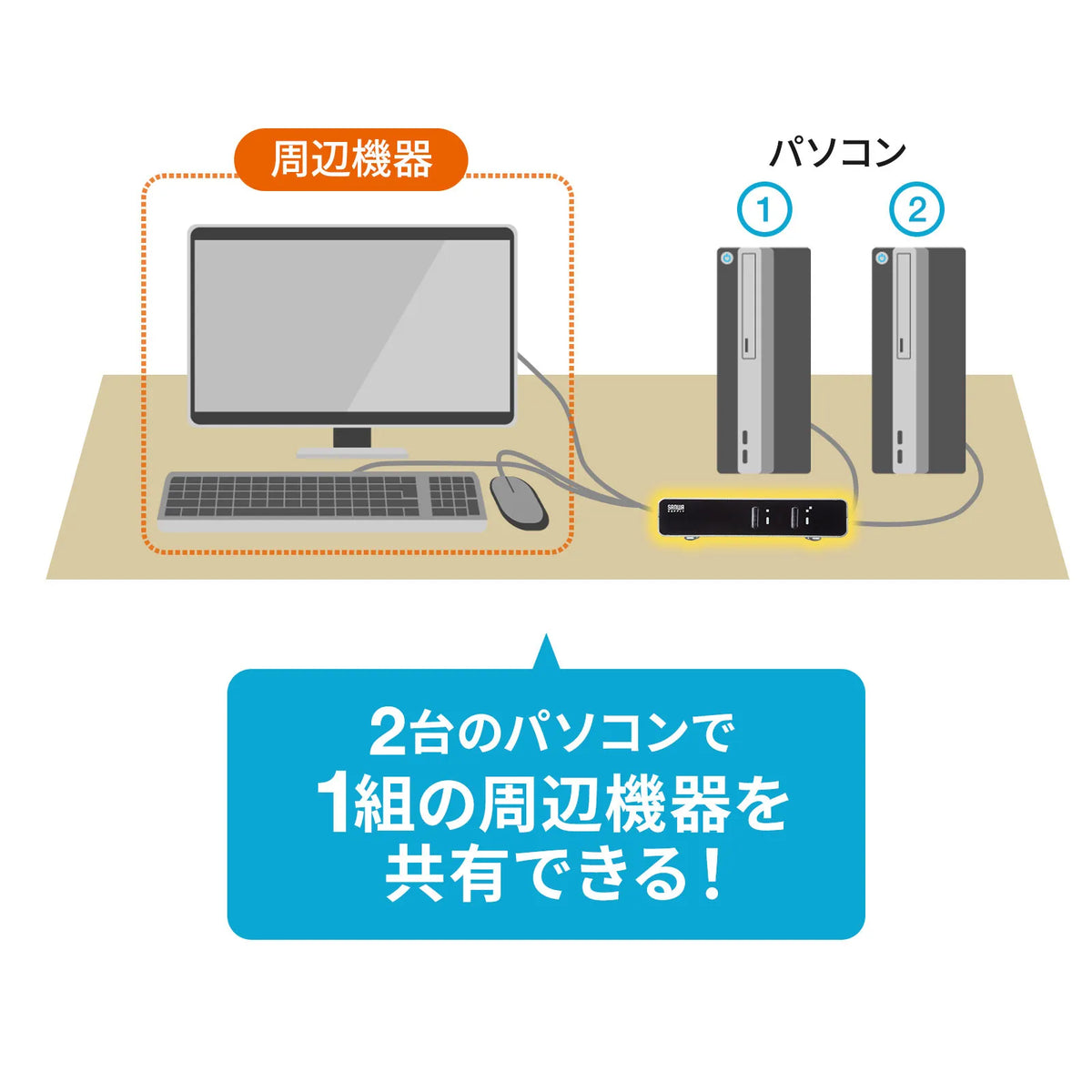

● You can switch between two computers using one set of USB keyboard, USB mouse, and display.
● Switching is easy; just press the [Ctrl] key twice. It switches between two computers instantly.

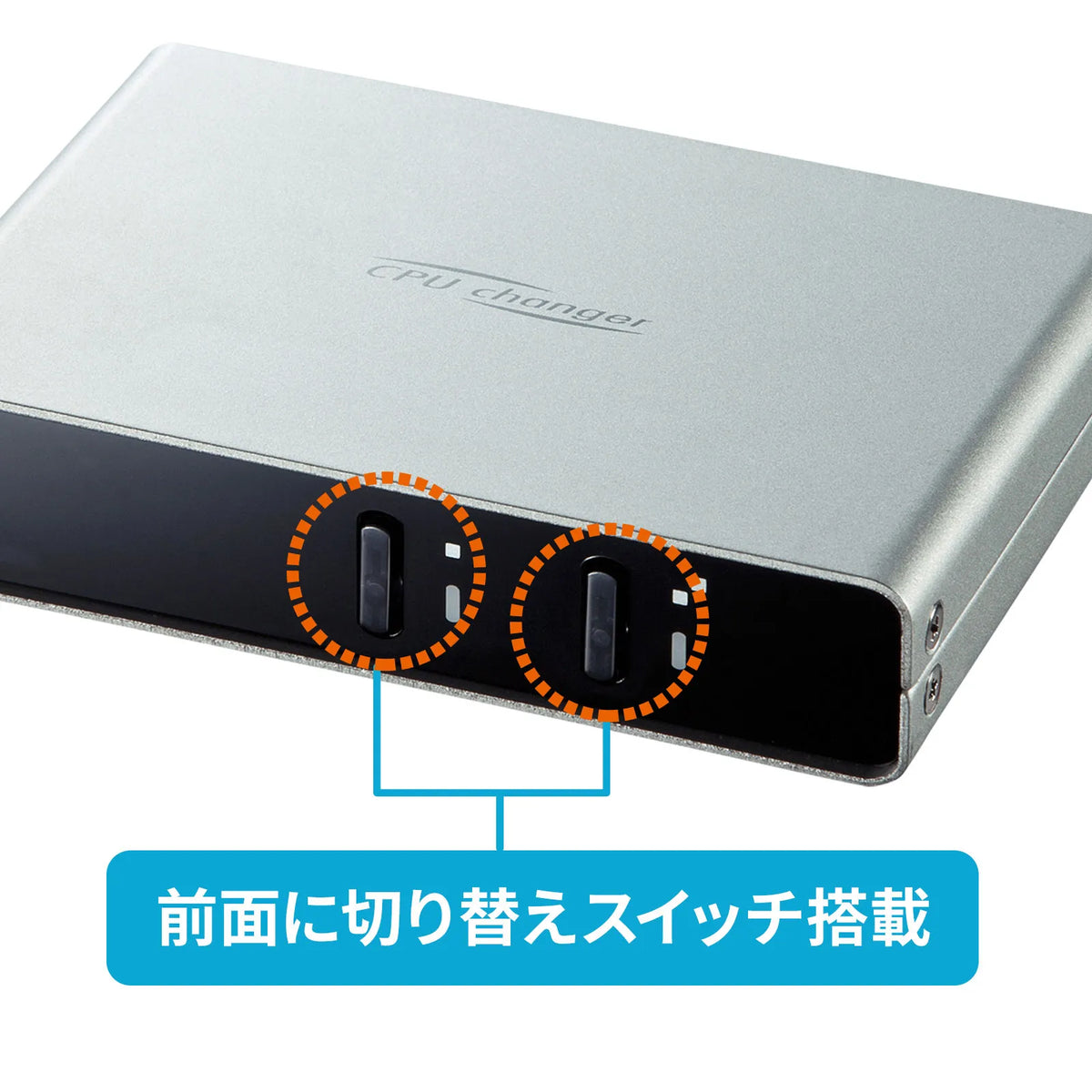

● Button switching is also possible on the front of the unit, and the switching status can be visually confirmed by the LED.
● You can switch consoles while the connected computers are powered on.

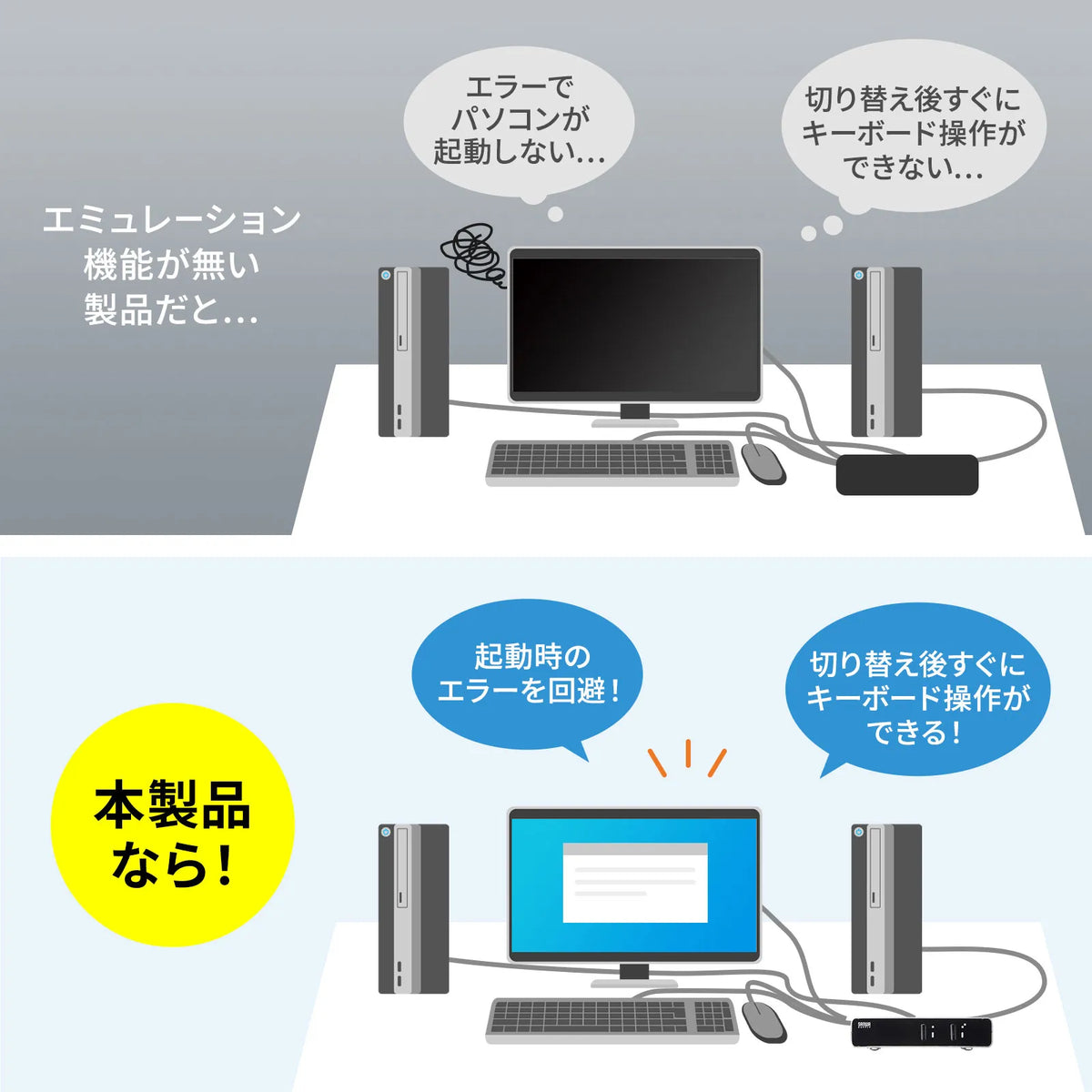

● Because it emulates the keyboard port, it is possible to fully boot up without switching ports when restarting (rebooting).

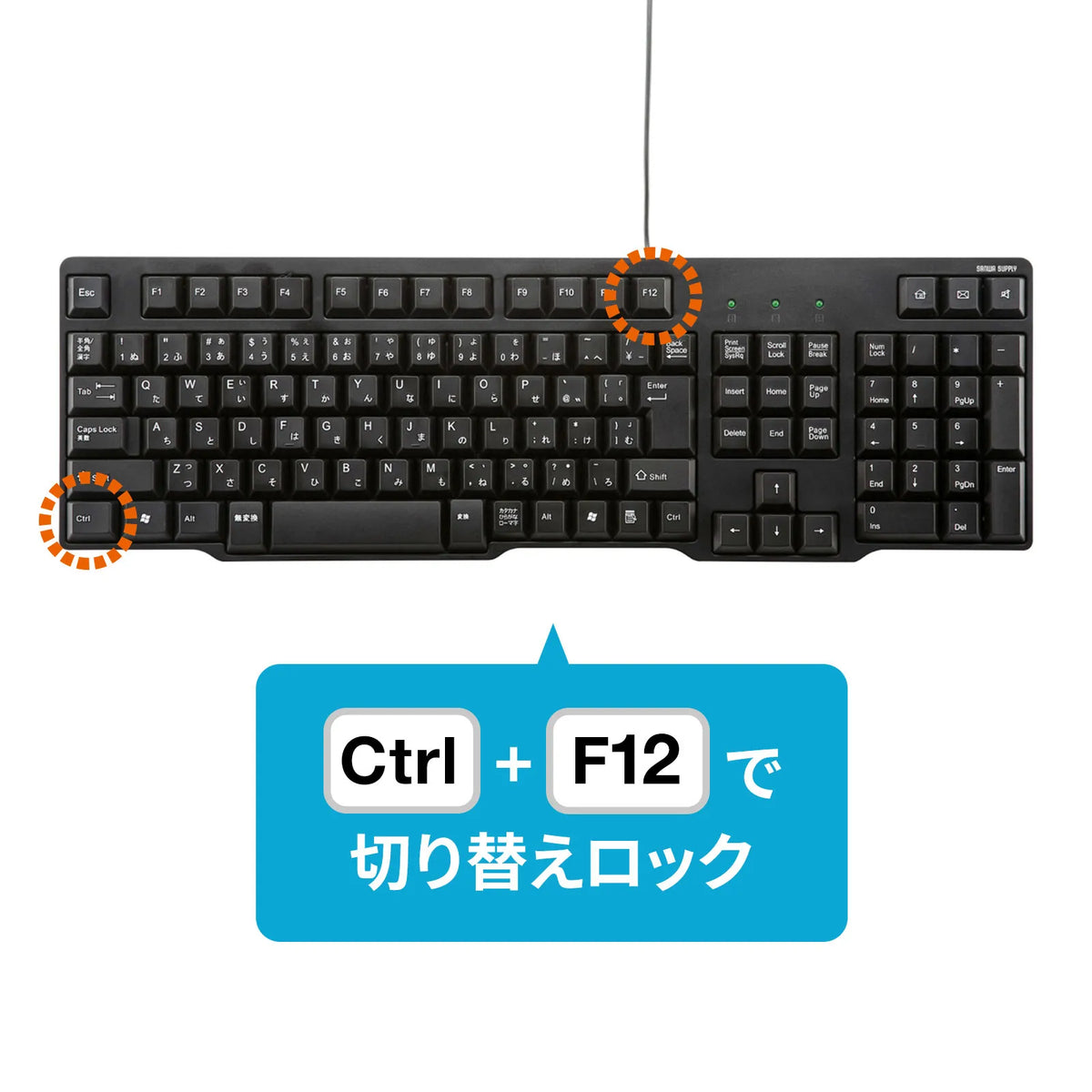

● You can lock the switching function (disable hotkeys) by pressing the [Ctrl] key + [F12] key. This product can be used even with games and applications that make frequent use of the [Ctrl] key.
● It is possible to start up two connected computers simultaneously.

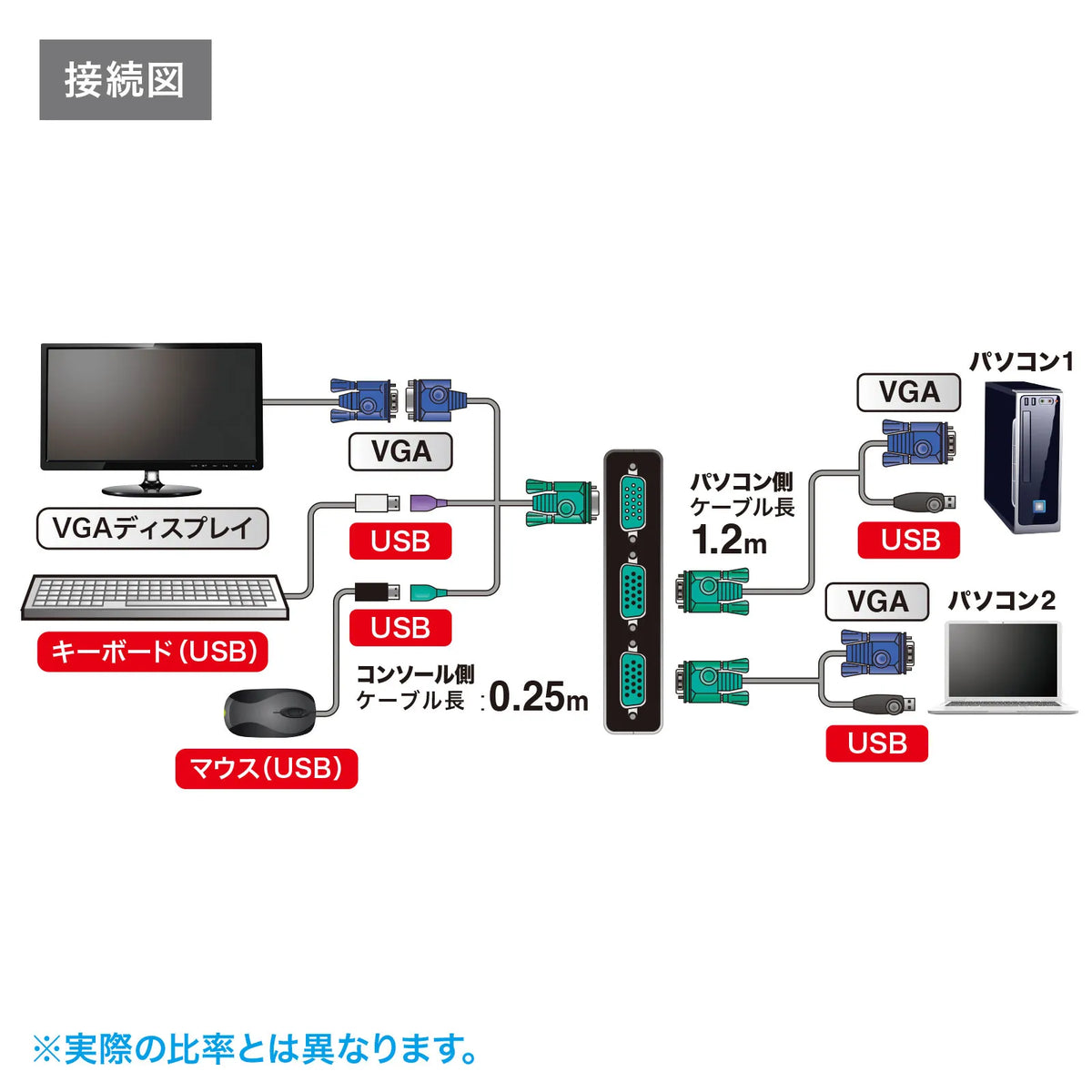

● It uses an all-in-one connector that combines the signals of the keyboard, mouse, and display into one. Connection is easy and wiring looks neat.
●No software installation is required; simply connect and switch between devices.
●Equipped with an auto-scan function, it can automatically switch between connected computers and monitor each computer.
●Supports display up to high resolution of 2048x1536 dots.
●Operates on power supplied from the computer's USB port, so no AC adapter is required.
＜Caution＞
※Operation is not guaranteed for all computers, keyboards, and mice.
※Special buttons and function keys on keyboards and mice that require driver installation may not work via this switch.
※One-touch resume/suspend function is not supported.
※Microsoft Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

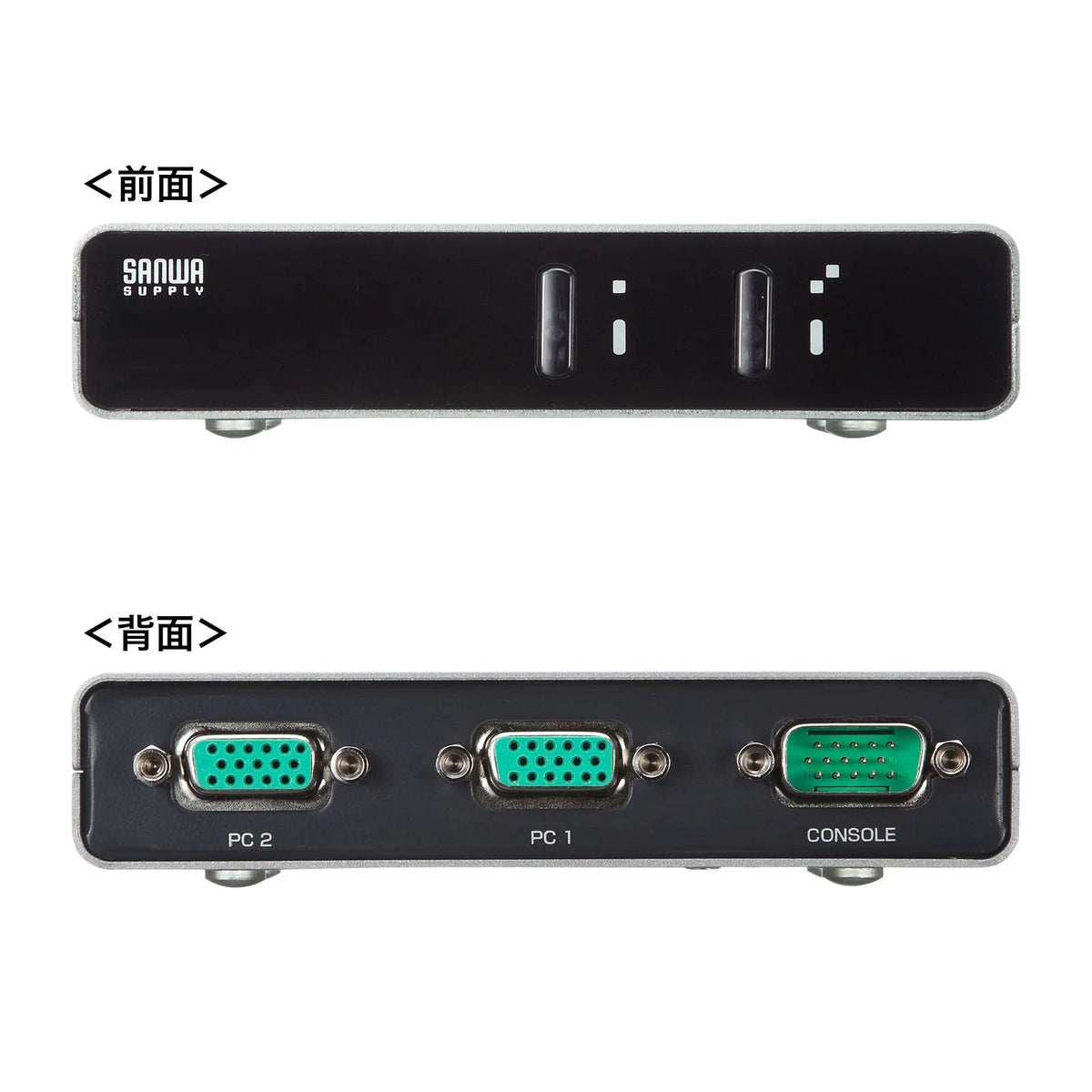

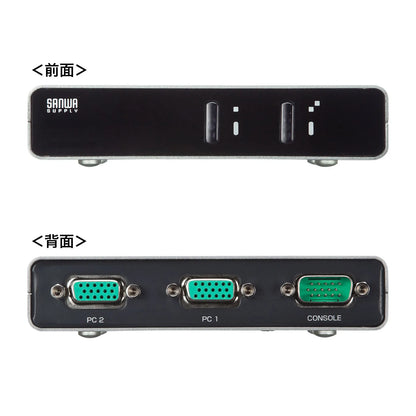

■Interface: For PC/All-in-one connector/SPDB15pin (female) x2
For console/All-in-one connector/SPDB15pin (male) x1
※Integrates VGA/keyboard/mouse signal lines.
■Power Consumption: Operating Voltage (Power supplied from USB port) DC +5V
■Current Consumption: 320mA (Maximum)
■Switching Method: Main unit button switching, Hotkey switching, Auto scan switching
■Operating Temperature and Humidity: Temperature/0 to 50 degrees Celsius, Humidity/80% or less (non-condensing)
■Storage Temperature and Humidity: Temperature/-20 to 60 degrees Celsius, Humidity/80% or less (non-condensing)
■Size: W120 x D80 x H25 mm
■Weight: 366g

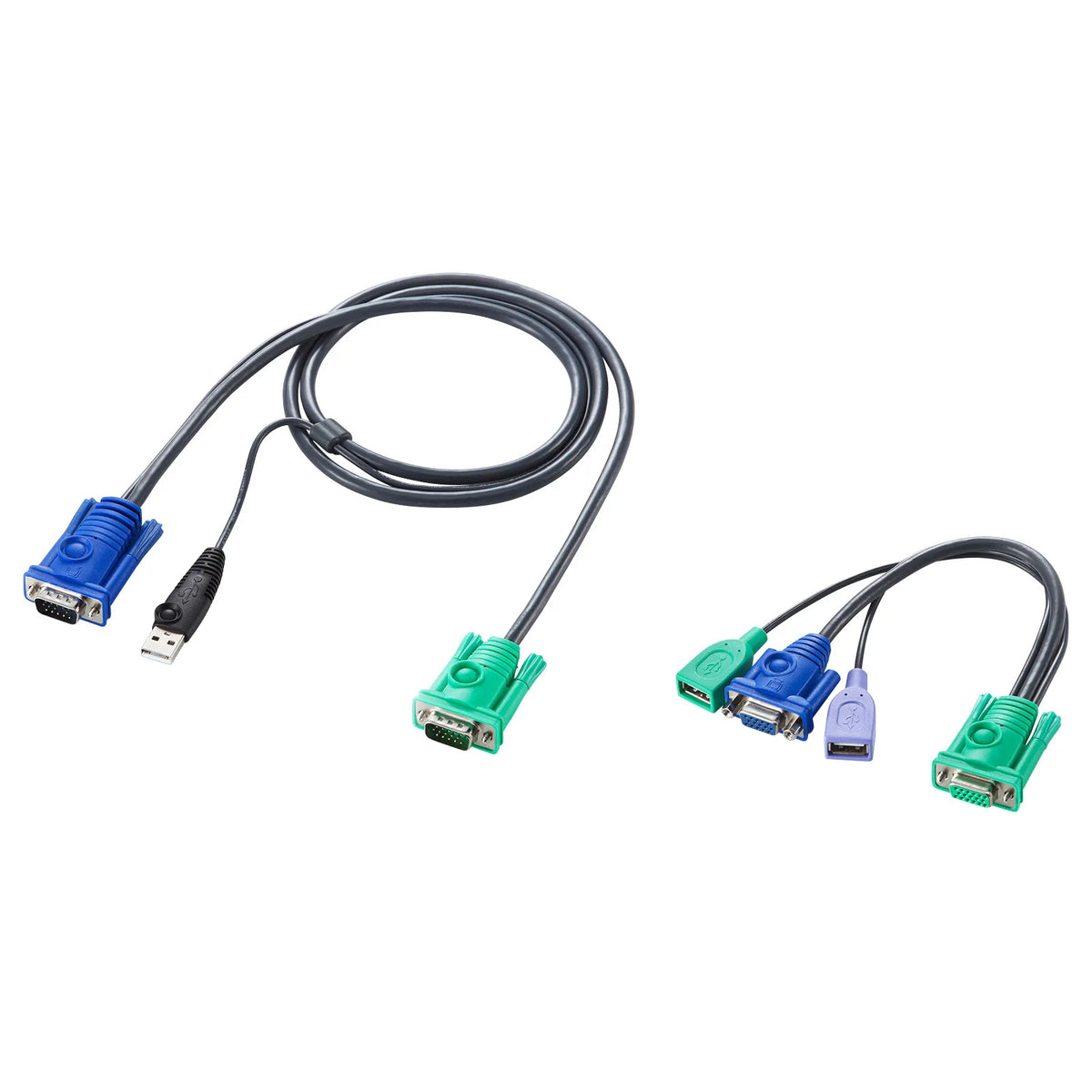

■Set Contents: Main unit, PC connection cable (1.2m x 2), console connection cable (0.25m x 1), Instruction manual, Warranty card
