SANWA SUPPLY

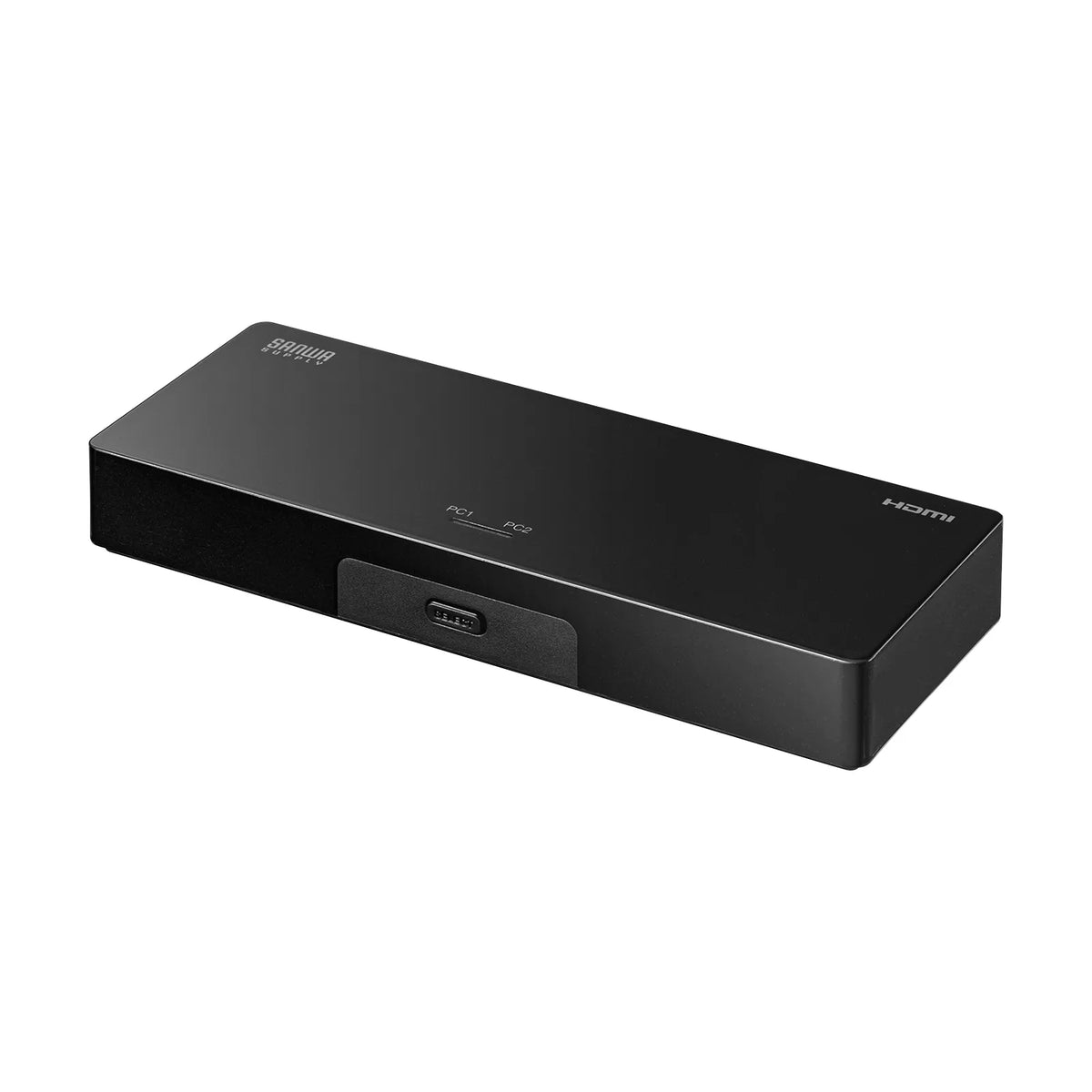

4K compatible HDMI PC switch (no emulation, 2:1) SW-KVM2HUUS
4K compatible HDMI PC switch (no emulation, 2:1) SW-KVM2HUUS
GTIN（JAN）：4969887595534
SKU：SW-KVM2HUUS
Regular price
¥8,712 JPY
Regular price
Sale price
¥8,712 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

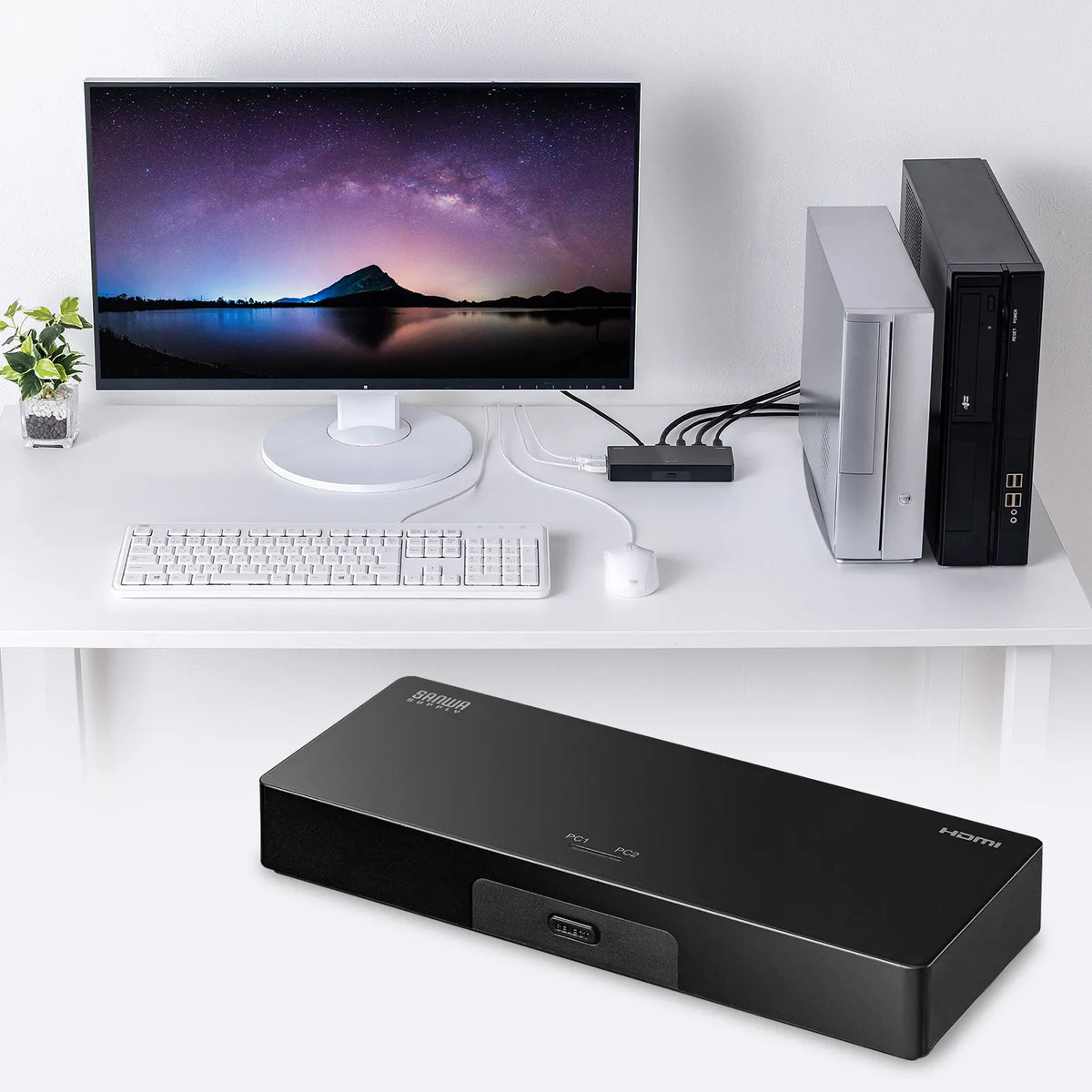

[A compact KVM switch that supports HDMI displays (4K), USB keyboards, and USB mice, and can be easily switched using the switch on the main unit.]

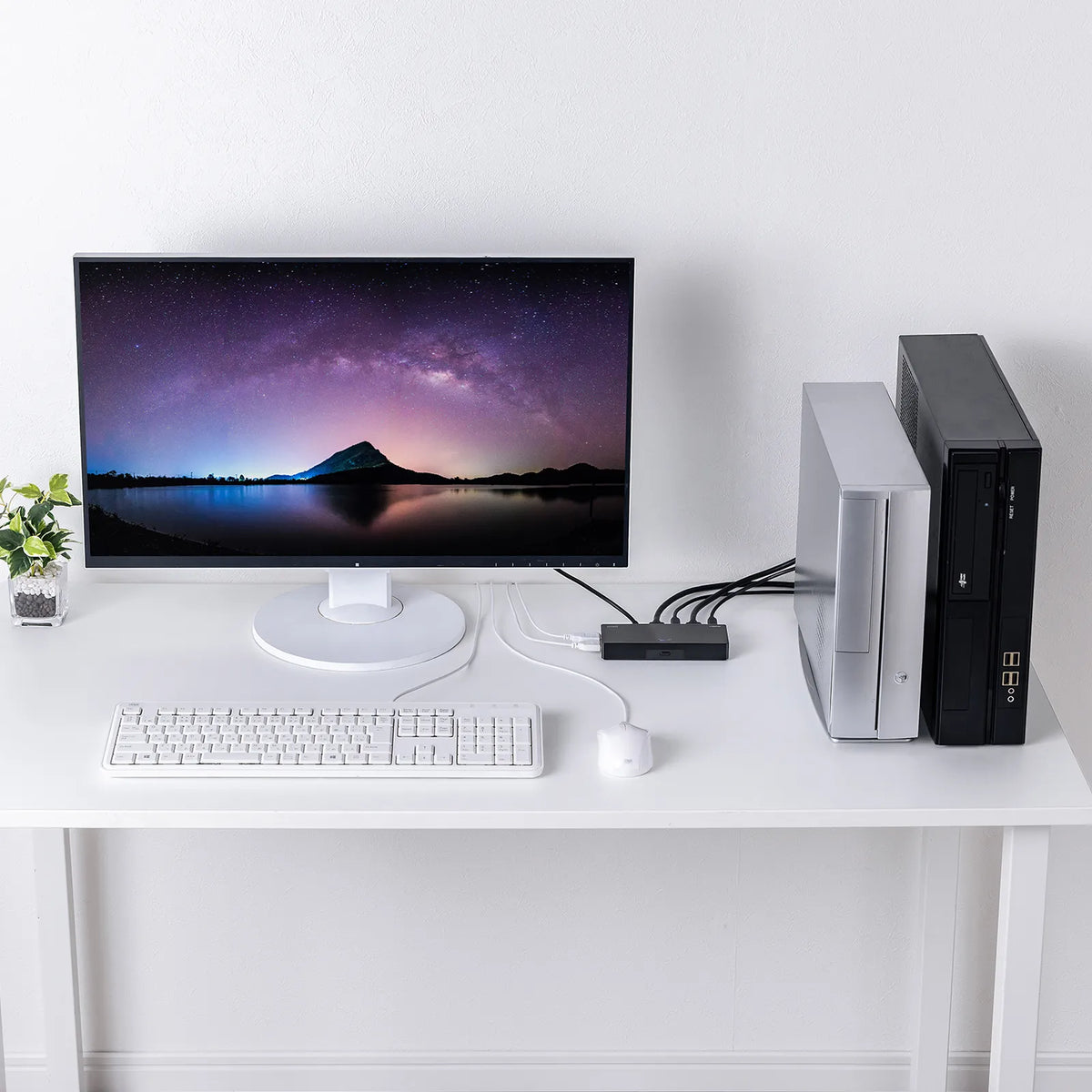

●One set of HDMI displays (4K), USB keyboards, and USB mice can be switched between two computers.
●Supports resolutions up to 4K (3840x2160)/30Hz and 4K (4096x2160)/30Hz, and can output beautiful, high-definition HDMI signals.
●Since it does not have keyboard and mouse signal emulation functions, it is compatible with multi-function mice and multi-function keyboards with special drivers. *1, *2, *3, *4
*After switching, it takes a few seconds for the device to be recognized.

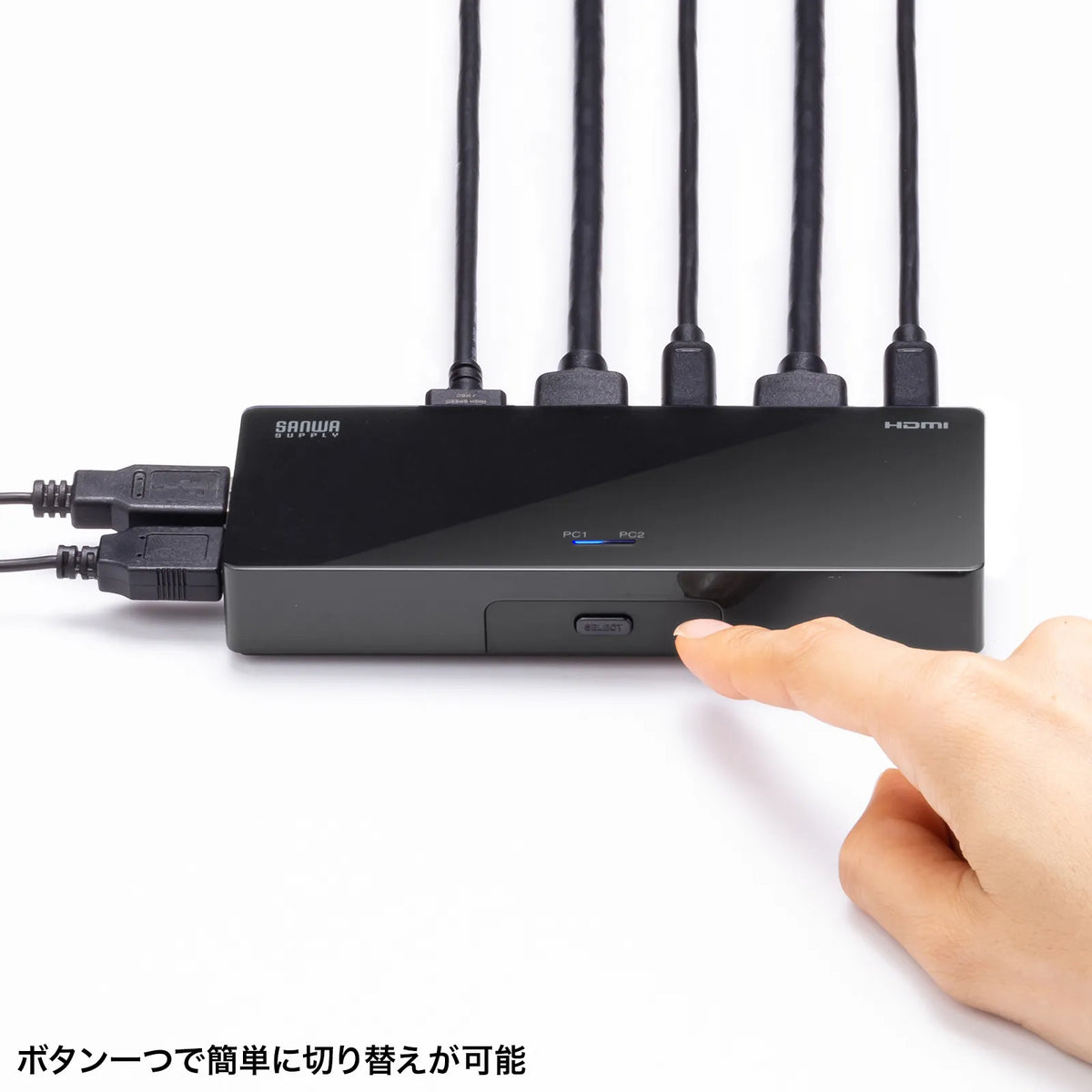

●Anyone can easily switch with a single button on the main unit.
●No software installation is required; you can switch and use it just by connecting it.
●It operates by supplying power from the computer's USB port, so no AC adapter is required.
*If the power supplied from your computer is insufficient, please use the included USB power cable to power the device from a separate USB-AC adapter (5V 1A or higher).
●HDMI connection only is also possible. (Keyboard and mouse are not connected. Power must be supplied separately from a USB-AC adapter.)
■Main supported resolutions: 4096x2160 (30Hz, 4:4:4)
3840x2160 (30Hz, 4:4:4)
3840x2160 (30Hz, 4:2:2)
1920x1080p (24/25/30/50/60Hz)
1920x1080i (50/60Hz)
1280x720p (50/60Hz)
720x576p (50Hz)
720x480p (60Hz)

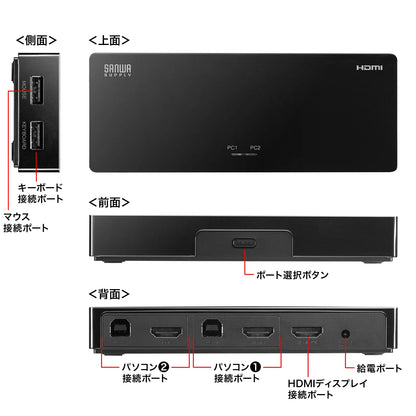

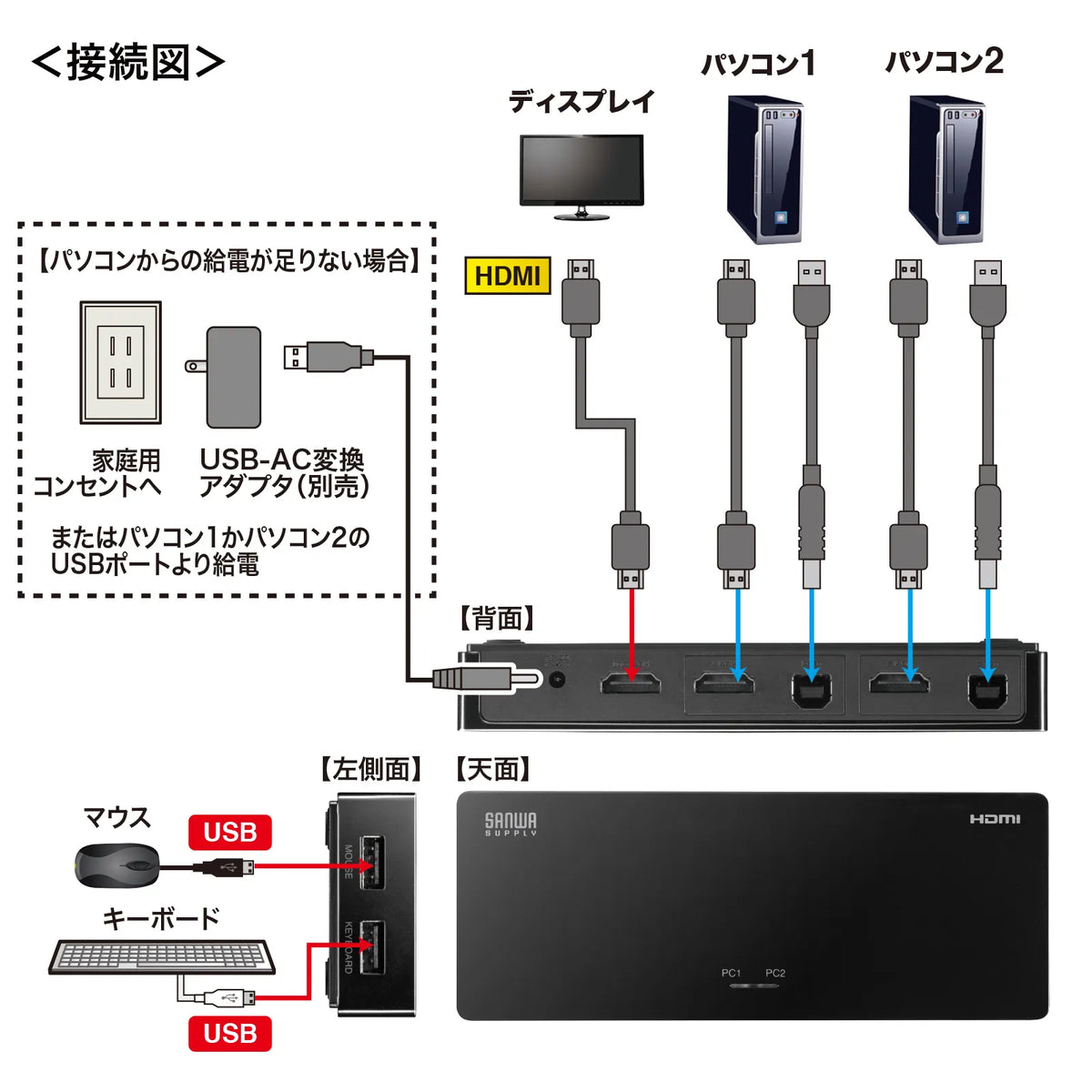

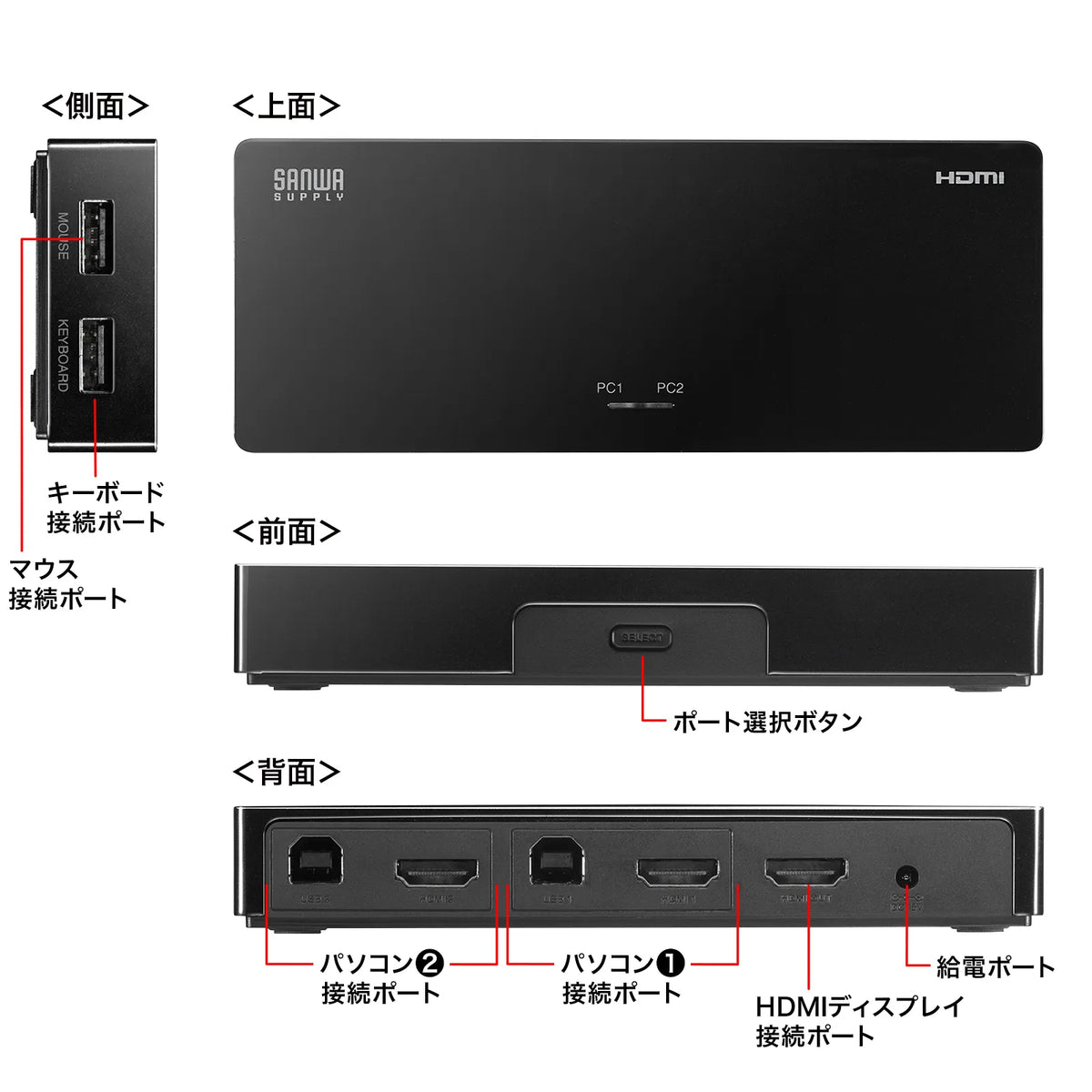

■Supported standards:
【PC side】

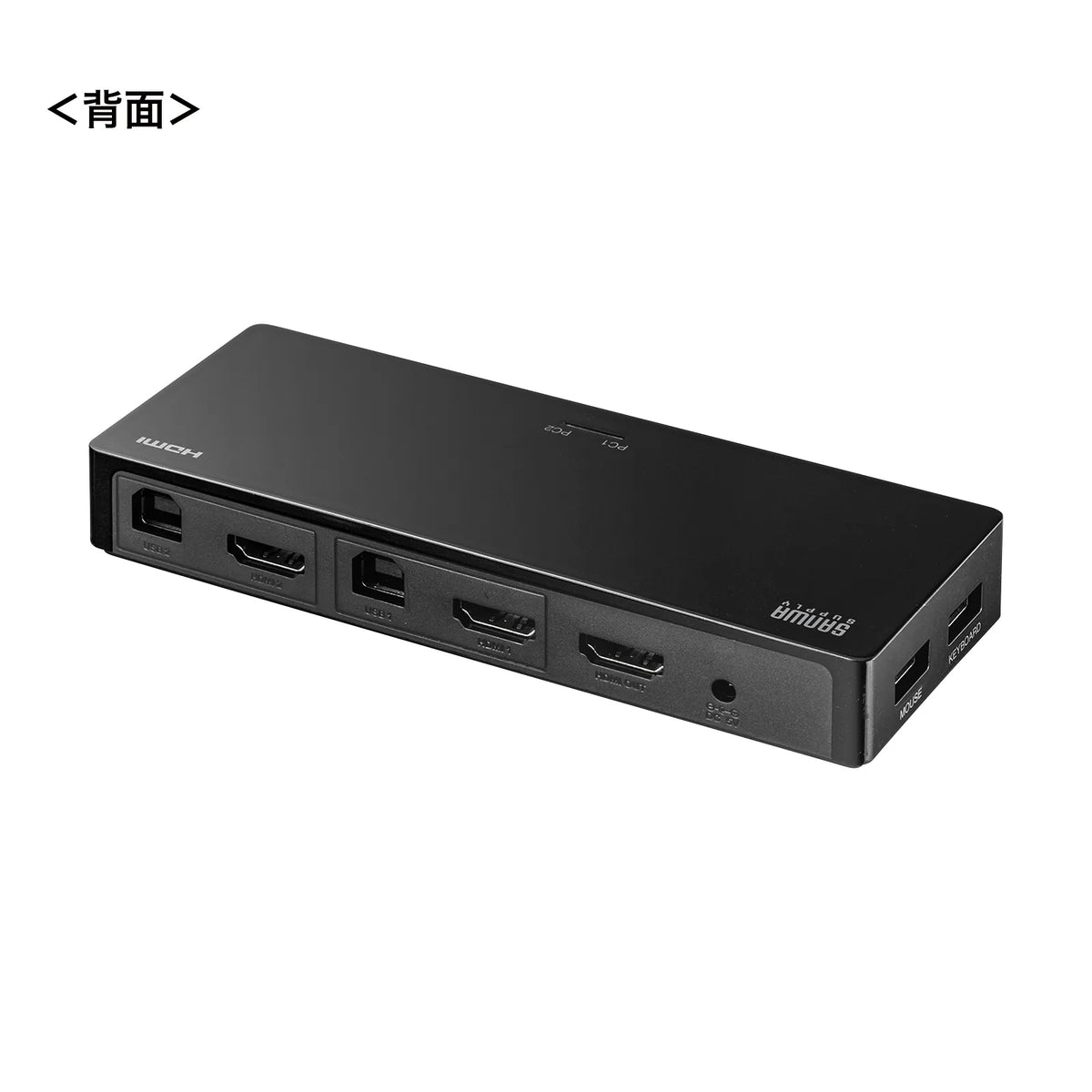

Display/HDMI (Type A) female x2, USB2.0 B connector female x2
[Peripheral device side]
Display/HDMI (Type A) female x1
Keyboard/USB2.0 A connector female x1
Mouse/USB2.0 A connector female x1
■Switching method: Switching with the main unit button
■Power supply: Power supplied from USB port/DC +5V
*If the power supply is insufficient, please use the included dedicated power supply cable.
■Current Consumption: 150mA (Maximum)
■Environmental Conditions: Operating Temperature: 5°C to 45°C, Humidity: 85% or less (non-condensing)
Storage Temperature: 0°C to 45°C, Humidity: 80% or less (non-condensing)
■Dimensions: W142.3 x D55 x H21mm
■Weight: Approx. 195g
■Maximum Number of Connected PCs: 2
■Shape: Desktop
■Video Output Connector: HDMI
■HDCP: HDCP2.3 compliant (pass-through)

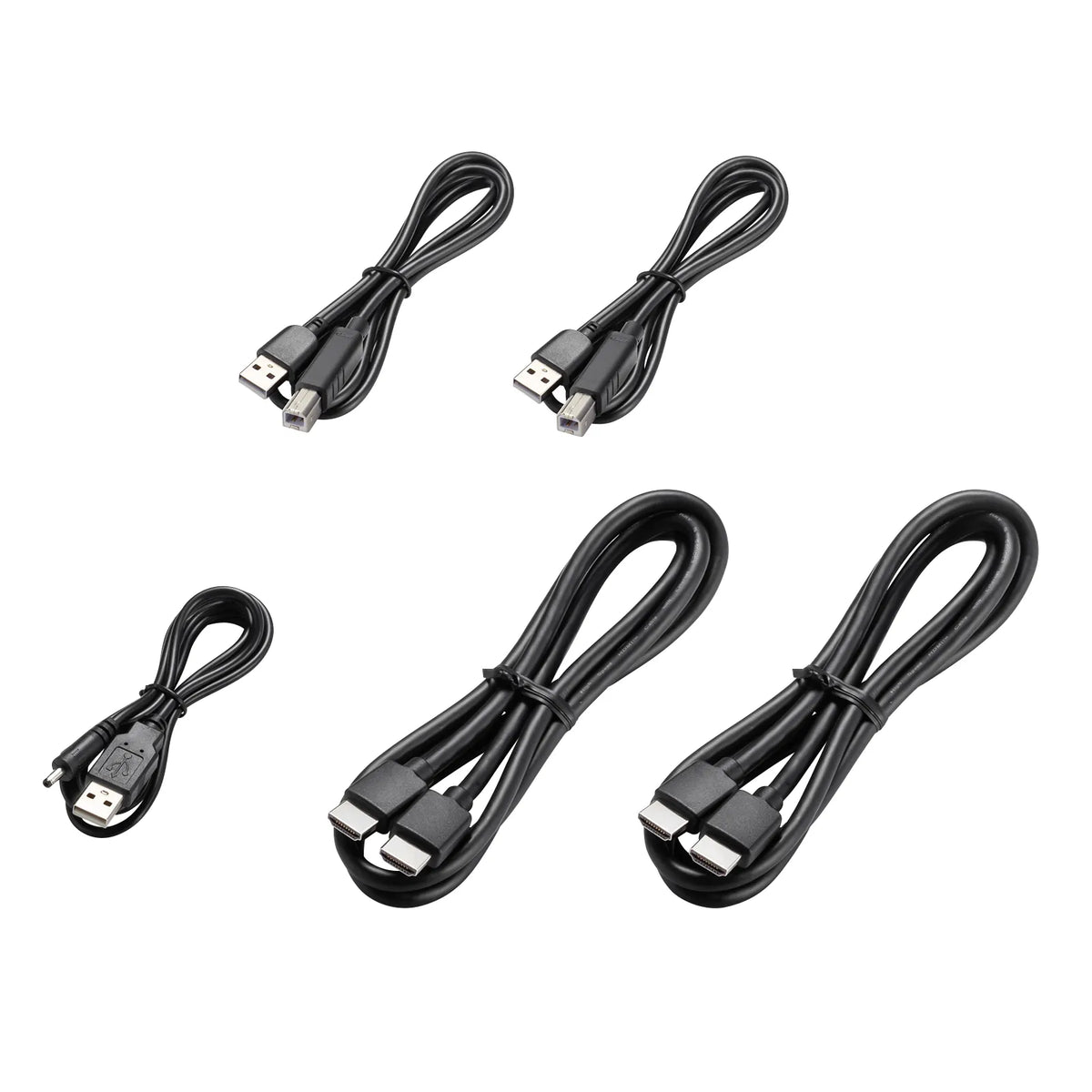

■Set Contents: Switcher (main unit) x1, HDMI cable for PC connection (1.5m) x2, USB cable for PC connection (1.0m) x2, Dedicated power supply cable (1.0m) x1, Instruction manual (with warranty)
●One set of HDMI displays (4K), USB keyboards, and USB mice can be switched between two computers.
●Supports resolutions up to 4K (3840x2160)/30Hz and 4K (4096x2160)/30Hz, and can output beautiful, high-definition HDMI signals.
●Since it does not have keyboard and mouse signal emulation functions, it is compatible with multi-function mice and multi-function keyboards with special drivers. *1, *2, *3, *4
*After switching, it takes a few seconds for the device to be recognized.
●Anyone can easily switch with a single button on the main unit.
●No software installation is required; you can switch and use it just by connecting it.
●It operates by supplying power from the computer's USB port, so no AC adapter is required.
*If the power supplied from your computer is insufficient, please use the included USB power cable to power the device from a separate USB-AC adapter (5V 1A or higher).
●HDMI connection only is also possible. (Keyboard and mouse are not connected. Power must be supplied separately from a USB-AC adapter.)
■Main supported resolutions: 4096x2160 (30Hz, 4:4:4)
3840x2160 (30Hz, 4:4:4)
3840x2160 (30Hz, 4:2:2)
1920x1080p (24/25/30/50/60Hz)
1920x1080i (50/60Hz)
1280x720p (50/60Hz)
720x576p (50Hz)
720x480p (60Hz)
■Supported standards:
【PC side】
Display/HDMI (Type A) female x2, USB2.0 B connector female x2
[Peripheral device side]
Display/HDMI (Type A) female x1
Keyboard/USB2.0 A connector female x1
Mouse/USB2.0 A connector female x1
■Switching method: Switching with the main unit button
■Power supply: Power supplied from USB port/DC +5V
*If the power supply is insufficient, please use the included dedicated power supply cable.
■Current Consumption: 150mA (Maximum)
■Environmental Conditions: Operating Temperature: 5°C to 45°C, Humidity: 85% or less (non-condensing)
Storage Temperature: 0°C to 45°C, Humidity: 80% or less (non-condensing)
■Dimensions: W142.3 x D55 x H21mm
■Weight: Approx. 195g
■Maximum Number of Connected PCs: 2
■Shape: Desktop
■Video Output Connector: HDMI
■HDCP: HDCP2.3 compliant (pass-through)
■Set Contents: Switcher (main unit) x1, HDMI cable for PC connection (1.5m) x2, USB cable for PC connection (1.0m) x2, Dedicated power supply cable (1.0m) x1, Instruction manual (with warranty)
