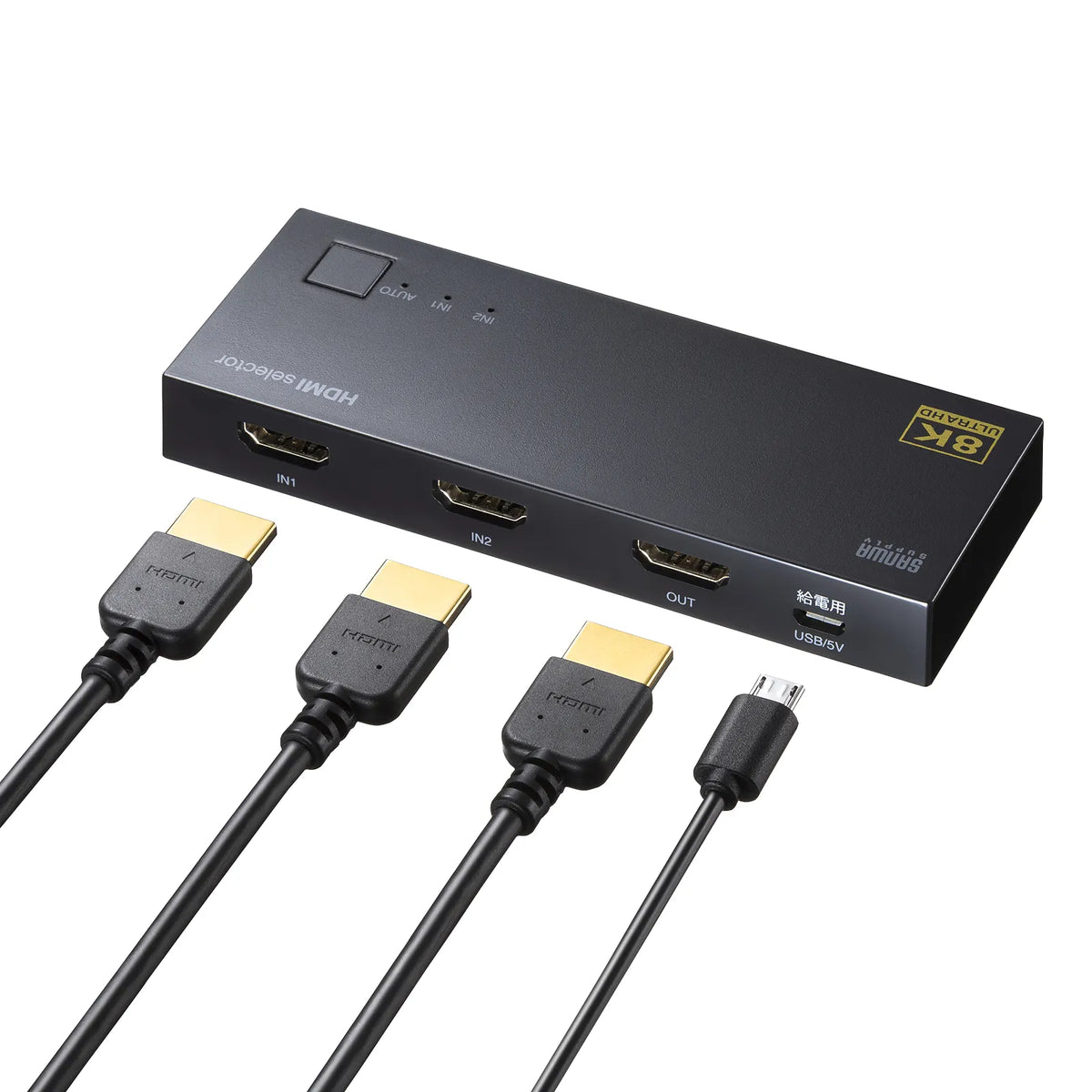

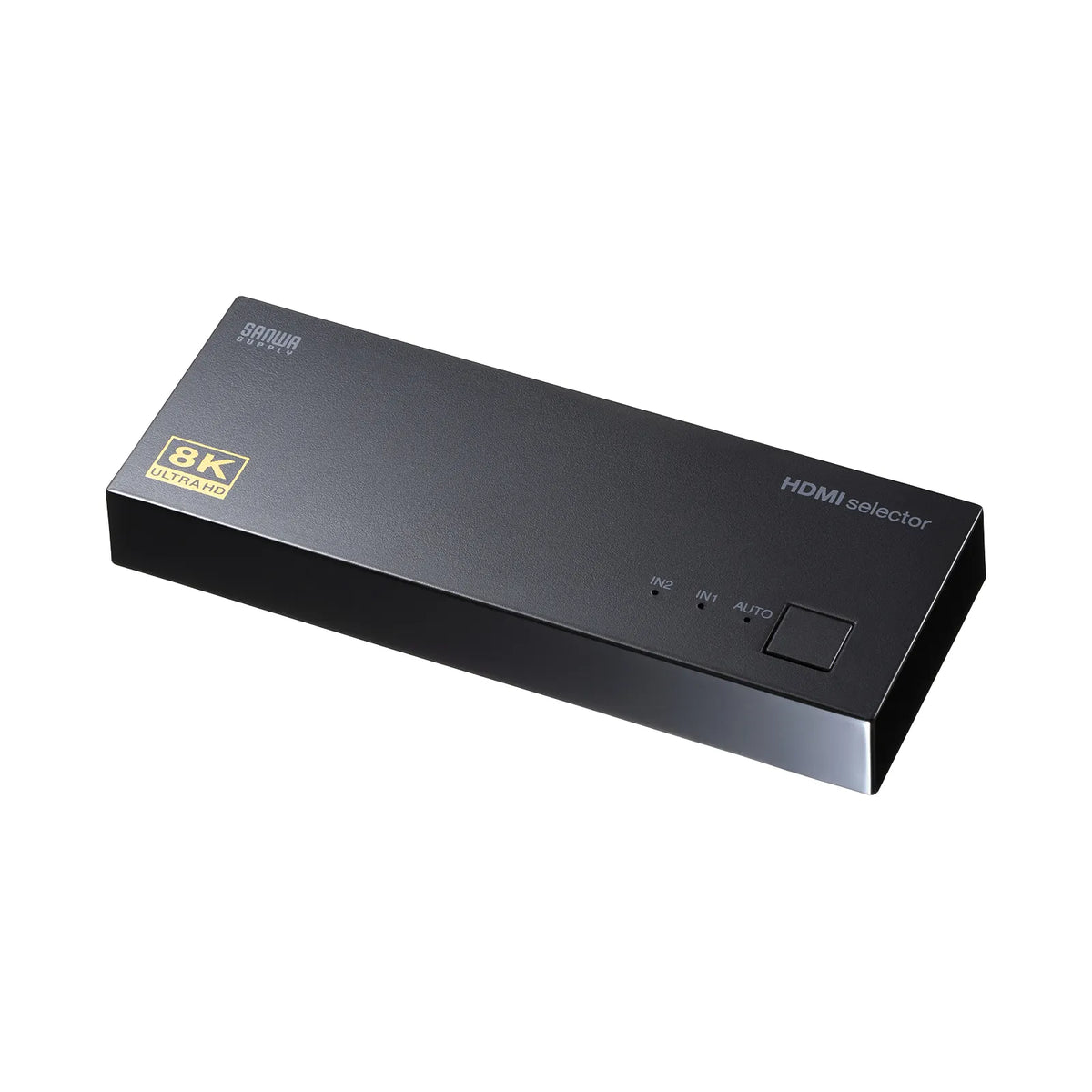

8K, HDR, HDCP2.3 compatible HDMI switch (2 inputs, 1 output) SW-HDR8K21L

[A 2-input, 1-output HDMI switch that supports 8K/60Hz and 4K/120Hz video, allowing you to enjoy ultra-beautiful images. Automatic switching and fully manual switching are selectable.]

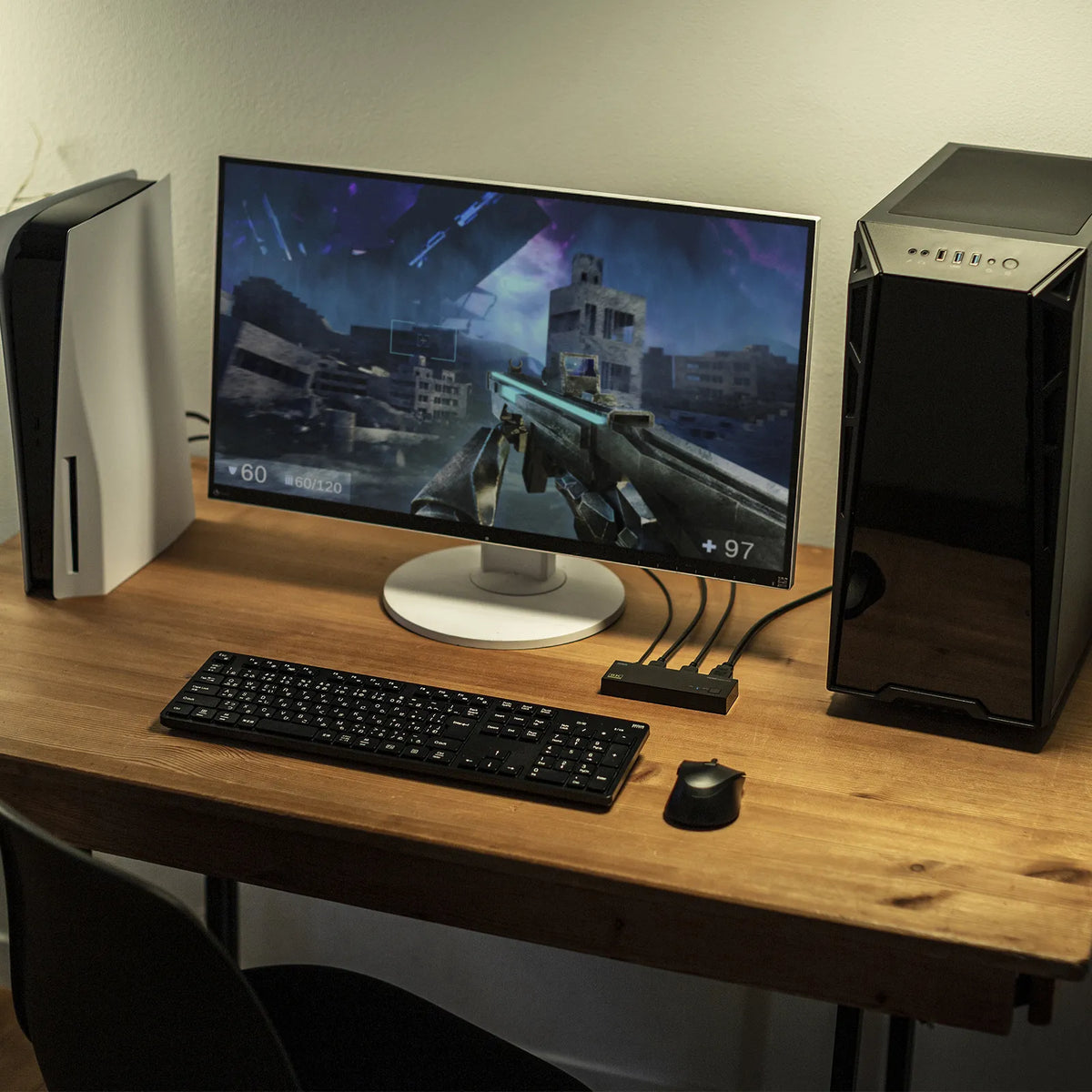

●This HDMI switch allows you to easily switch the video and audio from two HDMI devices to output to one 8K display, etc.
●Supports a maximum resolution of 8K/60Hz and 4K/120Hz, and can output beautiful, high-definition HDMI signals.
●Supports high-brightness HDR (High Dynamic Range) and HDCP2.3.
●Supports 4K/120Hz output from PlayStation 5™.
●Nintendo Switch™ and PlayStation 4 Pro™ have also been confirmed to work.
●A 2-way system that allows you to choose between "automatic switching mode" which automatically switches ports when an HDMI device is turned on, and fully manual switching mode which prevents accidental operation by switching only with a button.
●All HDMI terminals are gold-plated. Rust-resistant and prevents signal degradation.
●Supports Dolby True HD and DTS HD Master Audio.


＜Caution＞
* "PlayStation," "PLAYSTATION," "PlayStation," "PS4," and "PS5" are registered trademarks of Sony Interactive Entertainment Inc.
* Nintendo Switch is a trademark or registered trademark of Nintendo.
* Operation is not guaranteed with all HDMI devices.
* When connecting at 8K/60Hz, 8K/30Hz, or 4K/120Hz, an Ultra HDMI 2.1 cable is required.
* To output 4K/120Hz, 120Hz compatible game software, cable, input device, and output device are required.
* To play 4K/HDR video, all equipment configurations, cables, and software must be compatible with the 4K/HDR standard.
* For stable operation, connection and use of a USB power supply cable is recommended.

This product supports bus power operation, which is powered by the HDMI device, but
when the device is started up, symptoms such as the screen temporarily going dark or the video cutting out may occur.
In such cases, connecting a USB power cable to provide a stable power supply to this product may resolve the issue.

[Regarding screen display time during switching]
When switching ports, it usually takes about 3 to 5 seconds for the video to be displayed. This is not a symptom of this product,
but is the time it takes for the HDMI device (recorder, etc.) to recognize the display and start outputting video, and is due to the performance of the HDMI device.
This product itself completes port switching the moment the switch button is pressed.



■Maximum resolution: 8K/60Hz
■Main supported resolutions: 7680x4320 (60Hz, 4:4:4), 7680x4320 (60Hz, 4:2:0), 7680x4320 (30Hz, 4:4:4)
3840x2160 (120Hz, 4:4:4), 3840x2160 (60Hz, 4: 4:4)
1920x1080p (24/25/30/50/60/120/240Hz)
1920x1080i (50/60Hz)
1280x720p (50/60Hz)
720x576p (50Hz)
720x480p (60Hz)
*Depends on the resolution of the TV or monitor to which it is connected.

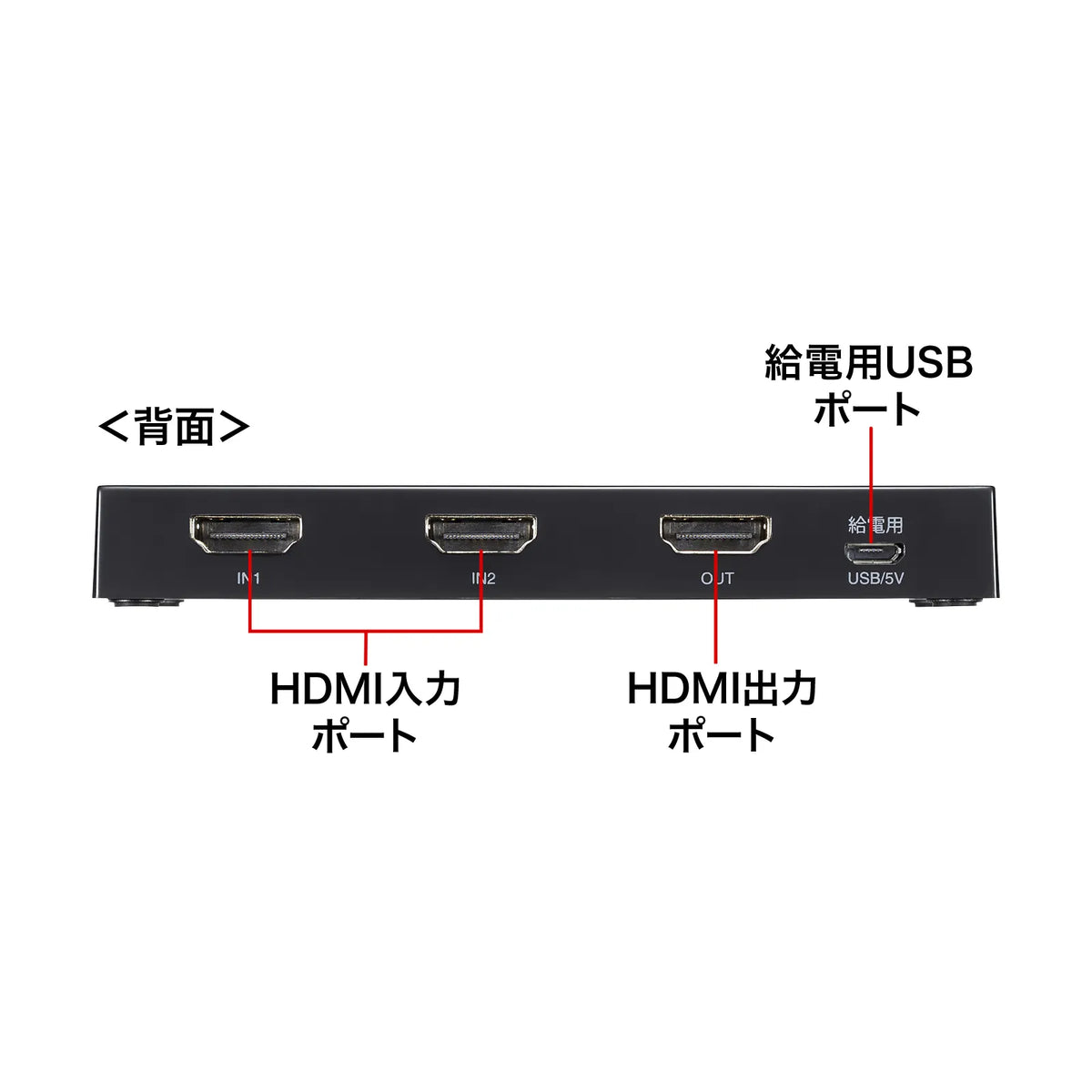

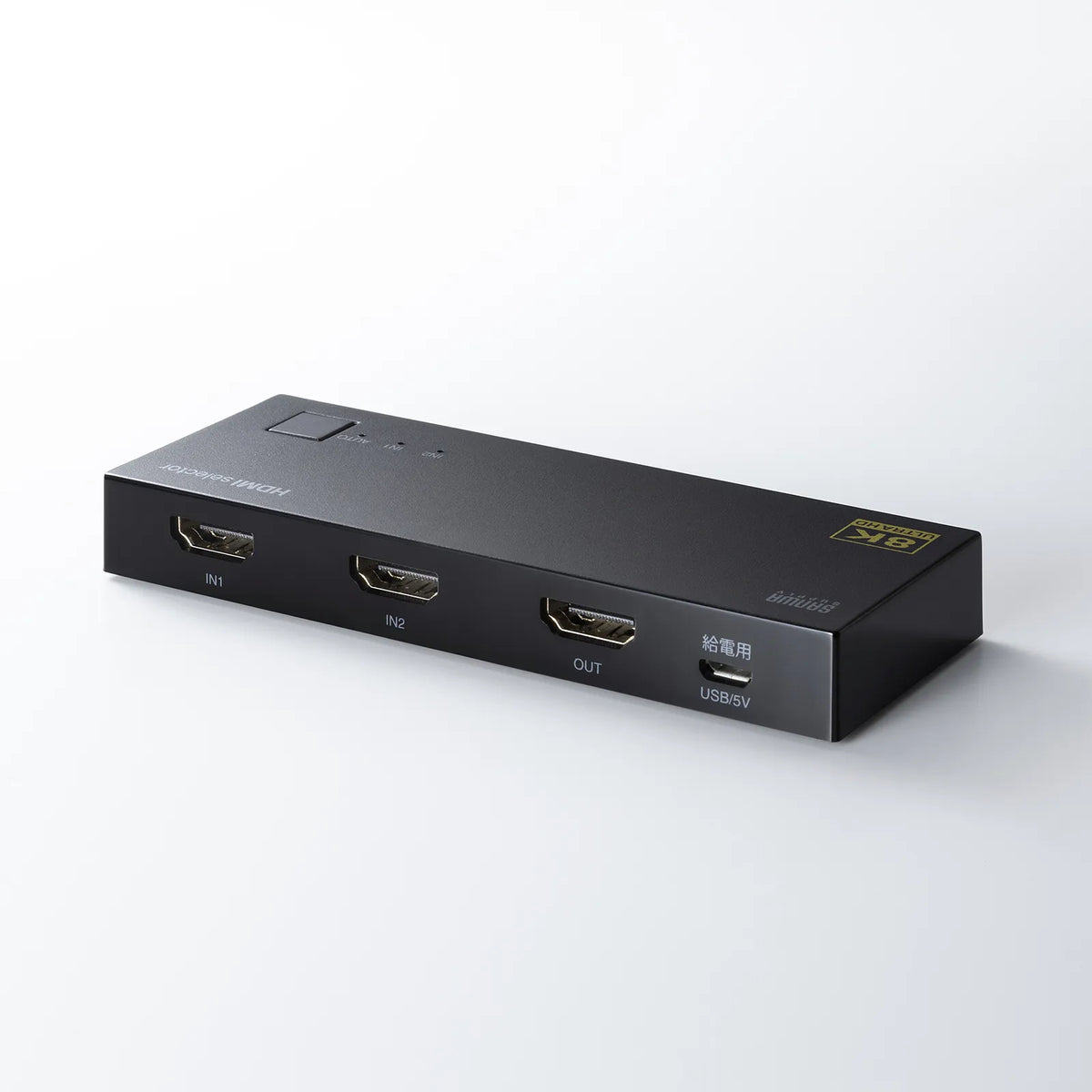

■Interface: Input/HDMI Type A (19PIN) Female x2
Output/HDMI Type A (19PIN) Female x1
Power supply/microUSB Female x1
■HDMI Standard: HDMI Ver2.1
■HDCP: HDCP1.4, HDCP2.2, HDCP2.3 *The display must also be HDCP compatible.
■Switching Content: HDMI Input 2 / HDMI Output 1

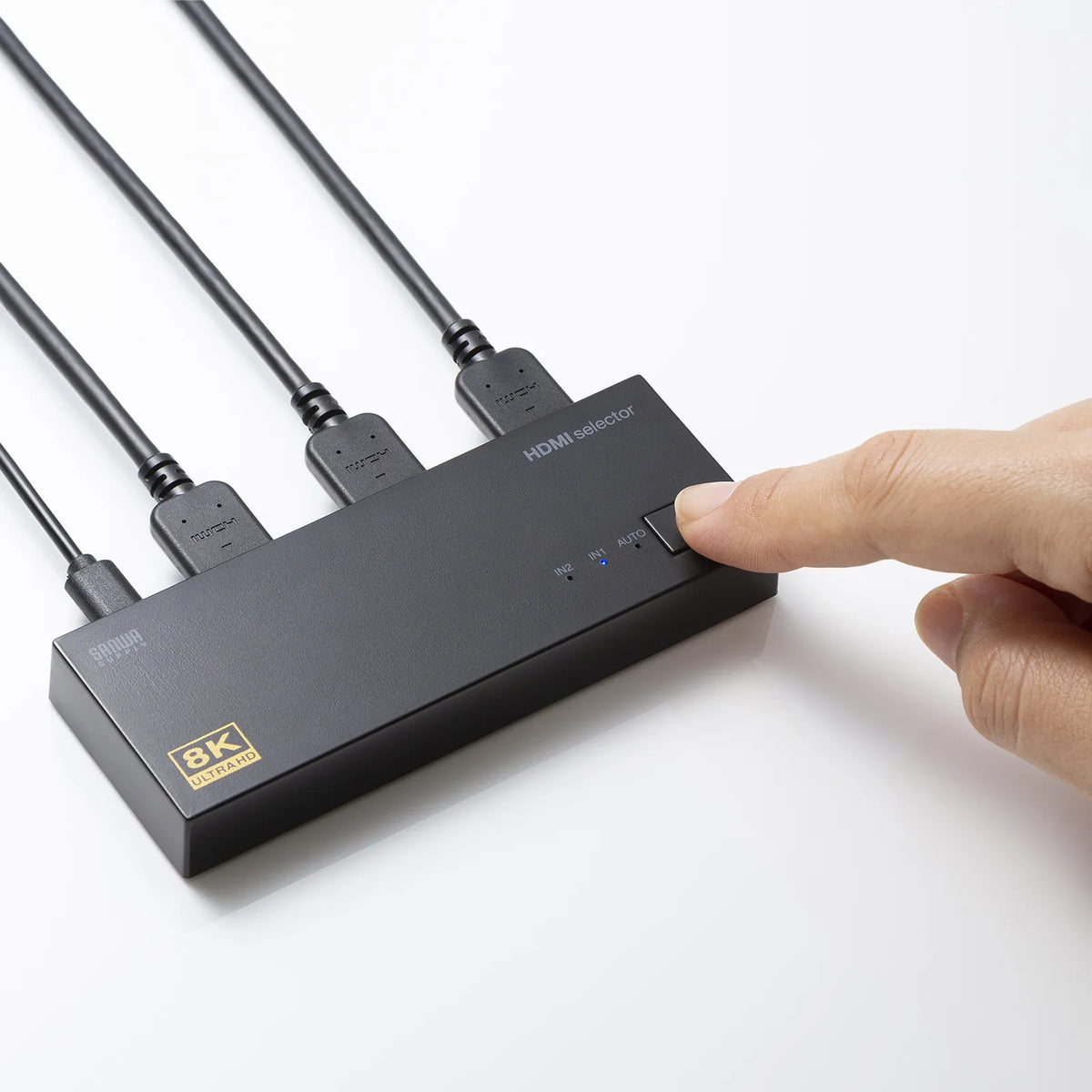

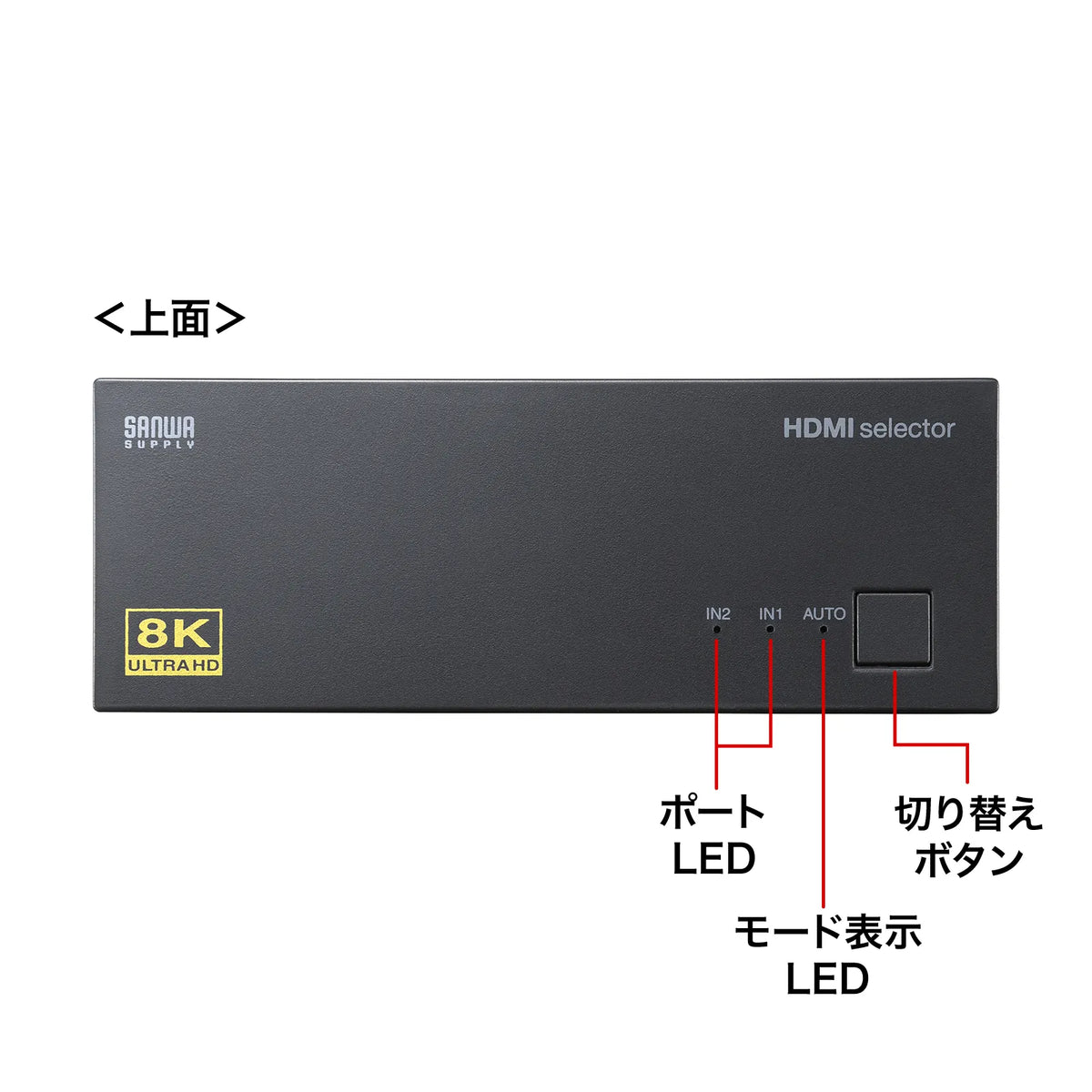

■Switching Method: Switching button on the main unit *Automatic switching function to powered-on device is available.
■Data Rate: 48Gbps
■CEC (Customer Electronic Control): Supported *Operation is not guaranteed with all devices.
■Power Consumption: 1.75W (Maximum)
■Dimensions: W120.3 x D45.1 x H15mm
■Weight: Approx. 52g
■Pixel Clock (Maximum): 1200MHz
■Supported Audio Formats: LPCM 2/5.1/7.1ch, Dolby Digital, Dolby Digital Plus,
Dolby TrueHD, DTS-HD Master Audio, DTS
■Input DDC Signal: 5V
■Environmental Conditions: Operating/Temperature 0 to 50 degrees, Humidity 0 to 80% (non-condensing)
Storage/Temperature -20 to 60 degrees, Humidity 5 to 90% (non-condensing)
■HDR: Supported
■Signal Classification: HDMI
■Number of Circuits: 2x1

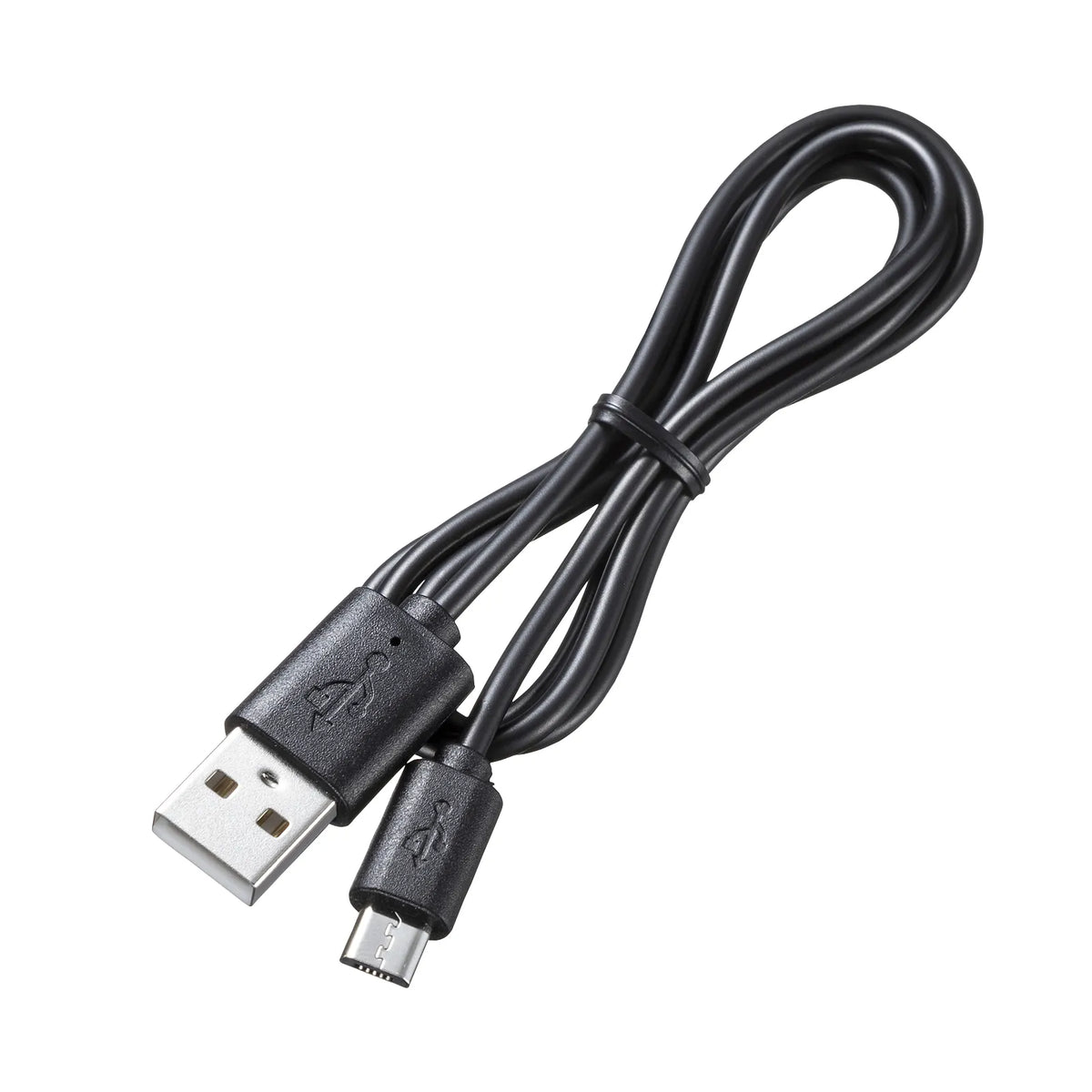

■Set Contents: microUSB cable (approx. 76cm/for power supply), instruction manual and warranty
