8K compatible HDMI switch (2 inputs/1 output or 1 input/2 outputs) SW-HDR8K21BD

[8K/60Hz/HDR compatible manual HDMI switch with bidirectional switching of 2 inputs/1 output or 1 input/2 output]

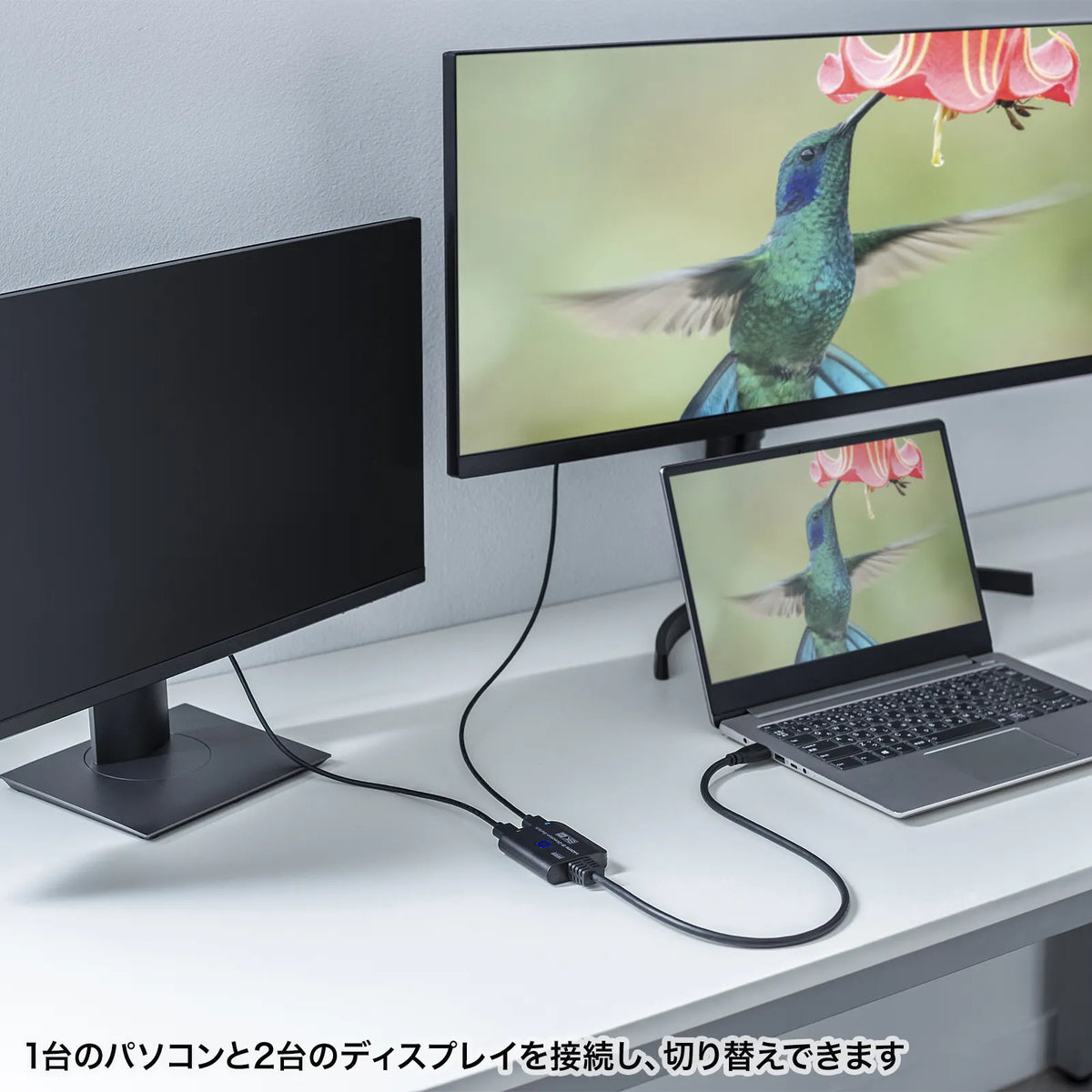

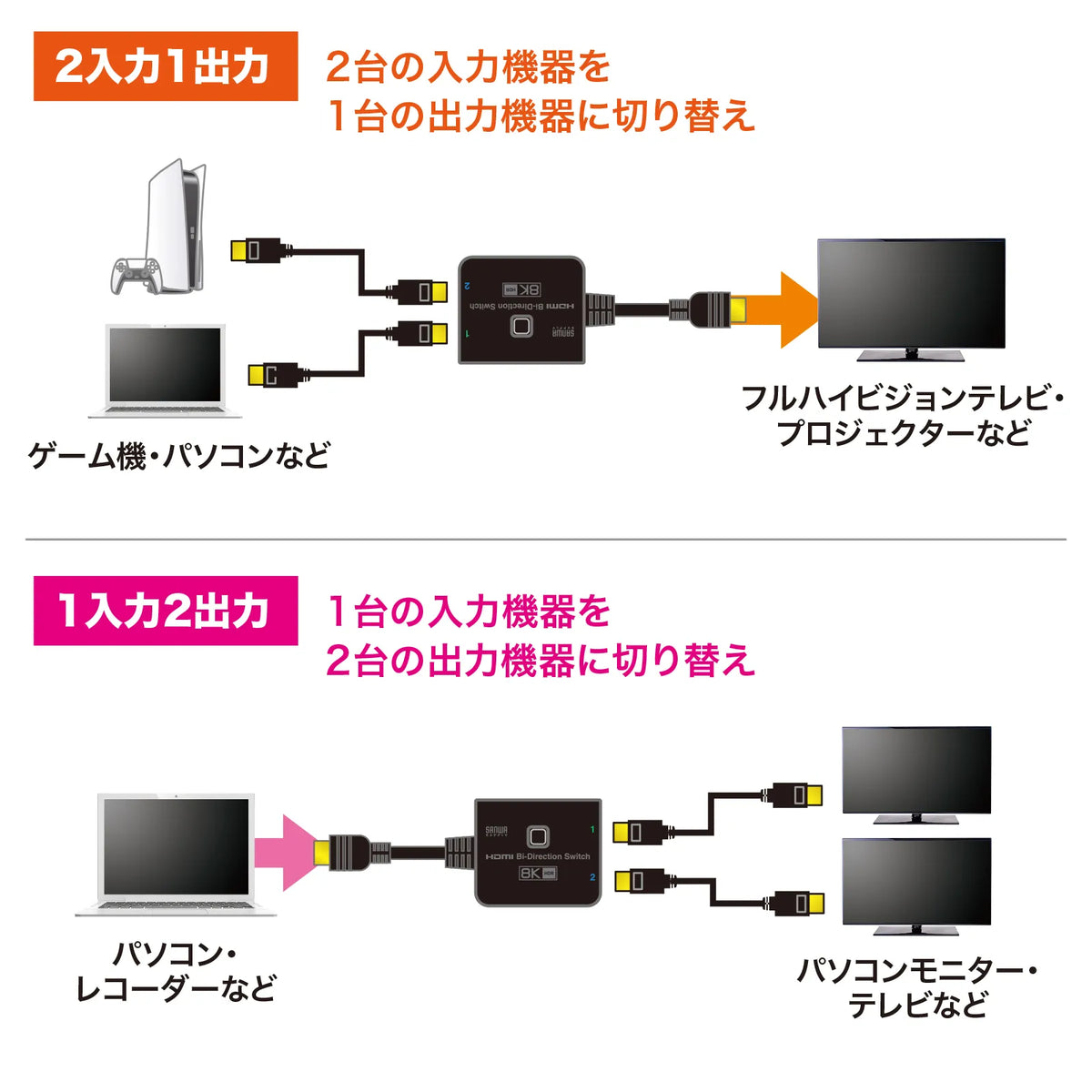

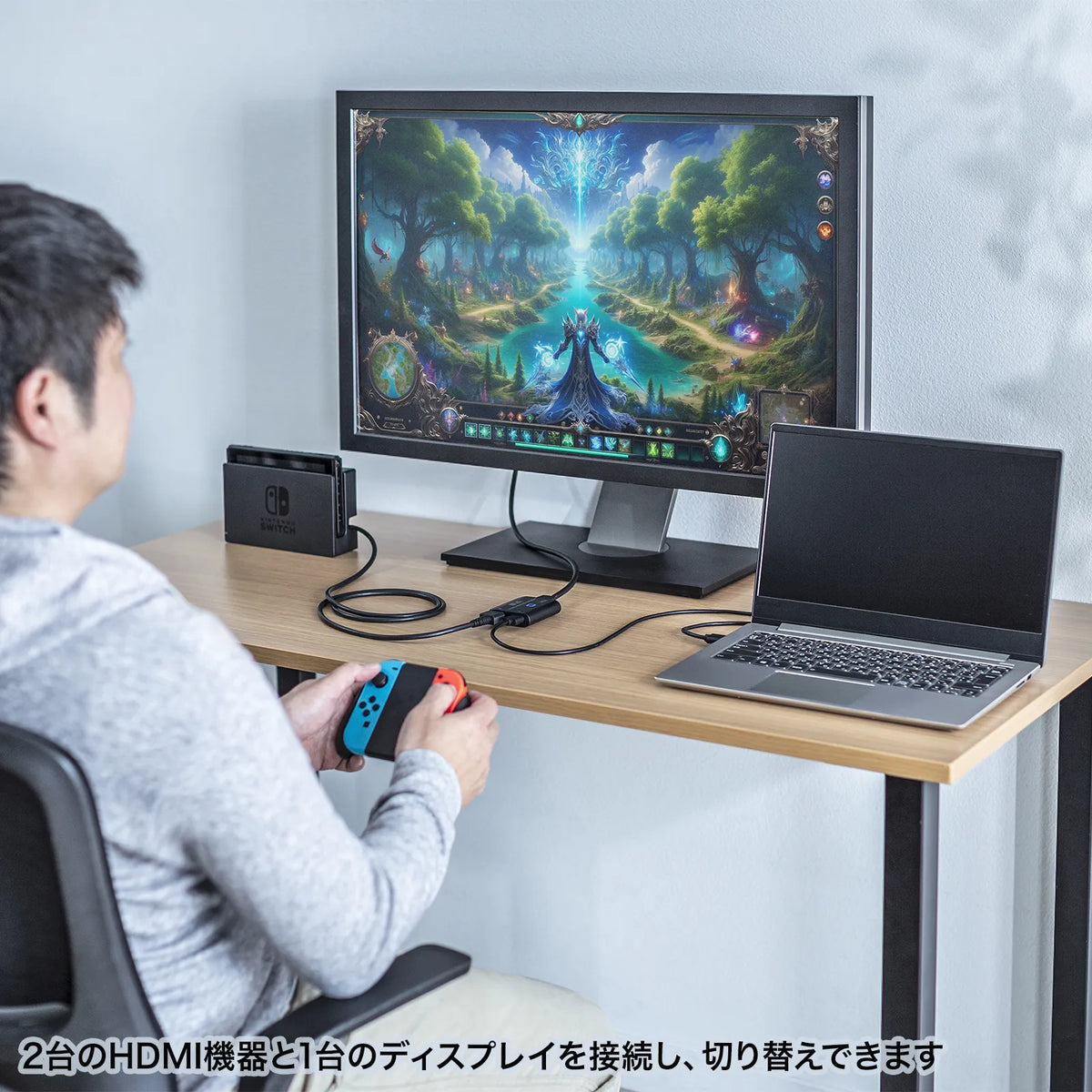

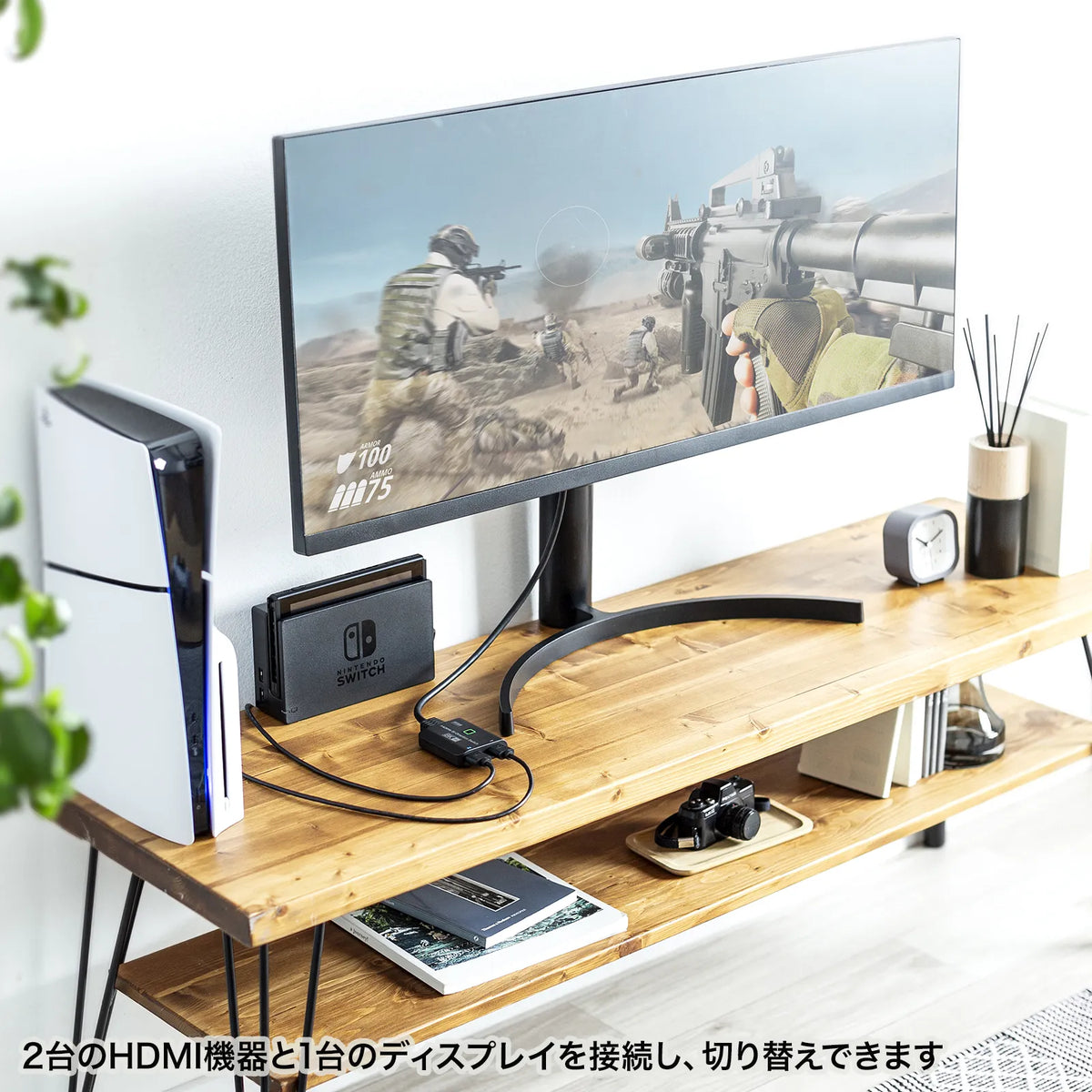

●This is a bidirectional HDMI switch that allows you to switch between two HDMI devices and output to one TV, or switch one HDMI device and output to two TVs or projectors, etc.
※There is no distribution output function.
●Supports a maximum resolution of 8K/60Hz and 4K/120Hz, and can output beautiful, high-definition HDMI signals.
(When outputting 8K/4K: Limited to cases where the cable length between the switch and monitor is 1.5m or less)
●Supports high-brightness HDR (High Dynamic Range) and HDCP2.3.

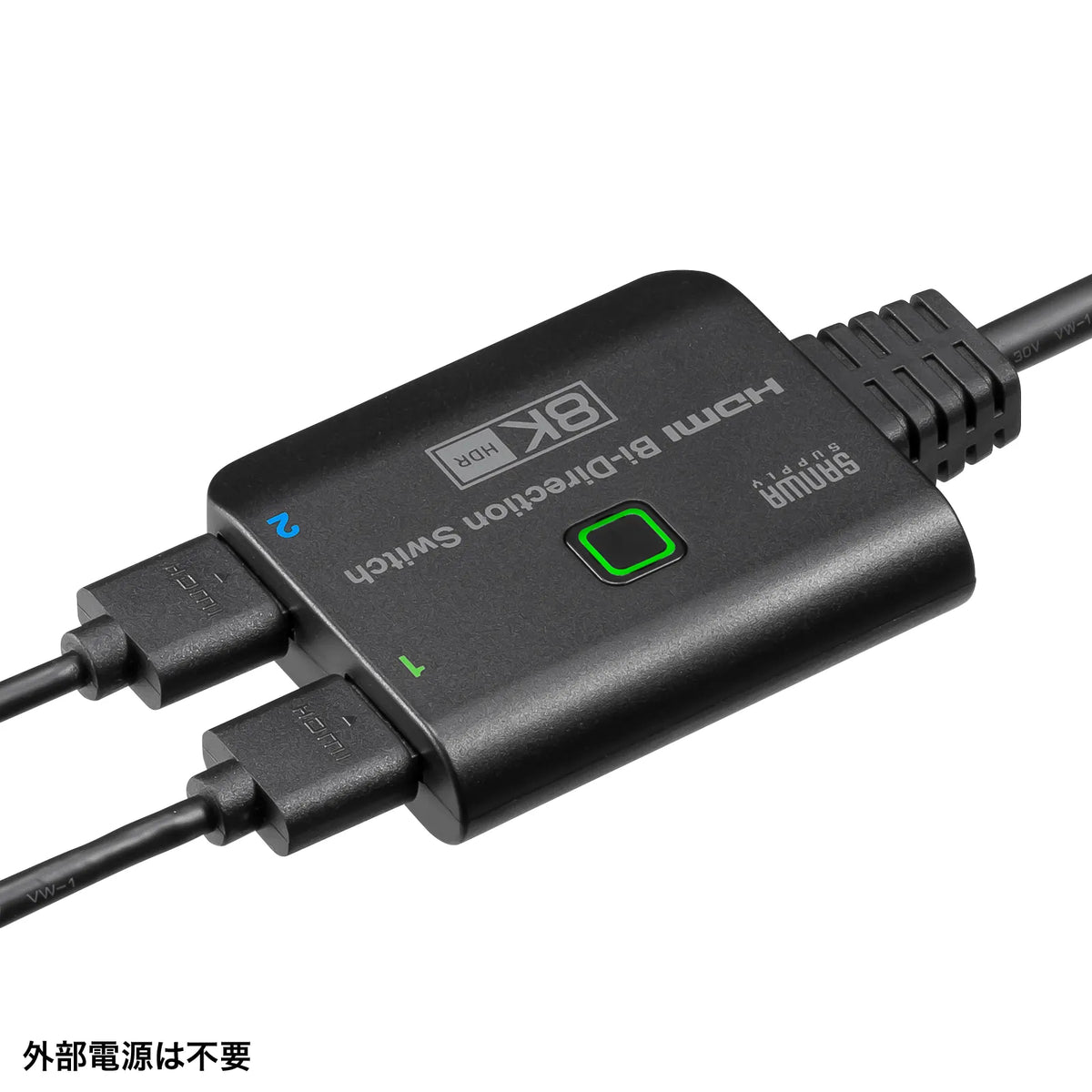

●This is a fully manual switch that switches with only button operation.

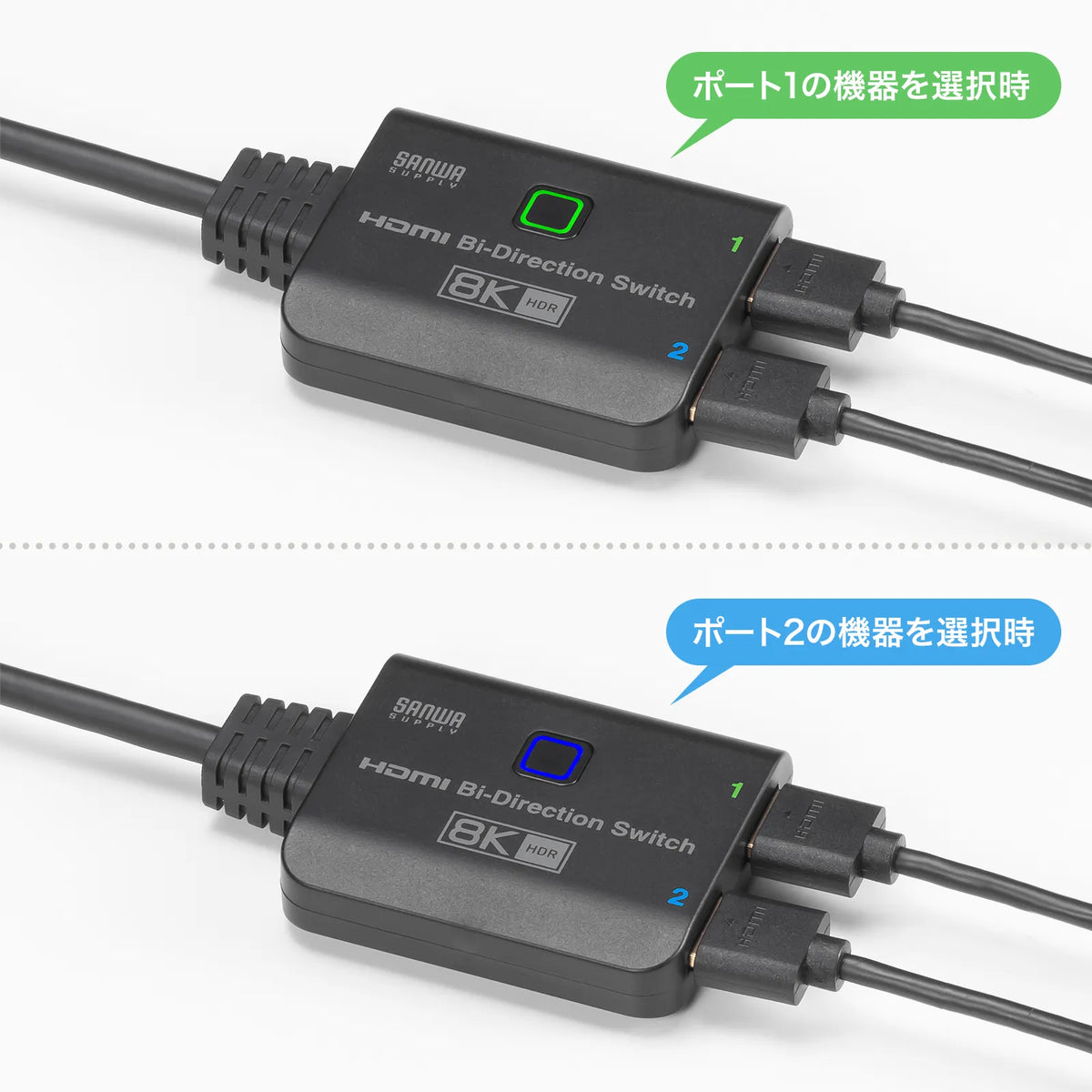

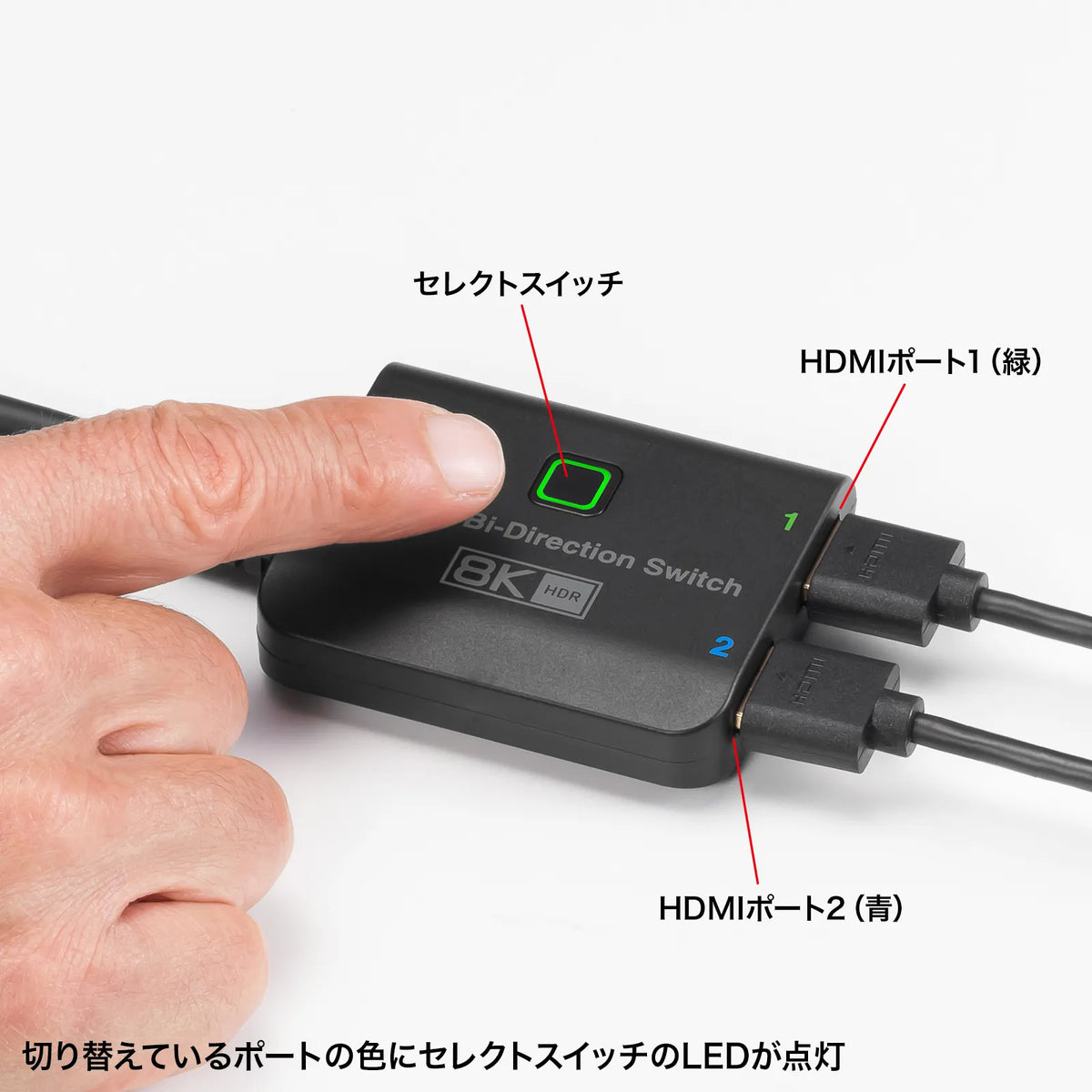

●The highly visible LED display lets you see at a glance which device is selected.
●Supports Dolby True HD and DTS HD Master Audio.
●Compatible with PlayStation 5.

* "PlayStation," "PLAYSTATION," "PlayStation," and "PS5" are registered trademarks of Sony Interactive Entertainment Inc.
* Nintendo Switch is a trademark or registered trademark of Nintendo.
* Operation is not guaranteed with all HDMI devices.
* To output 120Hz, 120Hz compatible game software, cables, input devices, and output devices are required.
* When connecting at 8K/60Hz, 8K/30Hz, or 4K/120Hz, an Ultra HDMI 2.1 cable is required.
* To play 8K/HDR video, all equipment configurations, cables, and software must be compatible with the 8K/HDR standard.

[Regarding screen display time during switching]
When switching ports, it usually takes about 3 to 5 seconds for the image to be displayed. This is not a symptom of this product,
but the time it takes for the HDMI device (recorder, etc.) to recognize the display and start outputting video, and is due to the performance of the HDMI device.
This product completes port switching the moment you press the switch button.

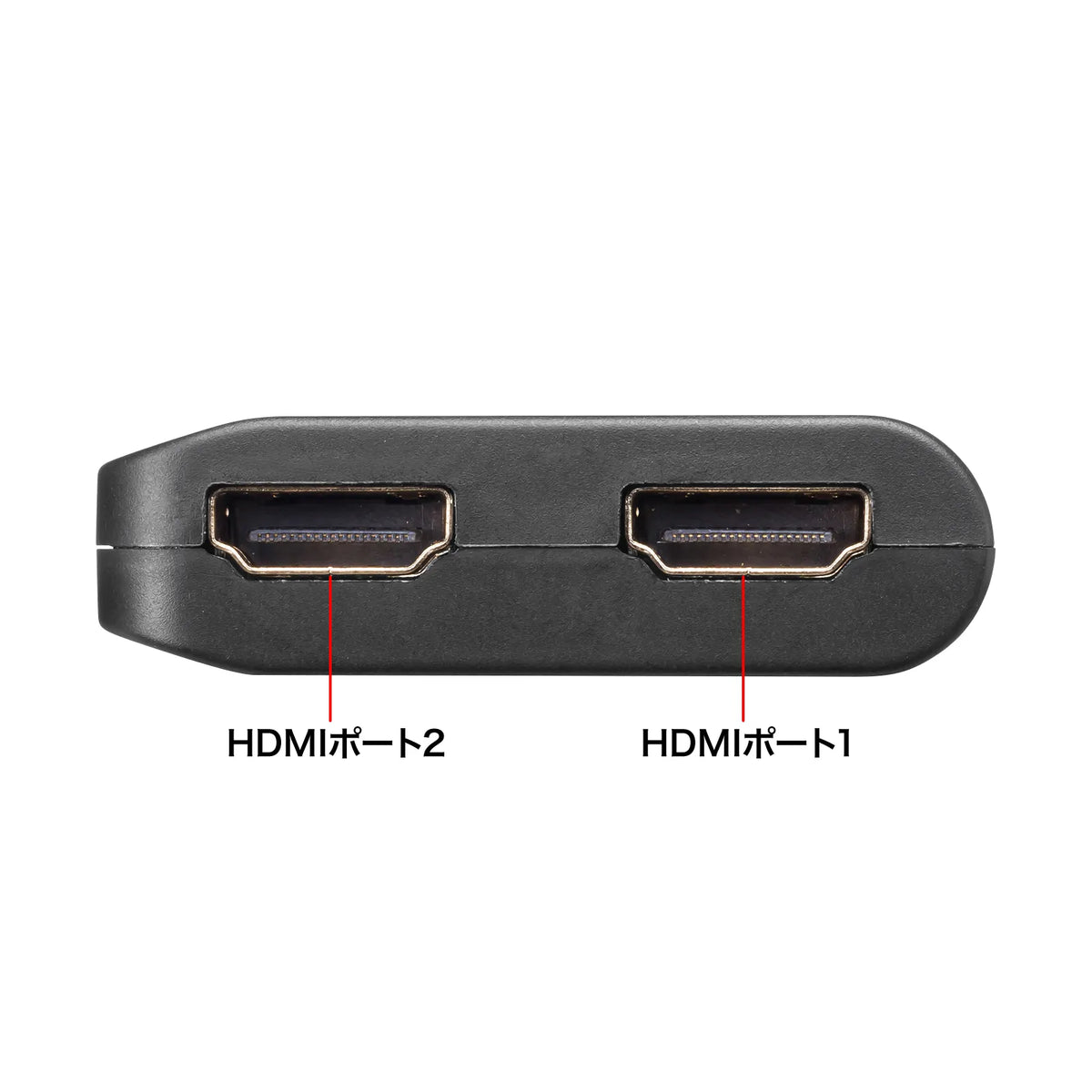

■Interface: Input/Output/HDMI Type A (19PIN) Female x2
Input/Output/HDMI Type A (19PIN) Male x1
■Switching Content: HDMI Input 2/HDMI Output 1 or HDMI Input 1/HDMI Output 2
■Switching Method: Switch button on the unit
■HDMI Standard: HDMI Ver2.1
■HDCP: HDCP2.3, HDCP2.2, HDCP1.4
■Data Rate: 48Gbit/s (Max)
■Pixel Clock: 1200MHz (Max)
■Maximum Resolution: 8K/60Hz
■Main Supported Resolutions: 7680x4320 (60/50/30/25/24Hz, 4:4:4/4:2:0)
4096x2160 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0)
3840x2160 (120Hz, 4:4:4/4:2:2/4:2:0)
3840x2160 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0)
1920x1080p (60/50/30/24Hz)
1920x1080i (60/50/30/24Hz)
1280x720p (60/50Hz)
640x480p (60/50Hz)
*Depends on the resolution of the connected TV or monitor.
■HDR: Supported
■Supported audio formats: LPCM 2/5.1/7.1ch, Dolby Digital, Dolby Digital Plus,
Dolby TrueHD, DTS-HD Master Audio, DTS
■Input DDC signal: 5V
■CEC (Connected Electronic Control): Supported
*Operation is not guaranteed with all devices.
■Cable length: 0.5m
■Power consumption: 0.3W (maximum)
■Environmental conditions: Operating temperature 0 to 50 degrees Celsius, humidity 80% or less (non-condensing)
Storage temperature -20 to 60 degrees Celsius, humidity 80% or less (non-condensing)
■Signal classification: HDMI
■Number of circuits: 2x1 (bidirectional)
■Size: W65xD55.5xH16mm
■Weight: Approx. 92g
■Set contents: Main unit, instruction manual and warranty
≪Caution≫
*In order to play 8K/HDR video, all equipment configurations, cables, and software must be compatible with the 8K/HDR standard.
*Operation is not guaranteed with all equipment.
