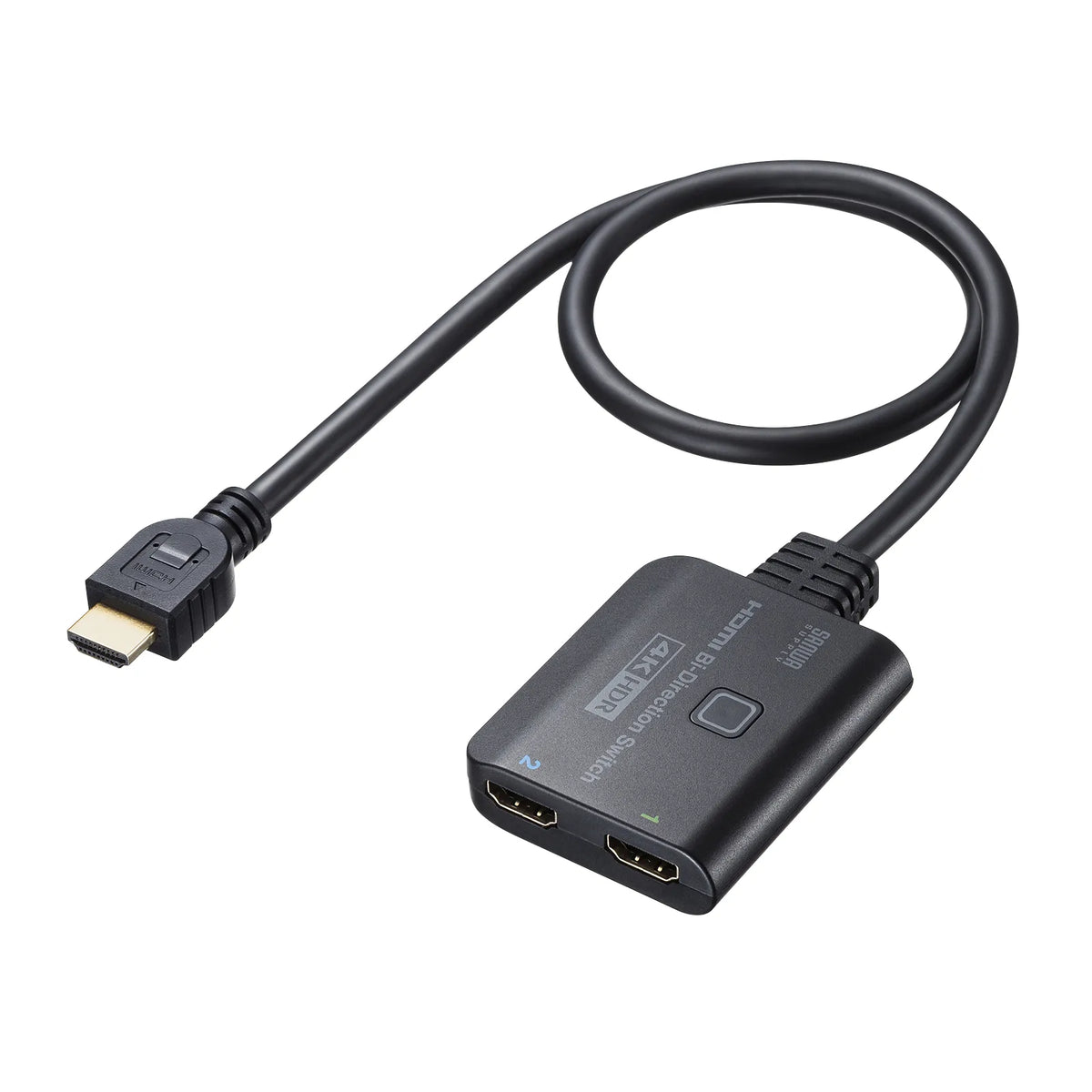

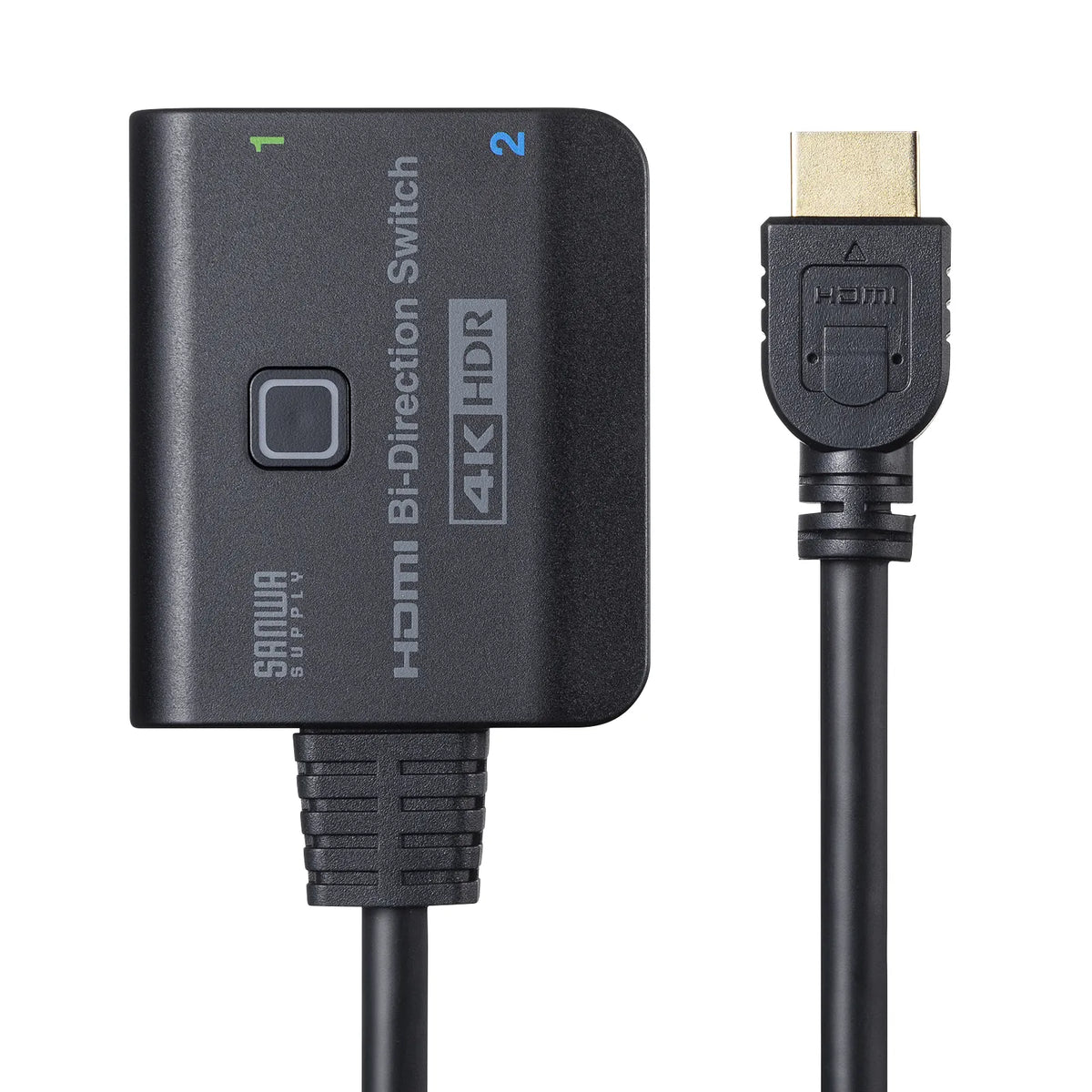

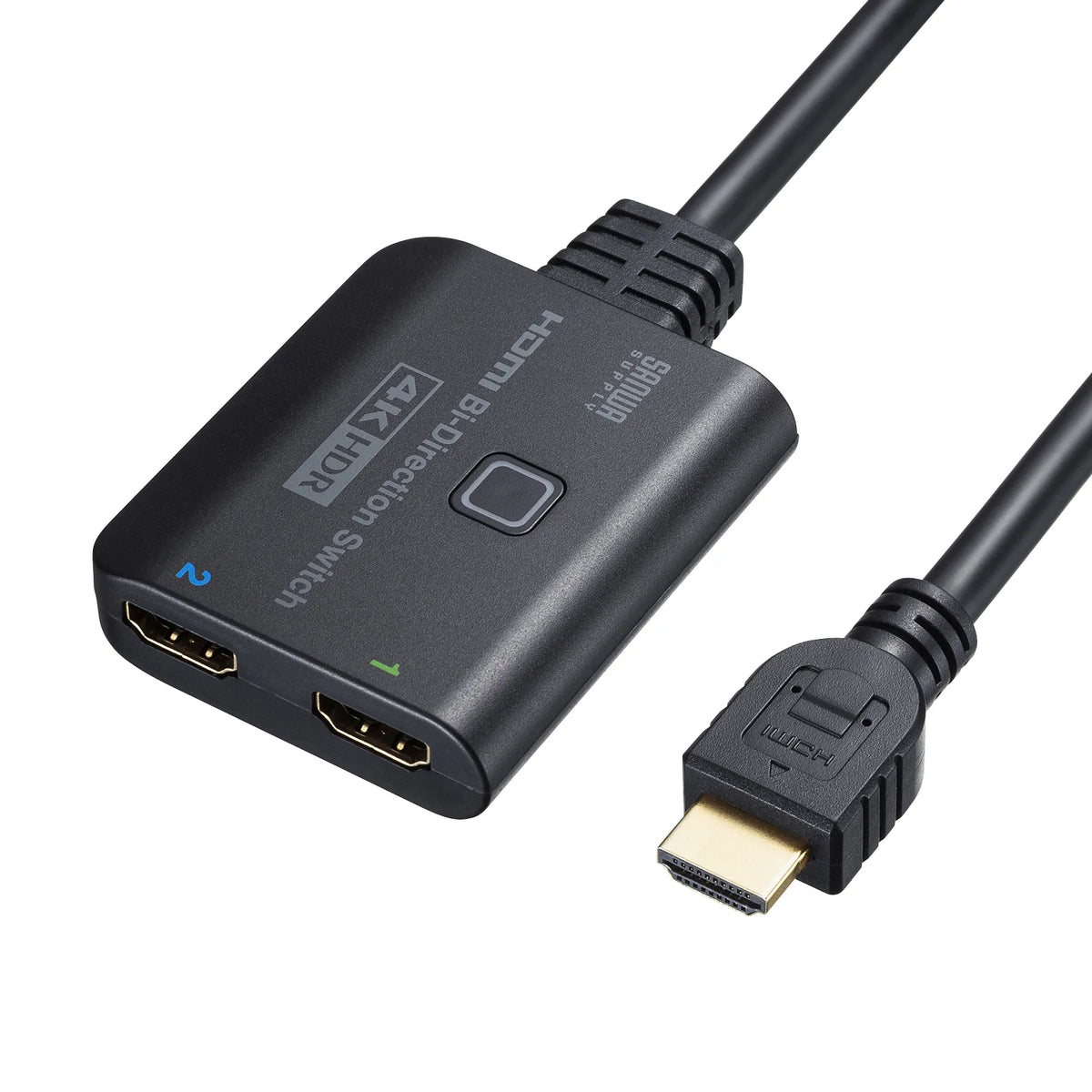

4K/HDR/HDCP2.2 compatible HDMI switch (2 inputs/1 output or 1 input/2 outputs) SW-HDR21BD

[4K/60Hz/HDR compatible manual HDMI switch with bidirectional switching of 2 inputs/1 output or 1 input/2 output]

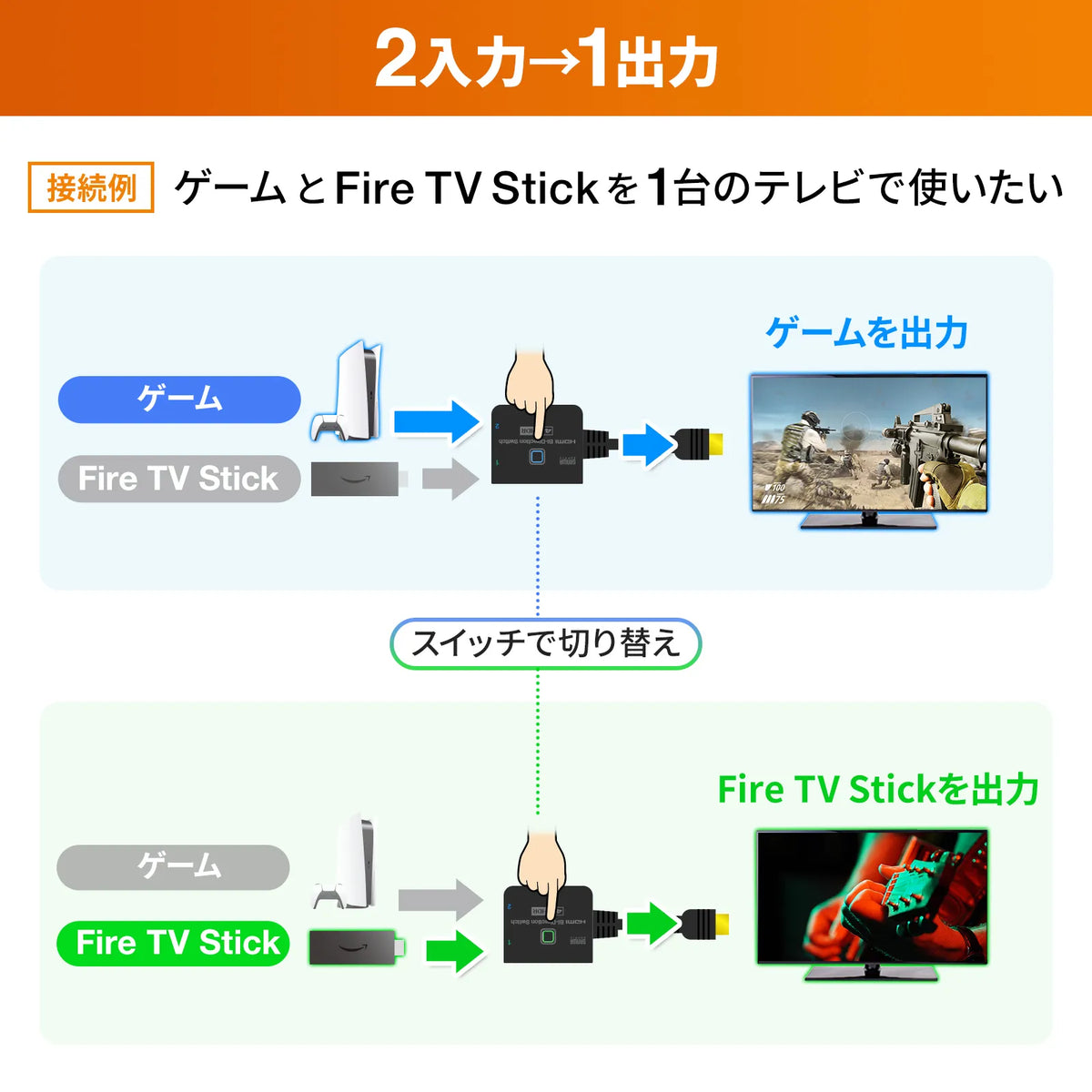

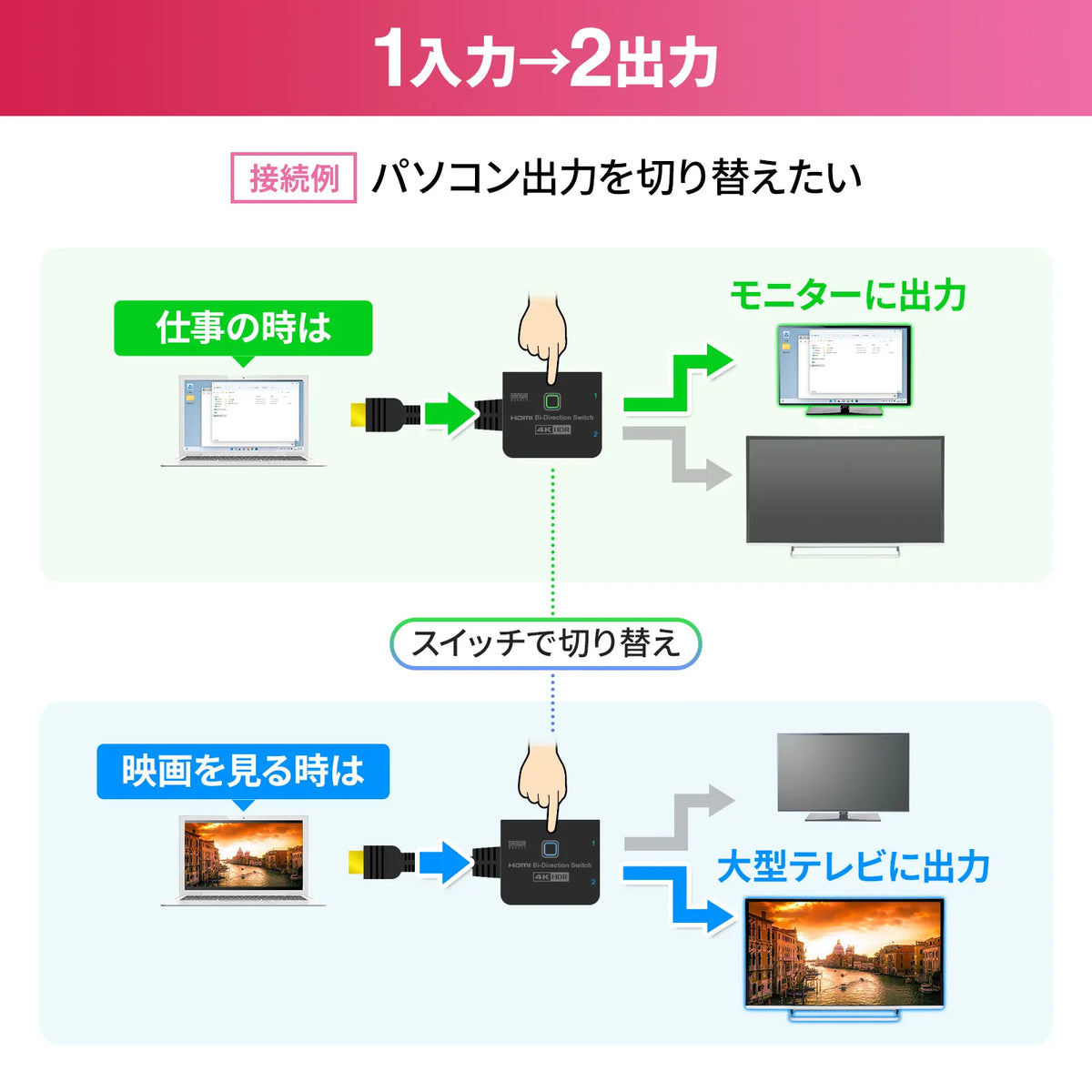

●This is a bidirectional HDMI switch that allows you to switch two HDMI devices to output to one TV, or switch one HDMI device to output to two TVs or projectors.
※There is no distribution output function.
●Supports 4K/4096x2160 (60Hz, 4:4:4, 24bit (maximum)), allowing you to output beautiful, high-definition HDMI signals for games, etc.
(4K/60Hz output/only when the cable length between the switch and monitor is 1.5m or less)
(4K/30Hz output/only when the cable length between the switch and monitor is 4m or less)
●Supports high brightness HDR (High Dynamic Range) and HDCP2.2.
●This is a fully manual switch that switches using only button operation.

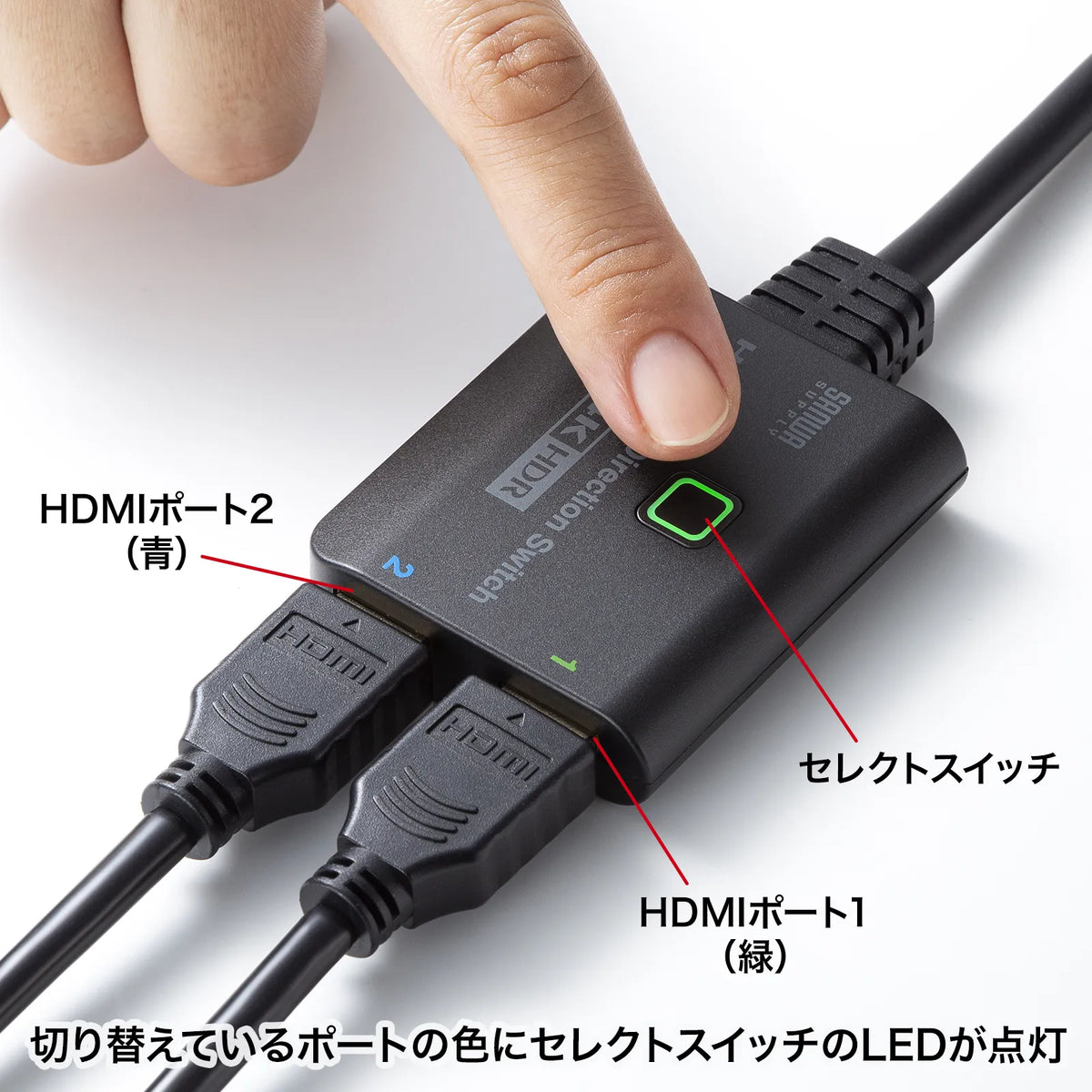

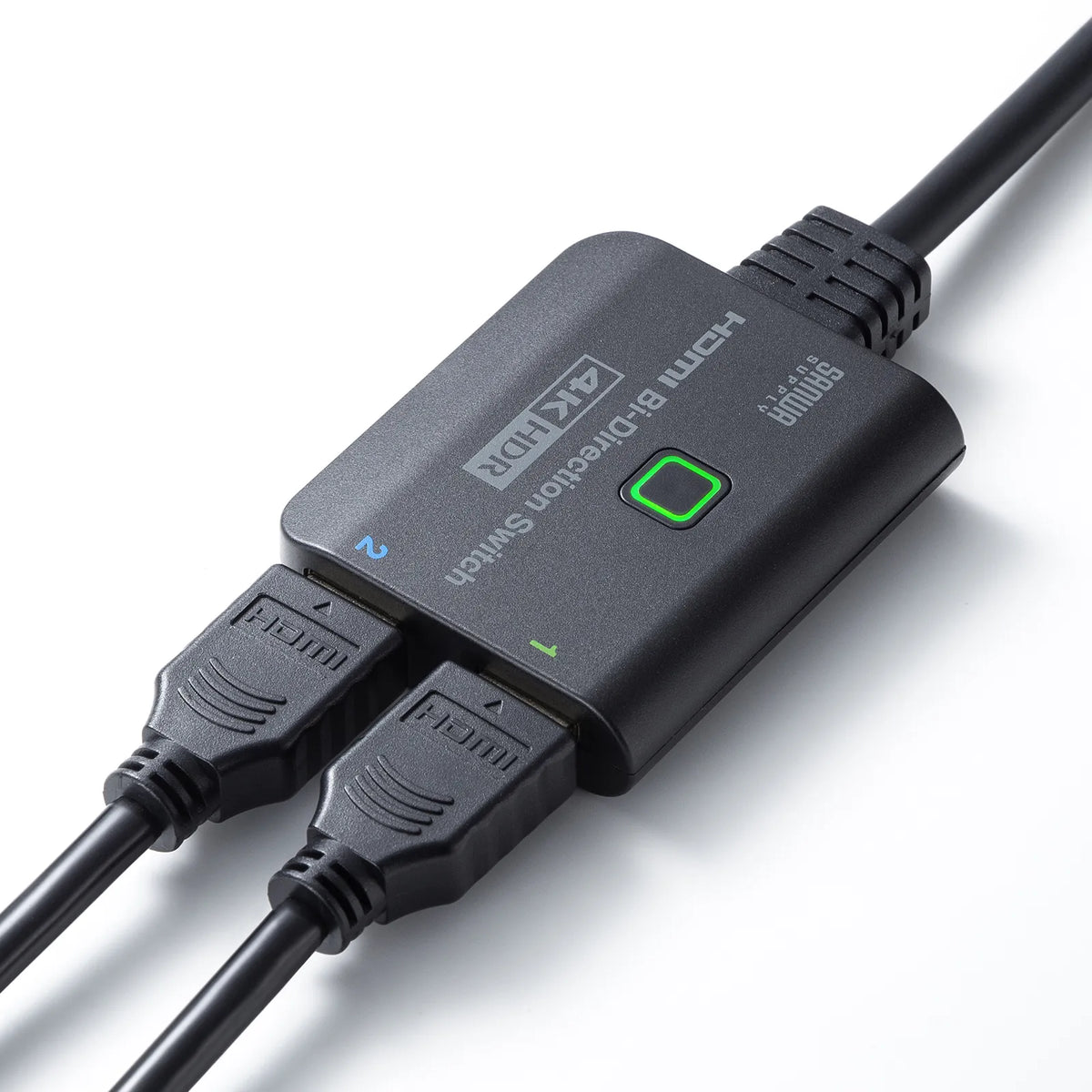

●Highly visible LED display lets you see at a glance which device is selected.
●Supports Dolby True HD and DTS HD Master Audio.
●Compatible with PlayStation 5(R).
≪Notes≫
*"PlayStation," "PLAYSTATION," "PlayStation," "PS5," and "PS4" are registered trademarks of Sony Interactive Entertainment Inc.
*Nintendo Switch is a trademark or registered trademark of Nintendo.
*Operation is not guaranteed with all HDMI devices.
*To play 4K/HDR video, all equipment configurations, cables, and software must be compatible with the 4K/HDR standard.

≪About screen display time during switching≫
When switching ports, it usually takes about 3 to 5 seconds for the image to be displayed. This is not a symptom of this product, but rather the time it takes for the HDMI device (such as a recorder) to recognize the display and start outputting video, and is due to the performance of the HDMI device. This product itself completes port switching the moment the switch button is pressed.

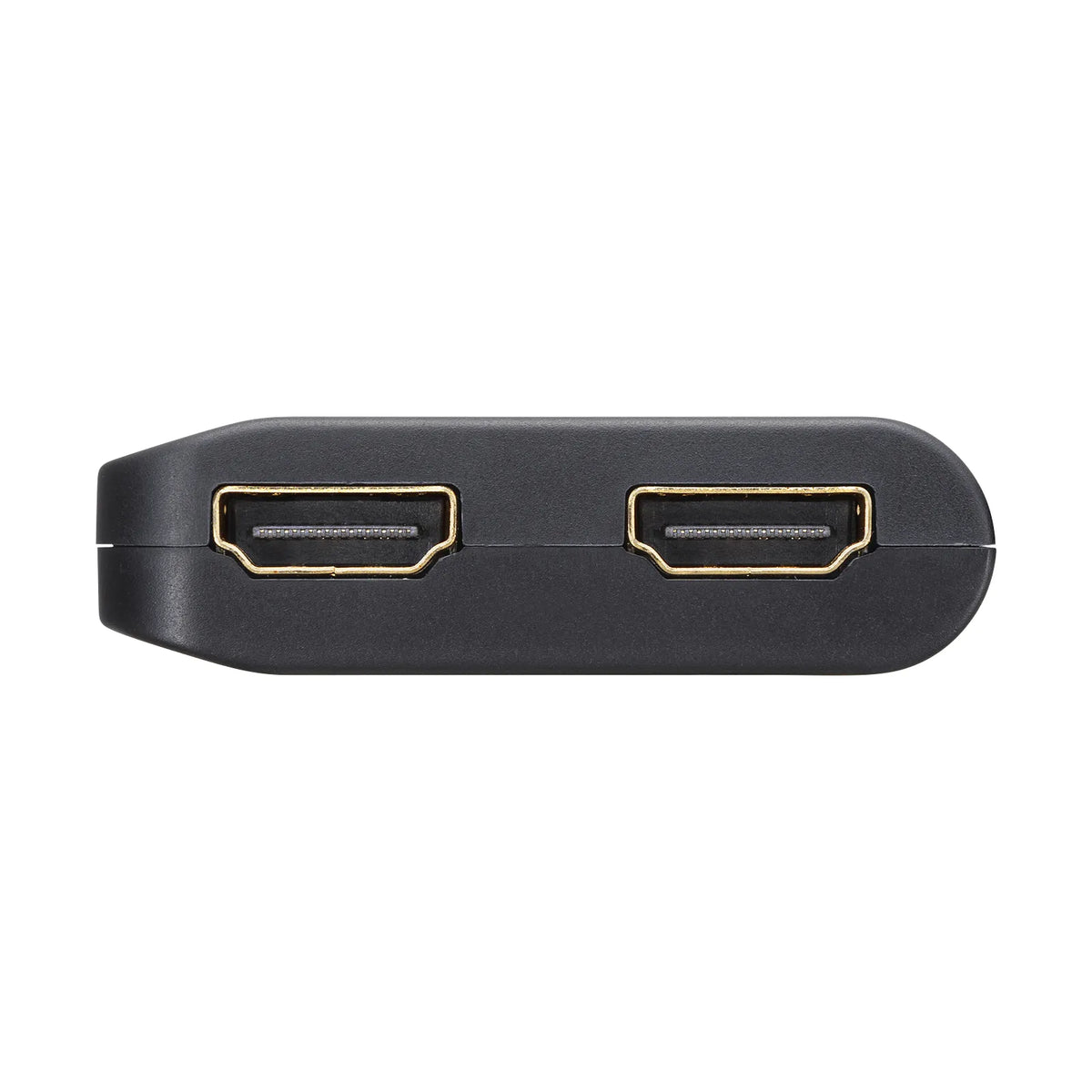

■Interface: Input/Output/HDMI Type A (19PIN) Female x2
Input/Output/HDMI Type A (19PIN) Male x1
■Switching Content: HDMI Input 2/HDMI Output 1 or HDMI Input 1/HDMI Output 2
■Switching Method: Switching button on the unit
■HDMI Standard: HDMI Ver2.0b
■HDCP: HDCP1.4, HDCP2.2
■Data Rate: 18Gbit/s (Max)
■Pixel Clock: 600MHz (Max)
■Maximum Resolution: 4K/60Hz
■Main Supported Resolutions: 4096x2160 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0) *Color depth is only supported at 8-bit when outputting 4K/4096x2160 (60Hz, 4:4:4).
3840x2160 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0)
1920x1080p (60/50/30/24Hz)
1920x1080i (60/50/30/24Hz)
1280x720p (60/50Hz)
640x480p (60/50Hz)
*Depends on the resolution of the connected TV or monitor.
■HDR: Supported
■Supported audio formats: LPCM 2/5.1/7.1ch, Dolby Digital, Dolby Digital Plus,
Dolby TrueHD, DTS-HD Master Audio, DTS
■Input DDC signal: 5V
■CEC (Consumer Electronic Control): Supported
*Operation is not guaranteed with all devices.
■Cable length: Approx. 50cm
■Power consumption (maximum): 0.06W
■Operating temperature and humidity: Temperature/0 to 50 degrees, Humidity/80% or less (non-condensing)
■Storage temperature and humidity: Temperature/-20 to 60 degrees, Humidity/80% or less (non-condensing)
■Product size: W65 x D55.5 x H16mm
■Weight: Approx. 92g
■Set contents: Main unit, instruction manual and warranty card
≪Caution≫
*In order to play 4K/HDR video, all equipment configurations, cables, and software must be compatible with the 4K/HDR standard.
