SANWA SUPPLY
e-Security (Large Dial Lock) SLE-4LN
e-Security (Large Dial Lock) SLE-4LN
GTIN（JAN）：4969887892473
SKU：SLE-4LN
Regular price
¥726 JPY
Regular price
Sale price
¥726 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[e-Security Dial Lock - Large]
●This is a dial lock that connects to mounting parts or a wire.

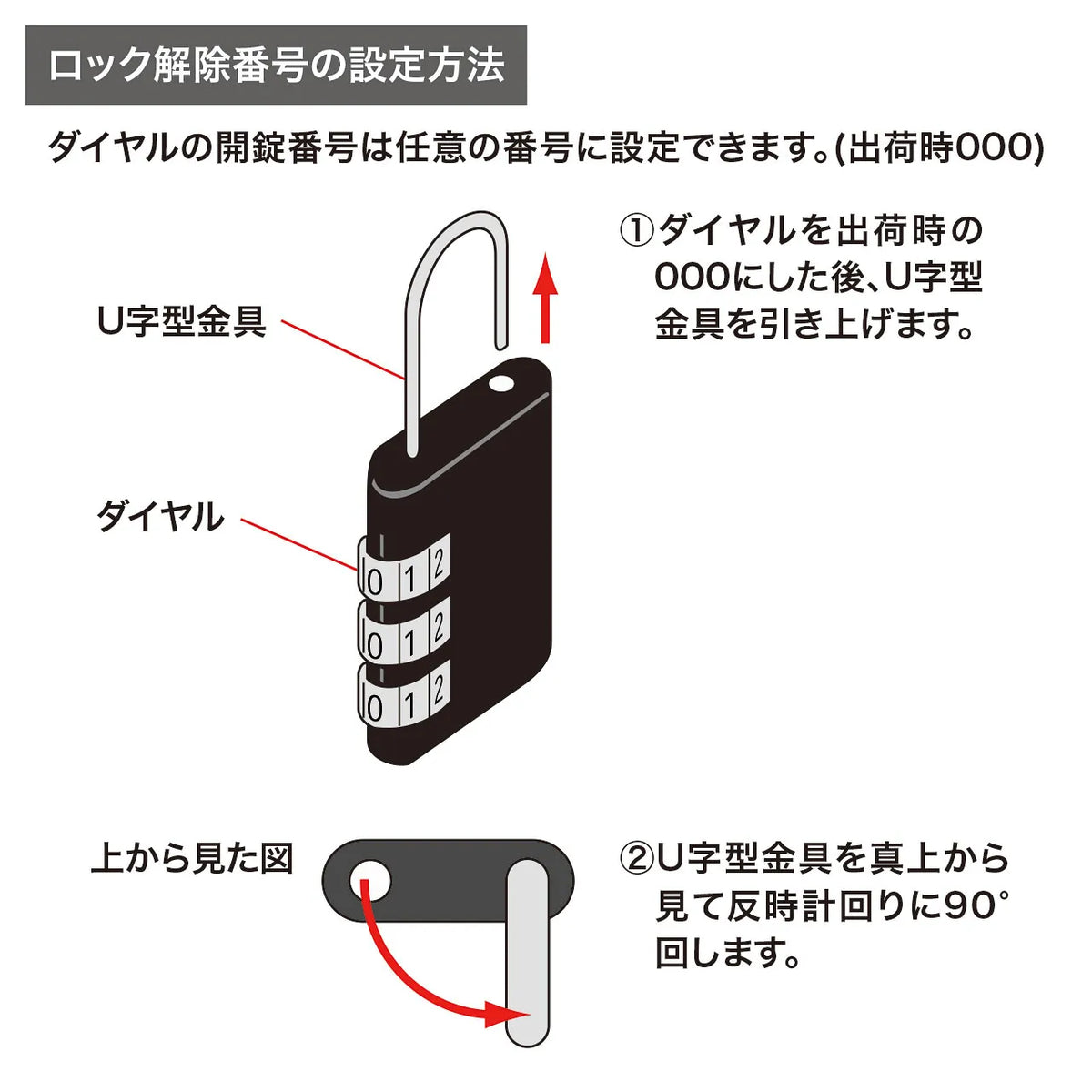

＜How to set the lock dial＞
The dial unlocking number can be set to any number. (000 at shipment)
1. After setting the dial to 000 at shipment, pull up the U-shaped metal fitting. (Figure 1)
2. Rotate the U-shaped metal fitting 90° counterclockwise when viewed from directly above. (Figure 2)
3. While pushing the U-shaped metal fitting inward, rotate the dial to set your desired number.
4. Return the U-shaped metal fitting to its original position and insert it into the hole.
5. Rotate the dial to complete the lock.
(Be sure to rotate all three dials)
※If you forget your PIN, you will have to try all the numbers or cut the metal fitting to unlock it. Please make a note of it.

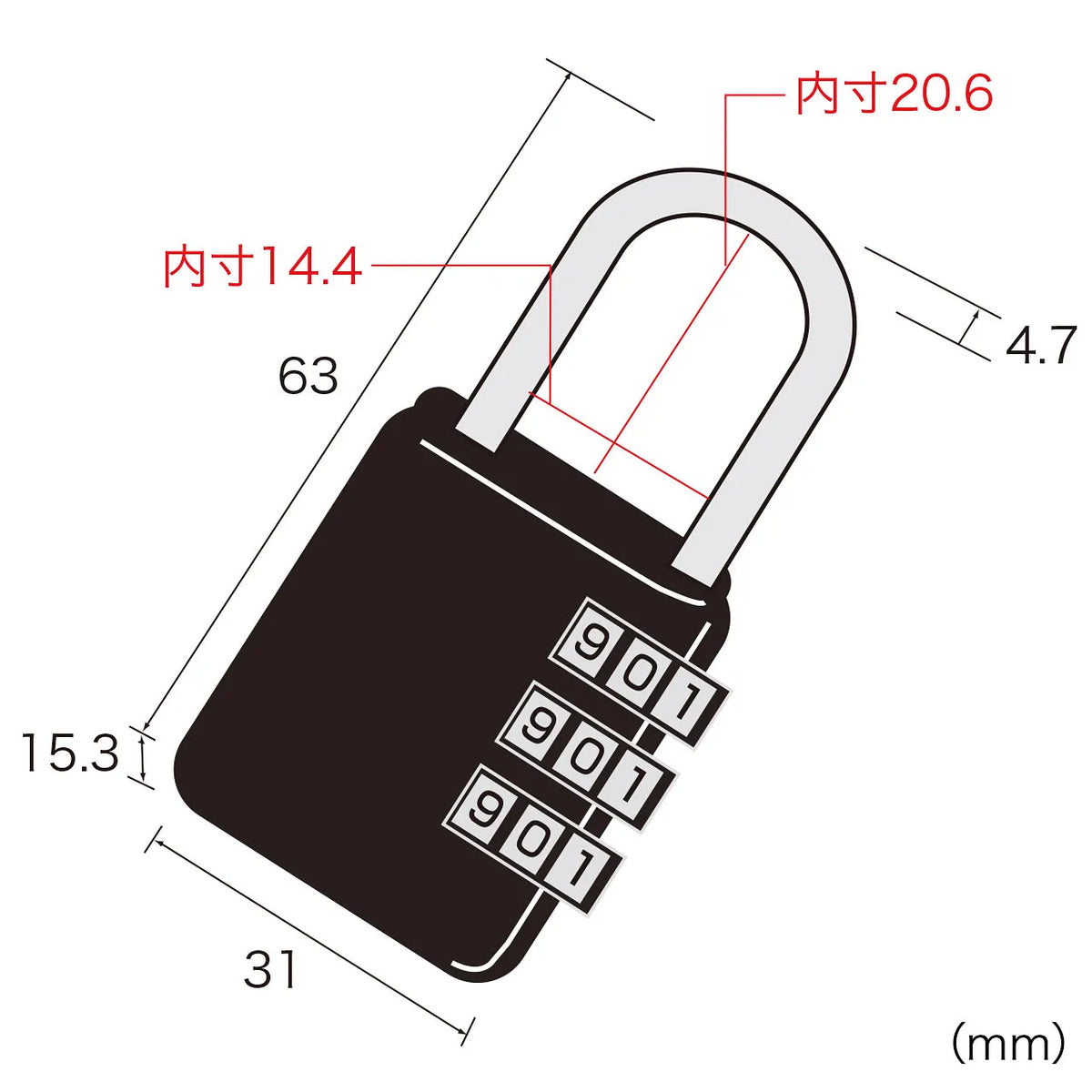

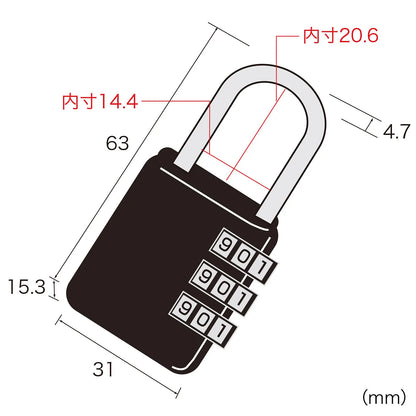

■Size: Outer dimensions/W31xD15.3xH63mm
U-shaped metal fitting thickness/4.7mm
U-shaped metal fitting inner dimensions/W14.4xH20.6mm
■PIN code: 3 digits
≪Notes≫
*This product is intended to prevent theft of computers and other devices and the theft of data. We cannot guarantee against damage or loss caused by theft or accidents that may occur. Please understand.
●This is a dial lock that connects to mounting parts or a wire.
＜How to set the lock dial＞
The dial unlocking number can be set to any number. (000 at shipment)
1. After setting the dial to 000 at shipment, pull up the U-shaped metal fitting. (Figure 1)
2. Rotate the U-shaped metal fitting 90° counterclockwise when viewed from directly above. (Figure 2)
3. While pushing the U-shaped metal fitting inward, rotate the dial to set your desired number.
4. Return the U-shaped metal fitting to its original position and insert it into the hole.
5. Rotate the dial to complete the lock.
(Be sure to rotate all three dials)
※If you forget your PIN, you will have to try all the numbers or cut the metal fitting to unlock it. Please make a note of it.
■Size: Outer dimensions/W31xD15.3xH63mm
U-shaped metal fitting thickness/4.7mm
U-shaped metal fitting inner dimensions/W14.4xH20.6mm
■PIN code: 3 digits
≪Notes≫
*This product is intended to prevent theft of computers and other devices and the theft of data. We cannot guarantee against damage or loss caused by theft or accidents that may occur. Please understand.
