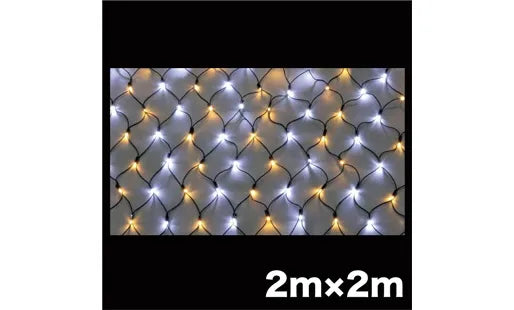

LED Cross Net NH (New High Grade) SJ-NH20-WL
LED Cross Net NH (New High Grade) SJ-NH20-WL
GTIN（JAN）：4937897133633
SKU：SJ-NH20-WL
Regular price
¥27,225 JPY
Regular price
Sale price
¥27,225 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Product Features]
Circuit design that suppresses brightness attenuation due to voltage drop
IL201022
●LED color: White/Warm White
●Size (Length x Width): 2m x 2m
●Circuit design that suppresses brightness attenuation due to voltage drop
●High-grade specifications with enhanced weather resistance and durability
●Resin-encased sealed structure makes it resistant to water and moisture (compared to our conventional products)
●Maximum number of connections: 2 sides, total SJV 60 or less (when using PAD-60VA-A)●Alternating flashing (compatible with separately sold controller NH SJ-NH601C)
●Full illumination (compatible with separately sold AC-DC converter NH SJ-NH603D)
■ Specifications
・LED color: White/Warm White
・Size (Length x Width): 2m x 2m
・Weight: 2.1kg
・SJV: 27.1
・Drive system: AC-AC adapter system
・Rated power consumption (when all lights are on): 21.4W
・Rated input voltage: AC24V
・Number of LEDs: 252
・LED spacing: Approx. 10cm
・Operating environment conditions: -10°C to 40°C, normal humidity
・Outdoor specifications: IP44
*LED Cross Net NH is a light-emitting component. It does not light up on its own. It must be used in combination with the separately sold Controller NH, AC-DC Converter NH, or AC-AC Adapter.
*This product is exclusively for the LED Illumination (Linkable Type) SJ-NH series. It is not compatible with other products (SJ, SJX).
*This product is a temporary (within 6 months/outdoor use) lighting fixture. It cannot be used as permanent facility lighting.
• Packaging specifications
Individual packaging: Individual box and seal
Individual package size and weight: W250 x D250 x H100 mm, 2.06 kg
• 1 package
• Country of origin: China
Circuit design that suppresses brightness attenuation due to voltage drop
IL201022
●LED color: White/Warm White
●Size (Length x Width): 2m x 2m
●Circuit design that suppresses brightness attenuation due to voltage drop
●High-grade specifications with enhanced weather resistance and durability
●Resin-encased sealed structure makes it resistant to water and moisture (compared to our conventional products)
●Maximum number of connections: 2 sides, total SJV 60 or less (when using PAD-60VA-A)●Alternating flashing (compatible with separately sold controller NH SJ-NH601C)
●Full illumination (compatible with separately sold AC-DC converter NH SJ-NH603D)
■ Specifications
・LED color: White/Warm White
・Size (Length x Width): 2m x 2m
・Weight: 2.1kg
・SJV: 27.1
・Drive system: AC-AC adapter system
・Rated power consumption (when all lights are on): 21.4W
・Rated input voltage: AC24V
・Number of LEDs: 252
・LED spacing: Approx. 10cm
・Operating environment conditions: -10°C to 40°C, normal humidity
・Outdoor specifications: IP44
*LED Cross Net NH is a light-emitting component. It does not light up on its own. It must be used in combination with the separately sold Controller NH, AC-DC Converter NH, or AC-AC Adapter.
*This product is exclusively for the LED Illumination (Linkable Type) SJ-NH series. It is not compatible with other products (SJ, SJX).
*This product is a temporary (within 6 months/outdoor use) lighting fixture. It cannot be used as permanent facility lighting.
• Packaging specifications
Individual packaging: Individual box and seal
Individual package size and weight: W250 x D250 x H100 mm, 2.06 kg
• 1 package
• Country of origin: China
