JEFCOM
Ultra 4E Checker SEC-930
Ultra 4E Checker SEC-930
GTIN（JAN）：4937897057748
SKU：SEC-930
Regular price
¥9,818 JPY
Regular price
Sale price
¥9,818 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Product Features]

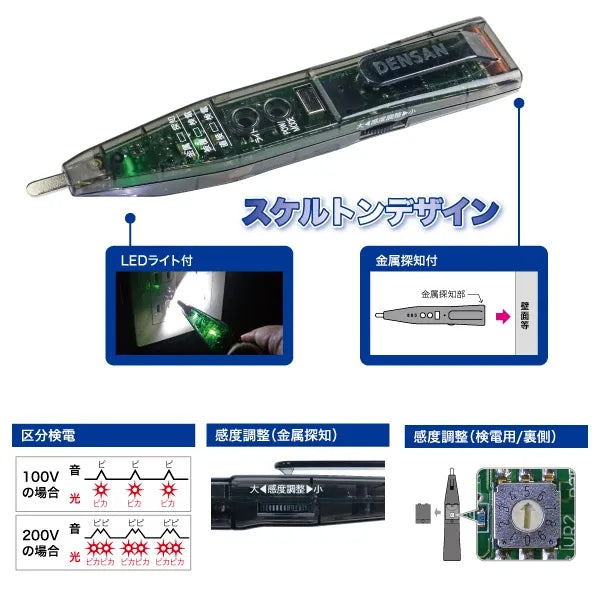

Voltage detector with metal detector
●Direct voltage detection (sectional voltage detection) and insulated voltage detection (for AC/low voltage)
●Metal detection (with sensitivity adjustment function)
●Easy to understand with sound and light
●Skeleton design
●LED light: lights up for about 20 seconds and then automatically turns off
●Voltage detector that can check the live state of AC voltage by contact or non-contact
●Direct voltage detection (sectional voltage detection):
Voltage can be detected by directly contacting the charging part such as an outlet.
100V and 200V voltage detection possible
●Insulated voltage detection: Voltage detection is possible simply by touching the detection part to the insulation of the cable
●Metal detection: Can detect metal pipes close to walls, ceilings, floors, etc.,
location of boxes such as switches, metal reinforcement materials, etc.
●Battery replacement indicator: The indicator flashes when the battery voltage drops
●Sensitivity adjustment function (two types: for voltage detection and metal detection)
●Auto power off: Power turns off after approximately 4 minutes of inactivity
●Metal voltage detection part
■Specifications
・Body size and weight: 152mm x 28mm x 20mm, 30g
●Operating voltage range (direct detection and insulated voltage detection)
・Direct detection AC100V to ground voltage (80V to 120V)
・Direct detection AC200V to ground voltage (160V to 600V)
・Insulated voltage detection AC (80V-600V)
●Metal detection
・Detection distance: 25mm-30mm
・Target dimensions: φ20mm or larger
●Operation indicator
・Buzzer sounds
・Indicator (LED) lights up
●Dielectric strength: AC2000V for 1 minute between the detection part and the clip
●Battery used: Lithium battery CR2032 x 1
(Battery not included. Please prepare separately.)
●Battery life: Approximately 3 hours of continuous operation
●Operating temperature range: 0°C to 40°C
・Material
Case: PC, Tip fitting: SECC, Terminal: Phosphor bronze, Metal detection volume: ABS
・Packaging specifications
Individual packaging: Blister pack and cardboard backing
Individual package size and weight: W85 x D25 x H225mm, 50g
・1 package
・Country of origin: Japan
