SANWA SUPPLY
Earthquake-resistant stopper (4 pieces) QL-60N
Earthquake-resistant stopper (4 pieces) QL-60N
GTIN(JAN):4969887897607
SKU:QL-60N
Regular price
¥4,283 JPY
Regular price
Sale price
¥4,283 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Prevents tipping and falling of office equipment! Easy attachment and detachment with just one coin.]

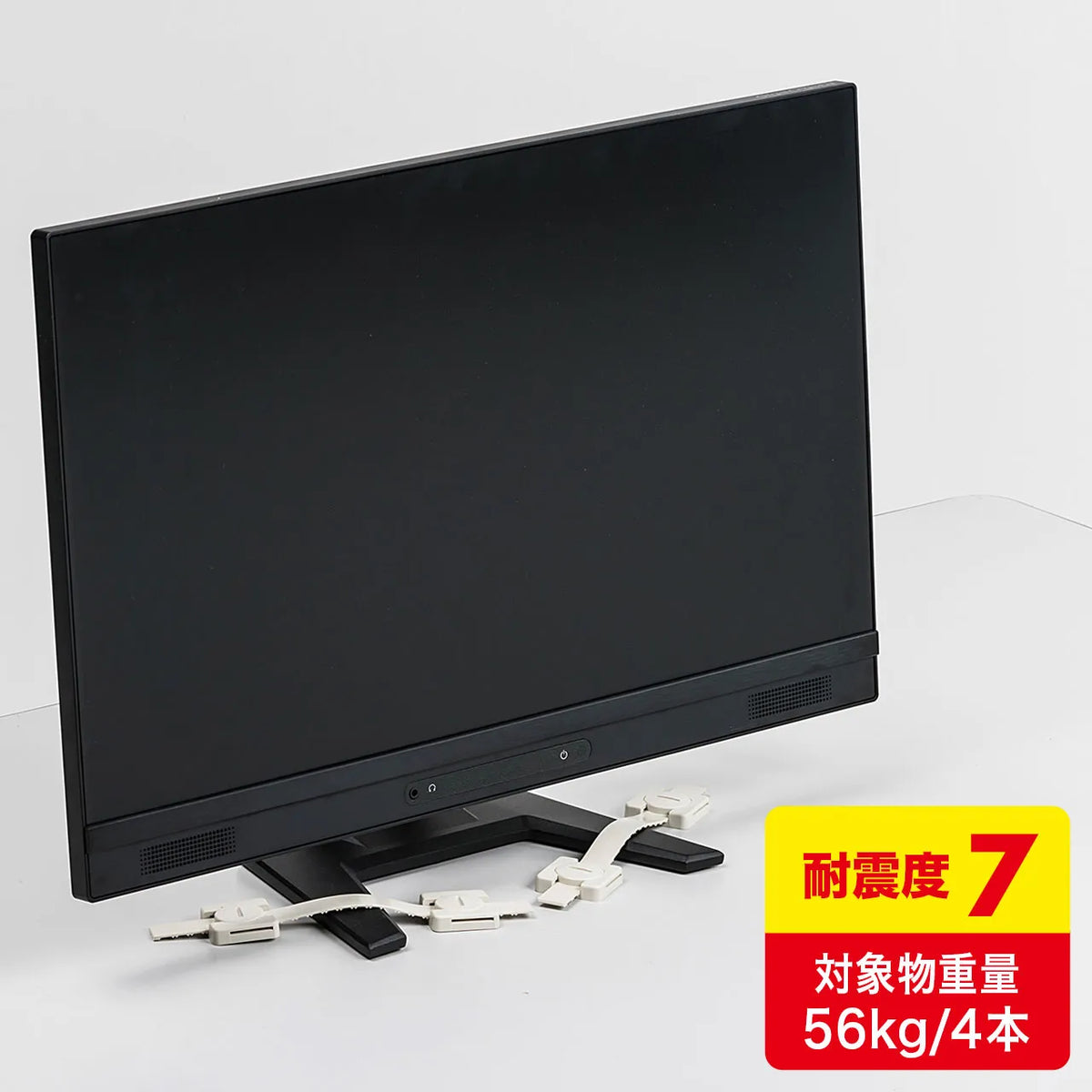

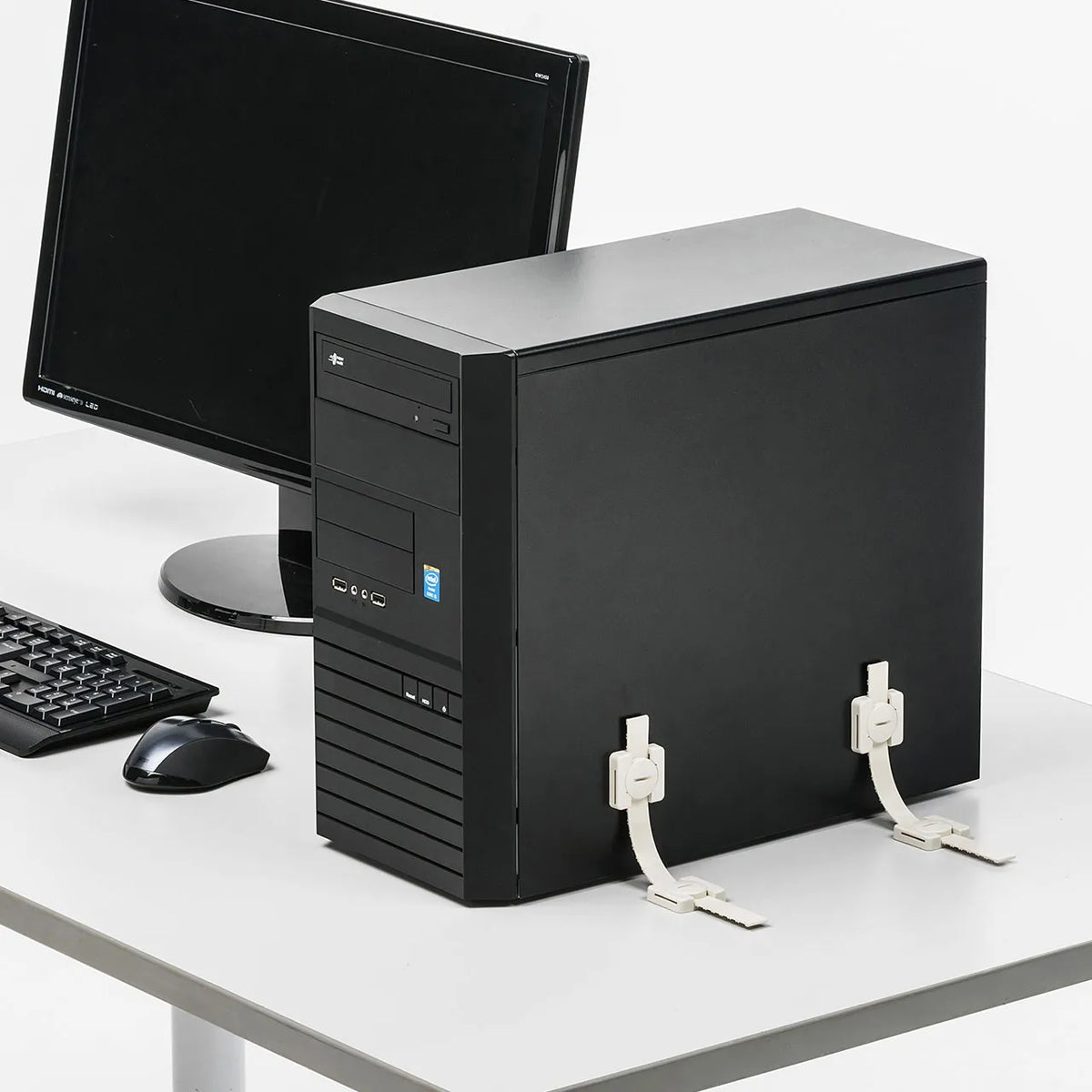

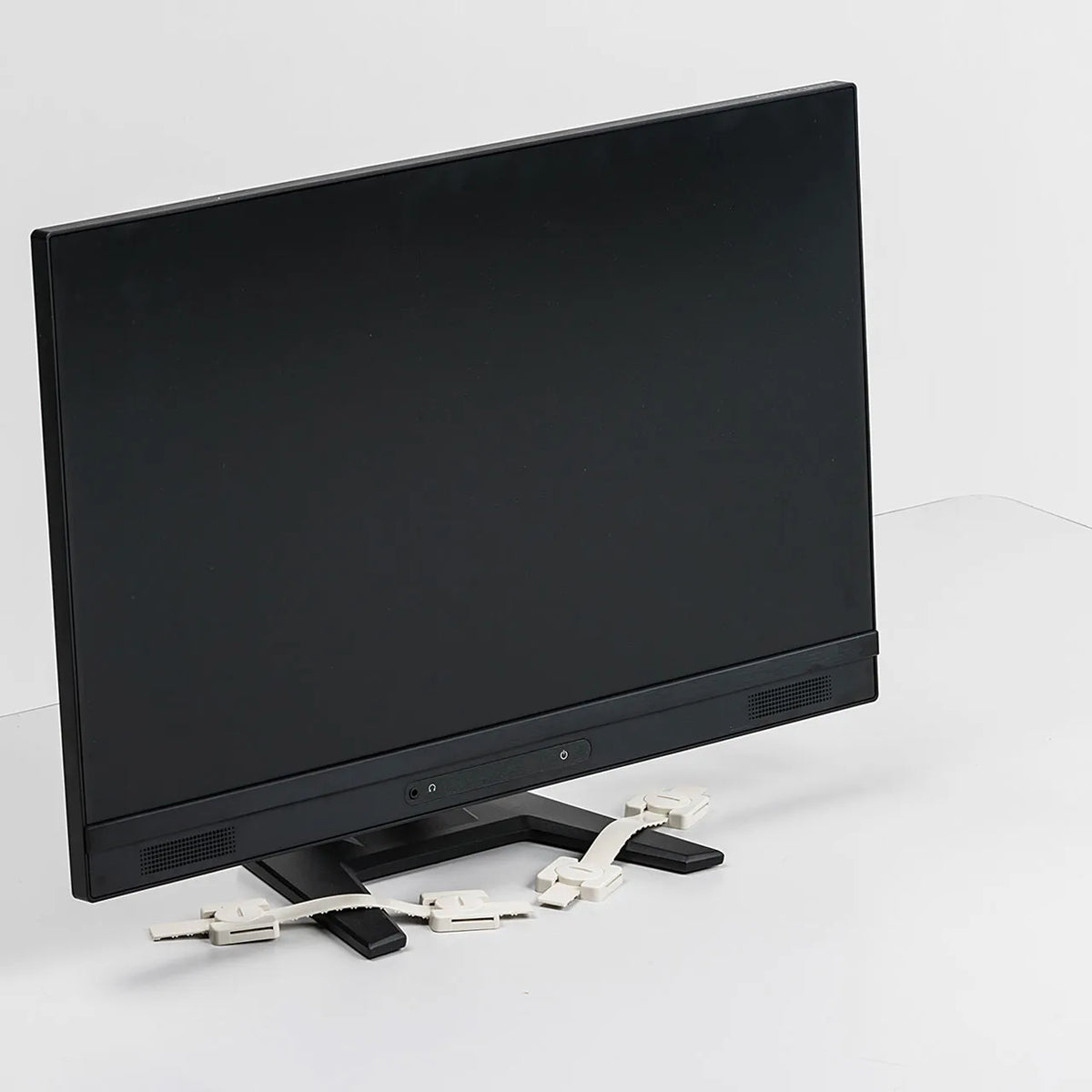

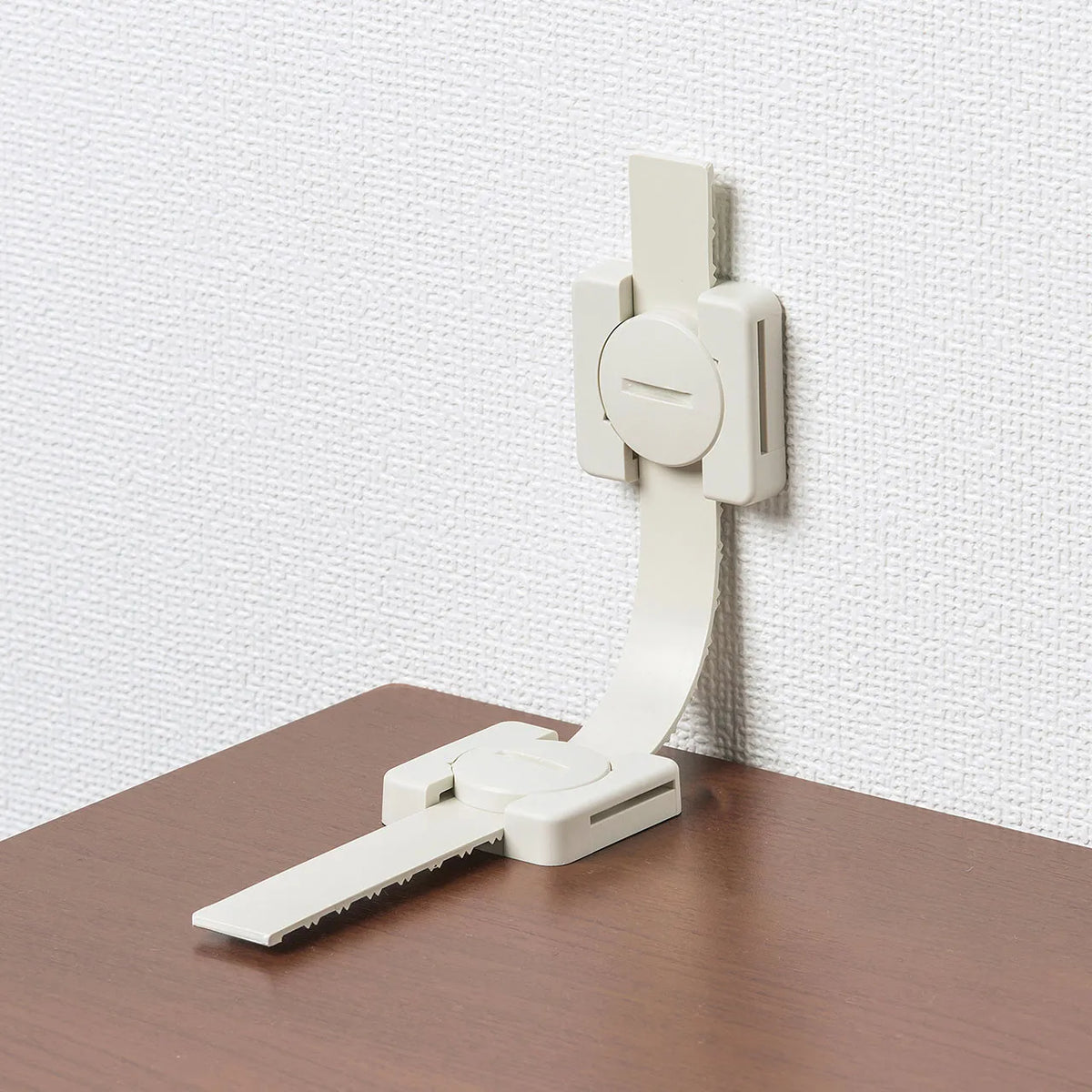

●Strongly secures the equipment surface to the mounting surface with a belt to prevent tipping and falling accidents of computers, displays, precision equipment, medical equipment, etc.
●Countersunk screws can be used instead of the included strong adhesive pads, so it can be fixed to any surface.

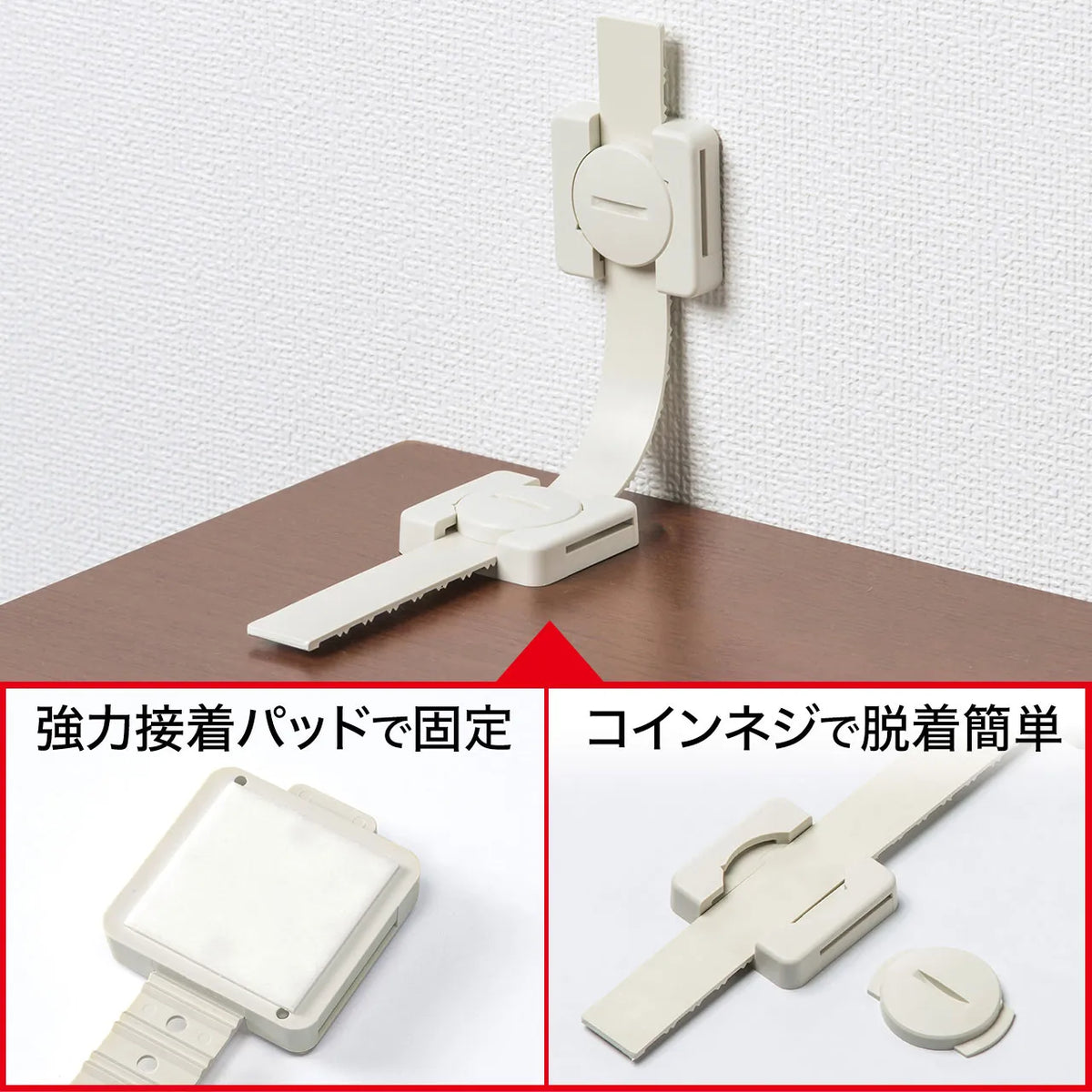

●Attachment and detachment are easy with the coin screw on the lock top, so it is safe when performing maintenance on equipment.
<How to install>
1. Determine a fixing position so that the belt does not loosen.

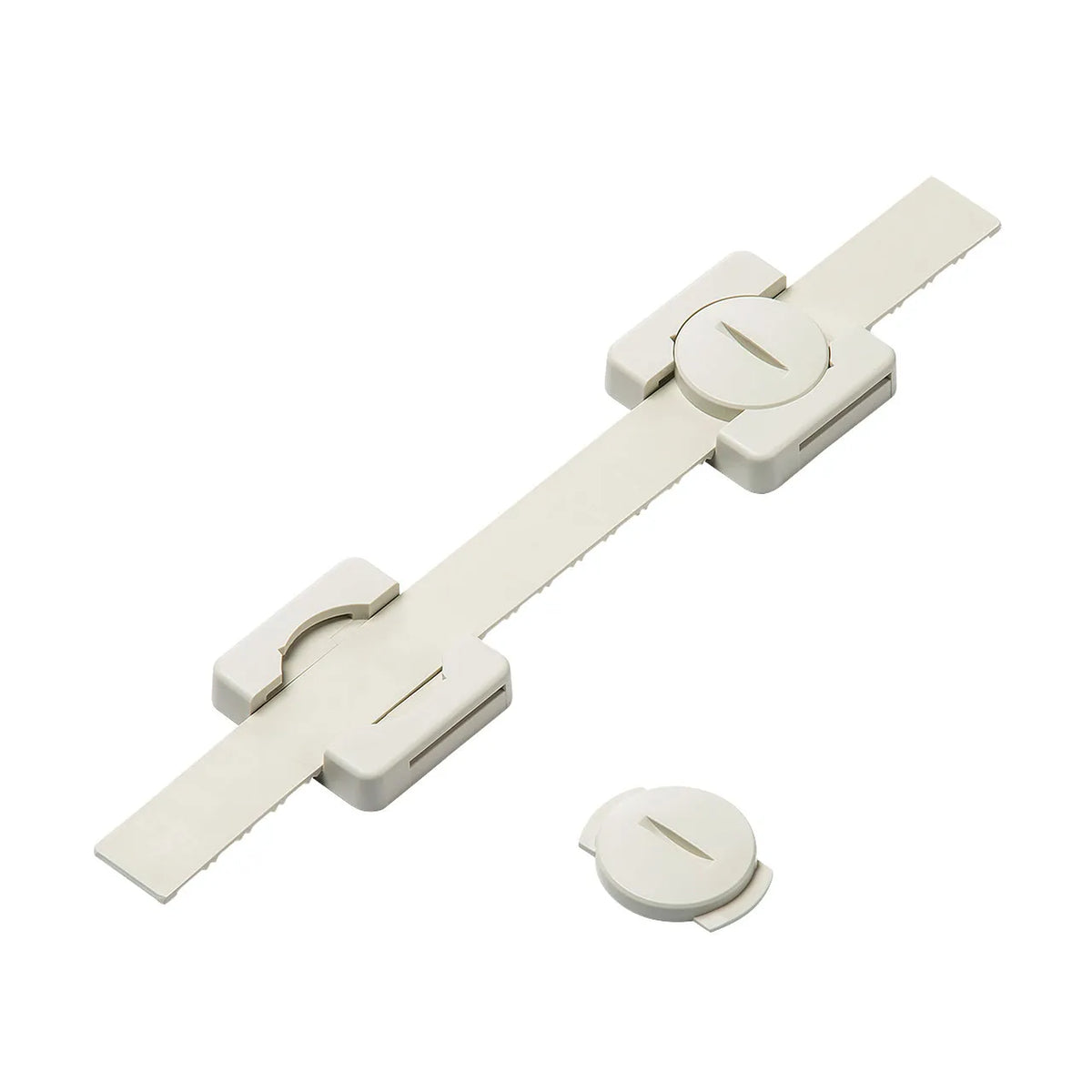

2. Adjust the length of the belt. To move the fixing base on the belt, rotate the lock top 90 degrees with a coin to switch between lock and unlock.
3. After removing dust from the mounting area, wipe with the included alcohol pad to remove moisture and oil.

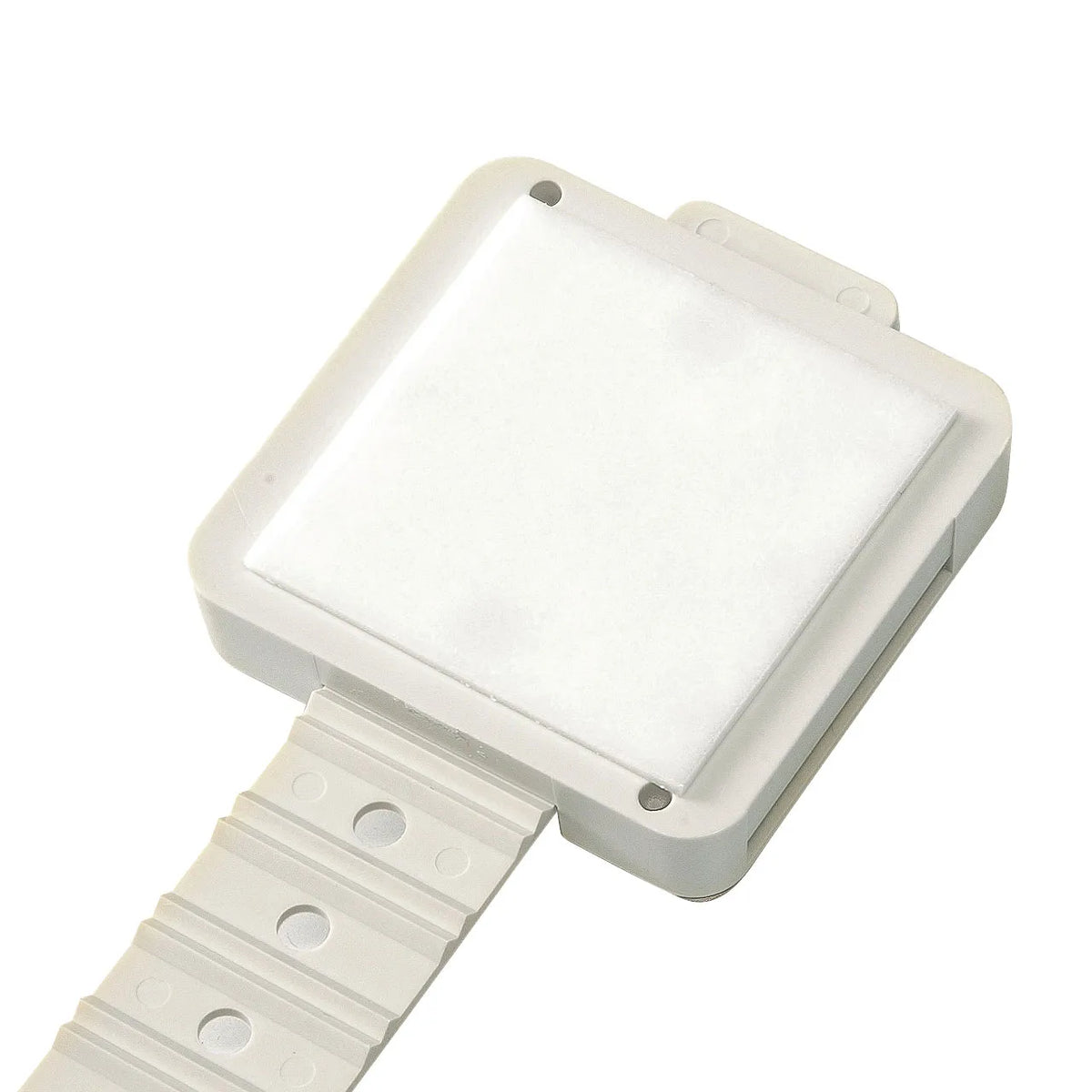

4. Peel off the protective sheet of the adhesive pad and lightly press it onto the fixing base to attach it.
5. Peel off the other protective sheet and attach it to the fixing position.
6. Leave it undisturbed for 72 hours after fixing, without pulling on it.
7. Alternatively, you can fix it with countersunk screws 15 to 20 mm apart without using adhesive pads.
■Type: Long
■Quantity: 4 pieces

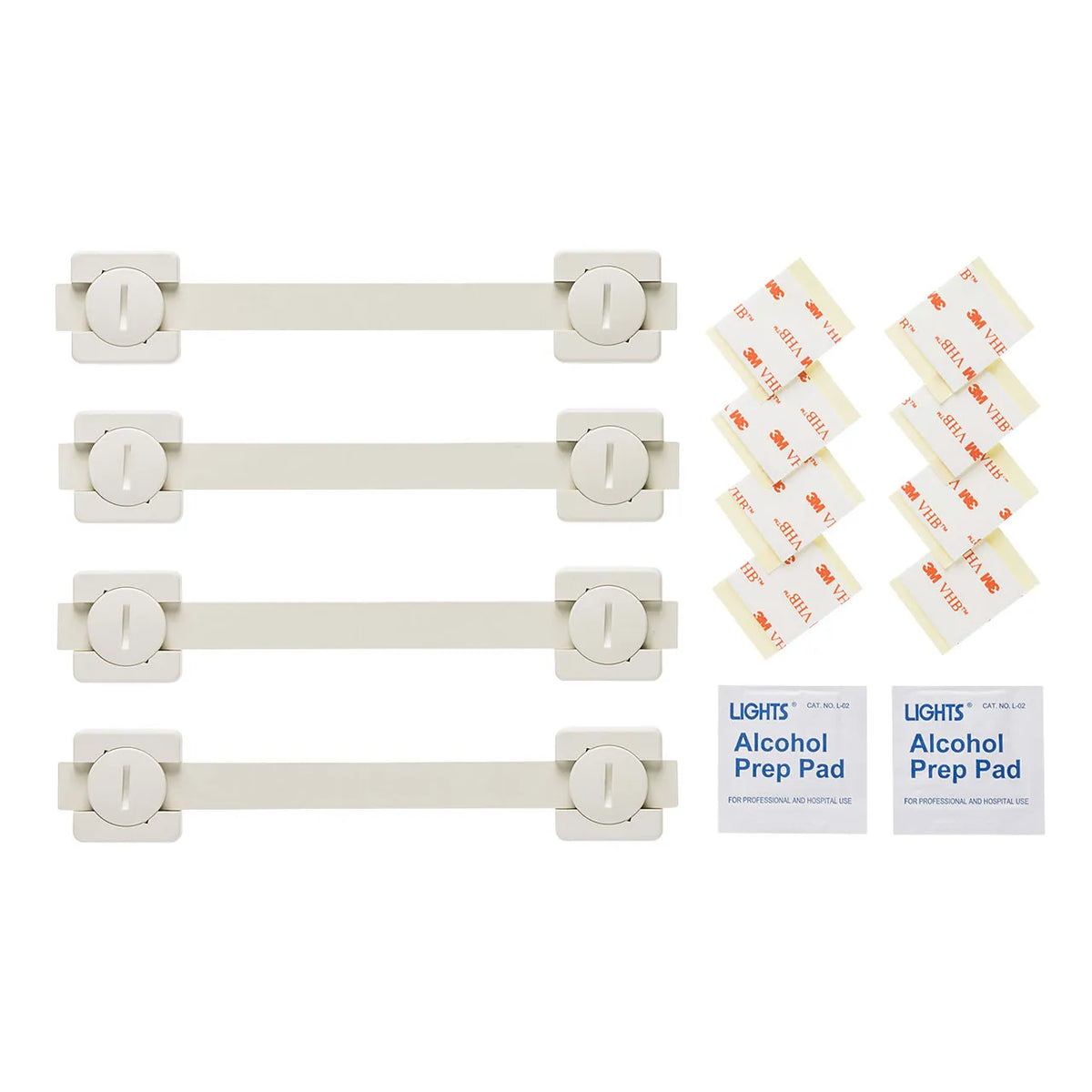

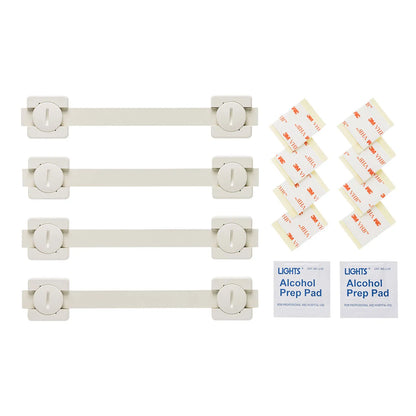

■Set contents:
Fixing base (W38xD9.6xH36mm) x8
Adhesive pad x8
Lock top x8
Belt (W208xD2xH16mm) x4
Alcohol pad x2
■Product life: 10 years (varies depending on the usage environment)
■Weight of target object: 56kg/4 pieces
■Seismic resistance level: 7 (JIS C 0040, 0041)
■Flame retardancy: UL94V0 certified product
■Measurement: "Tokyo Metropolitan Small and Medium Enterprise Promotion Public Corporation (Jonan Area Small and Medium Enterprise Promotion Center)", "Tokyo Electric Power Company", "Tokyo Metropolitan Industrial Technology Research Institute"
*Not suitable for large uneven surfaces, release agents, Teflon, nylon, polyethylene, rubber, polypropylene, etc.
*Do not use adhesive pads and screws together on the fixing base.
*Keep out of reach of infants and children.
*When storing, keep in a cool, dark place away from direct sunlight.
