SANWA SUPPLY
Earthquake-resistant stopper T-type QL-59
Earthquake-resistant stopper T-type QL-59
GTIN（JAN）：4969887282779
SKU：QL-59
Regular price
¥2,759 JPY
Regular price
Sale price
¥2,759 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[T-shaped earthquake-resistant stopper that is placed halfway under the bottom of the equipment for fixing.]

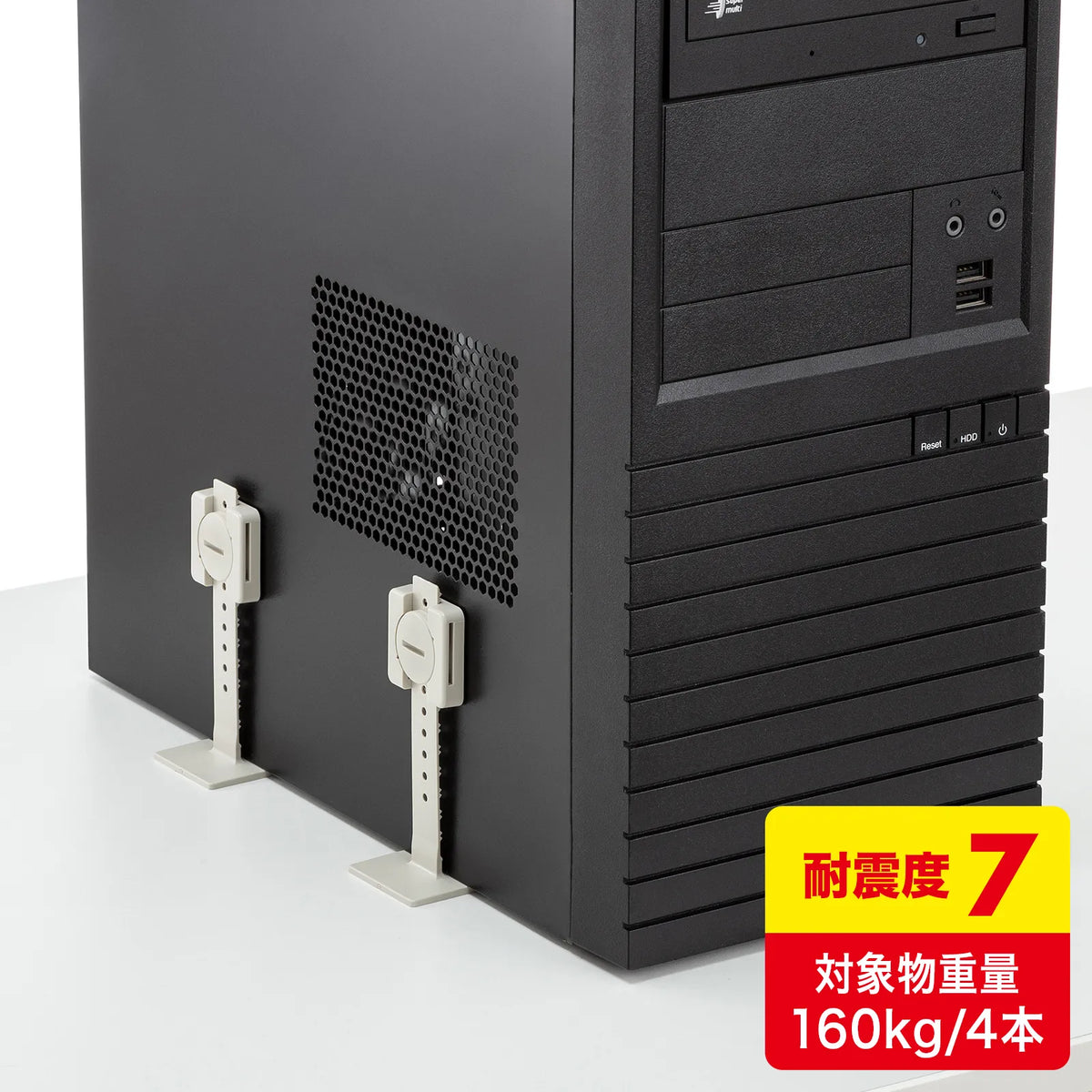

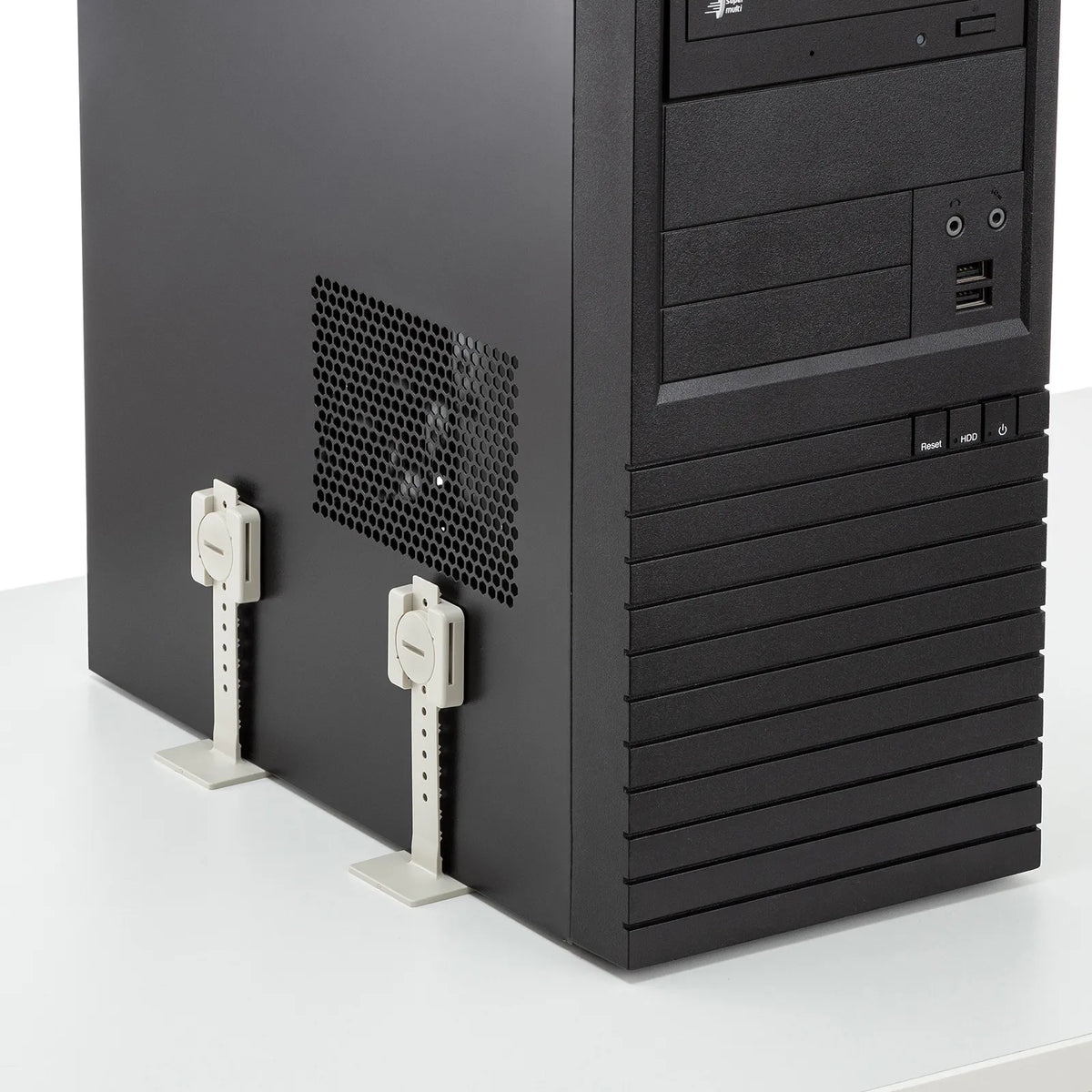

●It strongly secures the equipment surface to the mounting surface with a belt to prevent accidents such as tipping over and falling of computers, displays, precision equipment, medical equipment, etc.
●Countersunk screws can be used instead of the included strong adhesive pads, so it can be fixed to any surface.
●It can be easily attached and detached with the coin screw on the lock top, so it is safe when performing maintenance on the equipment.

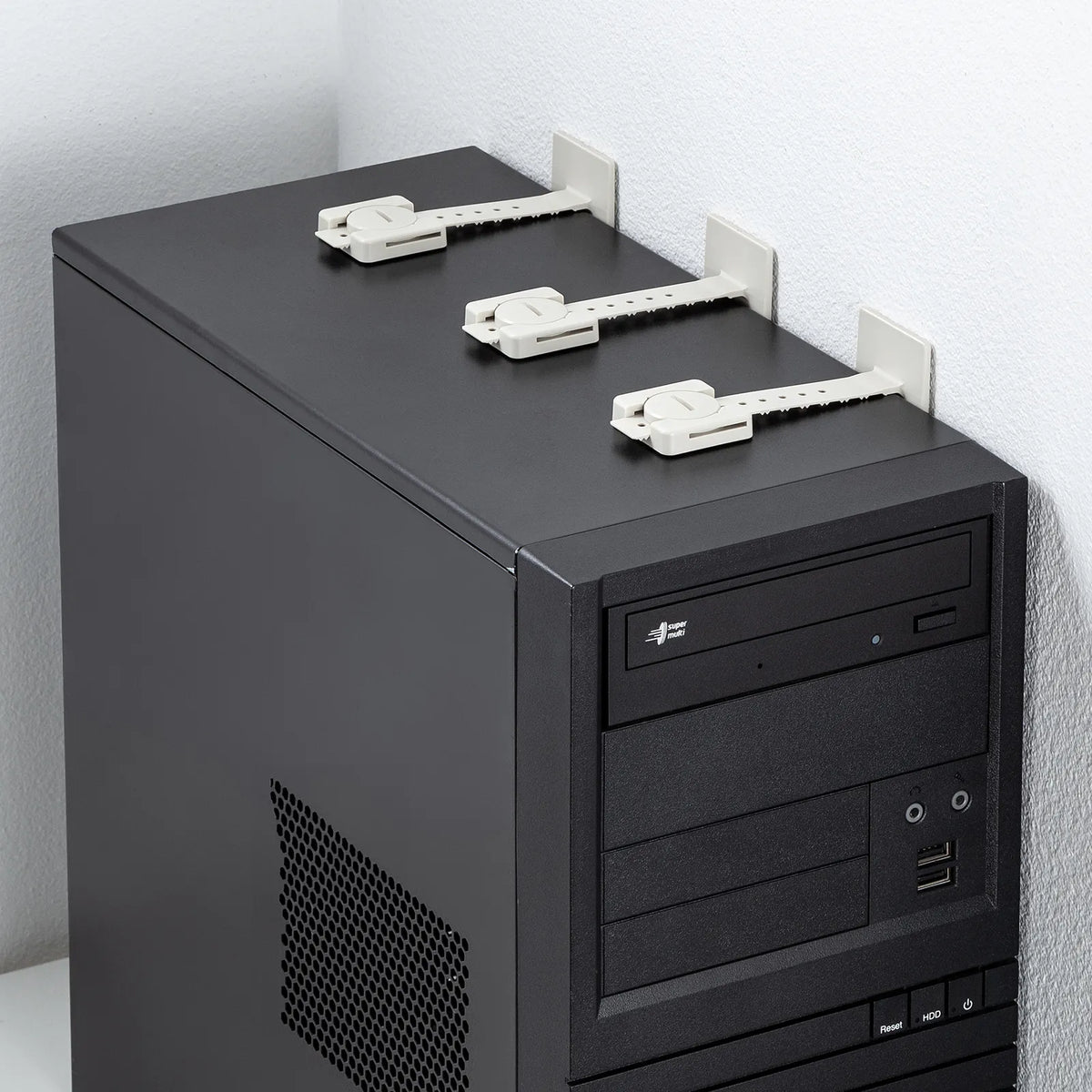

●It can be used to fix a computer placed on a carpet to a wall.
＜Installation method＞
1. Determine a fixing position so that the belt does not loosen.
2. Adjust the length of the belt. To move the fixing base on the belt, rotate the lock top 90 degrees with a coin to switch between lock and unlock.
3. After removing dust from the mounting area, wipe it with the included alcohol pad to remove moisture and oil.
4. Peel off the protective sheet from the adhesive pad and lightly press it onto the fixing base to attach it.
5. Peel off the other protective sheet and stick it to the fixing position.
6. Leave it for 72 hours after fixing without pulling on it.
7. You can also fix it with 15 to 20 mm countersunk screws instead of using the adhesive pads.
■Type: T-type
■Quantity: 4 pieces

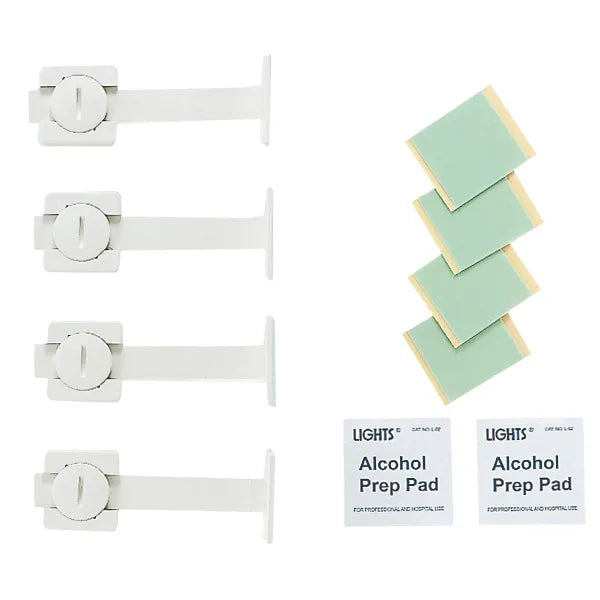

■Set contents:
Fixing base (W38xD9.6xH36mm) x4
Adhesive pad x8
Lock top x4
Belt (W110xD42xH42mm) x4
Alcohol pad x2
■Product life: 10 years (varies depending on the usage environment)
■Weight of target object: 160kg/4 pieces
■Seismic resistance level: 7 (JIS C 0040, 0041)
■Flame retardancy: UL94V0 certified product
■Measurement: "Tokyo Metropolitan Small and Medium Enterprise Promotion Public Corporation (Jonan Area Small and Medium Enterprise Promotion Center)", "Tokyo Electric Power Company", "Tokyo Metropolitan Industrial Technology Research Institute"
≪Notes≫
*Not suitable for surfaces with large bumps, release agents, Teflon, nylon, polyethylene, rubber, polypropylene, etc.
* Do not use adhesive pads and screws to fasten the base.
* Keep out of reach of infants and children.
* When storing, keep in a cool, dark place away from direct sunlight.
●It strongly secures the equipment surface to the mounting surface with a belt to prevent accidents such as tipping over and falling of computers, displays, precision equipment, medical equipment, etc.
●Countersunk screws can be used instead of the included strong adhesive pads, so it can be fixed to any surface.
●It can be easily attached and detached with the coin screw on the lock top, so it is safe when performing maintenance on the equipment.
●It can be used to fix a computer placed on a carpet to a wall.
＜Installation method＞
1. Determine a fixing position so that the belt does not loosen.
2. Adjust the length of the belt. To move the fixing base on the belt, rotate the lock top 90 degrees with a coin to switch between lock and unlock.
3. After removing dust from the mounting area, wipe it with the included alcohol pad to remove moisture and oil.
4. Peel off the protective sheet from the adhesive pad and lightly press it onto the fixing base to attach it.
5. Peel off the other protective sheet and stick it to the fixing position.
6. Leave it for 72 hours after fixing without pulling on it.
7. You can also fix it with 15 to 20 mm countersunk screws instead of using the adhesive pads.
■Type: T-type
■Quantity: 4 pieces
■Set contents:
Fixing base (W38xD9.6xH36mm) x4
Adhesive pad x8
Lock top x4
Belt (W110xD42xH42mm) x4
Alcohol pad x2
■Product life: 10 years (varies depending on the usage environment)
■Weight of target object: 160kg/4 pieces
■Seismic resistance level: 7 (JIS C 0040, 0041)
■Flame retardancy: UL94V0 certified product
■Measurement: "Tokyo Metropolitan Small and Medium Enterprise Promotion Public Corporation (Jonan Area Small and Medium Enterprise Promotion Center)", "Tokyo Electric Power Company", "Tokyo Metropolitan Industrial Technology Research Institute"
≪Notes≫
*Not suitable for surfaces with large bumps, release agents, Teflon, nylon, polyethylene, rubber, polypropylene, etc.
* Do not use adhesive pads and screws to fasten the base.
* Keep out of reach of infants and children.
* When storing, keep in a cool, dark place away from direct sunlight.
