SANWA SUPPLY
Earthquake-resistant stopper (4 pieces) QL-55
Earthquake-resistant stopper (4 pieces) QL-55
GTIN（JAN）：4969887279175
SKU：QL-55
Regular price
¥2,831 JPY
Regular price
Sale price
¥2,831 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Prevents tipping and falling of office equipment! Easy attachment and detachment with just one coin.]

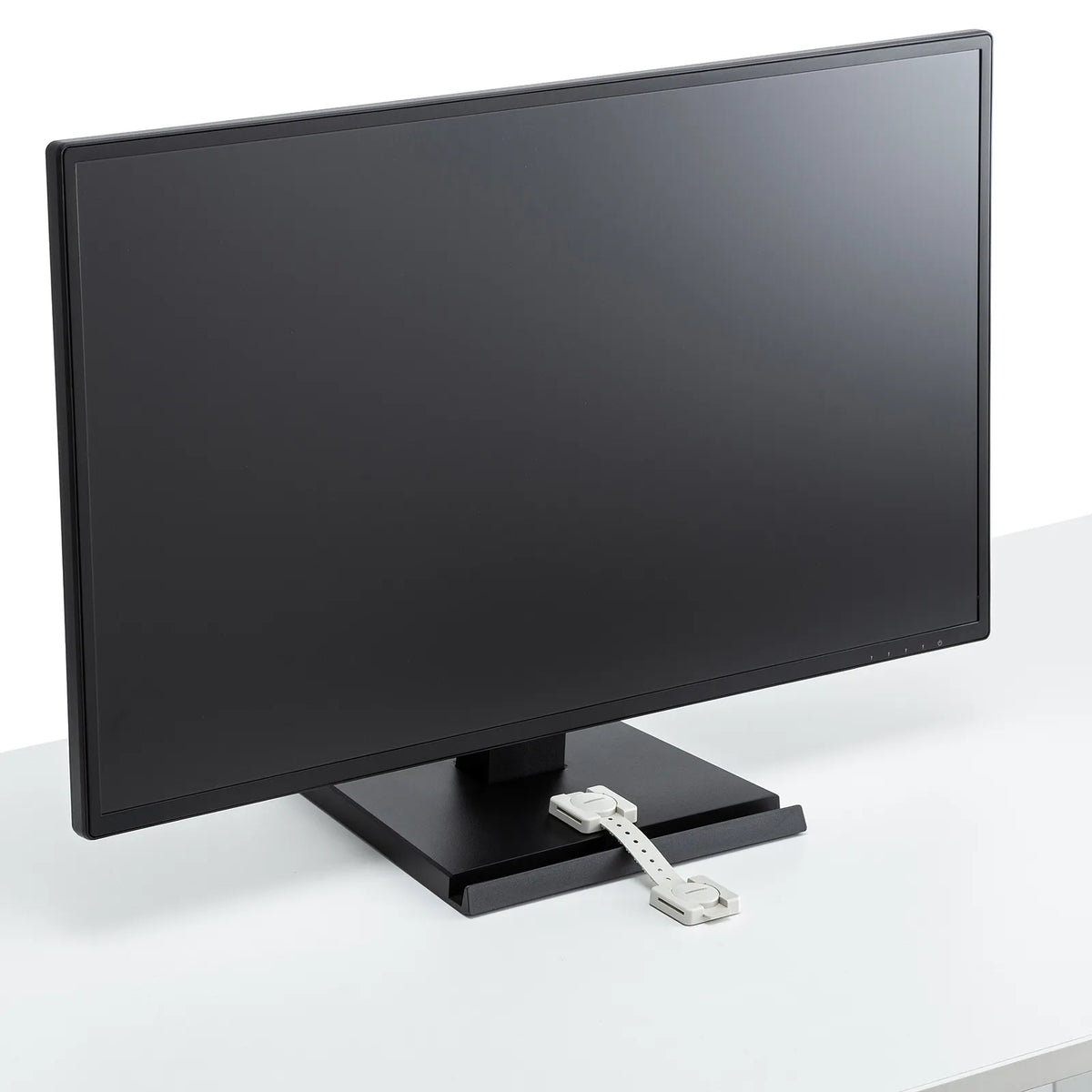

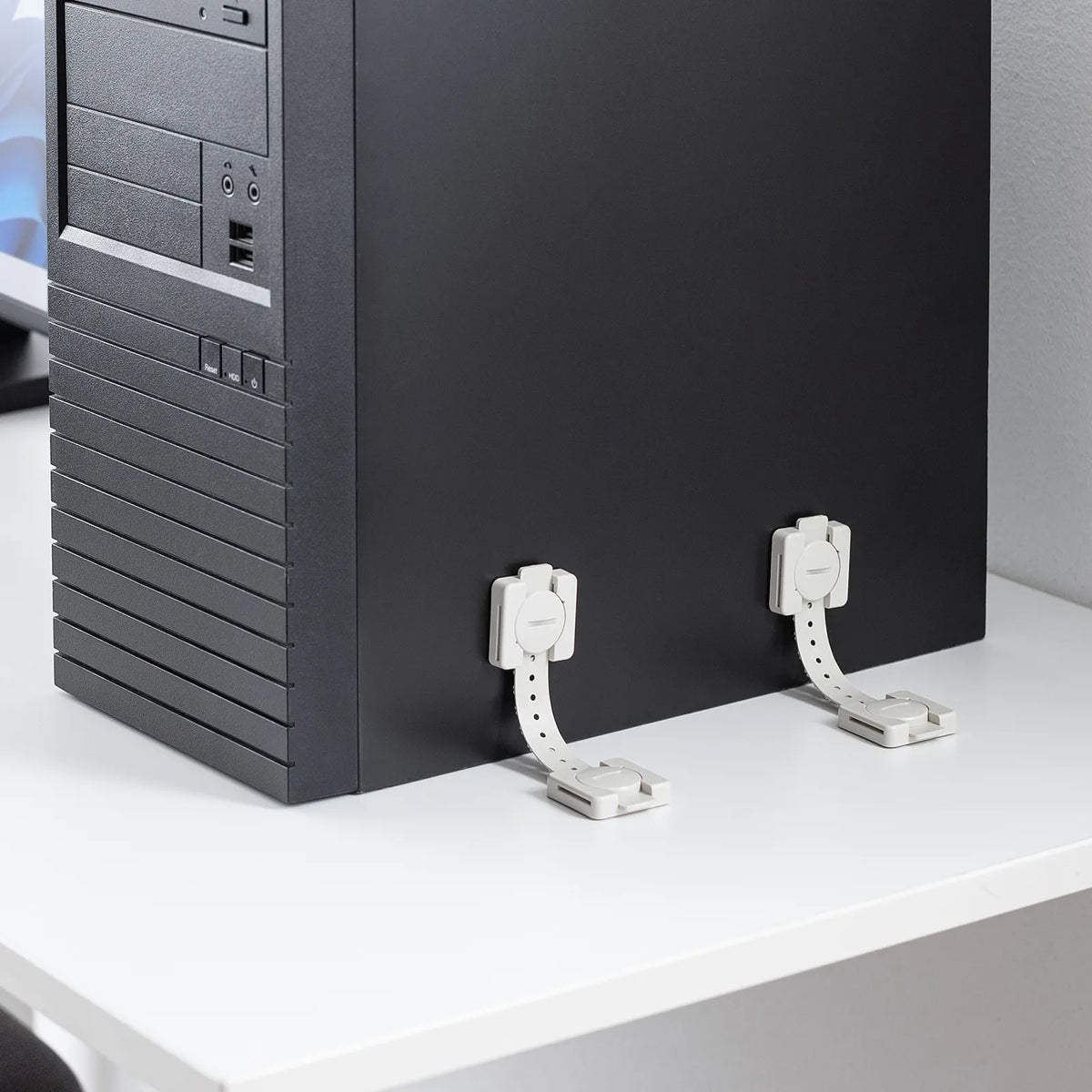

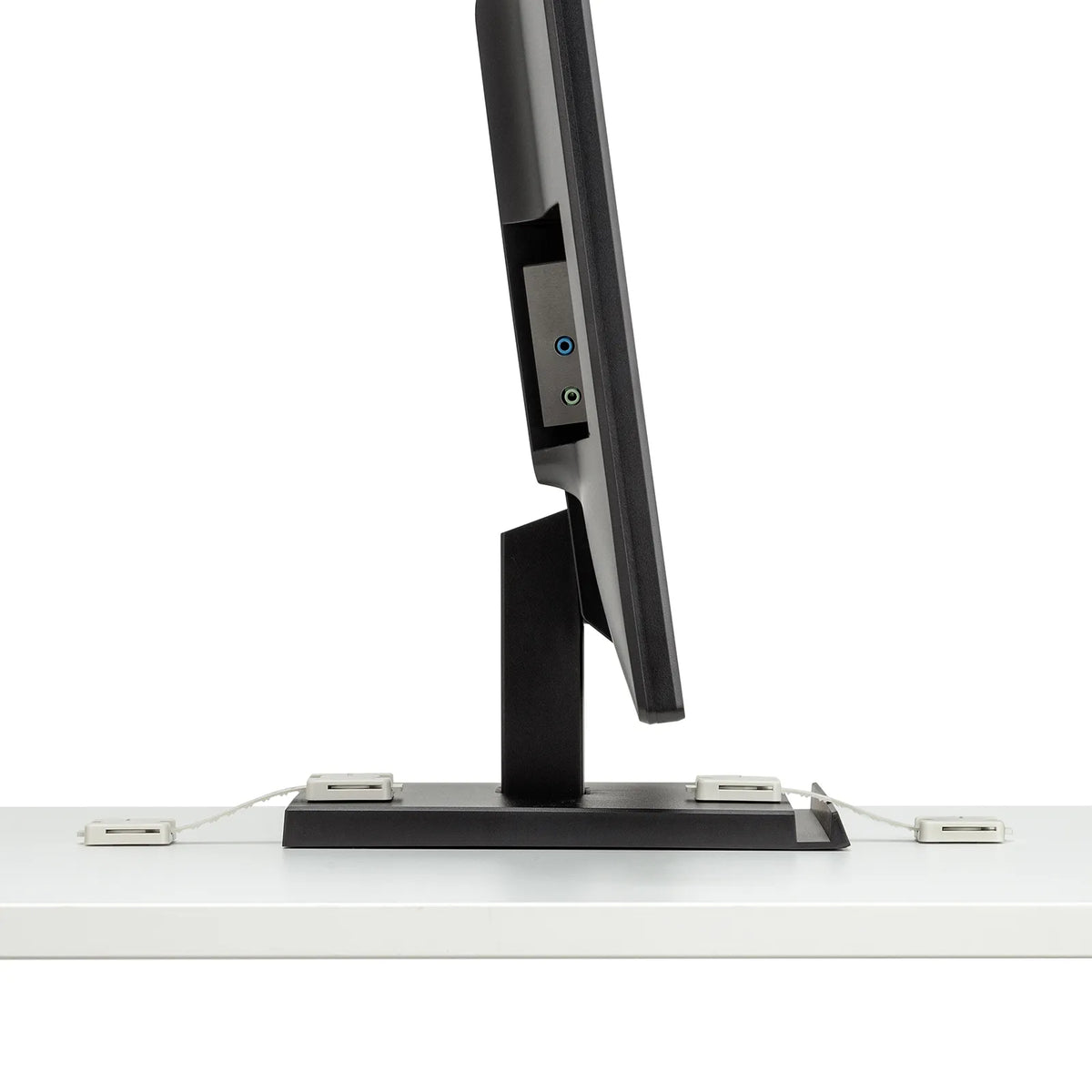

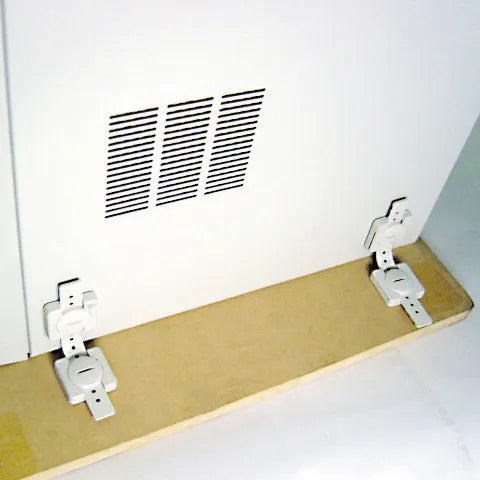

●The belt securely fastens the equipment surface to the mounting surface to prevent tipping and falling accidents of computers, displays, precision equipment, medical equipment, etc.
●Countersunk screws can be used instead of the included strong adhesive pads, so it can be fixed to any surface.
●Attachment and detachment are easy with the coin screw on the lock top, so it is safe even when maintaining equipment.
＜How to install＞
1. Determine a fixing position so that the belt does not loosen.
2. Adjust the length of the belt. To move the fixing base on the belt, rotate the lock top 90 degrees with a coin to switch between lock and unlock.
3. After removing dust from the mounting area, wipe it with the included alcohol pad to remove moisture and oil.
4. Peel off the protective sheet from the adhesive pad and lightly press it onto the fixing base to stick it.
5. Peel off the protective sheet from the other side and stick it to the fixing position.
6. Leave it undisturbed for 72 hours after fixing, without pulling on it.
7. It can also be fixed with 15 to 20 mm countersunk screws without using adhesive pads.
■Quantity: 4 pieces

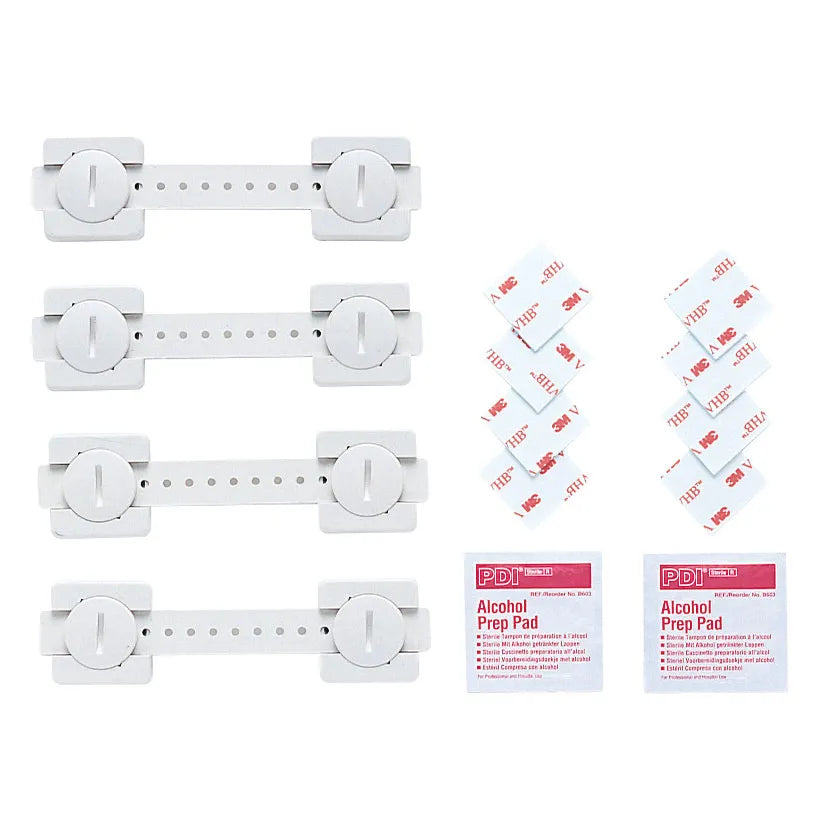

■Set contents:
Fixing base (W36xD9.6xH38mm) x8
Adhesive pad x8
Lock top x8
Belt (W140xD3xH16mm) x4
Alcohol pad x2
■Product life: 10 years (varies depending on the usage environment)

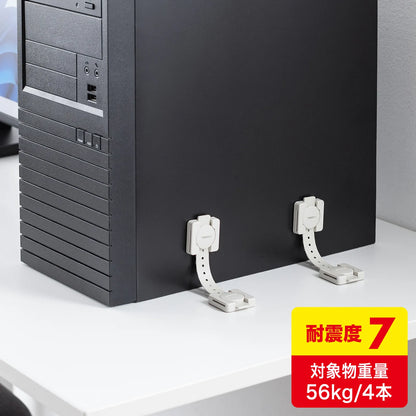

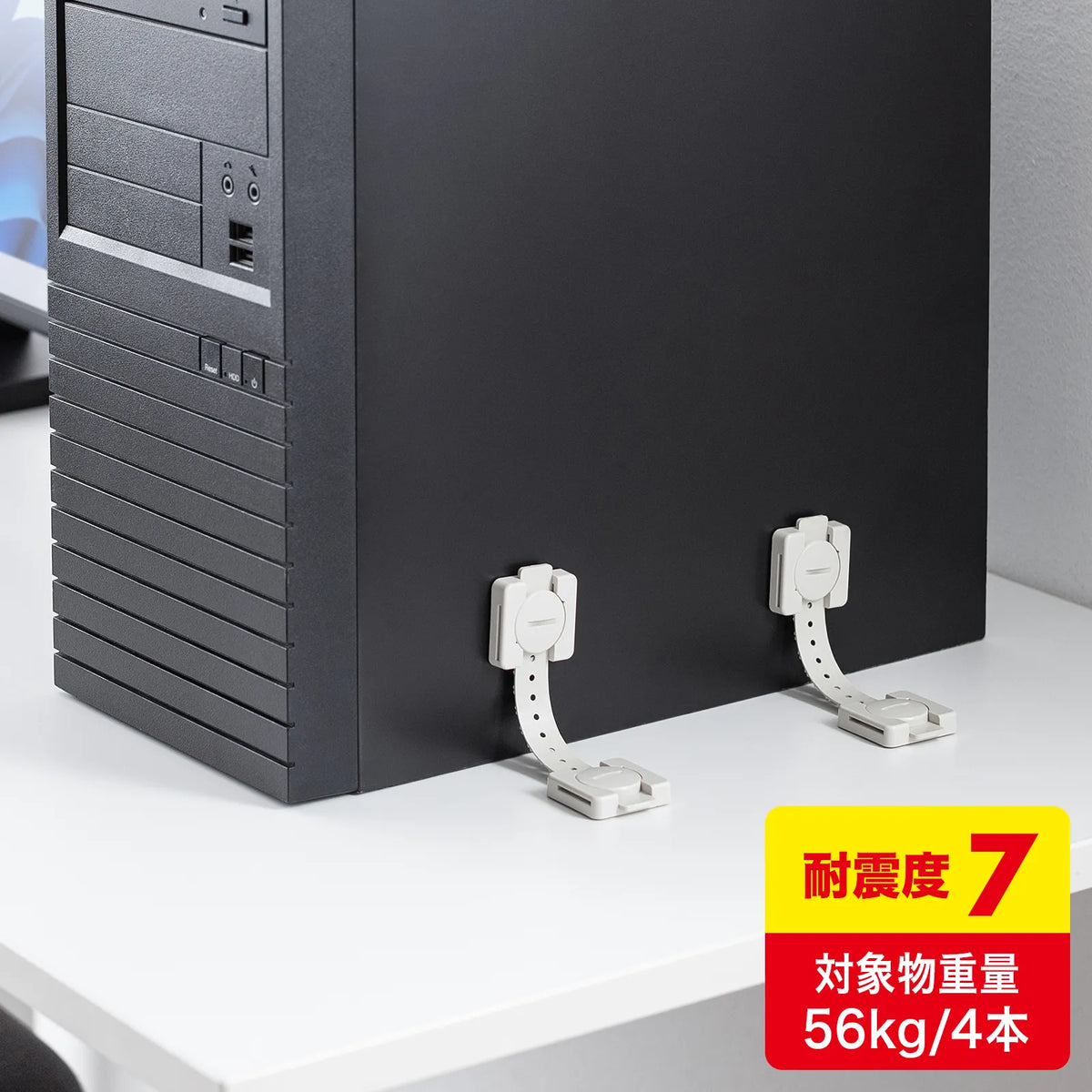

■Weight of target object: 56kg/4 pieces
■Seismic resistance level: 7 (JIS C 0040, 0041)
■Flame retardancy: UL94V0 Certified product
■Measurement: "Tokyo Metropolitan Small and Medium Enterprise Promotion Foundation (Jonan Area Small and Medium Enterprise Promotion Center)", "Tokyo Electric Power Company", "Tokyo Metropolitan Industrial Technology Research Institute"

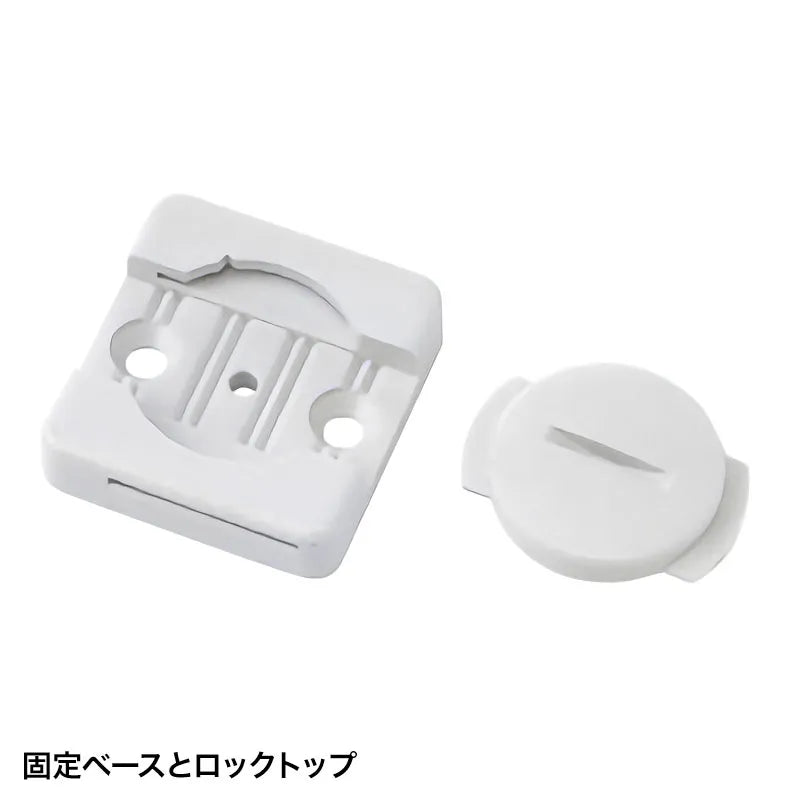

■Material: Fixing base and lock top/ABS resin
Belt/Elastomer material
Adhesive pad/Acrylic adhesive
≪Notes≫
*Not suitable for surfaces with large bumps, release agents, Teflon, nylon, polyethylene, rubber, polypropylene, etc.
*Do not use adhesive pads and screws together on the fixing base.
*Keep out of reach of infants and children.
*When storing, keep in a cool, dark place away from direct sunlight.
