Wireless head microphone (for MM-SPAMP4/7) MM-SPAMP4WHS
Wireless head microphone (for MM-SPAMP4/7) MM-SPAMP4WHS
GTIN（JAN）：4969887572351
SKU：MM-SPAMP4WHS
Regular price
¥29,766 JPY
Regular price
Sale price
¥29,766 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Two-piece wireless head microphone usable with wireless loudspeaker speaker "MM-SPAMP4/MM-SPAMP7"]

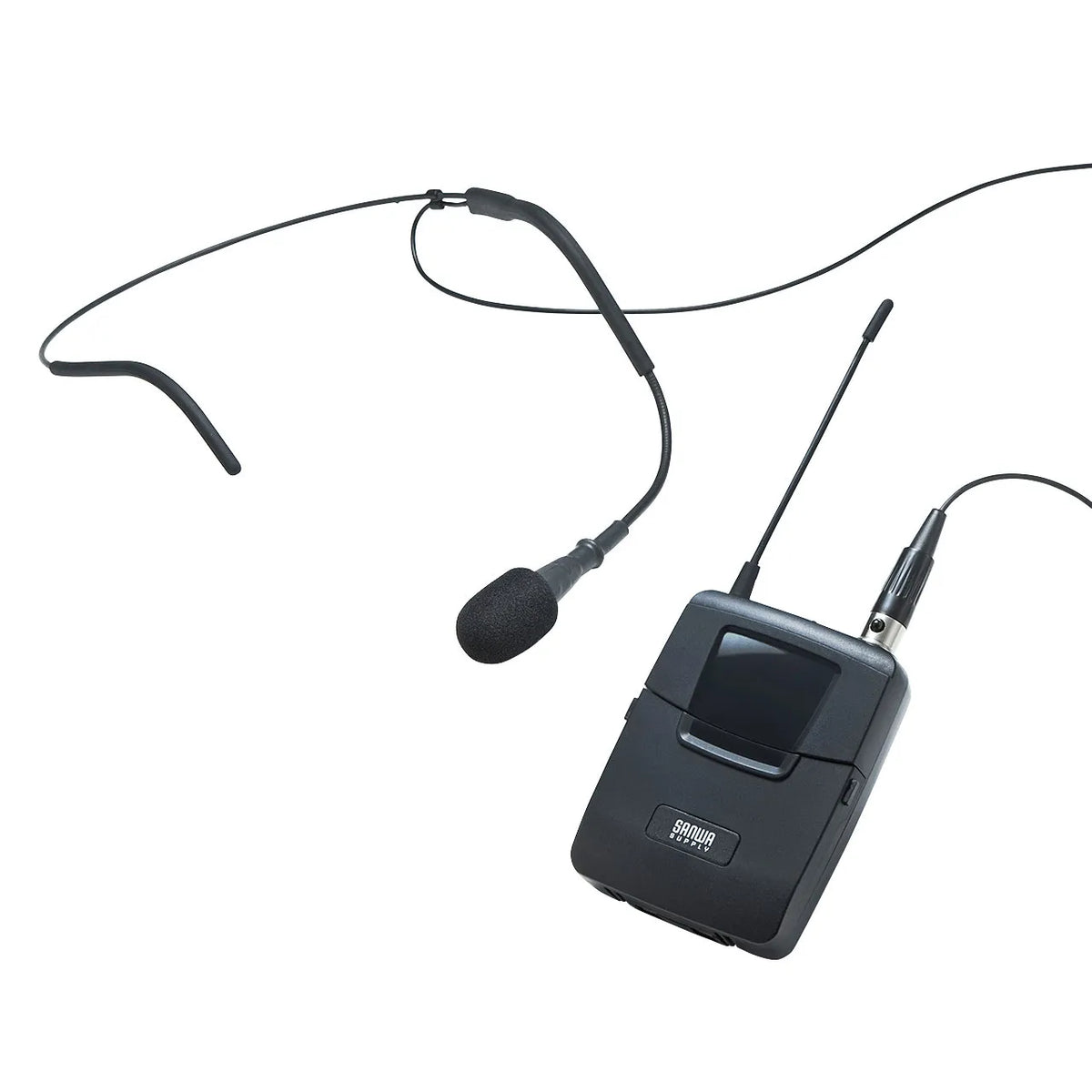

●This is a two-piece wireless head microphone usable with Sanwa Supply's wireless loudspeaker speaker "MM-SPAMP4/MM-SPAMP7".
●It conforms to the specified low-power radio station radio microphone (800MHz band) standard and can be used by selecting one of 10 frequencies.
●The ultra-thin head fixing part allows for light use with no feeling of wearing it.

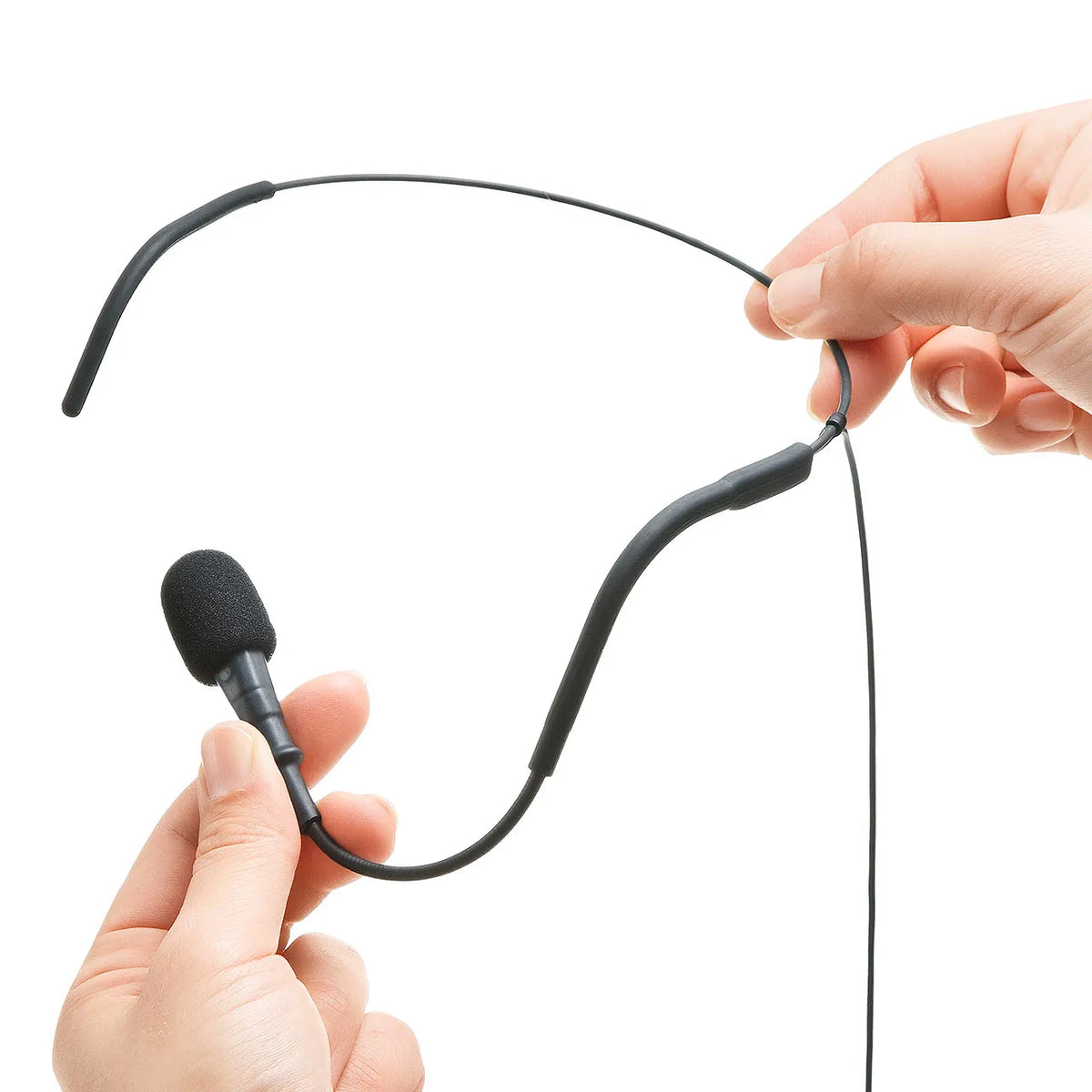

●The flexible arm allows the microphone part to be moved freely, so it can pick up the voice well and output a stable sound.
●Operates on 2 AA batteries.
＜Caution＞
※Please use after matching the channel frequency with the loudspeaker speaker "MM-SPAMP4/MM-SPAMP7".
※Since the loudspeaker speaker "MM-SPAMP4" has only one wireless receiver, it cannot be used simultaneously (in combination) with the included wireless microphone "MM-SPHMW4".
*The MM-SPAMP7 loudspeaker has two wireless receivers, allowing simultaneous use of one included wireless microphone and this product (wireless head microphone).
*Please use the speaker and the wireless head microphone (this product) at a distance of 2 meters or more.
■Microphone type: Unidirectional electret condenser
■Antenna type: Dipole antenna
■Transmission frequency: 806.125MHz to 809.750MHz
■Oscillation method: Crystal-controlled PLL synthesizer method
■Emission type: F3E
■Tone signal: 32.768kHz
■Modulation method: Frequency modulation (FM)
■Antenna power: 10mW
■Transmission frequency stability: 20ppm or less
■Spellent radiation: 2.5uW or less
■Reference frequency deviation: ±35kHz
■Maximum frequency deviation: ±40kHz
■Modulation sensitivity: ±30kHz (1KHz -32dBs, 50mV)
■Maximum input sound pressure: 120dB SPL or less (±40kHz)
■Input sensitivity adjustment: Variable range -9dB to +9dB (Factory setting +9dB)
■Input equivalent noise: 56dB or less
■Frequency response: 100 to 18000Hz
■Power supply voltage (sold separately): DC3V (AA batteries x2, sold separately)
■Battery life: Approximately 8 hours (when using alkaline batteries)
■Operating temperature range: 0°C to +40°C
■Size:

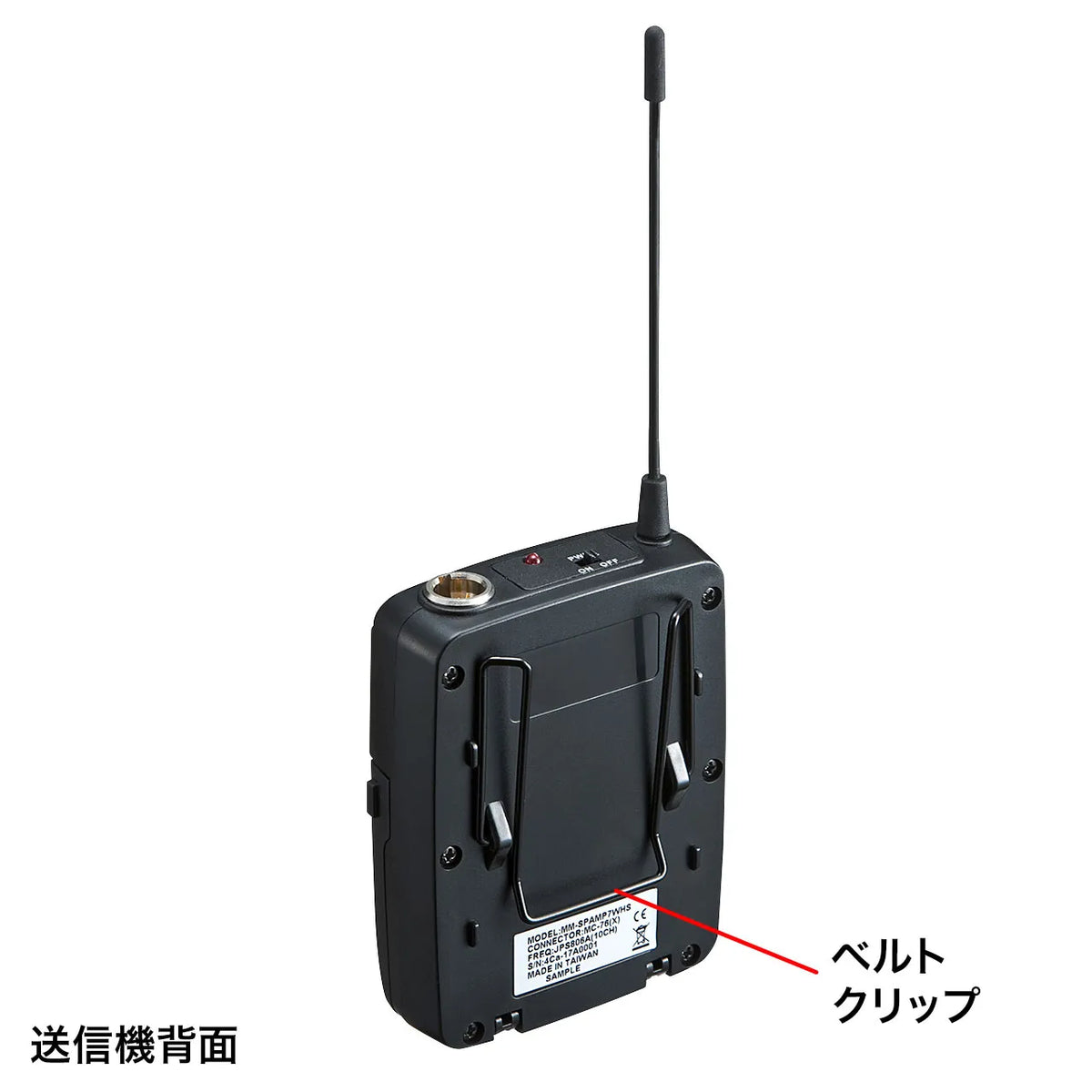

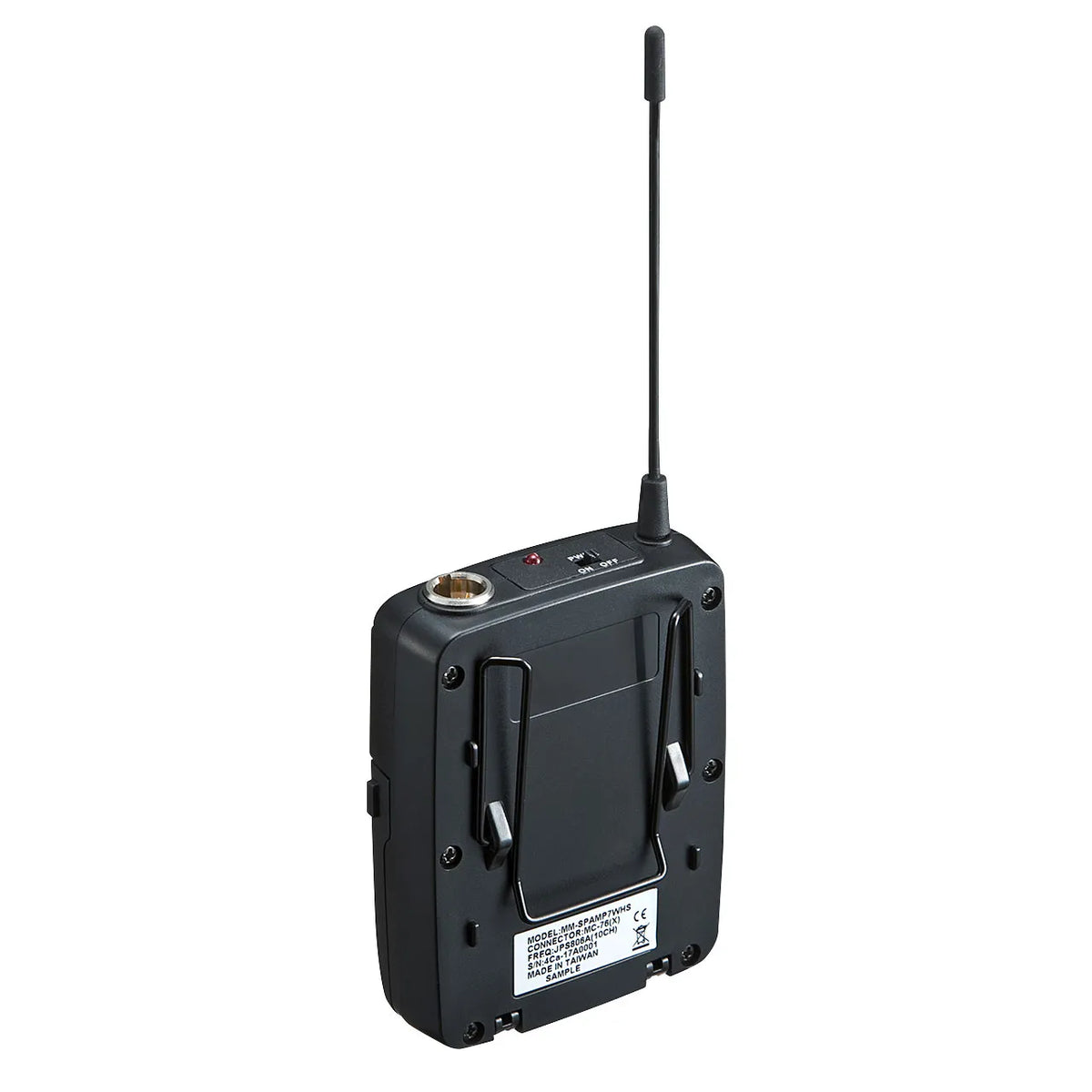

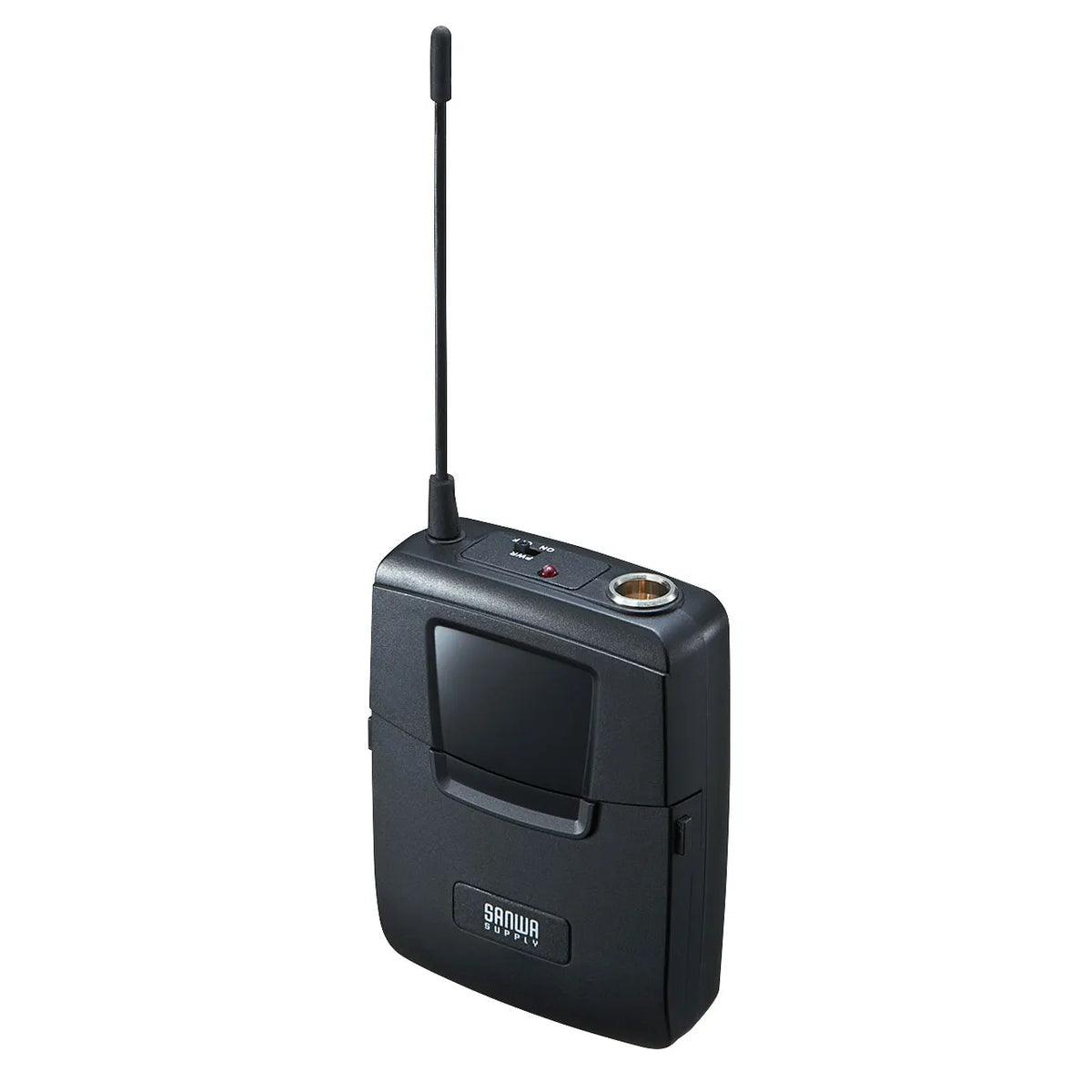

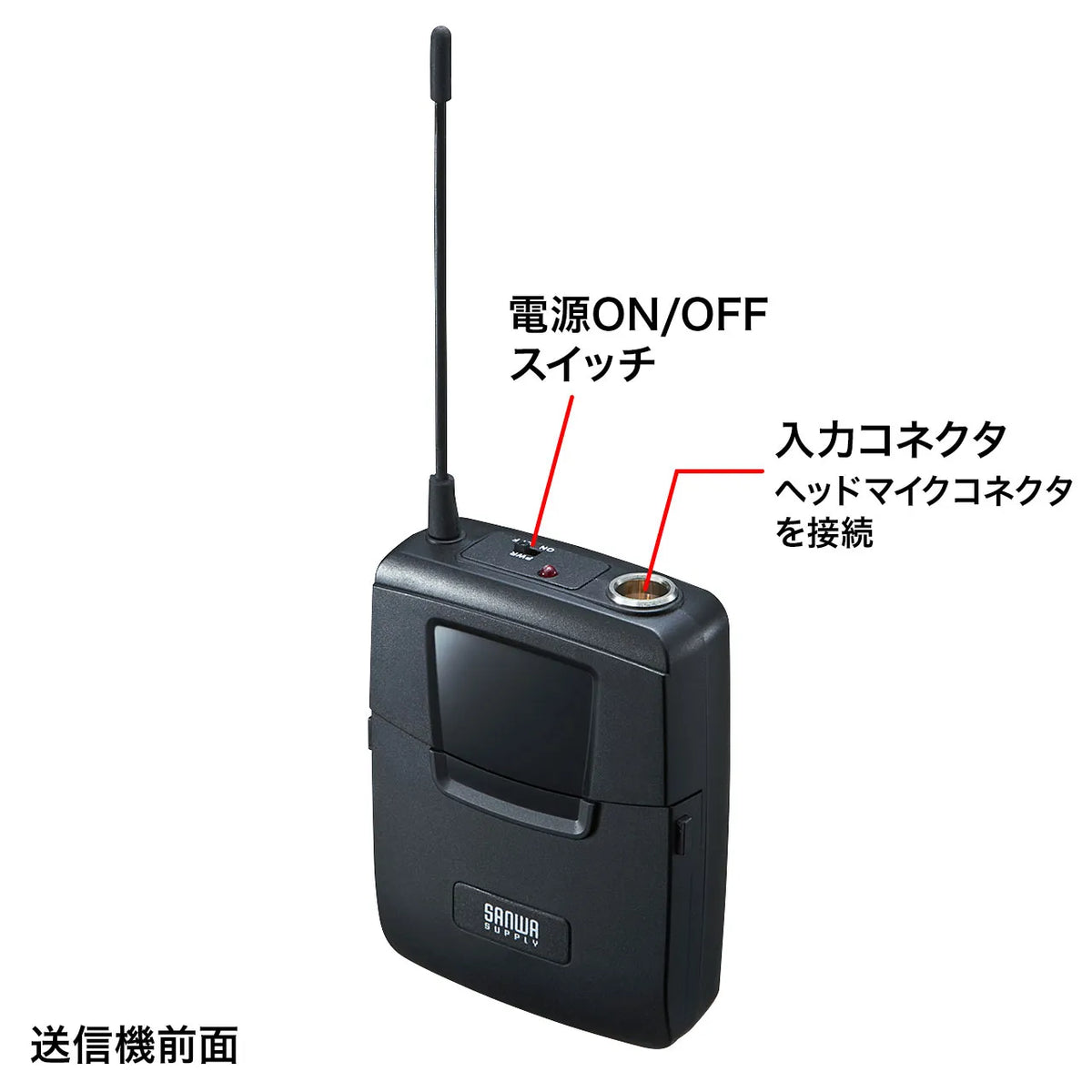

Transmitter (main unit)/W64xD23xH84mm

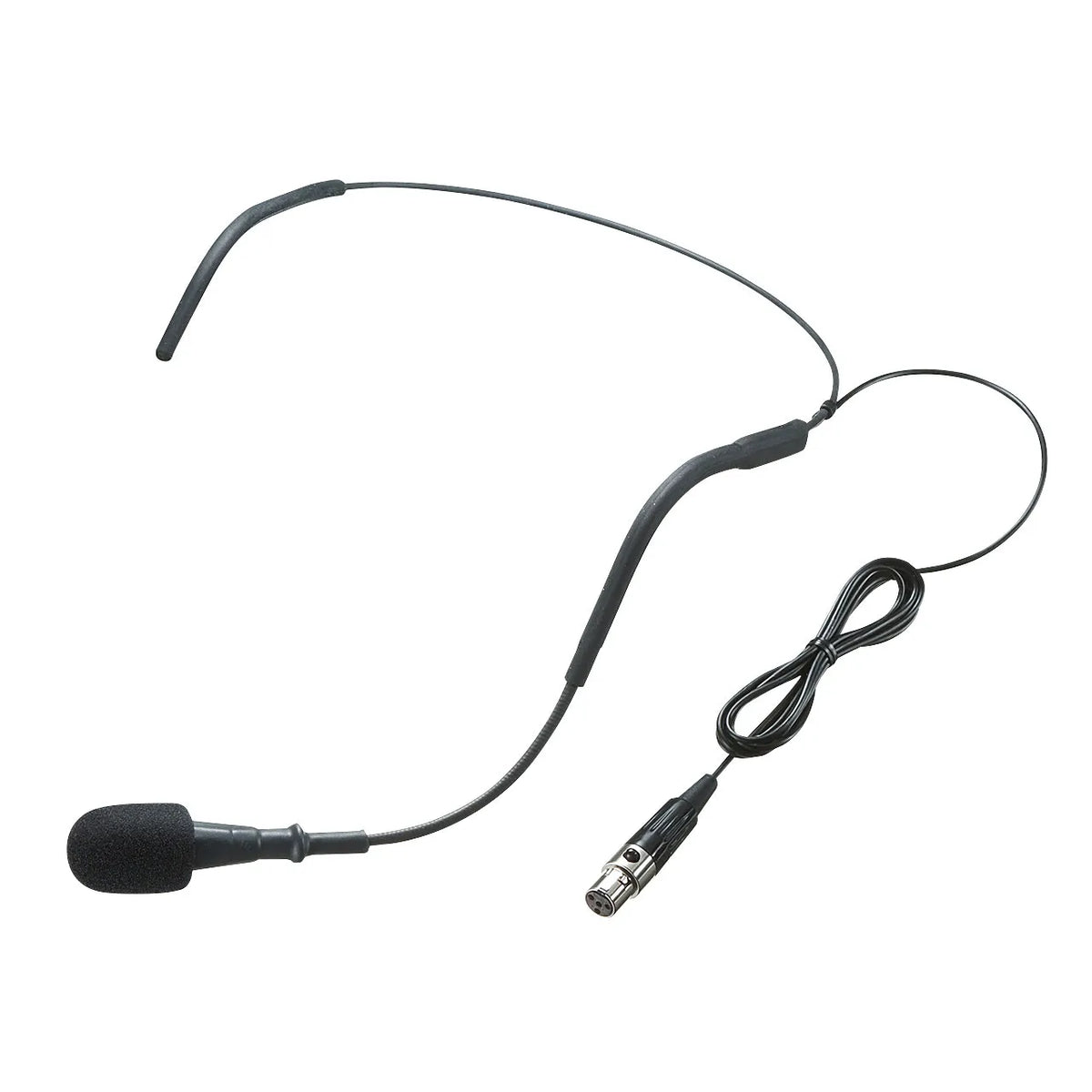

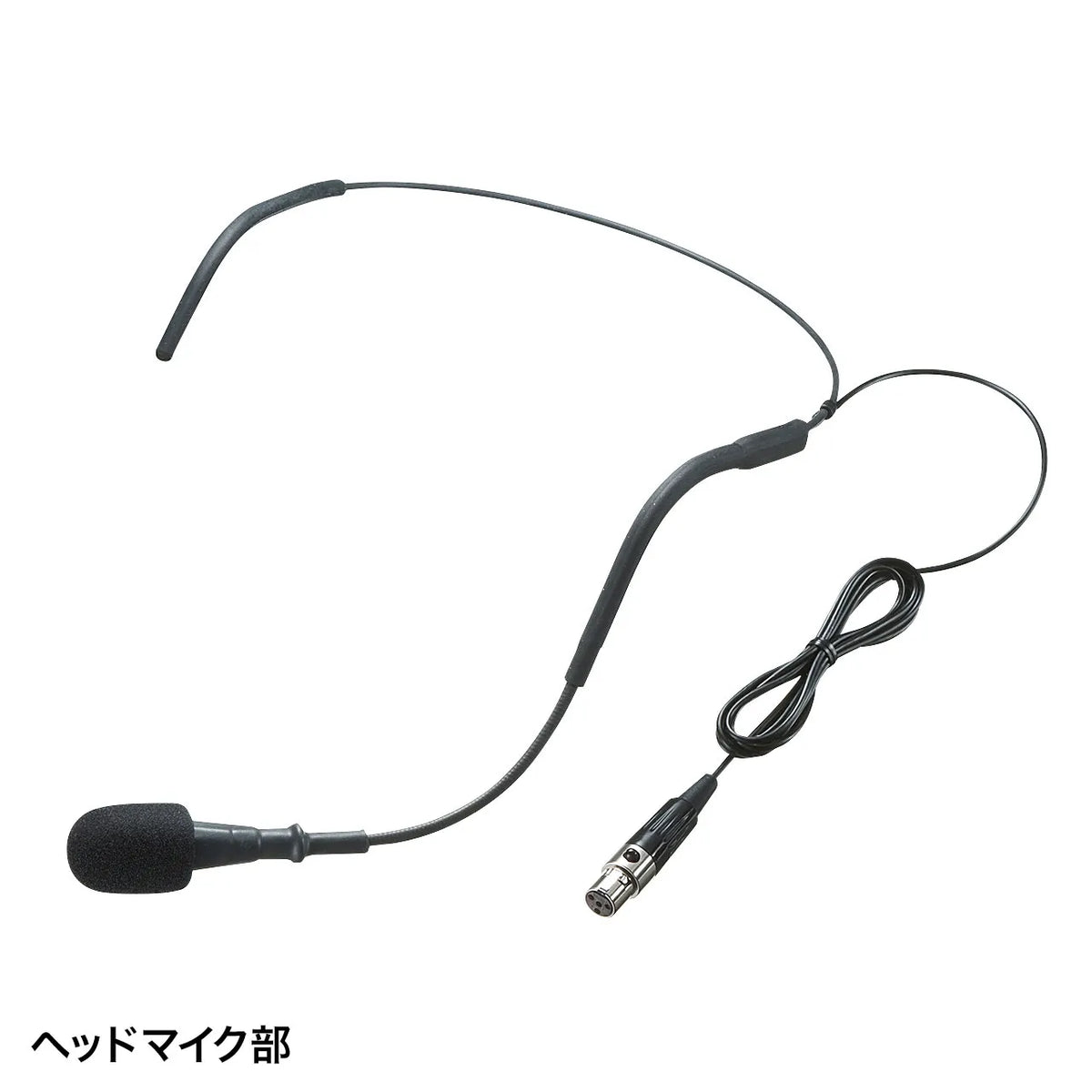

Head microphone/W150xD5xH25mm
Cable length between main unit and head microphone/Approx. 1.2m
■Weight:
Transmitter (main unit)/Approx. 108g (excluding batteries)
Head microphone/Approx. 26g
■Set contents: Transmitter (main unit) x1, head microphone x1, Phillips screwdriver x1, instruction manual and warranty x1
