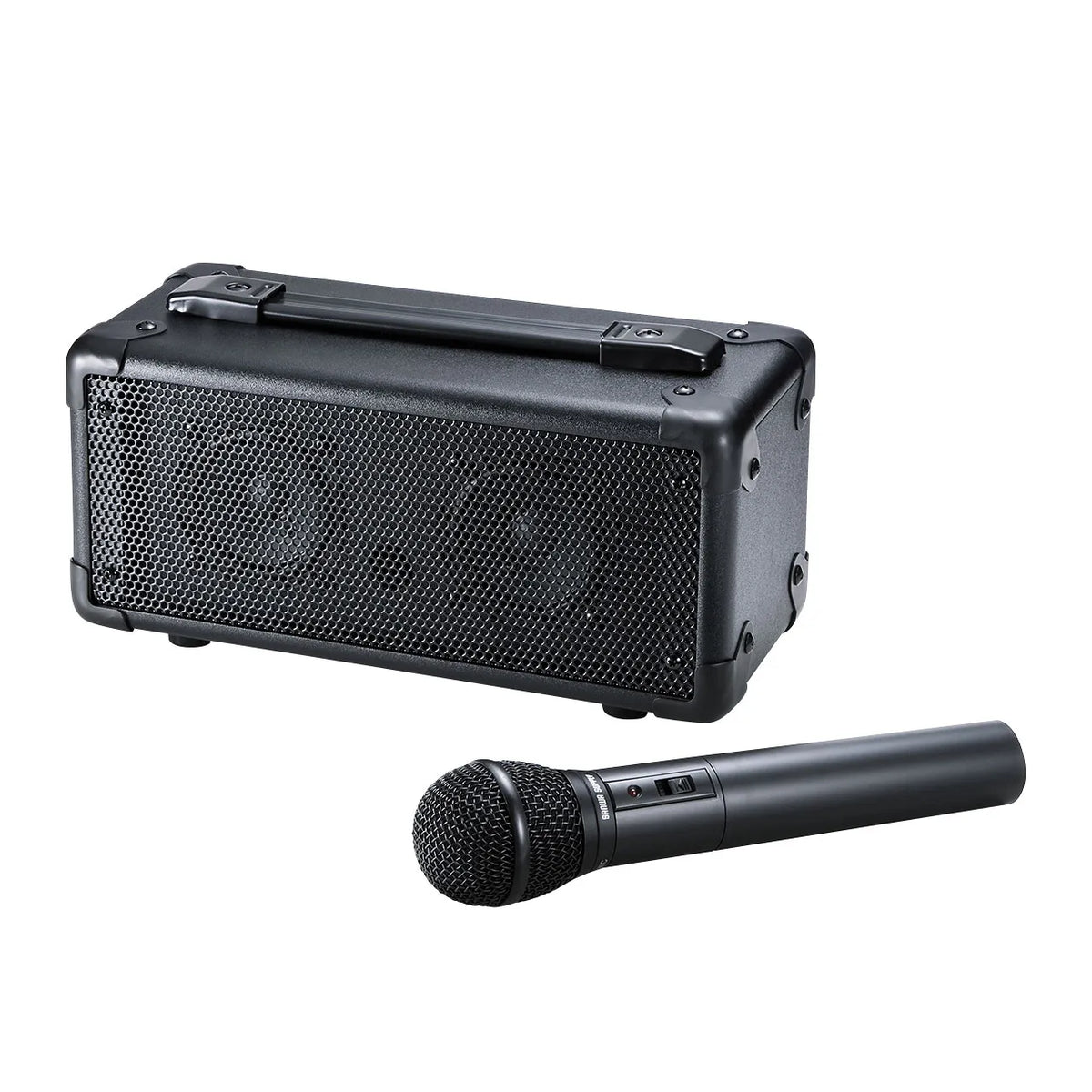

Wireless microphone with loudspeaker MM-SPAMP4

[Wireless microphone speaker for easy use in meetings, lectures, and events]

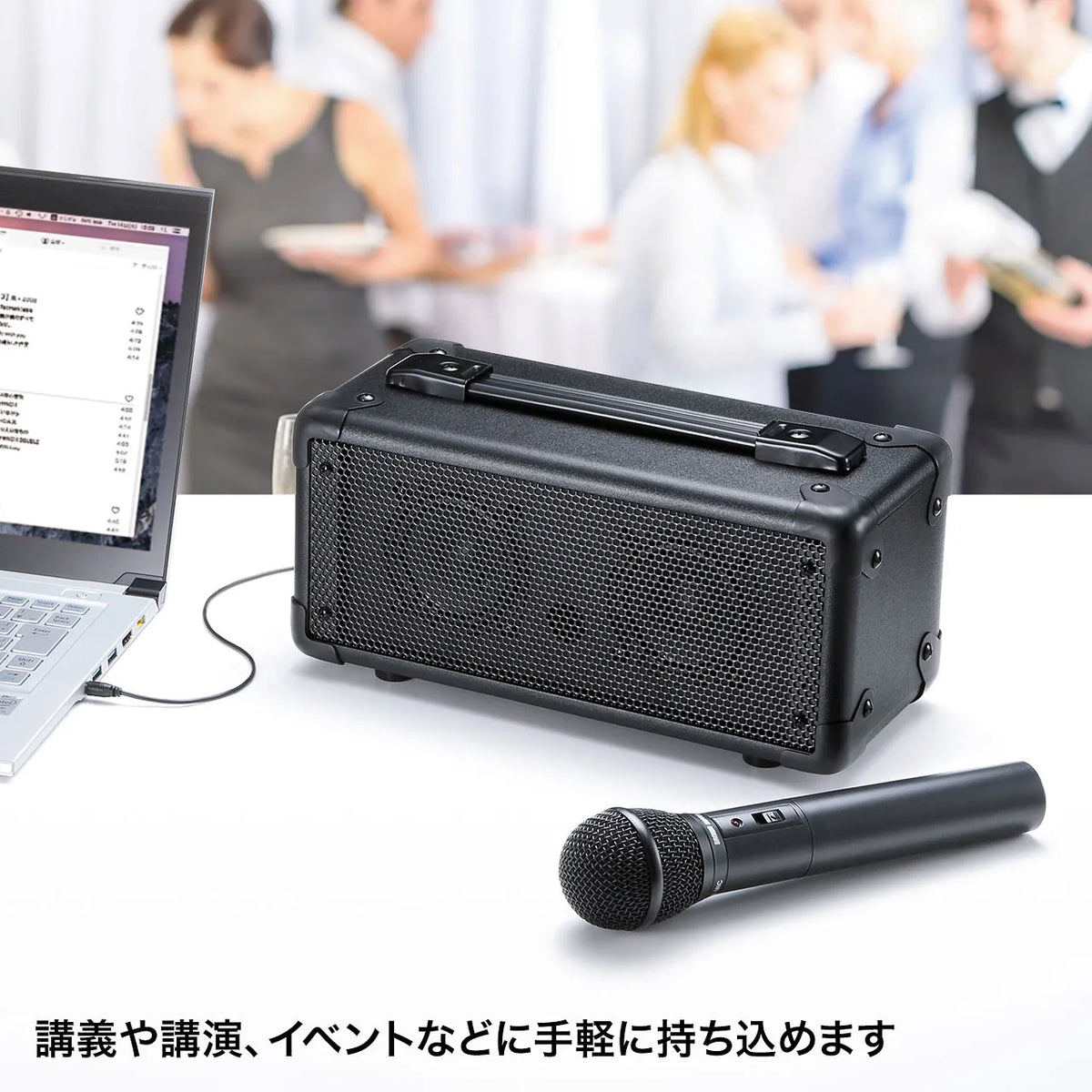

●This is a speaker and microphone set that can be easily brought to lectures, presentations, small meeting rooms, and events, and can be easily set up.
●One wireless microphone is included, allowing for use while moving freely.
●The wireless microphone can be used by selecting one of 10 frequencies allocated to the B-band, so it is easy to change frequencies if they overlap.
●It is also equipped with two wired microphone input terminals, and by connecting a Sanwa Supply dynamic microphone (MM-SPHM1, sold separately), you can use the wireless microphone and wired microphone at the same time.
*The wireless microphone and microphone input 1 (wired) cannot be used simultaneously. The wireless microphone and microphone input 2 (wired) can be used simultaneously.
Or, microphone input 1 (wired) and microphone input 2 (wired) can be used simultaneously.
●It is equipped with two standard microphone input terminals (6.3mm diameter standard jack) that can also connect commercially available dynamic microphones (wired).

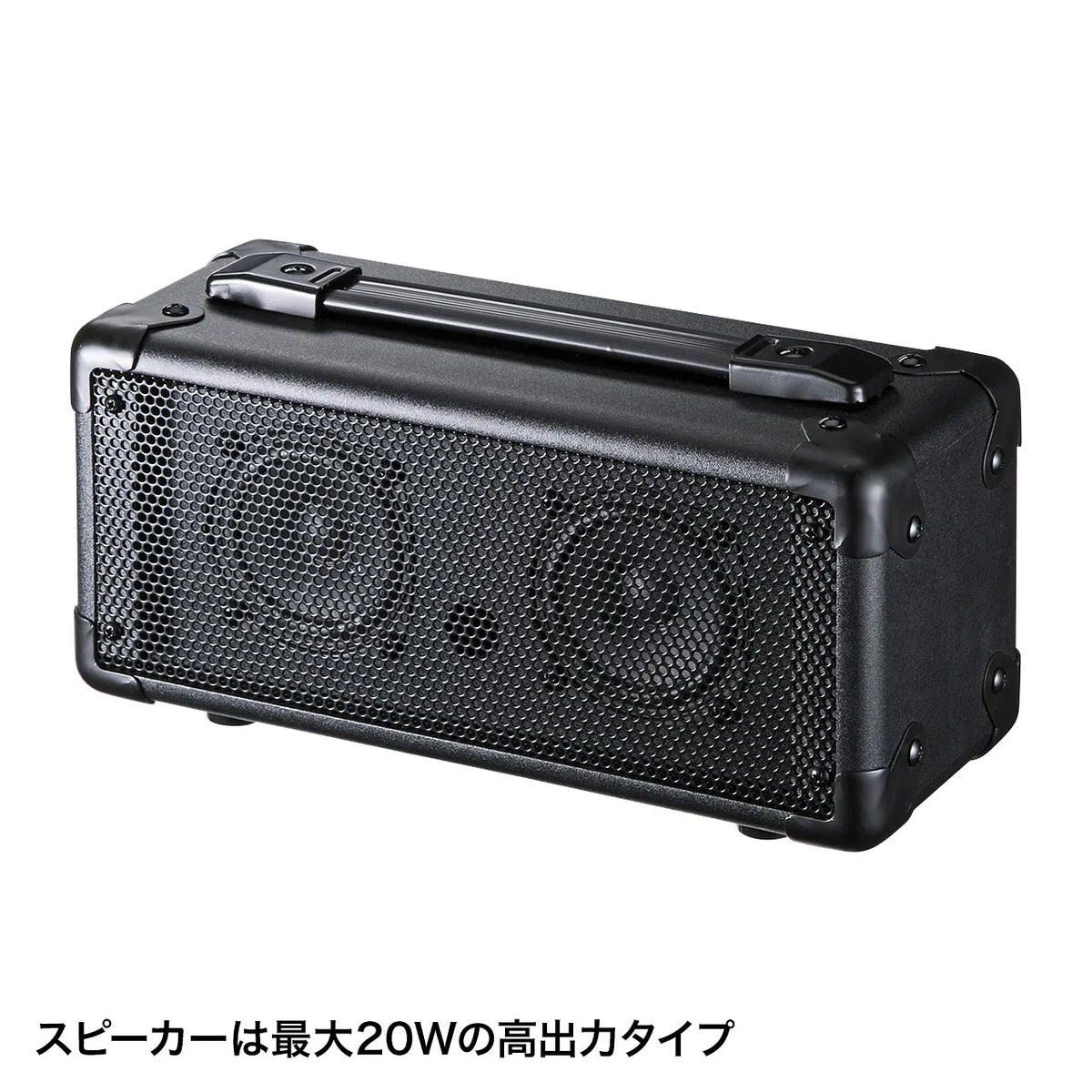

●The speaker has a high output of up to 20W, making it ideal for use in indoor environments of approximately 120 to 150 square meters.
●As it is an all-in-one speaker, it can be used simply by connecting the power and microphone.

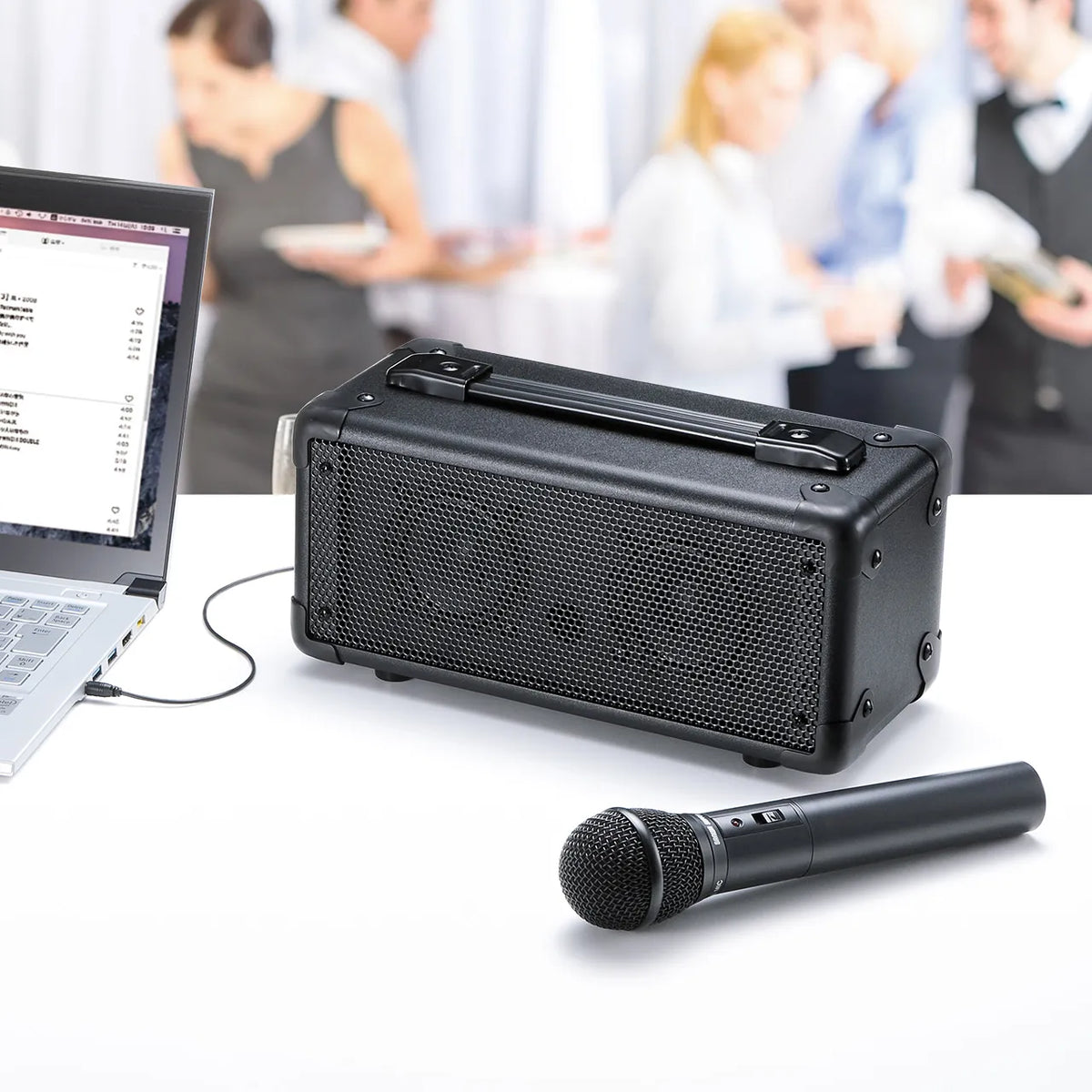

●It is equipped with an external audio input, so music playback is also possible. Microphone audio output is also possible at the same time. It can be used as a karaoke speaker, or to play announcements along with background music at wedding receptions and parties.
●The power supply supports two ways: AC power that can be used with a regular household outlet and battery power (uses 6 AA batteries) that can be used when carrying it around.
●The bottom of the unit is equipped with a tripod screw hole (UNC 1/4 inch) for attaching a tripod for SLR cameras. It can also be used as a speaker with a stand by attaching a tripod.
*Please use a tripod with a load capacity of 3.5kg or more. The Sanwa Supply speaker stand (MM-SPST1) is compatible.
●It is equipped with a handle for easy carrying.
●A dedicated bag is included for storing and organizing accessories, microphone, and cables.

＜Wireless Microphone Section＞
●This is a wireless microphone that conforms to the specified low-power radio station radio microphone (800MHz band) standard.
●It uses the B-band and you can select one of 10 frequencies to use.
●This is a wireless dynamic microphone that reproduces the speaker's voice as faithfully as possible.

＜Speaker Section＞

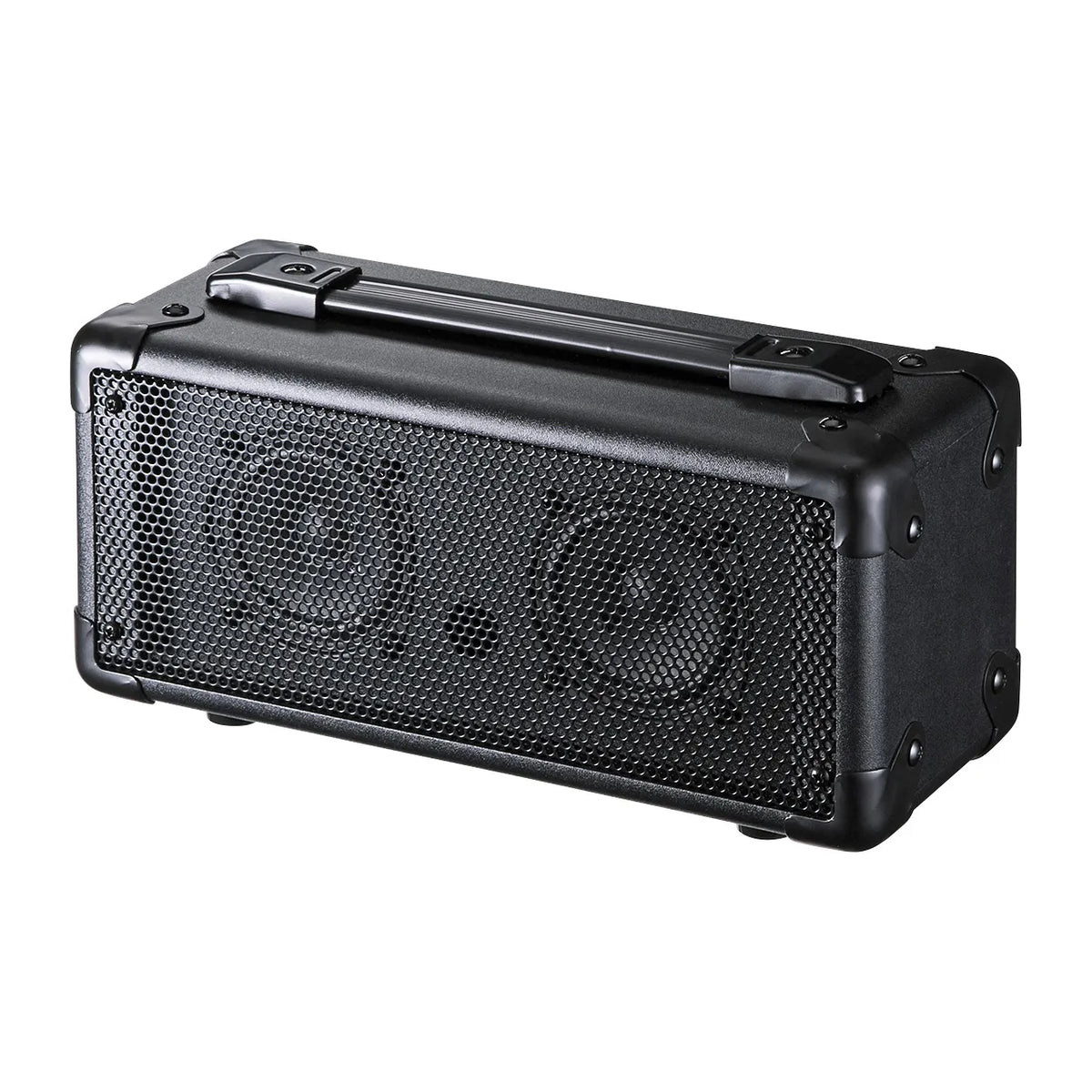

■Maximum practical output: 20W (10W + 10W)
■Frequency response: 180 to 15000Hz
■Speaker type: Bass reflex full-range speaker system (magnetically shielded design)
■Speaker size: 3 inches (77.8mm diameter)
■Load impedance: 8 ohms
■External input: 3.5mm stereo mini jack (for external audio input) x1
■Microphone input: 6.3mm diameter standard jack (for microphone) x2

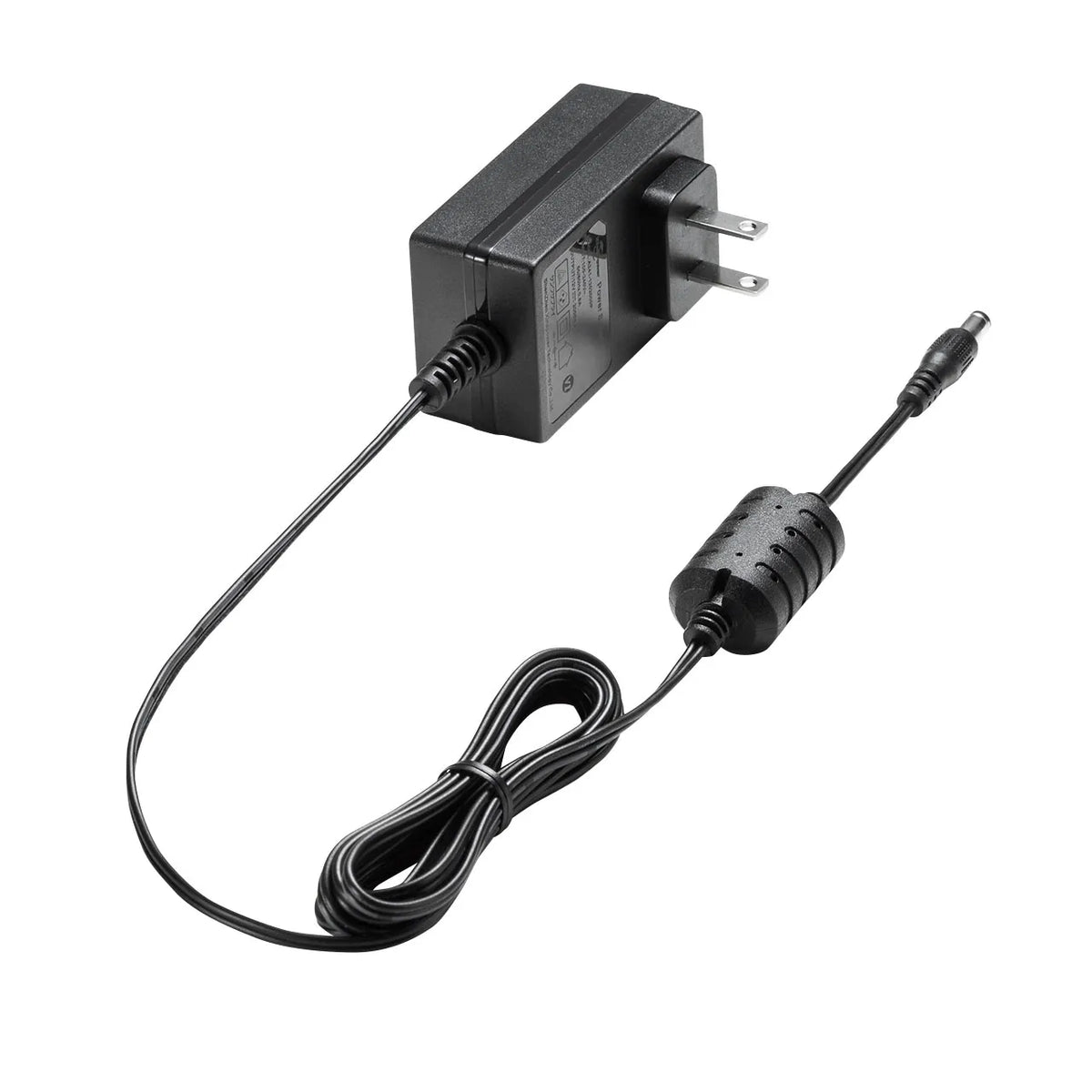

■Power supply: AC power (12V/2A), battery powered (uses 6 AA batteries)
■External dimensions: W297 x D133 x H152mm
■Operating frequency band: 806.125 to 809.750MHz

＜Wireless Microphone Section＞
■Type: Unidirectional dynamic microphone
■Antenna type: Built-in antenna
■Frequency Response: 806.125 to 809.750MHz
■Oscillation Method: Crystal-controlled PLL synthesizer
■Emission Type: F3E
■Tone Signal: 32.768kHz
■Antenna Power: 10mW
■Transmission Frequency Stability: 20ppm or less
■Unwanted Radiation: 2.5uW or less
■Reference Frequency Deviation: ±30kHz
■Maximum Frequency Deviation: ±35kHz
■Power Supply Voltage: DC3V (2 x AA batteries) (sold separately)
■Battery Life: Approx. 6.5 hours (when using alkaline batteries)
■Sensitivity: -76 ±3dB
■Impedance: 220 ohms
■Size: 36mm diameter x 240mm
■Weight: 190g
■Wireless microphone channel frequencies:
0/806.250MHz
1/806.500MHz
2/806.750MHz
3/807.000MHz
4/807.500MHz
5/807.750MHz
6/808.000MHz
7/808.500MHz
8/809.000MHz
9/809.500MHz

＜Common Specifications＞
■Size: W297xD133xH152mm
■Weight: 3050g

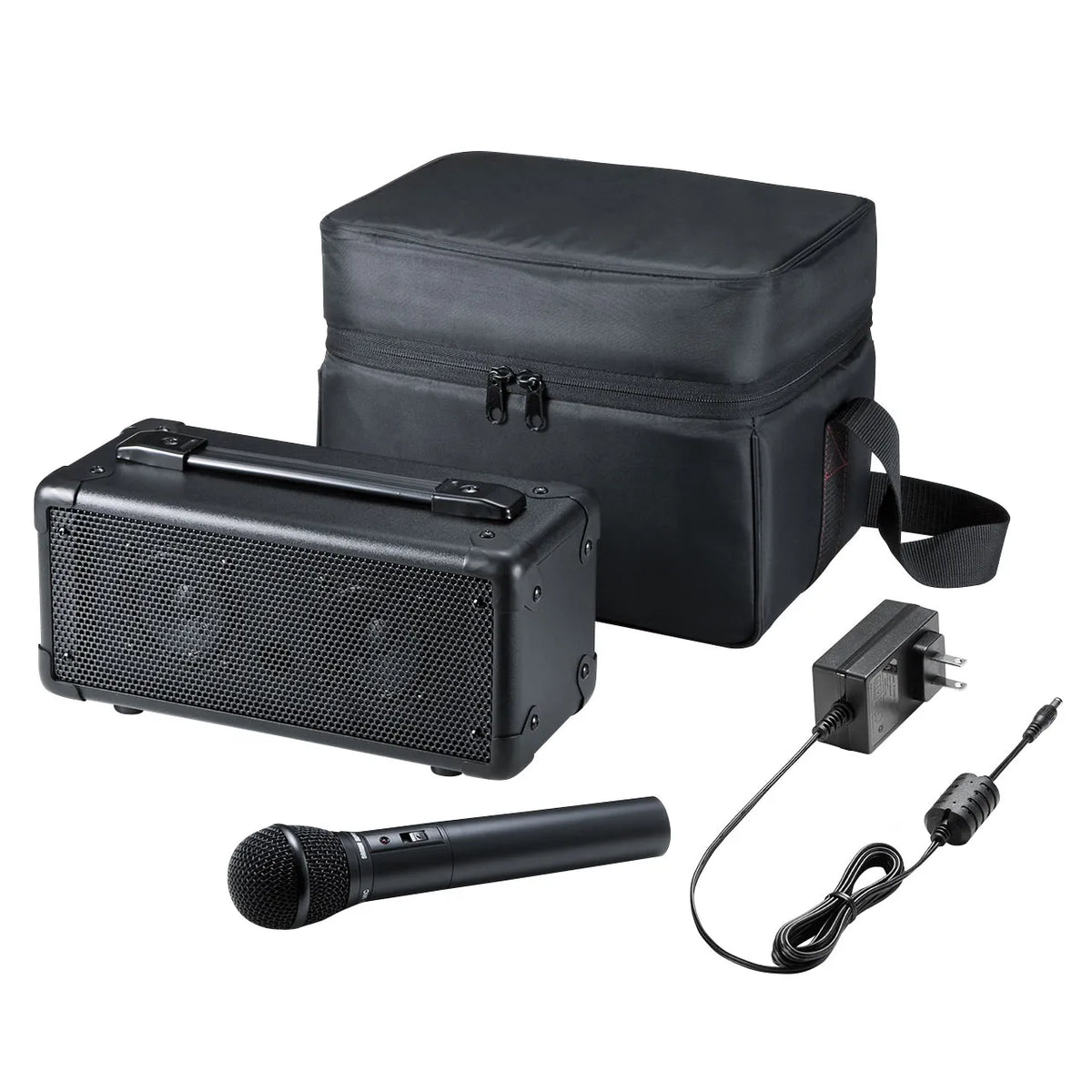

■Set contents: Speaker unit x1, wireless microphone x1, storage bag, AC adapter x1, instruction manual x1
■Storage bag dimensions:
External dimensions/W320xD220xHD225mm
Internal dimensions/
(Main room) W280xD130xH130mm
(For microphone and adapter) W280xD35xH130mm
(Large top lid pocket) W175xD45xH195mm
(Small top lid pocket) W105xD45xH195mm
≪Caution≫
This product is not waterproof and may malfunction or be damaged due to rain or condensation caused by changes in humidity, so outdoor use is not covered by the warranty.
