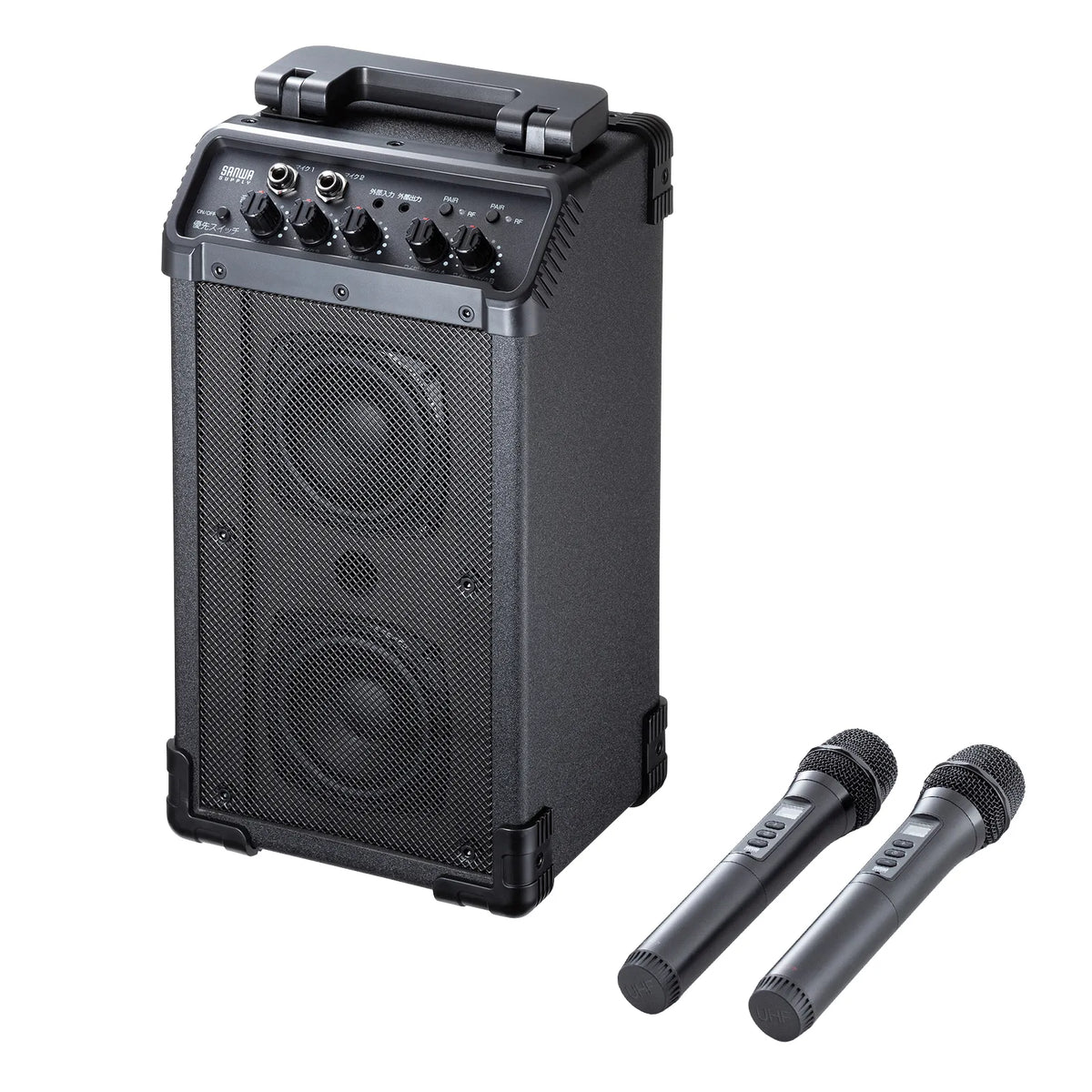

Wireless microphone with loudspeaker (maximum 40W) MM-SPAMP21

[Maximum 40W output loudspeaker speaker! Supports two wireless microphones, ideal for meetings and events. AC adapter and battery operation, large handle and storage bag included.]

[Speaker section]
●This is a set of a loudspeaker speaker and wireless microphone that can be easily carried and set up for lectures, speeches, wedding receptions, and events.
●The speaker has a high output of up to 40W, making it ideal for use in indoor environments of approximately 180 to 200 square meters.

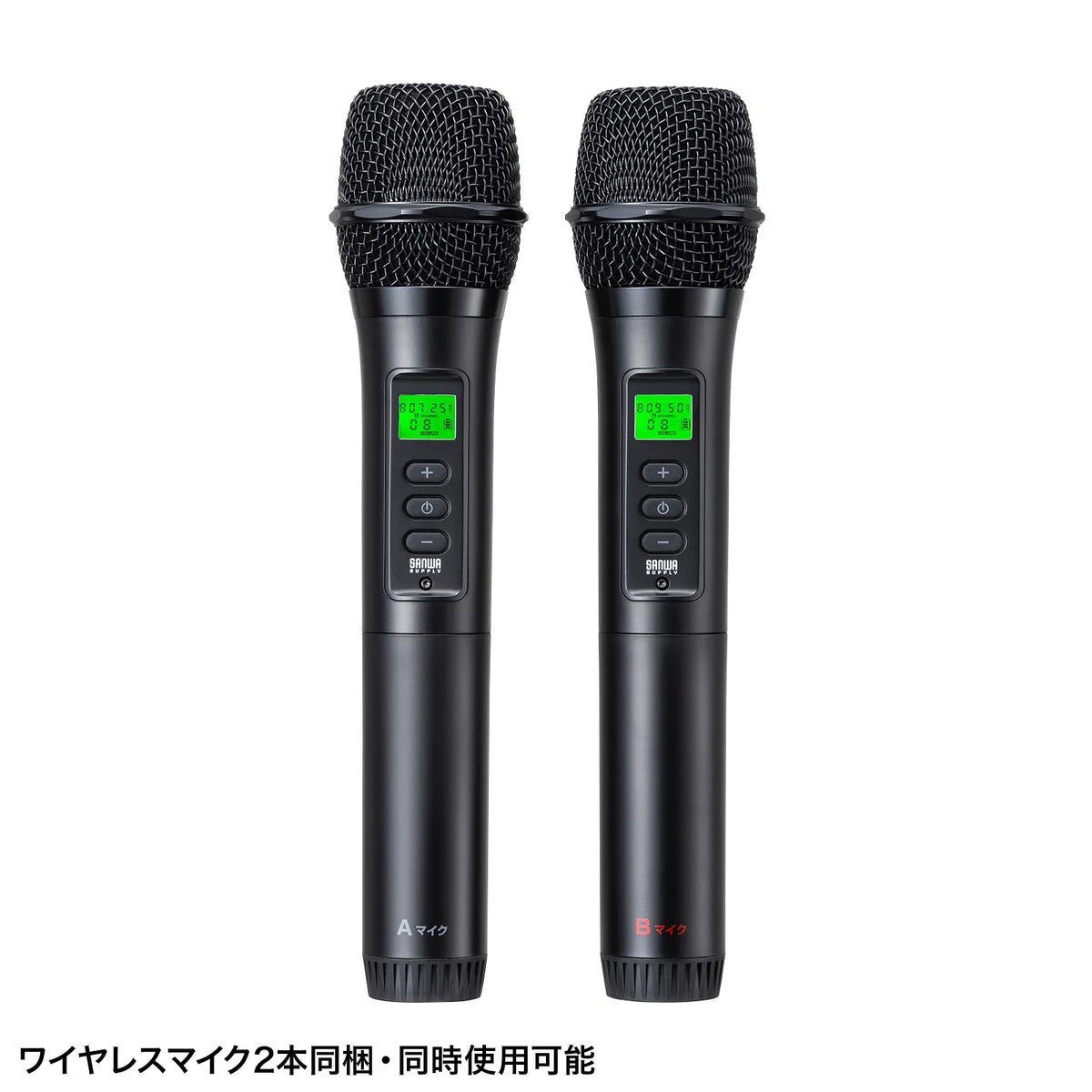

●Two wireless microphones are included, allowing for simultaneous use while moving freely. By adding a separately sold wired microphone, it is possible to use up to four microphones simultaneously.

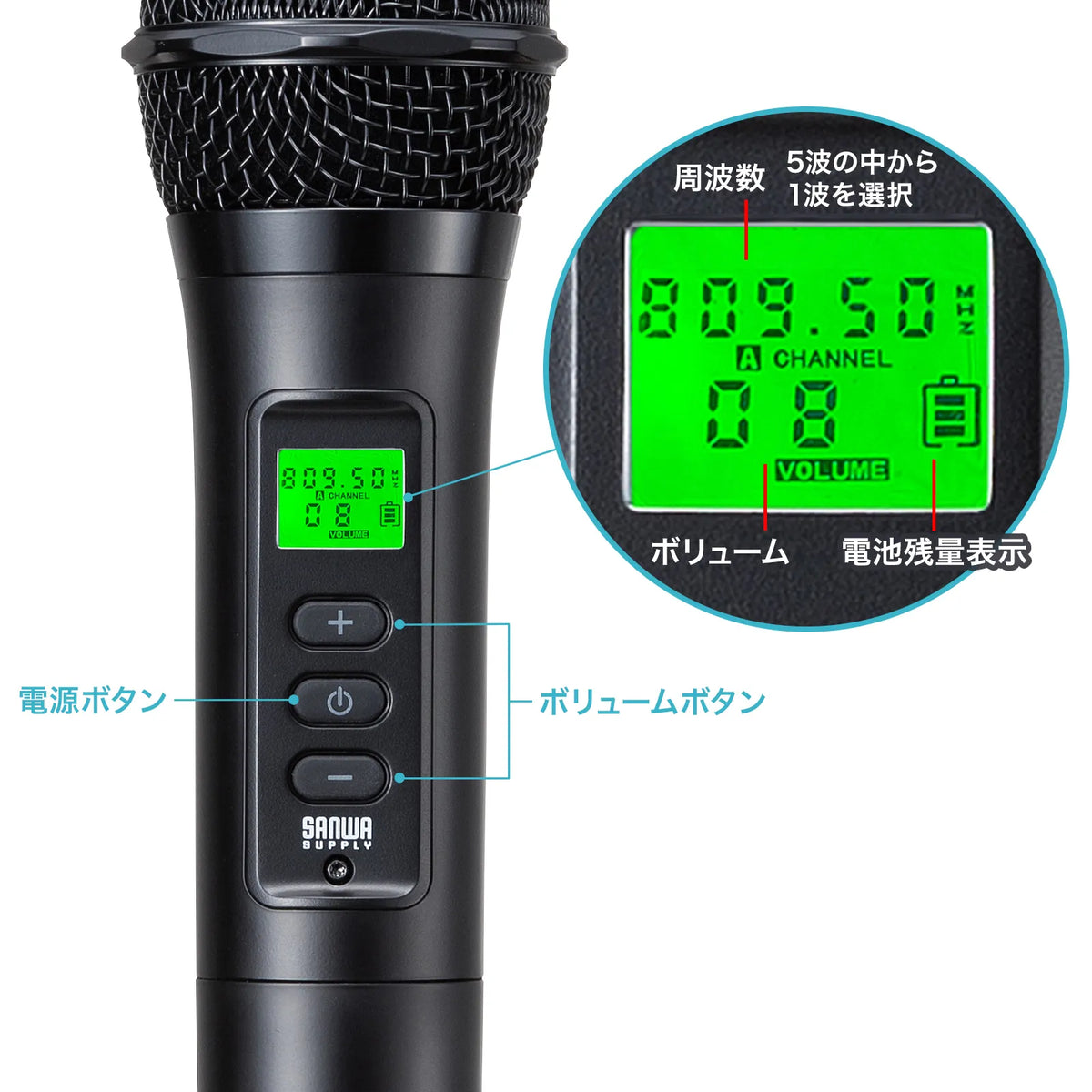

●The wireless microphone can be used by selecting one of five frequencies allocated to the B-band, so it is easy to change if frequencies overlap.
*There are two types of included wireless microphones, A and B, and you can select a channel from five different frequencies for each. Please check the instruction manual for details.

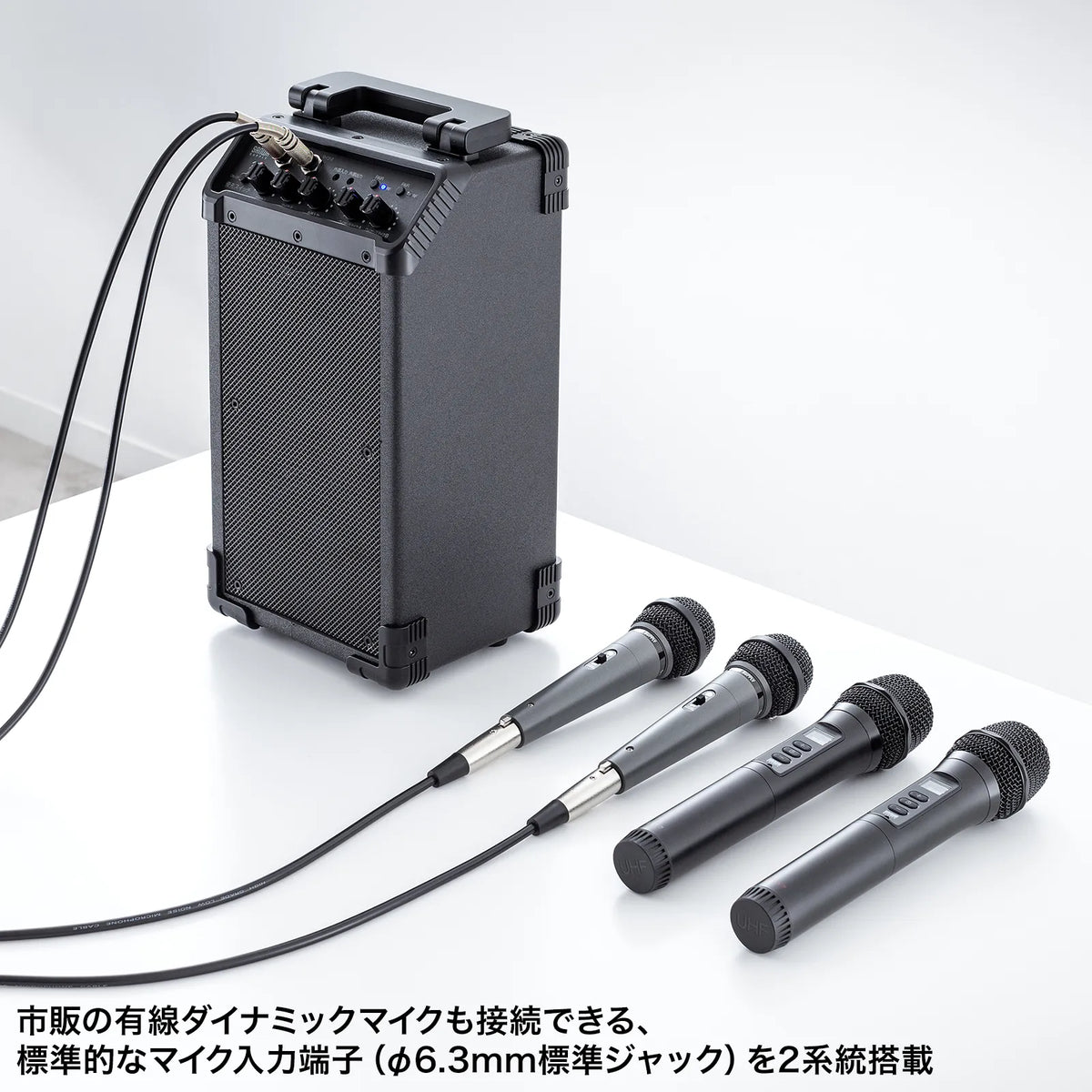

●Equipped with two standard microphone input terminals (φ6.3mm standard jack) that can also connect commercially available dynamic microphones (wired).

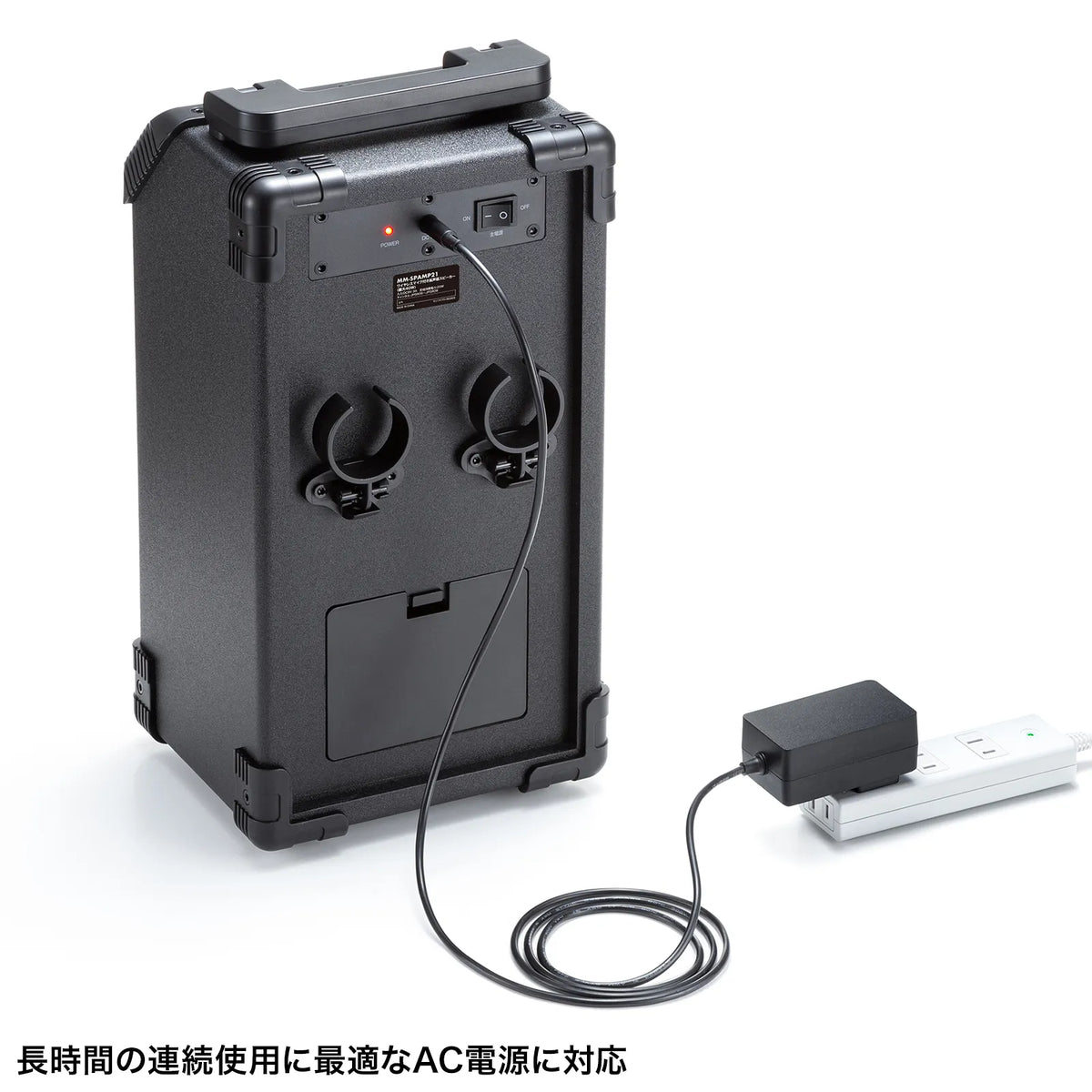

●Supports 2-way operation: AC power, ideal for long periods of continuous use, and battery power (6 x AA batteries) for use in environments without a power source.
●Equipped with an external audio output, allowing recording to external devices, and by cascading multiple units of this product, it is possible to amplify sound from multiple speakers simultaneously.
●Equipped with an external audio input, allowing for music playback. Microphone audio output can also be used simultaneously. It can be used as a karaoke speaker, or to play announcements along with background music at wedding receptions and parties.
●Equipped with a large handle for easy carrying. A dedicated bag is also included for storing accessories, microphones, and cables together.
●Equipped with a microphone holder on the back of the unit. The microphone can be temporarily stored when not in use.
●The bottom of the unit is equipped with a screw hole (UNC 3/8 inch) for speaker stand compatibility.
By using a speaker stand (MM-SPST5) manufactured by Sanwa Supply, etc., you can amplify sound over a wider area.



【Wireless Microphone Section】
●This is a wireless microphone that conforms to the specified low-power radio station radio microphone (800MHz band) standard.
●It uses the B band and you can select one of five frequencies to use.
The two wireless microphones are divided into A type and B type, and you can select one frequency from five channels within the A type and one frequency from five channels within the B type.


【Speaker】
■Maximum practical output: 40W
■Frequency response: 80Hz to 18KHz
■Speaker type: Bass reflex full-range speaker
■Speaker size: 3.5 inches (diameter 88.9mm) x2
■Input terminal: 6.3mm standard jack x2 (for microphone)
■External input: 3.5mm stereo mini jack x1
■External output: 3.5mm stereo mini jack x1

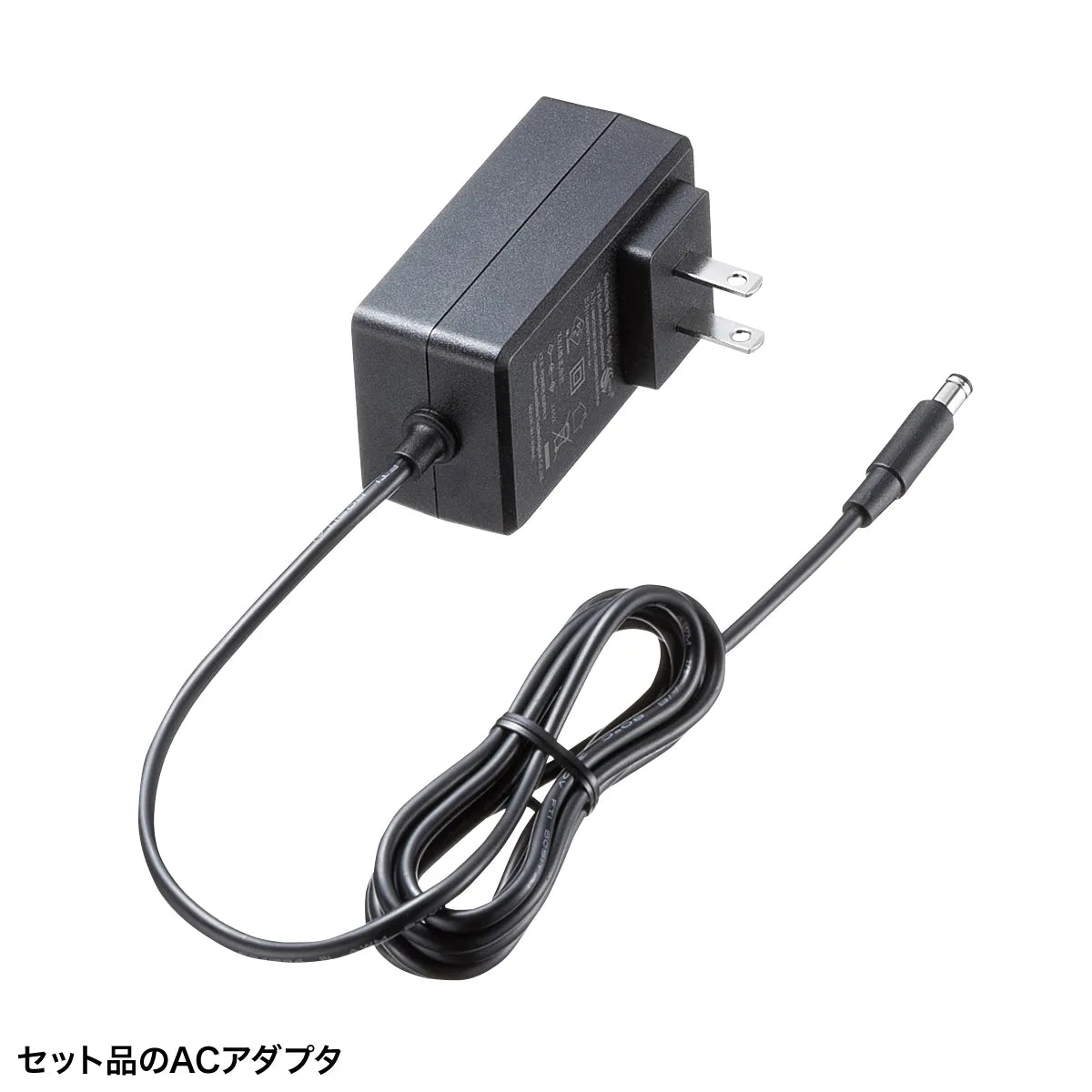

■Power supply: AC power (9V/3A), battery powered (uses 6 AA batteries)
■Battery life: Approximately 4 hours with microphone use
Approximately 3 hours during music playback
(When powered by dry batteries, at medium volume)
■External dimensions: W190xD160xH365.5mm
■Operating frequency band: 806.125 to 809.500MHz
【Wireless Microphone】
■Type: Unidirectional Dynamic Microphone
■Antenna Type: Built-in Antenna
■Transmission Frequency: 806.125 to 809.500MHz
■Oscillation Method: Crystal-controlled PLL Synthesizer
■Radio Wave Type: F3E
■Tone Signal: 30kHz
■Antenna Power: <10mW
■Transmission Frequency Stability: 10ppm or less
■Spellency Radiation: 2.5uW or less
■Reference Frequency Deviation: ±20kHz
■Maximum Frequency Deviation: ±30kHz
■Sensitivity: -49 ±3dB
■Impedance: 600 ohms

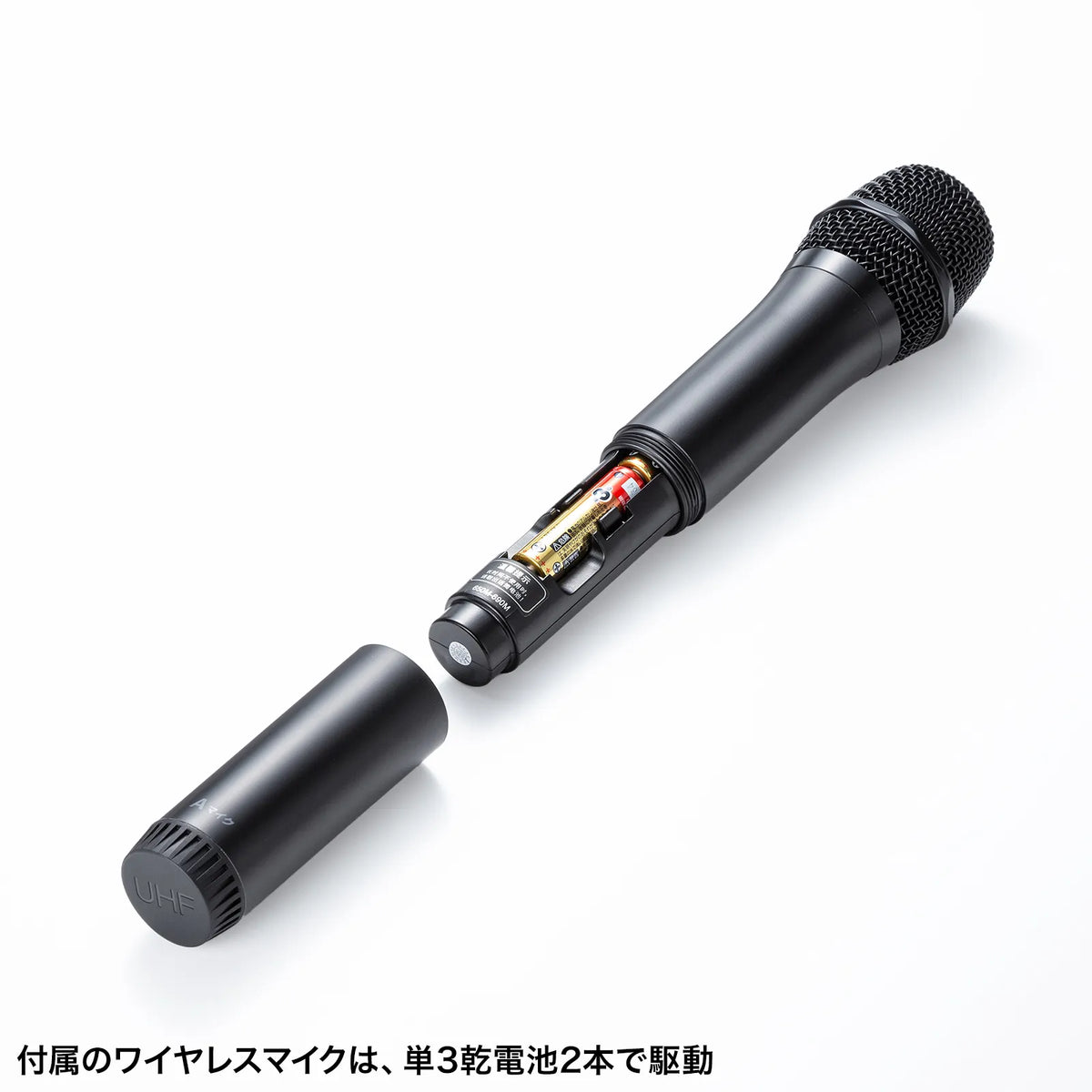

■Power supply voltage: DC1.5V (AA batteries x2)
■Battery life: Approximately 10 hours
(when using alkaline batteries)
【Common specifications】

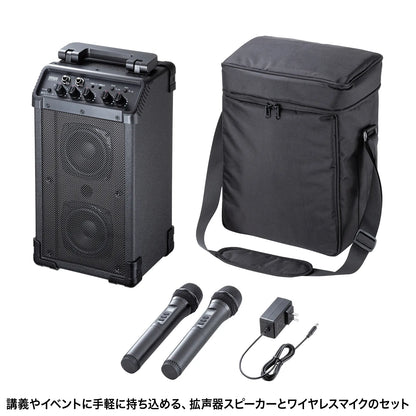

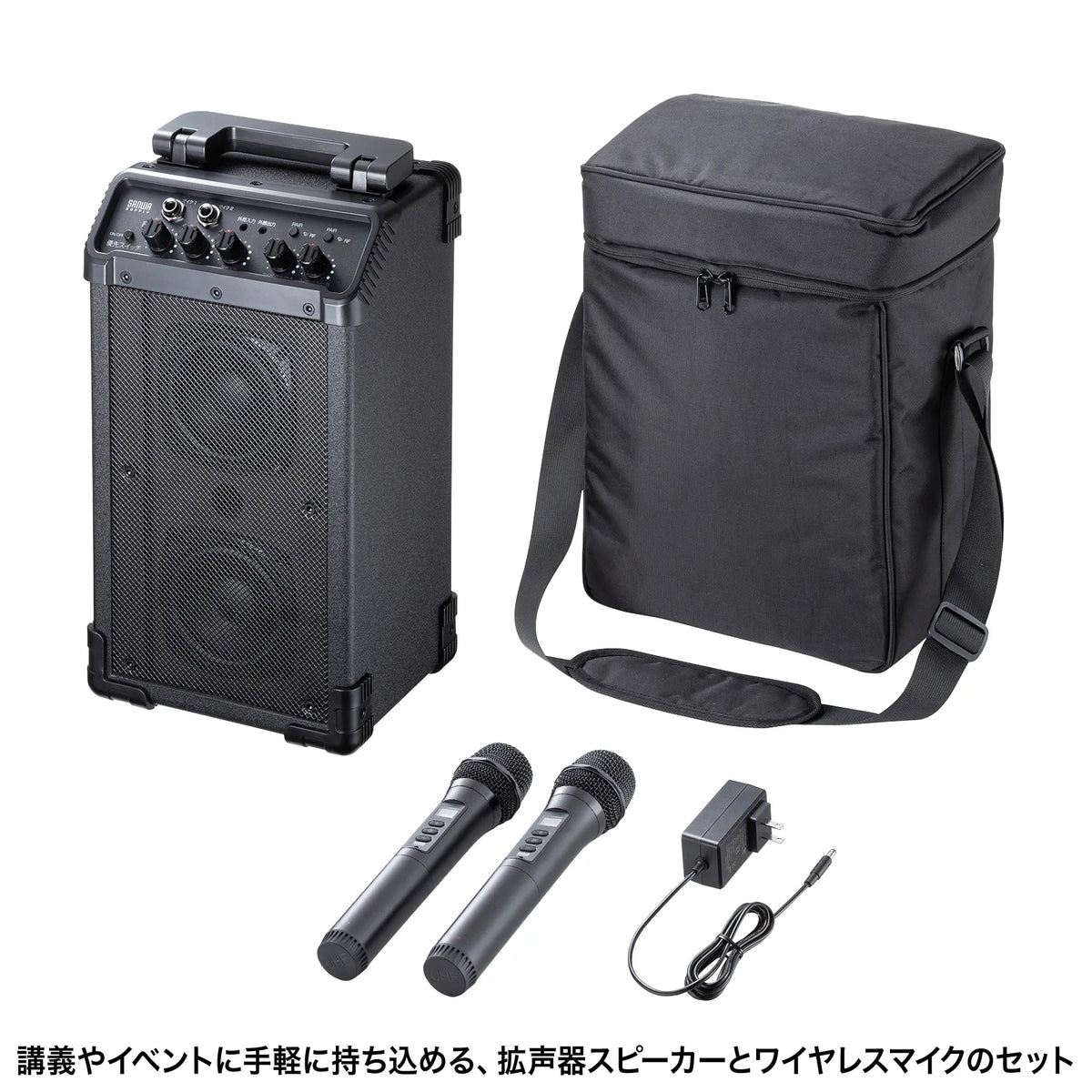

■Set contents: Speaker unit x1, wireless microphone x2, instruction manual x1, storage bag, AC adapter x1, instruction manual x1

【Other specifications】
■Wireless microphone channel frequency:
MM-SPHMW7A
Channel Frequency
01 806.125MHz
02 806.500MHz
03 806.875MHz
04 807.250MHz
05 807.625MHz

MM-SPHMW7B
Channel Frequency
06 808.000MHz
07 808.375MHz
08 808.750MHz
09 809.125MHz
10 809.500MHz

■Caution:
●This product is not waterproof and may malfunction or be damaged due to rain or condensation caused by changes in humidity. Therefore, outdoor use is not covered by the warranty.
