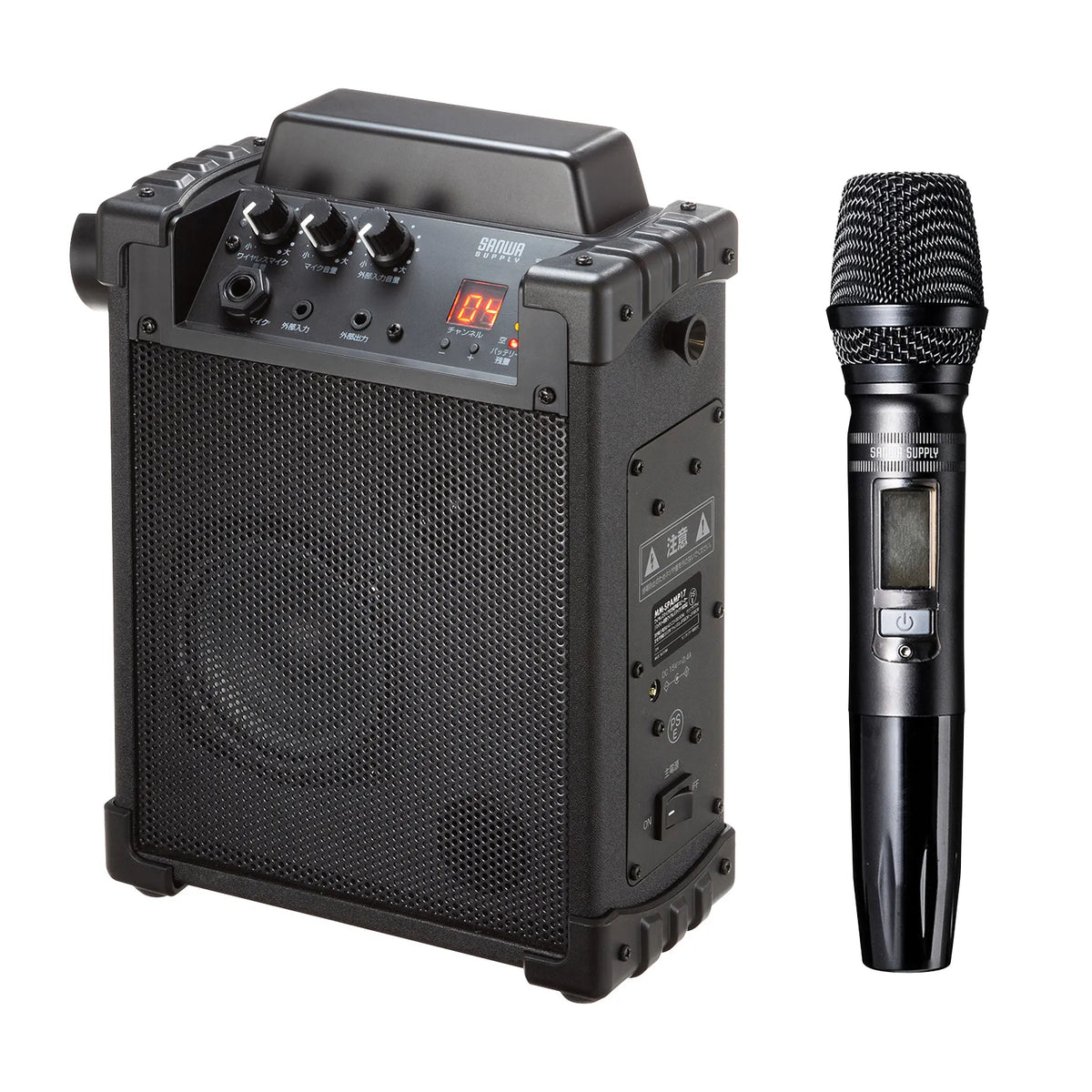

Wireless microphone speaker (built-in battery, supports one wireless microphone) MM-SPAMP17

[A loudspeaker with a wireless microphone that supports one wireless microphone and has a built-in battery that allows it to operate even in environments without a power source. It is compact and easy to carry and also supports wired microphone connection.]

[Speaker Section]
●This is a set of a loudspeaker and microphone that can be easily carried and set up for lectures, speeches, wedding receptions, events, etc.

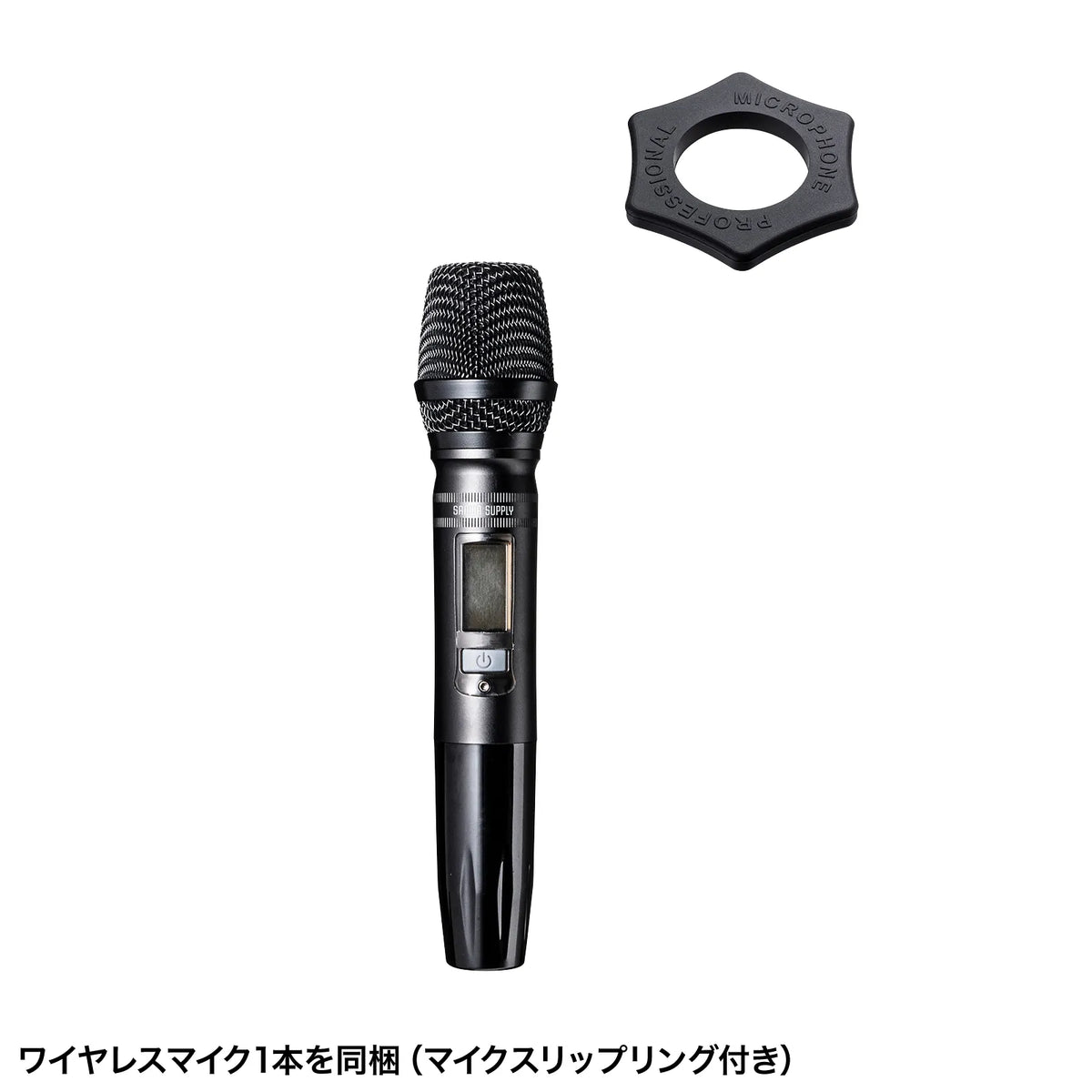

●One wireless microphone is included, allowing you to amplify your voice while moving freely. By adding a separately sold wired microphone, you can use up to two microphones simultaneously.

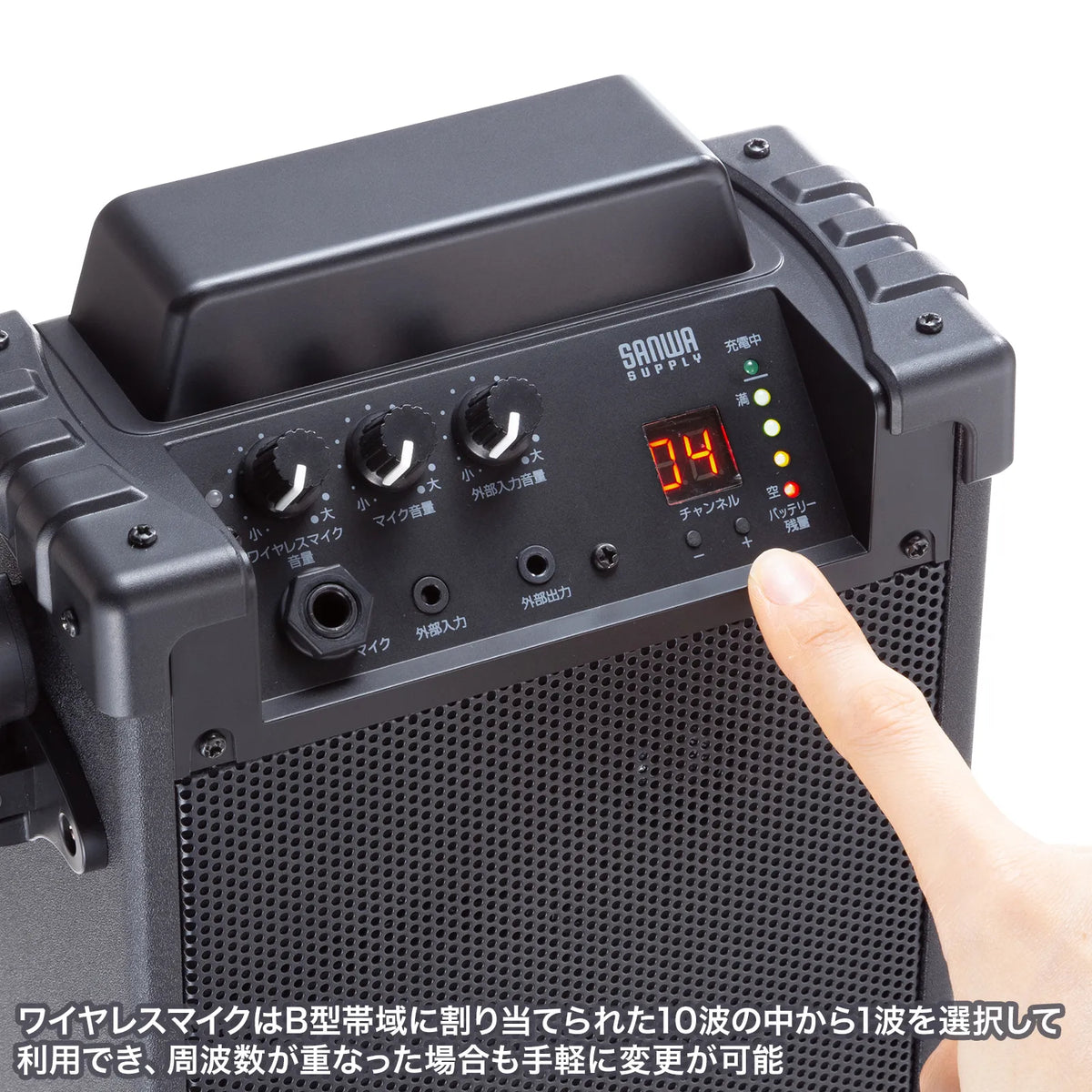

●The wireless microphone can be used by selecting one of 10 frequencies allocated to the B-band, so you can easily change the frequency if there is interference.
●Equipped with a standard microphone input terminal (φ6.3mm standard jack) that can also connect commercially available dynamic microphones (wired).
●The speaker has a high output of up to 36W and is ideal for use in indoor environments of about 160 to 180 square meters.
●Equipped with a microphone mixing function, it is possible to output music from an external input through the speaker.
It can be used as a karaoke speaker, or to play announcements along with background music at wedding receptions and parties.

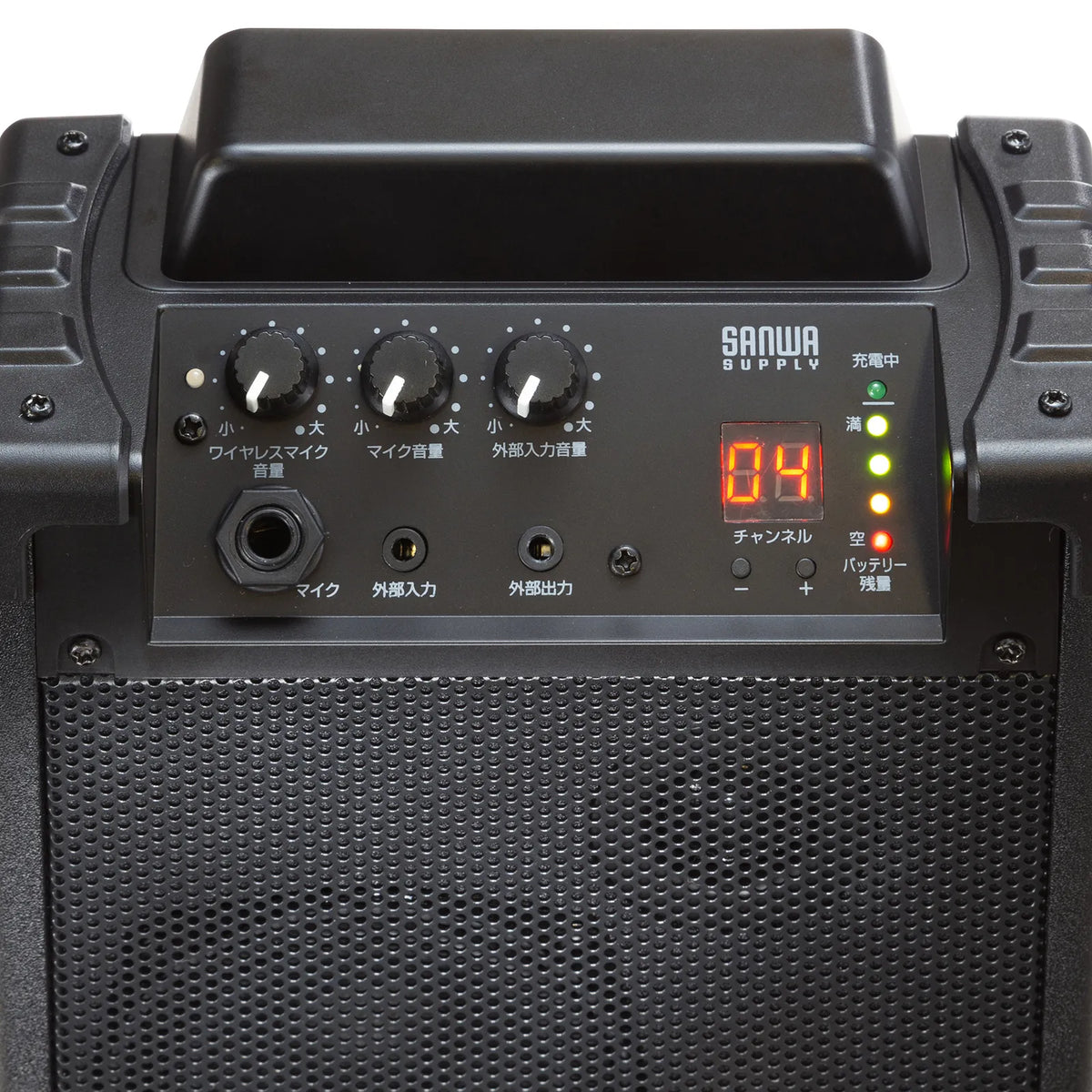

●The control panel is located on the top for easy volume adjustment.
●It also has an external audio output (LINE OUT), allowing you to record to external devices or cascade multiple units of this product to amplify sound from multiple speakers simultaneously.
●It supports two power options: AC power that can be used with a standard household outlet and a built-in battery that can be used when carrying the unit.
●The bottom of the unit has a screw hole (UNC 3/8 inch) for speaker stand compatibility.
It can be installed using a speaker stand such as Sanwa Supply (MM-SPST5).

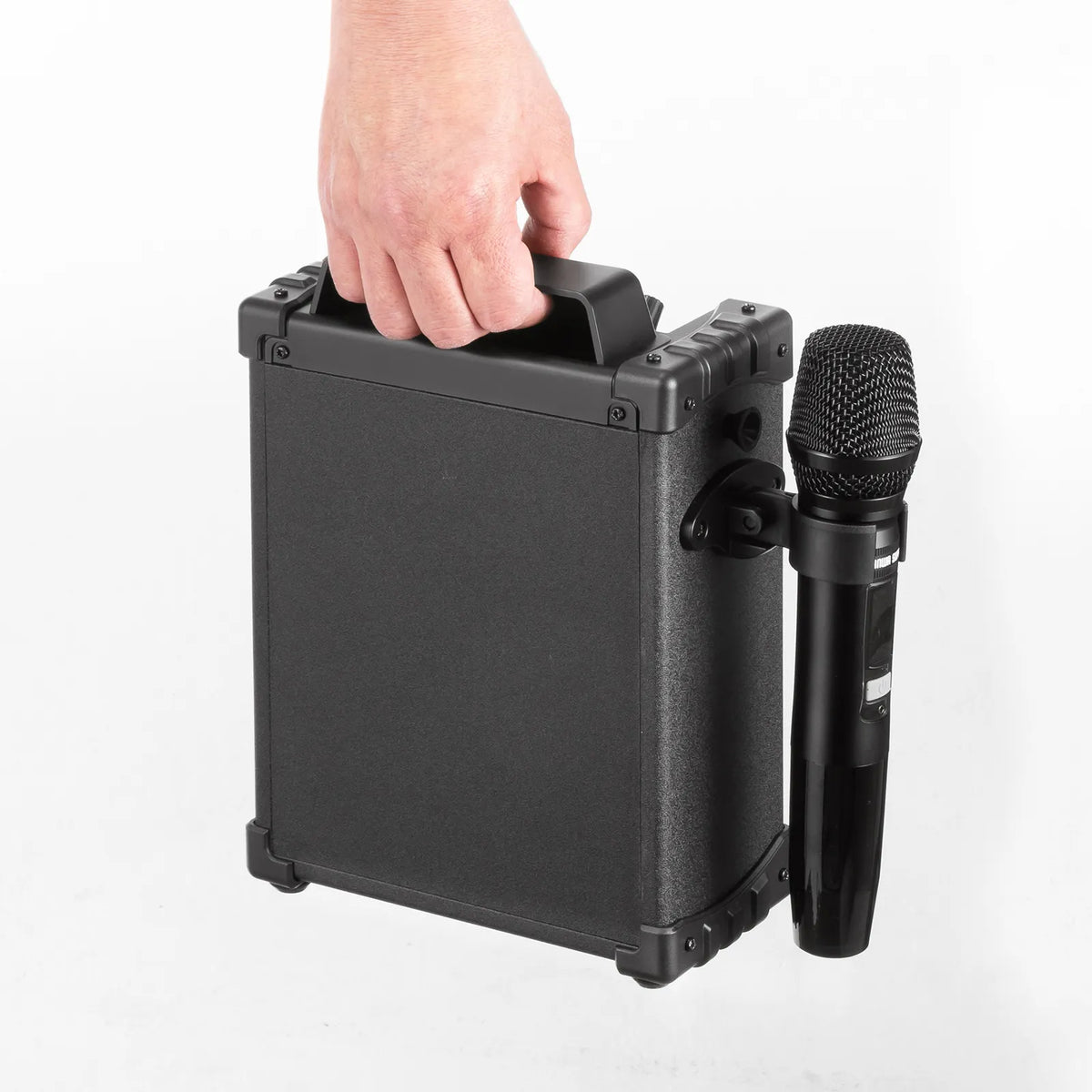

●Comes with a shoulder strap for easy carrying.

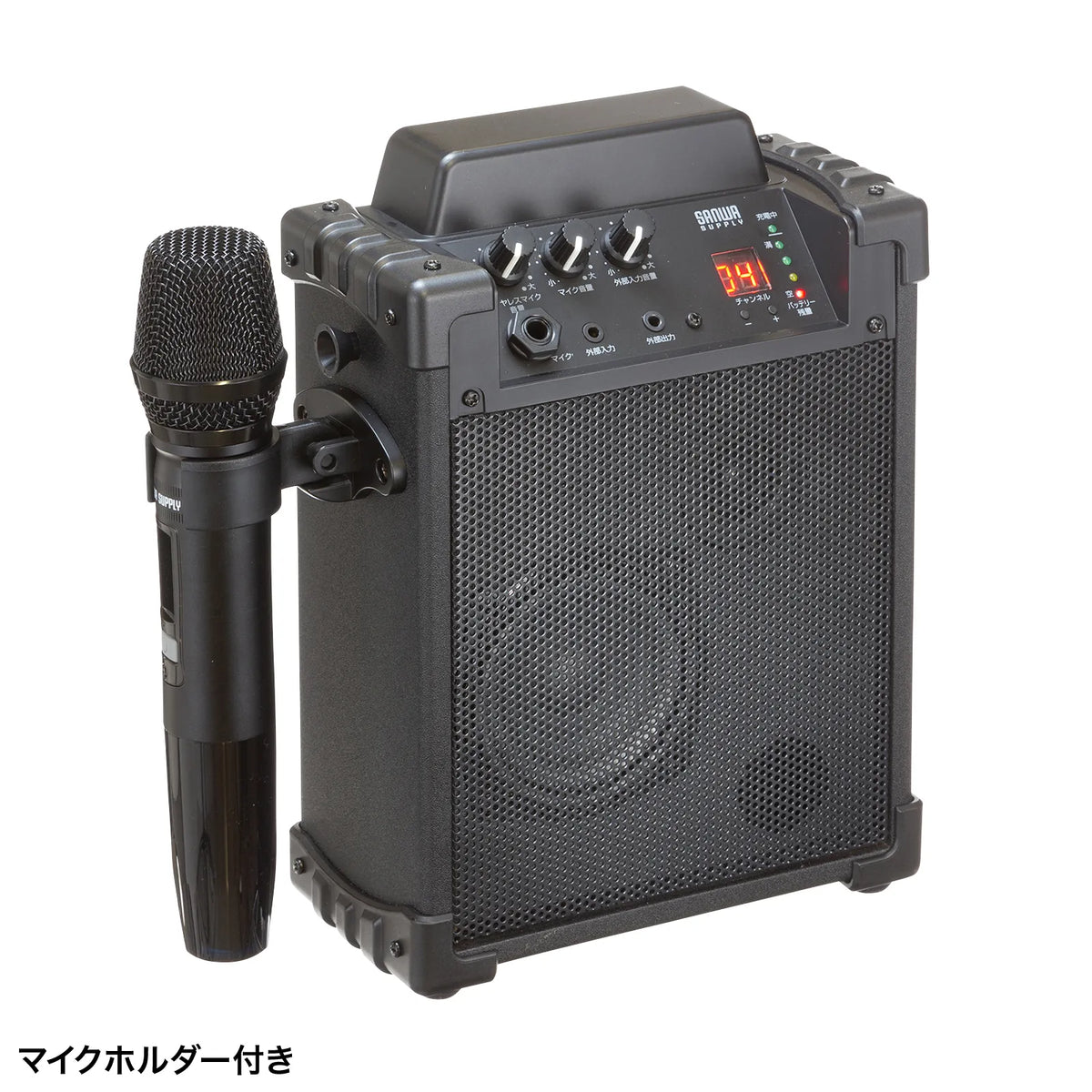

●Equipped with a microphone holder on the side of the unit. The microphone can be stored when not in use.
●Comes with a dedicated bag for easy storage and transport.

【Wireless Microphone Section】
●This is a wireless microphone that conforms to the specified low-power radio station radio microphone (800MHz band) standard.

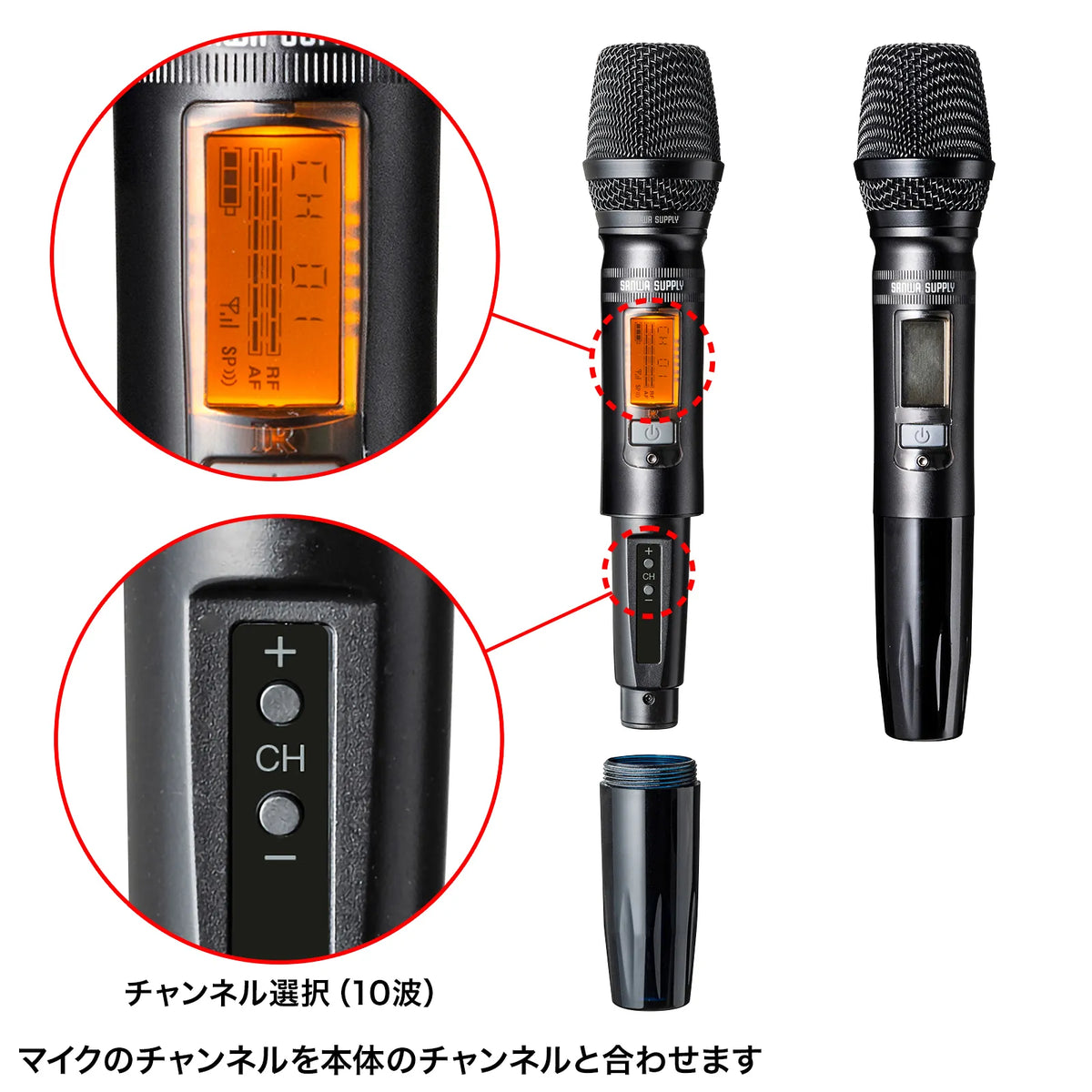

●It uses the B-band frequency and you can select one of 10 frequencies to use.





＜Speaker＞
■Maximum practical output: 36W
■Frequency response: 65Hz to 20KHz
■Speaker type: Bass reflex full-range speaker
■Speaker size: 3.5 inches (89mm diameter)
■Tweeter size: 0.75 inches (approx. 19mm diameter)
■Input terminal: 6.3mm diameter standard jack (for microphone) x1
■External input: 3.5mm stereo mini jack x1
■External output: 3.5mm stereo mini jack x1
■Power supply: AC100V-240V 50/60Hz, built-in battery (1.1V/2200mAh)
■Charging method: AC power (100-240V)
■Charging time: Approx. 4 hours
■Continuous use time:
Approx. 4 to 6 hours with microphone
Approx. 4 hours when playing music to approximately 6 hours
(Battery powered, medium volume)
■Operating frequency band: 806.125 to 809.750MHz

＜Wireless microphone＞
■Type: Unidirectional dynamic microphone
■Antenna type: Built-in antenna
■Transmission frequency: 806.125 to 809.750MHz
■Oscillation method: Crystal-controlled PLL synthesizer
■Emission type: F3E
■Tone signal: 30kHz
■Antenna power: 10mW or less
■Transmission frequency stability: 10ppm or less
■Unwanted radiation: 2.5uW or less
■Reference frequency deviation: ±20kHz
■Maximum frequency deviation: ±30kHz
■Sensitivity: -73 ±3dB
■Impedance: 600 ohms

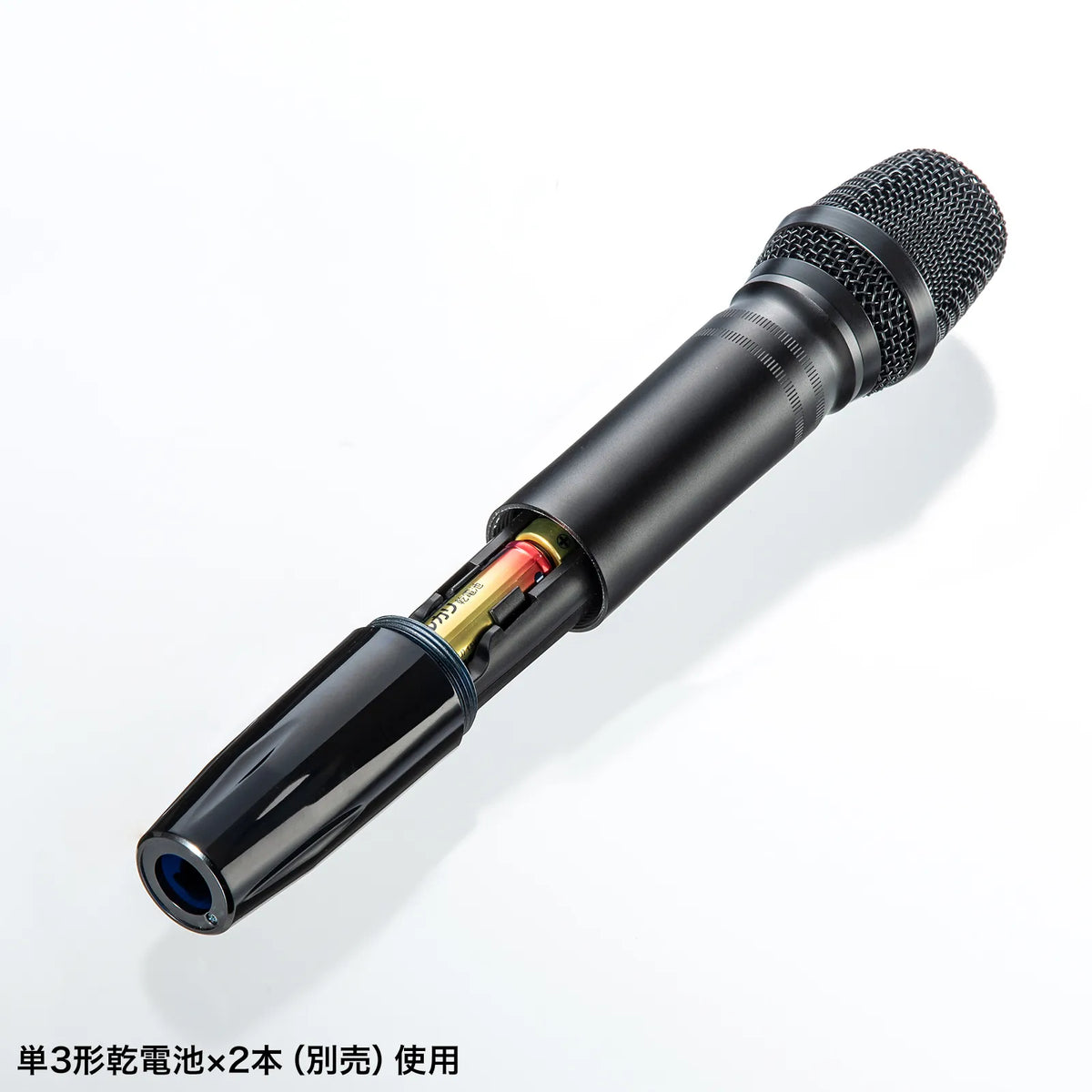

■Power supply voltage: DC1.5V (AA batteries x2)
■Battery life: Approximately 6 hours (when using alkaline batteries)

＜Common specifications＞
■Set contents: Speaker unit x1, wireless microphone x1, shoulder strap x1, instruction manual x1, storage bag, AC adapter (DC15V/2.4A) x1, 3.5mm stereo mini plug cable (approx. 1m) x1, microphone slip ring x1
■Size: W186xD95xH255mm
■Weight: Approximately 2.02kg
■Wireless microphone channel/frequency:
Channel / Frequency
0 / 806.125MHz
1 / 806.500MHz
2 / 806.875MHz
3 / 807.250MHz
4 / 807.625MHz
5 / 808.000MHz
6 / 808.375MHz
7 / 808.750MHz
8 / 809.125MHz
9 / 809.500MHz
≪Caution≫
This product has a built-in lithium-ion battery and the battery cannot be replaced. Please be aware of this in advance.
This product is not waterproof and may malfunction or be damaged due to rain or condensation caused by changes in humidity, so outdoor use is not covered by the warranty.
