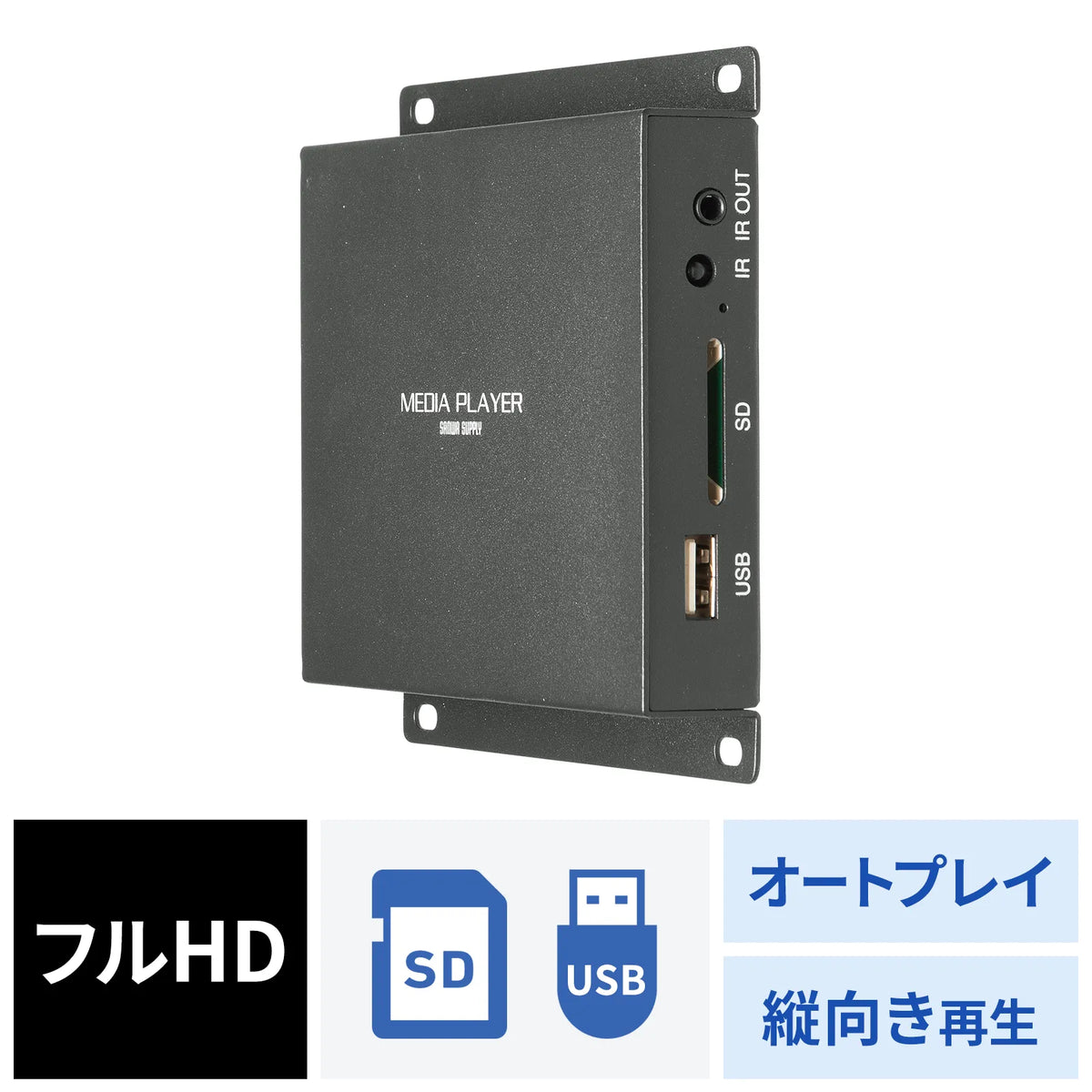

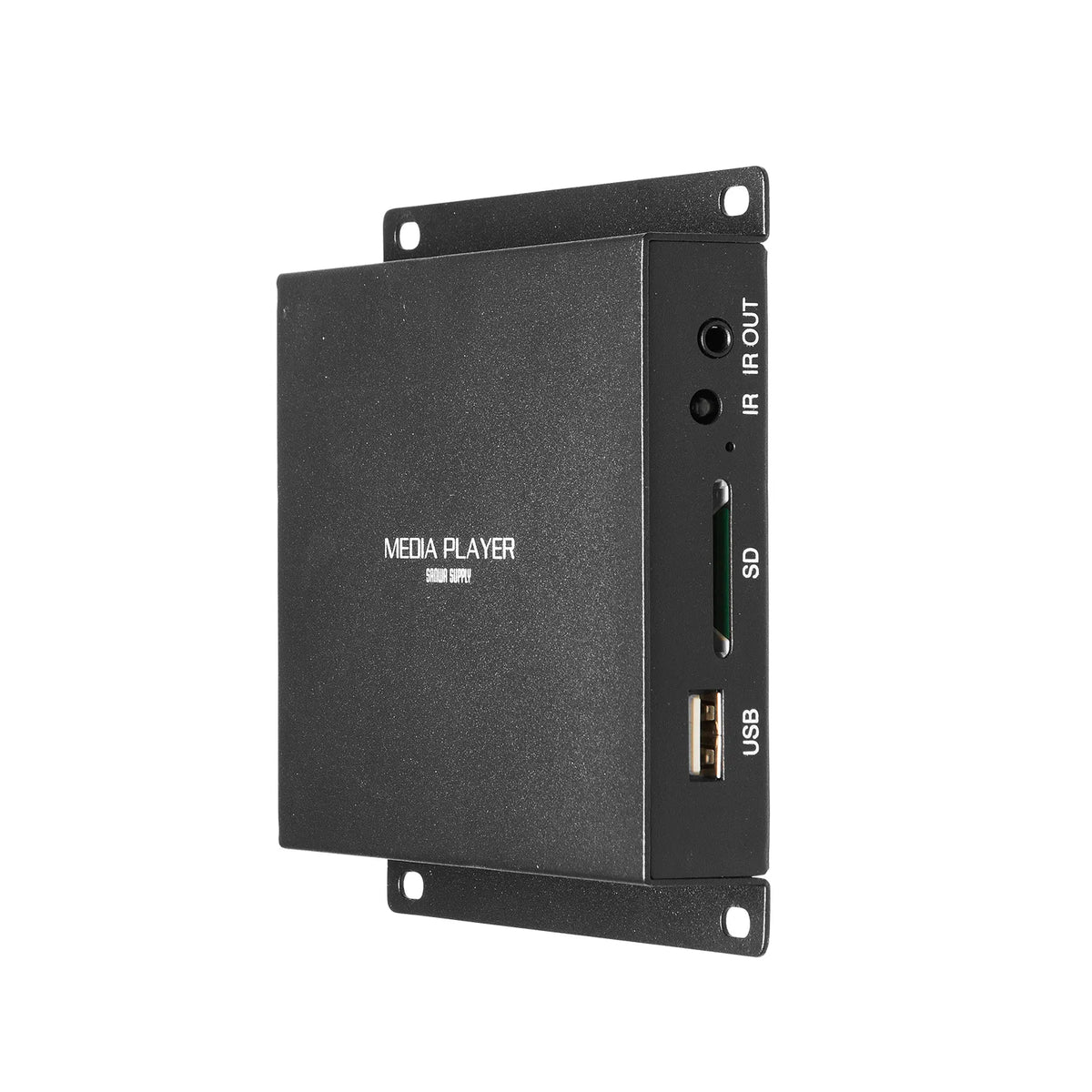

Media Player (VESA Mount, Timer Function) MED-PL2K103

[A media player that connects to your TV and plays data from SD cards and USB memory sticks without the need for a computer. VESA mountable. Features automatic playback and a timer function, making it ideal for use with digital signage.]

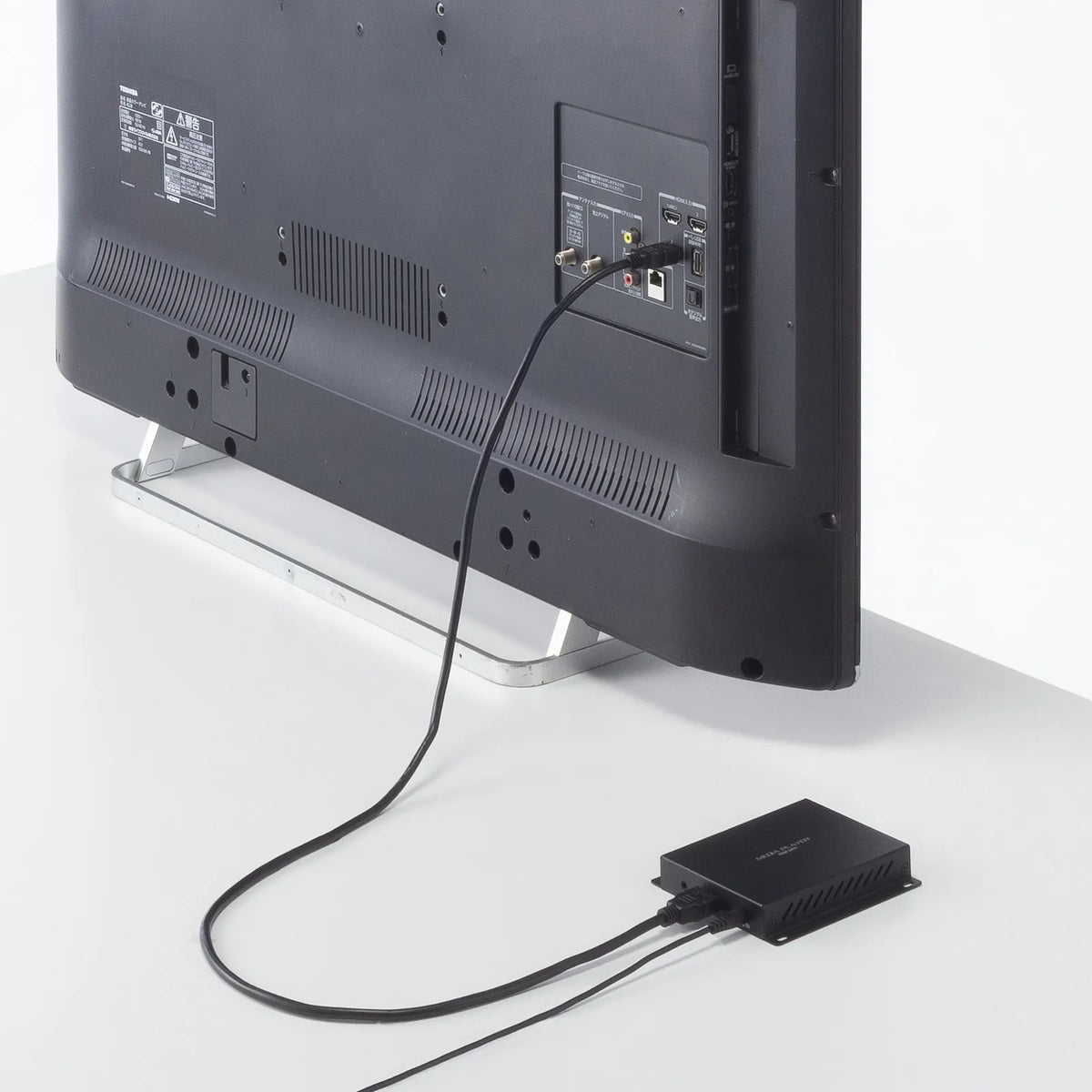

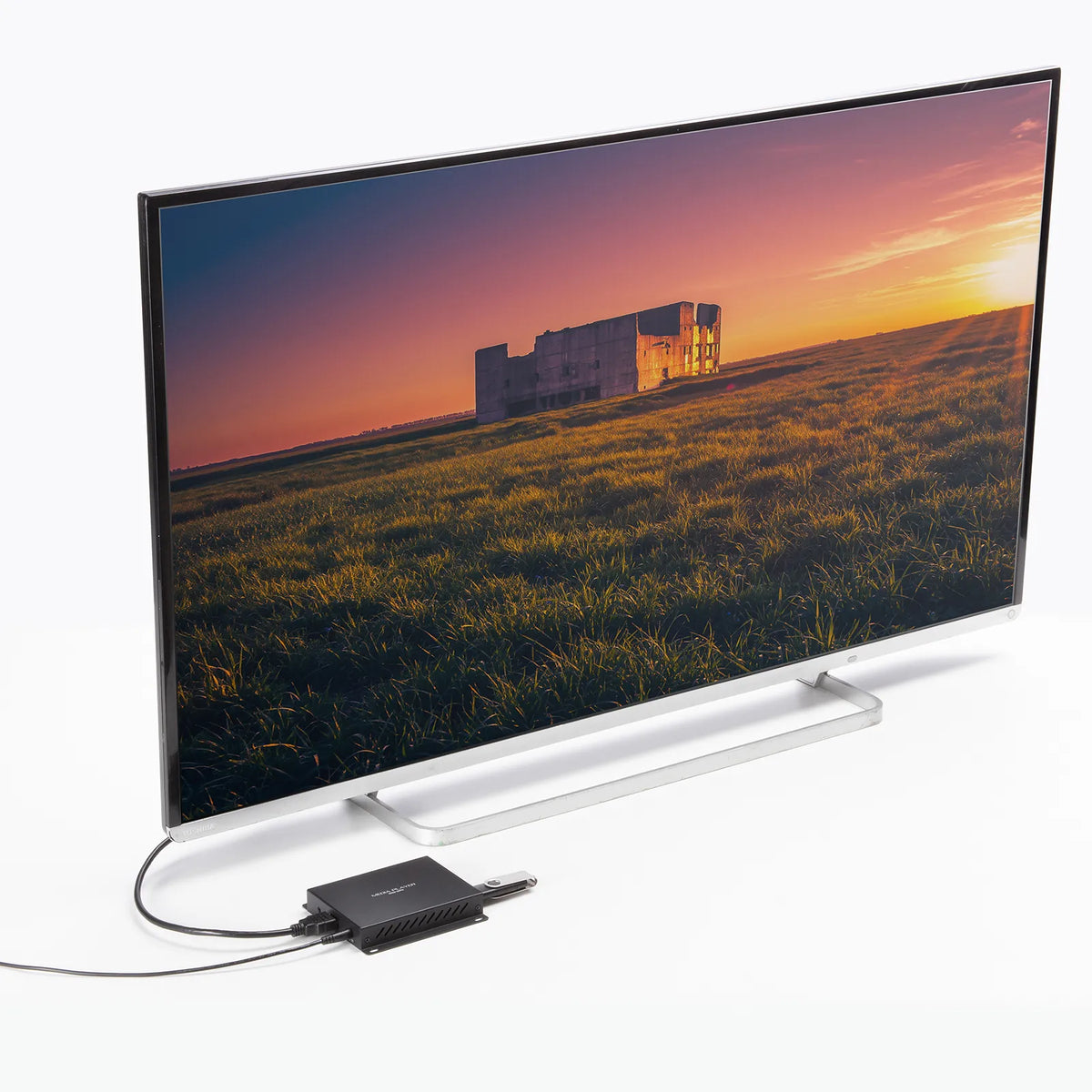

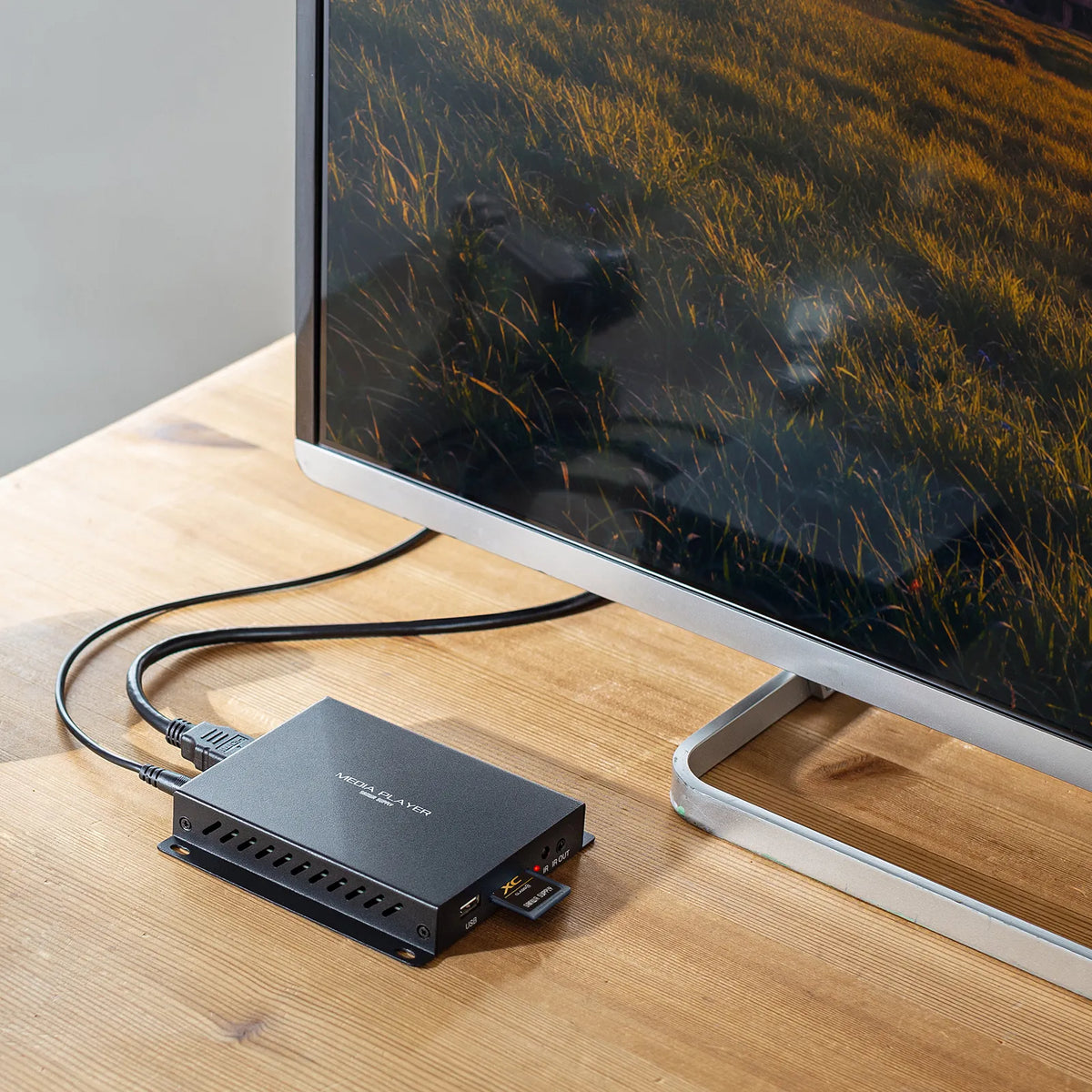

●A media player that can play videos, music, and image data on your TV or projector.
●Save the data you want to play on a USB memory stick or SD card and connect it to this product to play it without using a computer.
●Output is available from HDMI and RCA composite terminals. *Simultaneous output is not possible.
●Maximum output resolution of 1920x1080 pixels.
●Equipped with an automatic power on/off timer function. The power can be automatically turned on and off at set days and times.
●Features an autoplay function that automatically starts playback when the power is turned on.
●The screen can be rotated, allowing use with vertical displays.

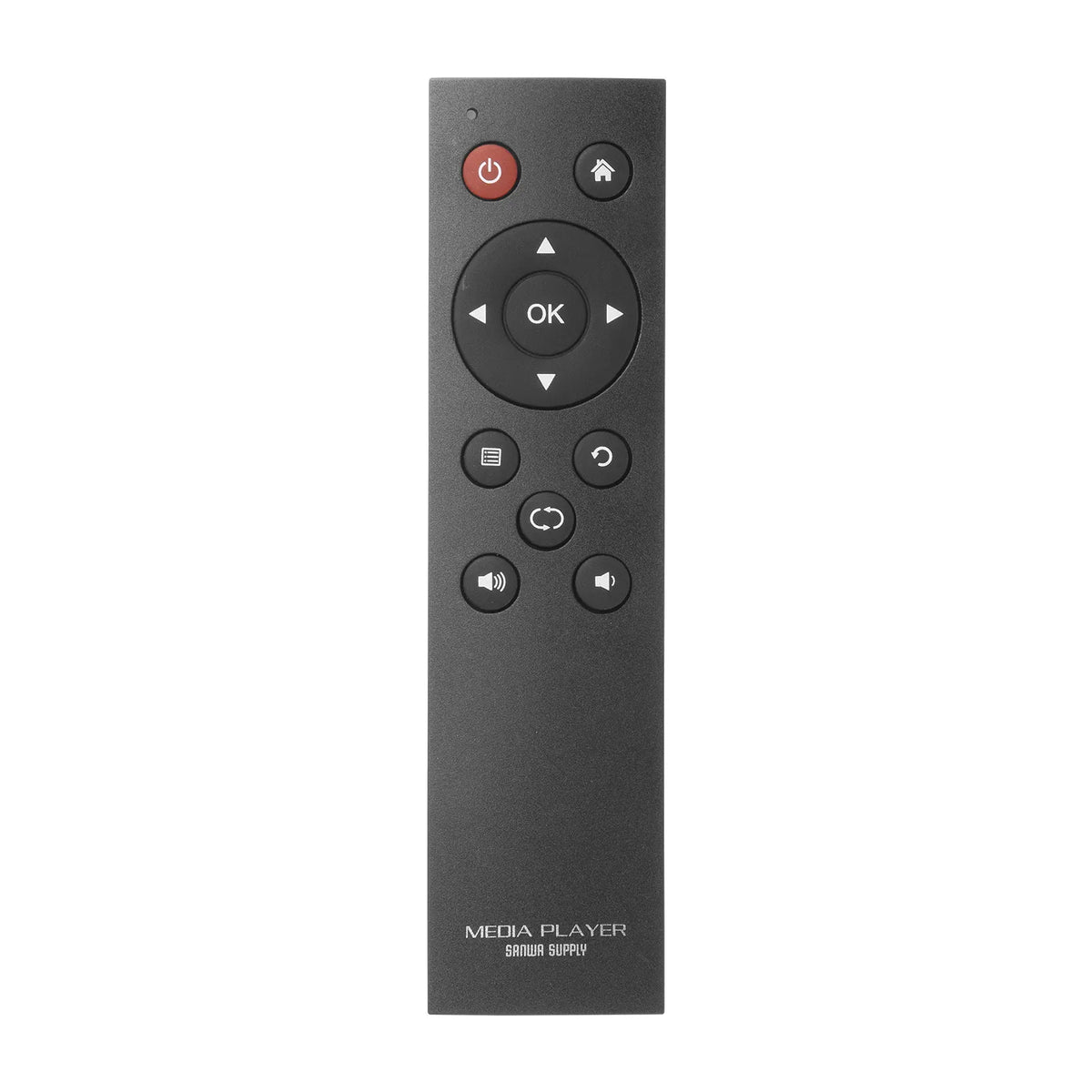

●When playing video or music files, repeat playback can be set from the menu button on the remote control.

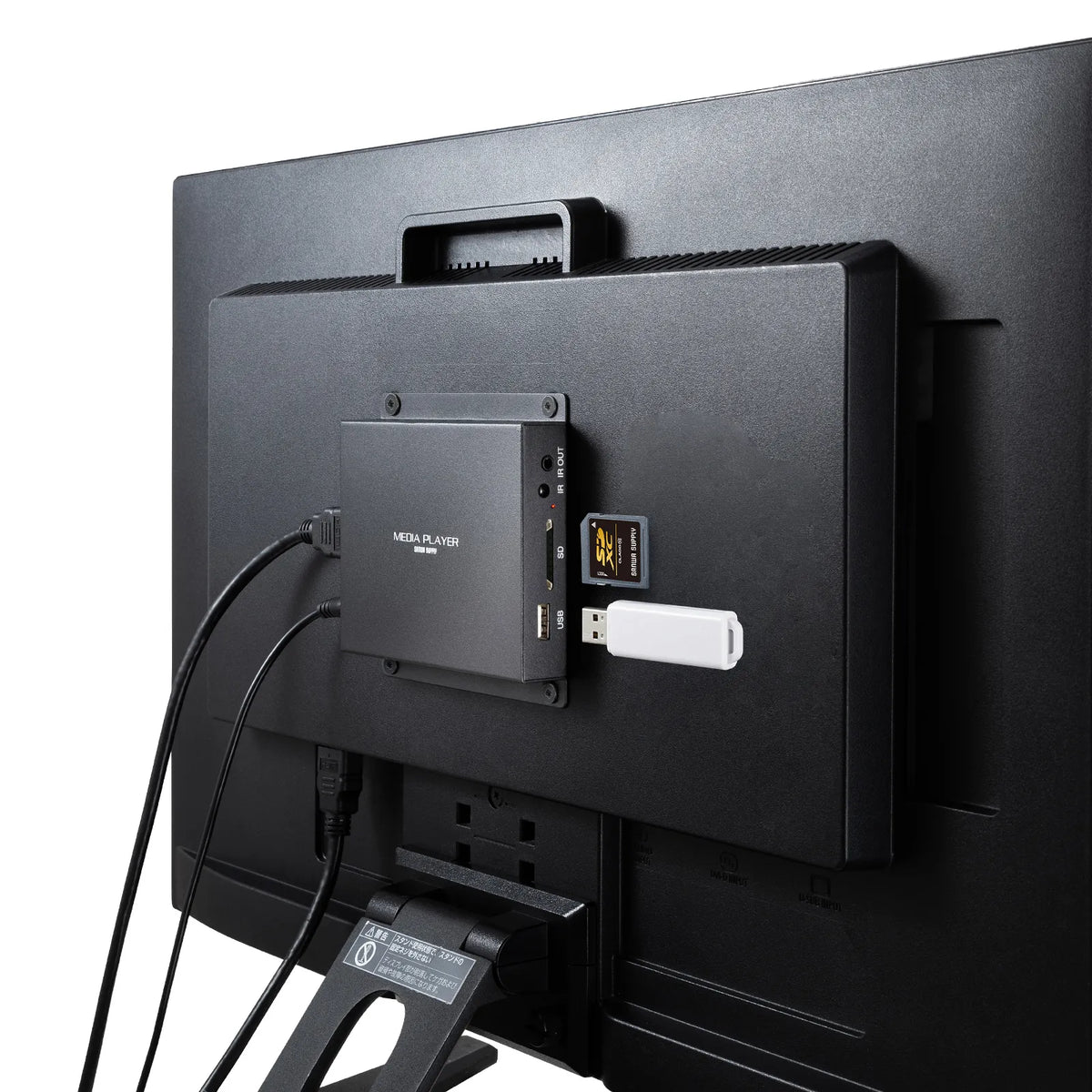

●Compatible with VESA standard 100x100, allowing it to be mounted behind a monitor.
●Equipped with an IR receiver cable, so you can operate the remote control even if the main unit is hidden.

【Caution】
※AVCHD format MTS files cannot be played. Please try converting the file to MP4, etc., and also try converting the bitrate and frame rate.
※Playback may be possible with USB HDDs, but operation is not guaranteed. Please be aware of this in advance.
※When starting up for the first time, it will start up automatically when the AC adapter is connected, but after turning off the power with the remote control, you will always need to operate it with the remote control. (Except during autoplay)
※If you experience symptoms such as distorted video or no sound when playing videos, please try converting the file by lowering the codec, bitrate, or frame rate using free software.
High-resolution video files may not play properly.
※This product is compatible with FAT, FAT32, and NTFS formatting on Windows and macOS. Operation is not guaranteed with memory formatted with home appliances, so please format it with Windows or macOS.
*The video output of this product may appear coarser compared to playback on a PC.
PCs can process video with high-performance components, resulting in higher resolution displays, but this product is a compact, dedicated device, so such differences may occur due to its specifications.
This is not a defect, so please be aware of this in advance.

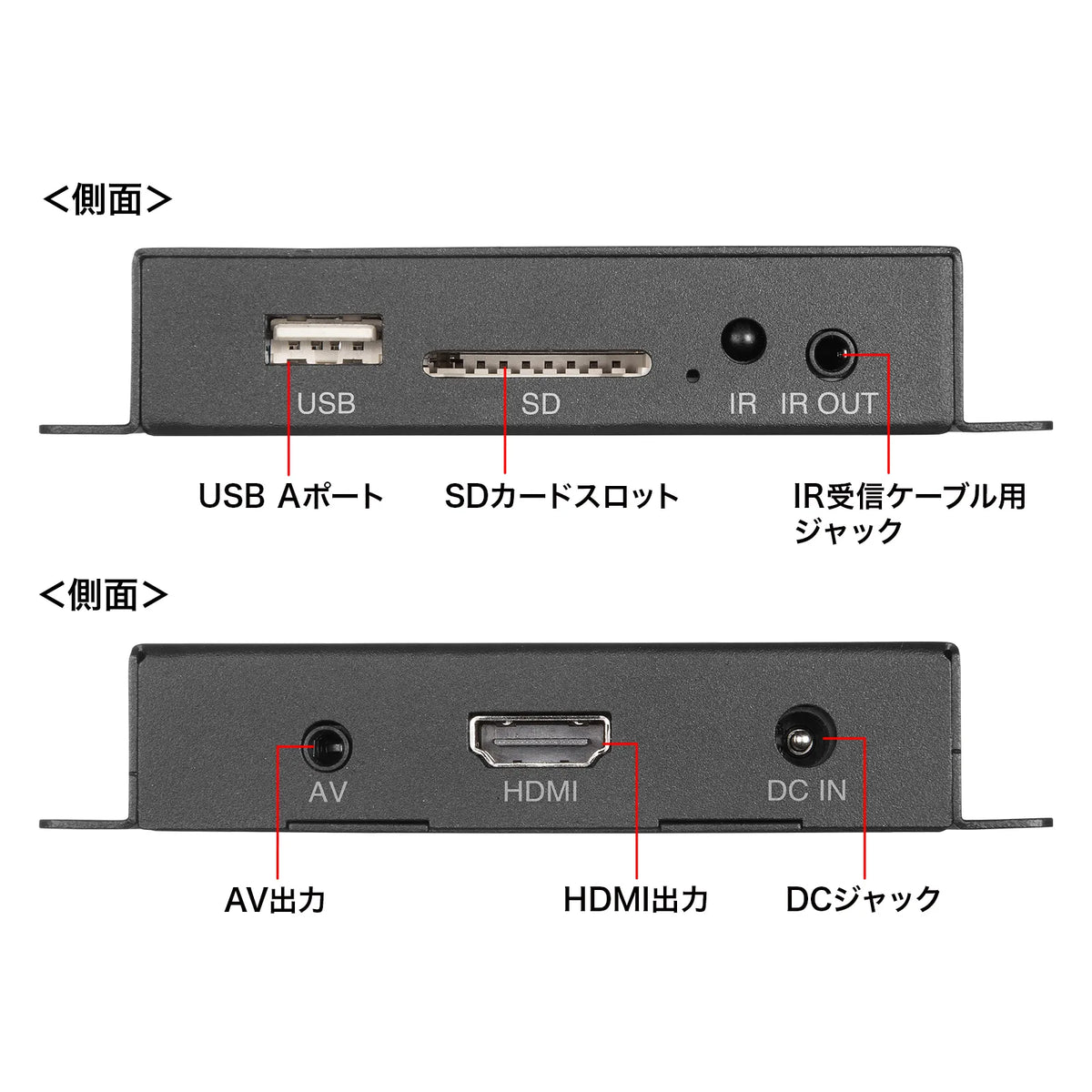

■Connectors: Video output: HDMI terminal
Terminal for dedicated RCA composite cable connection
Power supply terminal: DC jack
IR receiver cable terminal: 3.5mm jack
Memory connection terminal: USB2.0 A port
■Slot: SD memory card
■Supported media: USB memory up to 512GB, SD card, SDHC card, SDXC card
*High-speed transfer of UHS-I/UHS-II is not supported.
*Playback may be possible with USB HDDs, but operation is not guaranteed. Please be aware of this in advance.
■Supported media file systems: FAT32, exFAT, NTFS
■Internal memory: None
■Supported file size for playback: 15GB
■Supported video codecs and formats: H.264/AVC (MP4, MOV, 3GP, TS, FLV)
H.264/MVC (TS)
H.263 (3GP, MOV, MP4)
MPEG4 (MP4, MOV, 3GP)
MPEG1/MPEG2 (TS, VOB)
■Supported video playback resolution: 1920x1088 (1080p)
1920x1080 (1080p)
1280x720 (720p)
■Frame rate: Up to 60fps
■Supported subtitle formats: SMI, ASS, SSA, SRT
■Supported audio formats: MP3, WMA, WAV, AAC, FLAC, M4A
■Supported image formats: JPG, JPEG, BMP, PNG
■Supported image playback resolution Resolution: Maximum 1920x1088 (1080p)
■Power supply: AC adapter (DC5V/2A)
■Power consumption: 1.5g
■Compatible output devices: TVs, projectors, speakers, AV amplifiers, etc. with HDMI or RCA composite terminals
■Set contents: Main unit, AC adapter (approx. 1.2m), HDMI cable (approx. 1.5m), RCA composite cable (approx. 1m), IR receiver cable, remote control, bolts (M4x12mm) x4, AAA batteries (for testing) x2, instruction manual and warranty
