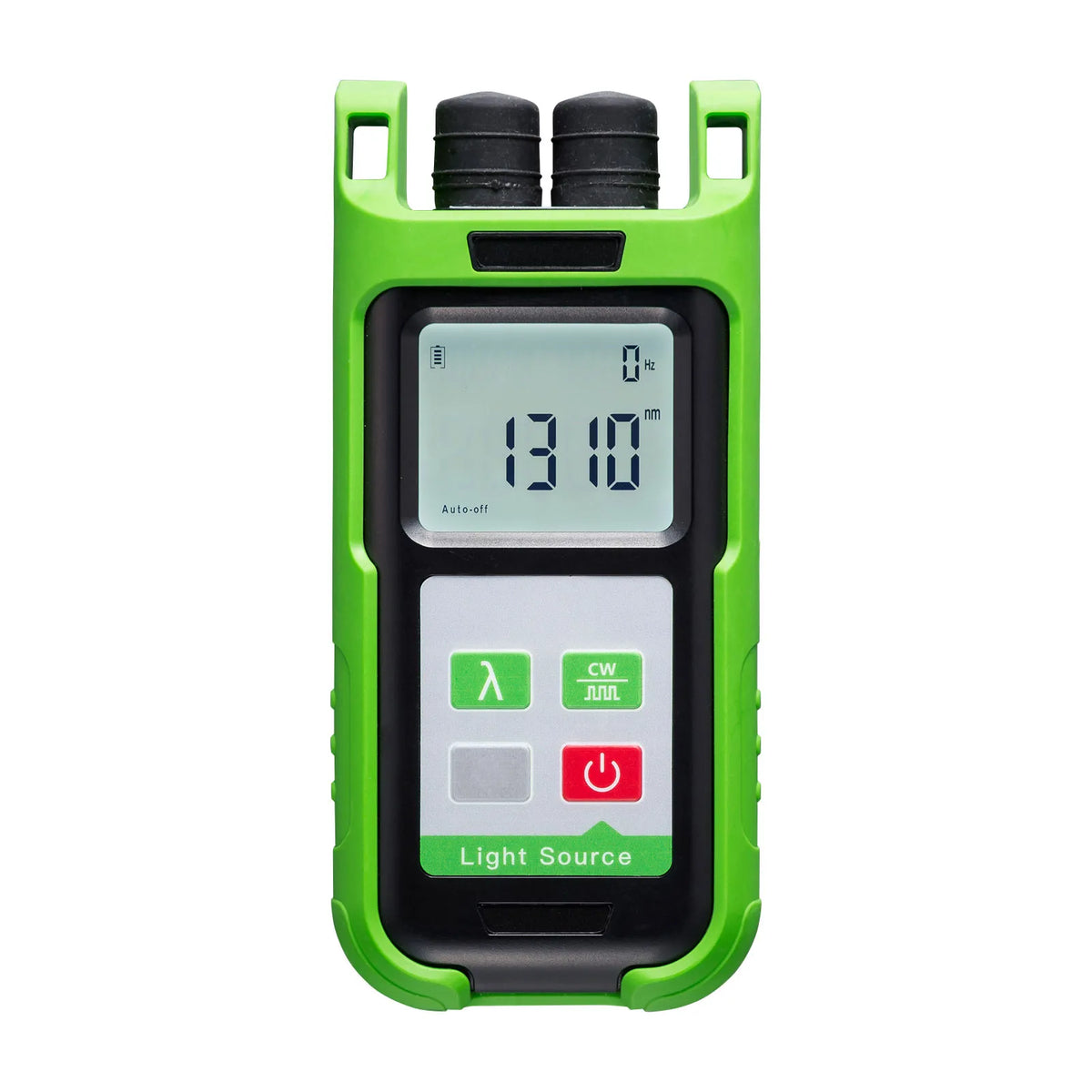

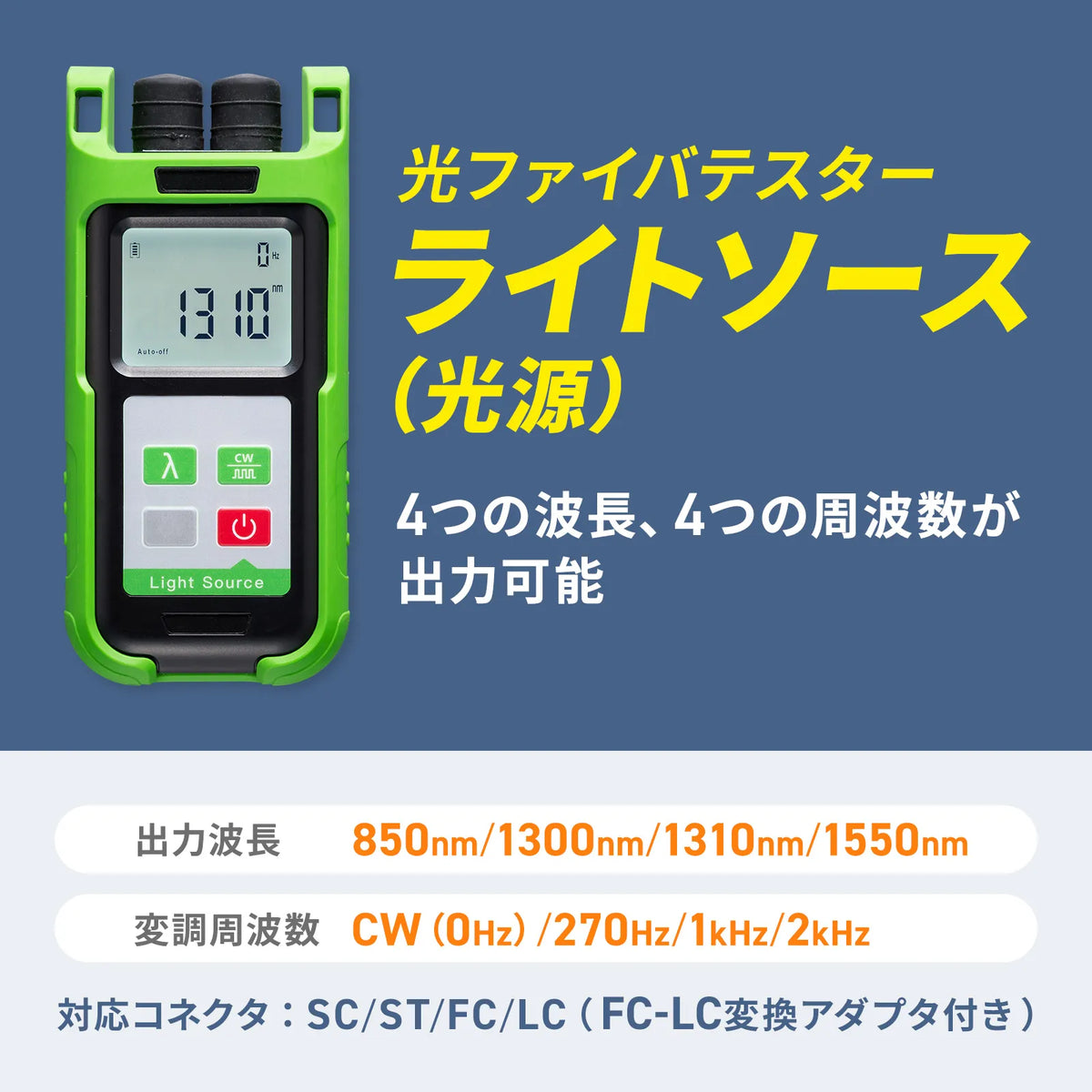

[Light source for fiber optic tester capable of outputting 4 wavelengths and 4 frequencies]

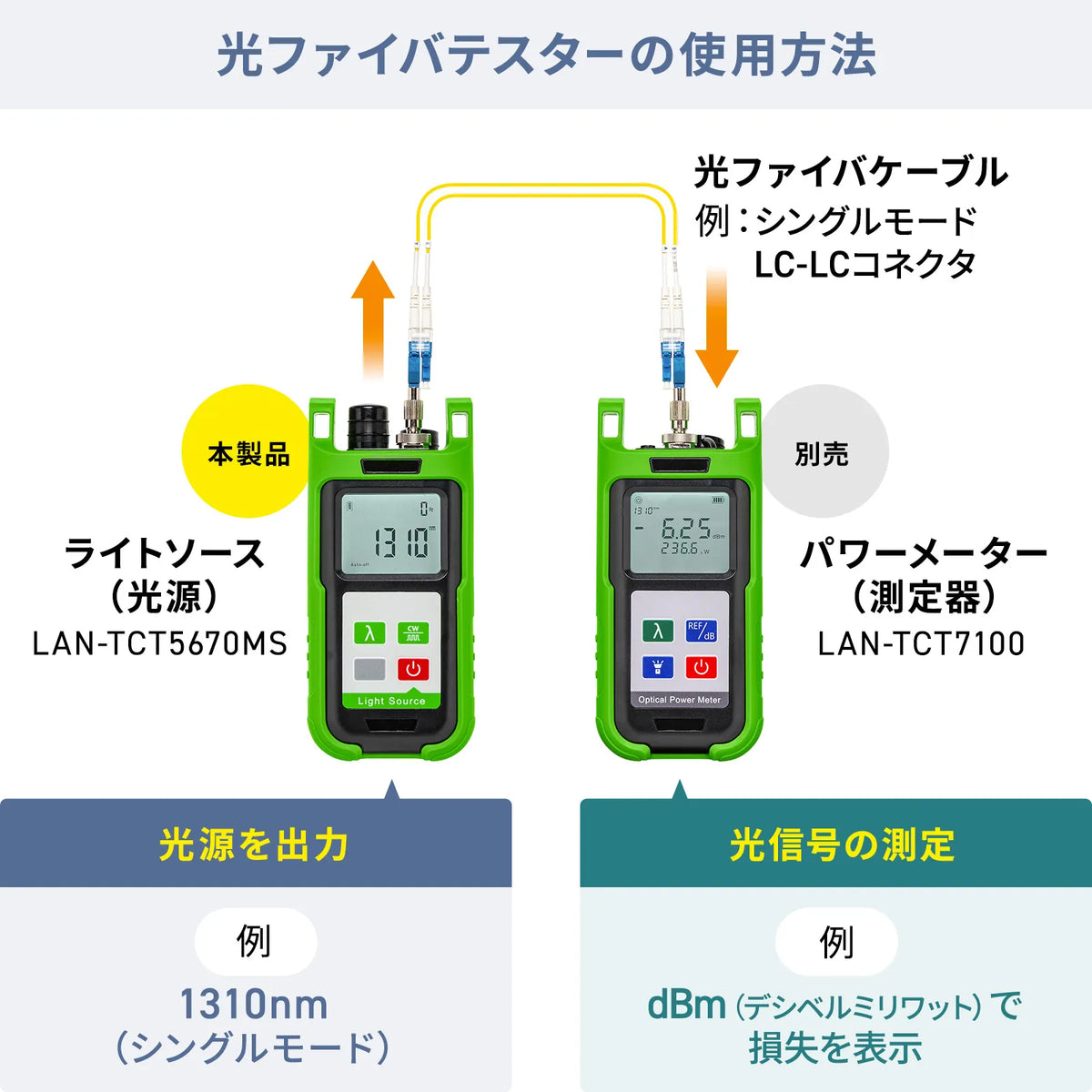

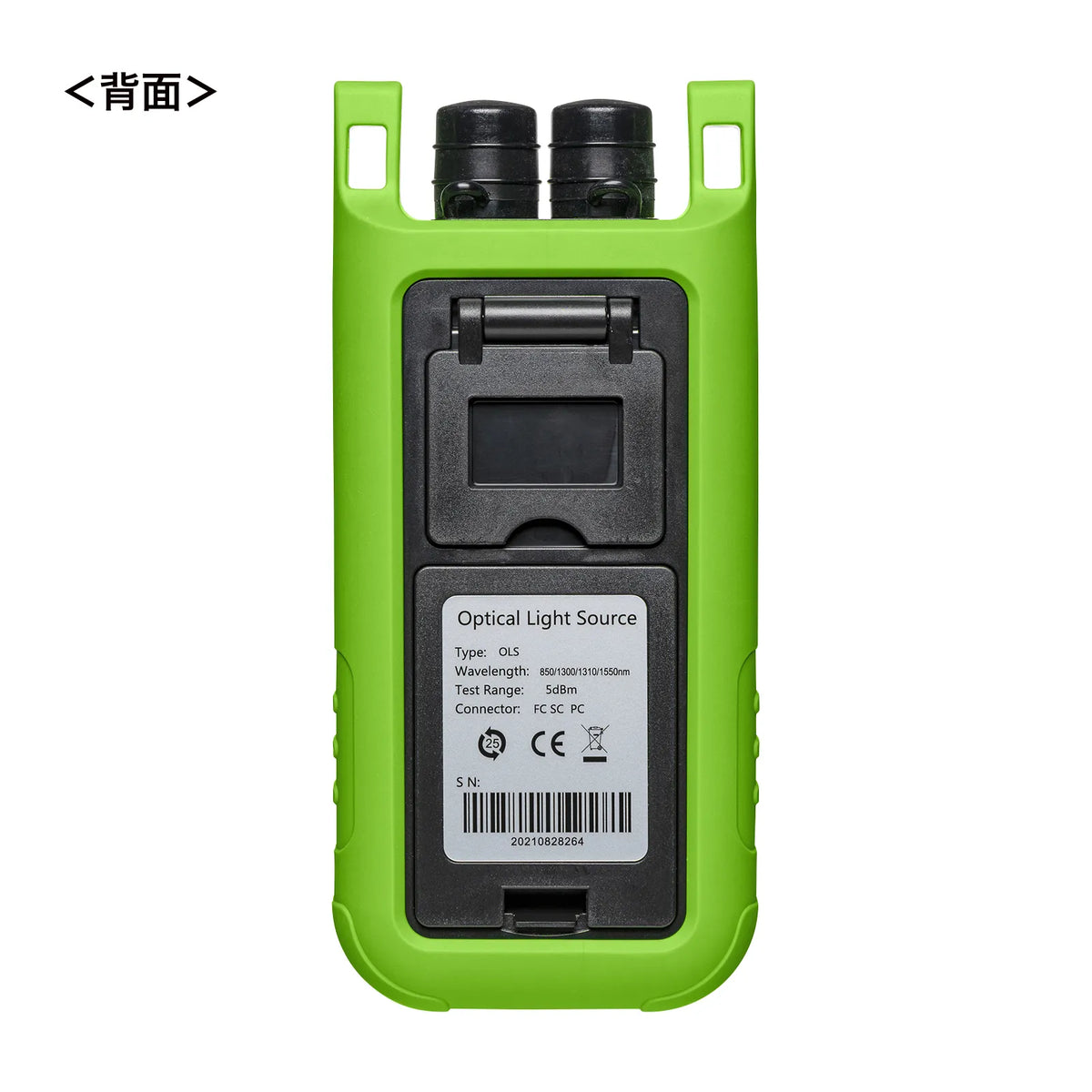

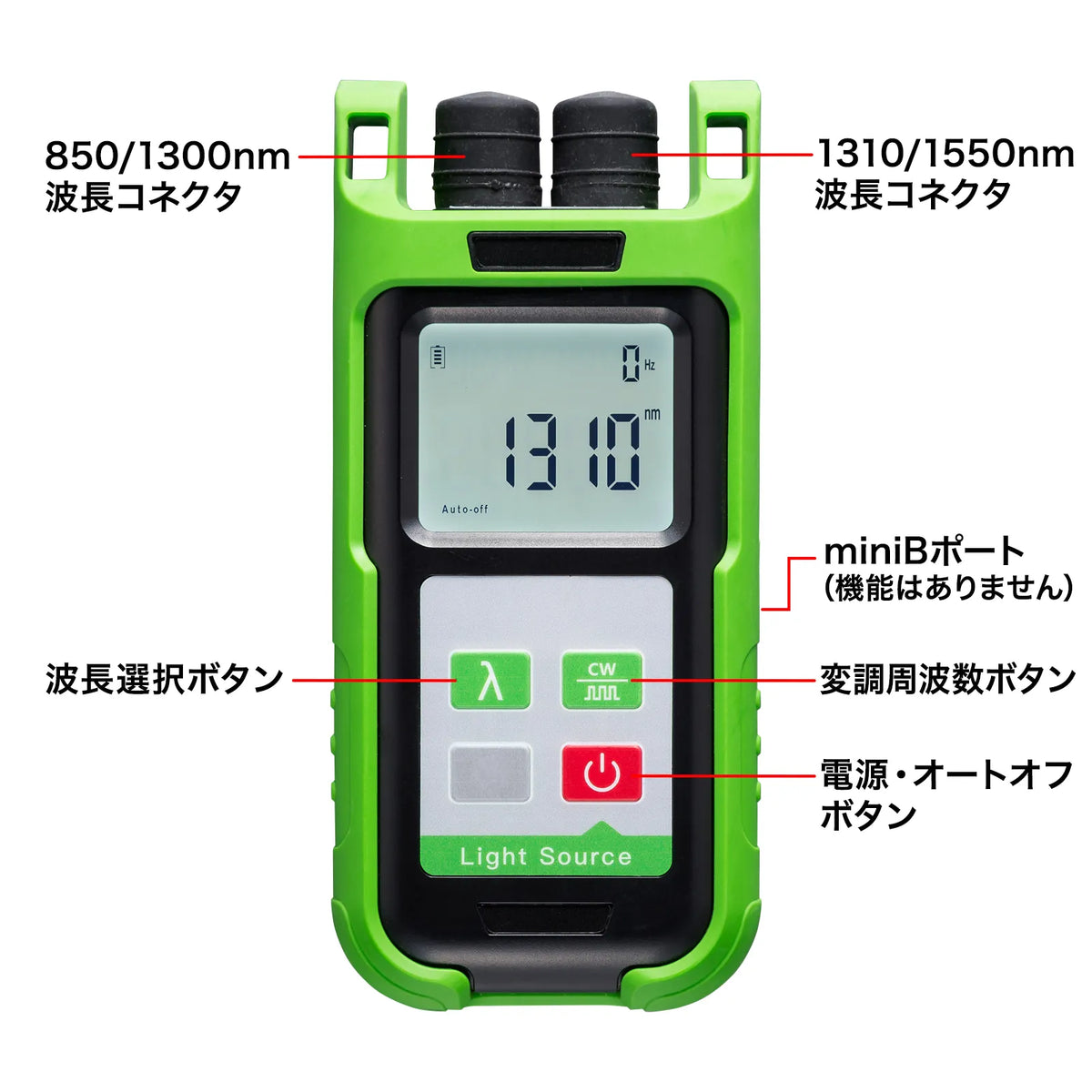

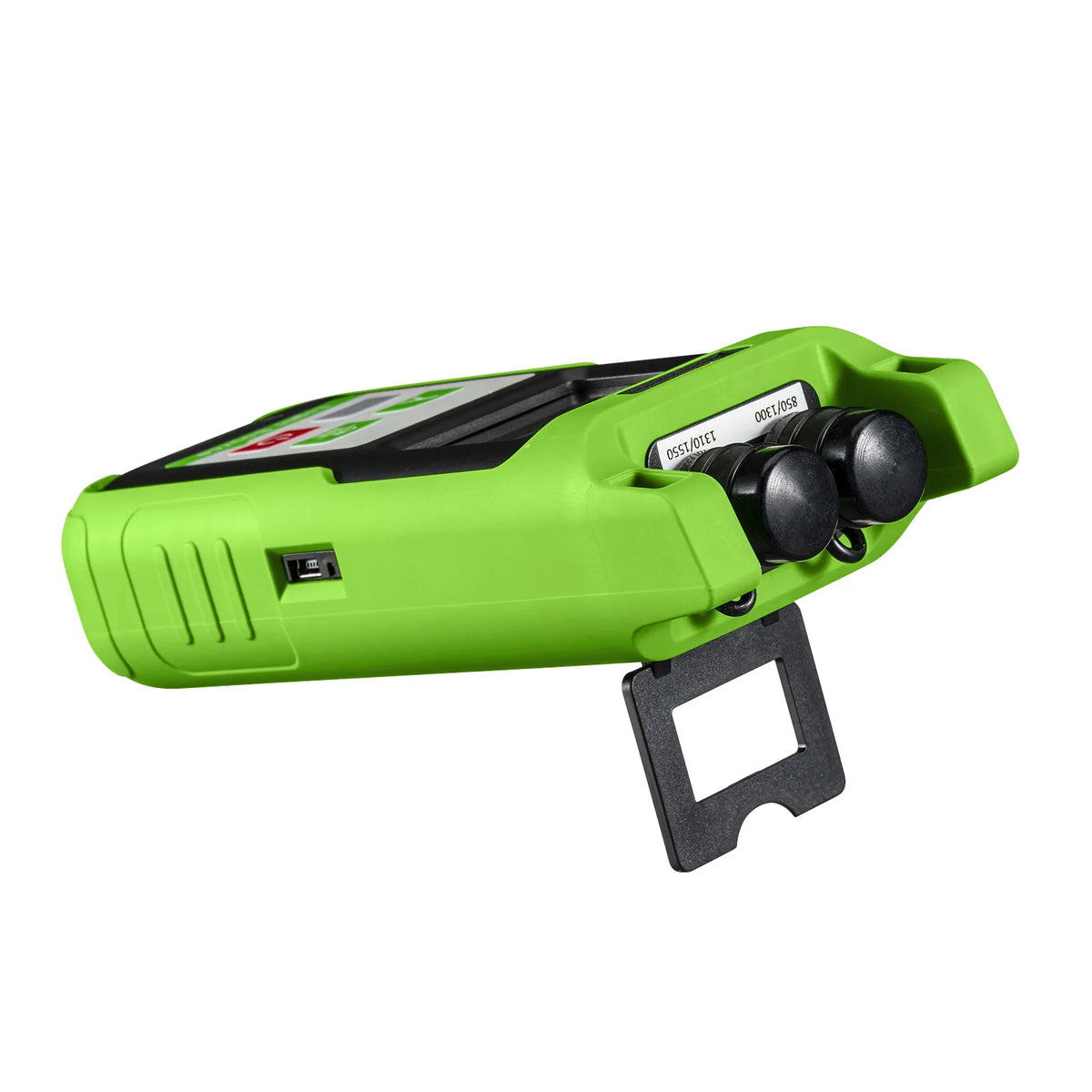

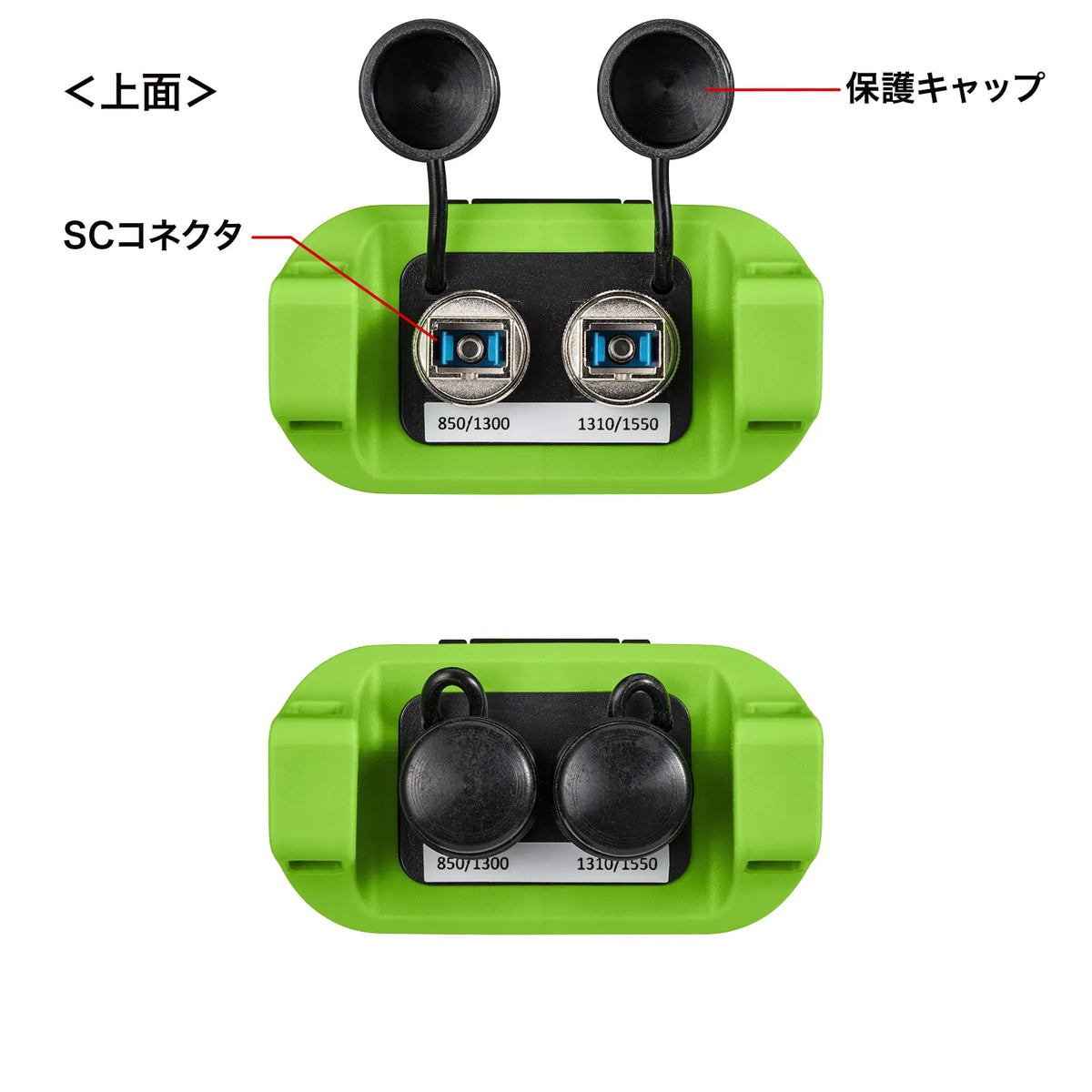

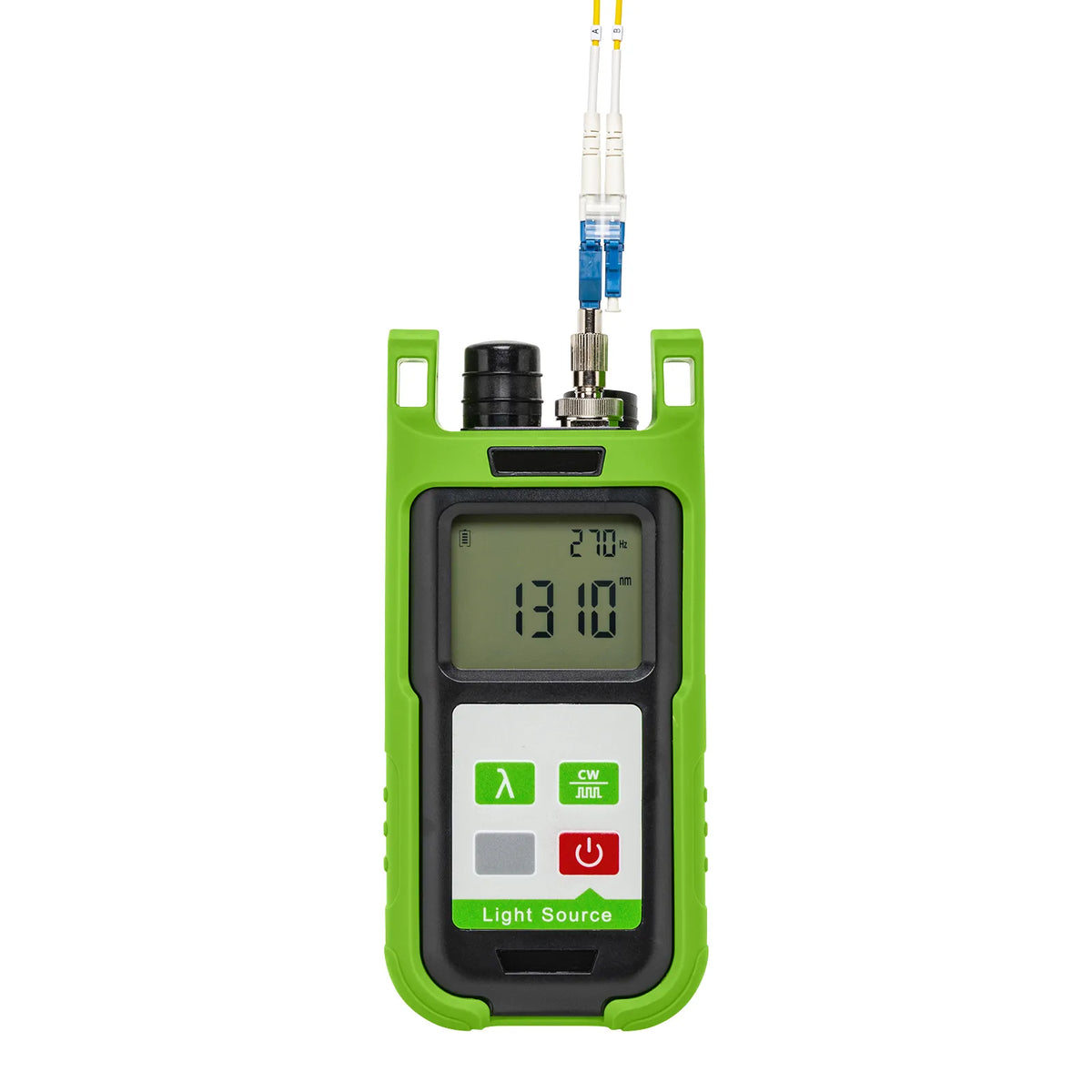

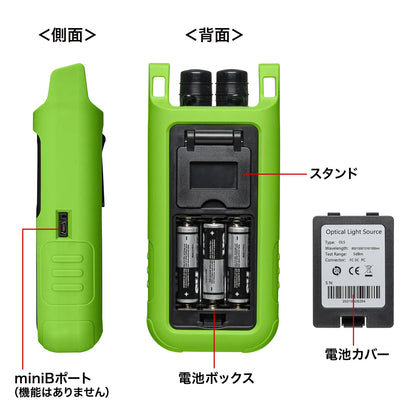

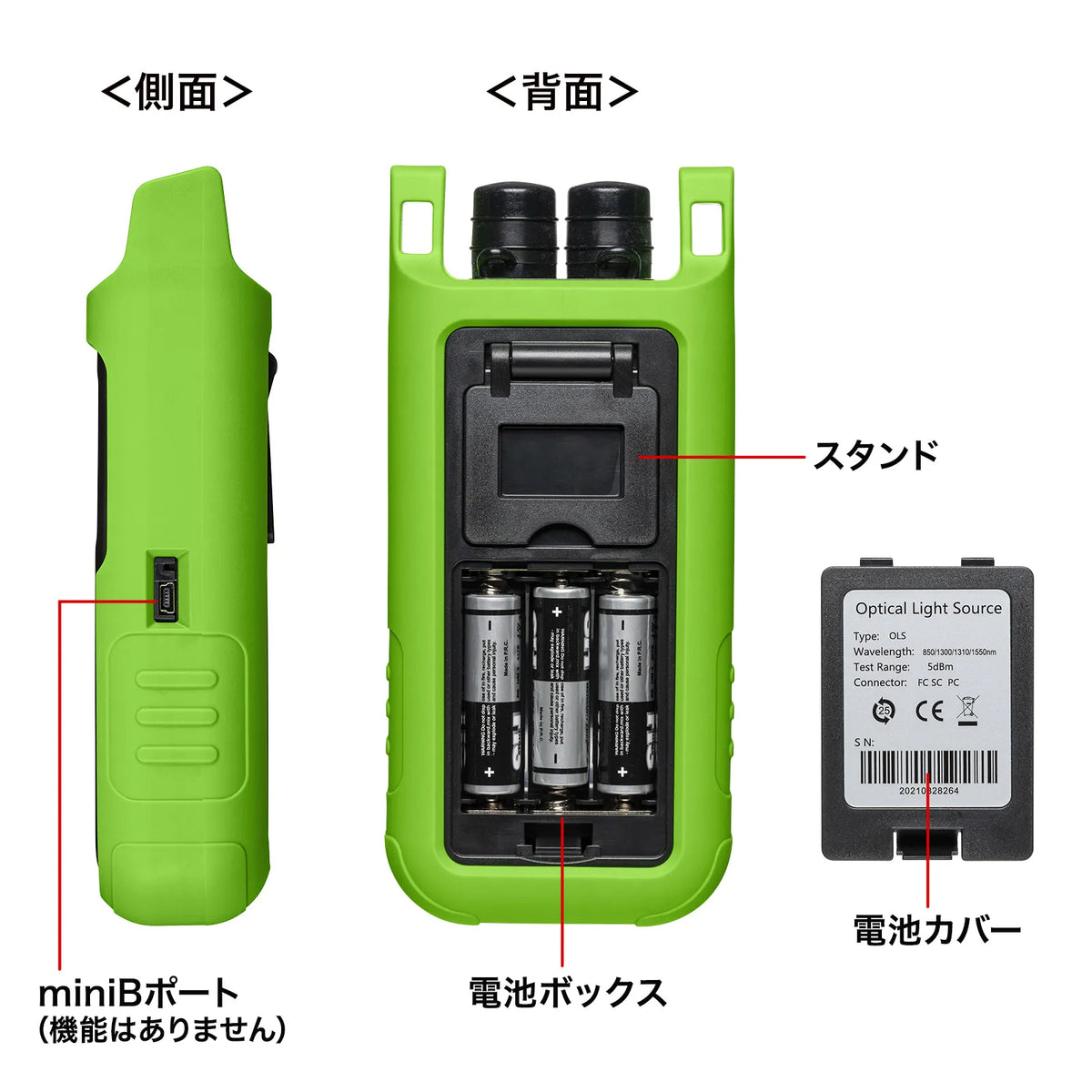

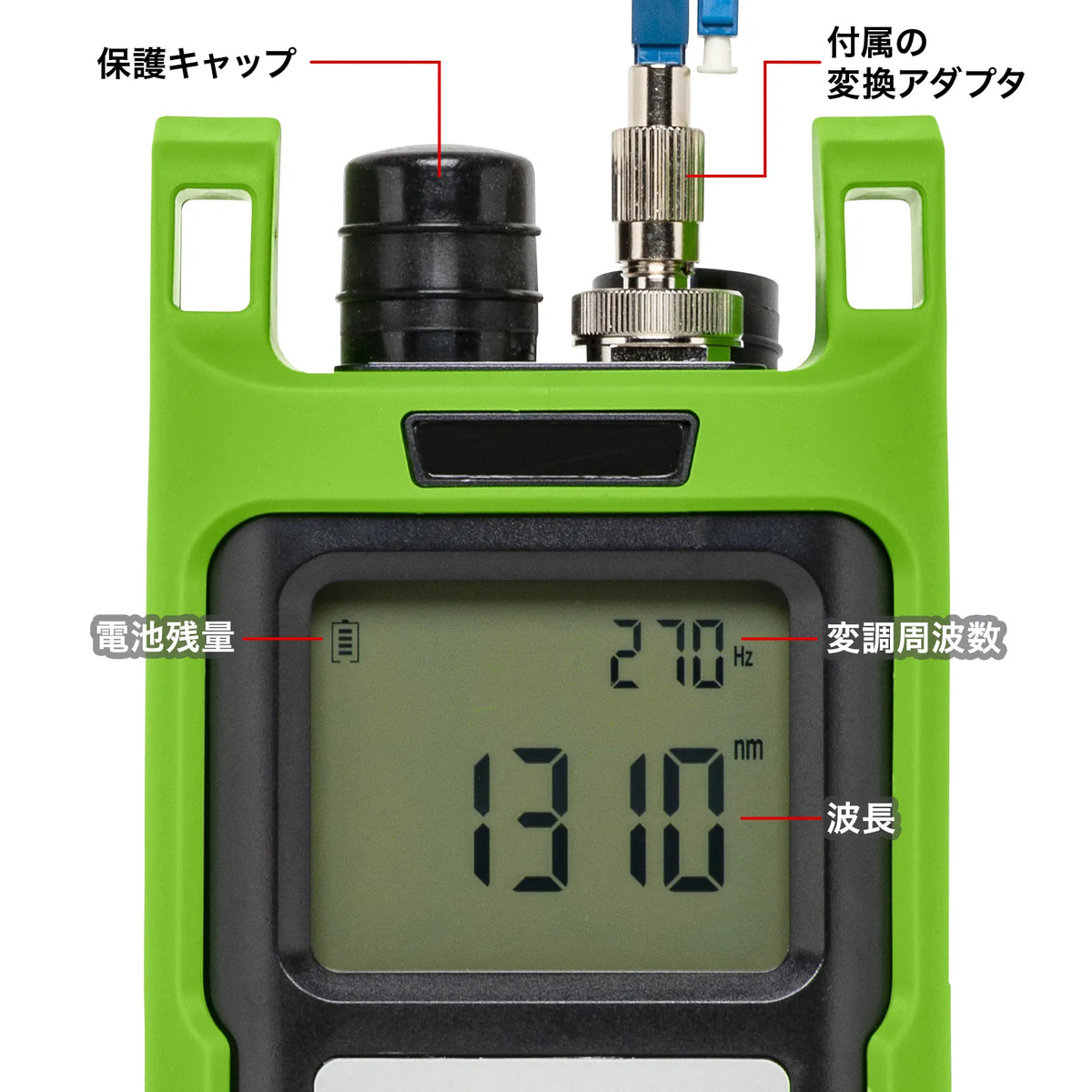

●This is a light source for fiber optic tester capable of outputting 4 wavelengths and 4 modulation frequencies. ●Compatible with SC, ST, FC, and LC connector interfaces. ●Equipped with a battery level indicator, allowing you to see the remaining charge at a glance. ●Auto power-off function can be switched ON/OFF. ●Ready to use as soon as the power is turned on. ●Comes with a stand on the back.

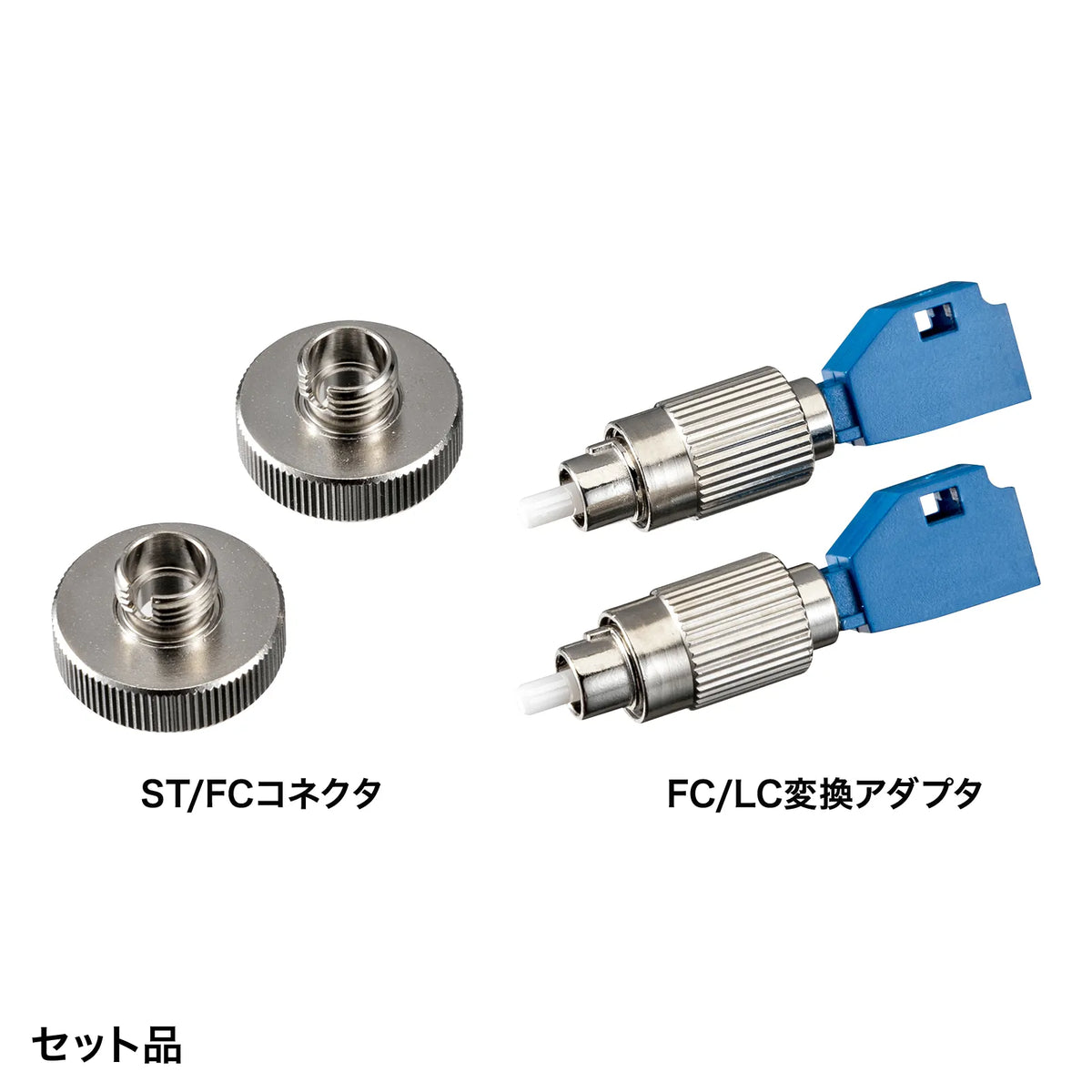

■Compatible Cable: Fiber Optic Cable ■Compatible Connectors: SC Connector, ST Connector, FC Connector, LC Connector ■Measurement Wavelength: 850, 1300, 1310, 1550nm ■External Output: -5dBm ■Output Stability: ±0.05dB/15 minutes, ±0.1dB/8 hours ■Modulation Frequency: CW (0Hz)/270Hz/1kHz/2kHz ■Measurement Cable Length: 2000m ■ Display method: Dot matrix LCD ■Battery used: 3 x AA batteries ■Size: W83 x D42 x H183mm ■Weight: Approx. 315g (excluding batteries) ■Set contents: Optical fiber tester (light source), 3 x AA batteries (for testing), 2 x ST/FC connectors, 2 x FC-LC conversion adapters, instruction manual and warranty ≪Caution≫ *The included FC-LC conversion adapter is for single-mode optical fiber. (When measuring multimode optical fiber using the conversion adapter, the loss value will differ.)
