SANWA SUPPLY
LAN Cable Tester LAN-TCT2690PRO
LAN Cable Tester LAN-TCT2690PRO
GTIN（JAN）：4969887565018
SKU：LAN-TCT2690PRO
Regular price
¥41,237 JPY
Regular price
Sale price
¥41,237 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[LAN Cable Tester with Easy-to-View LCD Display of LAN Cable Wiring Status]
●Can check the wiring status of LAN cables (straight, crossover, open, short, split) and the integrity of paired wiring on the LCD display.
●Can measure cable length and has a memory function that can store up to 4 measured values.

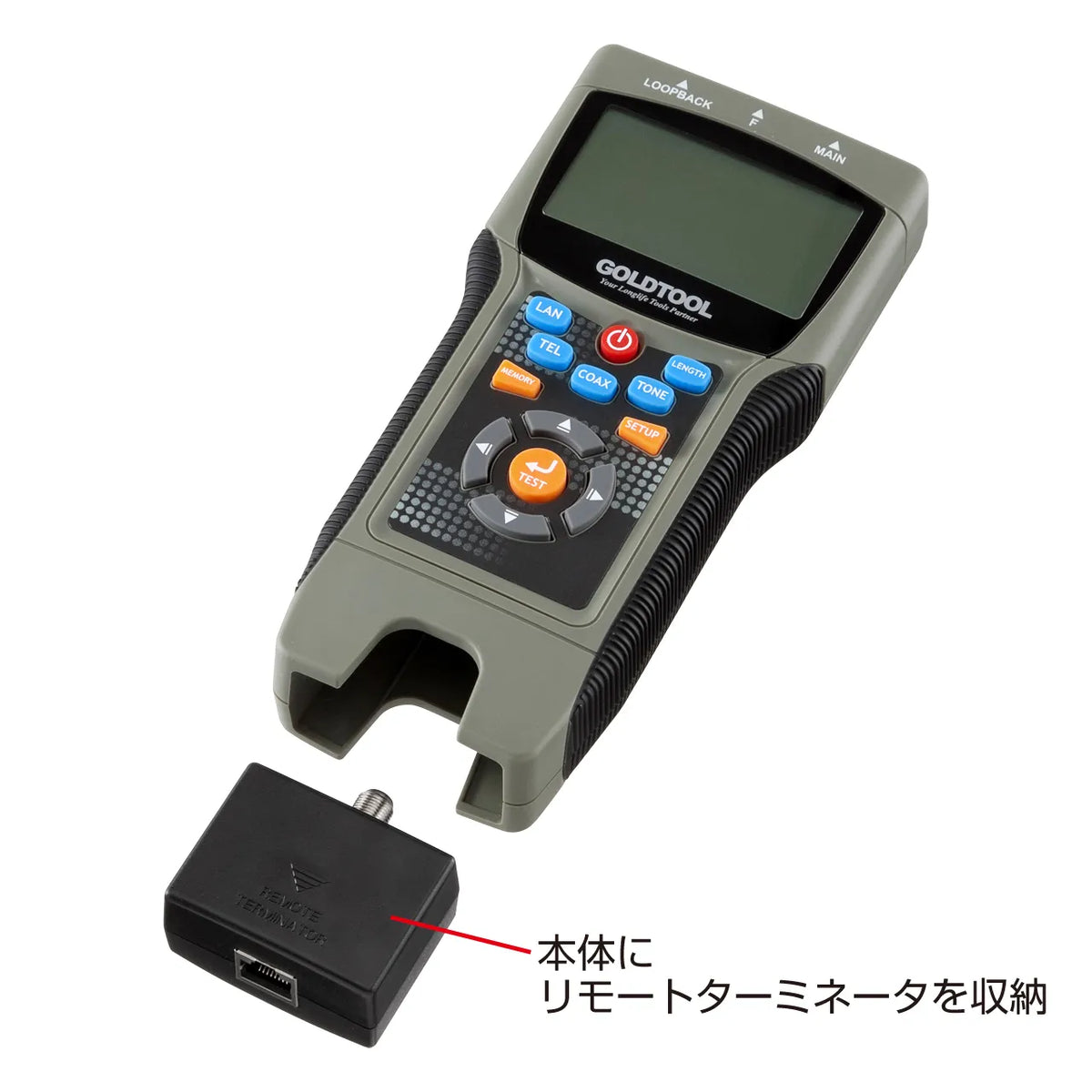

●A remote terminator is stored inside the unit and can be removed as needed, making it easy to check already laid cables.
●Built-in signal generation function for probe identification, making it an indispensable tester for network construction.
■Measurable Cables:
Twisted Pair Cable (UTP/STP)/〇
Telephone Cable/〇 *Can be measured by directly inserting into an RJ-45 port. (Except for LAN-TST4, a part to convert the port from RJ-45 to RJ-11 is included)
10BASE2/〇
■ Measurable connectors:
RJ-45 connector (UTP/STP)
RJ-58 connector (BNC cable)
■ Wiring:
Straight/Cross type detection/〇
Detailed wiring/〇
Wiring error/〇
Pair break detection/〇
■ Disconnection:
Presence/Absence/〇
Identification of the disconnected core wire/〇
Supported cable length/300m
■ PoE measurement: ×
■ Cable length measurement and display:
Measurement length/2～255m
Measurement accuracy/10%+1m
Display resolution/0.1m
■ Tone generator function: 〇 *A separately sold probe (LAN-T256712) is required to detect the tone of the tone generator.
■Other functions:
Memory function (up to 4 cable length values)
■Remote unit: Yes
■Display method: 128 x 64 dot matrix LCD Module (64 x 33 mm)
■Battery used: 9V dry cell battery x 1
■Size: W93 x D205 x H40 mm
■Weight: Approx. 310 g (excluding battery)

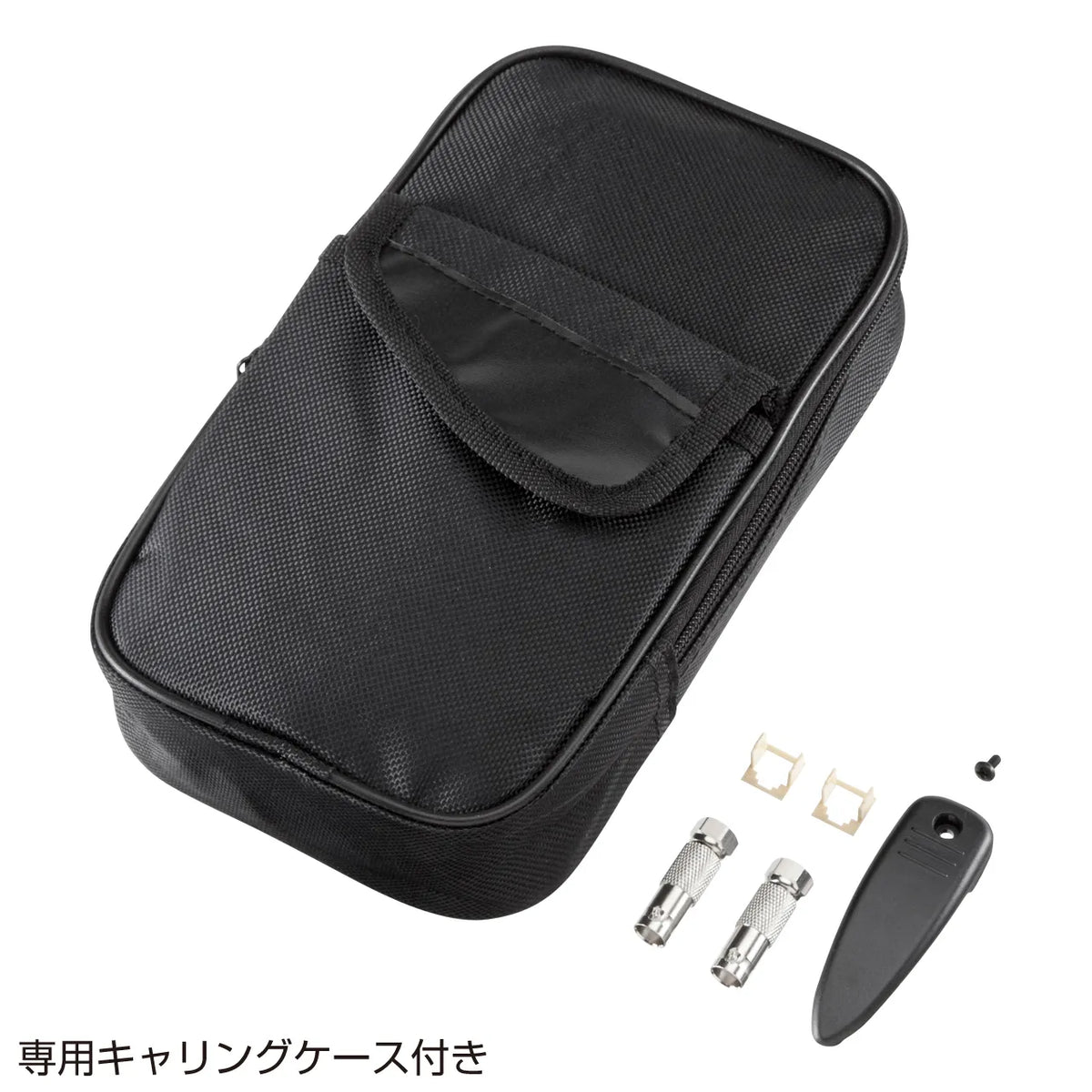

■Accessories: Dedicated carrying case, TEL attachment, 006P 9V dry cell battery x 1 (for testing), instruction manual, warranty card
●Can check the wiring status of LAN cables (straight, crossover, open, short, split) and the integrity of paired wiring on the LCD display.
●Can measure cable length and has a memory function that can store up to 4 measured values.
●A remote terminator is stored inside the unit and can be removed as needed, making it easy to check already laid cables.
●Built-in signal generation function for probe identification, making it an indispensable tester for network construction.
■Measurable Cables:
Twisted Pair Cable (UTP/STP)/〇
Telephone Cable/〇 *Can be measured by directly inserting into an RJ-45 port. (Except for LAN-TST4, a part to convert the port from RJ-45 to RJ-11 is included)
10BASE2/〇
■ Measurable connectors:
RJ-45 connector (UTP/STP)
RJ-58 connector (BNC cable)
■ Wiring:
Straight/Cross type detection/〇
Detailed wiring/〇
Wiring error/〇
Pair break detection/〇
■ Disconnection:
Presence/Absence/〇
Identification of the disconnected core wire/〇
Supported cable length/300m
■ PoE measurement: ×
■ Cable length measurement and display:
Measurement length/2～255m
Measurement accuracy/10%+1m
Display resolution/0.1m
■ Tone generator function: 〇 *A separately sold probe (LAN-T256712) is required to detect the tone of the tone generator.
■Other functions:
Memory function (up to 4 cable length values)
■Remote unit: Yes
■Display method: 128 x 64 dot matrix LCD Module (64 x 33 mm)
■Battery used: 9V dry cell battery x 1
■Size: W93 x D205 x H40 mm
■Weight: Approx. 310 g (excluding battery)
■Accessories: Dedicated carrying case, TEL attachment, 006P 9V dry cell battery x 1 (for testing), instruction manual, warranty card
