SANWA SUPPLY

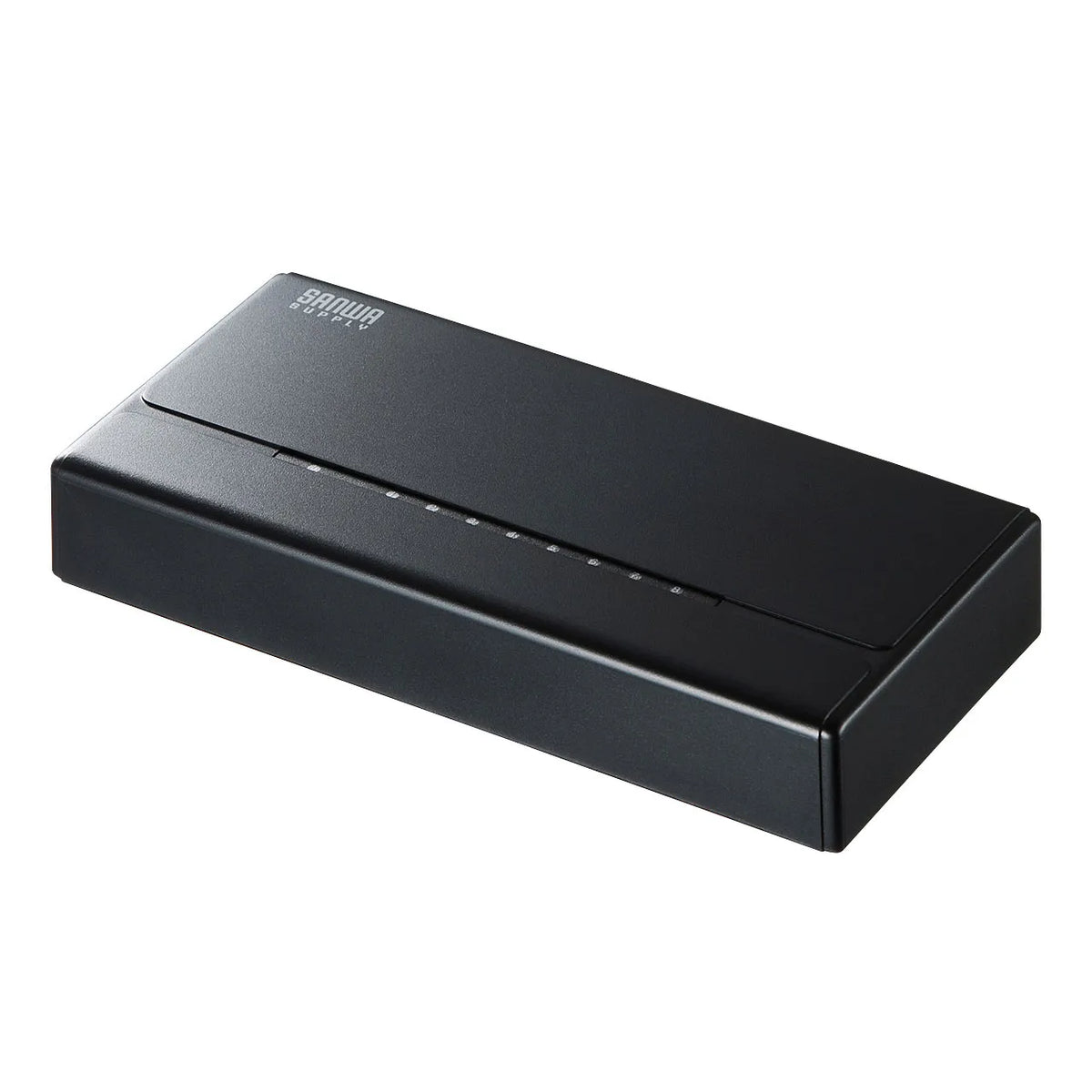

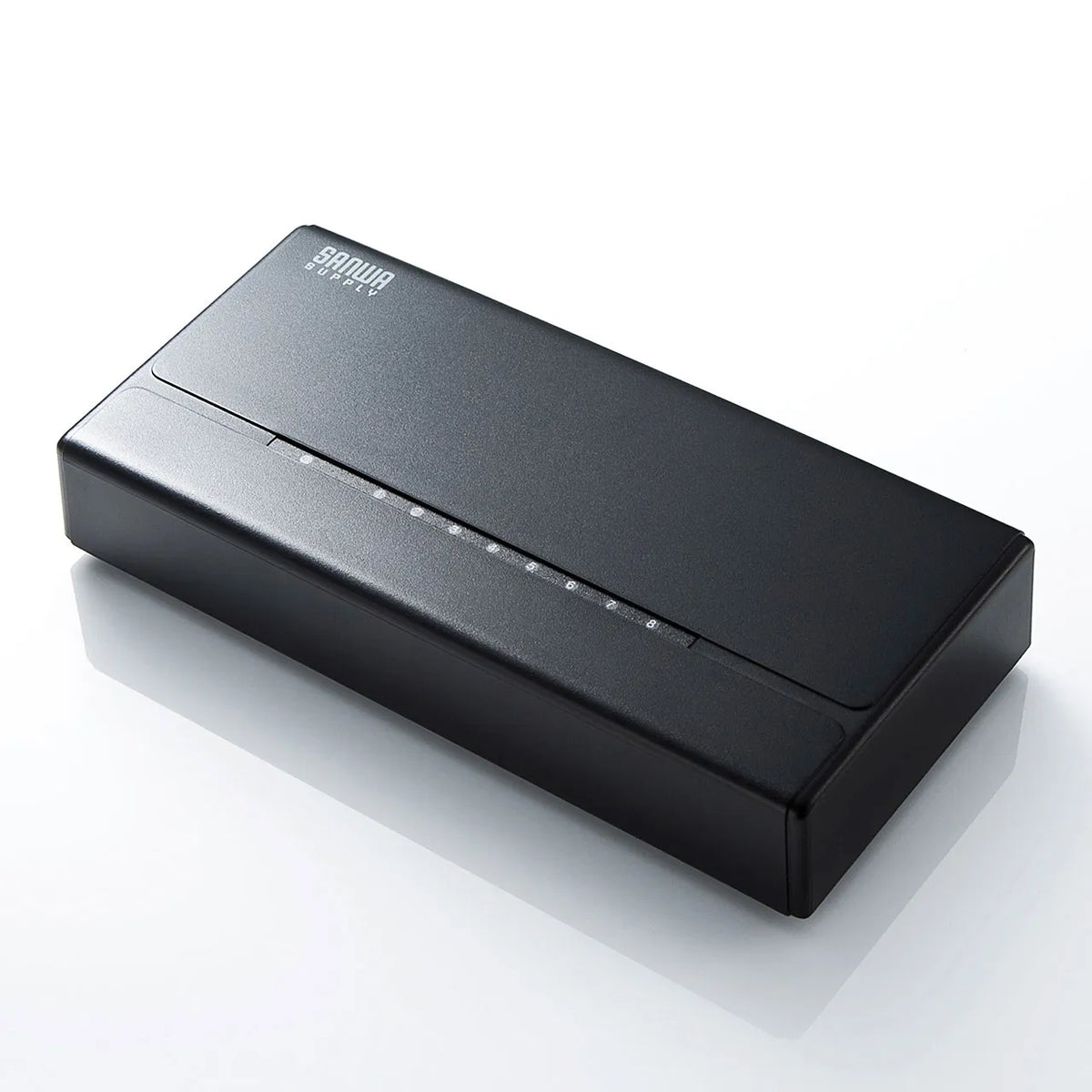

Switching hub (8 ports, with magnet) LAN-SWHP801BK
Switching hub (8 ports, with magnet) LAN-SWHP801BK
GTIN（JAN）：4969887753088
SKU：LAN-SWHP801BK
Regular price
¥3,194 JPY
Regular price
Sale price
¥3,194 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[A 10/100BASE-T compatible switching hub with a magnet that can be fixed to steel desks, etc.]

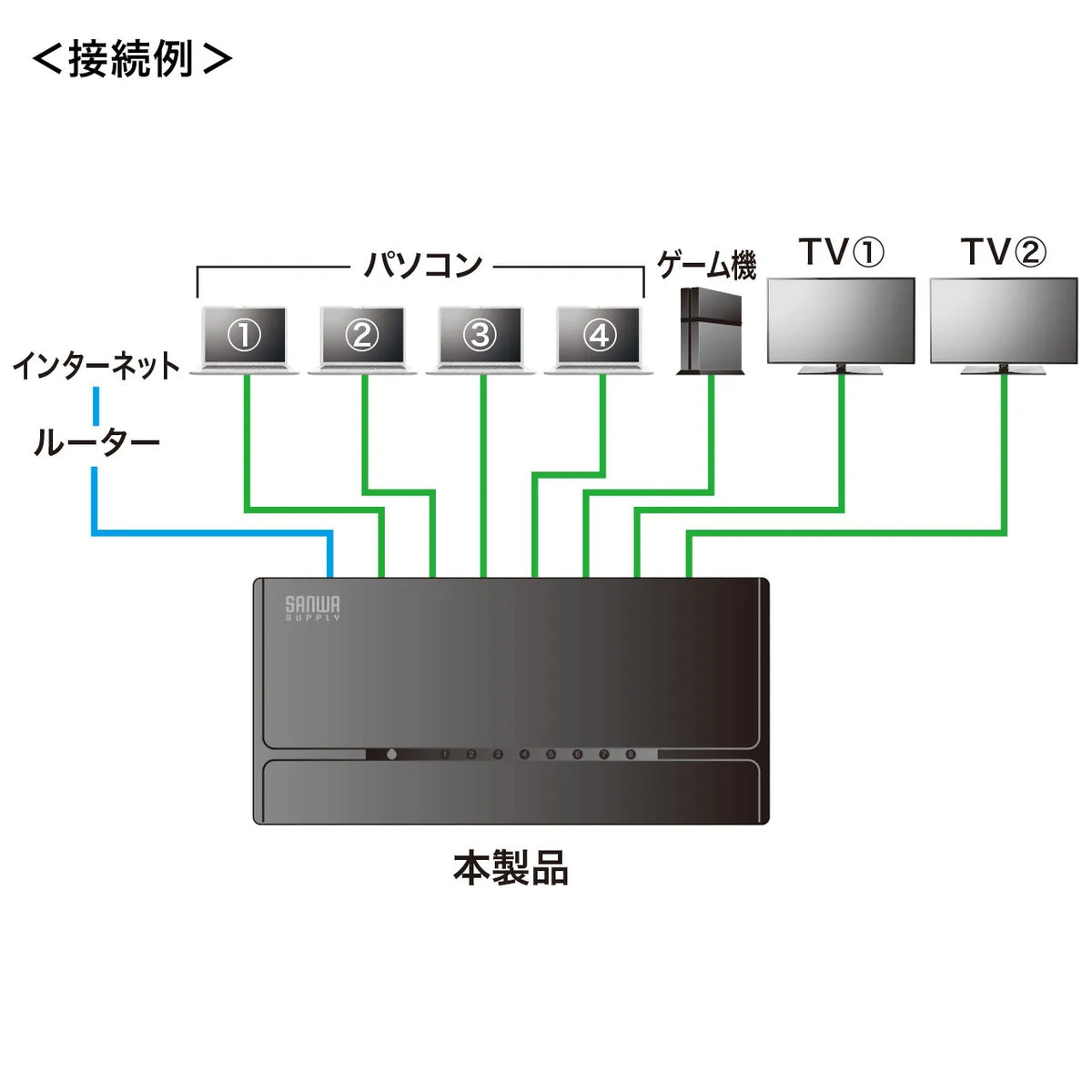

●This is an 8-port switching hub compatible with 100BASE-TX.

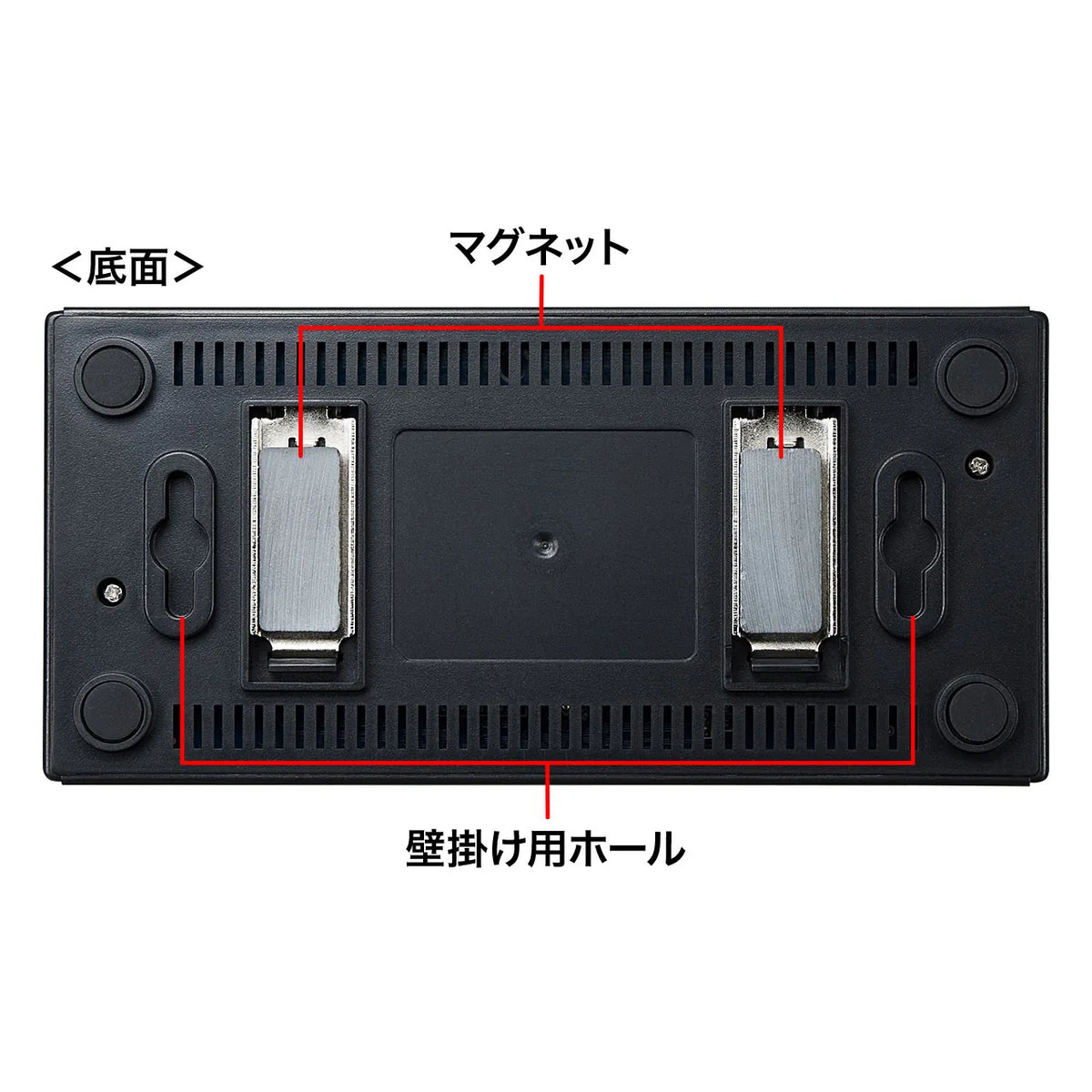

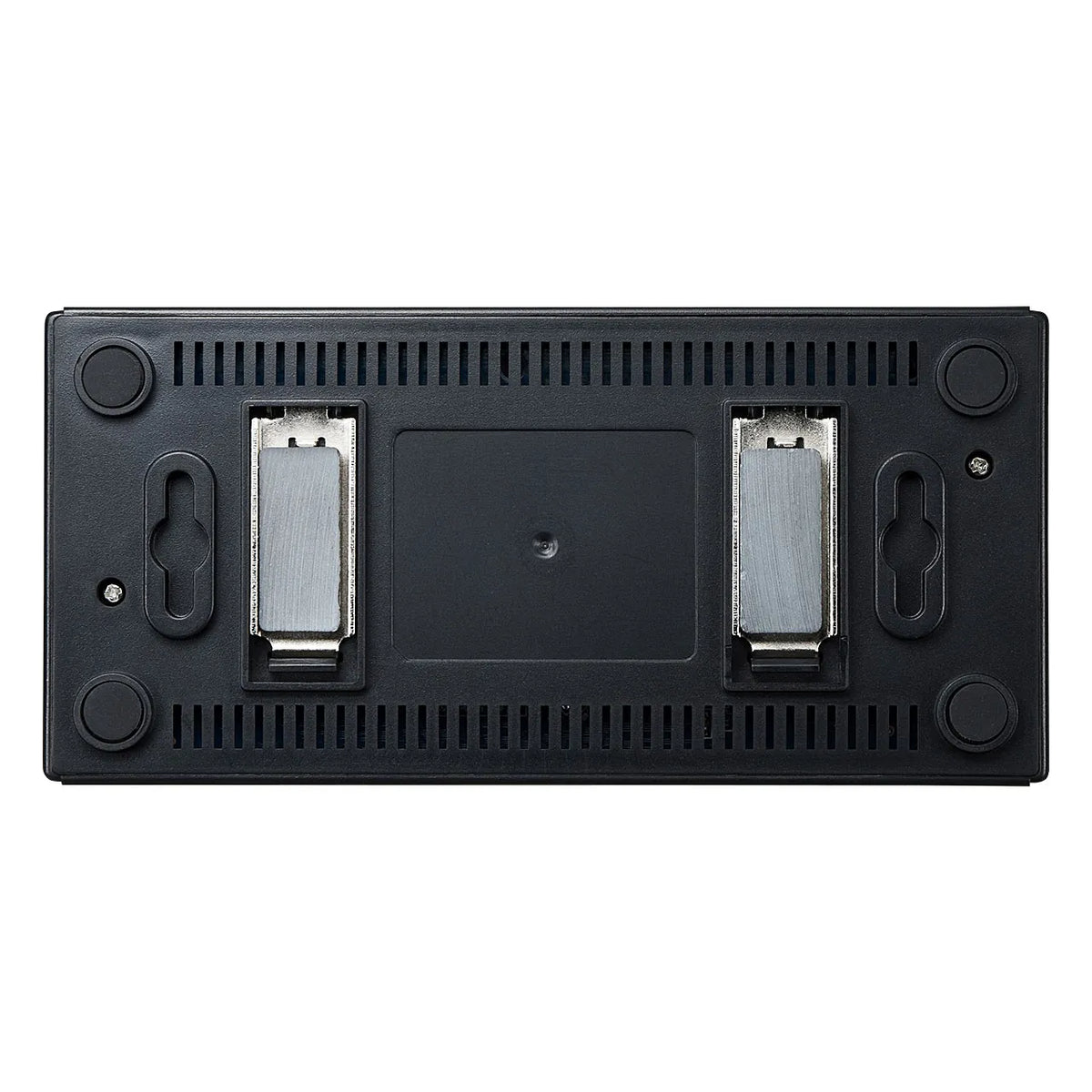

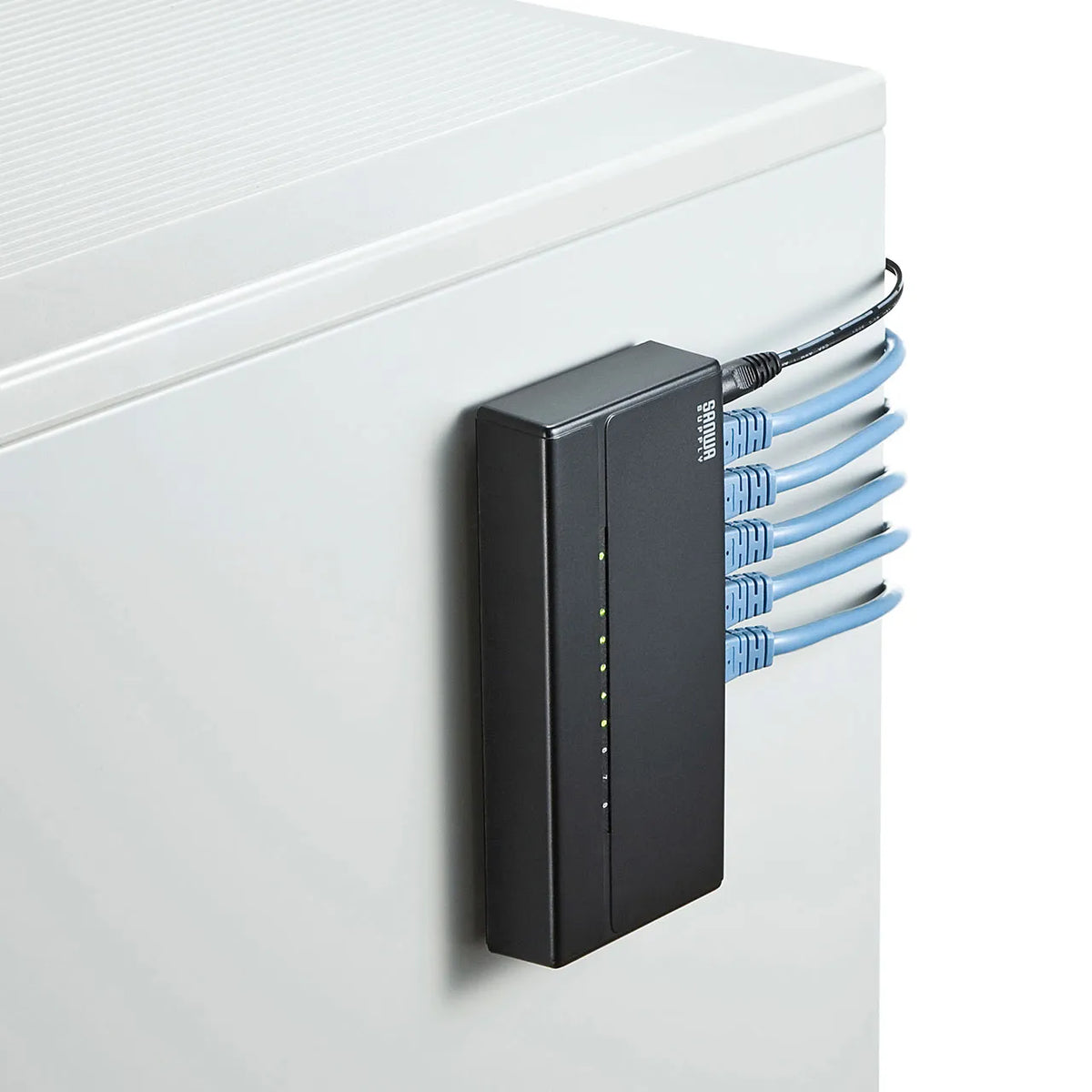

●Equipped with a strong magnet, it can be securely fixed to steel desks, cabinets, etc.
●Its compact design with a plastic case means it can be installed anywhere.
●It is fanless, so it operates quietly.

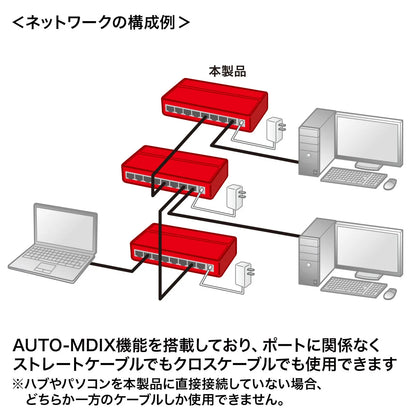

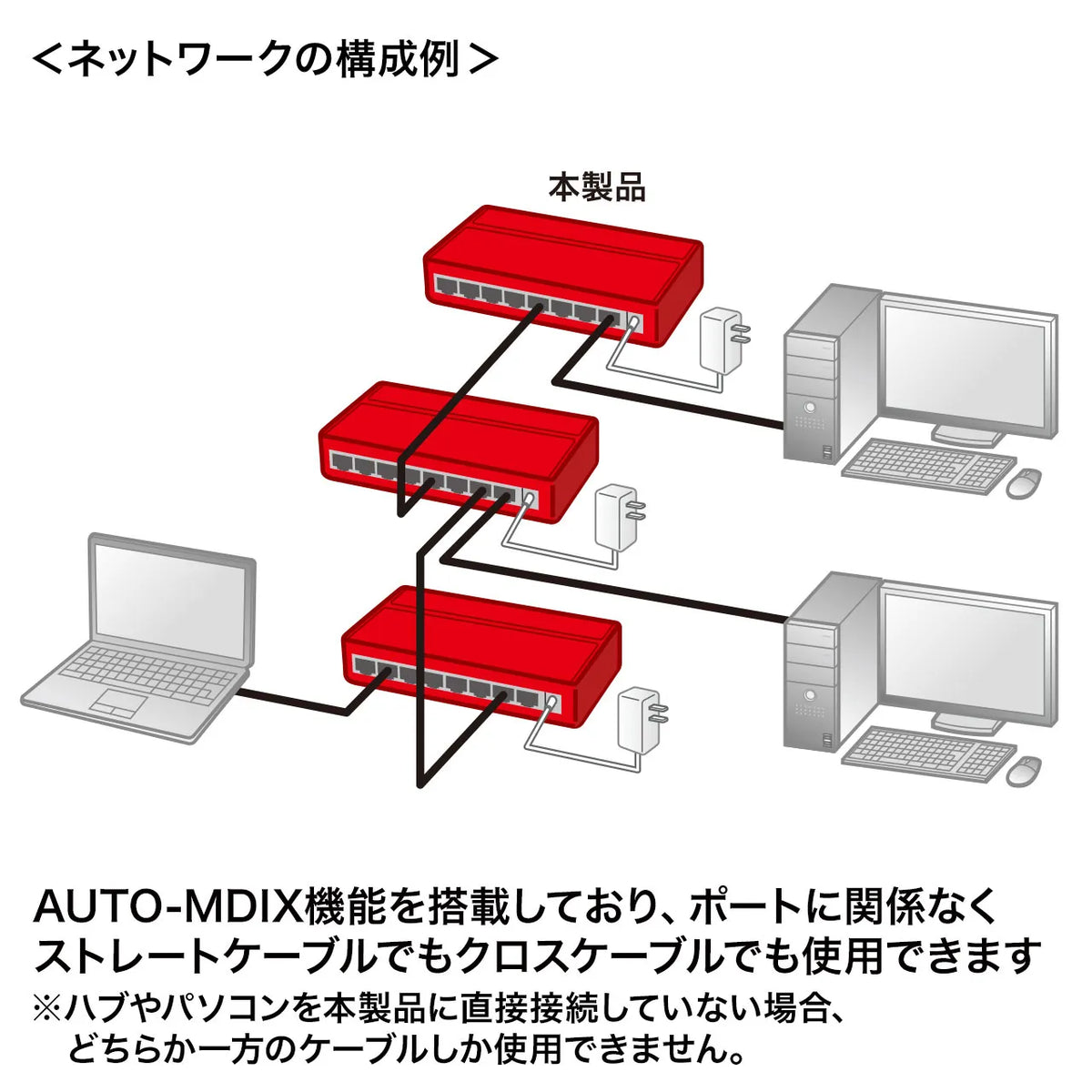

●Equipped with AUTO-MDIX function that can be used without worrying about straight cables or crossover cables.
●Equipped with AUTO-Negotiation function that can automatically switch between 10/100Mbps depending on the connected device.
●Equipped with a power saving function that automatically detects unlinked ports and reduces power supply. Power saving of up to 59% is possible when all computers on all ports are shut down.

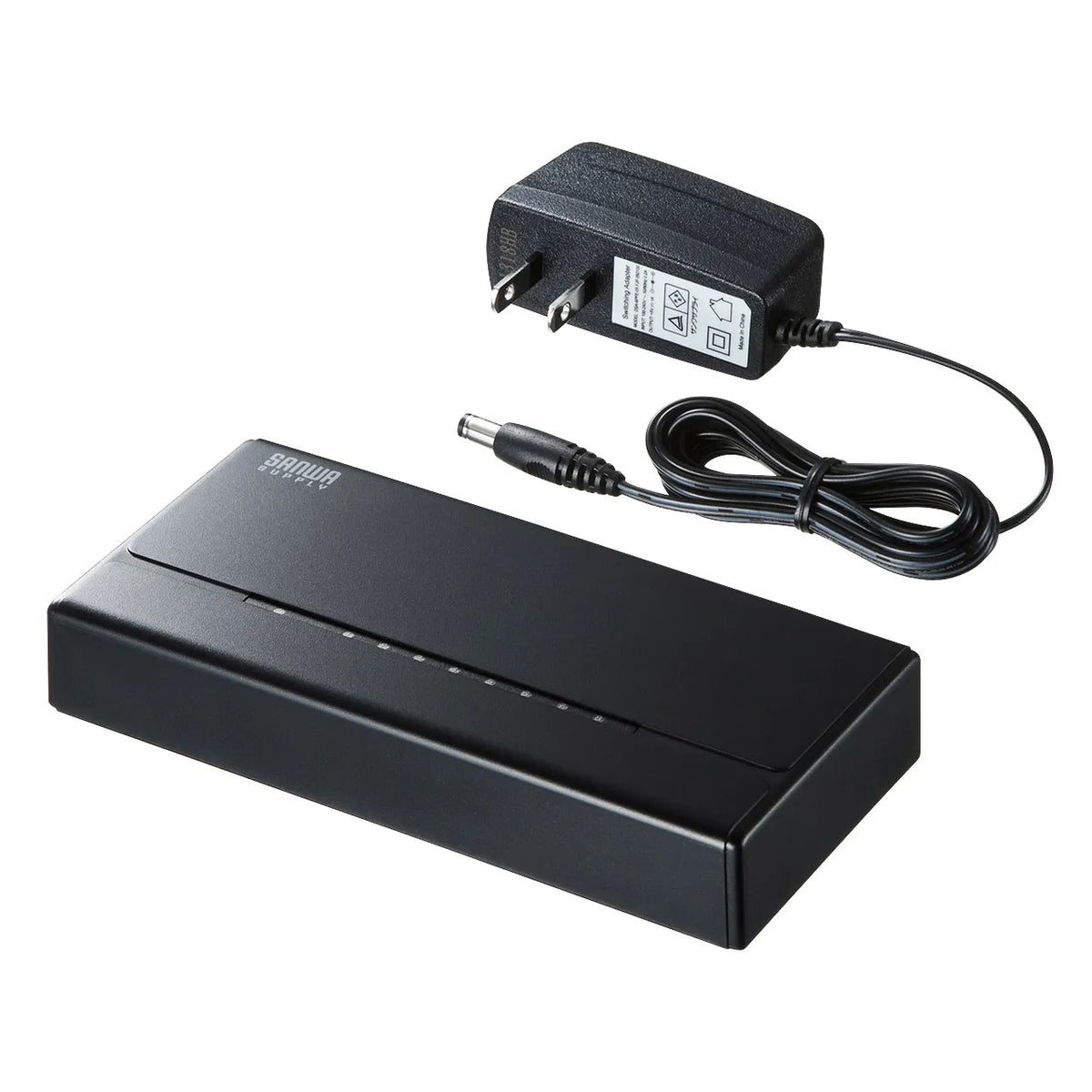

●The power supply is an AC adapter and is equipped with a cap to prevent tracking fires.
＜Caution＞
The amount of heat generated by this product differs depending on whether it is only powered on or communicating. In particular, continuous heavy data transfer may cause the device to overheat. Continuous use in environments with poor ventilation and insufficient heat dissipation may lead to deterioration of internal components and reduce the product's lifespan. When using the device, do not place anything on top of it and leave at least 10 cm of space around the ventilation openings.
■Number of ports: 8 ports
■Standards:
IEEE802.3 (10BASE-T Ethernet)
IEEE802.3u (100BASE-TX Fast Ethernet)
IEEE802.3x (Flow control for Full-Duplex)
■Access method: CSMA/CD
■Switching method: Store & Forward
■Transmission method: 100Mbps/10Mbps (full-duplex, half-duplex)

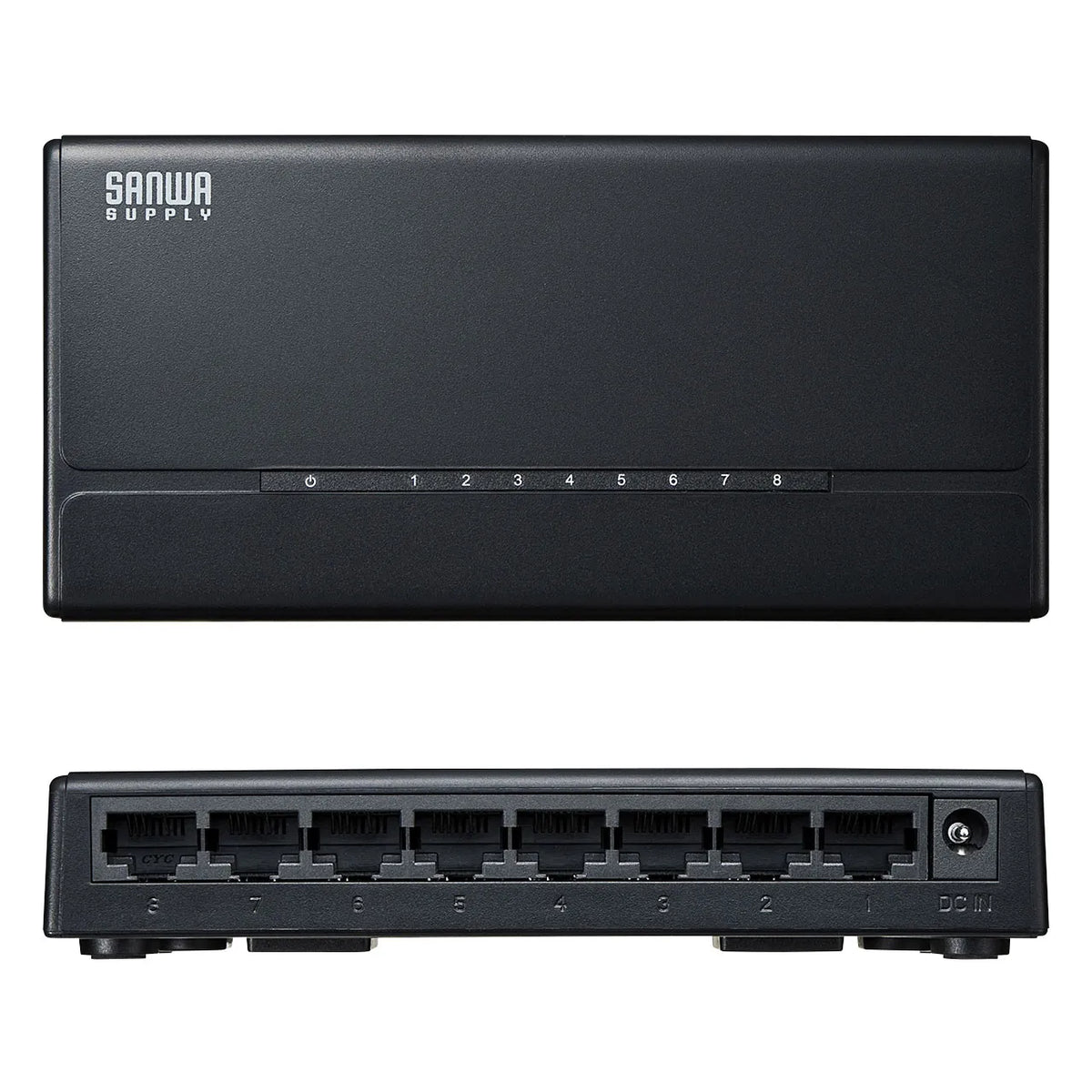

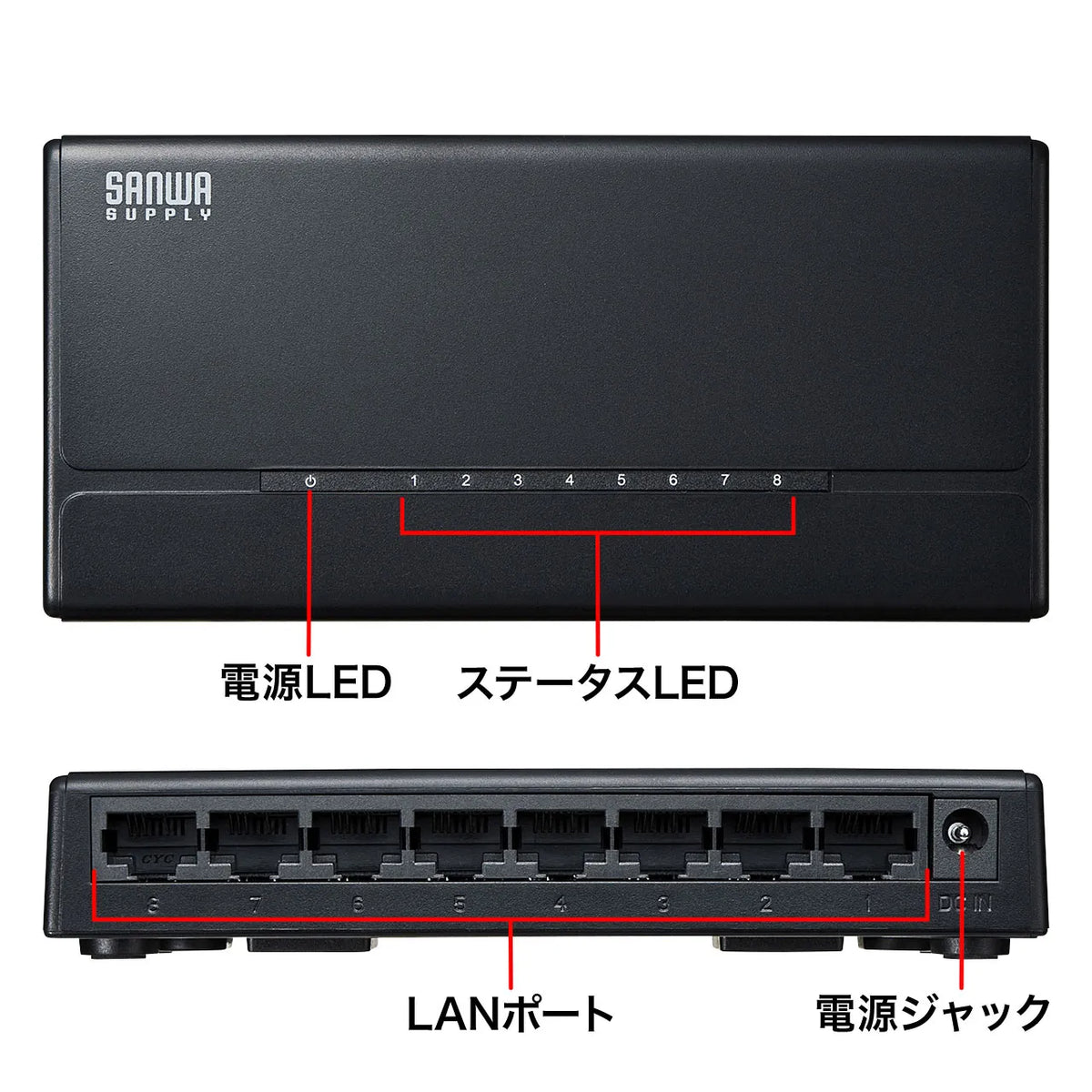

■Port configuration: 100BASE-TX/10BASE-T (RJ-45) AUTO-MDIX × 8 ports
■Compatible LAN cable: UTP Category 5 or higher (100BASE-TX), UTP Category 3 or higher (10BASE-T)
■Buffer memory: 56kbytes (dynamically allocated to each port)
■Flow control : Yes
■Switching Fabric: 1.0Gbps
■Maximum Packet Transfer Capacity: 1.2Mpps
■Filtering Speed: 148800 packets/sec (100Mbps), 14880 packets/sec (10Mbps)
■MAC Address Table: 1024
■AutoMDI/MDI-X: Supported
■Auto-Negotiation: Supported (100/10Mbps)
■VCCI Standard: Class B certified
■Size:
Main unit/approx. W137.9×D66×H25.5mm
Wall mounting hole/approx. W19.9×D8×H3.4mm
■Weight: approx. 128g
■AC Adapter Cable Length: approx. 150cm (excluding connector)
■Power Consumption (MAX): 1.44W
■Operating Environment:
Operating Temperature/0～40℃ Operating humidity: 10-90% (non-condensing)
Storage temperature: -20-70℃ Storage humidity: 5-90% (non-condensing)
■Country of origin: China
■Fan specifications: Silent fanless

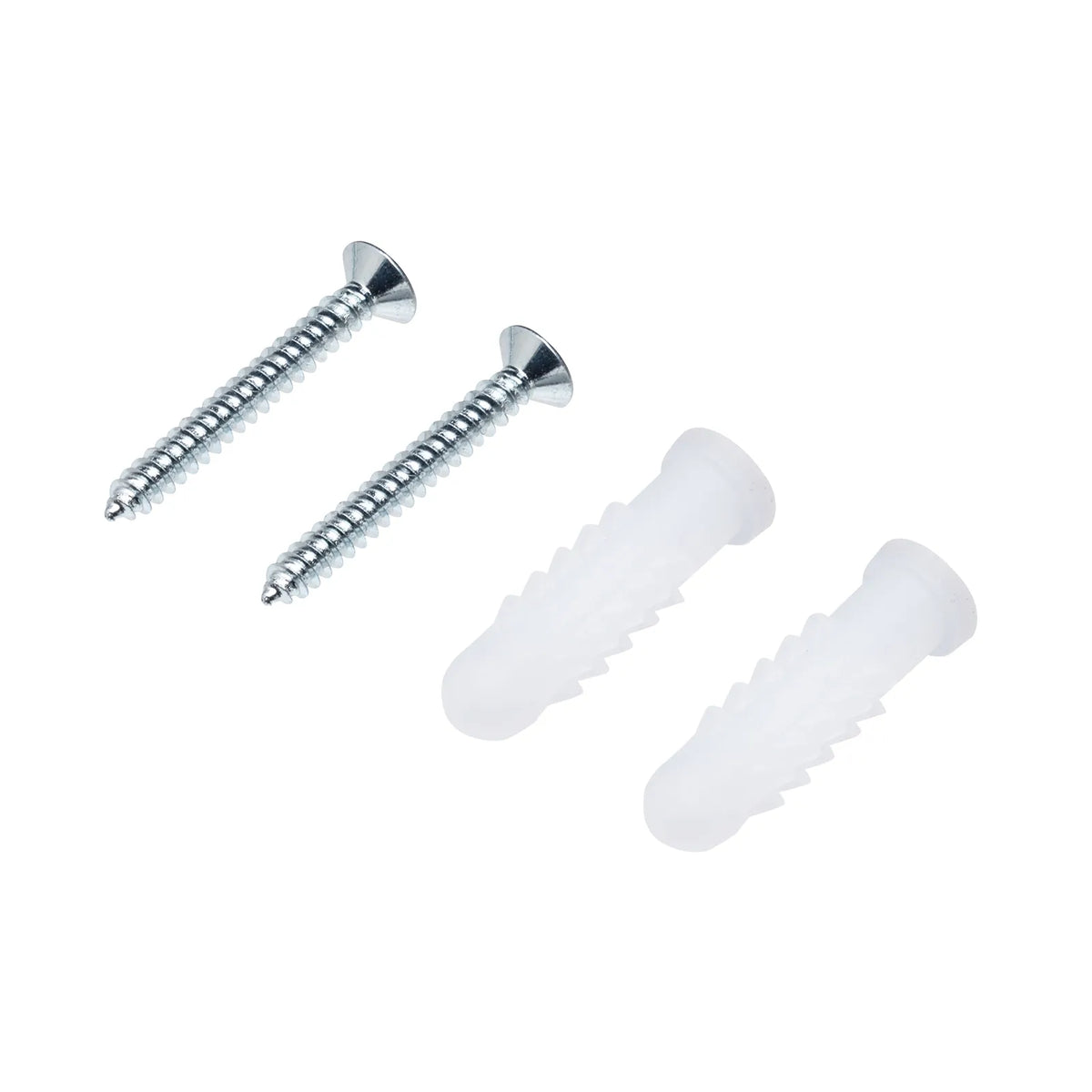

■Accessories: Instruction manual, AC adapter x 1, wall mount set x 1
●This is an 8-port switching hub compatible with 100BASE-TX.
●Equipped with a strong magnet, it can be securely fixed to steel desks, cabinets, etc.
●Its compact design with a plastic case means it can be installed anywhere.
●It is fanless, so it operates quietly.
●Equipped with AUTO-MDIX function that can be used without worrying about straight cables or crossover cables.
●Equipped with AUTO-Negotiation function that can automatically switch between 10/100Mbps depending on the connected device.
●Equipped with a power saving function that automatically detects unlinked ports and reduces power supply. Power saving of up to 59% is possible when all computers on all ports are shut down.
●The power supply is an AC adapter and is equipped with a cap to prevent tracking fires.
＜Caution＞
The amount of heat generated by this product differs depending on whether it is only powered on or communicating. In particular, continuous heavy data transfer may cause the device to overheat. Continuous use in environments with poor ventilation and insufficient heat dissipation may lead to deterioration of internal components and reduce the product's lifespan. When using the device, do not place anything on top of it and leave at least 10 cm of space around the ventilation openings.
■Number of ports: 8 ports
■Standards:
IEEE802.3 (10BASE-T Ethernet)
IEEE802.3u (100BASE-TX Fast Ethernet)
IEEE802.3x (Flow control for Full-Duplex)
■Access method: CSMA/CD
■Switching method: Store & Forward
■Transmission method: 100Mbps/10Mbps (full-duplex, half-duplex)
■Port configuration: 100BASE-TX/10BASE-T (RJ-45) AUTO-MDIX × 8 ports
■Compatible LAN cable: UTP Category 5 or higher (100BASE-TX), UTP Category 3 or higher (10BASE-T)
■Buffer memory: 56kbytes (dynamically allocated to each port)
■Flow control : Yes
■Switching Fabric: 1.0Gbps
■Maximum Packet Transfer Capacity: 1.2Mpps
■Filtering Speed: 148800 packets/sec (100Mbps), 14880 packets/sec (10Mbps)
■MAC Address Table: 1024
■AutoMDI/MDI-X: Supported
■Auto-Negotiation: Supported (100/10Mbps)
■VCCI Standard: Class B certified
■Size:
Main unit/approx. W137.9×D66×H25.5mm
Wall mounting hole/approx. W19.9×D8×H3.4mm
■Weight: approx. 128g
■AC Adapter Cable Length: approx. 150cm (excluding connector)
■Power Consumption (MAX): 1.44W
■Operating Environment:
Operating Temperature/0～40℃ Operating humidity: 10-90% (non-condensing)
Storage temperature: -20-70℃ Storage humidity: 5-90% (non-condensing)
■Country of origin: China
■Fan specifications: Silent fanless
■Accessories: Instruction manual, AC adapter x 1, wall mount set x 1
