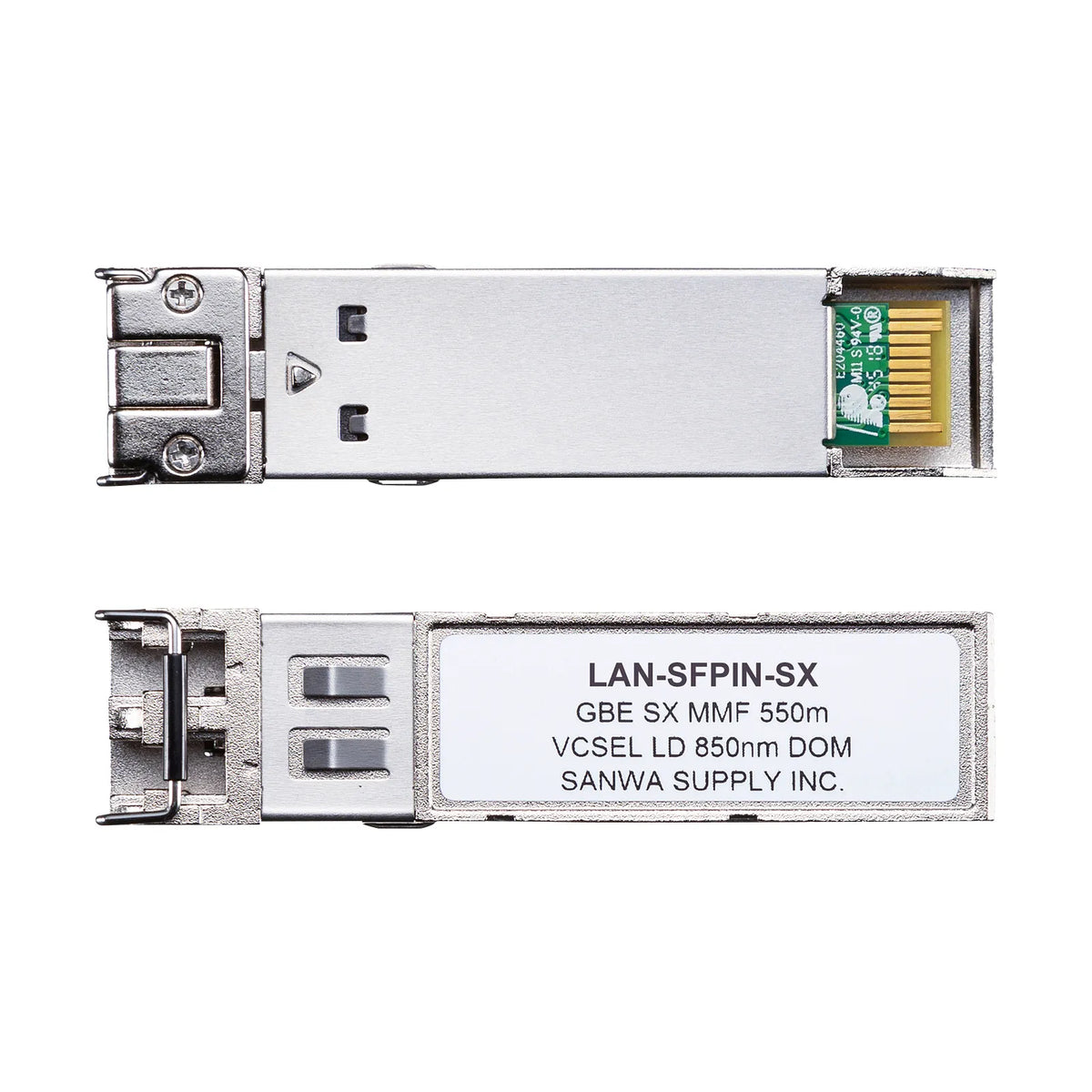

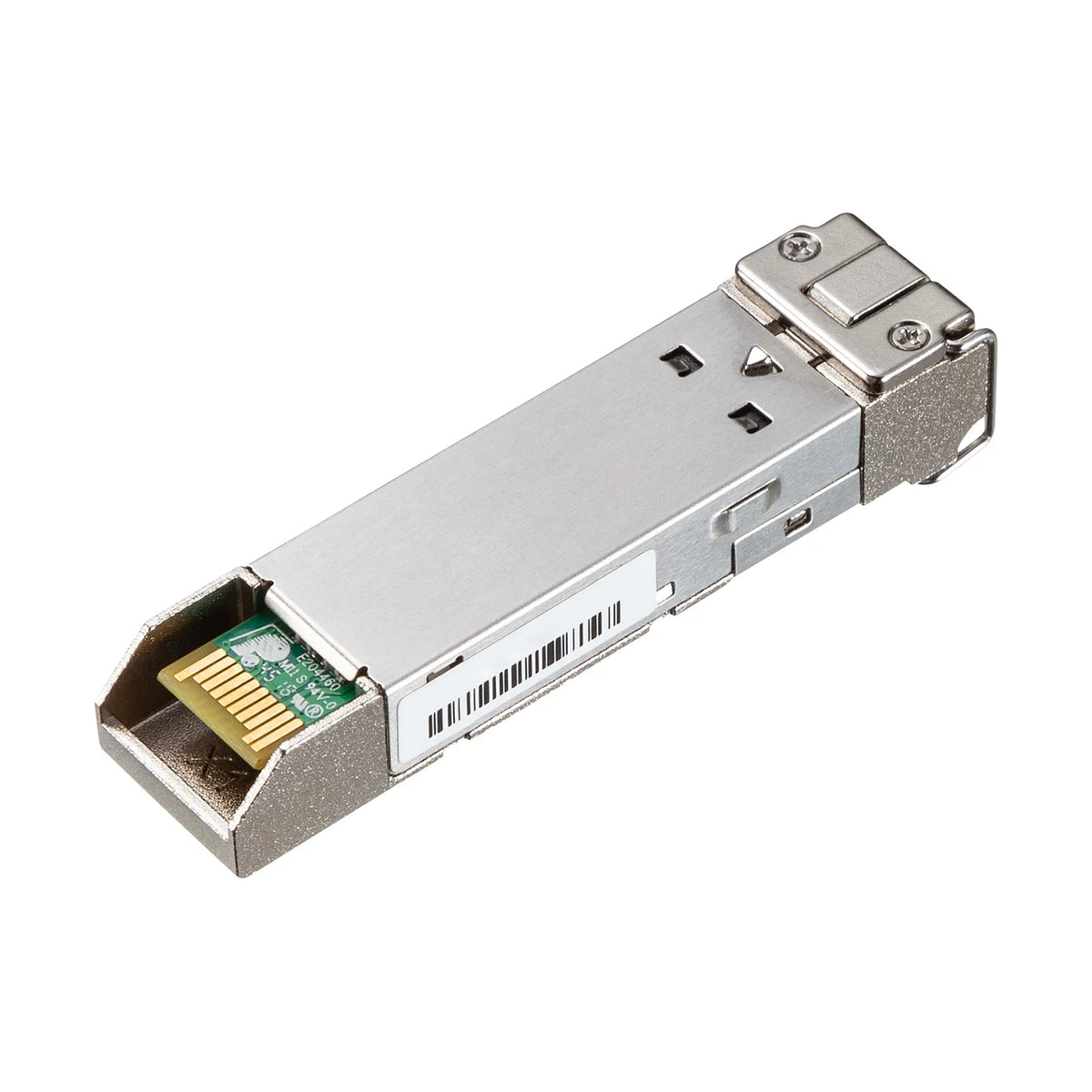

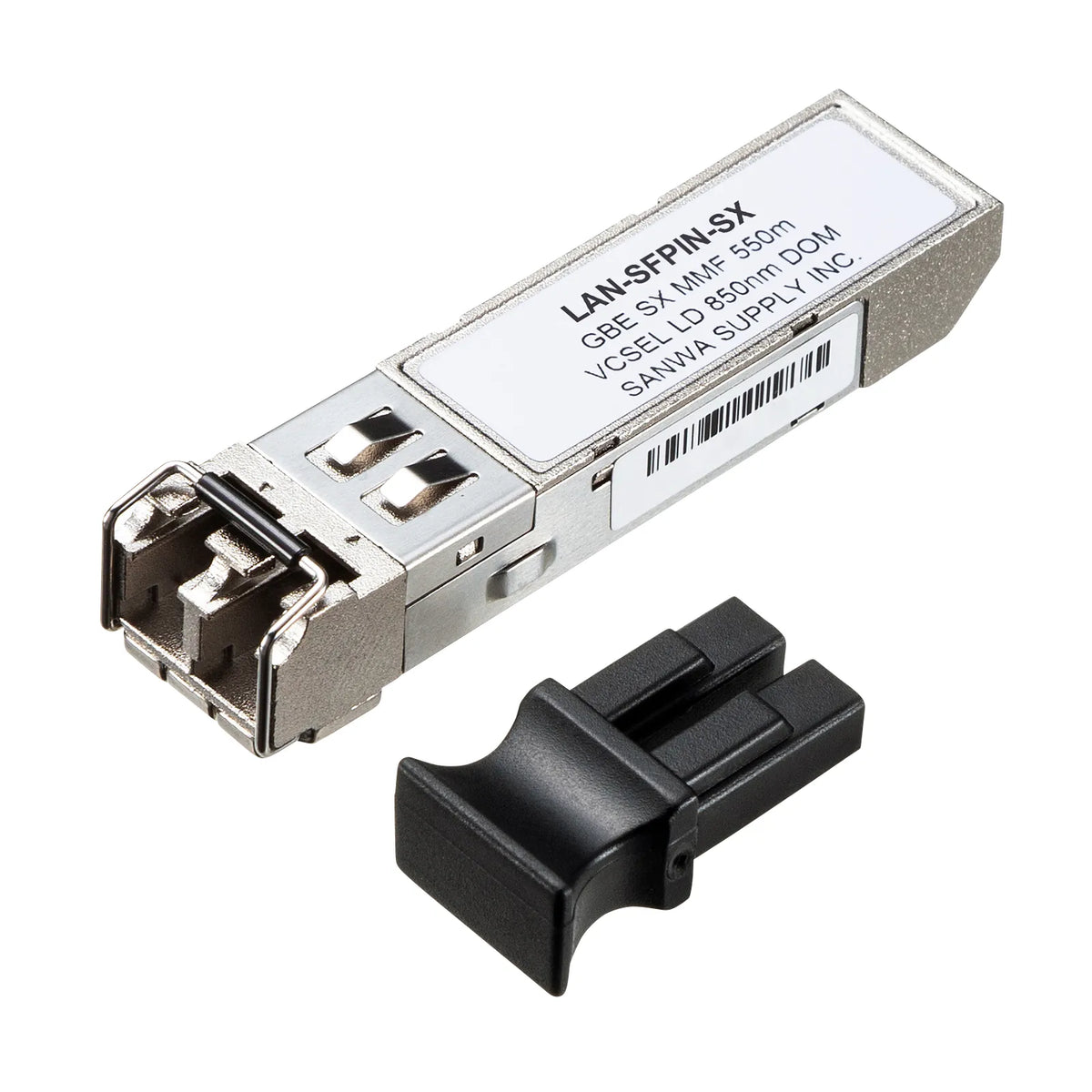

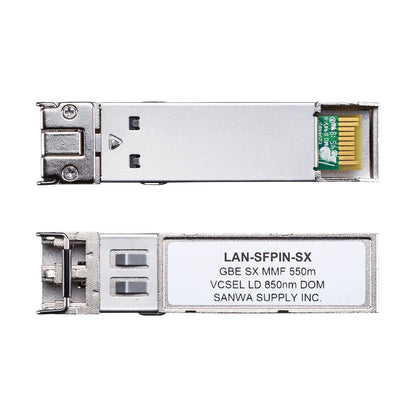

[Digital Diagnostics Monitoring DDMI Compatible, 1000BASE-SX Compliant, Industrial SFP Converter with Operating Temperature of -40°C to 85°C]

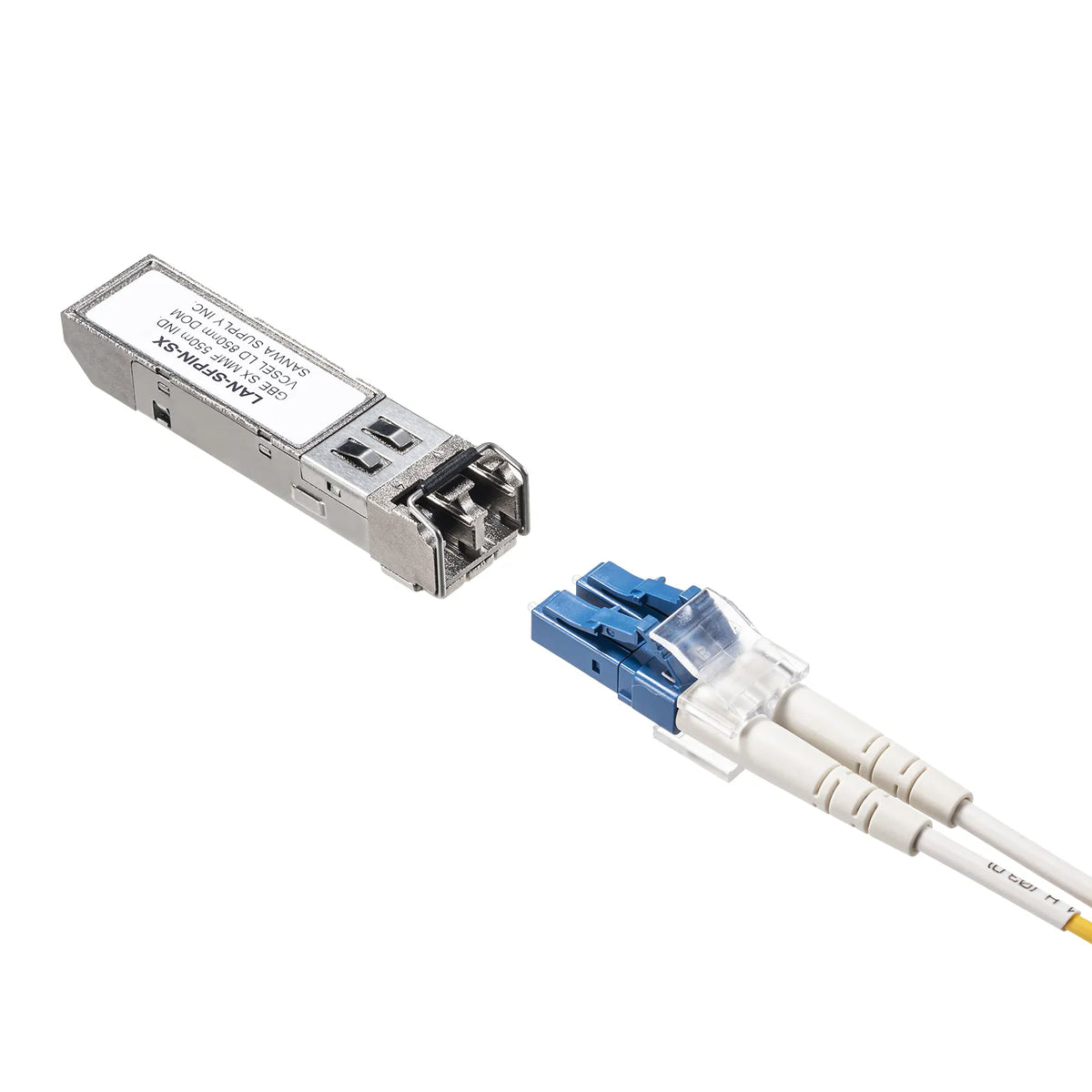

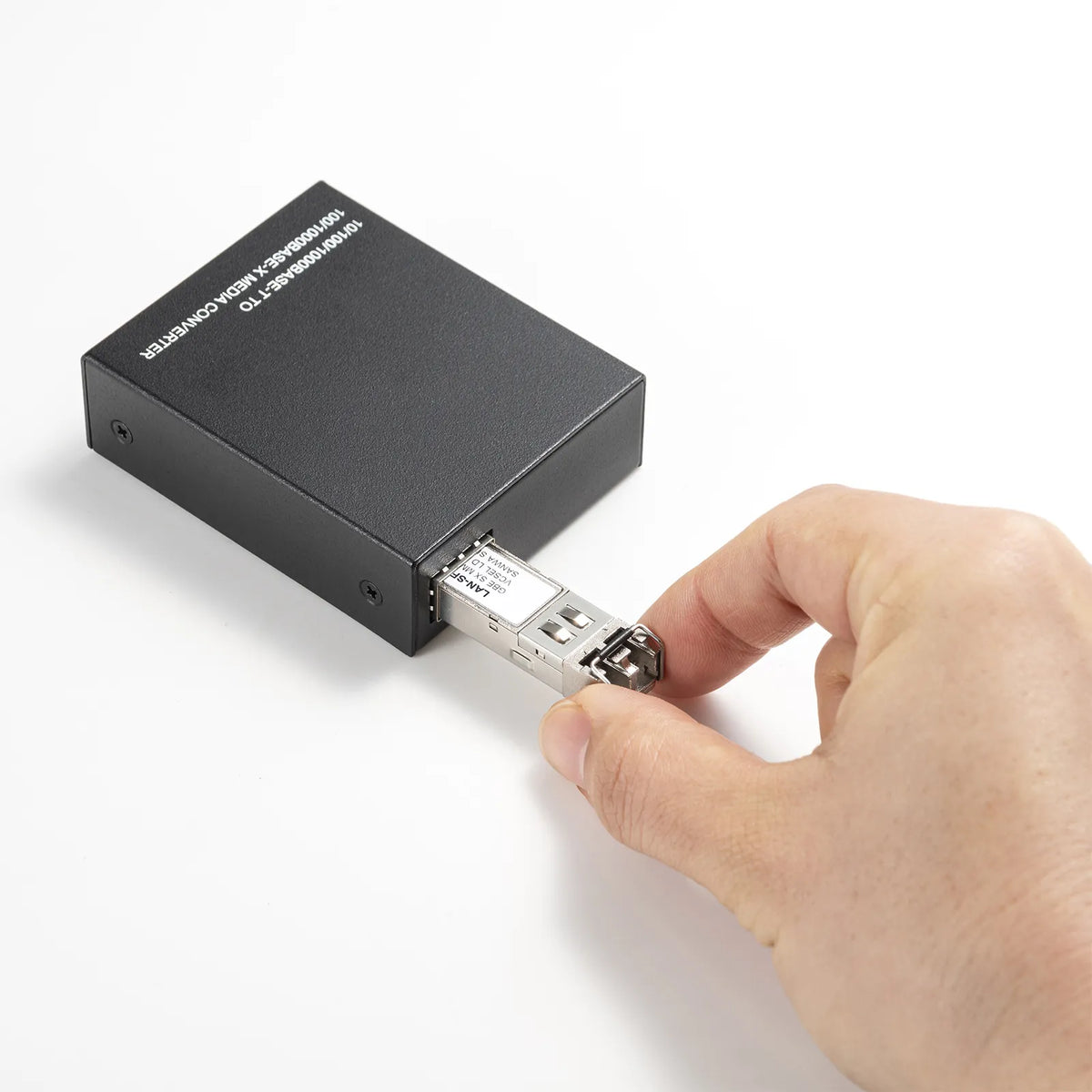

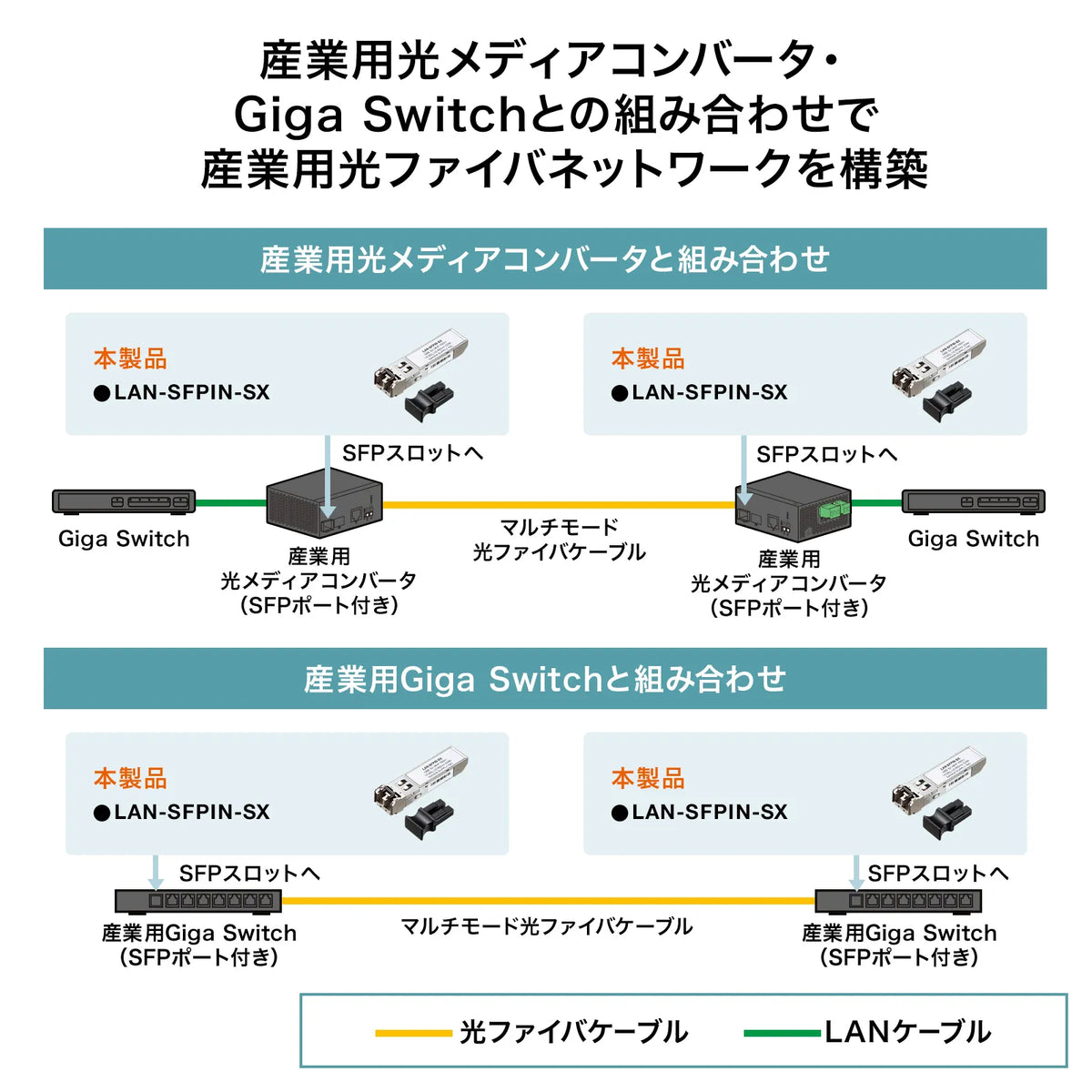

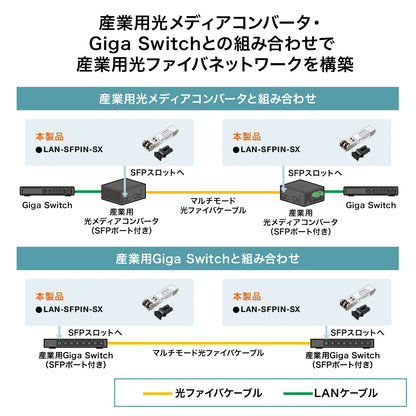

●This is a 1000BASE-SX expansion module that can be attached to network equipment such as switching hubs that have SFP ports (mini GBIC ports). ●It supports an operating temperature of -40 to 85°C, so it can be used in factories and other places with large temperature differences. ●By connecting this product with an LC optical fiber cable, the connection distance between networks can be extended up to a maximum of 550m. ●Since it is transmitted by converting to an optical signal, noise countermeasures are also perfect. ●It supports digital diagnostics monitoring DDMI (Digital Diagnostics Monitoring Interface). ●By replacing the SFP without turning off the power to the equipment, recovery can be done with minimal cost and time, minimizing system downtime. (Hot-swap function that allows plugging in/plugging out while powered on)

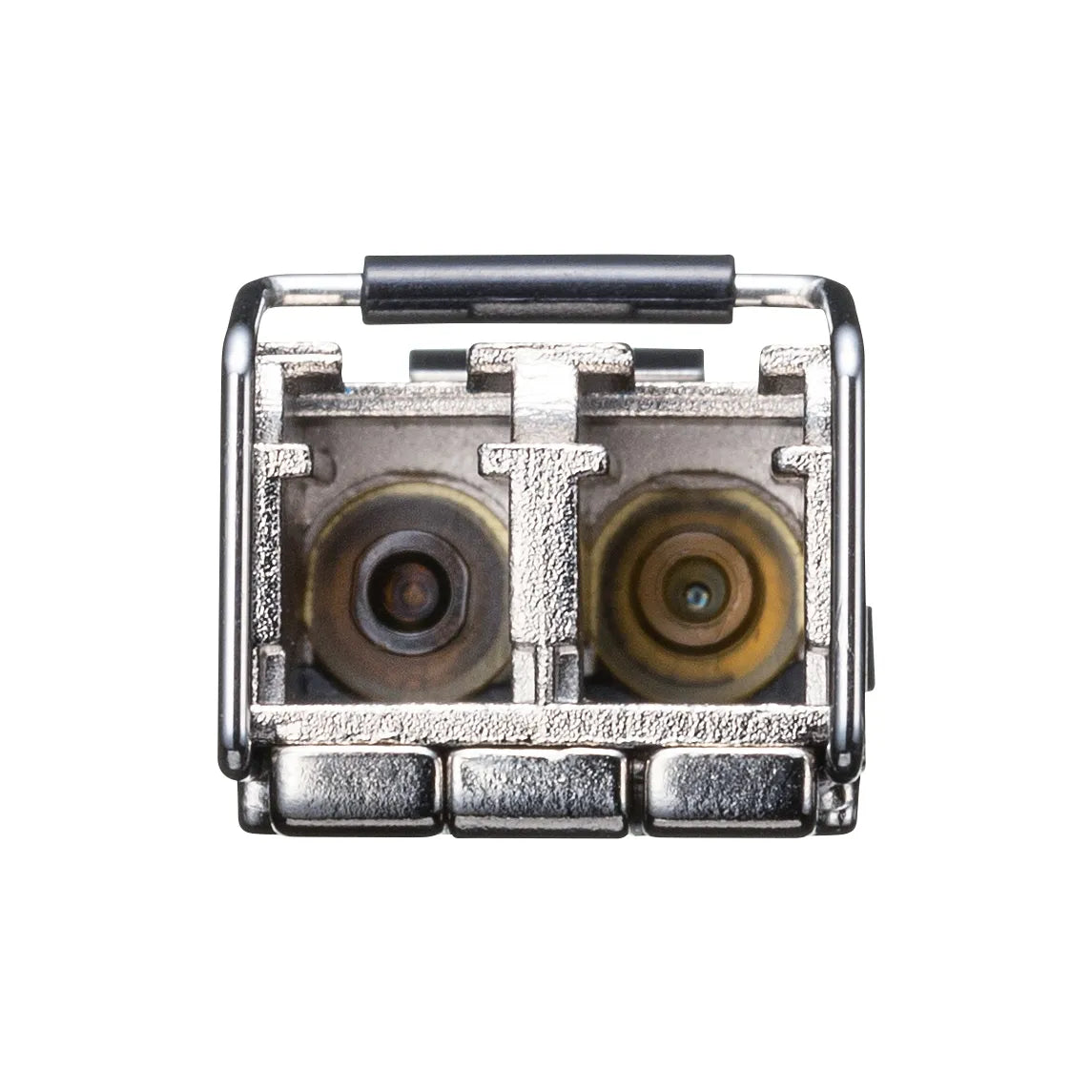

■Connector shape: SFP port x 1 - LC connector x 2 LC connector (duplex) ■Interface standard: IEEE802.3z 1000BASE-SX ■Interface standard: IEEE802.3z (1000BASE-SX) compliant ■Connector: Device side/SFP port, Network side/LC connector (duplex) ■Supported fiber core diameter: 50/125u・62.5/125u ■Wavelength: 850nm ■Transmission speed: 1000Mbps ■Digital diagnostic monitoring: DDMI digital diagnostic monitoring interface ■Speed: 1.0625Gbps (Fiber Channel) / 1.25Gbps (Gigabit Ethernet) ■Transmit power: Maximum -4dBm, Minimum -9.5dBm ■Receive power range: Maximum -3dBm, Minimum -17dBm ■Allowable loss: 7.5dB (when used with the same product) ■Transmission distance: Maximum 550m (50/125u) Maximum 275m (62.5/125u) ■Power supply voltage: 3.1V to 3.3V ■Current consumption: Maximum 240mA ■Operating ambient temperature: -40 to 85 degrees
