SANWA SUPPLY

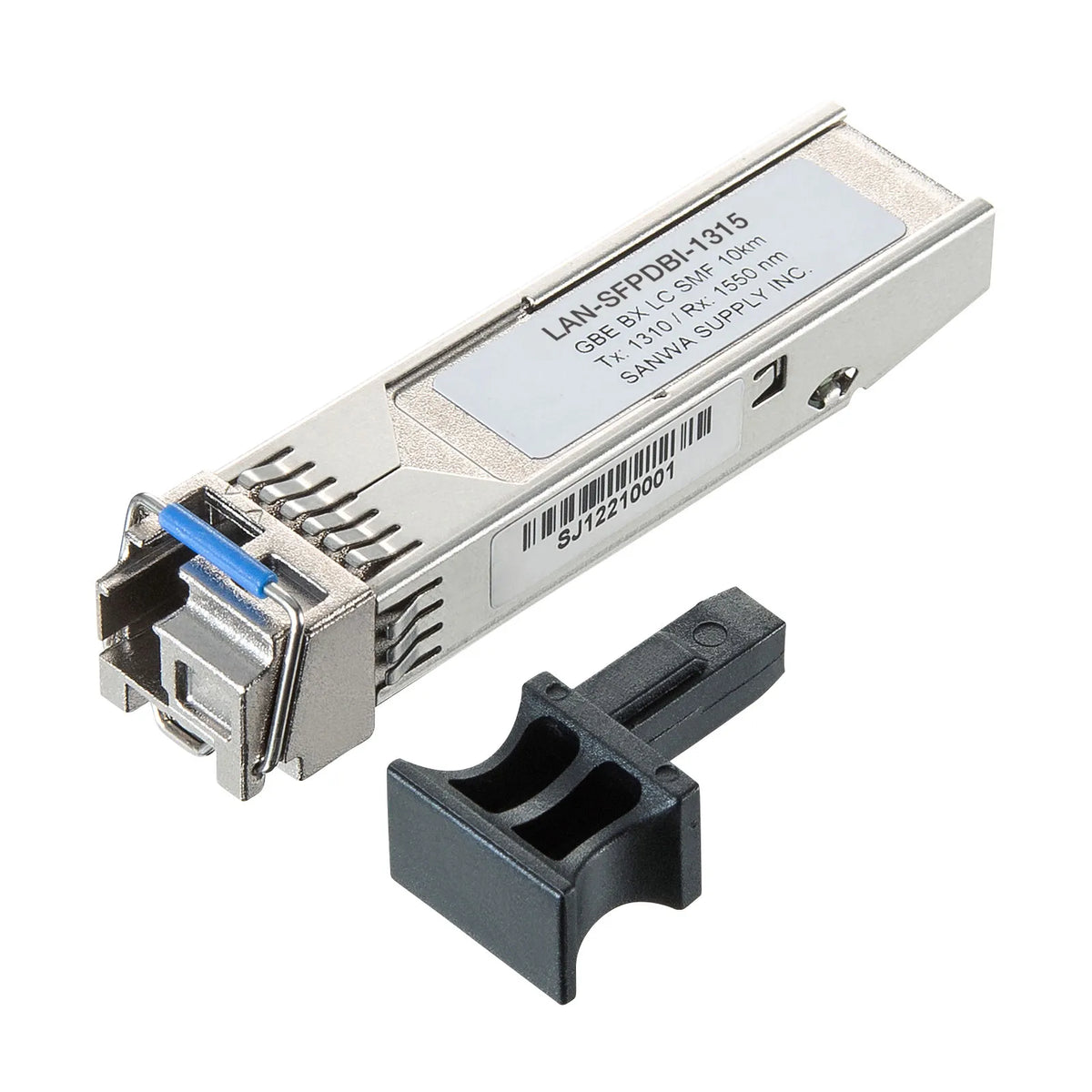

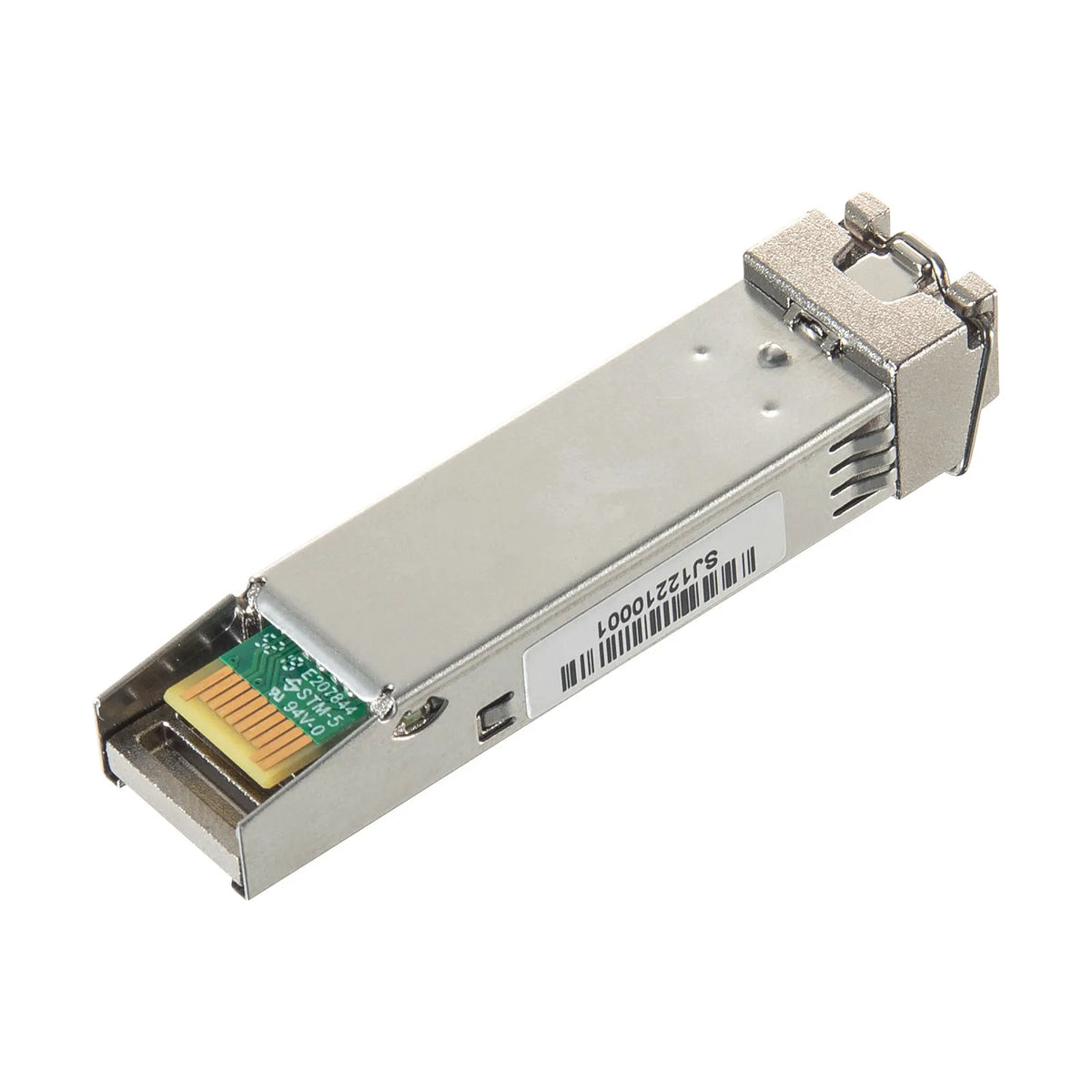

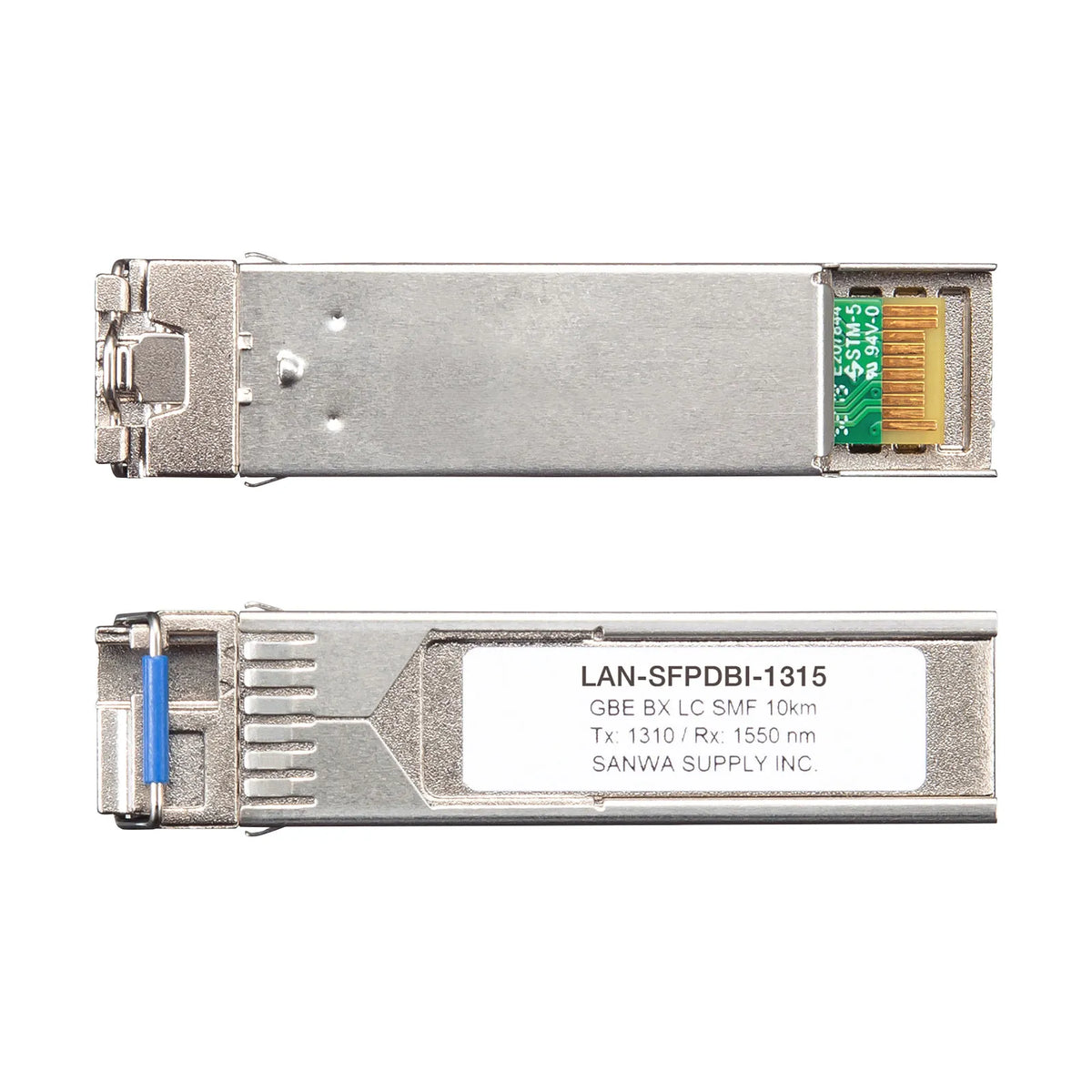

BiDirectional SFP Converter LAN-SFPDBI-1315
BiDirectional SFP Converter LAN-SFPDBI-1315
GTIN（JAN）：4969887755808
SKU：LAN-SFPDBI-1315
Regular price
¥14,012 JPY
Regular price
Sale price
¥14,012 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Digital Diagnostics Monitoring DDMI Compatible, Single-Core Bidirectional 1000BASE-LX Compliant BiDi SFP Converter]
●This is a Gigabit transmission 1000BASE-LX expansion module that can be attached to network equipment such as switching hubs that have an SFP port (mini GBIC port).
●This is a single-core bidirectional converter that enables communication with a single fiber optic cable (single-core type), extending the connection distance between networks up to 10km.
●Since it converts to optical signals for transmission, noise countermeasures are also perfect.
●It supports digital diagnostics monitoring DDMI (Digital Diagnostics Monitoring Interface).
●By replacing the SFP without turning off the power to the equipment, recovery can be done with minimal cost and time, reducing system downtime. (Hot-swap function that allows plugging in/plugging out while powered on)
●By reducing the frequency of malfunctions, it increases peace of mind and reliability in actual work, and overall work efficiency.
●All products undergo a full operational check before leaving the factory, and are delivered with a complete quality system backed by a 3-year free warranty.
*When connecting, please use it bidirectionally with LAN-SFPDBI-1513.
■Interface standard: IEEE802.3z (1000BASE-LX) compliant

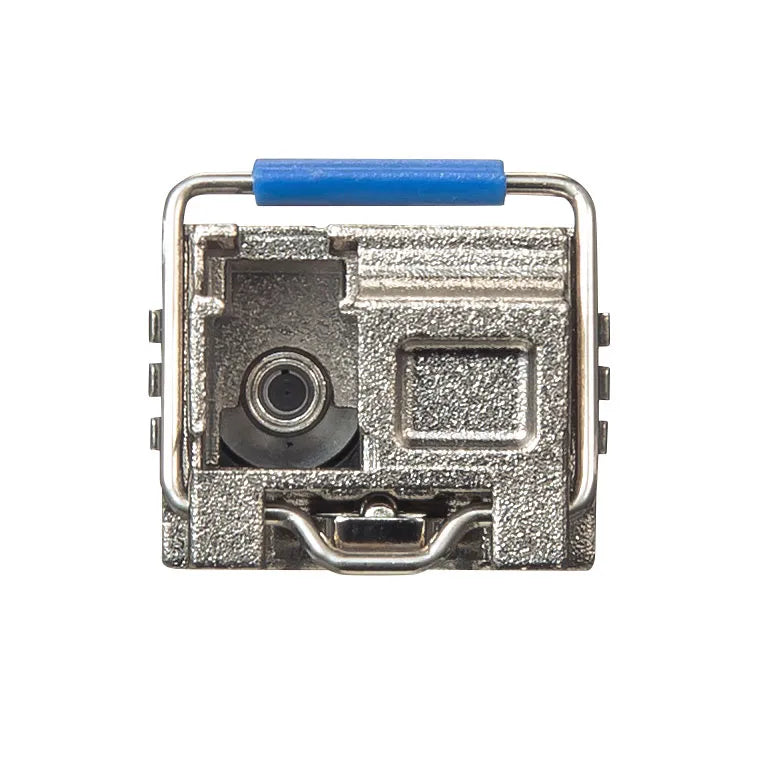

■Connector: Device side/SFP port,
Network side/LC connector (simplex)
■Supported fiber core diameter: 9um/125um
■Wavelength TX/RX: 1310nm/1550nm
■Transmission speed: 1000Mbps
■Speed: 1.0625Gbps (Fiber Channel)/1.25Gbps (Gigabit Ethernet)
■Transmit power: Max -3dBm, Minimum -9.5dBm
■Receive power: Max -3dBm, Minimum -23dBm
■Allowable loss: 13.5dB (when used with the same product)
■Transmission distance: 10km Max
■Power supply voltage: 3.3V
■Current consumption: Max 300mA
■Operating ambient temperature: 0 to 70 degrees
■Digital diagnostic monitoring: DDMI digital diagnostic monitoring interface
●This is a Gigabit transmission 1000BASE-LX expansion module that can be attached to network equipment such as switching hubs that have an SFP port (mini GBIC port).
●This is a single-core bidirectional converter that enables communication with a single fiber optic cable (single-core type), extending the connection distance between networks up to 10km.
●Since it converts to optical signals for transmission, noise countermeasures are also perfect.
●It supports digital diagnostics monitoring DDMI (Digital Diagnostics Monitoring Interface).
●By replacing the SFP without turning off the power to the equipment, recovery can be done with minimal cost and time, reducing system downtime. (Hot-swap function that allows plugging in/plugging out while powered on)
●By reducing the frequency of malfunctions, it increases peace of mind and reliability in actual work, and overall work efficiency.
●All products undergo a full operational check before leaving the factory, and are delivered with a complete quality system backed by a 3-year free warranty.
*When connecting, please use it bidirectionally with LAN-SFPDBI-1513.
■Interface standard: IEEE802.3z (1000BASE-LX) compliant
■Connector: Device side/SFP port,
Network side/LC connector (simplex)
■Supported fiber core diameter: 9um/125um
■Wavelength TX/RX: 1310nm/1550nm
■Transmission speed: 1000Mbps
■Speed: 1.0625Gbps (Fiber Channel)/1.25Gbps (Gigabit Ethernet)
■Transmit power: Max -3dBm, Minimum -9.5dBm
■Receive power: Max -3dBm, Minimum -23dBm
■Allowable loss: 13.5dB (when used with the same product)
■Transmission distance: 10km Max
■Power supply voltage: 3.3V
■Current consumption: Max 300mA
■Operating ambient temperature: 0 to 70 degrees
■Digital diagnostic monitoring: DDMI digital diagnostic monitoring interface
