SANWA SUPPLY

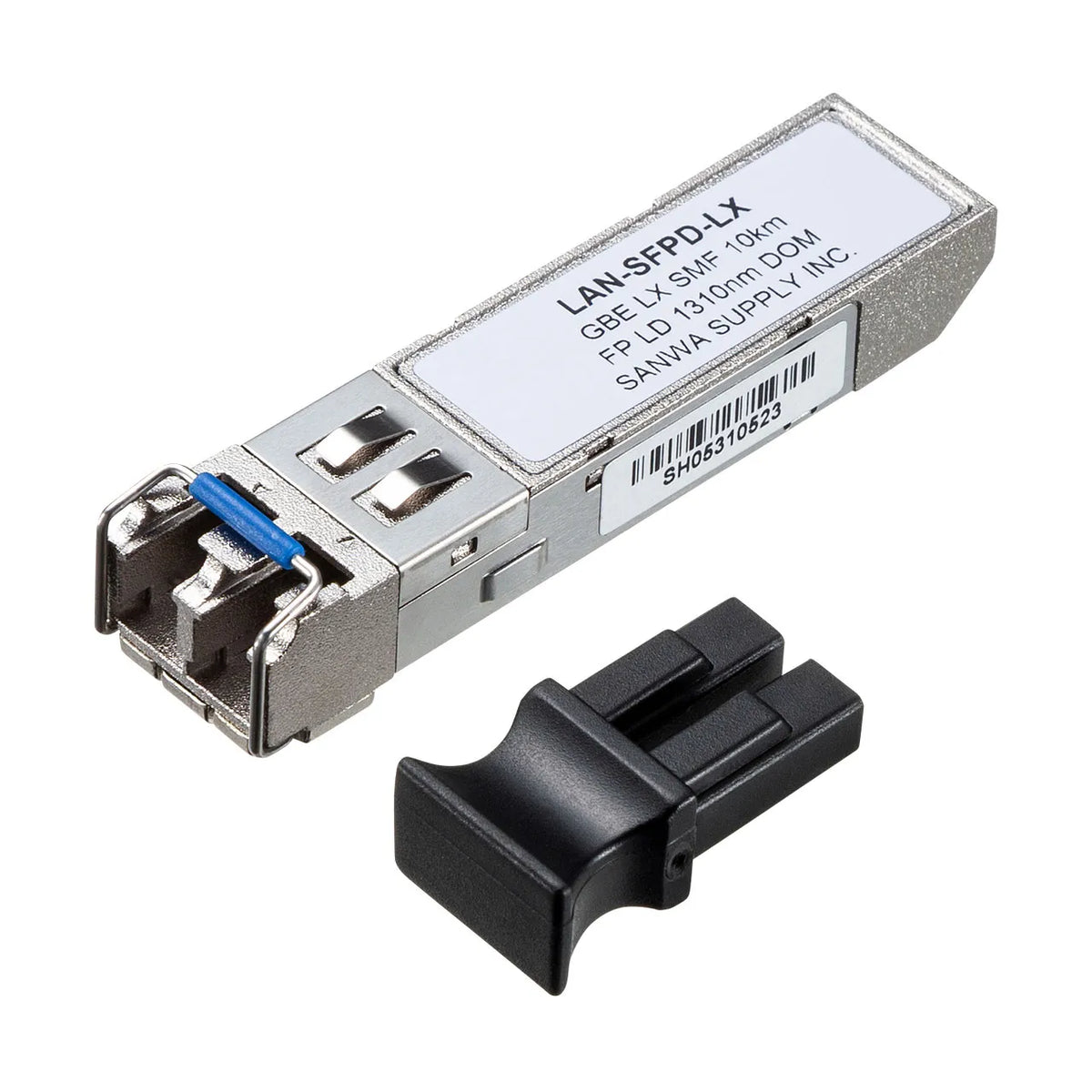

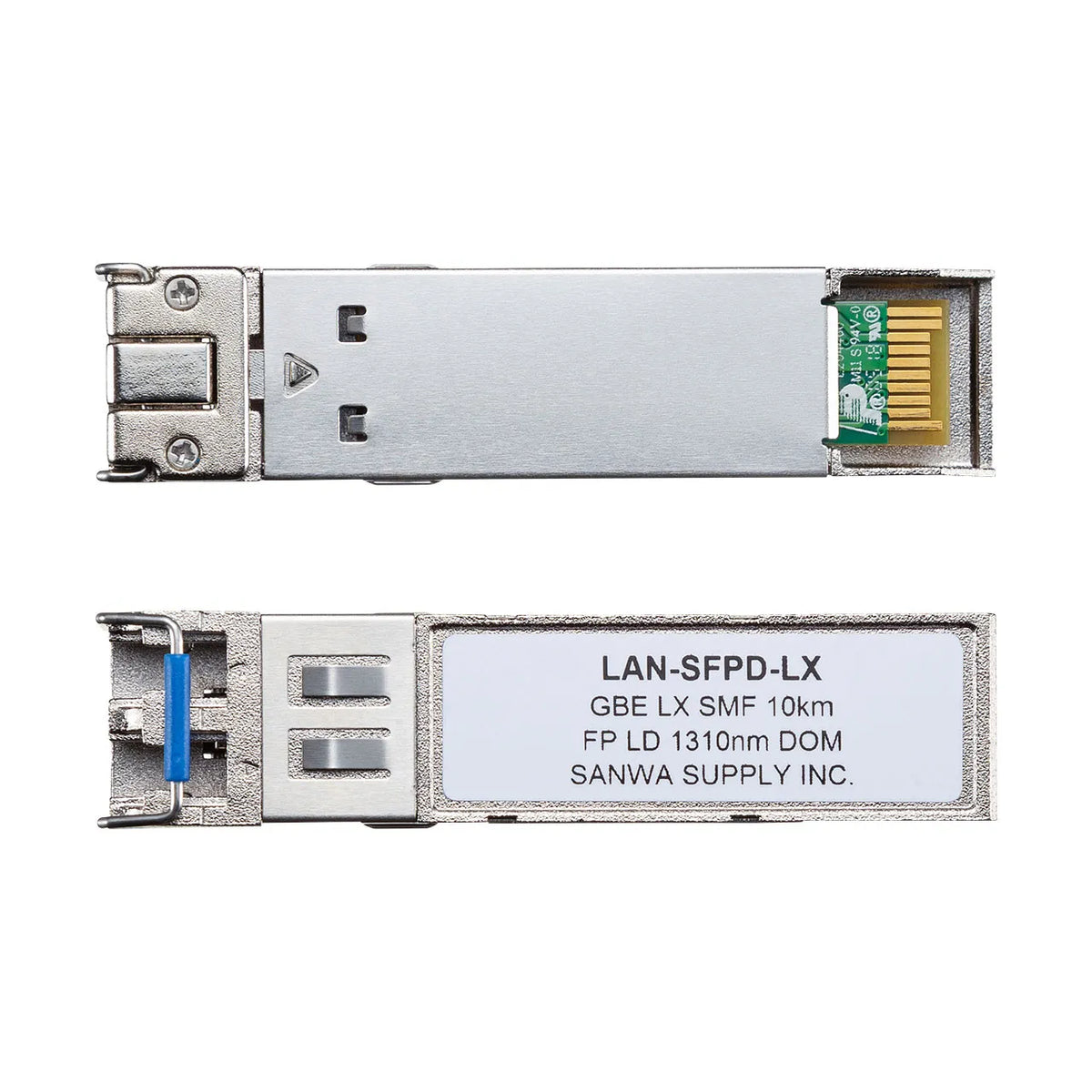

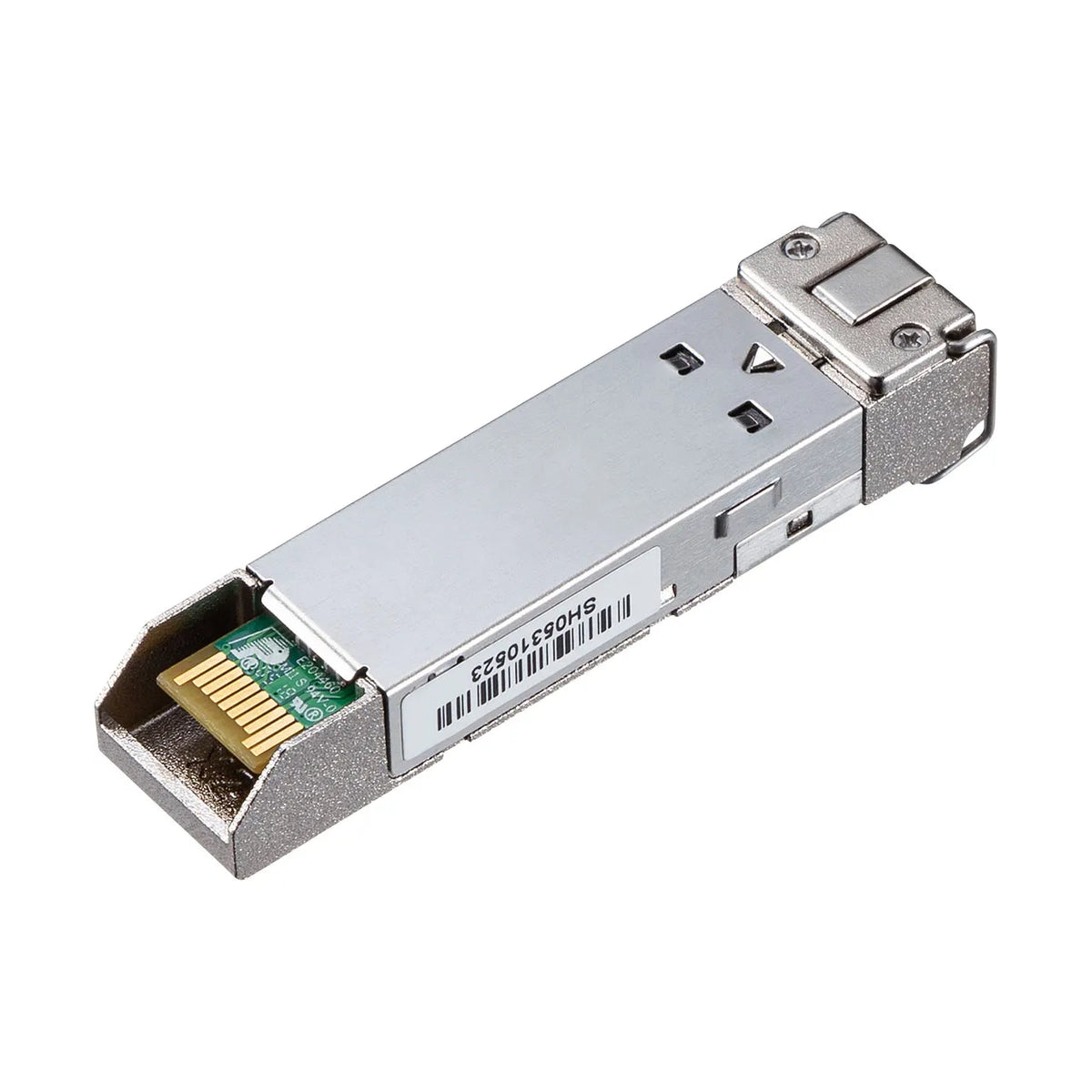

SFP Gigabit Converter LAN-SFPD-LX
SFP Gigabit Converter LAN-SFPD-LX
GTIN（JAN）：4969887754337
SKU：LAN-SFPD-LX
Regular price
¥8,131 JPY
Regular price
Sale price
¥8,131 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Digital Diagnostics Monitoring DDMI Compatible, 1000BASE-LX Compliant SFP Gigabit Converter]
●This is a 1000BASE-LX expansion module that can be attached to network equipment such as switching hubs that have SFP ports (mini GBIC ports).
●By connecting this product with an LC optical fiber cable, the connection distance between networks can be extended up to 10km.
●Since it is transmitted by converting to an optical signal, noise countermeasures are also perfect.
●It supports digital diagnostics monitoring DDMI (Digital Diagnostics Monitoring Interface).
●All products undergo operational checks at the factory before shipment and are delivered with a perfect quality system.
●By reducing the frequency of malfunctions, it increases peace of mind and reliability in actual work and overall work efficiency.
●By replacing the SFP without turning off the power to the equipment, recovery can be done with minimal cost and time, and system downtime can be reduced. (Hot-swappable function allowing plug-in/plug-out while powered on)
■Interface standard: IEEE802.3z (1000BASE-LX) compliant
■Connectors:

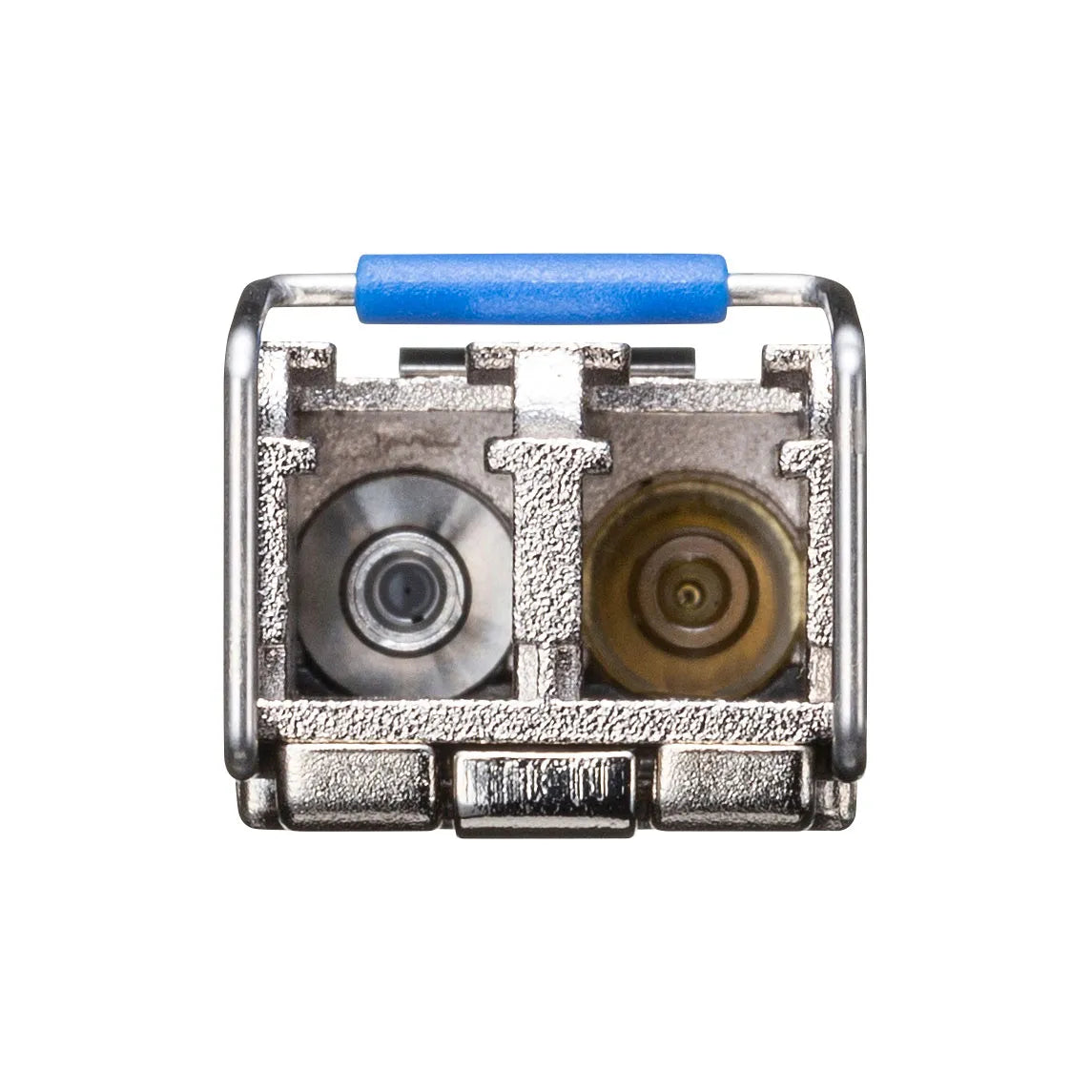

Device side/SFP port, Network side/LC connector (duplex)
■Supported fiber core diameter: 9um/125um
■Wavelength: 1310nm
■Transmission speed: 1000Mbps
■Digital diagnostic monitoring: DDMI digital diagnostic monitoring interface
■Speed: 1.0625Gbps (Fiber Channel)/1.25Gbps (Gigabit Ethernet)
■Transmit power: Max -3dBm, Minimum -9.5dBm
■Receive power range: Max -3dBm, Minimum -23dBm
■Allowable loss: 13.5dB (when used with the same product)
■Transmission distance: 10km Max
■Power supply voltage: 3.1V to 3.3V
■Current consumption: Maximum 300mA
■Using environment temperature: 0 to 70 degrees
■Size: W13.8 x D57.2 x H8.5mm
●This is a 1000BASE-LX expansion module that can be attached to network equipment such as switching hubs that have SFP ports (mini GBIC ports).
●By connecting this product with an LC optical fiber cable, the connection distance between networks can be extended up to 10km.
●Since it is transmitted by converting to an optical signal, noise countermeasures are also perfect.
●It supports digital diagnostics monitoring DDMI (Digital Diagnostics Monitoring Interface).
●All products undergo operational checks at the factory before shipment and are delivered with a perfect quality system.
●By reducing the frequency of malfunctions, it increases peace of mind and reliability in actual work and overall work efficiency.
●By replacing the SFP without turning off the power to the equipment, recovery can be done with minimal cost and time, and system downtime can be reduced. (Hot-swappable function allowing plug-in/plug-out while powered on)
■Interface standard: IEEE802.3z (1000BASE-LX) compliant
■Connectors:
Device side/SFP port, Network side/LC connector (duplex)
■Supported fiber core diameter: 9um/125um
■Wavelength: 1310nm
■Transmission speed: 1000Mbps
■Digital diagnostic monitoring: DDMI digital diagnostic monitoring interface
■Speed: 1.0625Gbps (Fiber Channel)/1.25Gbps (Gigabit Ethernet)
■Transmit power: Max -3dBm, Minimum -9.5dBm
■Receive power range: Max -3dBm, Minimum -23dBm
■Allowable loss: 13.5dB (when used with the same product)
■Transmission distance: 10km Max
■Power supply voltage: 3.1V to 3.3V
■Current consumption: Maximum 300mA
■Using environment temperature: 0 to 70 degrees
■Size: W13.8 x D57.2 x H8.5mm
