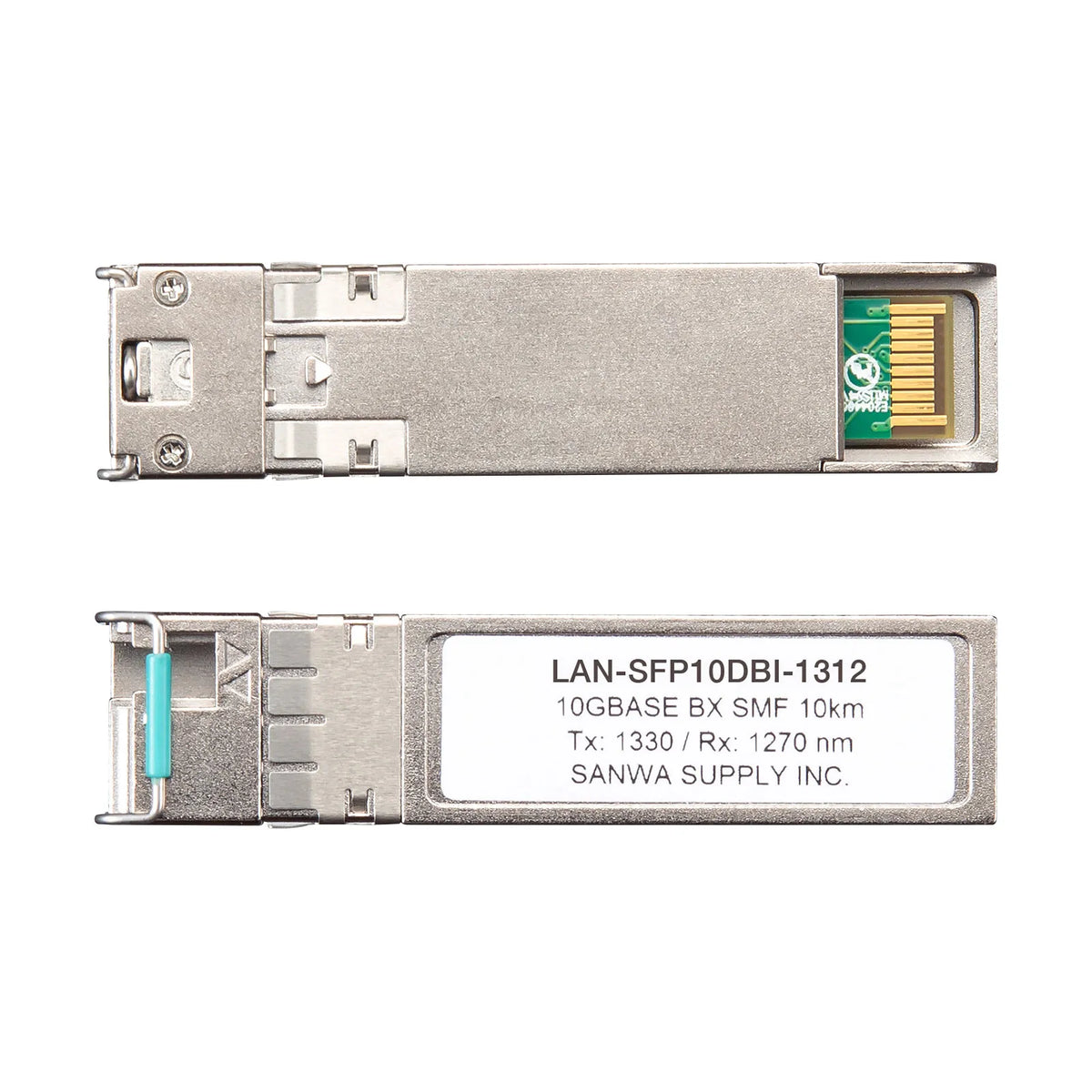

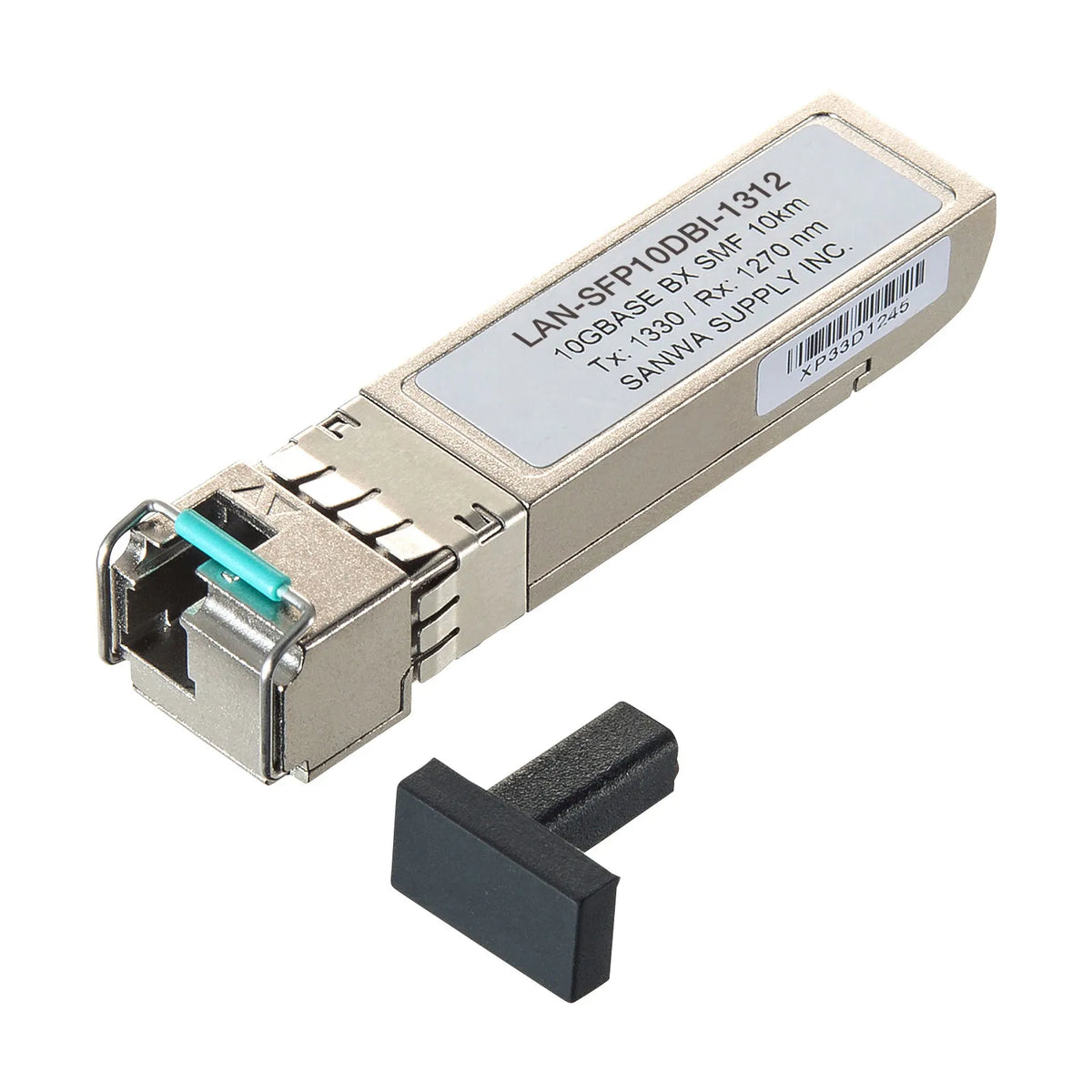

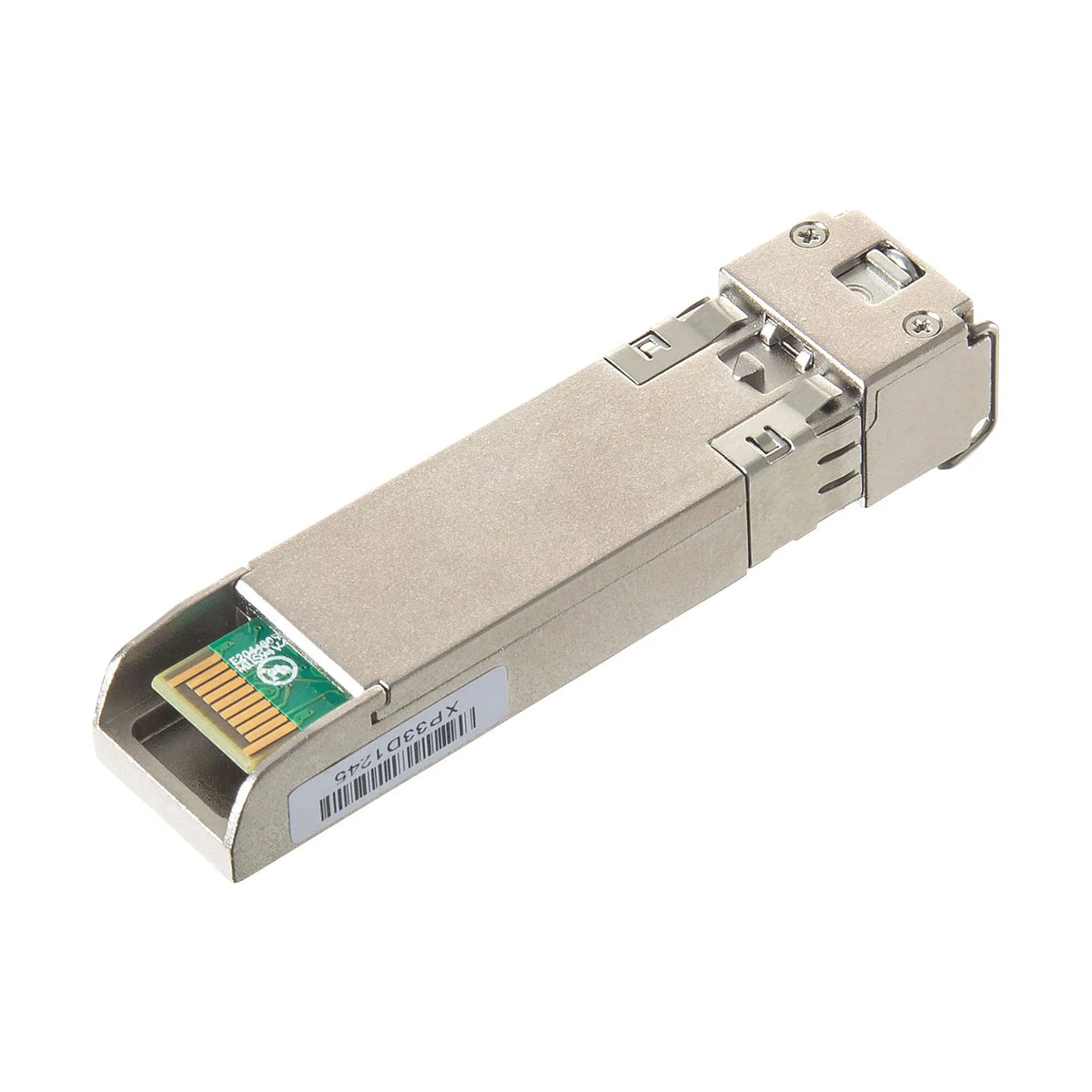

BiDirectional SFP Converter LAN-SFP10DBI-1312
BiDirectional SFP Converter LAN-SFP10DBI-1312
GTIN（JAN）：4969887755839
SKU：LAN-SFP10DBI-1312
Regular price
¥25,410 JPY
Regular price
Sale price
¥25,410 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Digital Diagnostics Monitoring DDMI Compatible, Single-Core Bidirectional 10GBASE-LR Compliant BiDi SFP+ Converter]
●This is a 10 Gigabit transmission 10GBASE-LR expansion module that can be attached to network equipment such as switching hubs that have an SFP port (mini GBIC port).
●This is a single-core bidirectional converter that enables communication with a single fiber optic cable (single-core type), extending the connection distance between networks up to 10km.
●Since it converts to an optical signal for transmission, noise countermeasures are also perfect.
●It supports digital diagnostics monitoring DDMI (Digital Diagnostics Monitoring Interface).
●By replacing the SFP without turning off the power to the equipment, recovery can be done with minimal cost and time, reducing system downtime. (Hot-swap function that allows plugging in/plugging out while powered on)
●By reducing the frequency of malfunctions, it increases peace of mind and reliability in actual work, and overall work efficiency.
●All products undergo a full operational check before leaving the factory, and are delivered with a complete quality system backed by a 3-year free warranty.
*When connecting, please use it in bidirectional mode with LAN-SFP10DBI-1213.
■Interface standard: IEEE802.3ae (10GBASE-LR) compliant

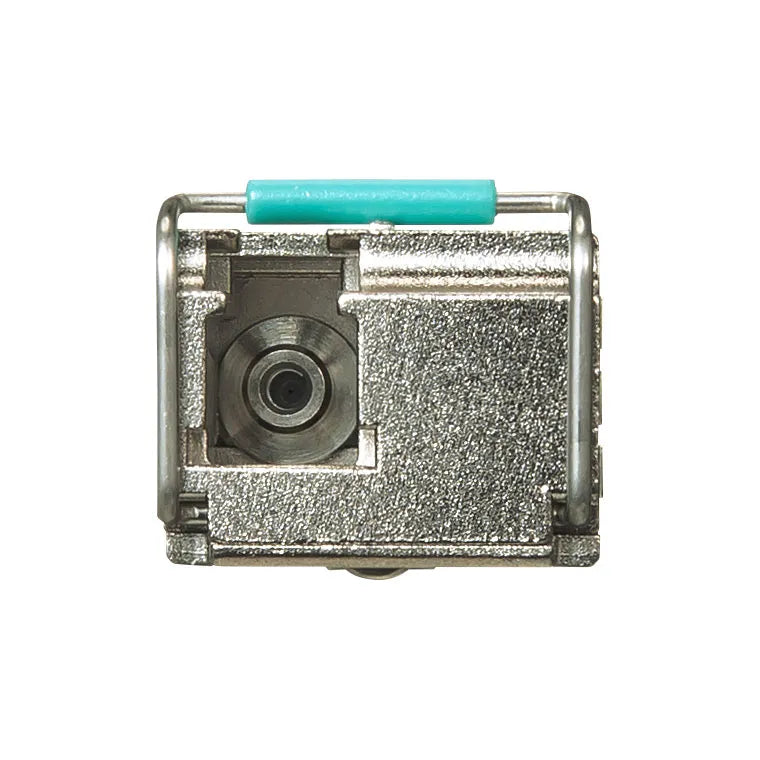

■Connector: Device side/SFP port,
Network side/LC connector (simplex)
■Supported fiber core diameter: 9um/125um
■Wavelength TX/RX: 1330nm/1270nm
■Transmission speed: 10Gbps
■Speed: 10.3125Gbps (Gigabit Ethernet)
■Transmit power: Max 0.5dBm, Minimum -8.2dBm
■Receive power: Max 0.5dBm, Minimum -14.4dBm
■Allowable loss: 6.2dB (when used with the same product)
■Transmission distance: 10km Max
■Power supply voltage: 3.3V
■Current consumption: Max 300mA
■Operating ambient temperature: 0 to 70 degrees
■Digital diagnostic monitoring: DDMI digital diagnostic monitoring interface
●This is a 10 Gigabit transmission 10GBASE-LR expansion module that can be attached to network equipment such as switching hubs that have an SFP port (mini GBIC port).
●This is a single-core bidirectional converter that enables communication with a single fiber optic cable (single-core type), extending the connection distance between networks up to 10km.
●Since it converts to an optical signal for transmission, noise countermeasures are also perfect.
●It supports digital diagnostics monitoring DDMI (Digital Diagnostics Monitoring Interface).
●By replacing the SFP without turning off the power to the equipment, recovery can be done with minimal cost and time, reducing system downtime. (Hot-swap function that allows plugging in/plugging out while powered on)
●By reducing the frequency of malfunctions, it increases peace of mind and reliability in actual work, and overall work efficiency.
●All products undergo a full operational check before leaving the factory, and are delivered with a complete quality system backed by a 3-year free warranty.
*When connecting, please use it in bidirectional mode with LAN-SFP10DBI-1213.
