SANWA SUPPLY
Optical Media Converter LAN-PSC212RFN
Optical Media Converter LAN-PSC212RFN
GTIN（JAN）：4969887757765
SKU：LAN-PSC212RFN
Regular price
¥45,157 JPY
Regular price
Sale price
¥45,157 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Optical media converter ideal for Gigabit long-distance networks, unaffected by noise]

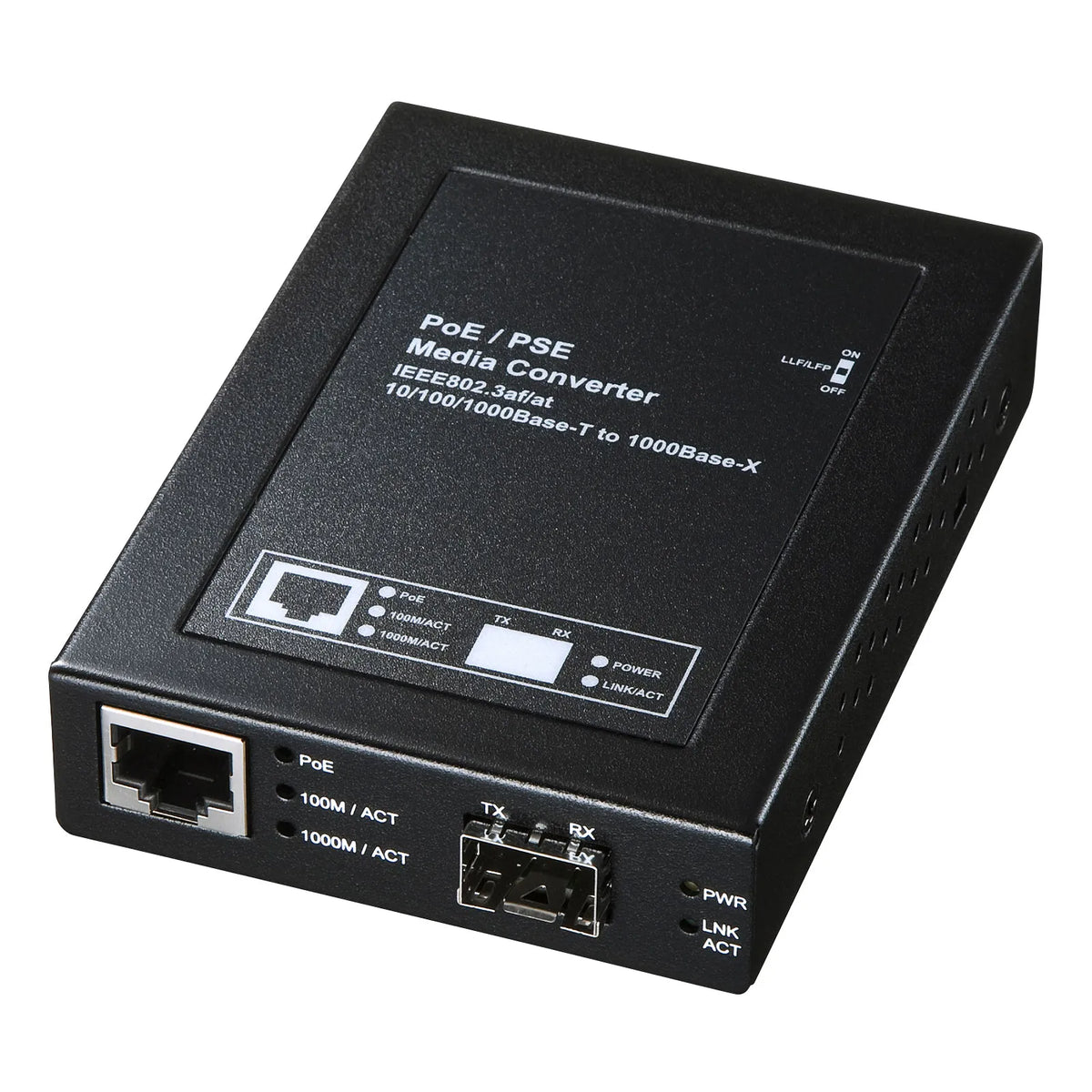

●Equipped with a PoE (PSE) compatible RJ-45 port (port for metal cables) and an SFP port, it can integrate 10BASE-T/100BASE-TX/1000BASE-T into 1000BASE-SX/LX networks.
●Supports 10BASE-T/100BASE-TX/1000BASE-T and 1000BASE-SX/LX.
●The RJ-45 port supports PoE (PSE *maximum 30W), auto-negotiation, full-duplex, flow control, and Auto-MDI/MDI-X.
●The SFP port supports both multimode and single-mode.
●Equipped with LLF (Link Lost Forwarding) and LFP (Link Fault Pass Through) functions.
●Equipped with an LED that shows the connection status at a glance.
*This product cannot be used on its own.
This product requires a separately sold SFP module (such as LAN-SFPD-SX) to be used.
■Standards:
IEEE802.3
IEEE802.3u
IEEE802.3ab
IEEE 802.3z
IEEE802.3x
IEEE 802.3at PoE+
■Connector shape: RJ-45 connector x 1, SFP port x 1
■RJ-45 port: 10BASE-T, 100BASE-TX, 1000BASE-T, IEEE 802.3at (PoE+)
■SFP port compatible module:
※Depending on the SFP
MMF (850nm, 220/550m)
SMF (1310nm, 10/30km)
SMF (1550nm, 50/70/110km)
WDM (BiDirectional TX 1310nm/RX 1550nm, 10/20/40/60km)
WDM (BiDirectional TX 1550nm/RX 1310nm, 10/20/40/60km)
■Compatible SFP modules:
LAN-SFPD-SX
LAN-SFPD-LX
LAN-SFPDBI-1315
LAN-SFPDBI-1513

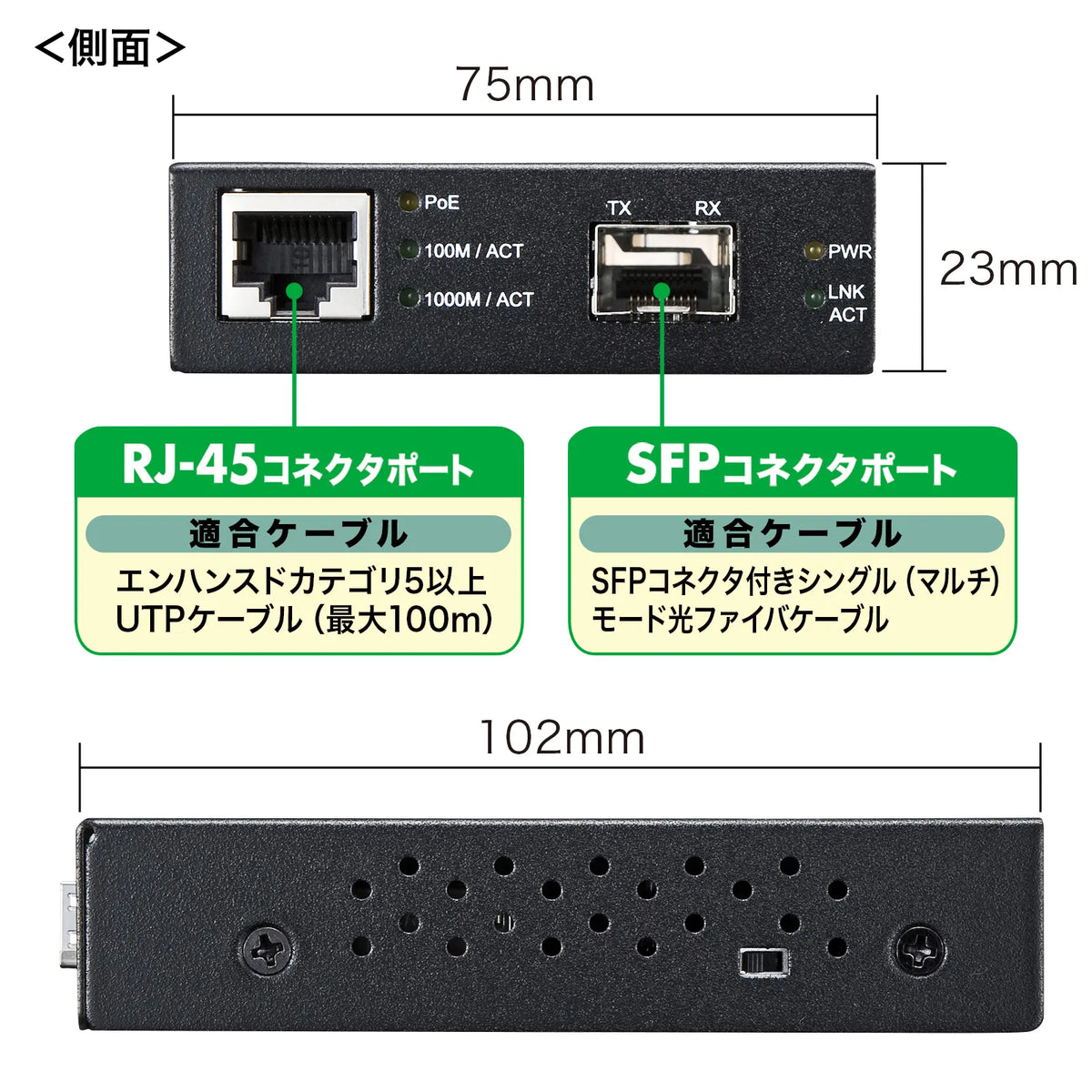

■Dimensions: W75×D104×H22.5mm
■Weight: 210g
■Accessories: AC adapter (DC54V/0.92A, maximum 36W)
●Equipped with a PoE (PSE) compatible RJ-45 port (port for metal cables) and an SFP port, it can integrate 10BASE-T/100BASE-TX/1000BASE-T into 1000BASE-SX/LX networks.
●Supports 10BASE-T/100BASE-TX/1000BASE-T and 1000BASE-SX/LX.
●The RJ-45 port supports PoE (PSE *maximum 30W), auto-negotiation, full-duplex, flow control, and Auto-MDI/MDI-X.
●The SFP port supports both multimode and single-mode.
●Equipped with LLF (Link Lost Forwarding) and LFP (Link Fault Pass Through) functions.
●Equipped with an LED that shows the connection status at a glance.
*This product cannot be used on its own.
This product requires a separately sold SFP module (such as LAN-SFPD-SX) to be used.
■Standards:
IEEE802.3
IEEE802.3u
IEEE802.3ab
IEEE 802.3z
IEEE802.3x
IEEE 802.3at PoE+
■Connector shape: RJ-45 connector x 1, SFP port x 1
■RJ-45 port: 10BASE-T, 100BASE-TX, 1000BASE-T, IEEE 802.3at (PoE+)
■SFP port compatible module:
※Depending on the SFP
MMF (850nm, 220/550m)
SMF (1310nm, 10/30km)
SMF (1550nm, 50/70/110km)
WDM (BiDirectional TX 1310nm/RX 1550nm, 10/20/40/60km)
WDM (BiDirectional TX 1550nm/RX 1310nm, 10/20/40/60km)
■Compatible SFP modules:
LAN-SFPD-SX
LAN-SFPD-LX
LAN-SFPDBI-1315
LAN-SFPDBI-1513
■Dimensions: W75×D104×H22.5mm
■Weight: 210g
■Accessories: AC adapter (DC54V/0.92A, maximum 36W)
