SANWA SUPPLY
Industrial Optical Media Converter LAN-NGC240
Industrial Optical Media Converter LAN-NGC240
GTIN（JAN）：4969887754269
SKU：LAN-NGC240
Regular price
¥63,162 JPY
Regular price
Sale price
¥63,162 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[An optical media converter unaffected by noise, ideal for long-distance networks, and with excellent environmental resistance from -40 degrees Celsius]
●This is an optical media converter for 10/100TX/1000T-100/1000SFP (LC).
●For Gigabit Ethernet (1Gbps).
●Supports a wide operating temperature range and achieves a long MTBF.
●Equipped with automatic MDI/MDI-X detection and auto-negotiation functions on the LAN cable port.
●Equipped with LFPT function that immediately notifies the other link when a link failure occurs on one side.
●Supports jumbo frame (9.6Kbytes/100M) conversion.
●SFP port supports dual rate (100M/1G).

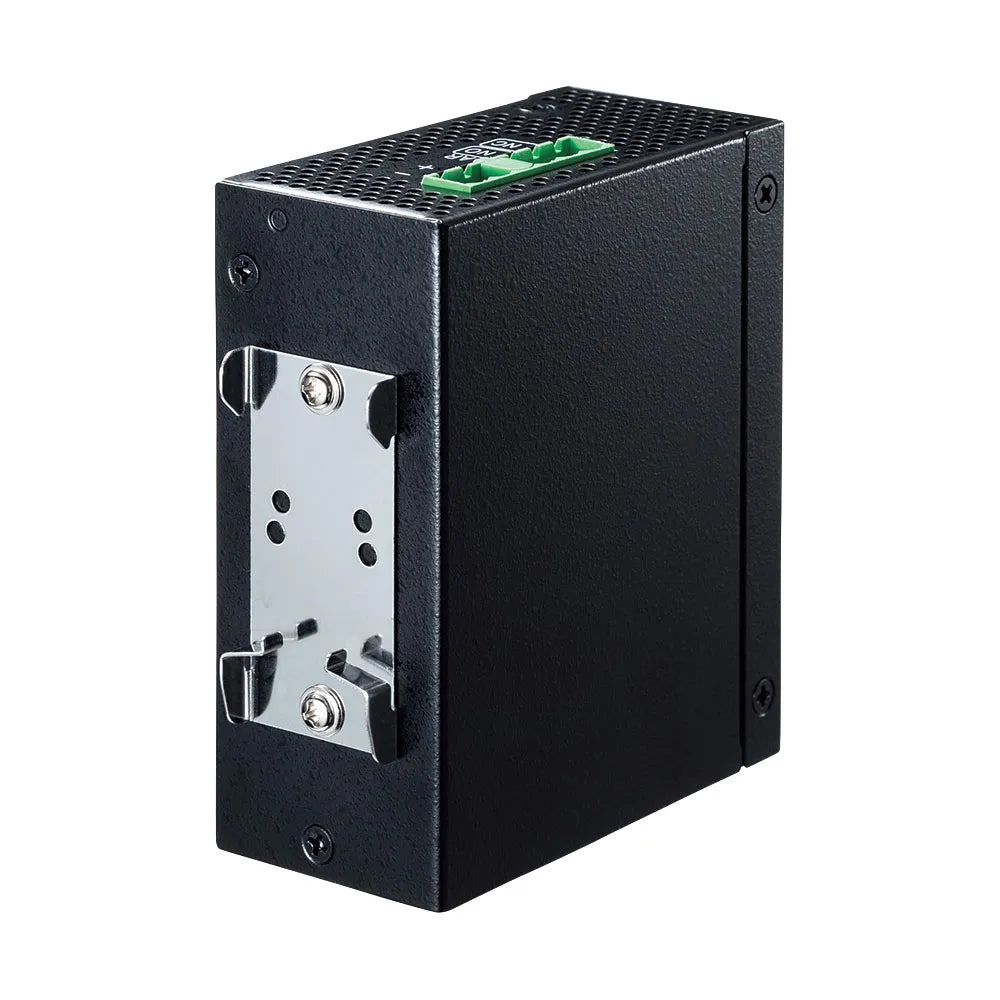

●Can be mounted on a DIN rail as standard.
●Compact and lightweight, and supports EEE low-power Ethernet.
*Power supply (input voltage DC +12V to +30V) is compatible with DC power.
*SFP is not included with this product.
■Standards: IEEE802.3 10BASE-T
IEEE802.3ab 1000BASE-T
IEEE802.3u 100BASE-TX/FX
IEEE 802.3z 1000Base-X

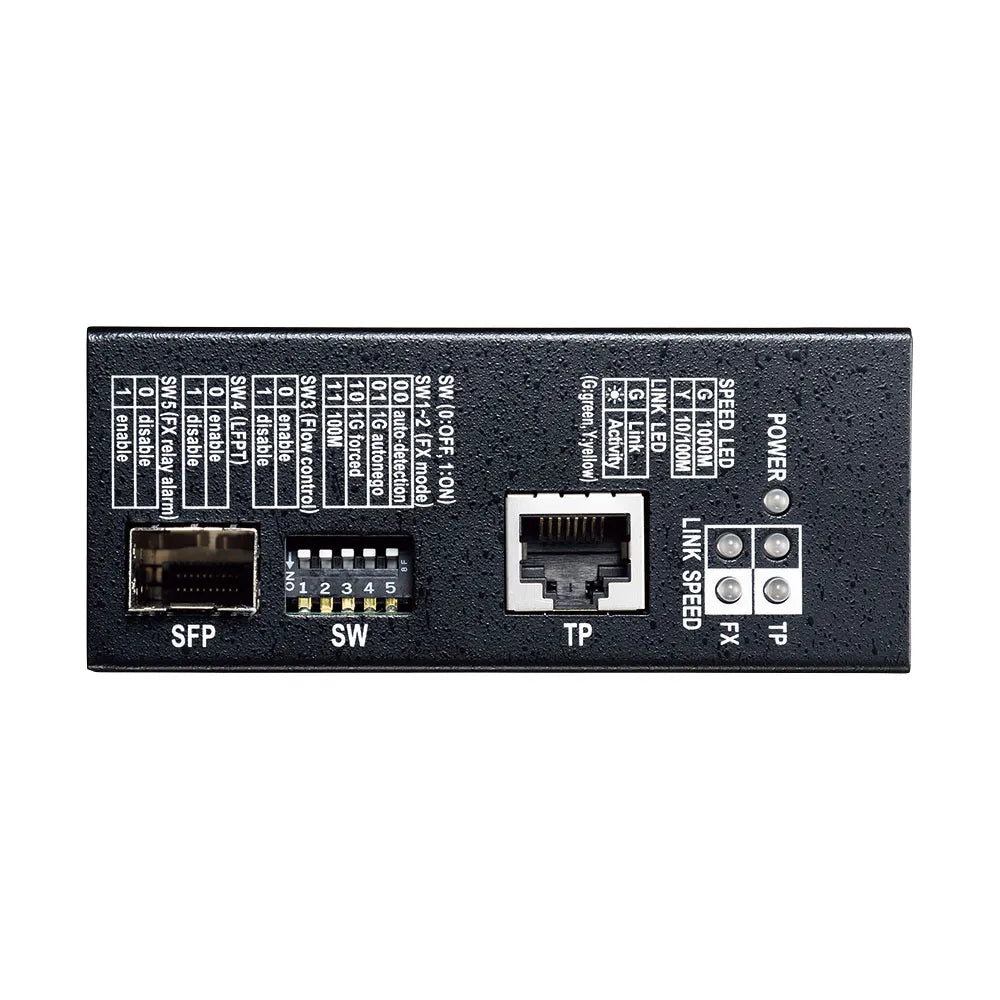

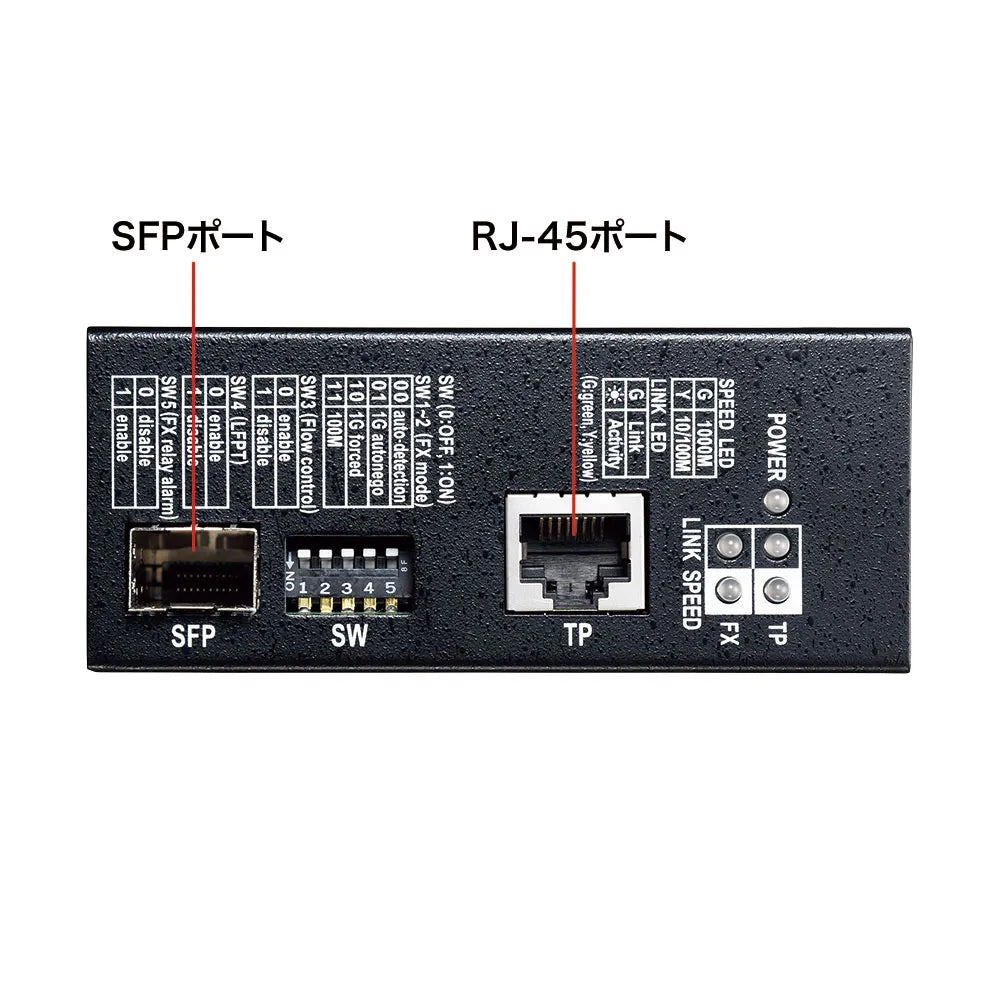

■Interface: RJ-45 port x 1
SFP port x 1
■Compatible cable: Category 5e or higher LAN cable (1000BASE-T)
Optical fiber cable compatible with the SFP module used
■Packet forwarding capability: 14880pps/10Mbps
148810pps/100Mbps
1488095pps/1000Mbps
■Maximum frame length: 9.6K bytes Jumbo Frame
■SFP port compatible module specifications:
※Depending on the SFP
MMF (850nm, 220/500m)
SMF (1310nm, 10/30km)
SMF (1550nm, 50/70/110km)
WDM (BiDirectional TX 1310nm/RX 1550nm, 10/20/40/60km)
WDM (BiDirectional TX 1550nm/RX 1310nm, 10/20/40/60km)
■Compatible SFP Modules: LAN-SFPD-SX
LAN-SFPD-LX
LAN-SFPDBI-1315
LAN-SFPDBI-1513
CFORTH-SFP-34-10
CFORTH-SFP-43-10
■Dimensions: W40×D80×H95mm
■Weight: 320g

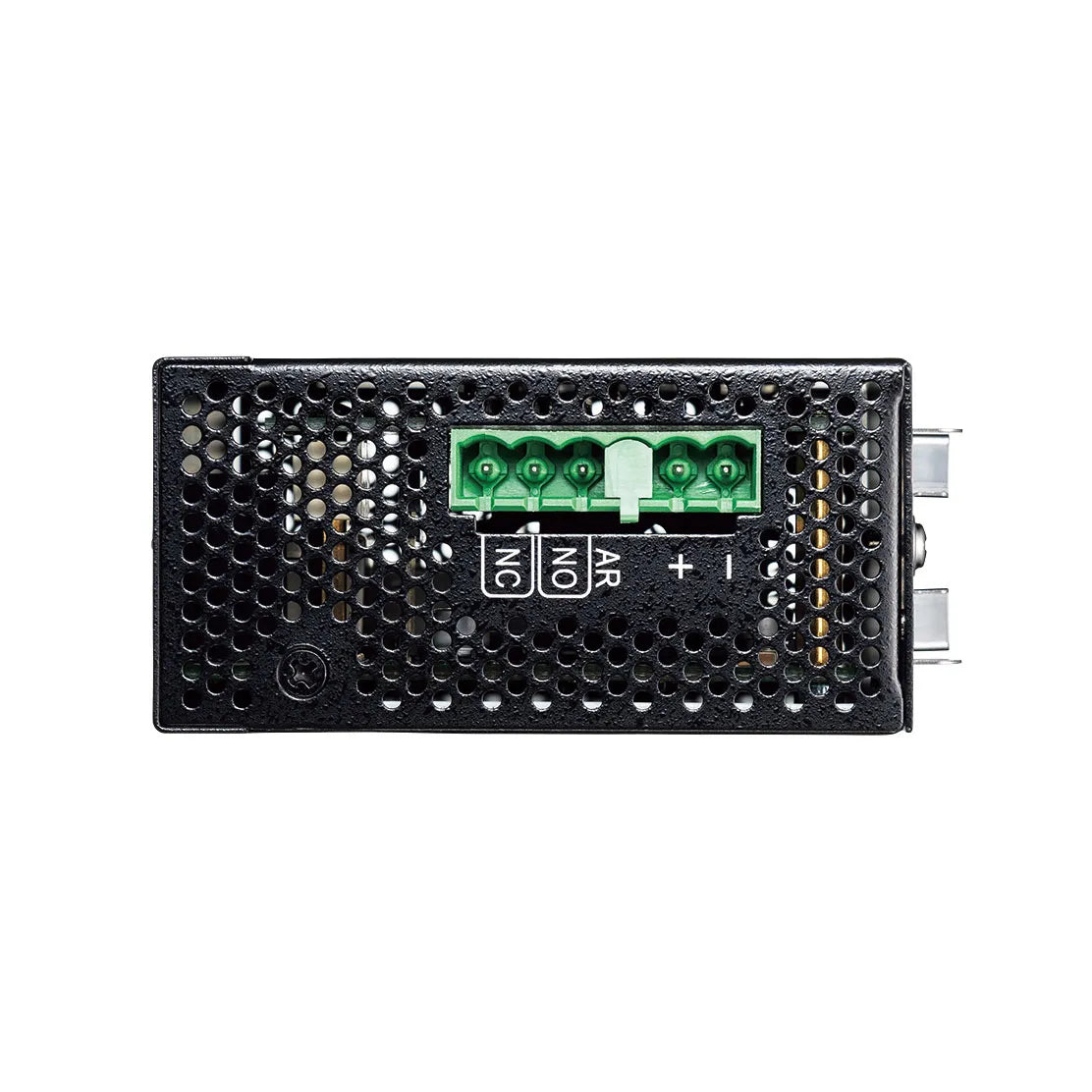

■DC Input Power:
Terminal/2P (DC+, DC-)
Voltage Range/DC12 to 30V
Power Consumption/Maximum 4.2W
■Alarm Output:
Terminal/3P for Normal Close / Normal Open pair
Rating/DC30V/1A or AC120V/0.5A
Alarm/Power failure, configured fiber port failure
■Operating Environment: Temperature Range/-40°C to +75°C
Humidity Range/5 to 95%
■Accessories: DIN rail bracket
■Certification: FCC Class A
CE Class A
