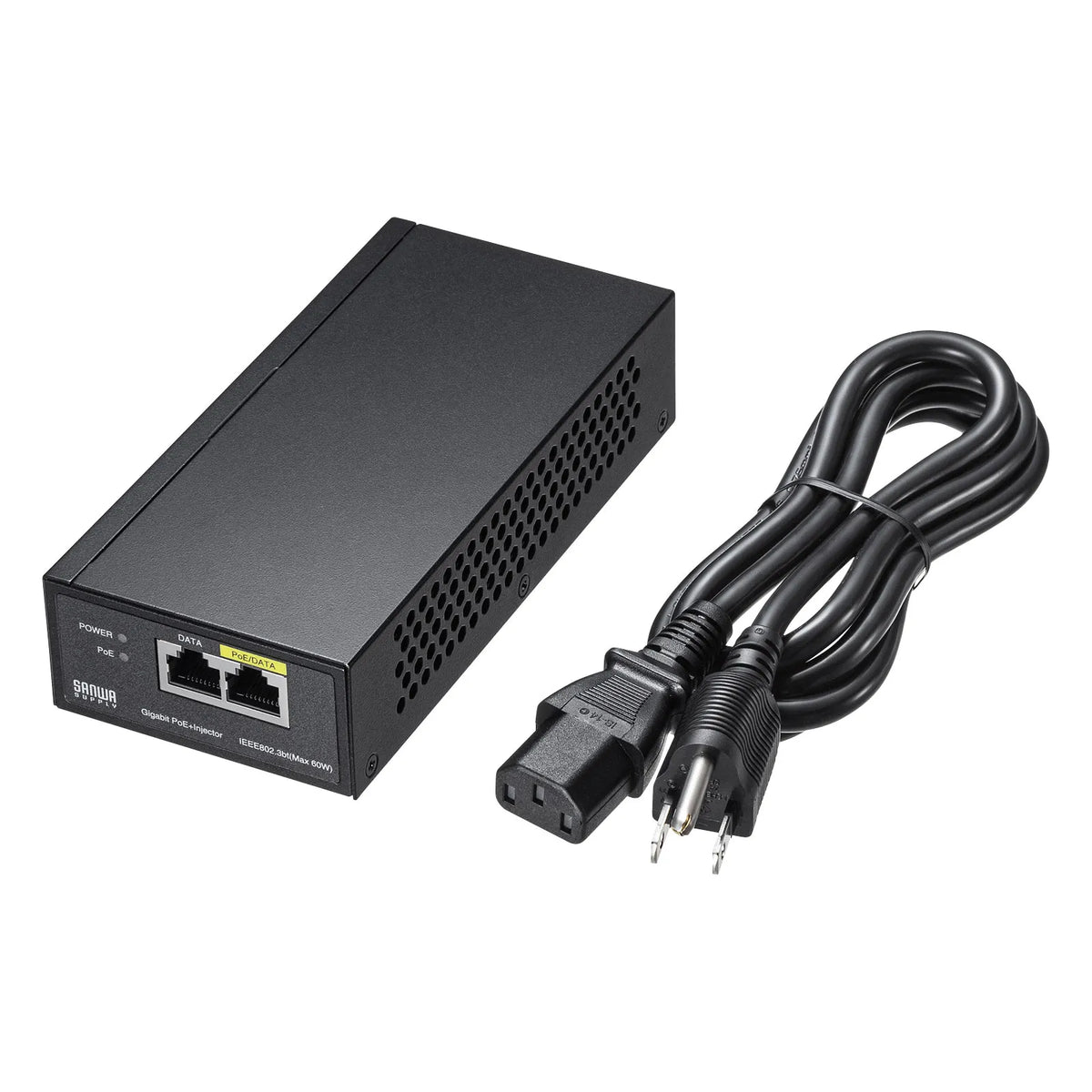

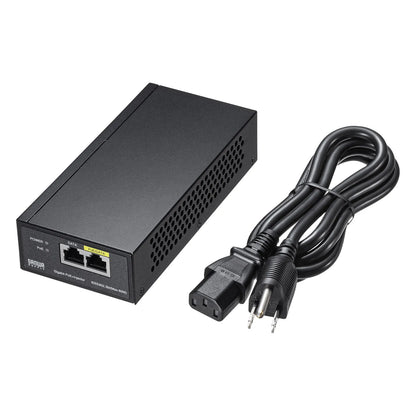

PoE Injector (Built-in Power Supply, IEEE802.3bt Compatible) LAN-GIHINJ5

[PoE Injector Compatible with IEEE802.3bt (Class 6) Standard, Capable of Providing Up to 60W of PoE Power]

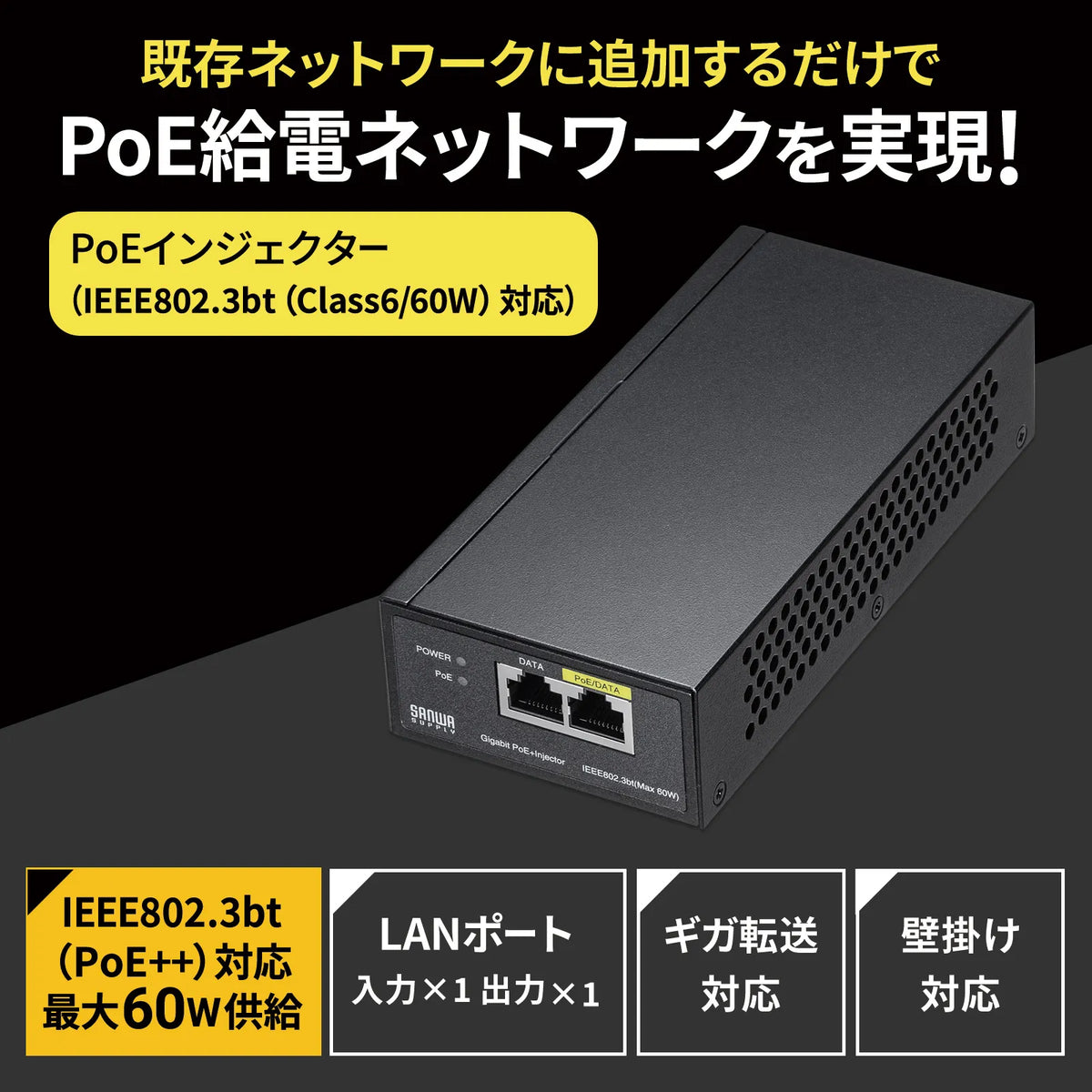

●This PoE injector supports not only IEEE802.3af/at but also IEEE802.3bt (Class 6/maximum 60W) power supply.

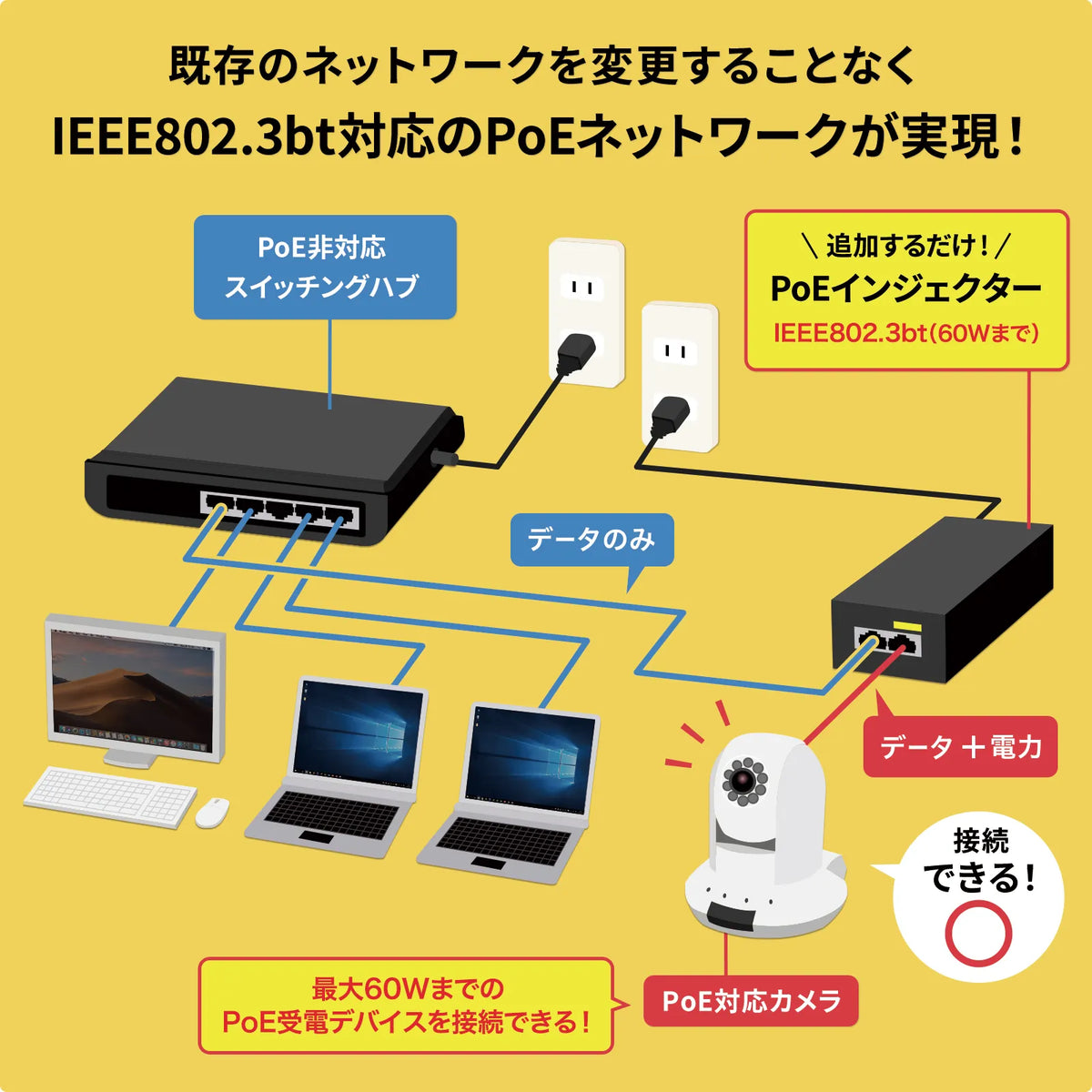

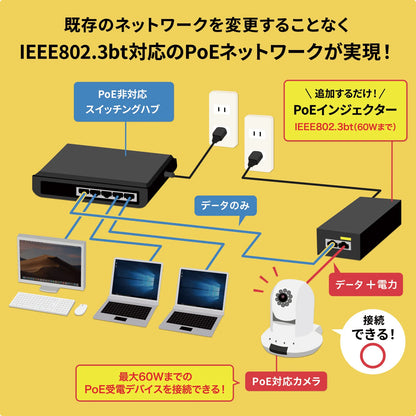

●Ideal for PoE power supply to dome-type PoE cameras and wireless access points with high power consumption.

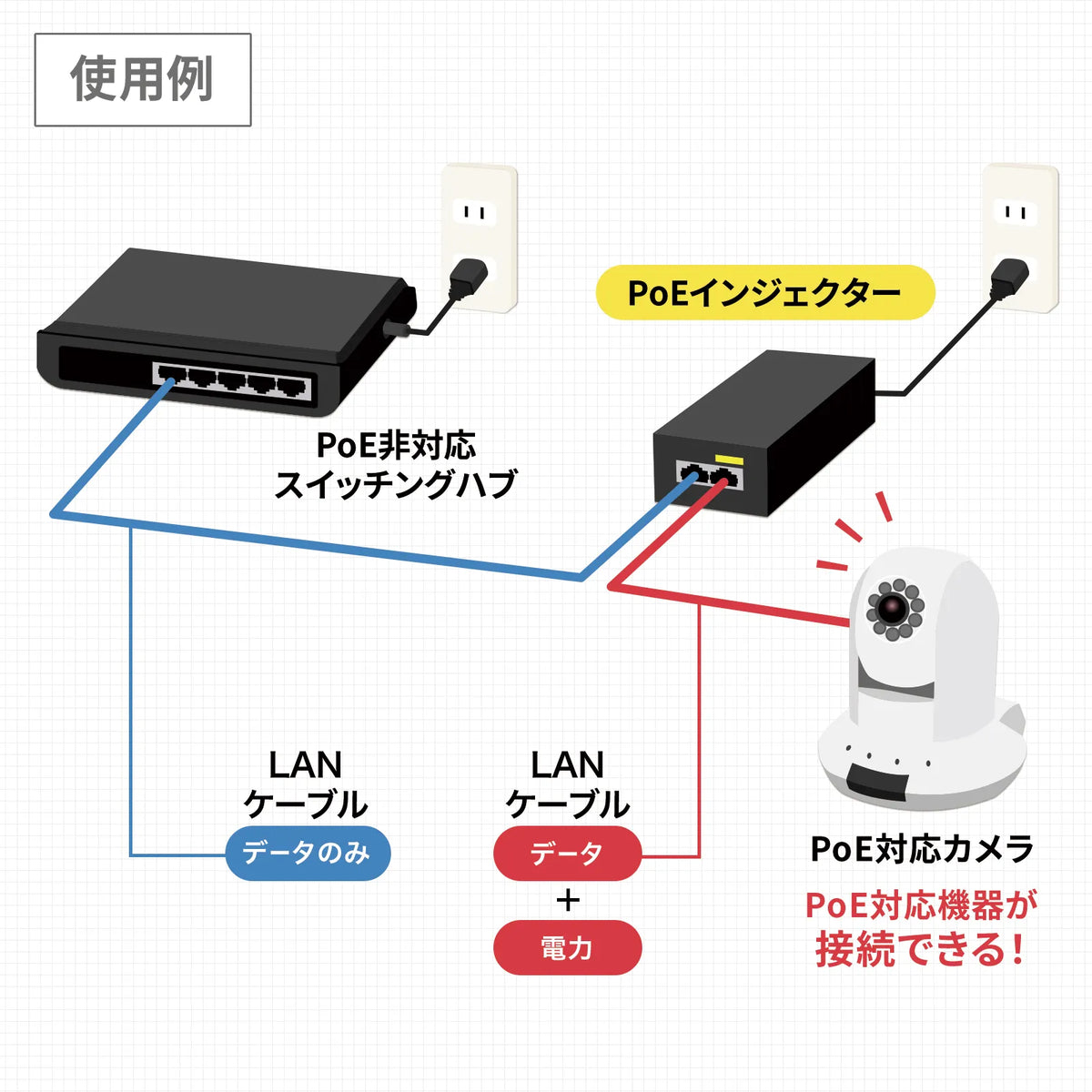

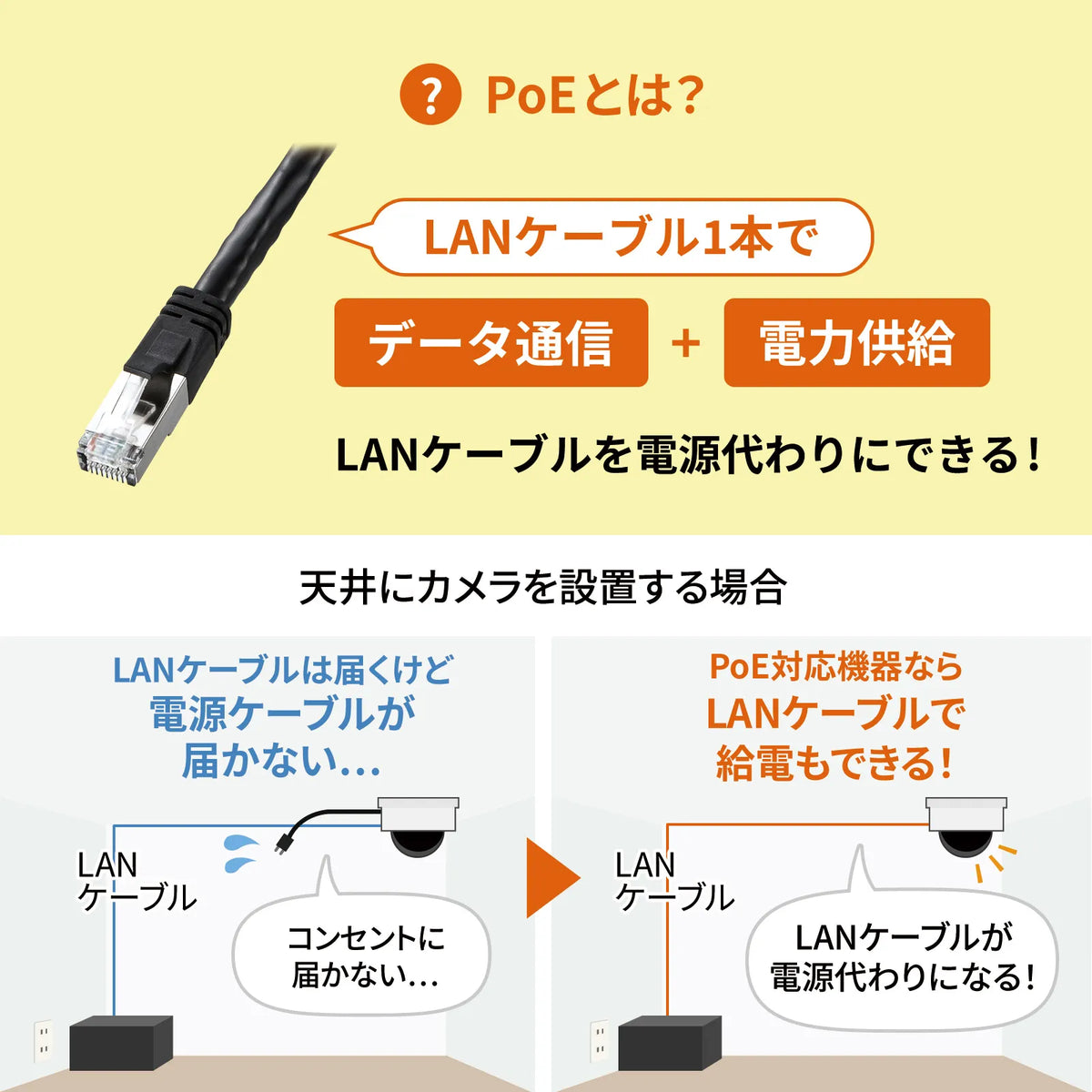

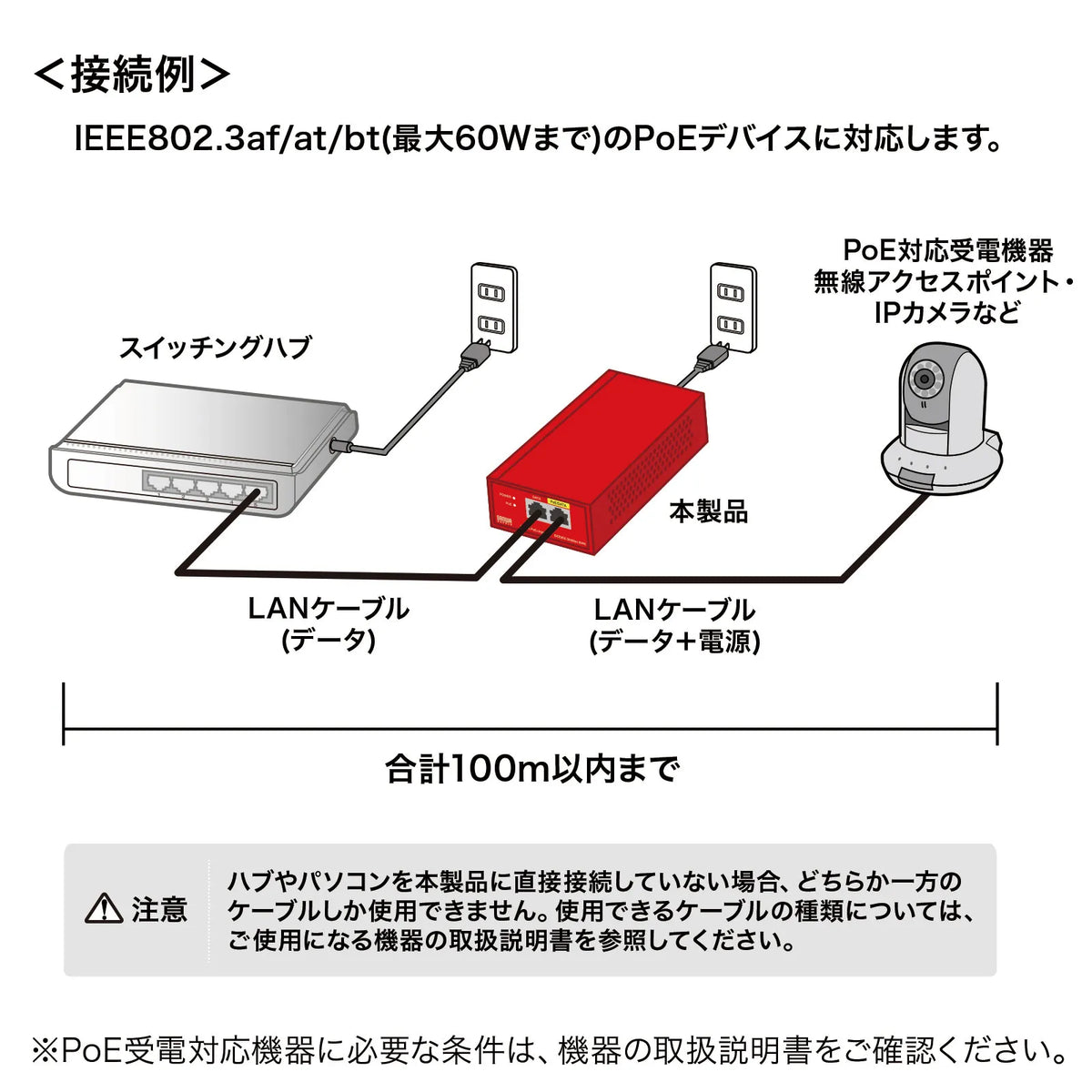

●Signal transmission and power supply can be provided to PDs (PoE-powered devices) using only a LAN cable. *1, 2, 3

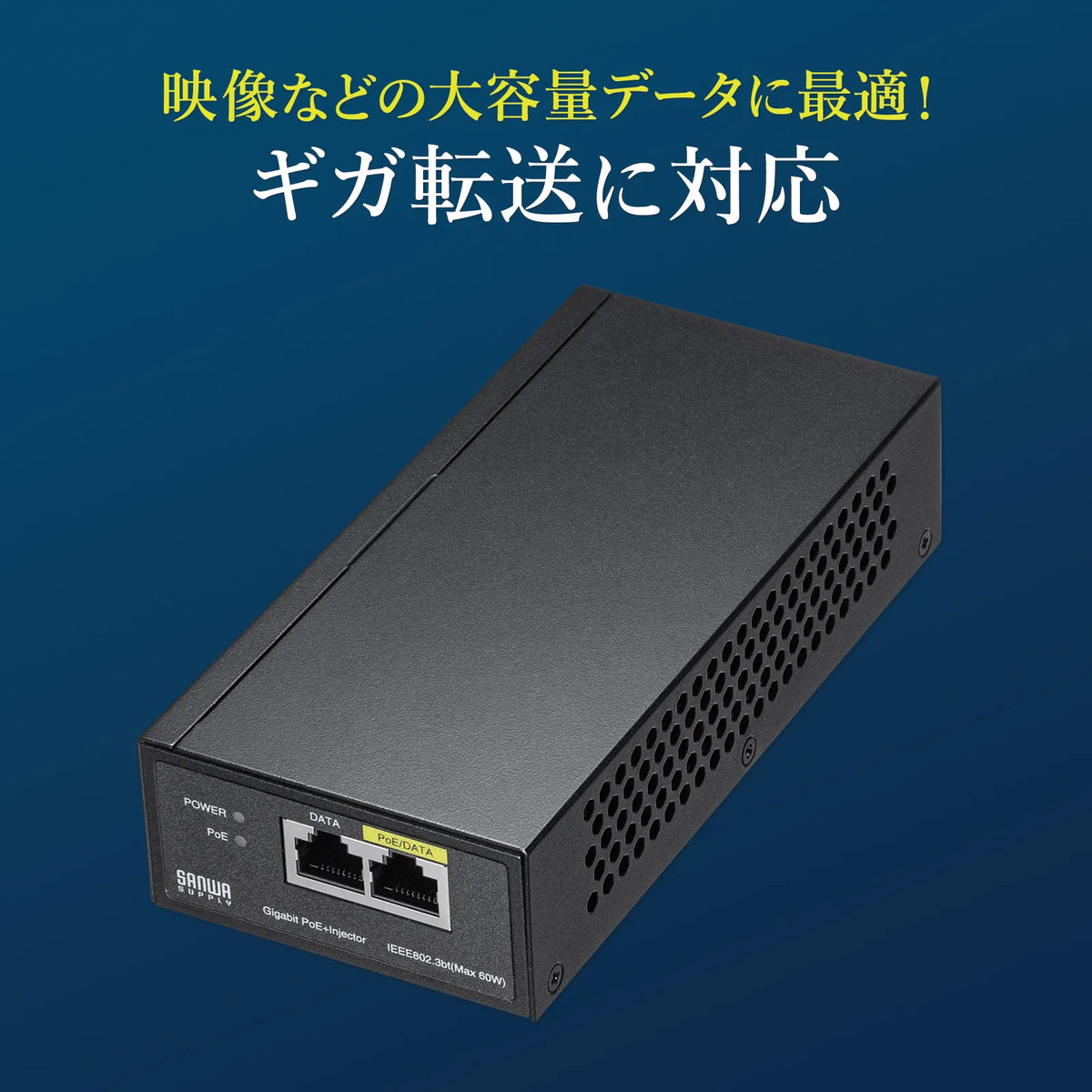

●Supports gigabit transfer, making it ideal for video transmission from IP cameras, etc.
●Uses a metal casing with excellent heat dissipation.
●Equipped with AUTO-MDIX function.
●Since it is a built-in power supply type, it can be installed with only the power cable routing required.

*1 Precautions when using the PoE port
Please use a Category 6 straight cable or a cable thicker than 24AWG/23AWG for PoE power supply.
Recommended cables (Sanwa Supply)
・KB-T6POE series
・KB-T6ATS series
・KB-T5T series
*2 PoE power supply should only be used with PoE-compatible devices (PDs).
*3 Please check the required power before using with a PD.

■Number of ports: 1 port
■Maximum transmission speed: 1000Mbps (1000BASE-T)
■Compliant standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T), IEEE802.3af/at/bt
(*Class 6/maximum 60W supply)
■Switching method: Store & Forward
■Communication mode: Full duplex/Half duplex

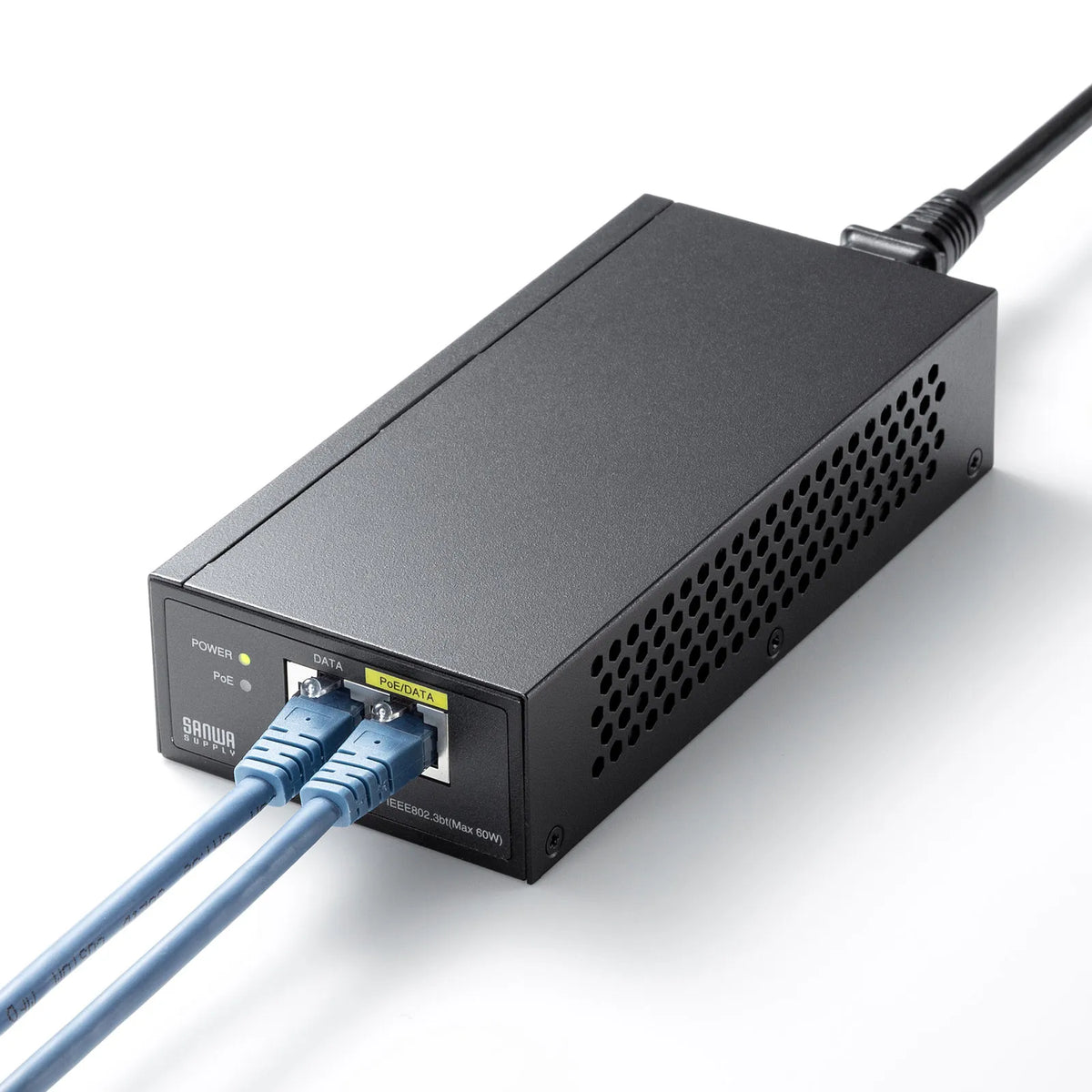

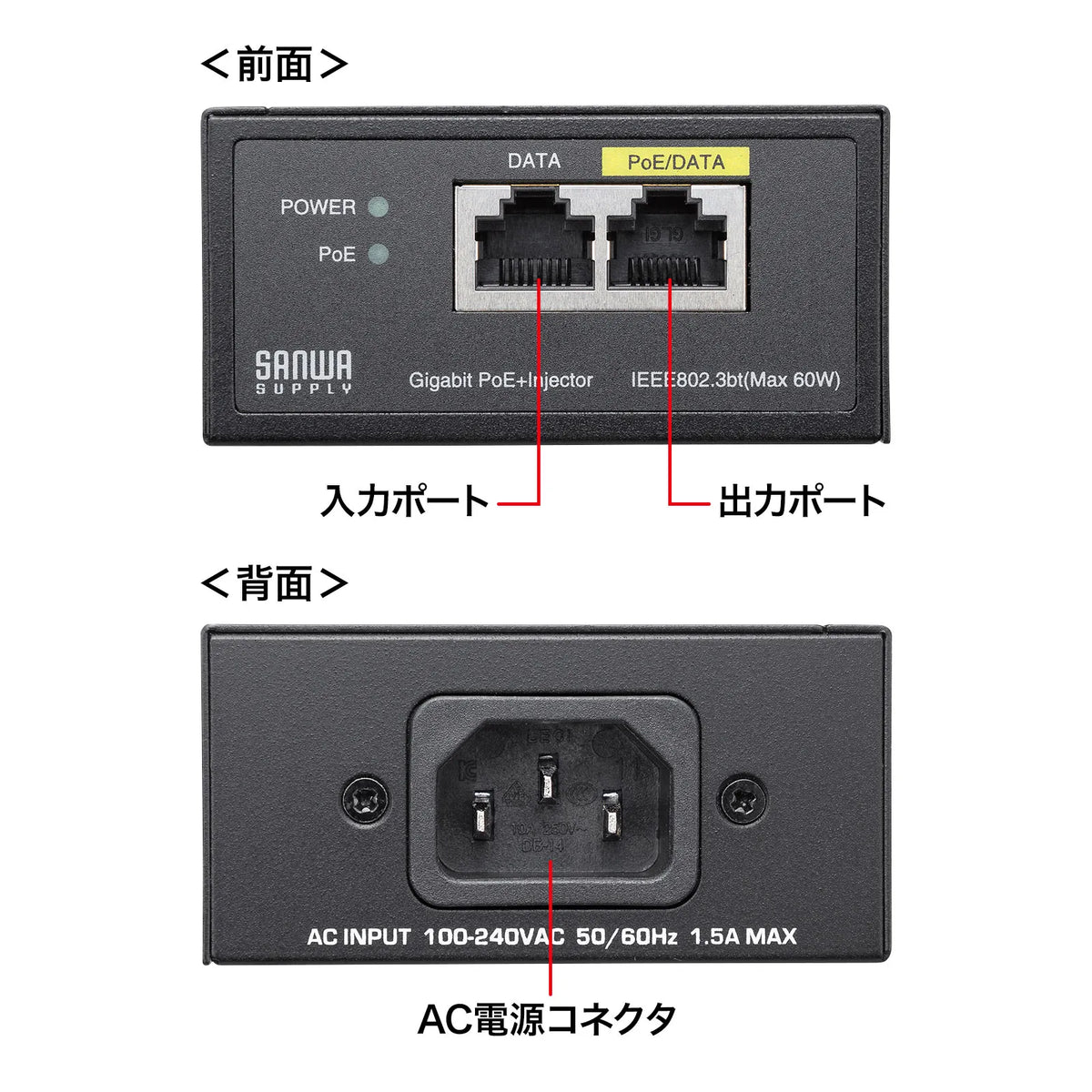

■Port configuration: Data port (input) 1 port
PoE/Data port (output) 1 port
■PoE compatible port output:
af standard 15.4W/1 port (maximum)
at standard 30W/1 port (maximum)
bt standard 45W/1 port (maximum)
bt standard 60W/1 port (maximum)
■PoE power supply method: Alternative A, Alternative B
■Compatible LAN cable:
For data communication: UTP Category 5e or higher (1000BASE-T), UTP Category 5 or higher (100BASE-TX), UTP Category 3 or higher (10BASE-T)
For PoE communication: UTP Category 5e/6/6a straight cable with a thickness of 24AWG or more
*Please use a PoE-compatible LAN cable.
■Power supply: Built-in power supply
■Input voltage: AC100 to 240V±10% 50/60Hz
■Size: W154×D73×H36mm
■Weight: Approx. 576g
■Power cable length: 1.5m
■Power consumption (maximum): Approx. 61.56W
■Operating environment conditions:
Operating temperature: 0 to 40 degrees
Operating humidity: 10 to 90%
■Housing material: Metal

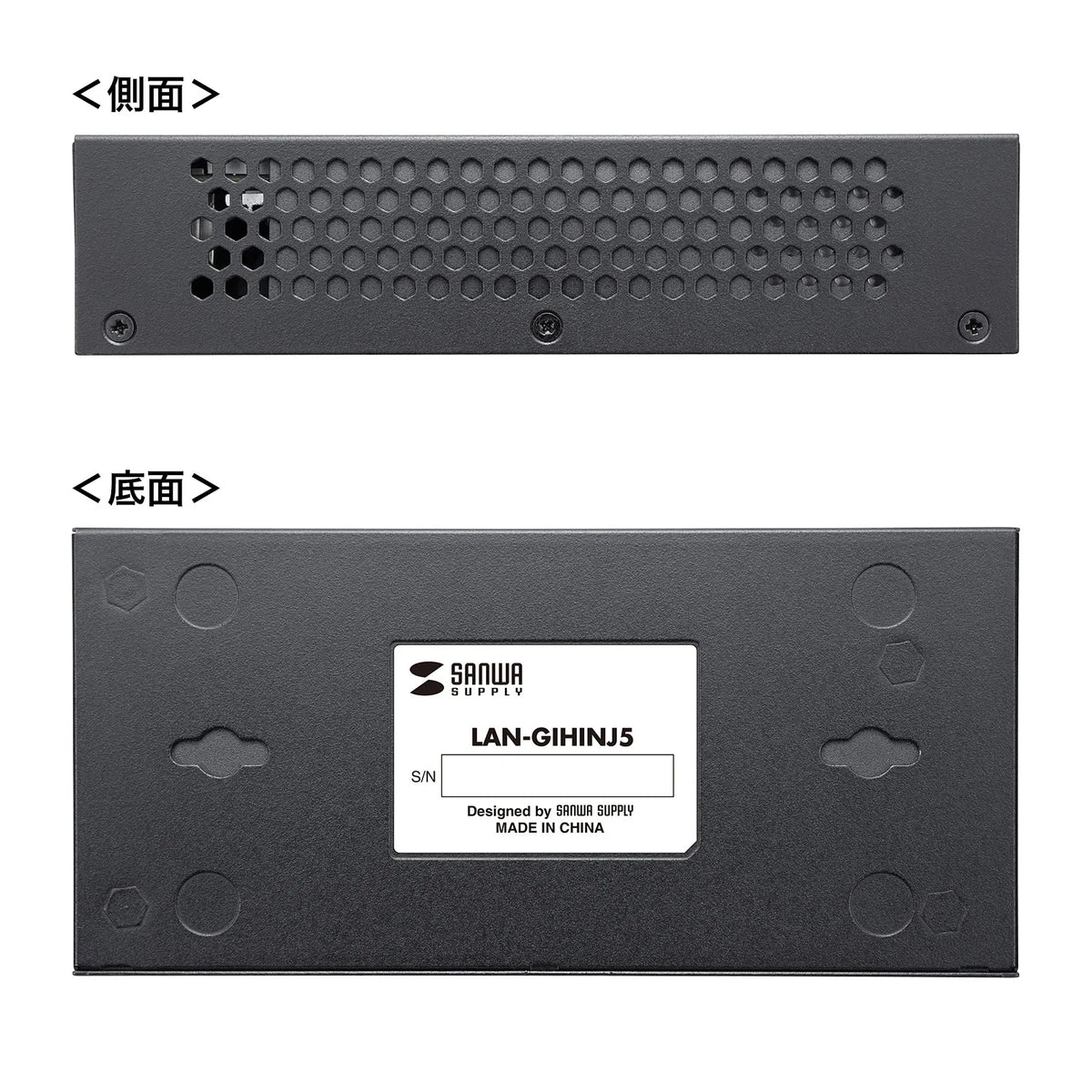

■Wall mountable: Yes
■VCCI standard: VCCI Class B

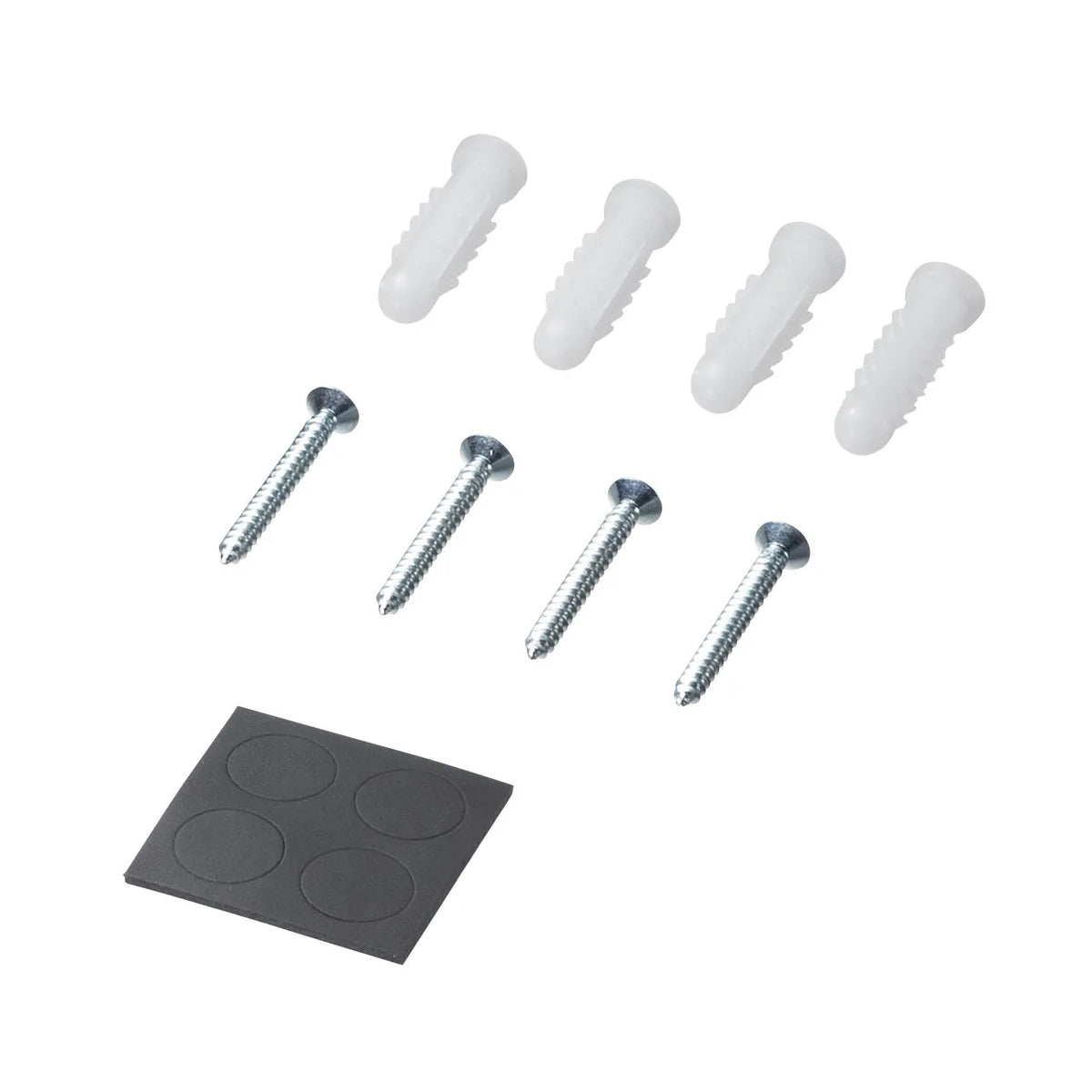

■Set contents: Main unit, wall mounting screws ×2, anchors ×2, rubber feet ×4, power cable, instruction manual
