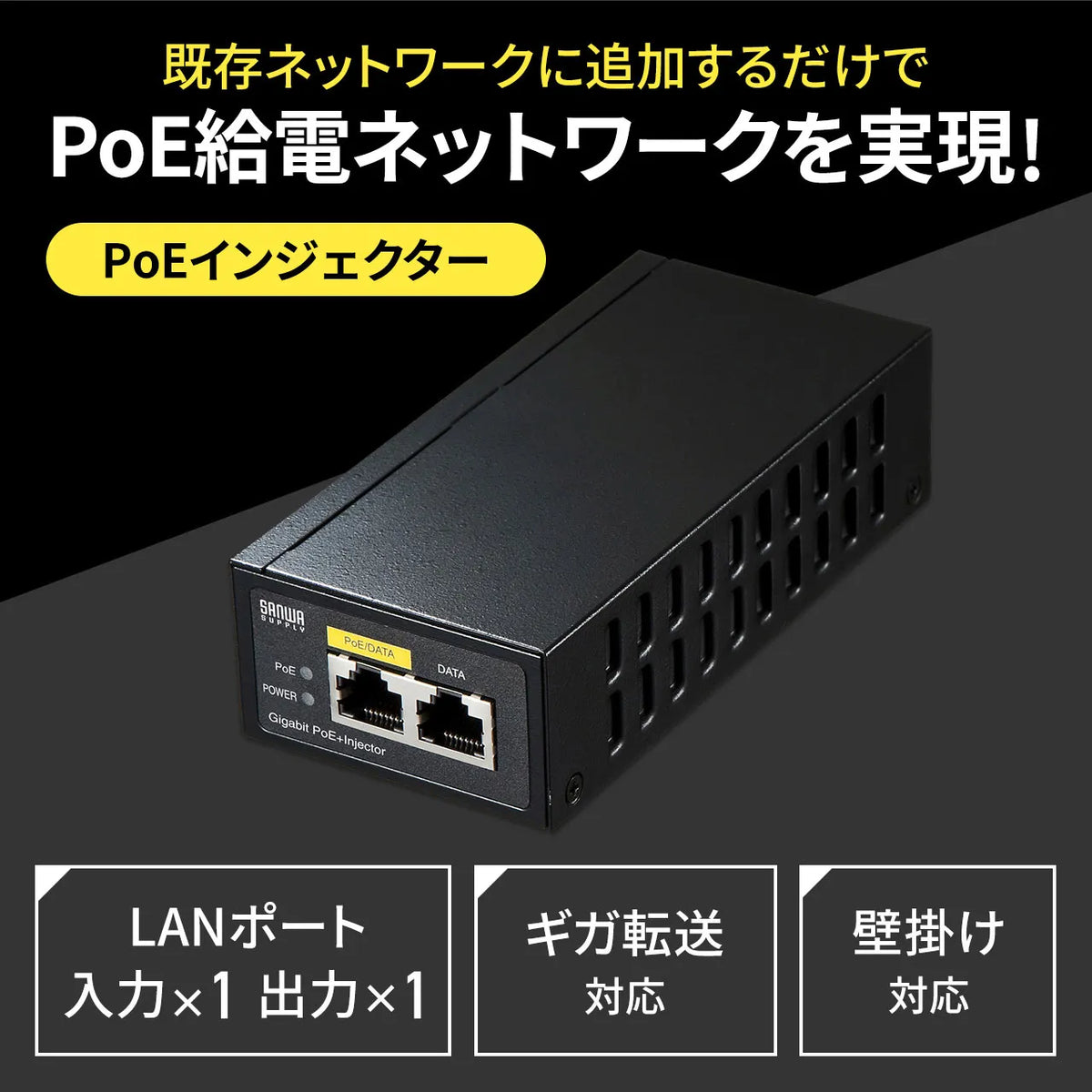

PoE Injector LAN-GIHINJ2

[A PoE injector (Gigabit compatible) that can turn a regular network environment into a PoE-powered network simply by adding it]

●This is a PoE injector compatible with IEEE802.3af/at.

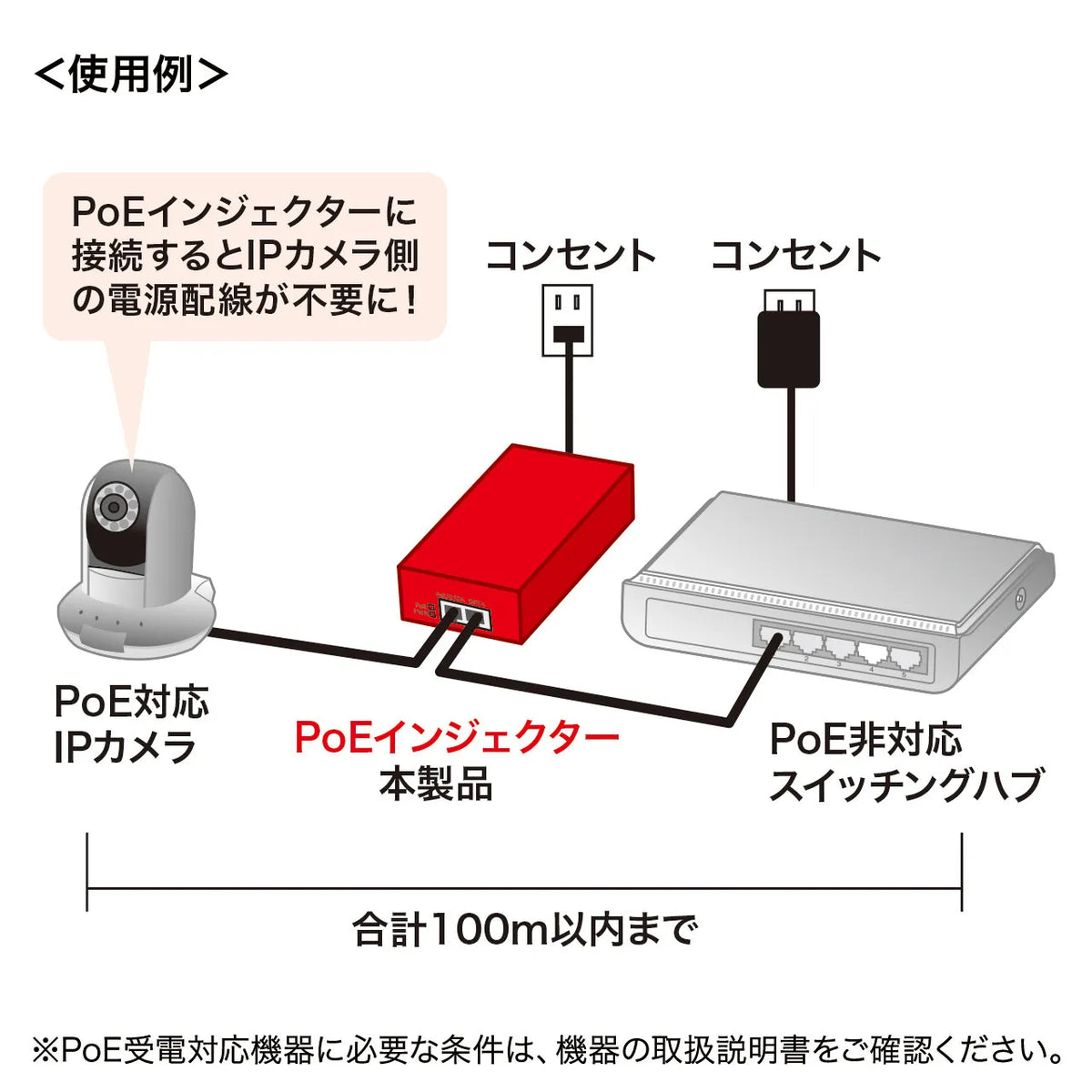

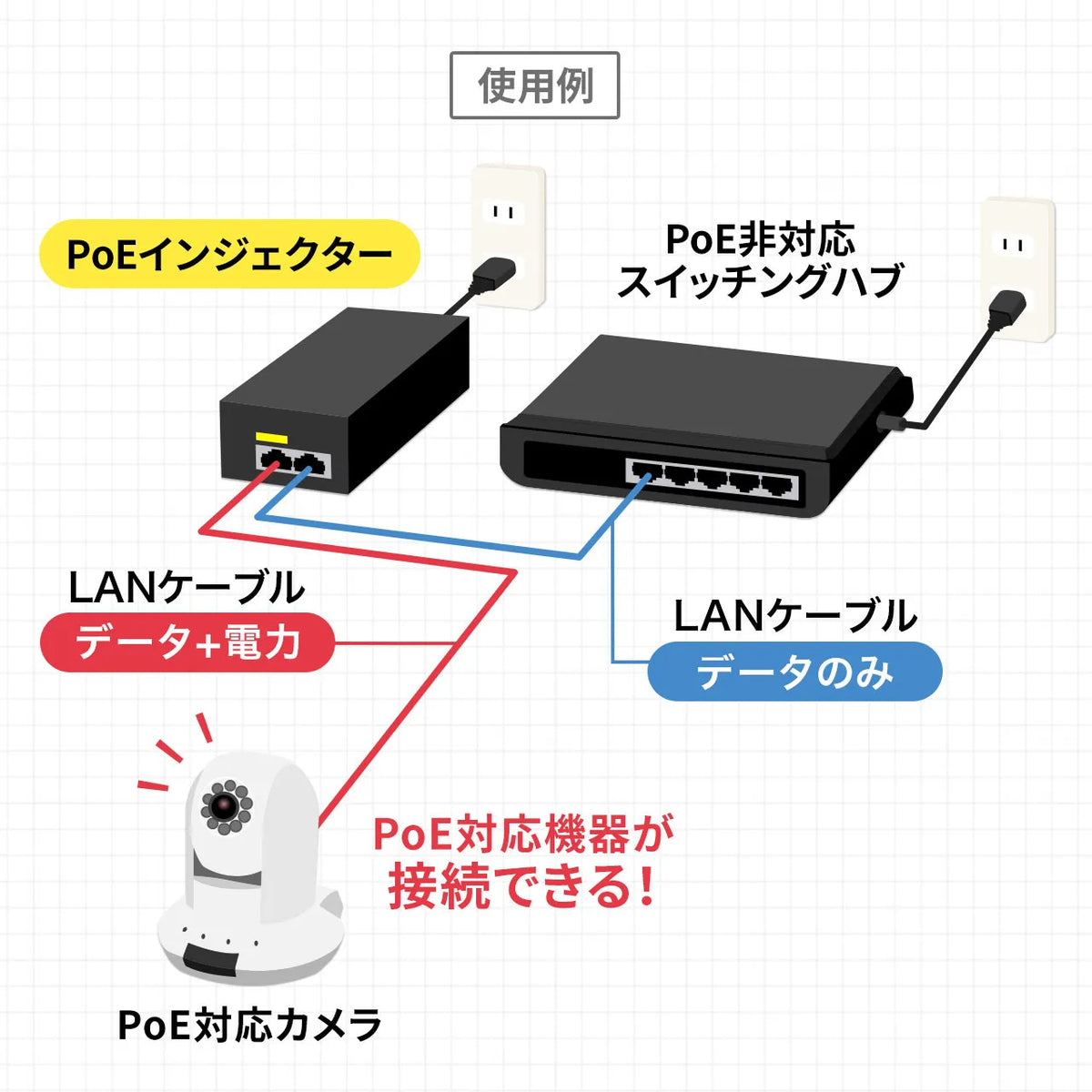

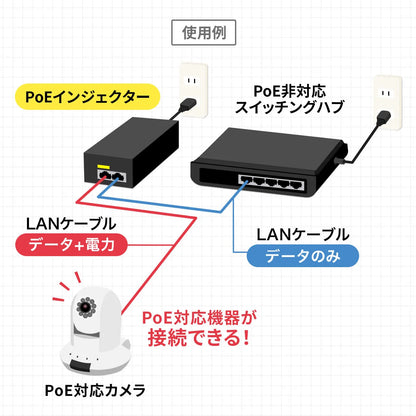

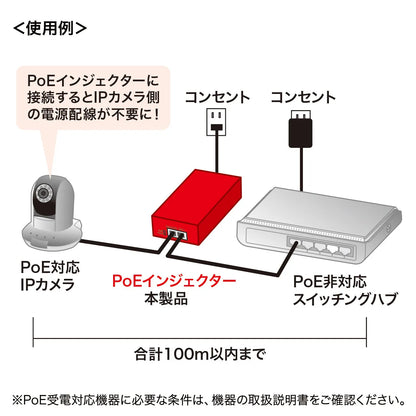

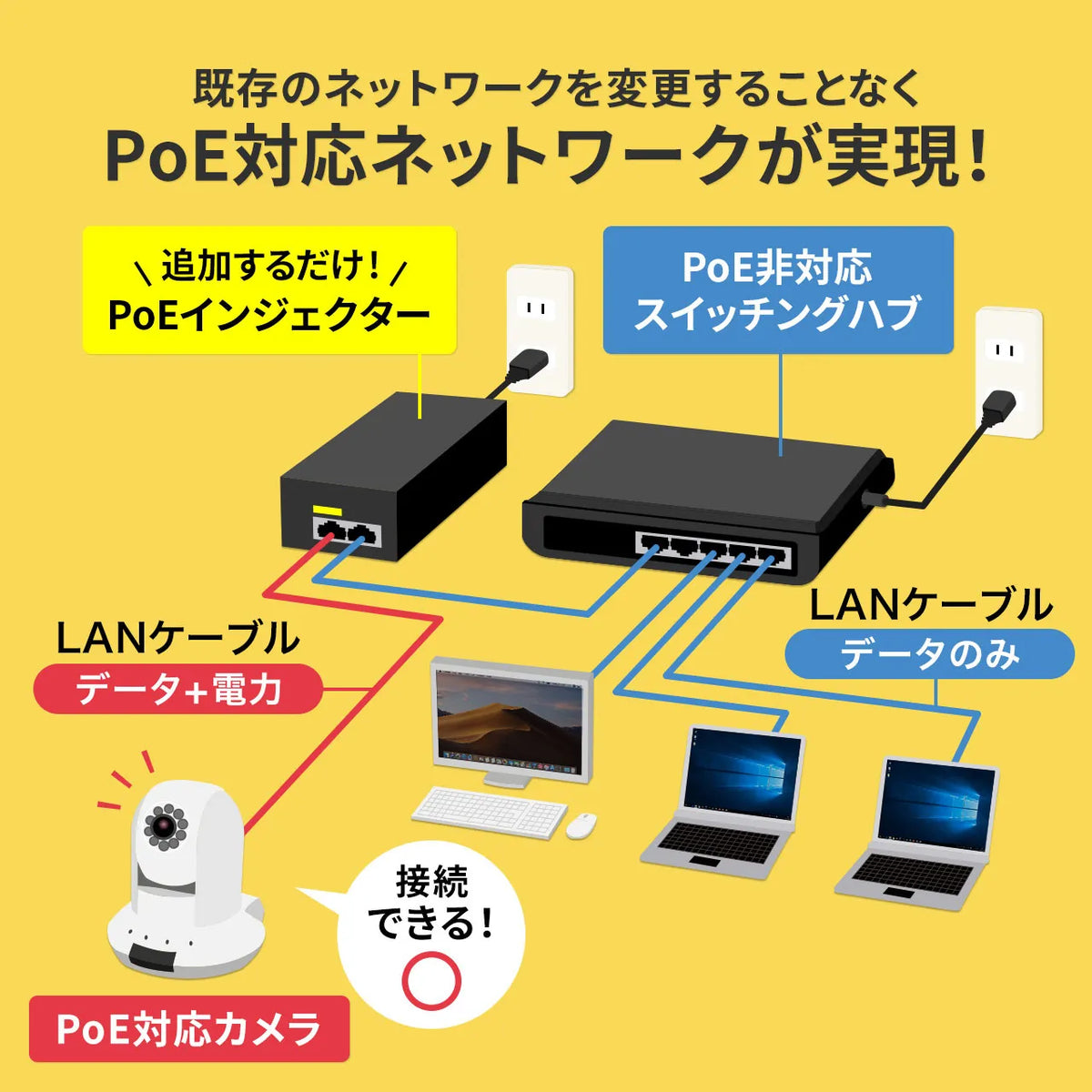

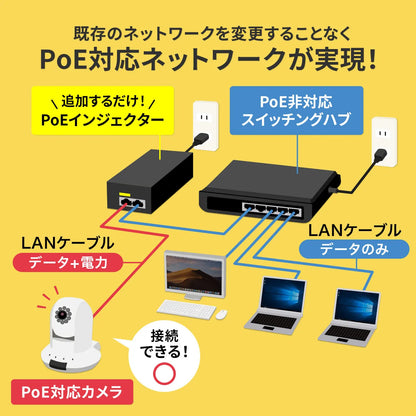

●It can turn a regular network environment into a PoE-powered network simply by adding it.

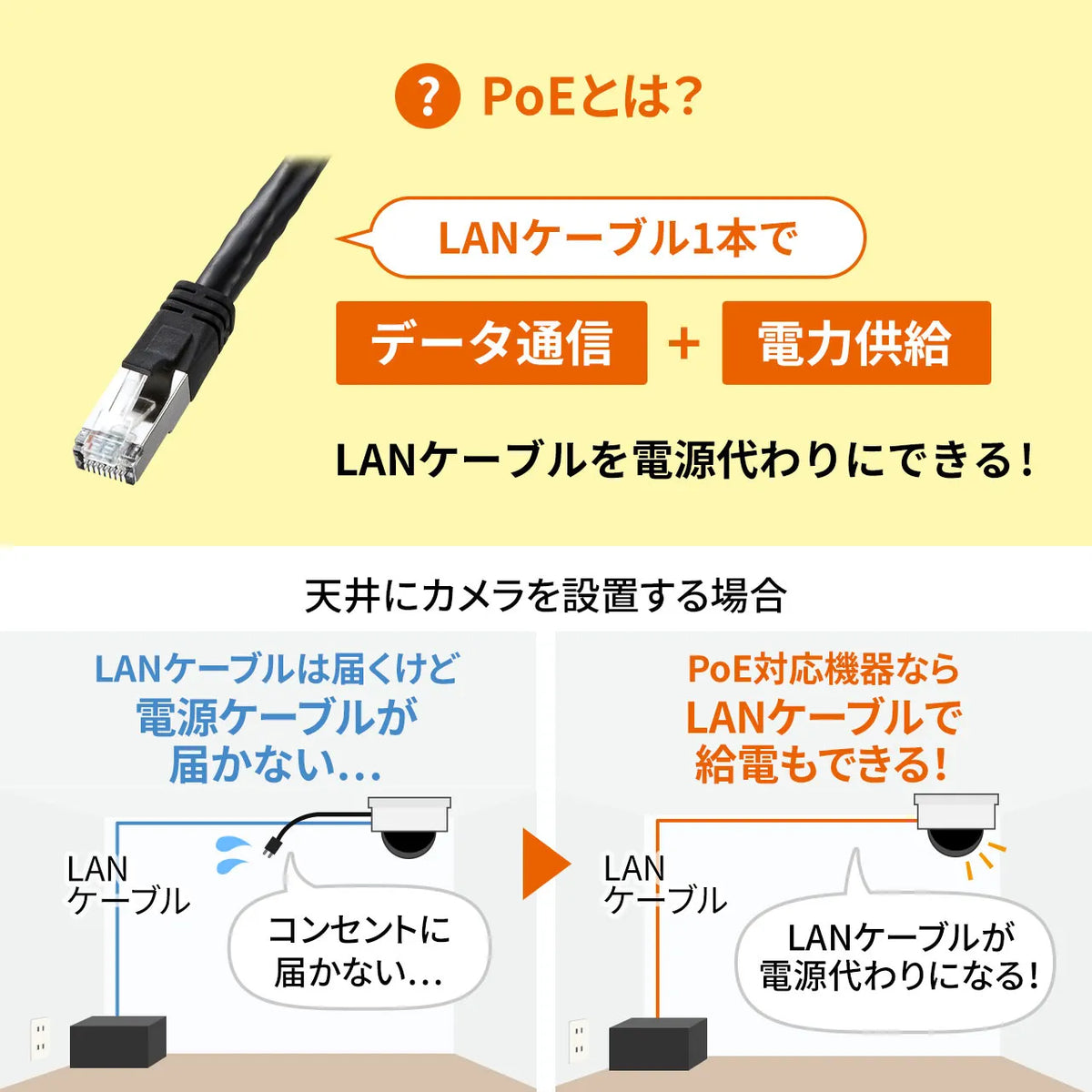

●Signal transmission and power supply can be provided to PDs (PoE-powered devices) using only a LAN cable.

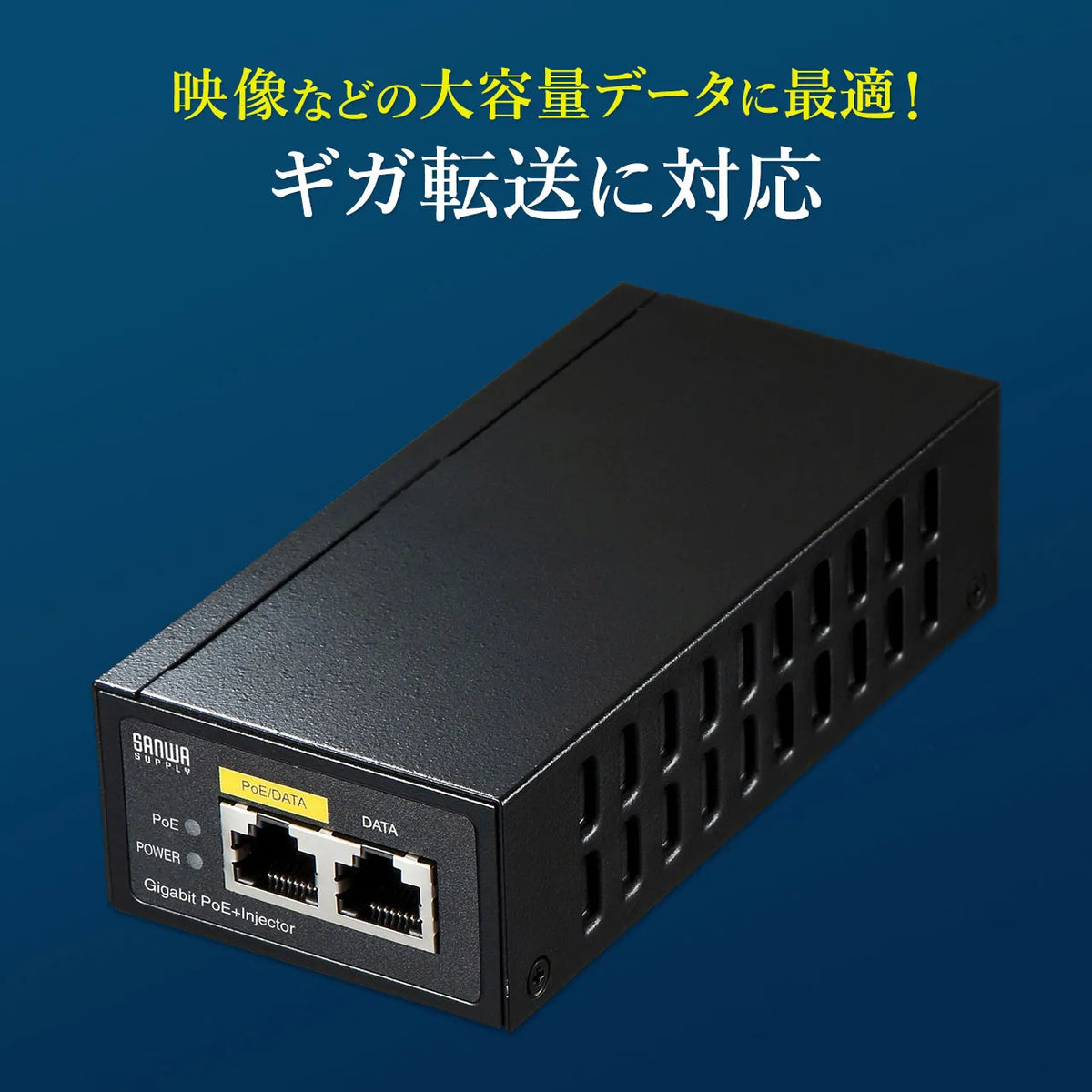

●It supports gigabit transfer, making it ideal for video transmission from IP cameras, etc.

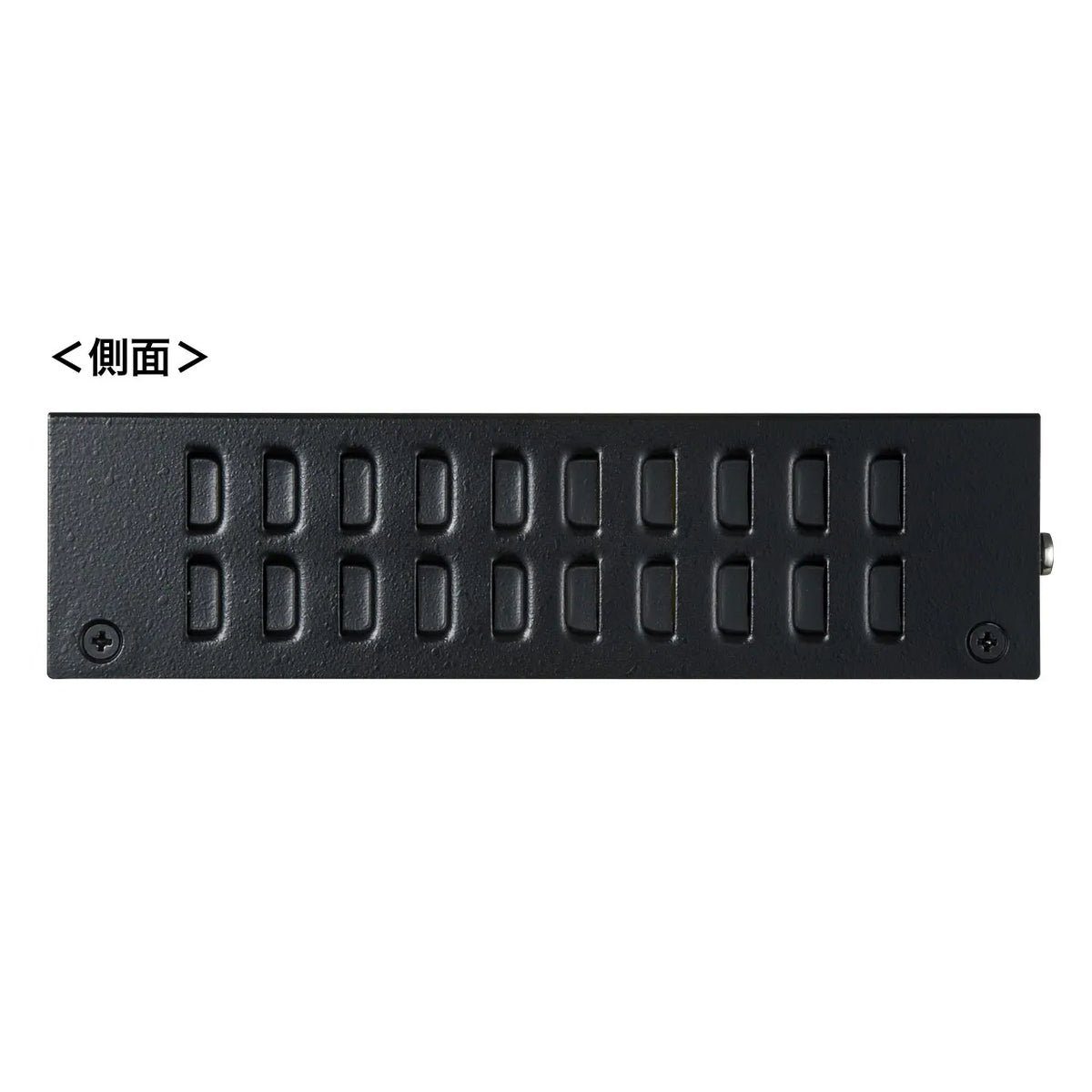

●It uses a metal casing with excellent heat dissipation.
●Equipped with AUTO-MDIX function.
●Since it is a built-in power supply type, it can be installed by routing only the power cable.
※This product does not support PoE power reception.
＜Precautions＞
The amount of heat generated by this product differs depending on whether it is only powered on or communicating. In particular, if a large amount of communication is performed continuously, the main unit may overheat. For this reason, continuous use in an environment with poor heat dissipation (poor ventilation) may lead to deterioration of internal components and reduce the product lifespan. When using the device, please ensure that nothing is placed on top of the unit and that there is at least 10 cm of space around the ventilation openings. The operating temperature is the temperature during continuous use, not the temperature at installation. Please note that the temperature will fluctuate significantly during use compared to the initial power-on state.


*Please select a Category 5e/6 straight cable or a cable of 24AWG/23AWG or higher for PoE power supply.
Recommended cables (Sanwa Supply)
・KB-T6POE series (22AWG)
・KB-T6TS series (23AWG)
・KB-T5T series (24AWG solid wire)
*PoE power supply should only be used with PoE-compatible powered devices (PDs).
*Please check the required power before using with powered devices (PDs).

■Compliant standards:
IEEE802.3 (10BASE-T)
IEEE802.3u (100BASE-TX)
IEEE802.3ab (1000BASE-T)
IEEE802.3af/at
■Switching method: Store & Forward
■Communication mode: Full duplex/Half duplex

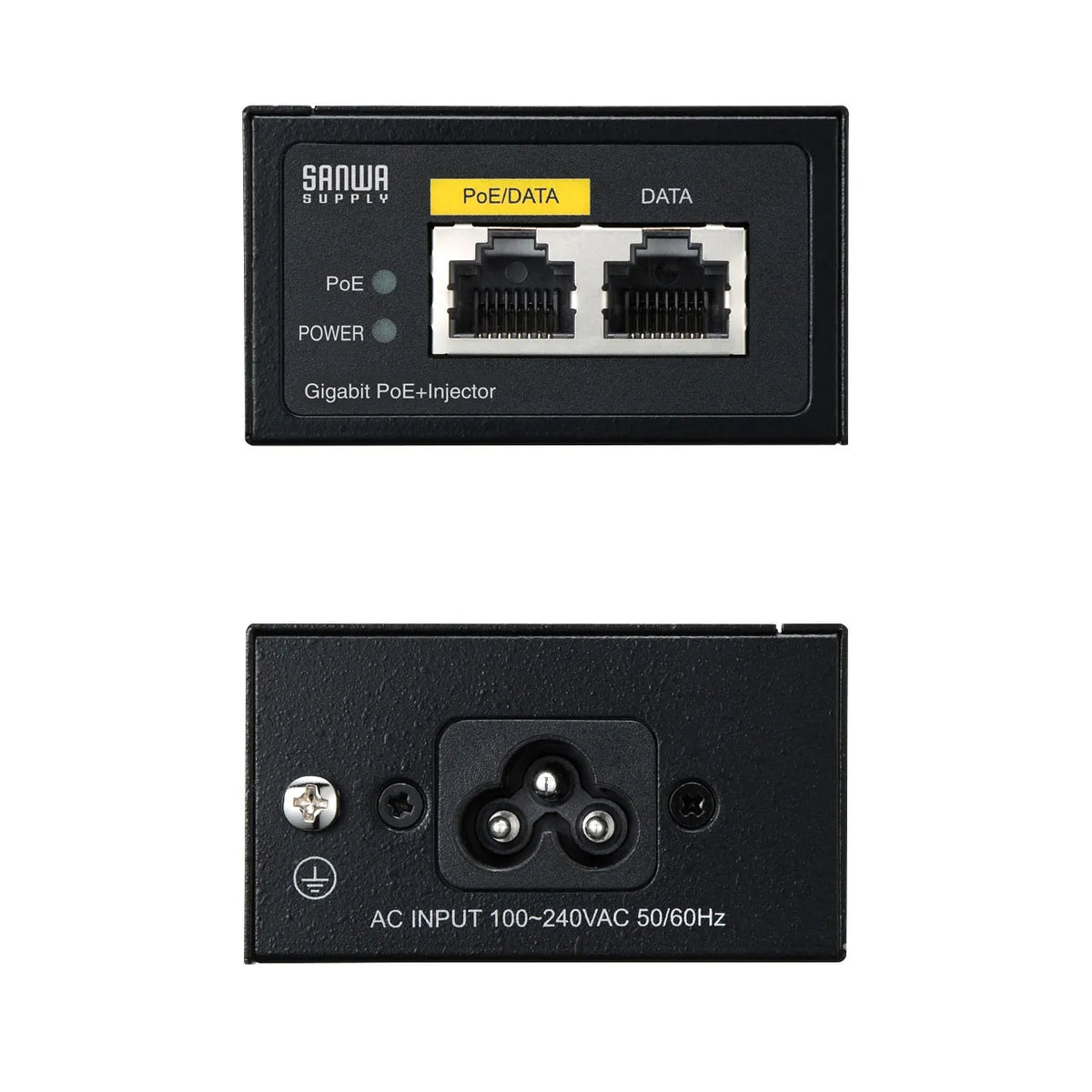

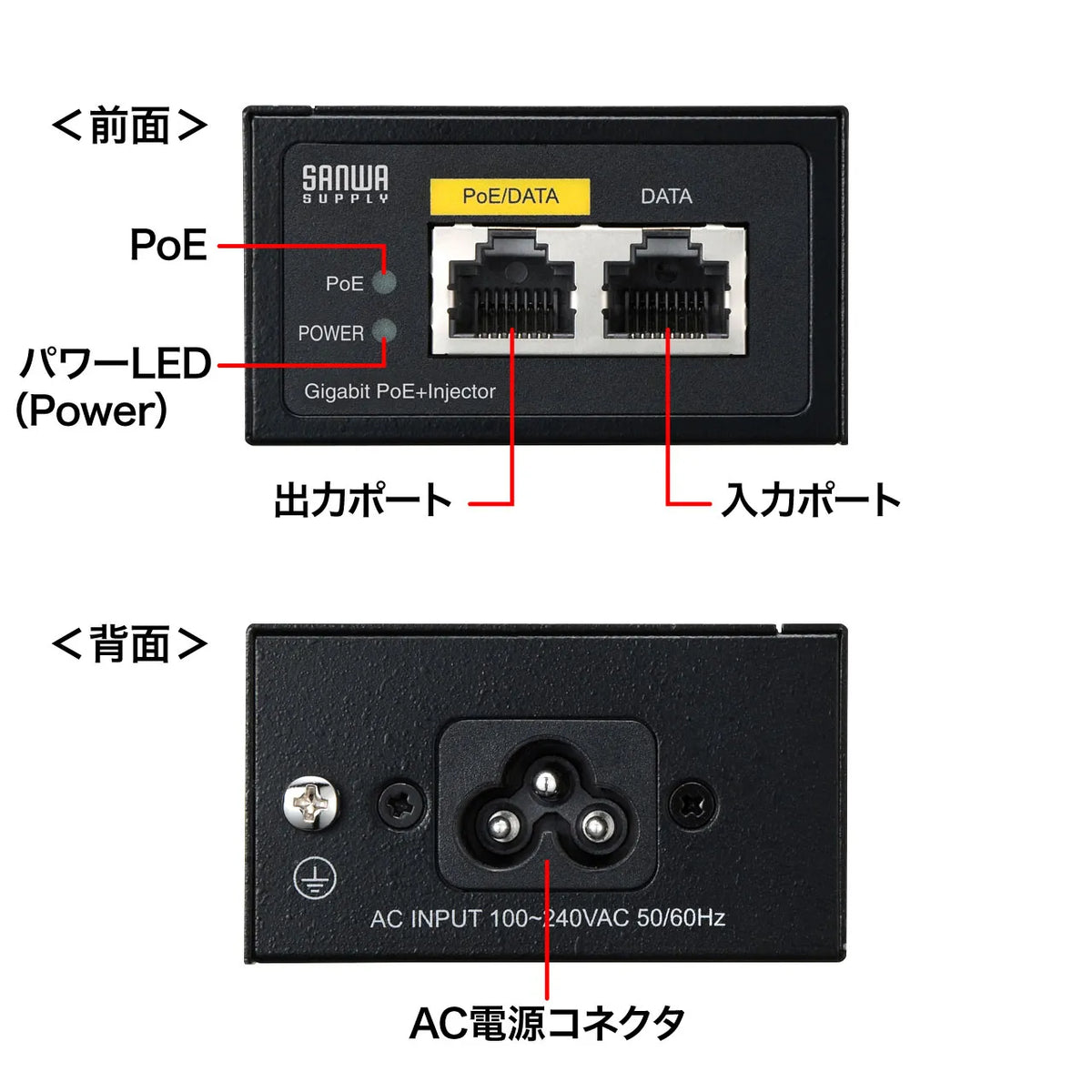

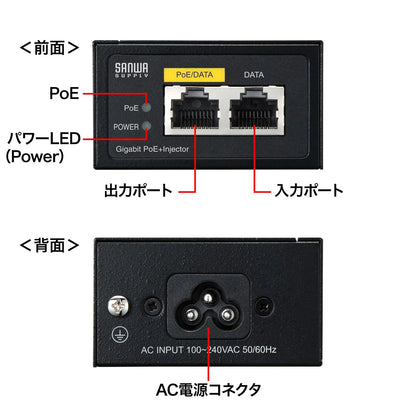

■Port configuration:
Data port (input)/1 port
PoE/Data port (output)/1 port
■PoE compatible port output:
【af standard】15.4W/1 port (maximum Large)
[at standard] 30W/1 port (maximum)
■Body size: Approx. W130 x D62 x H36mm
■Weight: Approx. 300g (excluding power cable)
■Power cable length: Approx. 1.8m
■Compatible LAN cable:
For data communication: UTP Category 5e or higher (1000BASE-T), UTP Category 5 or higher (100BASE-TX), UTP Category 3 or higher (10BASE-T)
For PoE communication: UTP Category 5e/6/6a straight cable with a thickness of 24AWG or more
*Please use a PoE-compatible LAN cable.
■Input Voltage: AC100-240V±10% 50/60Hz
■Power Consumption: Approx. 33.7W (Maximum)
■Operating Environment:
Operating Temperature: 0-45℃, Operating Humidity: 10-90% (Non-condensing)
Storage Temperature: -20-70℃, Humidity: 5-90% (Non-condensing)

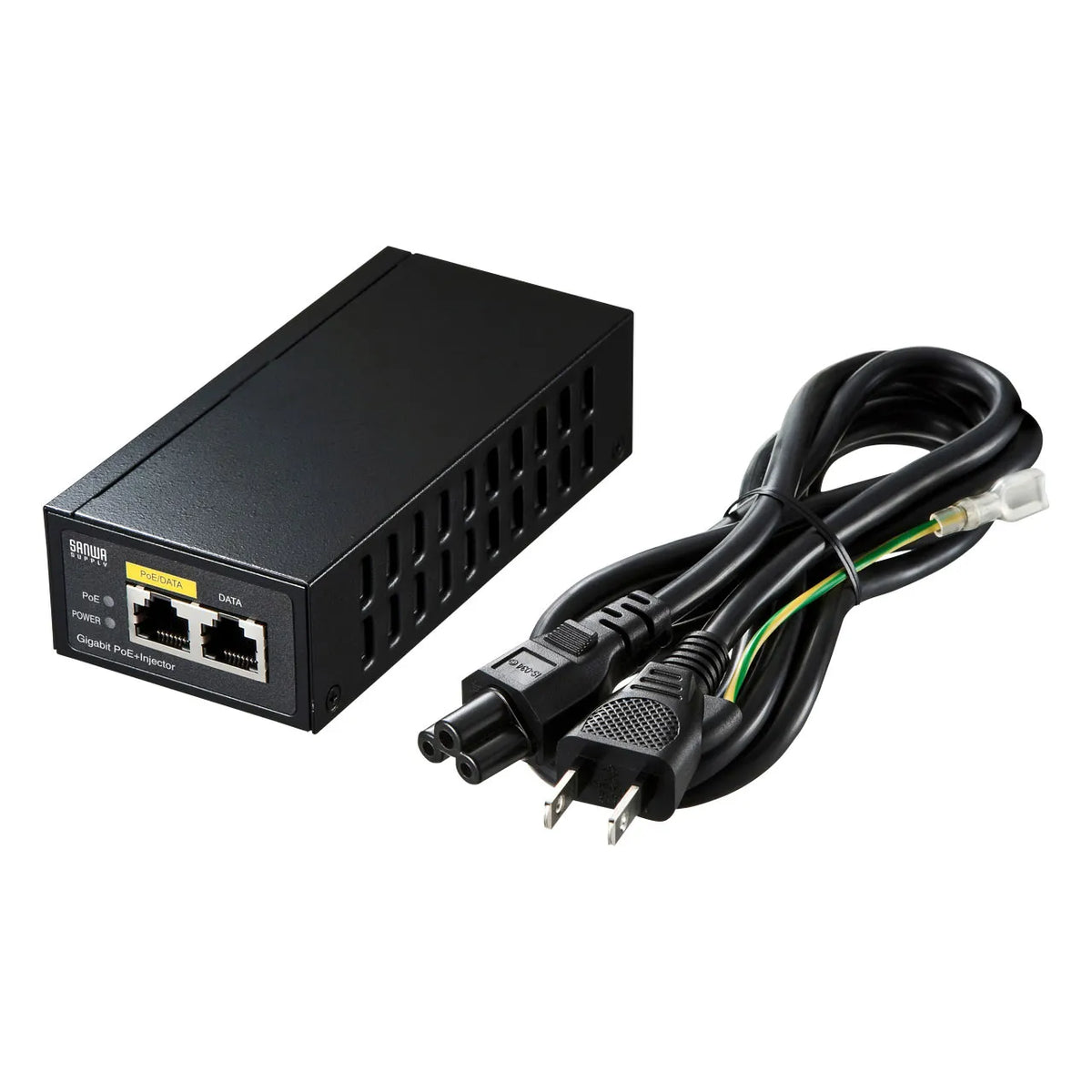

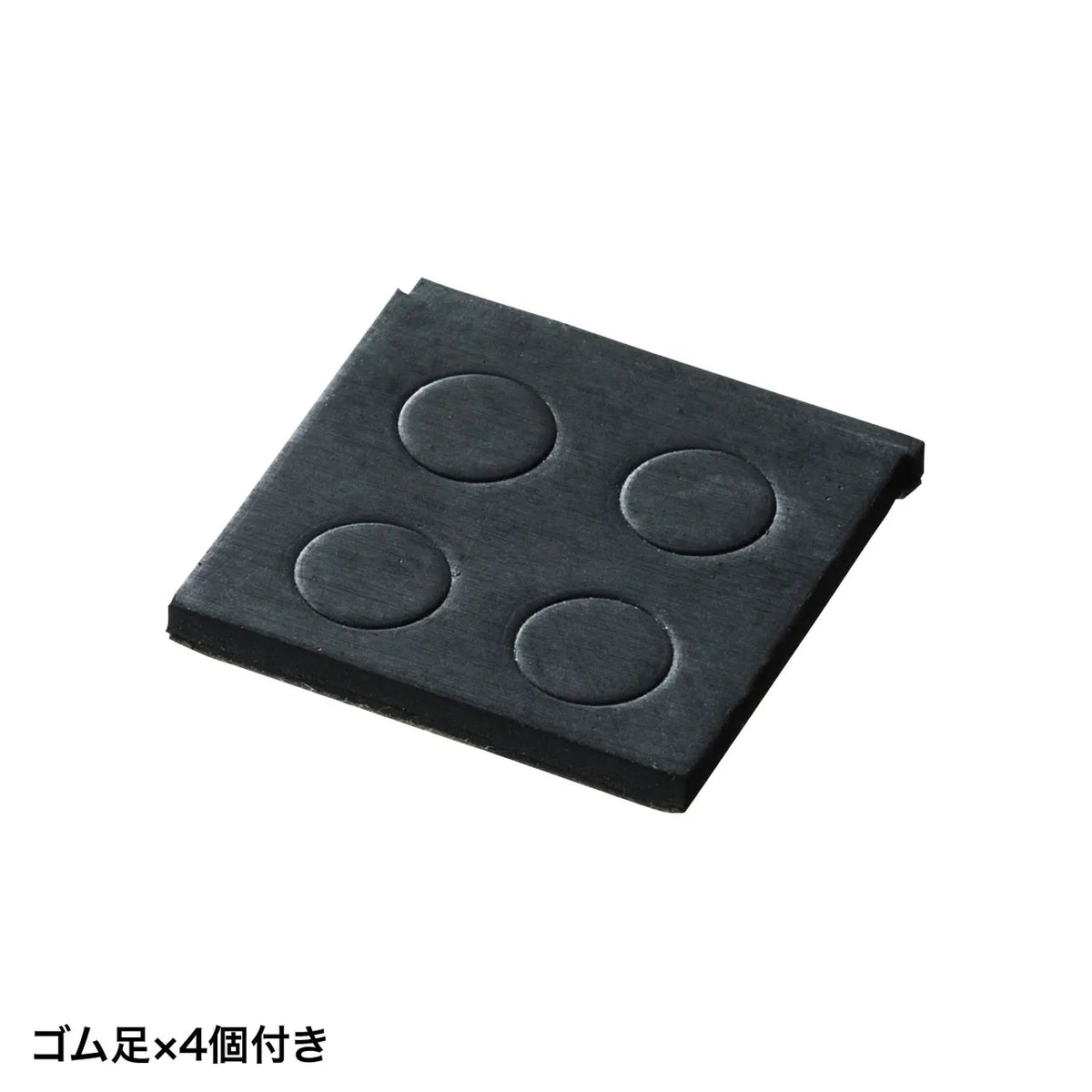

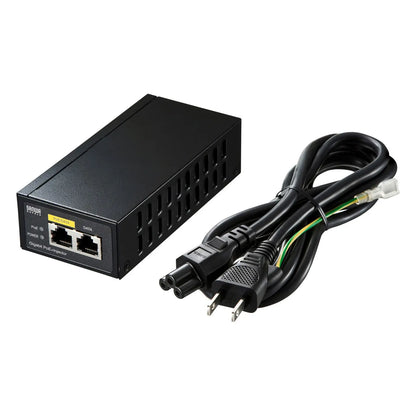

■Set Contents: Wall mounting screws x 2, anchors x 2, rubber feet x 4, power cable, instruction manual
