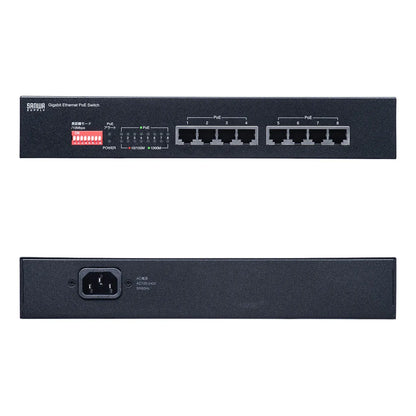

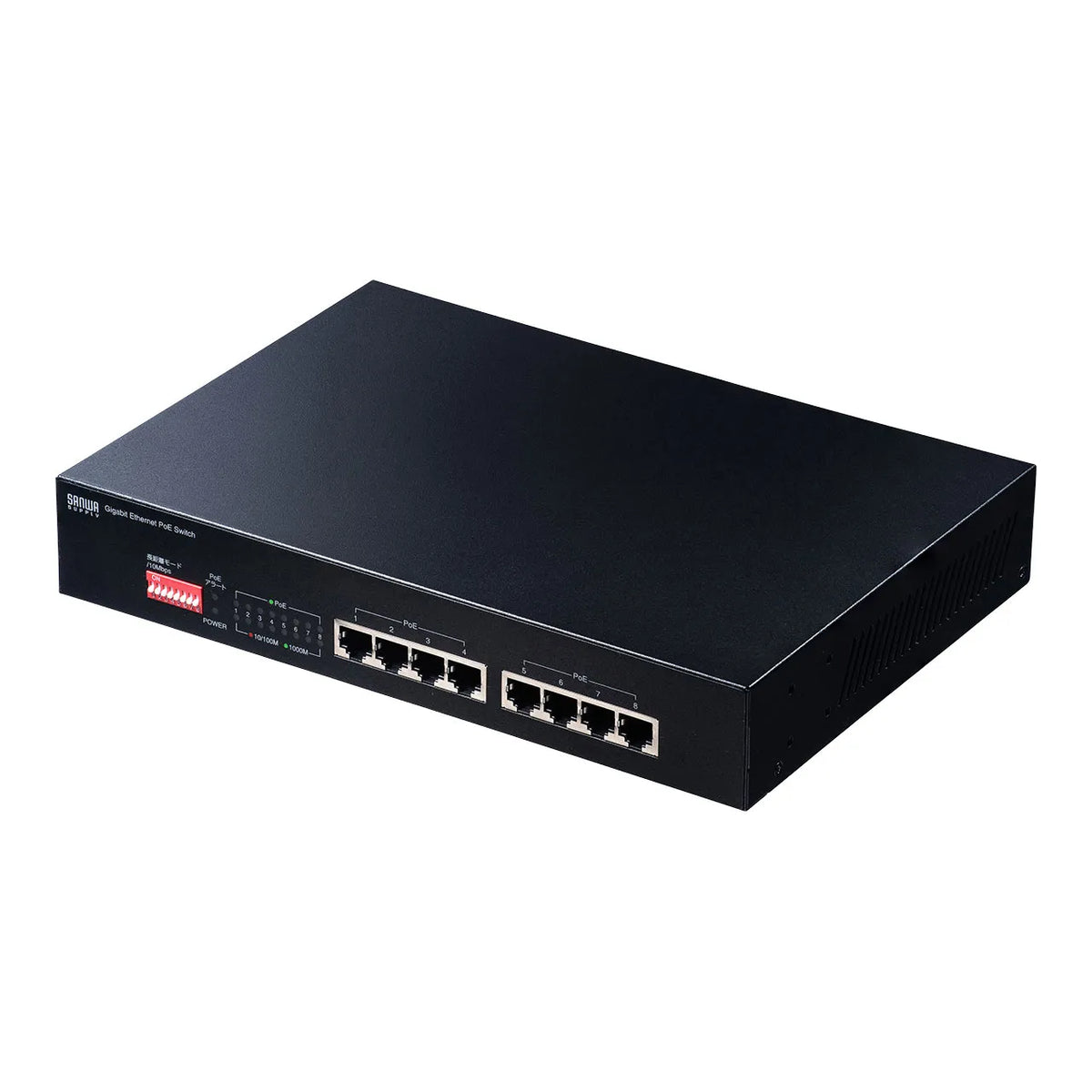

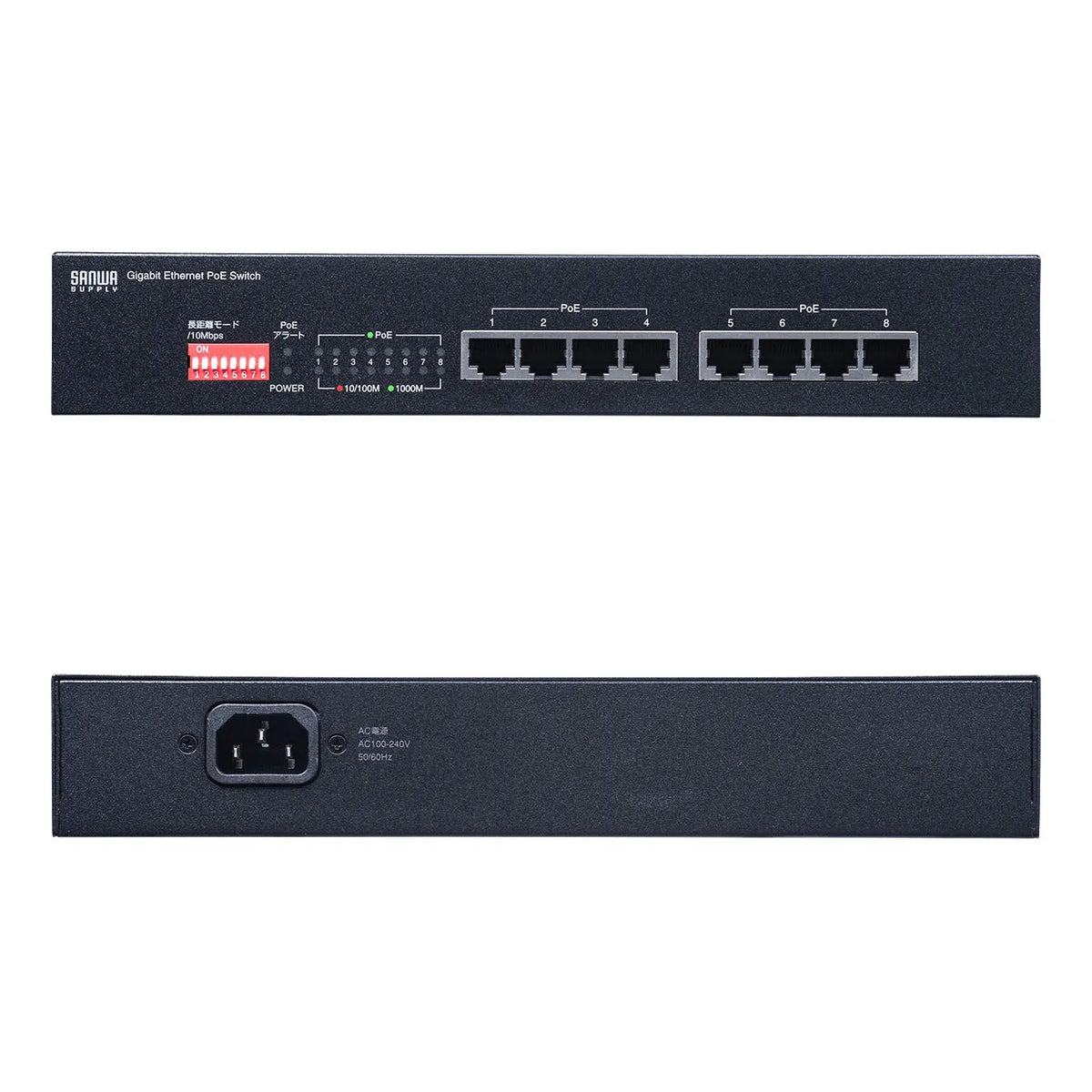

Long-distance transmission, Gigabit-compatible PoE switching hub (8 ports) LAN-GIGAPOE81

[A PoE switching hub with a built-in power supply and a long-distance transmission mode that allows PoE power supply up to 180m]

●This is an 8-port switching hub that supports Gigabit and PoE power supply.
●It supports IEEE 802.3at PoE+ and can supply a maximum of 30W per port. (Total of all ports up to 130W) (PoE alert function/an alert light illuminates when it exceeds 120W)

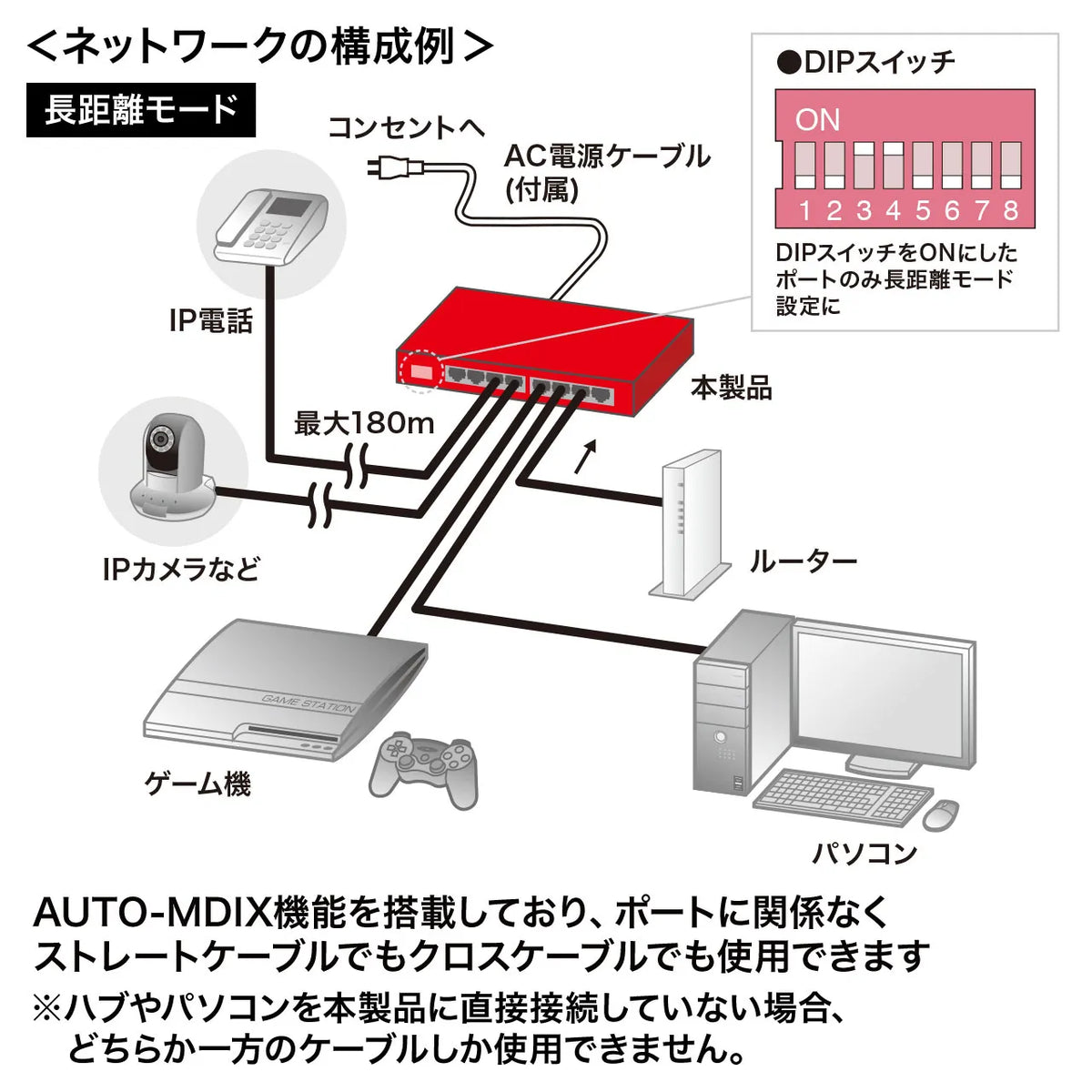

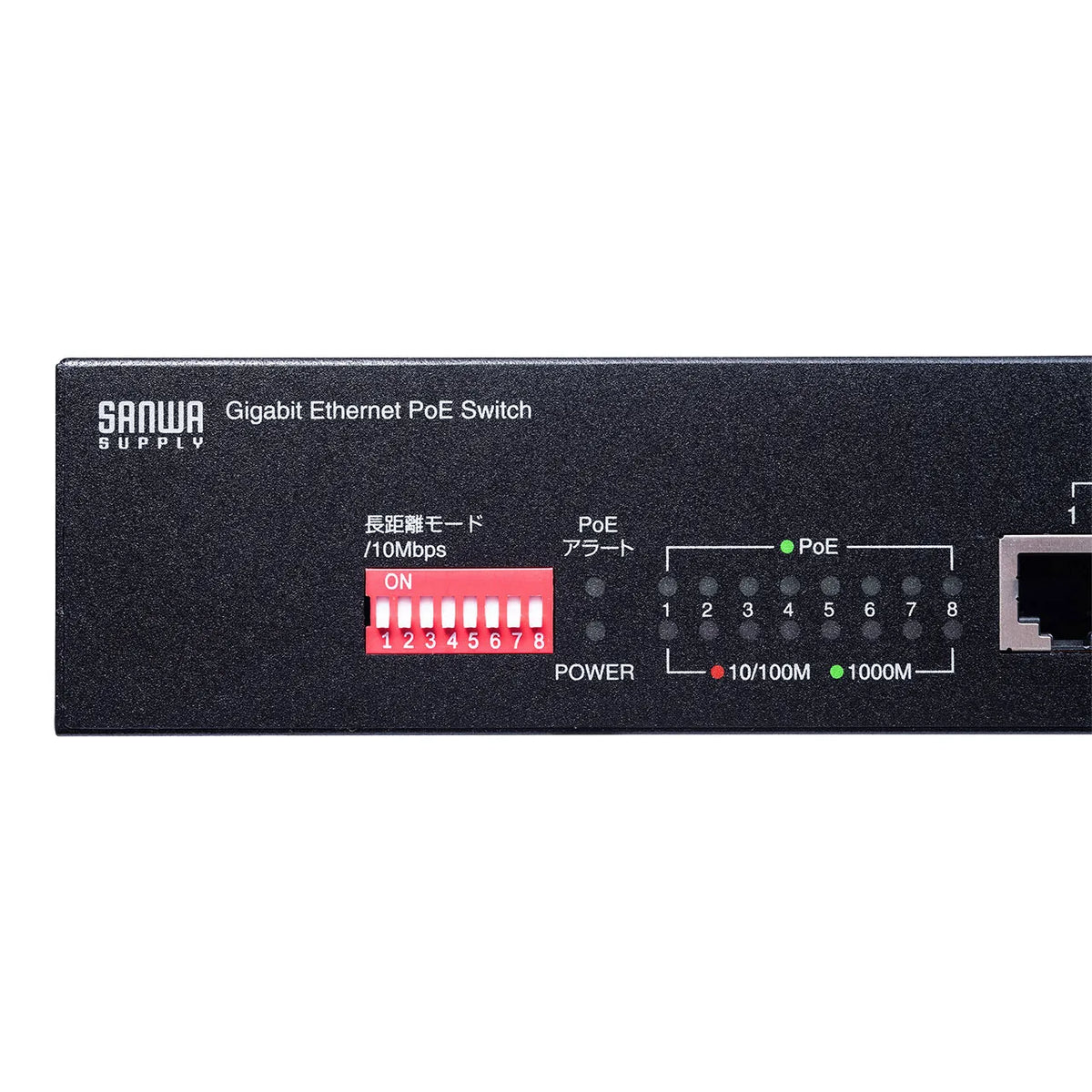

●Each port can be easily changed to long-distance transmission mode using a DIP switch. The communication speed is limited to 10Mbps, but it can supply power and communicate with PoE devices up to 180m away.
(It can be used with PoE devices such as IP phones and IP cameras that operate with low power consumption and do not require high-speed communication.)
●Since the power supply is built-in, the wiring around the outlet can be kept neat.
●The metal casing provides excellent heat dissipation.
●It is fanless, so it operates quietly.

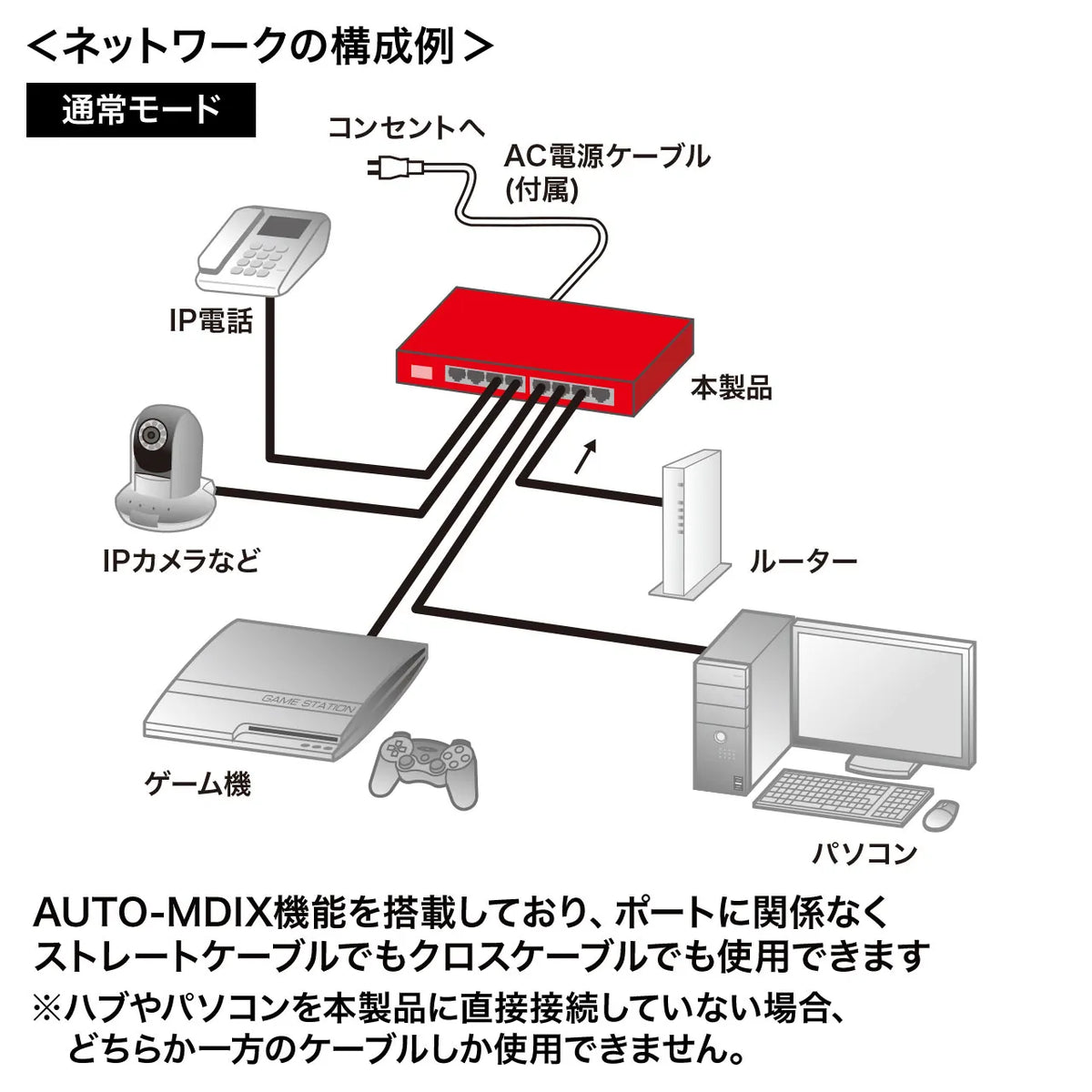

●It is equipped with an AUTO-MDIX function that allows you to use straight cables and crossover cables without worrying about them.
●Equipped with an AUTO-Negotiation function that allows automatic switching between 10/100/1000Mbps depending on the connected device.
●Equipped with a power-saving function that automatically detects unlinked ports and reduces power supply. Power saving of up to 57% is possible when all computers connected to all ports are shut down.
＜Caution＞
*The amount of heat generated by this product differs depending on whether it is only powered on or communicating.
*In particular, if a large amount of communication is performed continuously, the unit may overheat.
*Continuous use in an environment with poor ventilation and heat dissipation may lead to deterioration of internal components and reduce the product's lifespan.
*When using, do not place anything on top of the unit and leave a space of at least 10cm around the ventilation opening.

＜Precautions when using PoE ports＞
*For PoE power supply, please select a Category 5e/6 straight cable, 24AWG/23AWG or higher.
Recommended Cables/Sanwa Supply
・KB-T6POE Series
・KB-T6ATS Series
・KB-T5T Series
*These are reference values ​​and are not guaranteed.
*When connecting devices that operate using PoE power supply, it is recommended to perform operational testing in advance.

■Standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T), IEEE802.3x (Flow control for Full-Duplex), IEEE802.3af/at (PoE/PoE+)
■Switching method:
Store & Forward
■Communication mode: Full duplex/Half duplex
■Port configuration: Ports 1-8 1000BASE-T/100BASE-TX/10BASE-T
AUTO-MDIX
PoE/PoE+
■PoE-compatible port output:
at standard 30W/1 port (maximum)
af standard 15.4W/1 port (Maximum)
Total power consumption of all ports: up to 130W
■Compatible LAN cables:
For data communication: UTP Category 5e or higher (1000BASE-T), UTP Category 5 or higher (100BASE-TX), UTP Category 3 or higher (10BASE-T)
For PoE communication: UTP Category 5e/6/6a straight cable with a thickness of 24AWG or greater
*Please use a PoE-compatible LAN cable.
■Buffer memory:
192kbytes
■Jumbo frame: 9K
■MAC address table: 4K
■Dimensions: W265×D183×H44mm
■Weight: 1.65kg
■Power consumption (MAX): 150W
■Fan specifications: Silent fanless

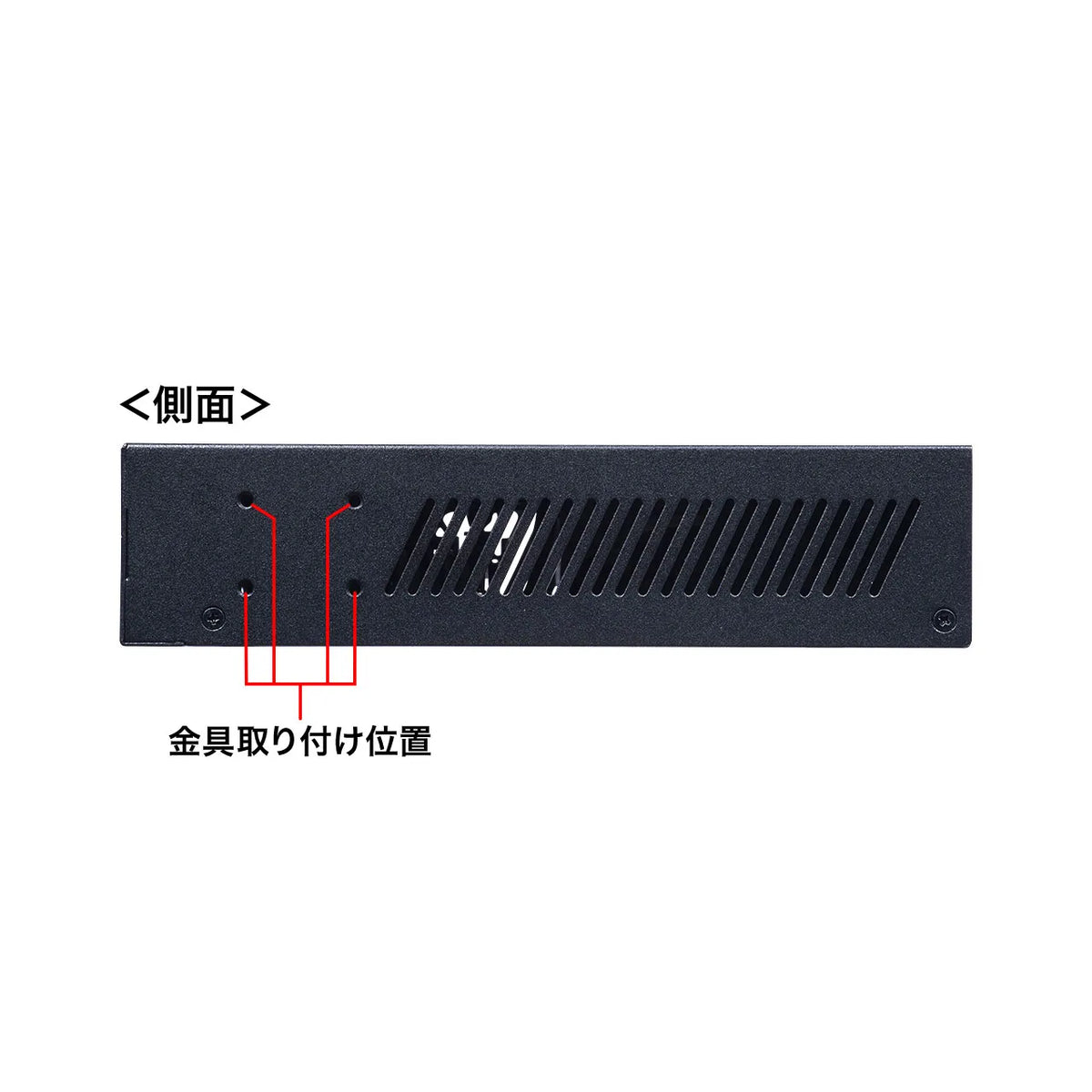

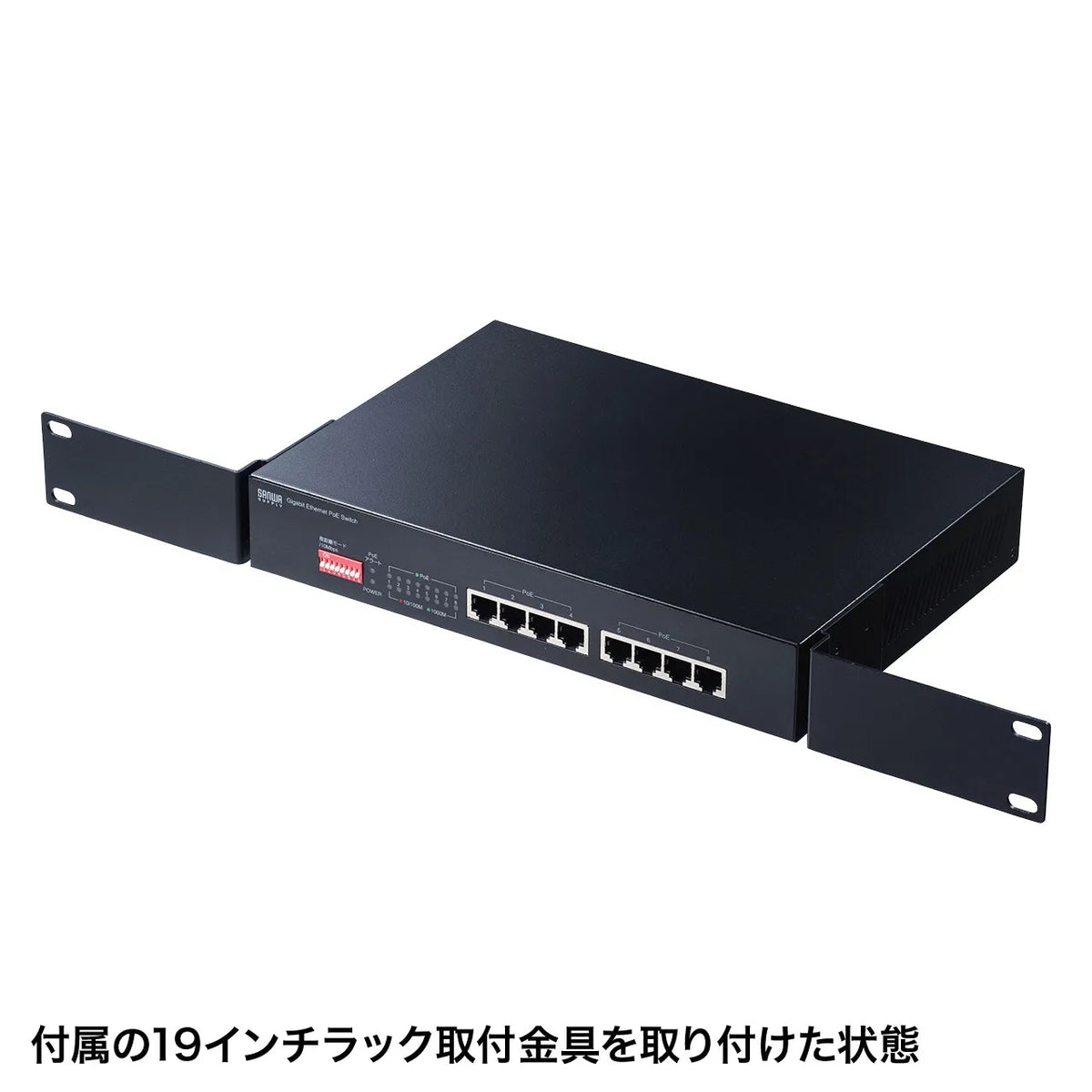

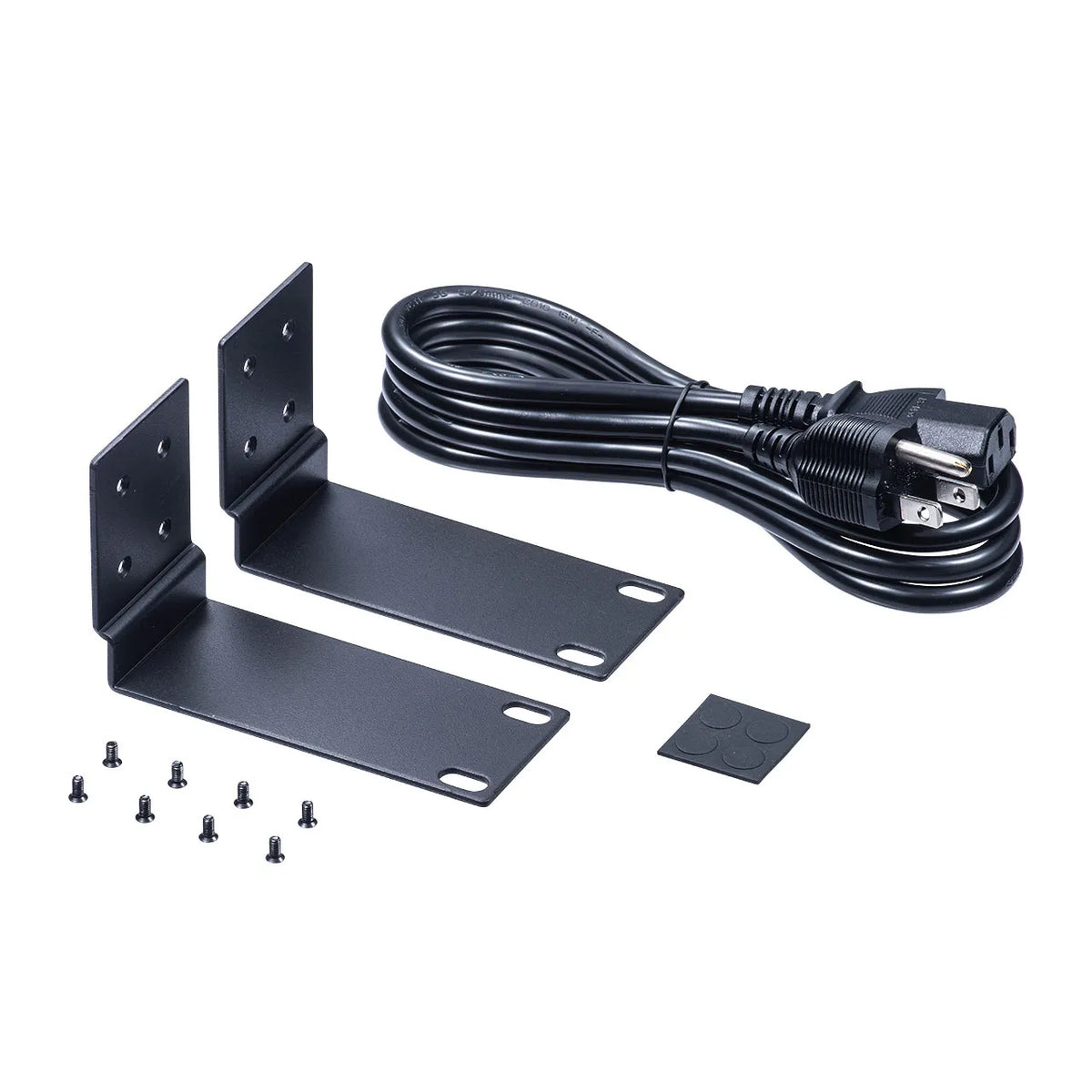

■Set contents: Dedicated AC power cable (approx. 1.5m) x 1, 19-inch rack mounting hardware set x 1, rubber feet x 4, instruction manual x 1
■Access method :CSMA/CD
■Switch Fabric: 16Gbps
■Maximum Packet Forwarding Capacity: 12.0Mpps
■Filtering Speed: 1,488,000 packets/sec (1,000Mbps), 148,800 packets/sec (100Mbps), 14,880 packets/sec (10Mbps)
■Auto Negotiation: Supported (1,000/100/10Mbps)
■MTBF: 385,329 hours
■PoE Power Supply Method: Alternative A
■Heat Generation: 530.4KJ/h
■EAP Pass-Through Function: Supported
■BPDU Pass-Through Function: Supported
■Non-Blocking: Supported
■Energy Efficiency: 2.7W/Gbps
■Compliant Standards: VCCI Class A
