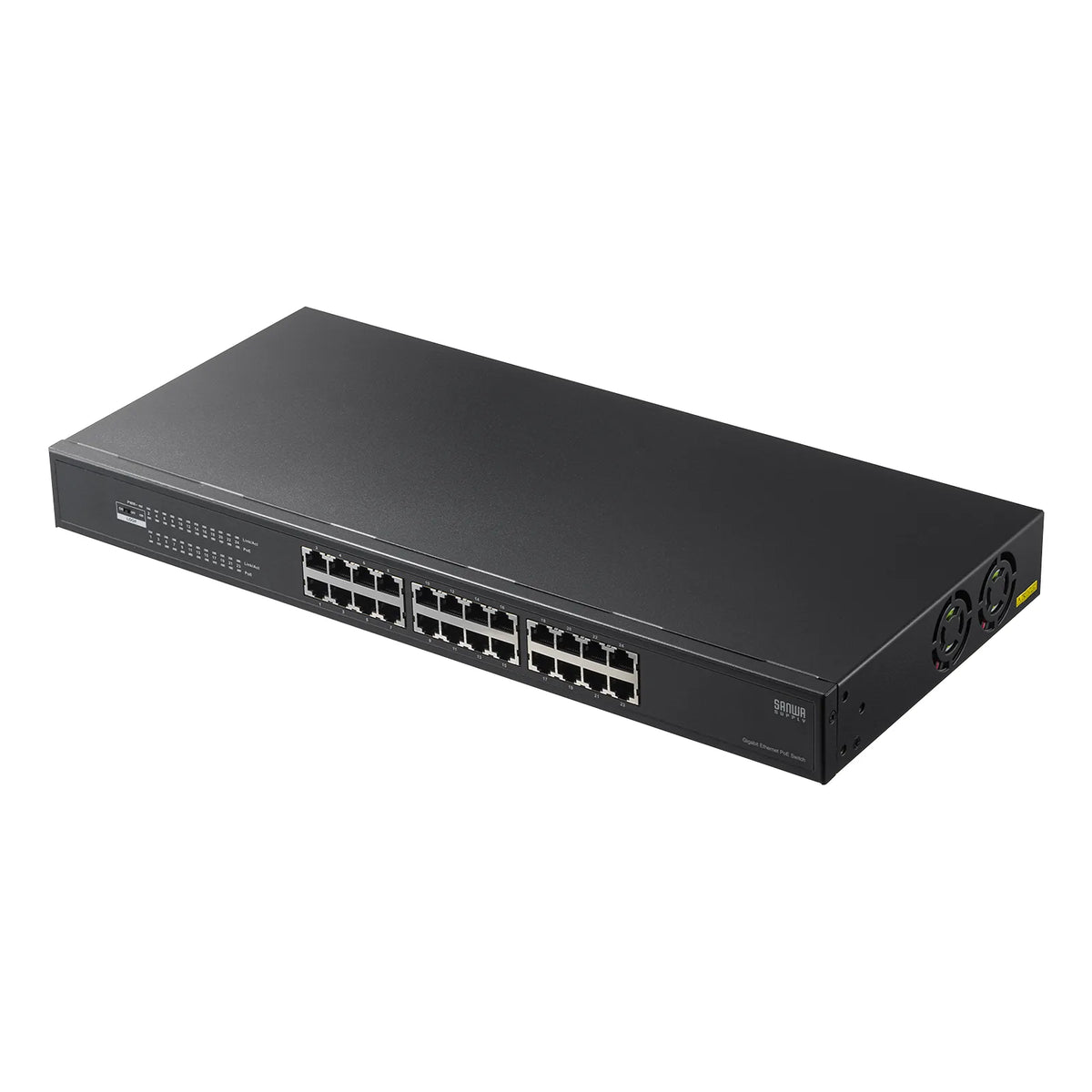

Layer 2 Gigabit compatible PoE switching hub (24 ports) LAN-GIGAPOE2401

[Layer 2 Gigabit compatible PoE switching hub (24 ports) with all ports supporting IEEE 802.3af/at (PoE, PoE+). Features loop detection and beep alert notification.]

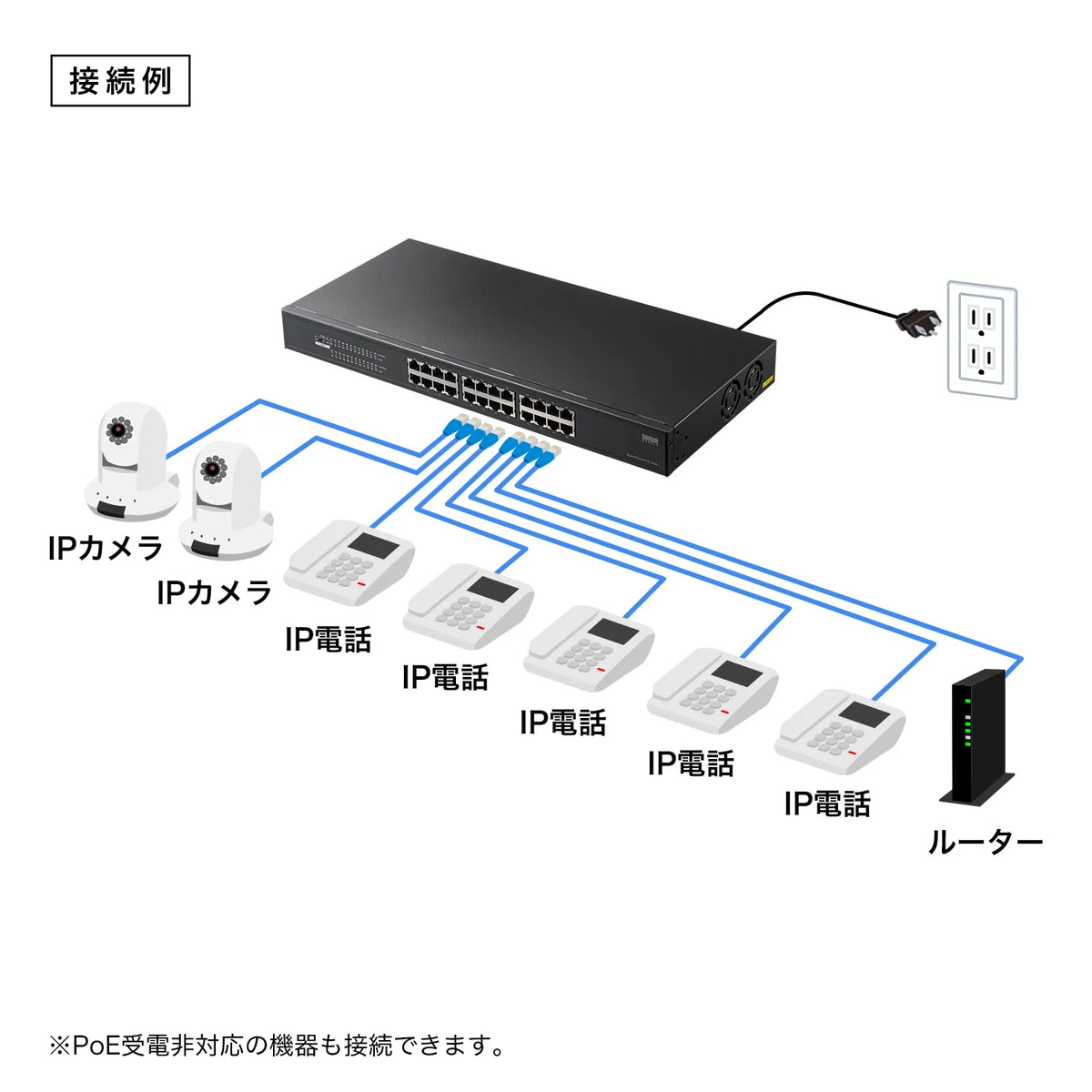

●Unmanaged 24-port switching hub with Layer 2 Gigabit and PoE power supply support.

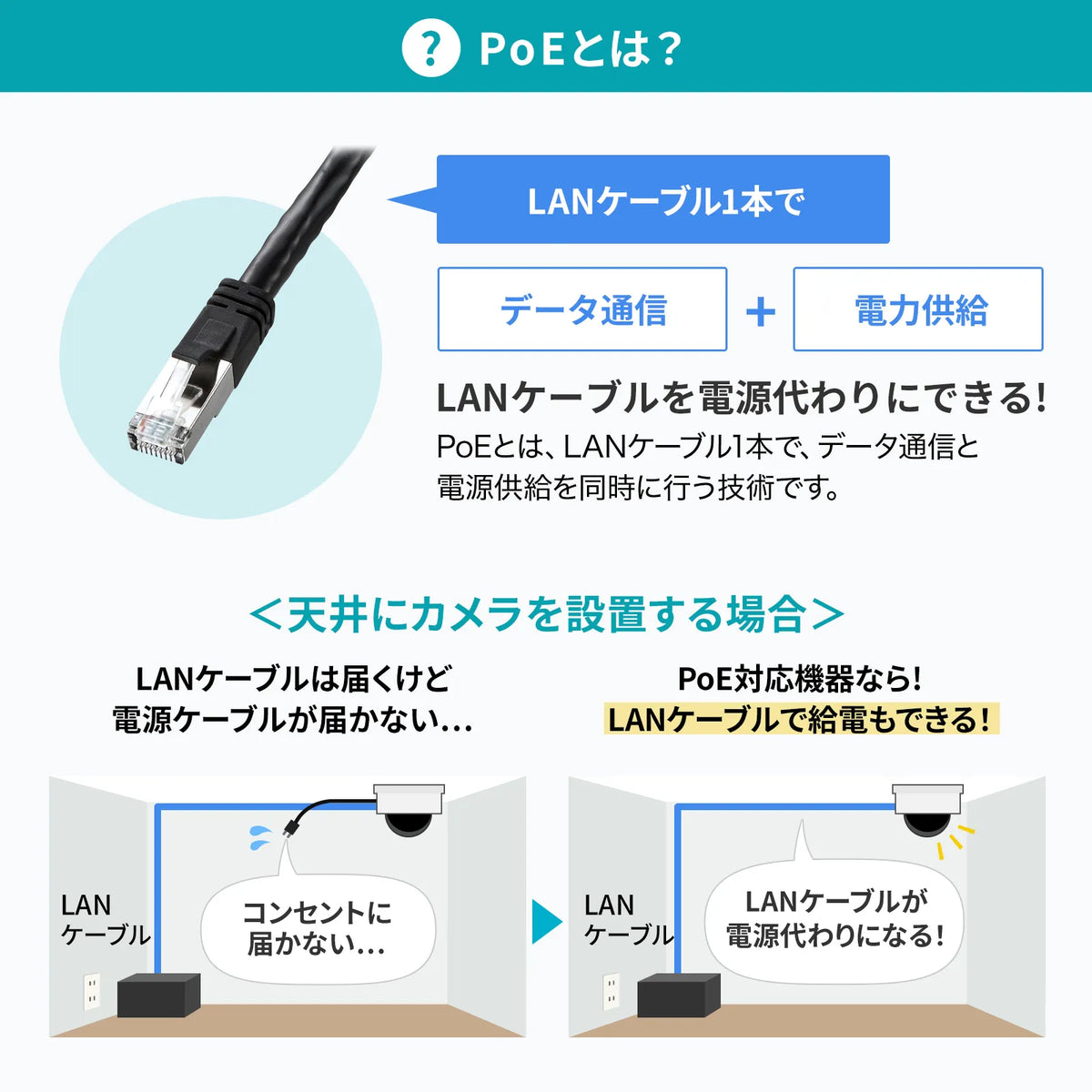

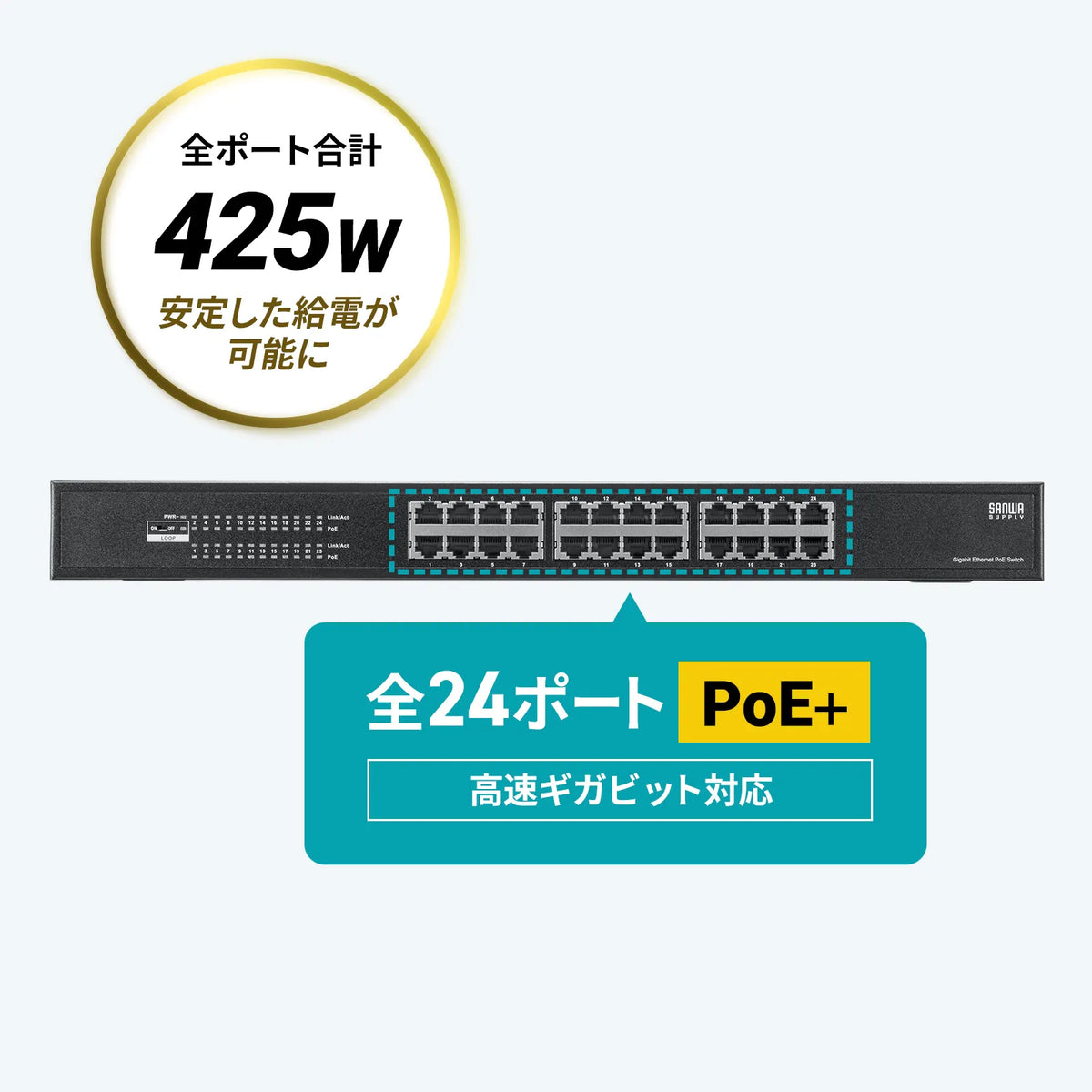

●Supports IEEE 802.3at PoE+, providing up to 30W of power per port (425W total for all ports).

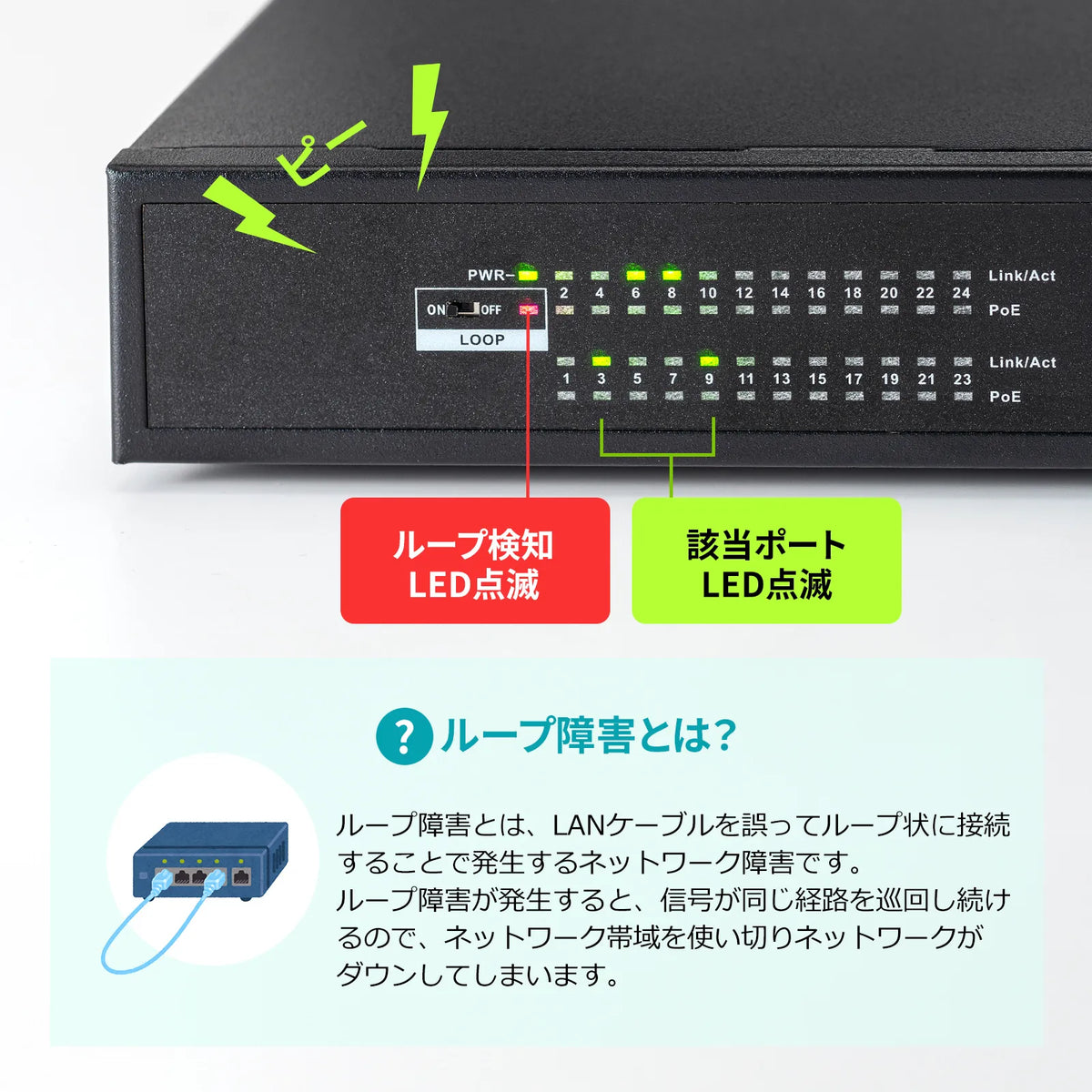

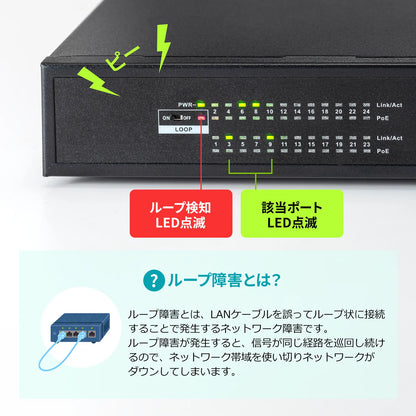

●Equipped with loop detection function, providing an alert function that beeps to indicate an abnormality when a loop occurs.

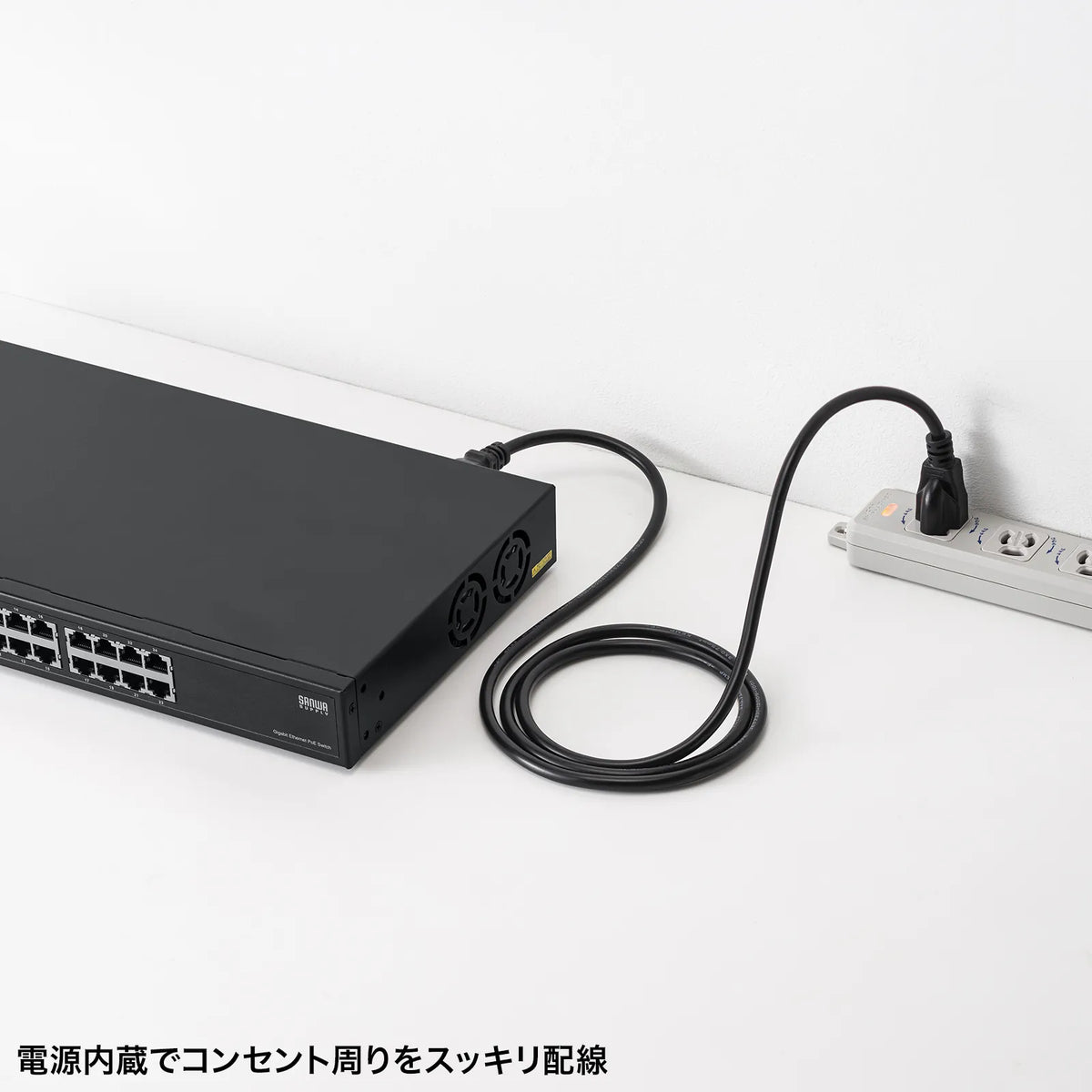

●Built-in power supply allows for neat wiring around the outlet.
●Heat resistant up to 50 degrees Celsius for stable operation even in harsh environments, making it ideal for installation in factories and warehouses.

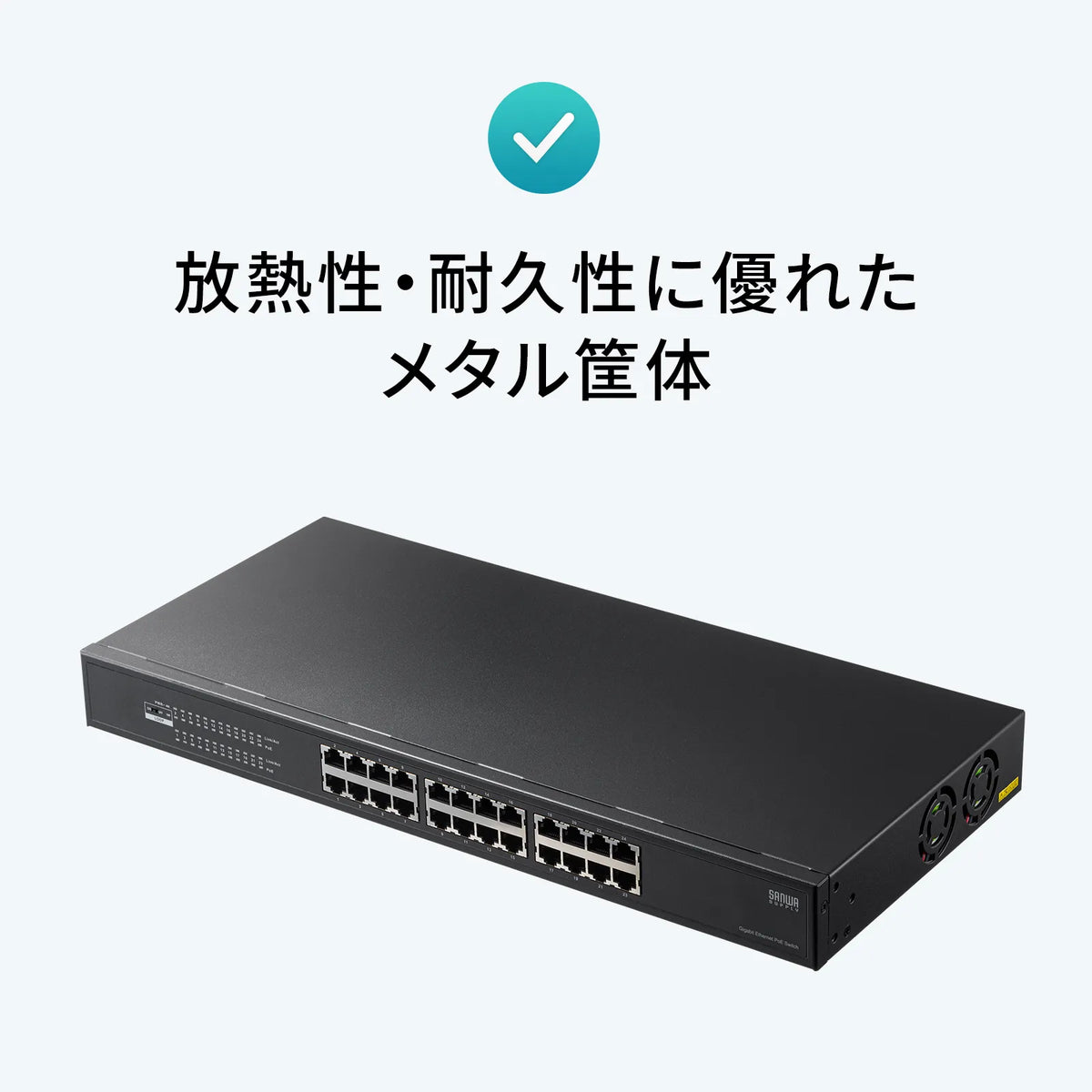

●Metal casing provides excellent heat dissipation.

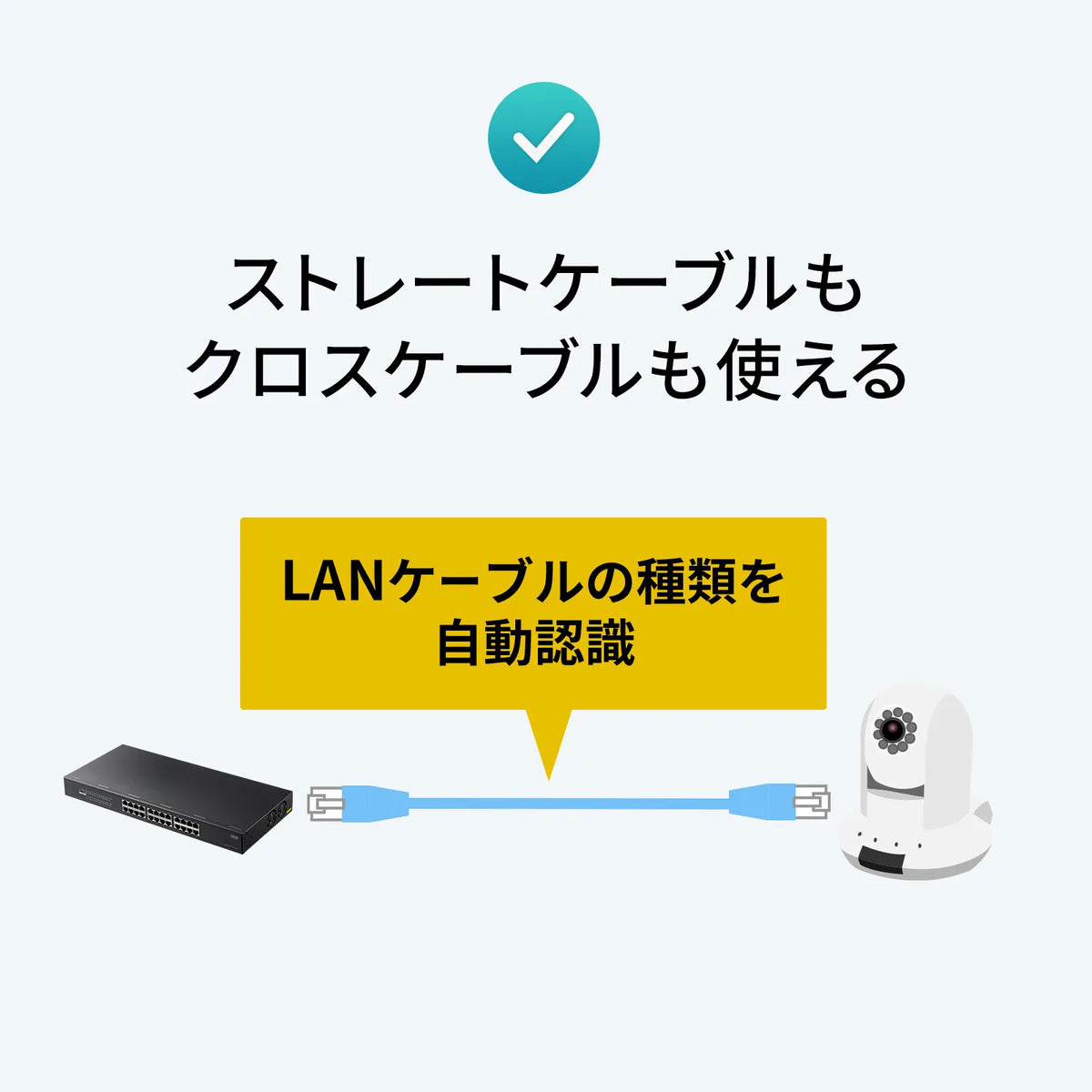

●Features AUTO-MDIX function, allowing use with both straight and crossover cables.
●Equipped with AUTO-Negotiation function that allows automatic switching between 10/100/1000Mbps depending on the connected device.

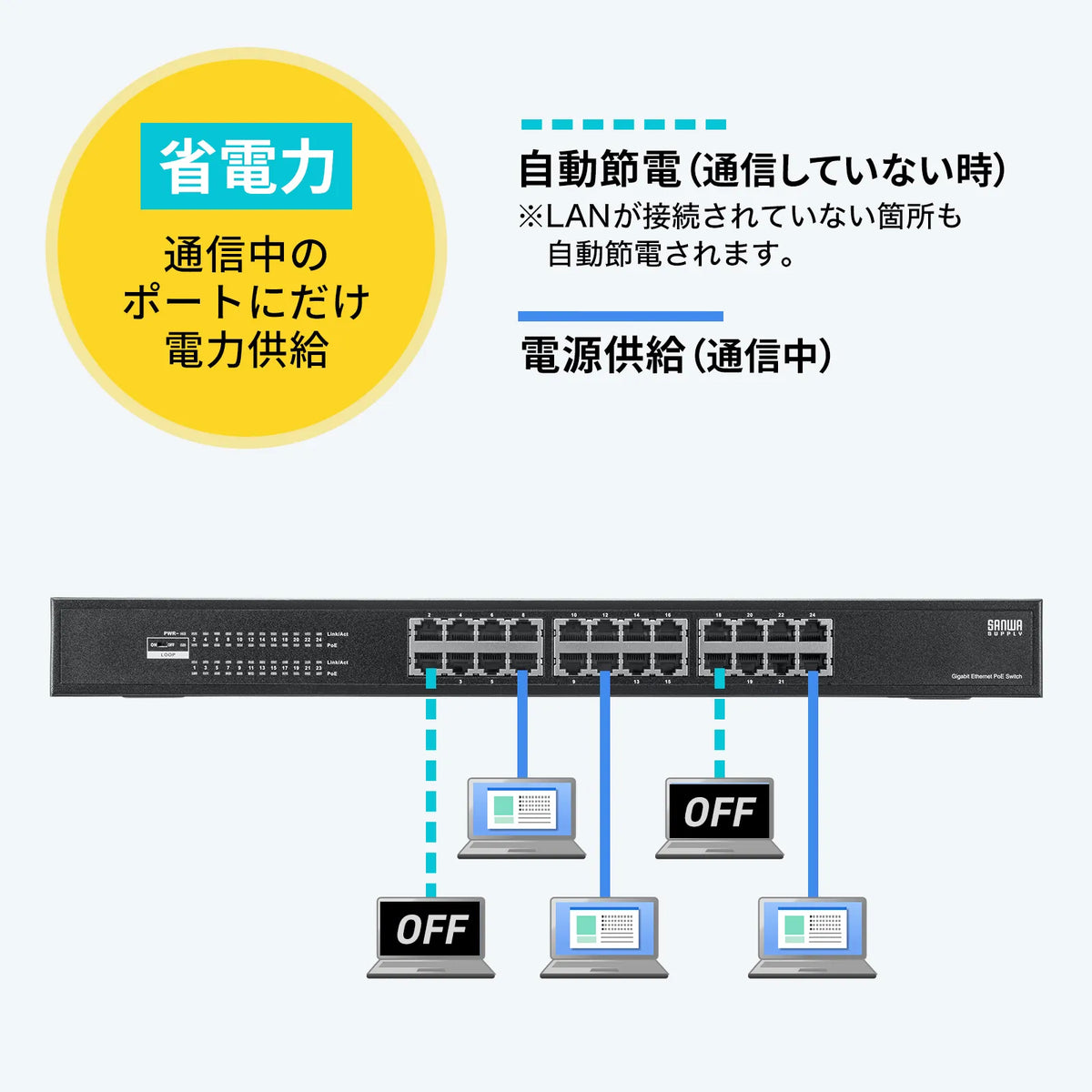

●Equipped with a power-saving function that automatically detects unlinked ports and reduces power supply.

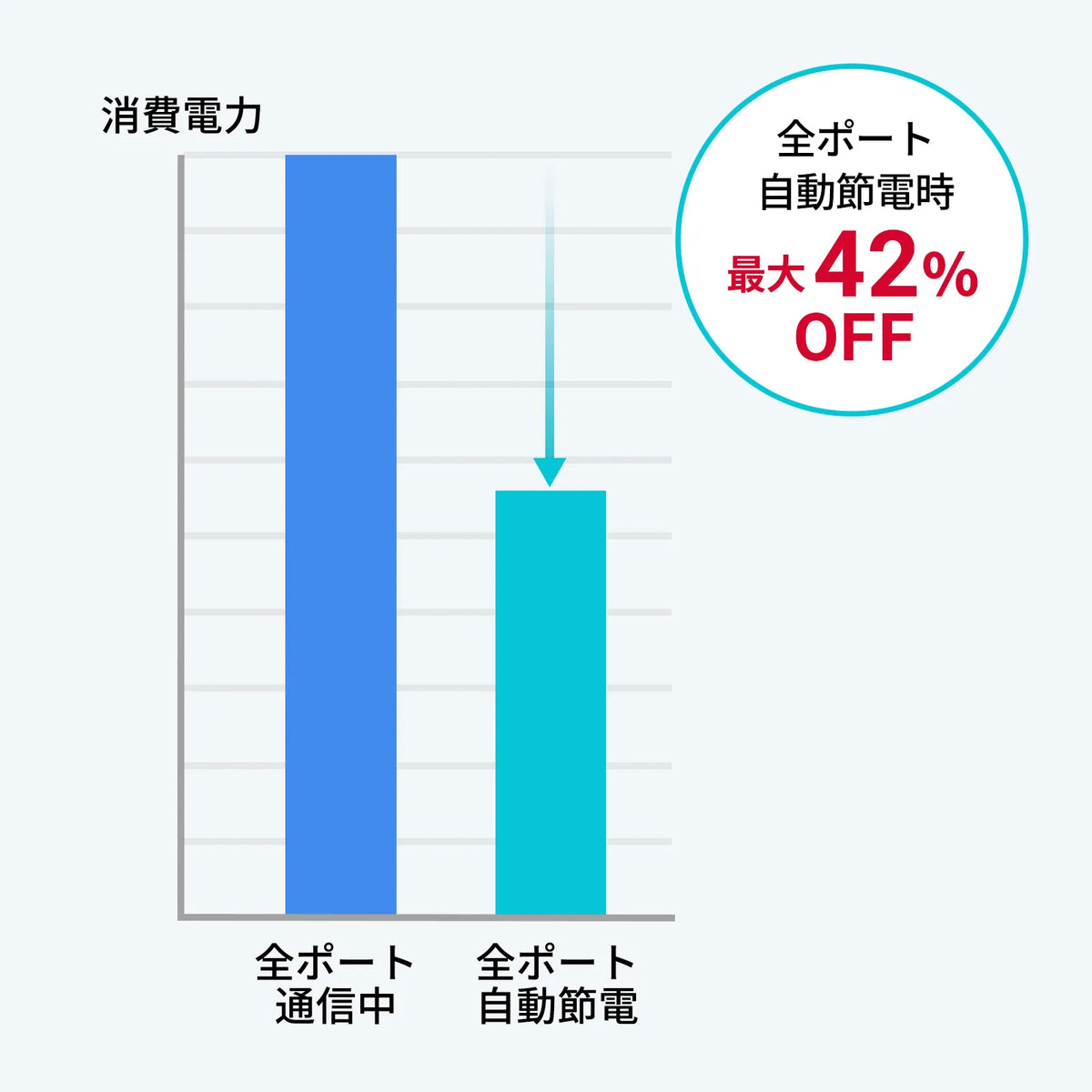

Up to 42% power savings are possible when all connected computers are shut down.
●Compatible with 19-inch rack mounts.


【Caution】
・The amount of heat generated by this product differs depending on whether it is only powered on or communicating.
・In particular, continuous high-volume communication may cause the unit to overheat.
・Continuous use in an environment with poor ventilation and heat dissipation may lead to deterioration of internal components and reduce the product's lifespan.
・When using, do not place anything on top of the unit, and leave at least 10 cm of space around the ventilation openings.

*For PoE power supply, please select a Category 5e/6/6a straight cable with a thickness of 24AWG or greater.
Recommended Cable (Sanwa Supply)
・KB-T6POE series (22AWG)
・KB-T6TS series (23AWG)
・KB-T5T series (24AWG solid wire)


■Number of ports: 24 ports
■Maximum transmission speed: 1000Mbps (1000BASE-T)
■Compliant standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T), IEEE802.3x (Flow control for Full-Duplex), IEEE802.3af/at
■Access method: CSMA/CD
■Switching method: Store & Forward
■Communication mode: Full duplex/Half duplex
■Port configuration:
1 to 24 ports: 1000BASE-T/100BASE-TX/10BASE-T
PoE/PoE+
■AutoMDI/MDI-X: Supported
■PoE support: Supported
■PoE port output: af standard: 15.4W/1 port (maximum), at standard: 30W/1 port (maximum)
Total of all ports up to 425W
■PoE power supply method: Alternative A
■Compatible LAN cable:
For data communication: UTP Category 5e or higher (1000BASE-T), UTP Category 5 or higher (100BASE-TX), UTP Category 3 or higher (10BASE-T)
For PoE communication: UTP Category 5e/6/6a straight cable with a thickness of 24AWG or more
*Please use a PoE-compatible LAN cable.
■Buffer Memory: 1.0 Mbytes
(Dynamic allocation to each port)
■Flow Control: Yes
■Switch Fabric: 24 Gbps
■Maximum Packet Forwarding Capacity: 35.7
■Filtering Speed: 1,488,000 packets/sec (1,000 Mbps), 148,800 packets/sec (100 Mbps), 14,880 packets/sec (10 Mbps)

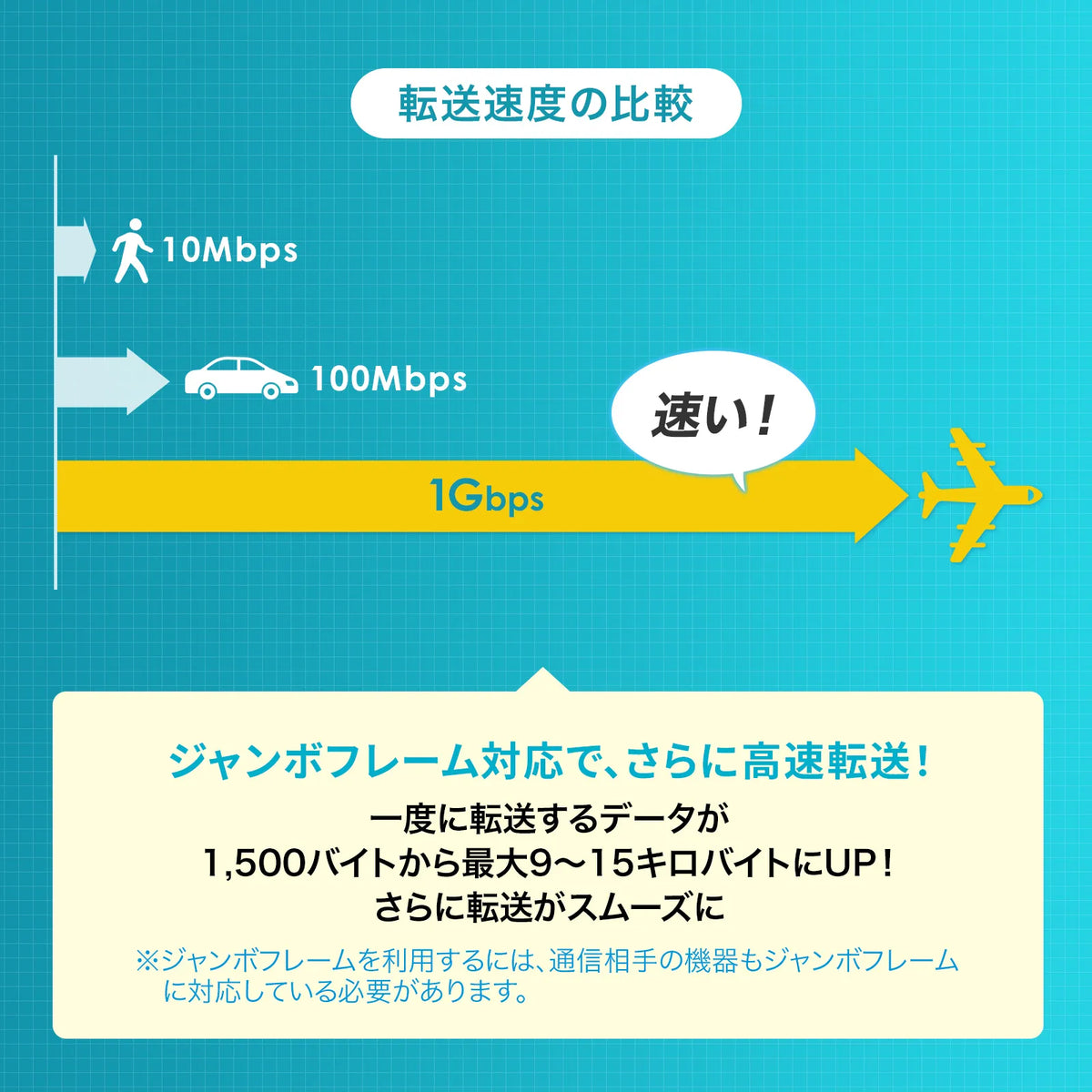

■Jumbo Frames: Supported
(16K)
■MAC Address Table: 8K
■Auto-Negotiation: Supported
(1,000/100/10 Mbps)
■VCCI Standard: VCCI Class A
■Power Supply: Built-in power supply
■Power Cable Length: Approx. 1.5
■Operating Environment Conditions: Temperature/0 to 40 degrees Celsius, Humidity/5 to 95% (non-condensing)
■Storage environmental conditions: Temperature/-10 to 70 degrees, Humidity/5 to 95% (non-condensing)
■Enclosure material: Metal
■19-inch mount installation: Yes
■Magnetic mounting: No
■Wall mounting: No
■Fan specifications: Fan included
■MTBF: 33274 hours
■Set contents:
AC power cable (approx. 1.5m) 1
19-inch rack mounting brackets 2,
Mounting screws 7
Rubber feet 4
Instruction manual 1
■Color: Black
■Heat output: 1620KJ/h (with PoE full load)
90KJ/h (without PoE (load)
■EAP transparency function: Supported
■BPDU transparency function: Supported
■Non-blocking: Supported
■Energy efficiency: 18.75W/Gbps (with PoE full load)
1.04W/Gbps (without PoE load)
