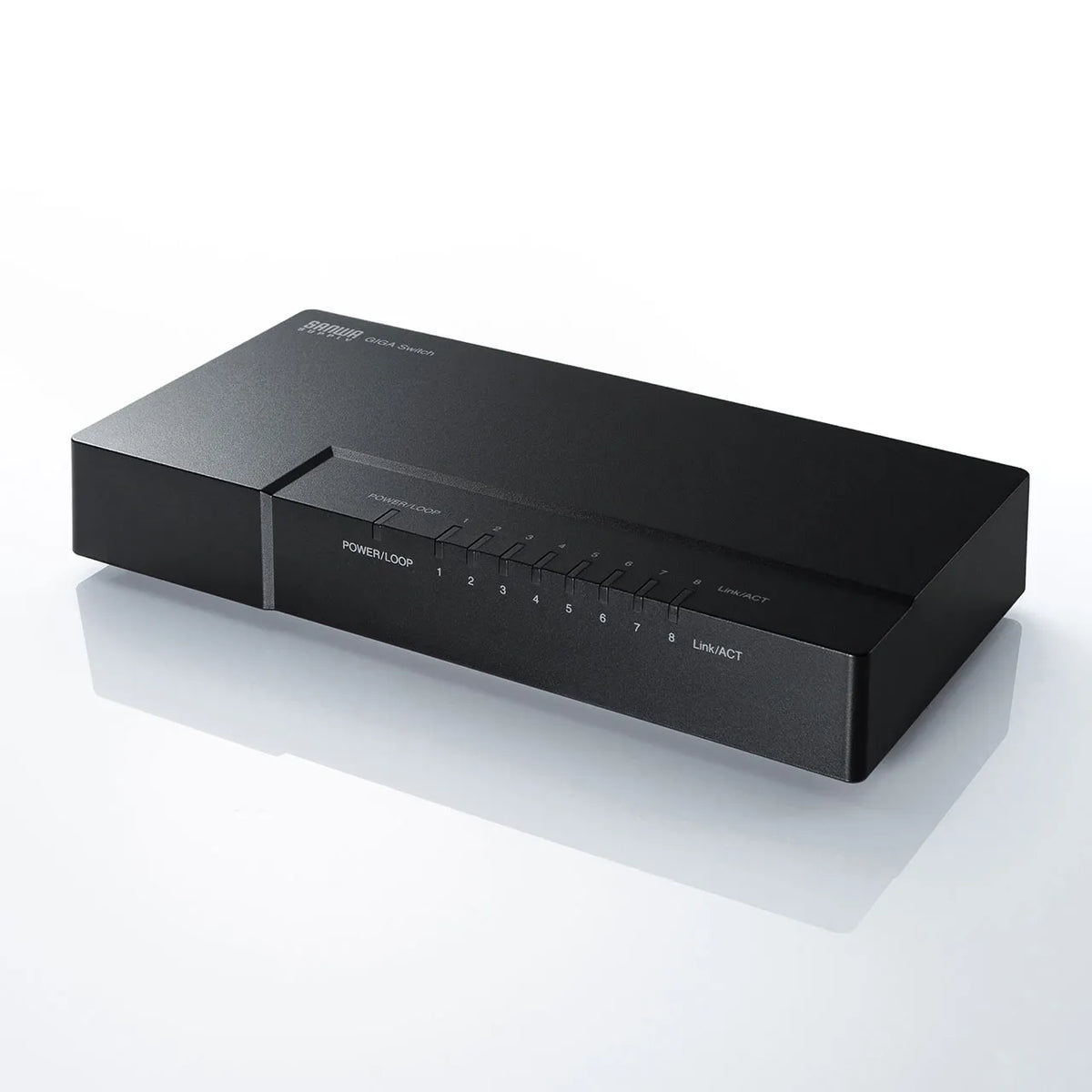

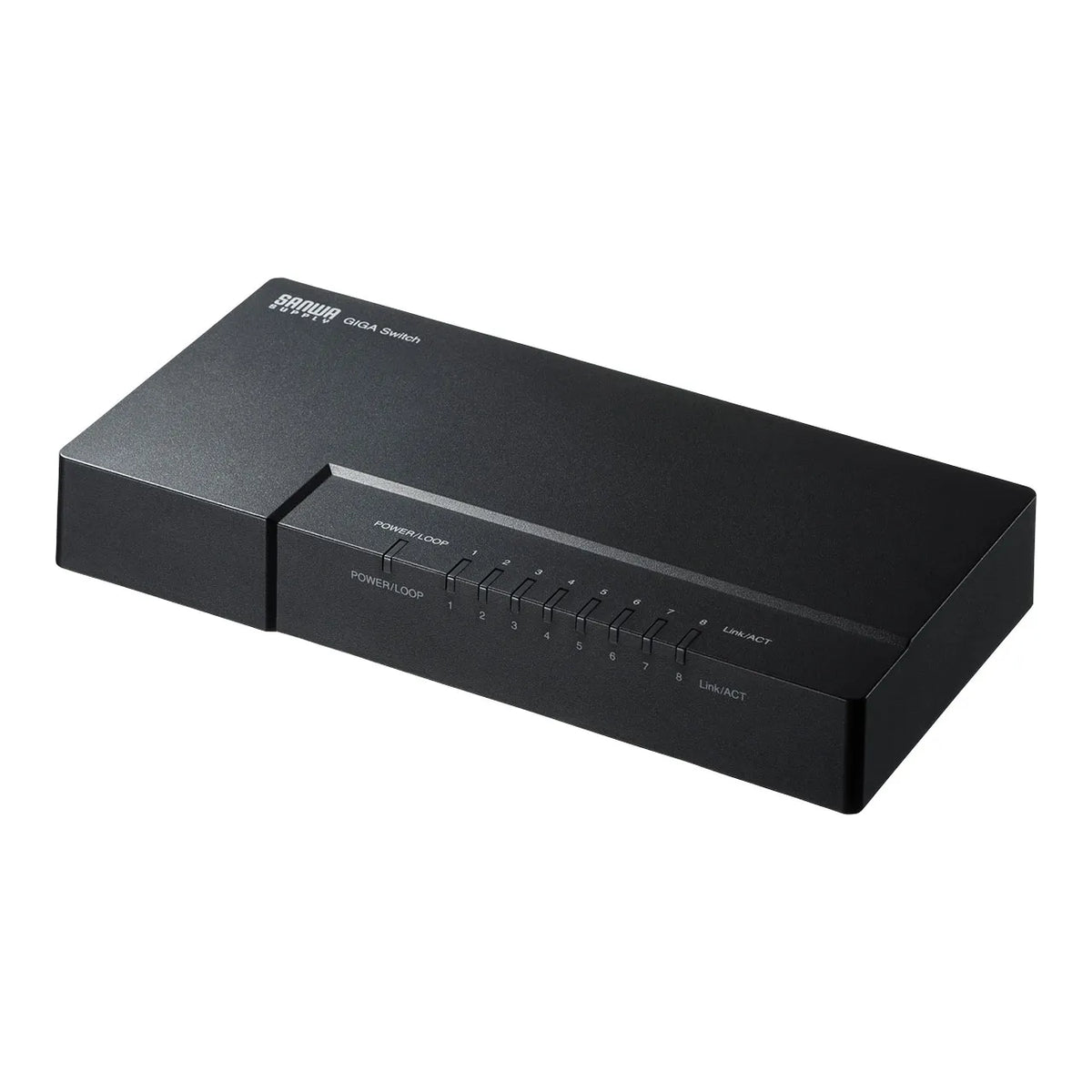

Gigabit-compatible switching hub (8 ports, with magnet) LAN-GIGAP802BK

[A 1000BASE-T compatible switching hub with a built-in power supply and magnet for fixing to steel desks, etc.]

●This is an 8-port switching hub compatible with 1000BASE-T.

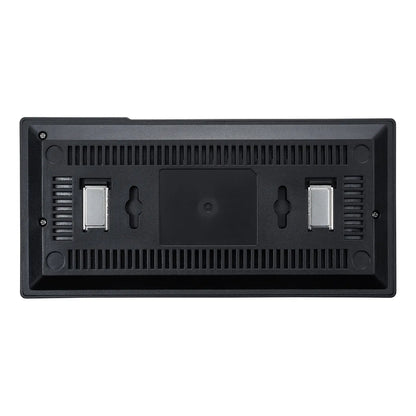

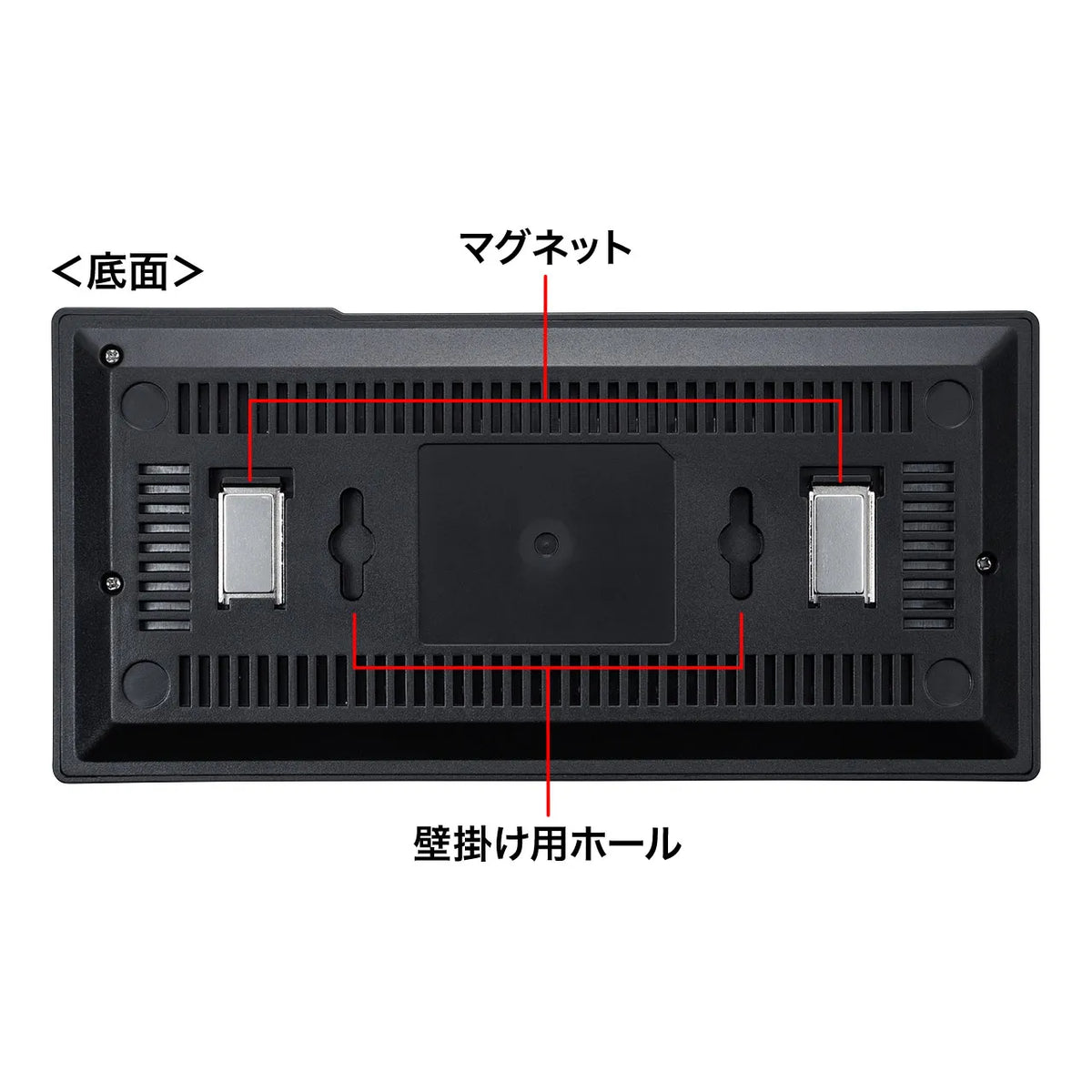

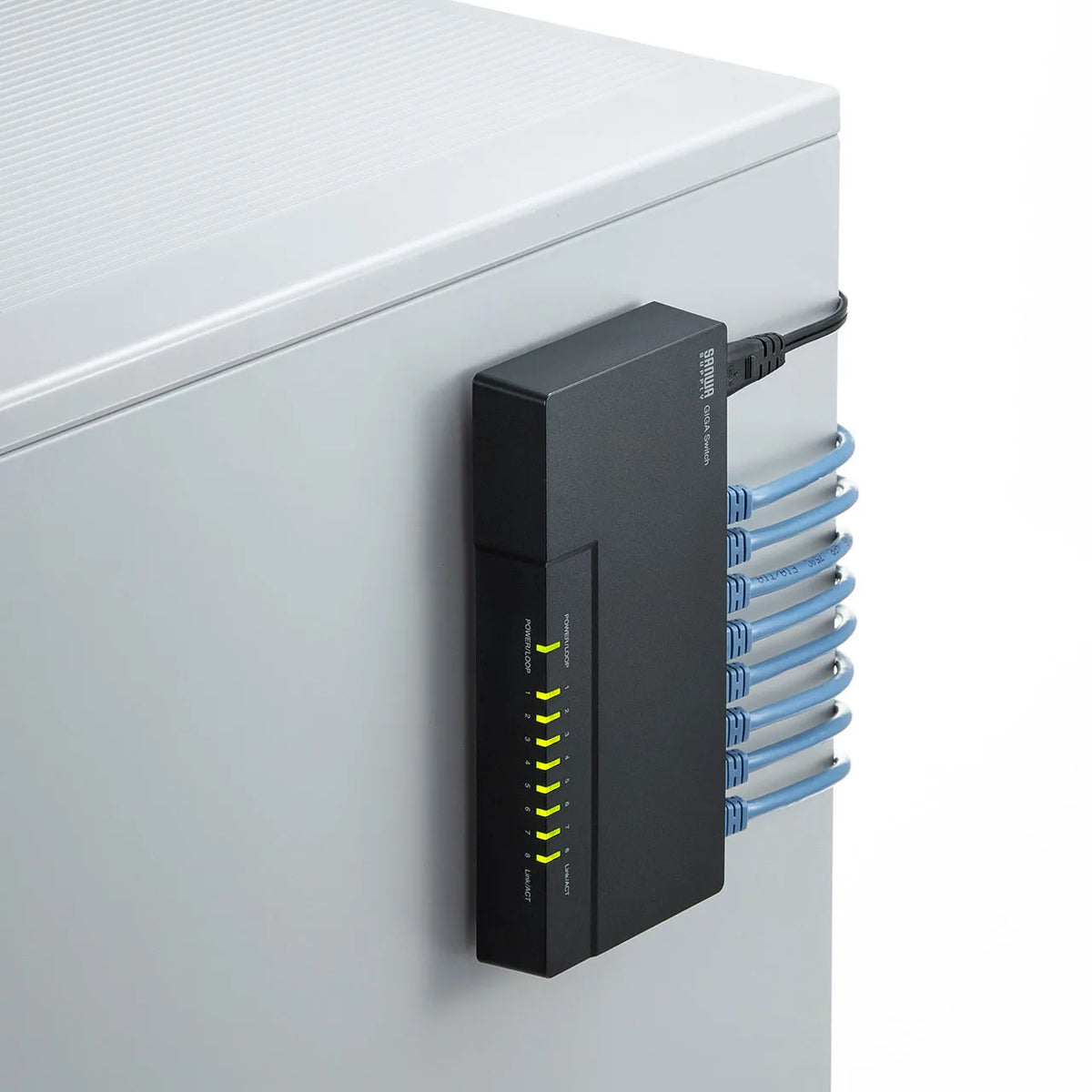

●Equipped with a strong magnet, it can be securely fixed to steel desks, cabinets, etc.

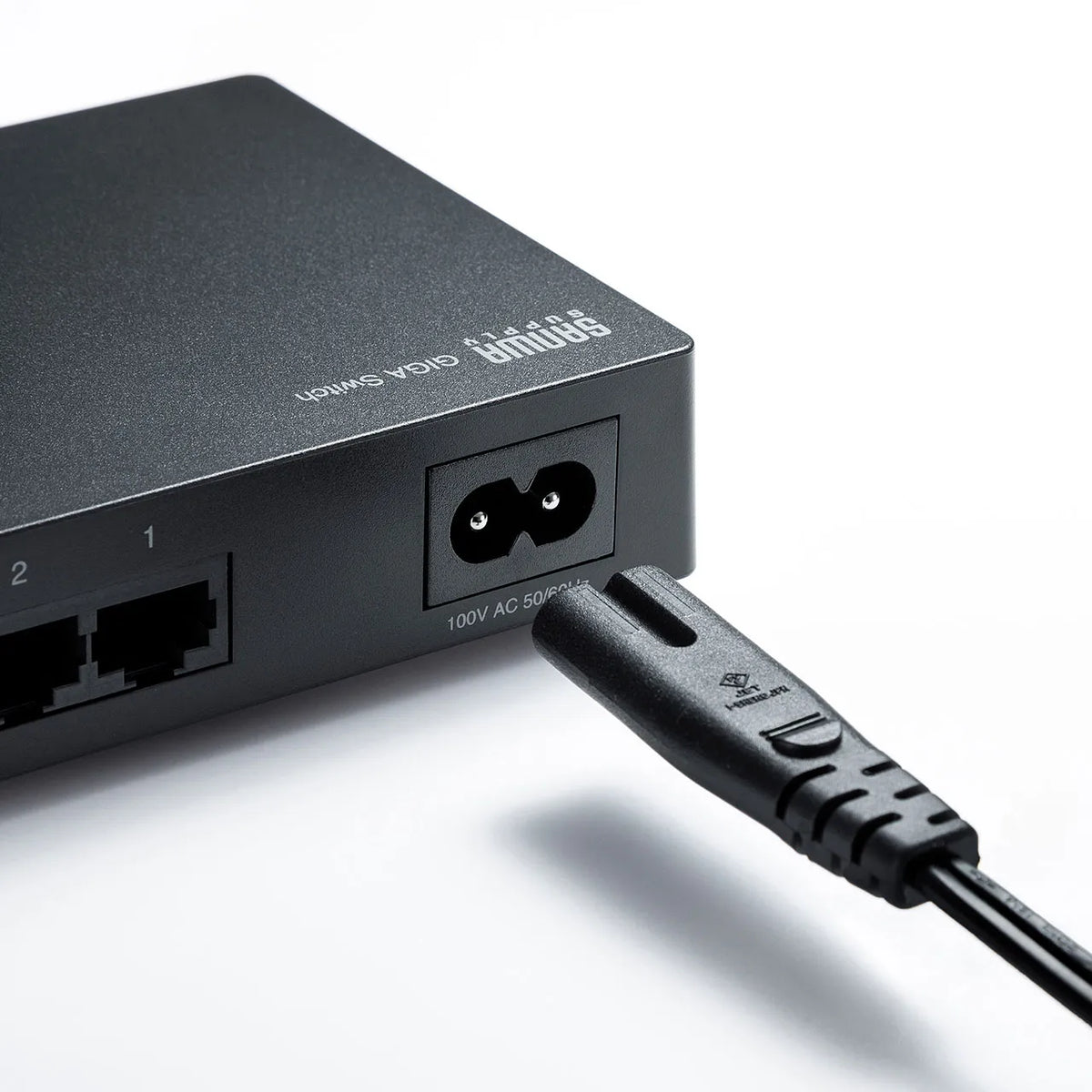

●With a built-in power supply, wiring around the outlet can be kept neat.
●The compact design with a plastic case allows for flexible installation.

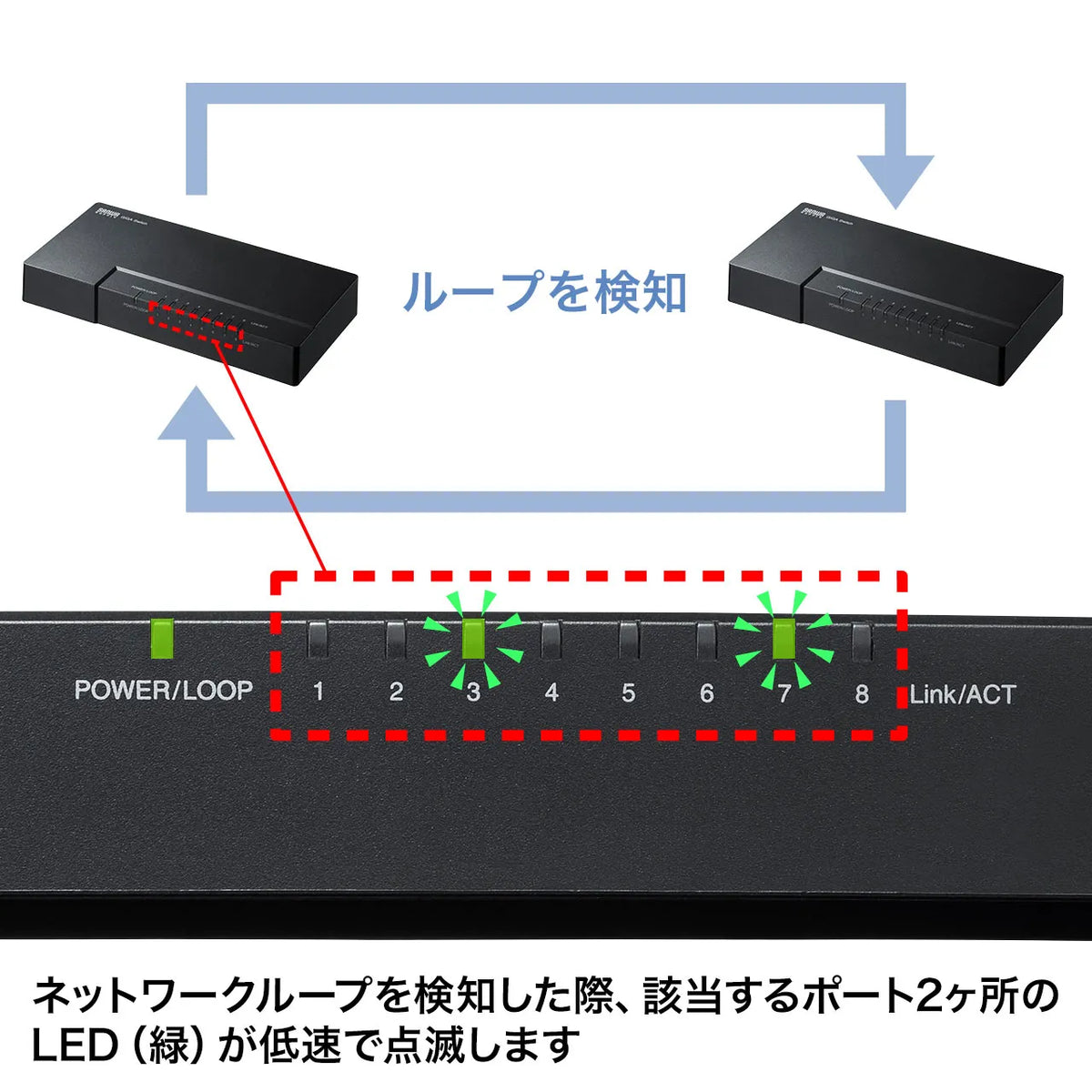

●Equipped with a loop detection function that notifies you of loop failures.
*In environments where it is mixed with other products that have the same function, operation may become unstable.
●It is fanless, so it operates quietly.

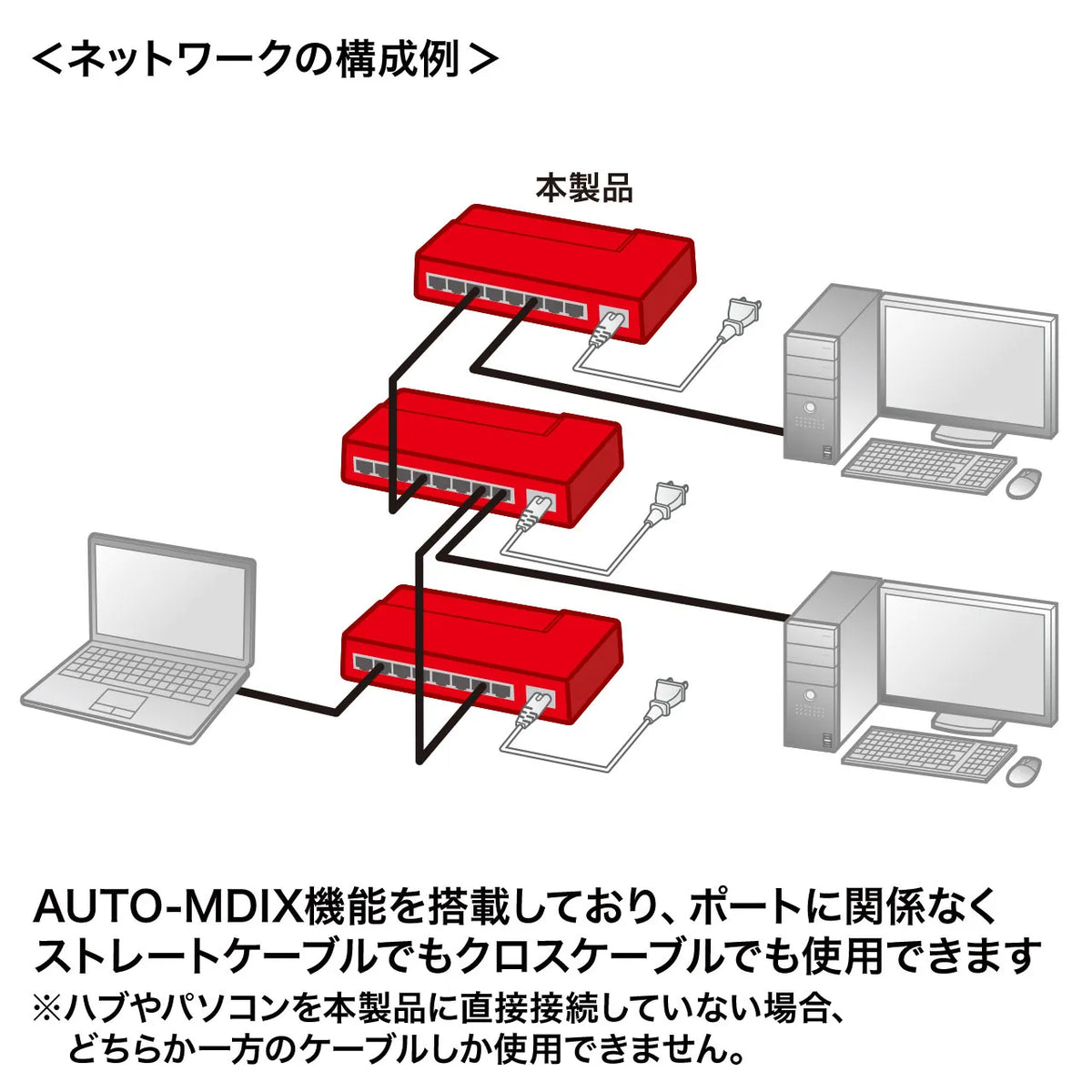

●Equipped with an AUTO-MDIX function that can be used without worrying about straight cables or crossover cables.
●Equipped with an AUTO-Negotiation function that can automatically switch between 10/100/1000Mbps depending on the connected device.
●Equipped with a power saving function that automatically detects unlinked ports and reduces power supply. Power saving of up to 86% is possible when all computers on all ports are shut down.

＜Caution＞
*The amount of heat generated by this product differs depending on whether it is only powered on or communicating. In particular, continuous heavy communication may cause the unit to overheat. Continuous use in an environment with poor ventilation and heat dissipation may lead to deterioration of internal components and reduce the product's lifespan. When using the unit, do not place anything on top of it and leave a space of at least 10 cm around the ventilation opening.

■Number of ports: 8 ports
■Standards:
IEEE802.3 (10BASE-T Ethernet)
IEEE802.3u (100BASE-TX Fast Ethernet)
IEEE802.3ab (1000BASE-T)
IEEE802.3x (Flow control for Full-Duplex)
■Access method: CSMA/CD
■Switching method: Store & Forward
■Communication mode: Full duplex/Half duplex

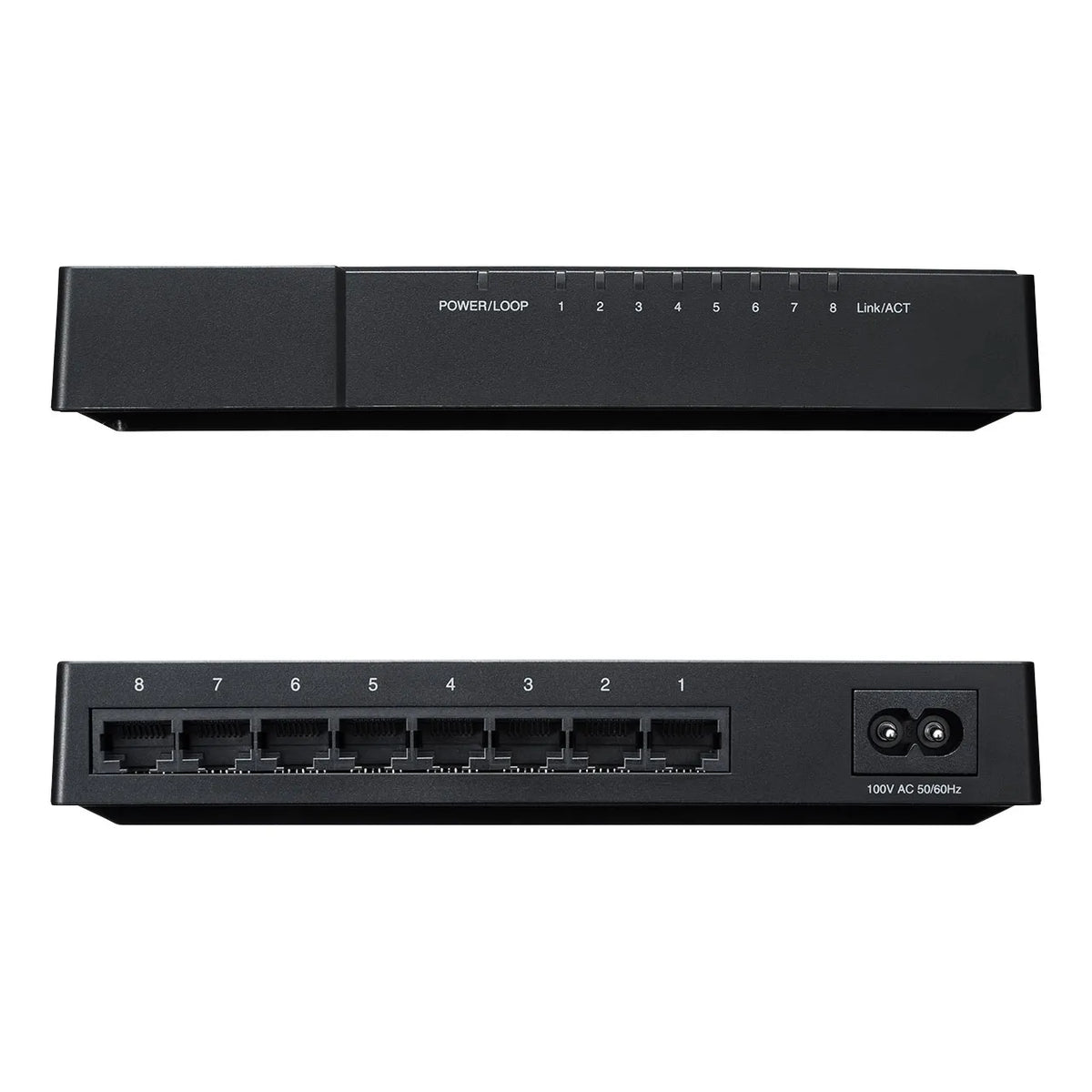

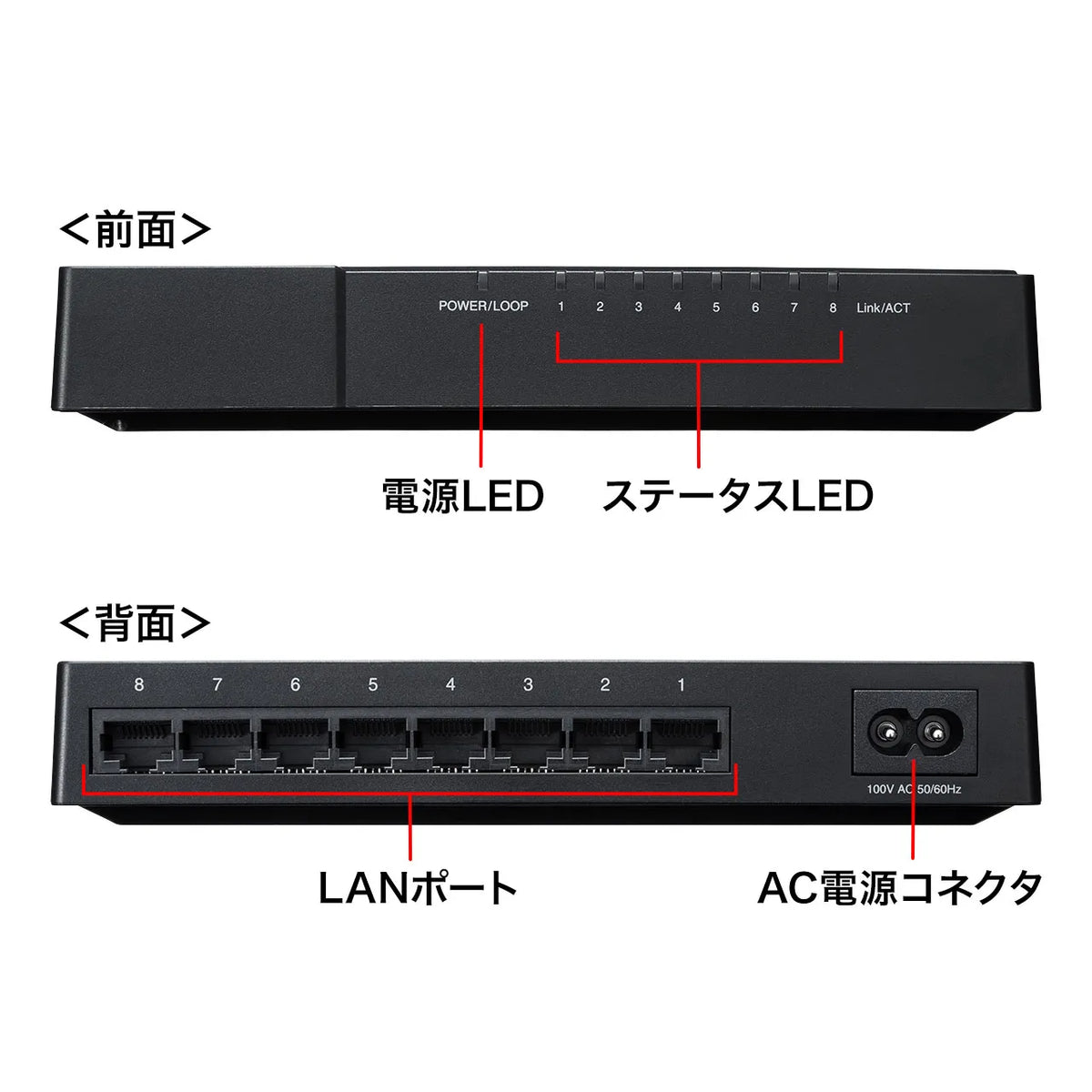

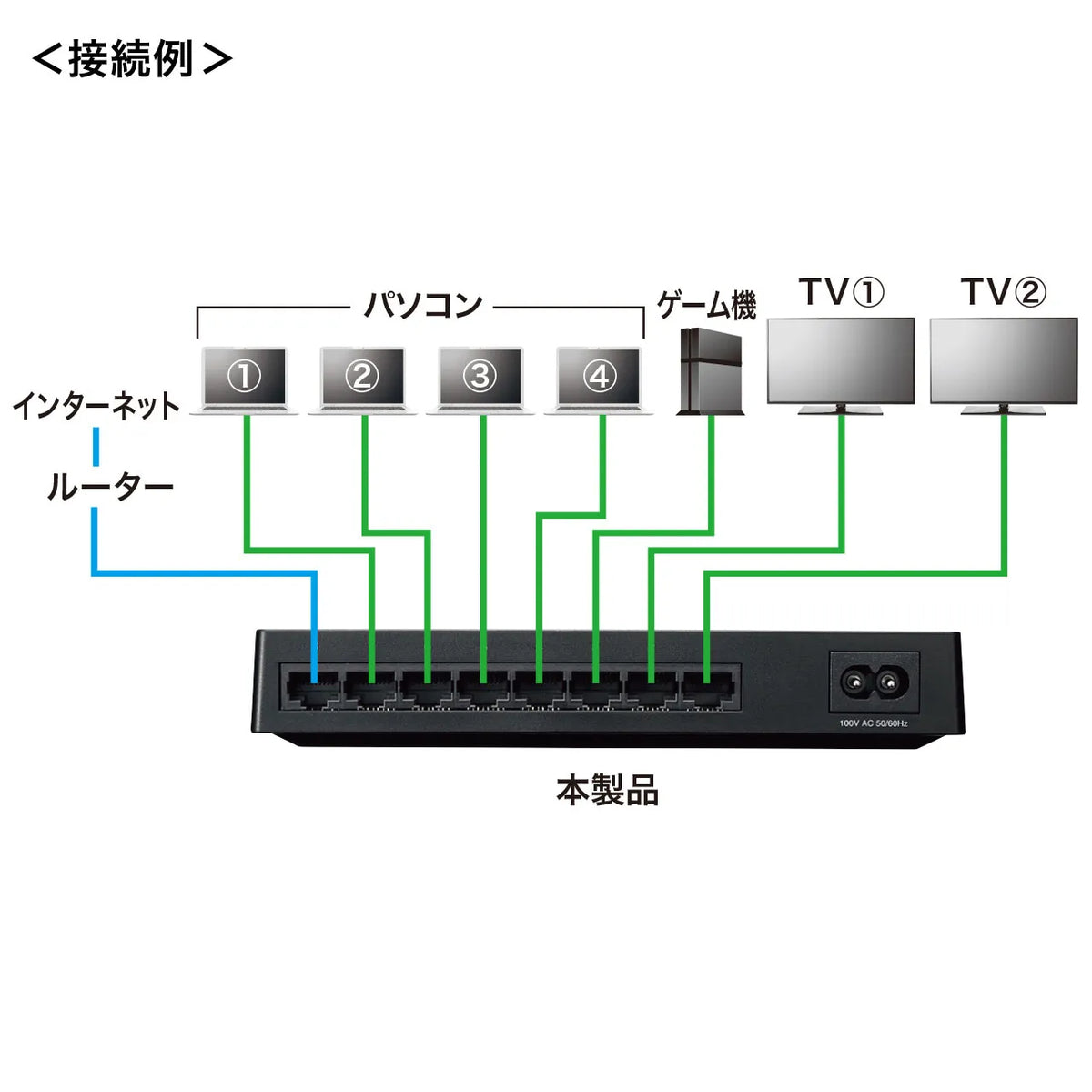

■Port configuration: 1000BASE-T/100BASE-TX/10BASE-T (RJ-45) AUTO-MDIX x 8 ports
■Compatible LAN cables: UTP Category 5e or higher (1000BASE-T), UTP Category 5 or higher (100BASE-TX), UTP Category 3 or higher (10BASE-T)
■Buffer memory: 192kbytes (dynamically allocated to each port)
■Flow control: Yes
■Switch fabric: 16Gbps
■Maximum packet forwarding capacity: 11.90Mpps
■Filtering speed: 1,488,000 packets/sec (1000Mbps), 148,800 packets/sec (100Mbps), 14,880 packets/sec (10Mbps)
■MAC address table: 4K
■Jumbo frames: Supported
■AutoMDI/MDI-X: Supported
■Auto-negotiation: Supported (1000/100/10Mbps)
■VCCI standard: CLASS B certification obtained
■Size: Approx. W177.9 x D86 x H30mm
■Weight: Approx. 196g (main unit only)

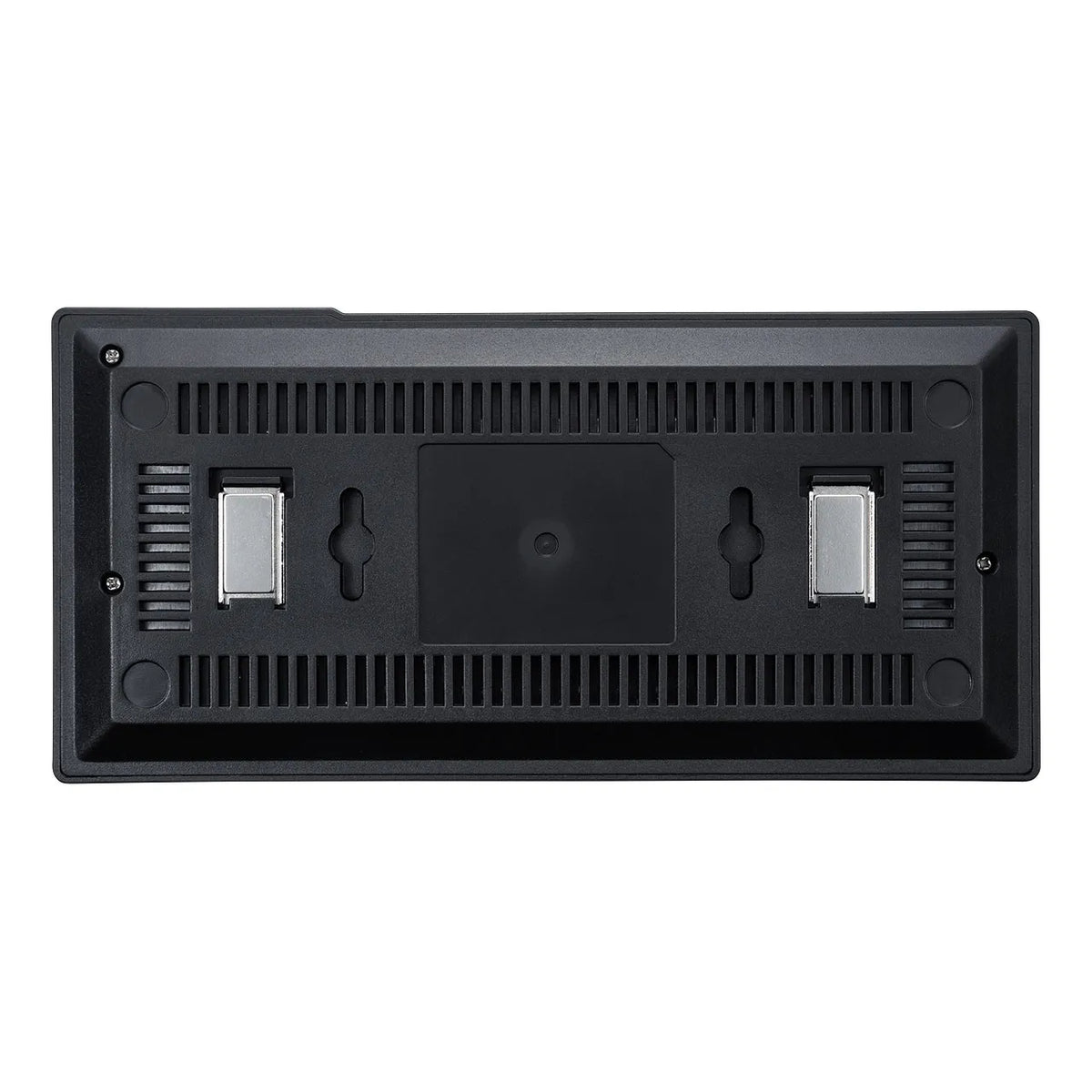

■Wall mounting hole size: Approx. W20 x D8 x H3.9mm
■Power cable length: 150cm
■Power consumption (MAX): 5.1W
■Operating environment:
Operating temperature: 0 to 40℃
Operating humidity: 10 to 90% (non-condensing)
Storage temperature: -20 to 70℃
Storage humidity: 5 to 90% (non-condensing)
■Fan specifications: Silent fanless
■Accessories: Power cable x 1, instruction manual, wall mounting set x 1
