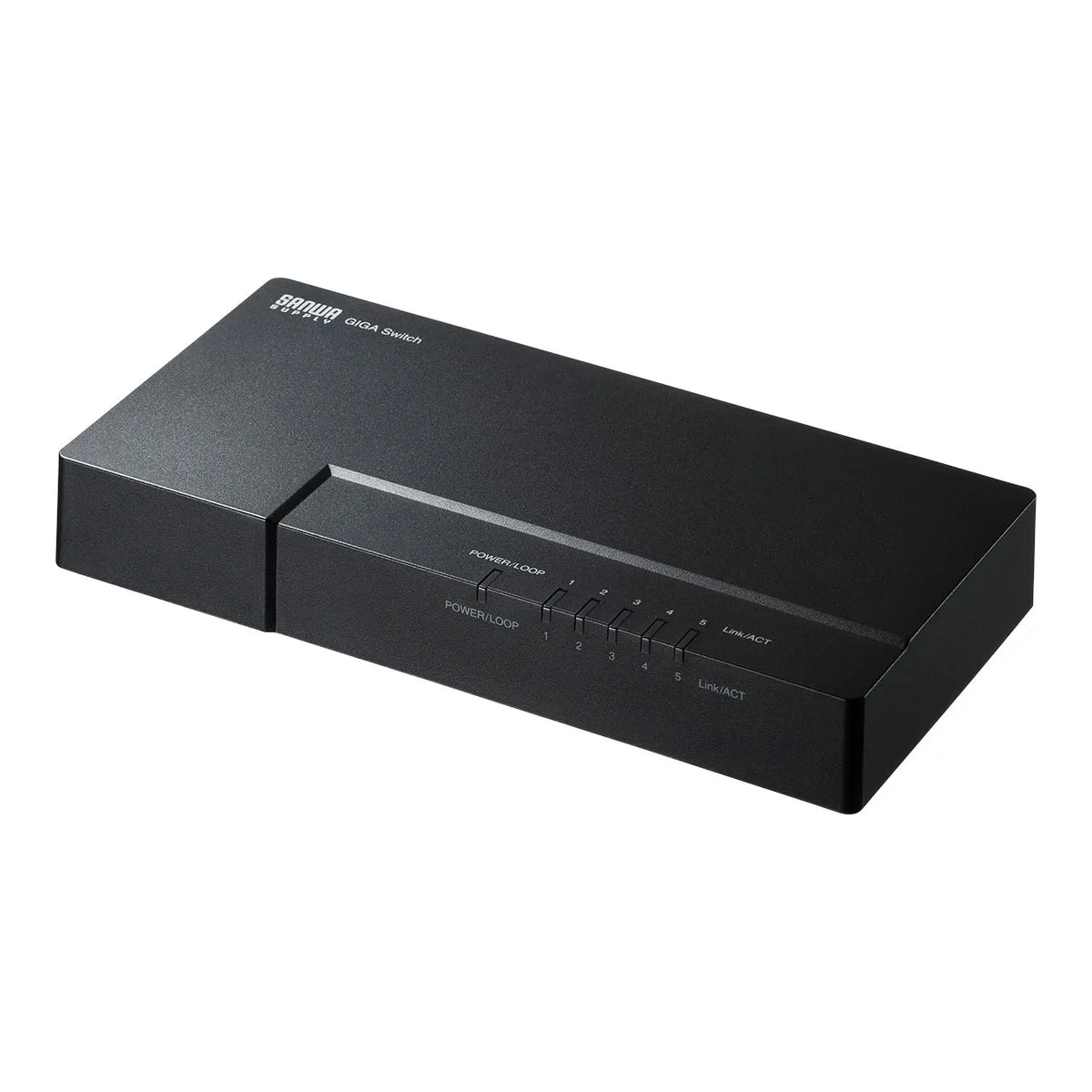

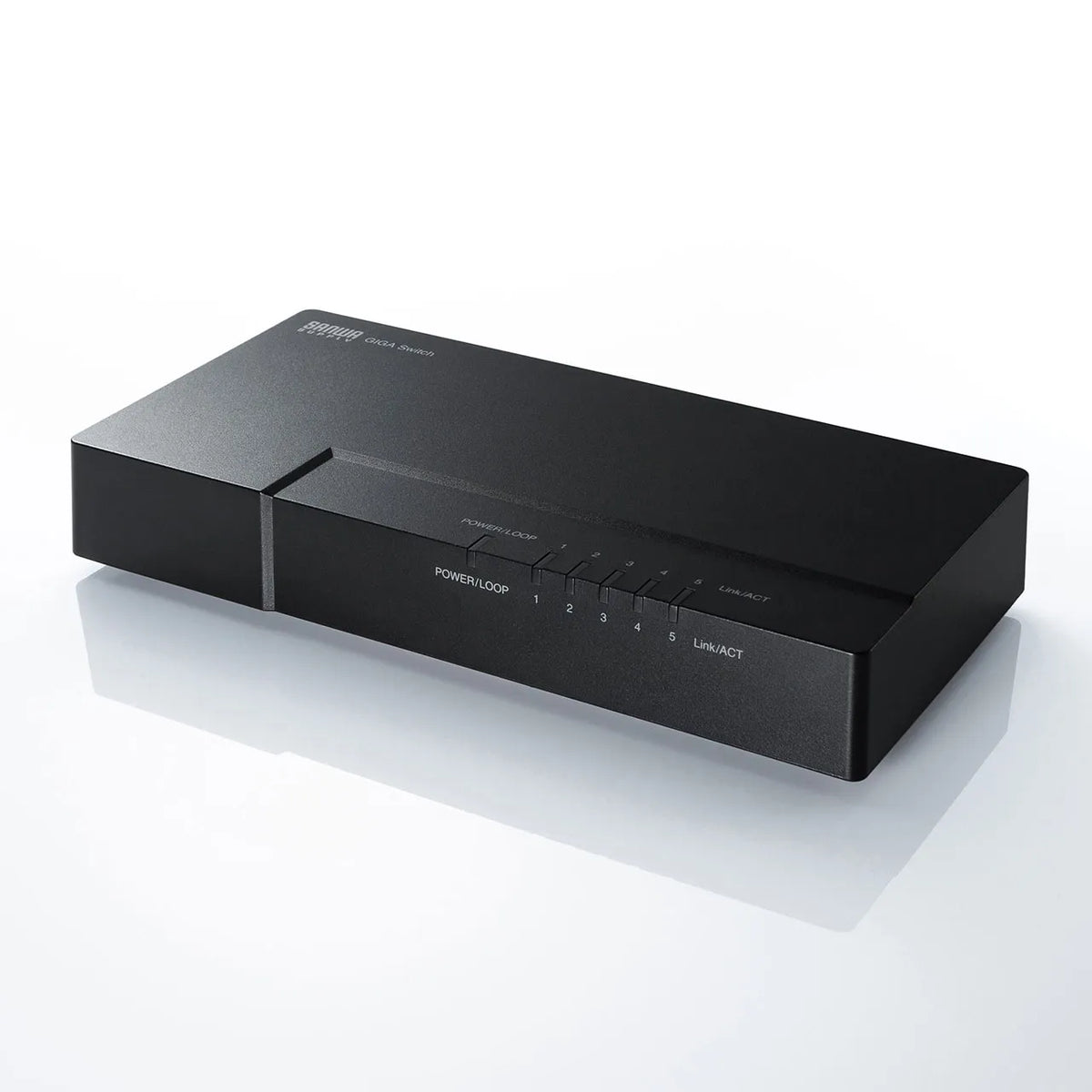

Gigabit-compatible switching hub (5 ports, with magnet) LAN-GIGAP502BK

[A 1000BASE-T compatible switching hub with a built-in power supply and magnet for fixing to steel desks, etc.]

●A 5-port switching hub compatible with 1000BASE-T.

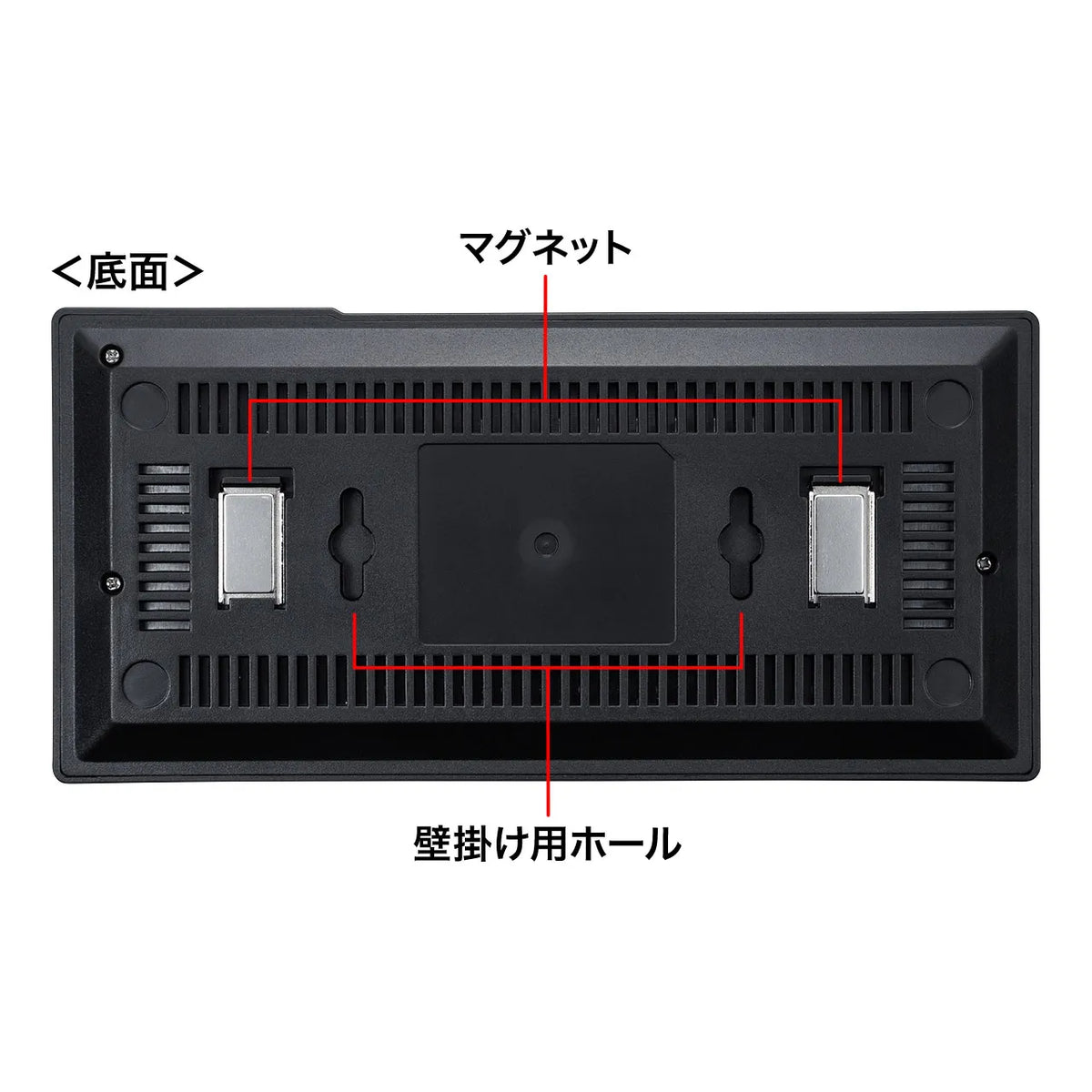

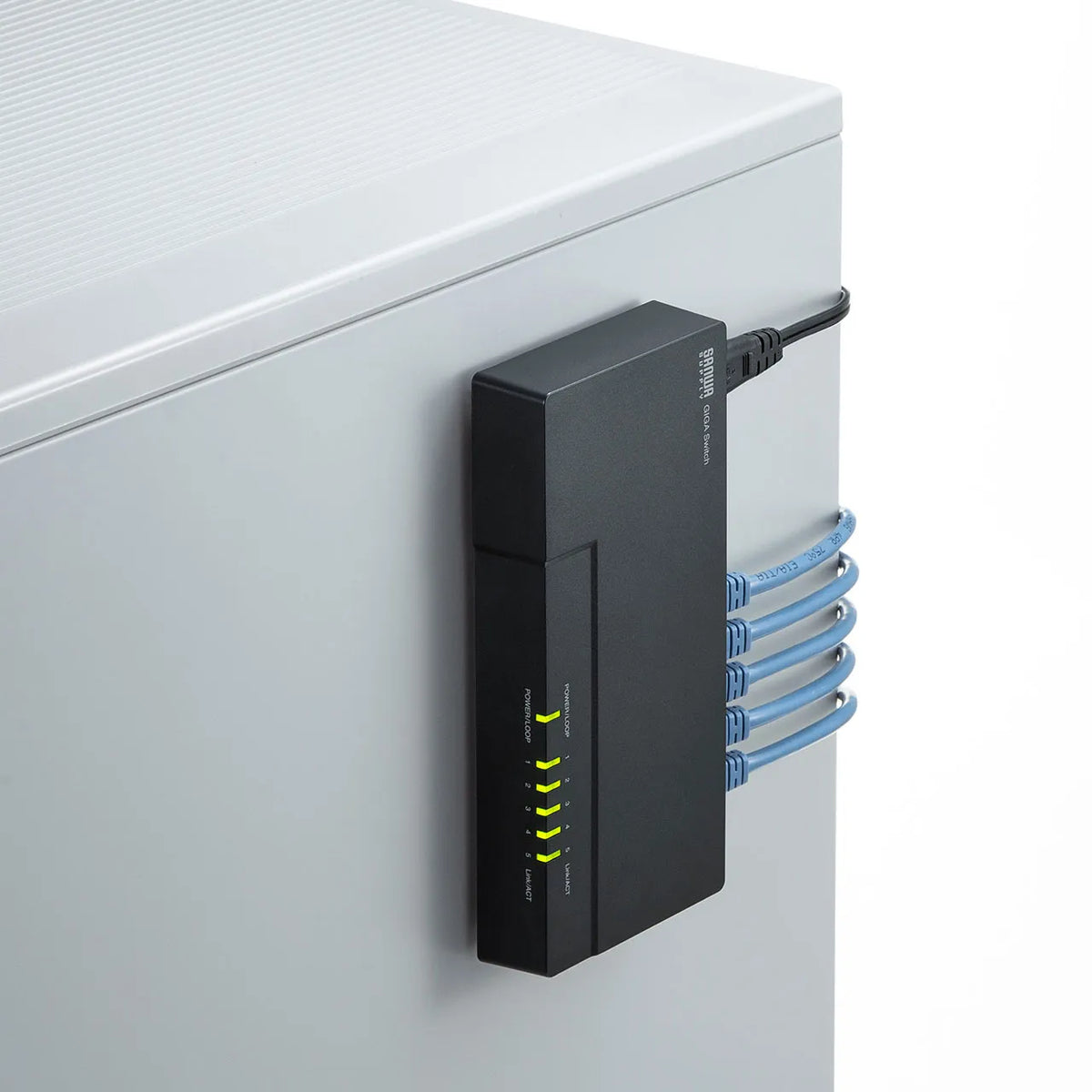

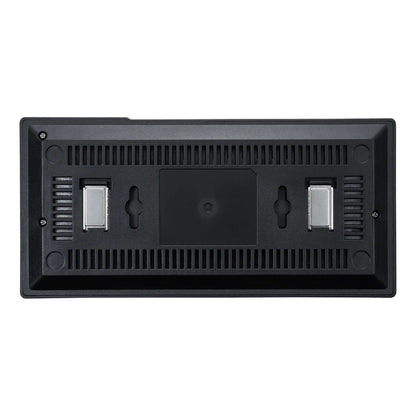

●Equipped with a strong magnet for secure attachment to steel desks, cabinets, etc.

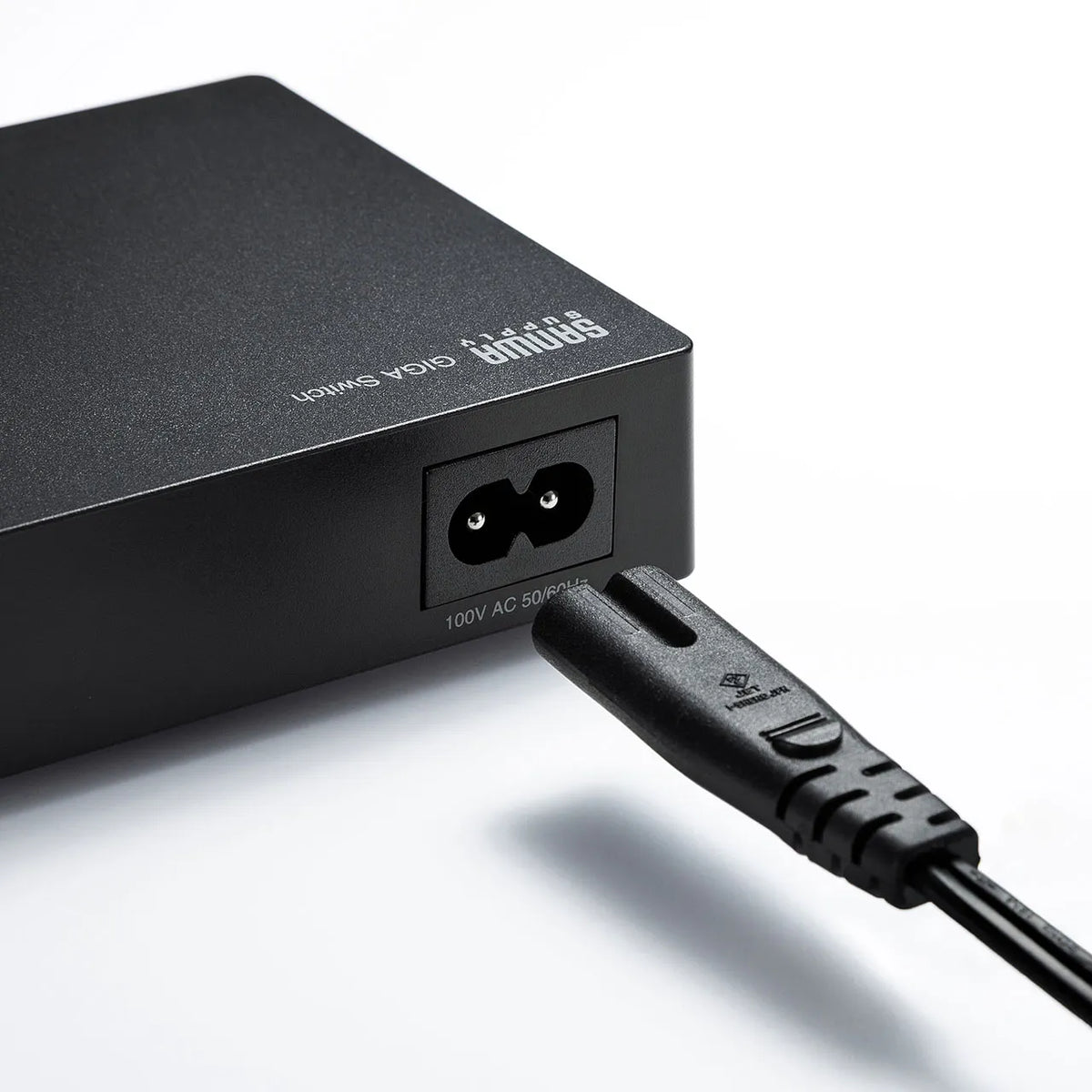

●Built-in power supply allows for neat wiring around the power outlet.
●Compact design with a plastic case allows for flexible placement.

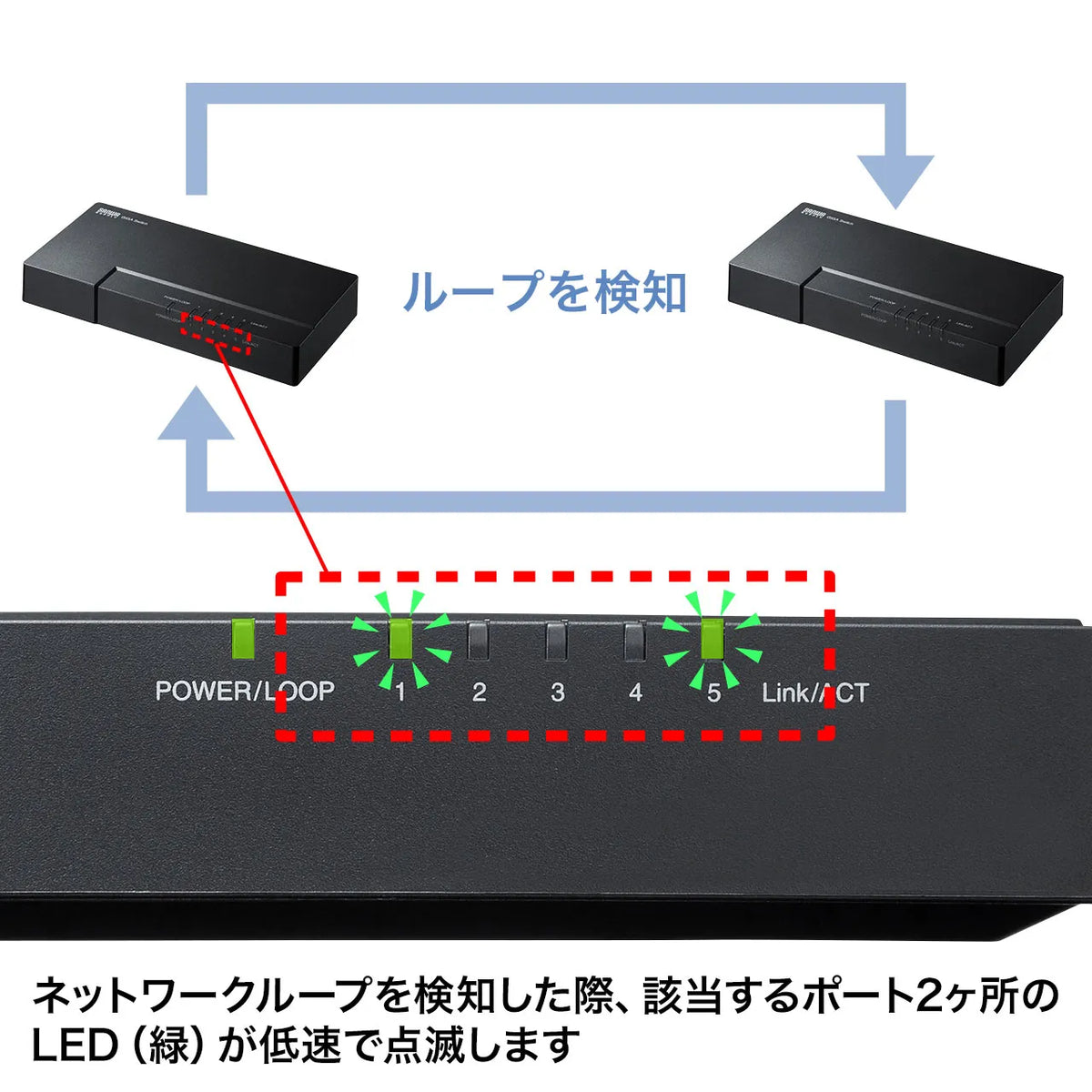

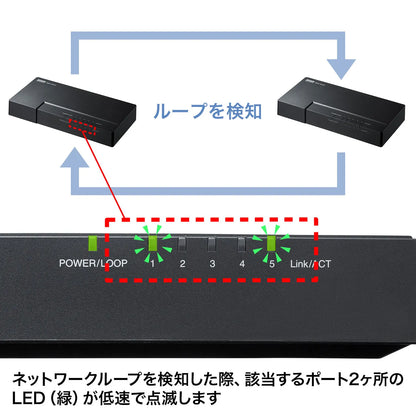

●Equipped with a loop detection function to alert you to loop failures.
*In environments where this product is mixed with other products that have the same function, operation may become unstable.
●Fanless design for quiet operation.

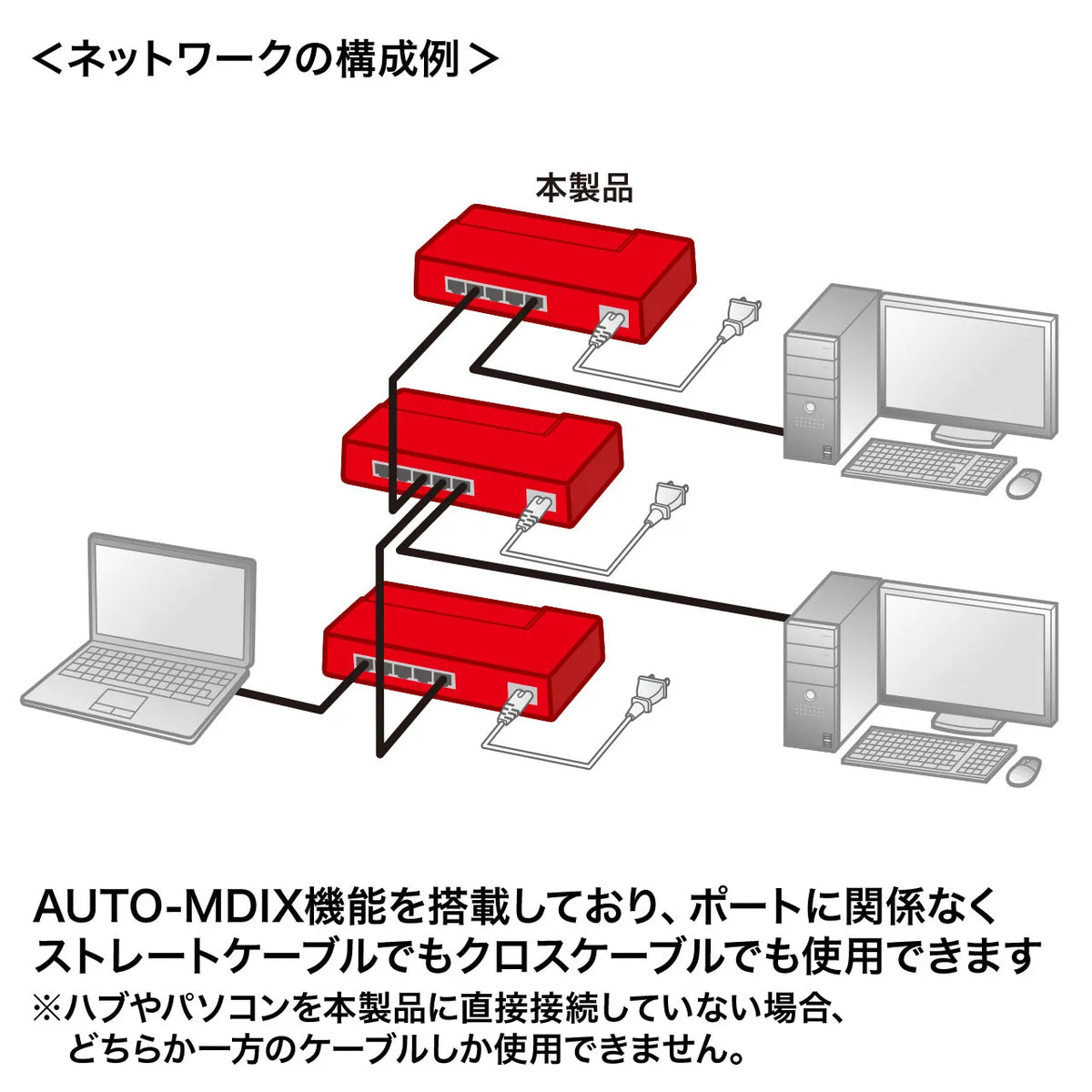

●Equipped with AUTO-MDIX function that allows you to use straight cables and crossover cables without worry.
●Equipped with AUTO-Negotiation function that allows automatic switching between 10/100/1000Mbps depending on the connected device.
●Equipped with a power saving function that automatically detects unlinked ports and reduces power supply. Power saving of up to 87% is possible when all computers on all ports are shut down.

＜Caution＞
*The amount of heat generated by this product differs depending on whether it is only powered on or communicating. In particular, continuous heavy communication may cause the unit to overheat. Continuous use in an environment with poor ventilation and heat dissipation may lead to deterioration of internal components and reduce the product's lifespan. When using the unit, do not place anything on top of it and leave a space of at least 10 cm around the ventilation opening.

■Number of ports: 5 ports
■Standards:
IEEE802.3 (10BASE-T Ethernet)
IEEE802.3u (100BASE-TX Fast Ethernet)
IEEE802.3ab (1000BASE-T)
IEEE802.3x (Flow control for Full-Duplex)
■Access method: CSMA/CD
■Switching method: Store & Forward
■Communication mode: Full duplex/Half duplex

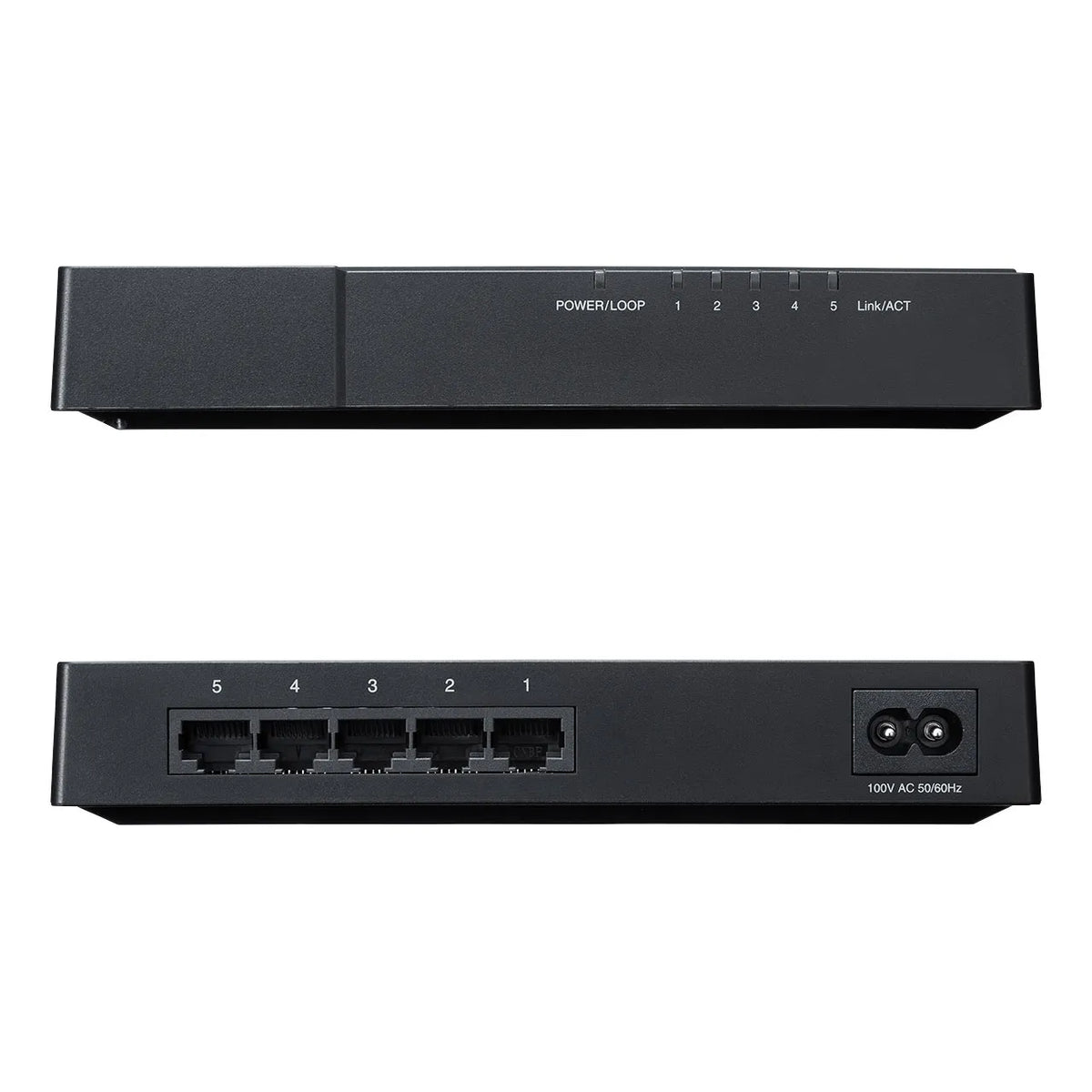

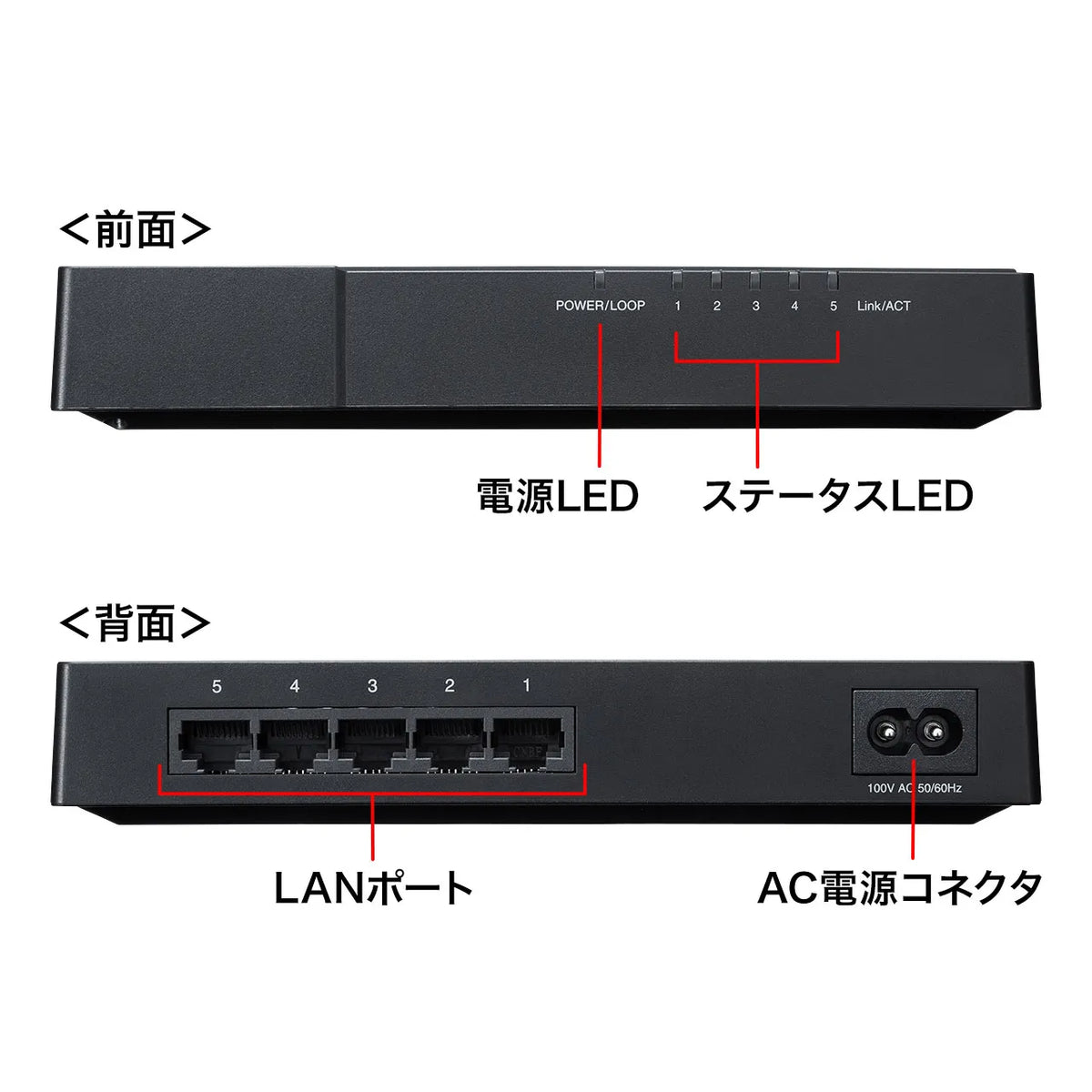

■Port configuration: 1000BASE-T/100BASE-TX/10BASE-T (RJ-45) AUTO-MDIX x 5 ports
■Compatible LAN cable: UTP Category 5e or higher (1000BASE-T), UTP Category 5 or higher (100BASE-TX), UTP Category 3 or higher (10BASE-T)
■Buffer memory: 128kbytes (dynamically allocated to each port)
■Flow control: Yes
■Switch fabric: 10Gbps
■Maximum packet forwarding capacity: 7.44Mpps
■Filtering speed: 1,488,000 packets/sec (1000Mbps), 148,800 packets/sec (100Mbps), 14,880 packets/sec (10Mbps)
■MAC address table: 2K
■Jumbo frame: Supported
■AutoMDI/MDI-X: Supported
■Auto-negotiation: Supported (1000/100/10Mbps)
■VCCI standard: CLASS B certification obtained
■Size: Approx. W177.9 x D86 x H30mm
■Weight: Approx. 176g (main unit only)

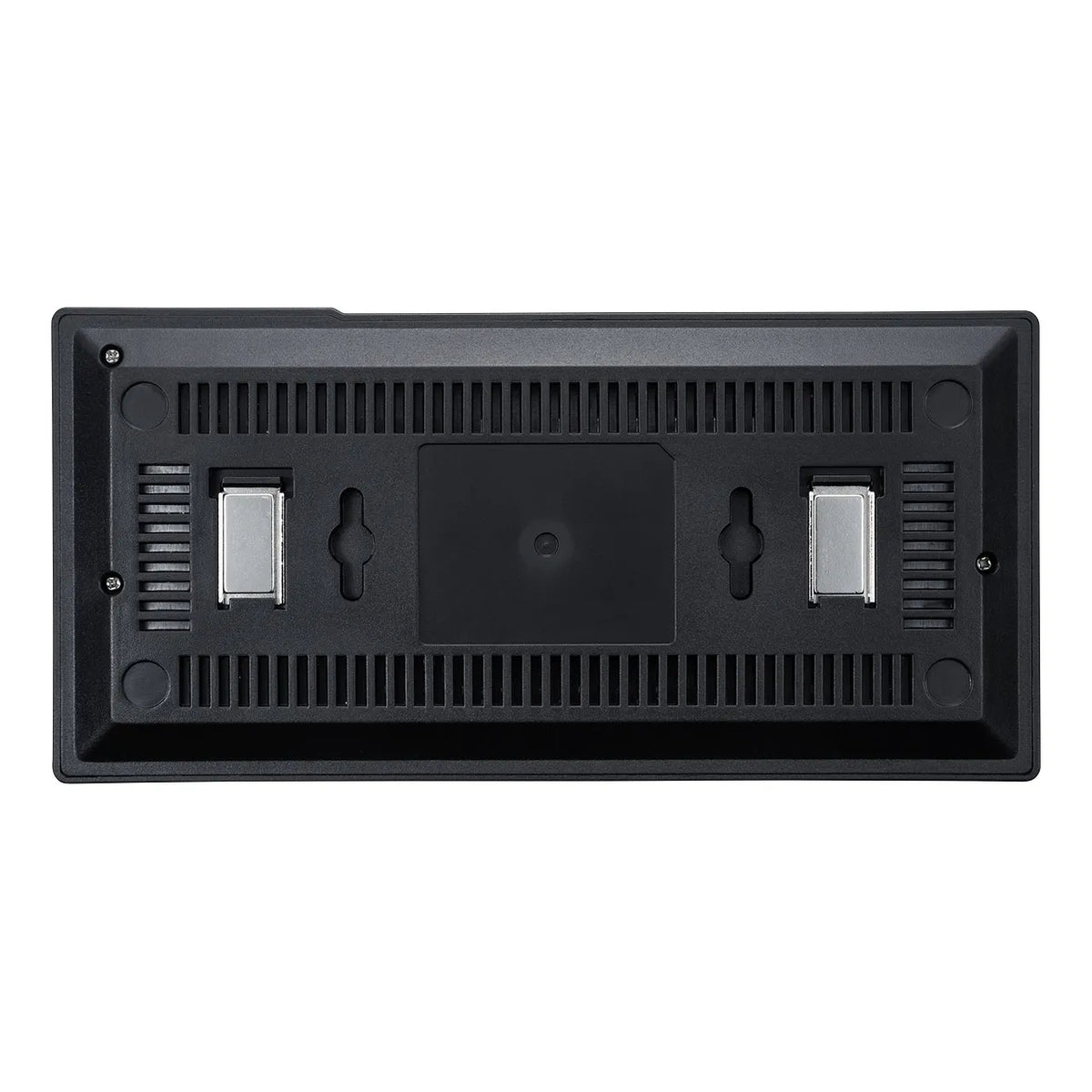

■Wall mounting hole size: Approx. W20 x D8 x H3.9mm
■Power cable length: 150cm
■Power consumption (MAX): 3.15W
■Operating environment:
Operating temperature: 0 to 40℃
Operating humidity: 10 to 90% (non-condensing)
Storage temperature: -20 to 70℃
Storage humidity: 5 to 90% (non-condensing)
■Fan specifications: Silent fanless
■Accessories: Power cable x 1, instruction manual, wall mounting set x 1
