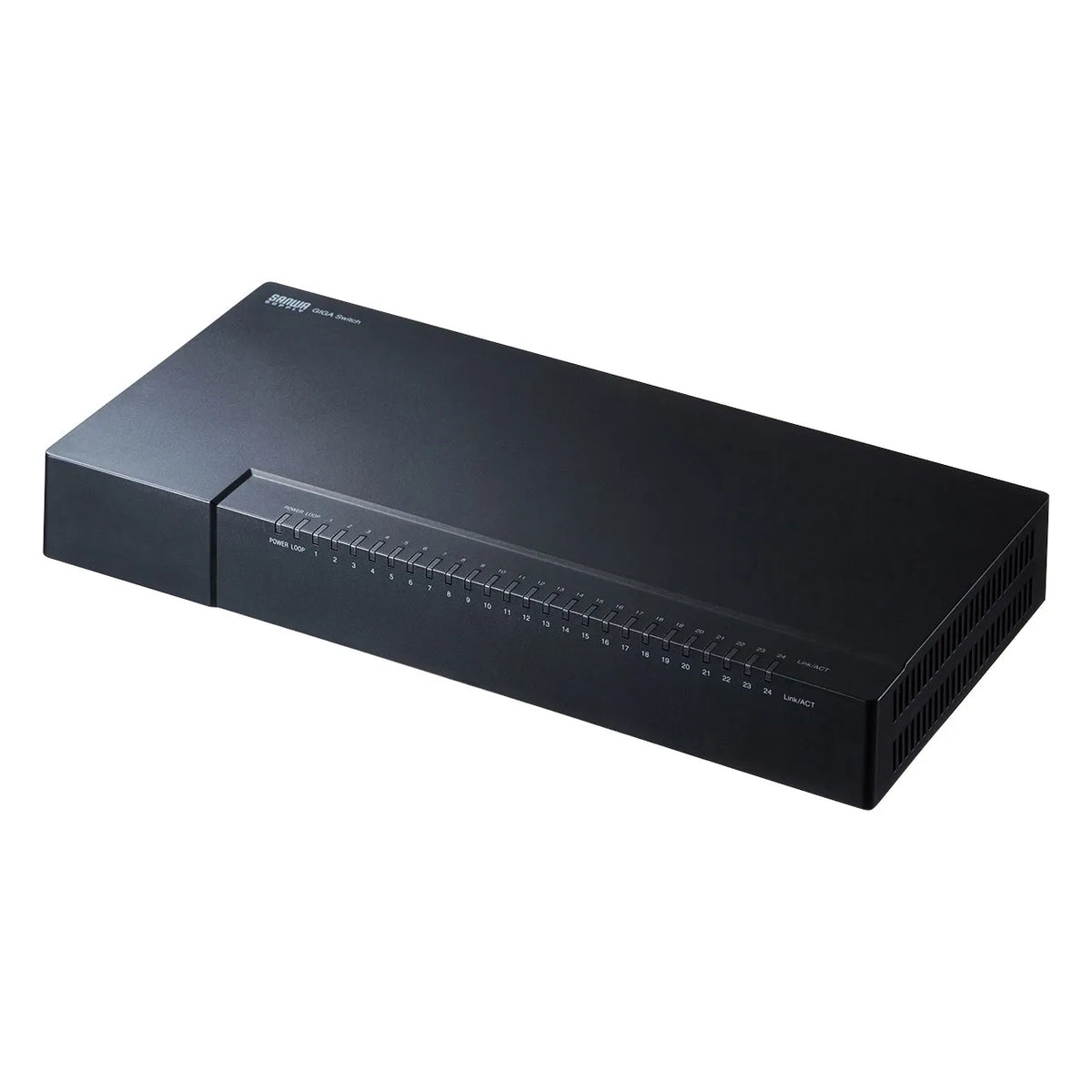

Gigabit-compatible switching hub (24 ports, with magnet) LAN-GIGAP2402BK

[A 1000BASE-T compatible switching hub with a built-in power supply and magnet for fixing to steel desks, etc.]

●This is a 24-port switching hub compatible with 1000BASE-T.

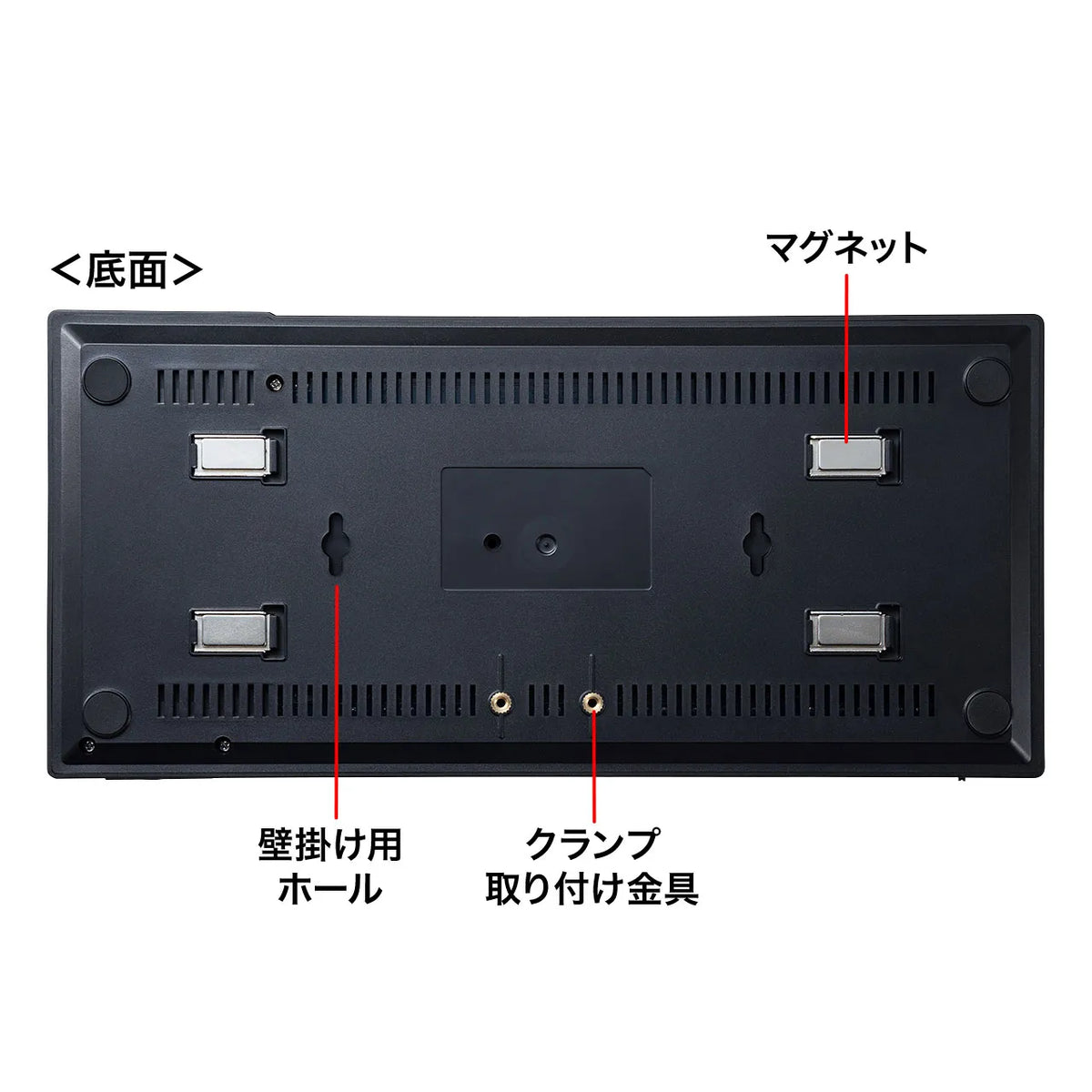

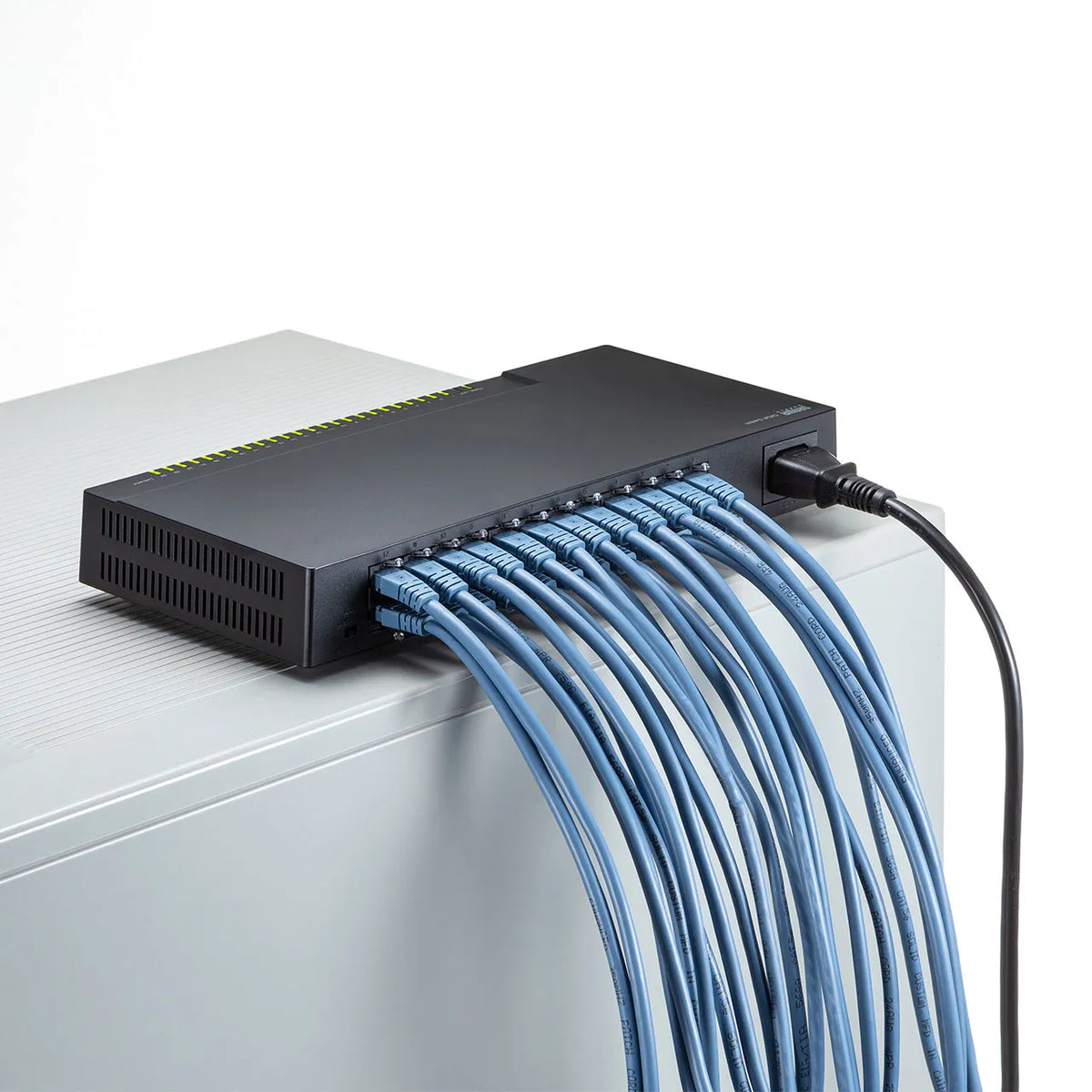

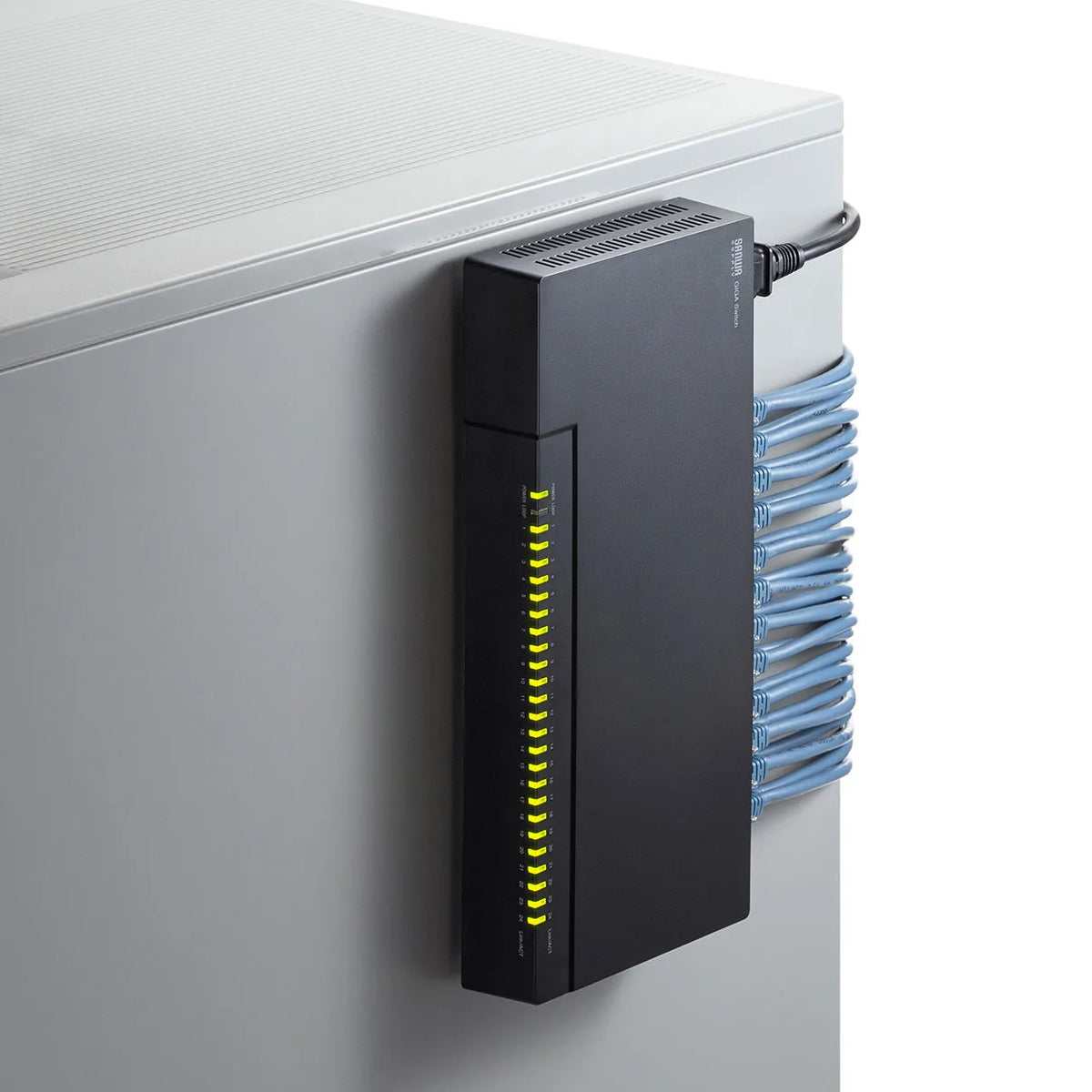

●Equipped with a strong magnet, it can be securely fixed to steel desks, cabinets, etc.

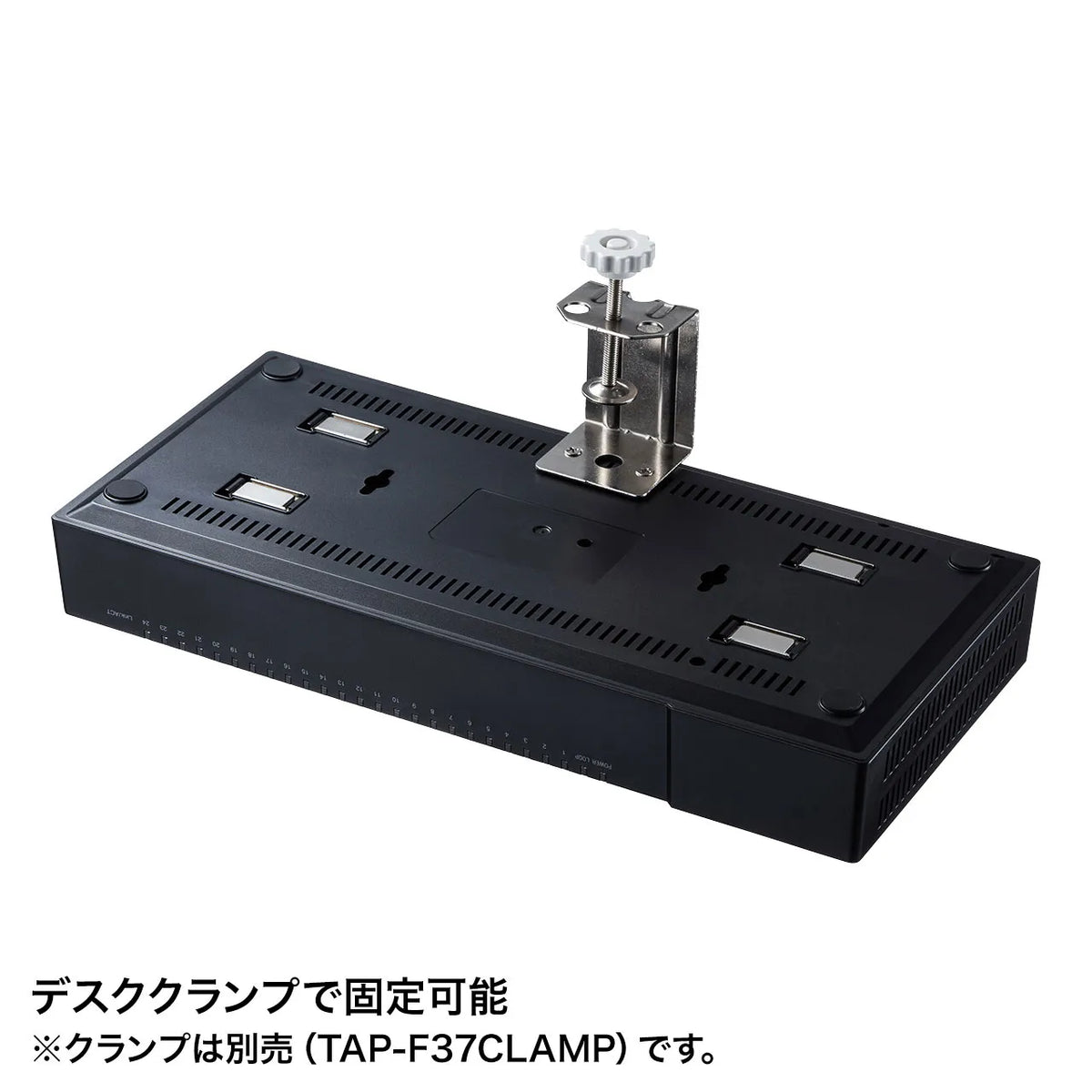

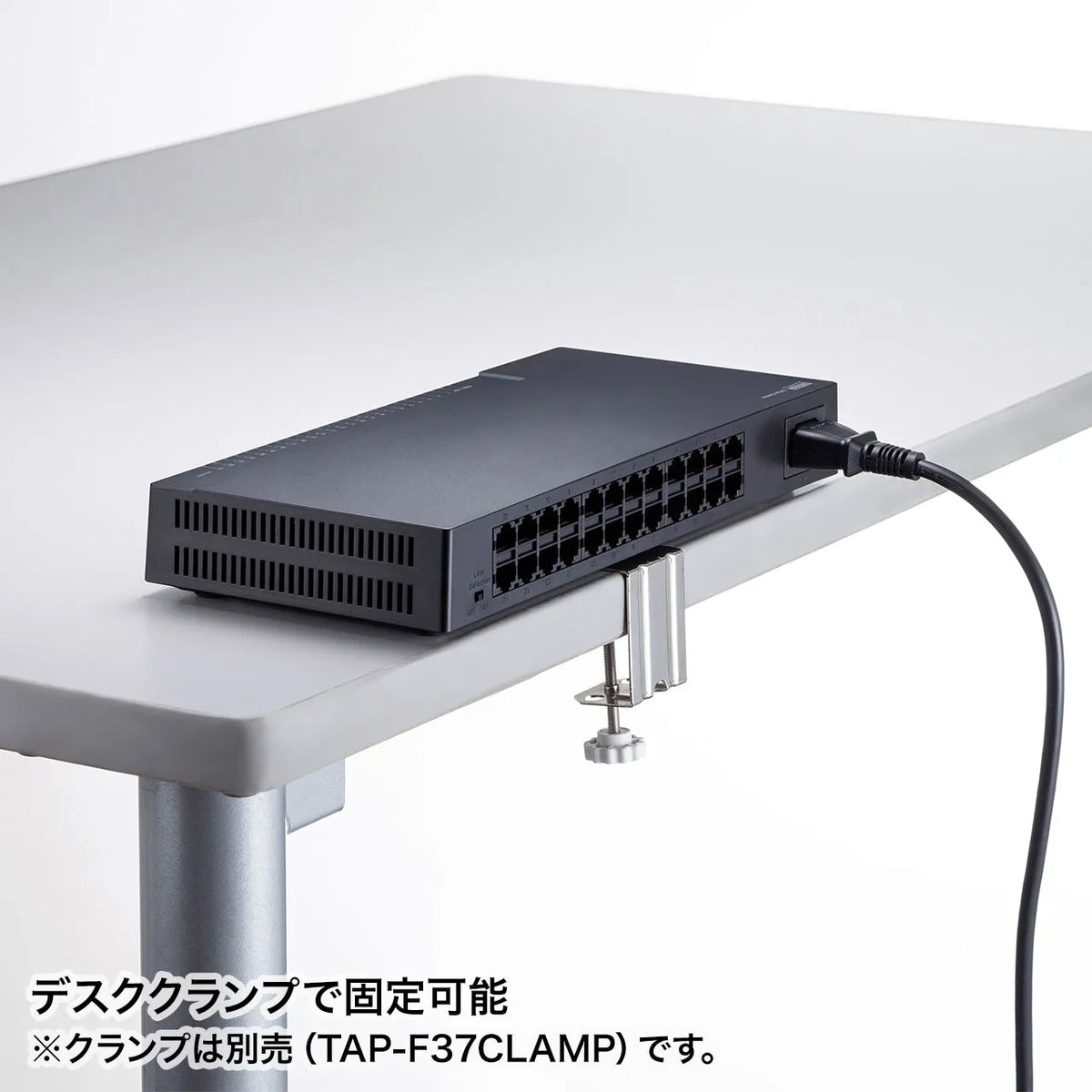

●Compatible with the separately sold desk clamp (TAP-F37CLAMP), allowing it to be securely fixed to wooden desks, etc.

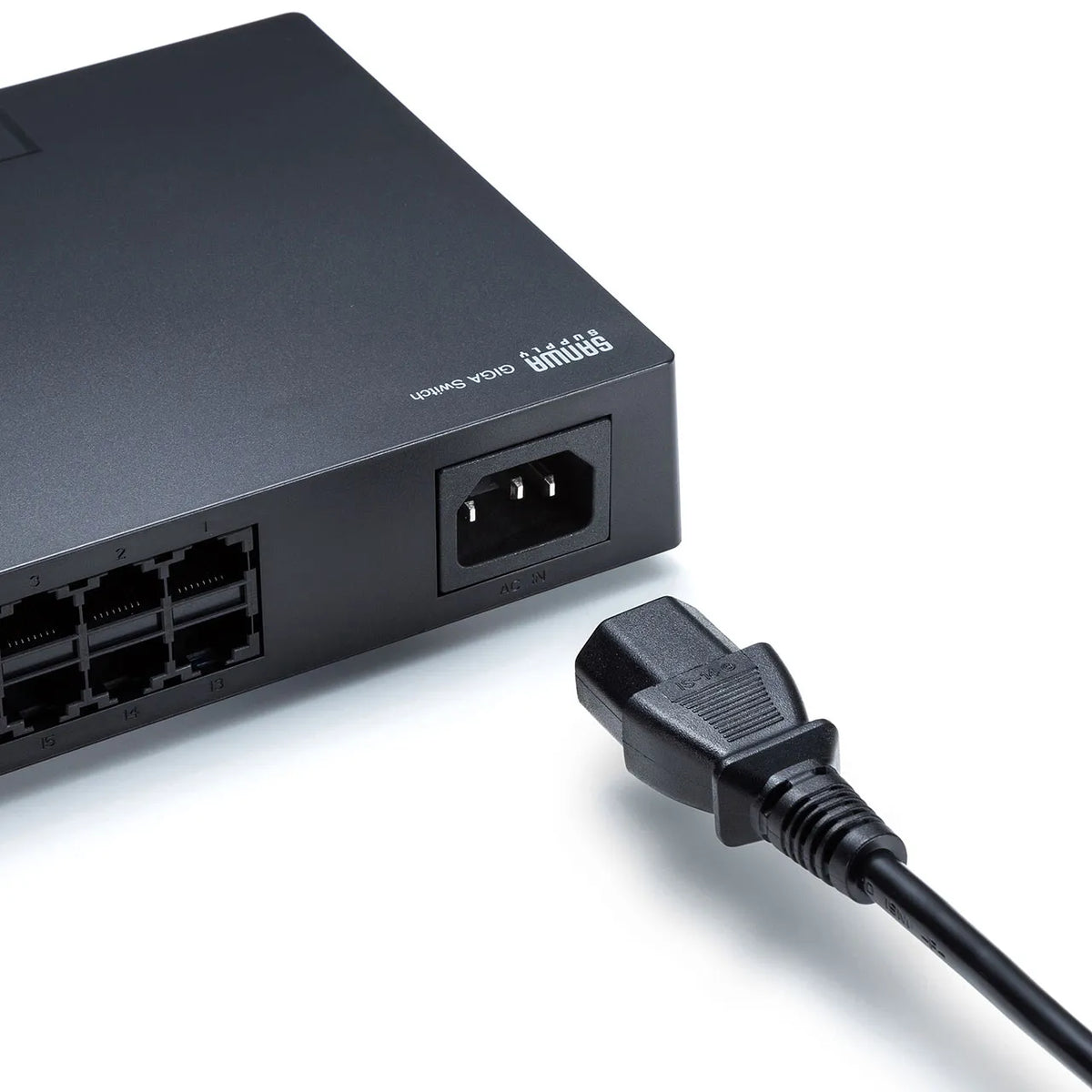

●With a built-in power supply, wiring around the outlet can be kept neat.

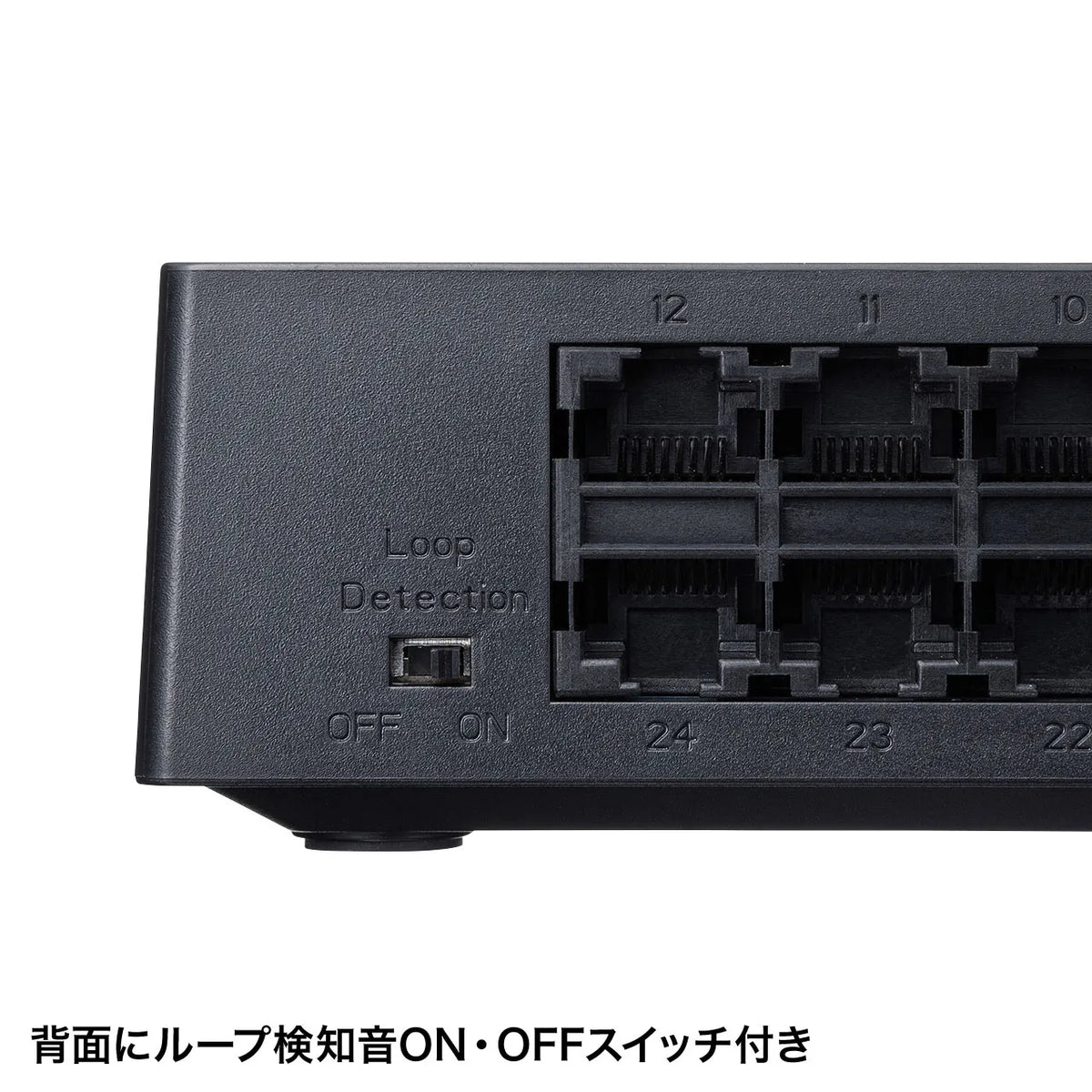

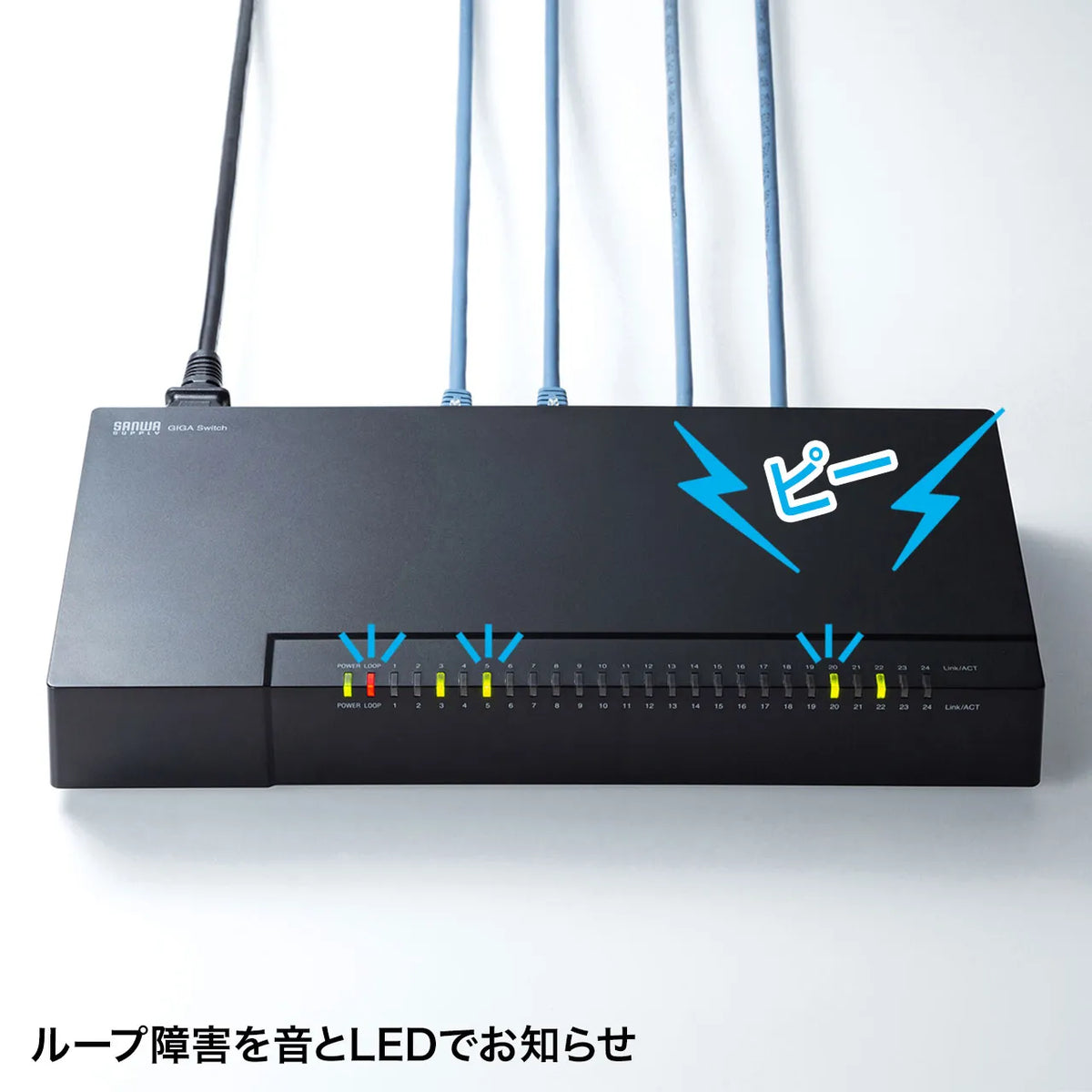

●Equipped with a loop detection function, it notifies of loop failures with sound and LED.
*In environments where it is mixed with other products that have the same function, operation may become unstable.
●It is a fanless design, so it operates quietly.
●Equipped with an AUTO-MDIX function that can be used without worrying about straight cables or crossover cables.
●Equipped with an AUTO-Negotiation function that can automatically switch between 10/100/1000Mbps depending on the connected device.
●Equipped with a power-saving function that automatically detects unlinked ports and reduces power supply. Power consumption can be reduced by up to 57% when all connected computers are shut down.
●Compact design with a plastic case allows for flexible placement.
＜Caution＞
※The amount of heat generated by this product differs depending on whether it is powered on or communicating.
※In particular, continuous high-volume communication may cause the unit to overheat.
※Continuous use in an environment with poor ventilation and heat dissipation may lead to deterioration of internal components and reduce the product's lifespan.

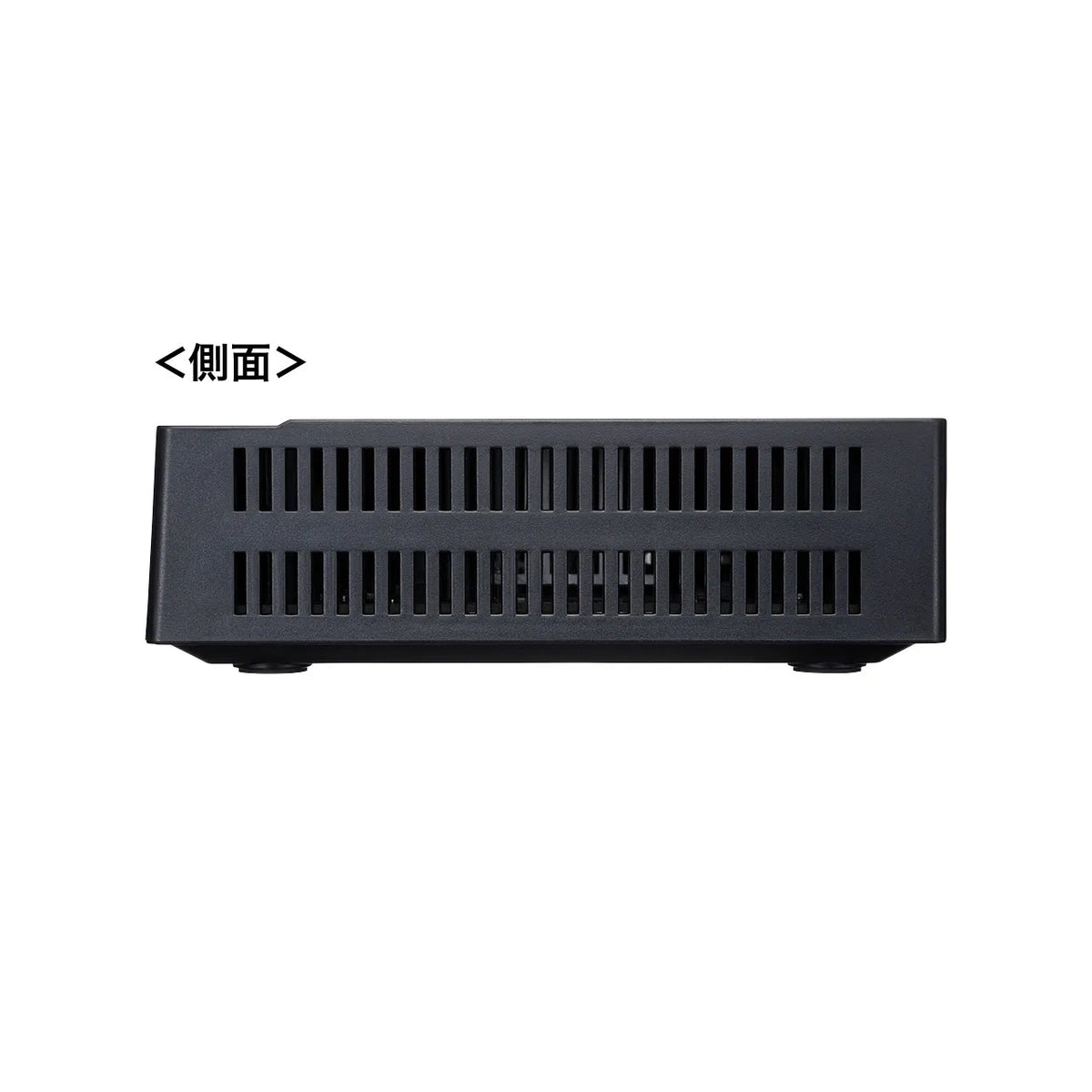

※When using, do not place anything on top of the unit and leave at least 10cm of space around the ventilation openings.

■Number of ports: 24 ports
■Standards: IEEE802.3 (10BASE-T Ethernet)
IEEE802.3u (100BASE-TX Fast Ethernet)
IEEE802.3ab (1000BASE-T)
IEEE802.3x (Flow control for Full-Duplex)
■Access method: CSMA/CD
■Switching method: Store & Forward
■Communication mode: Full duplex/Half duplex

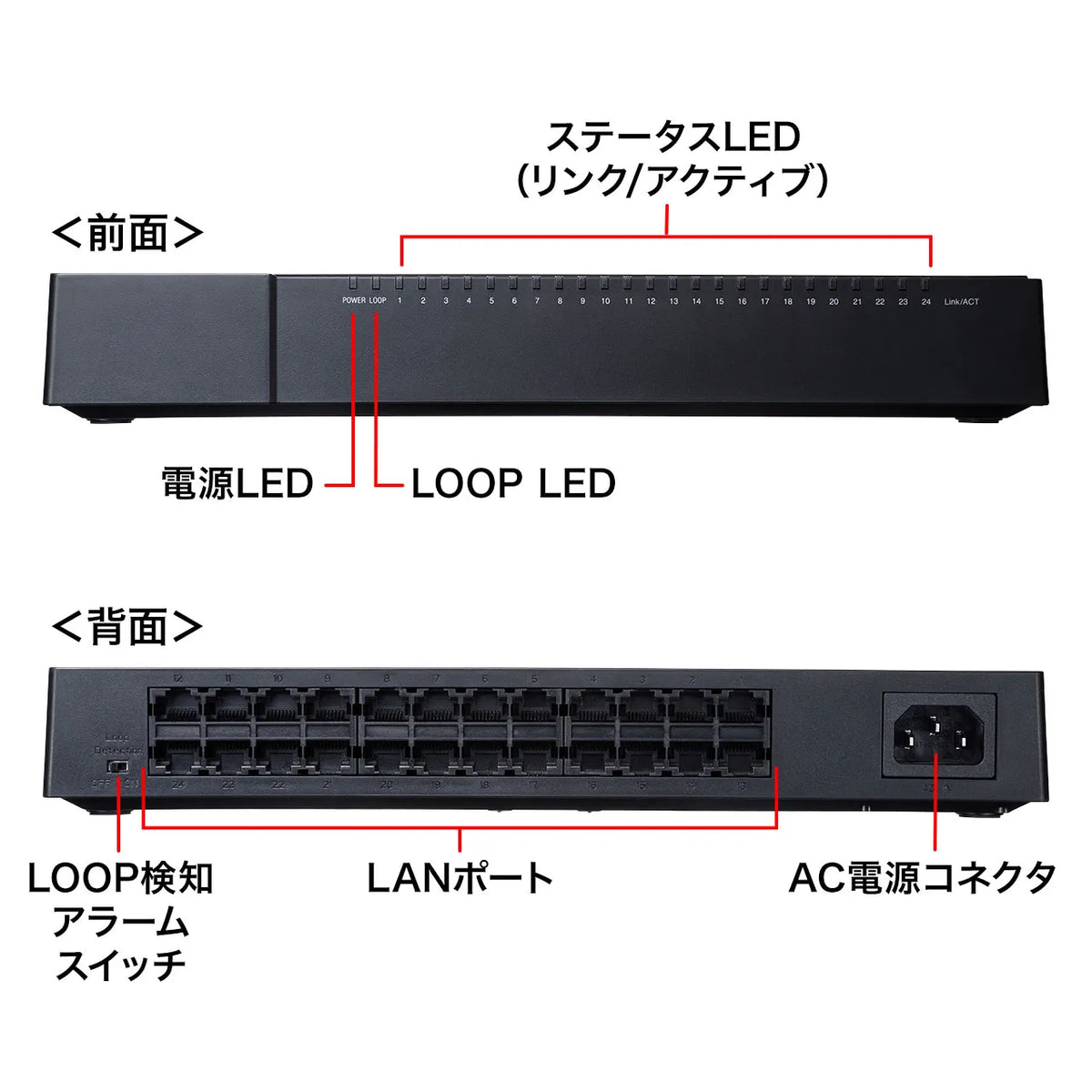

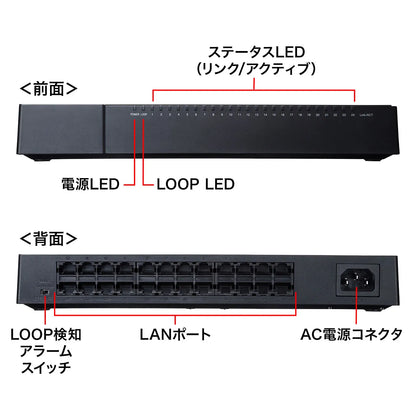

■Port configuration: 1000BASE-T/100BASE-TX/10BASE-T (RJ-45) AUTO-MDIX x 24 ports
■Compatible LAN cables: UTP Category 5e or higher (1000BASE-T), UTP Category 5 or higher (100BASE-TX), UTP Category 3 or higher (10BASE-T)
■Buffer memory: 512Kbytes (dynamically allocated to each port)
■Flow control: Yes
■Switch fabric: 48Gbps
■Maximum packet forwarding capacity: 35.7Mpps
■Filtering speed: 1,488,000 packets/sec (1000Mbps), 148,800 packets/sec (100Mbps), 14,880 packets/sec (10Mbps)
■MAC address table: 8K
■AUTO MDIX: Yes
■Auto-negotiation: Supported (1000/100/10Mbps)
■VCCI standard: CLASS B certification obtained
■Size:
Main unit/W283×D133×H42mm
Wall mounting hole/approx. W18×D8×H2.4mm
■Weight: approx. 728g (main unit only)
■Cable length: 1.5m
■Power consumption (MAX): 12.97W
■Operating environment: Operating temperature/0 to 40 degrees, Operating humidity/10 to 90% (non-condensing)
Storage temperature/-20 to 70 degrees, Storage humidity/5 to 90% (non-condensing)
■Fan specifications: Silent fanless
■Accessories: Power cable ×1, Wall mounting set ×1, Instruction manual
