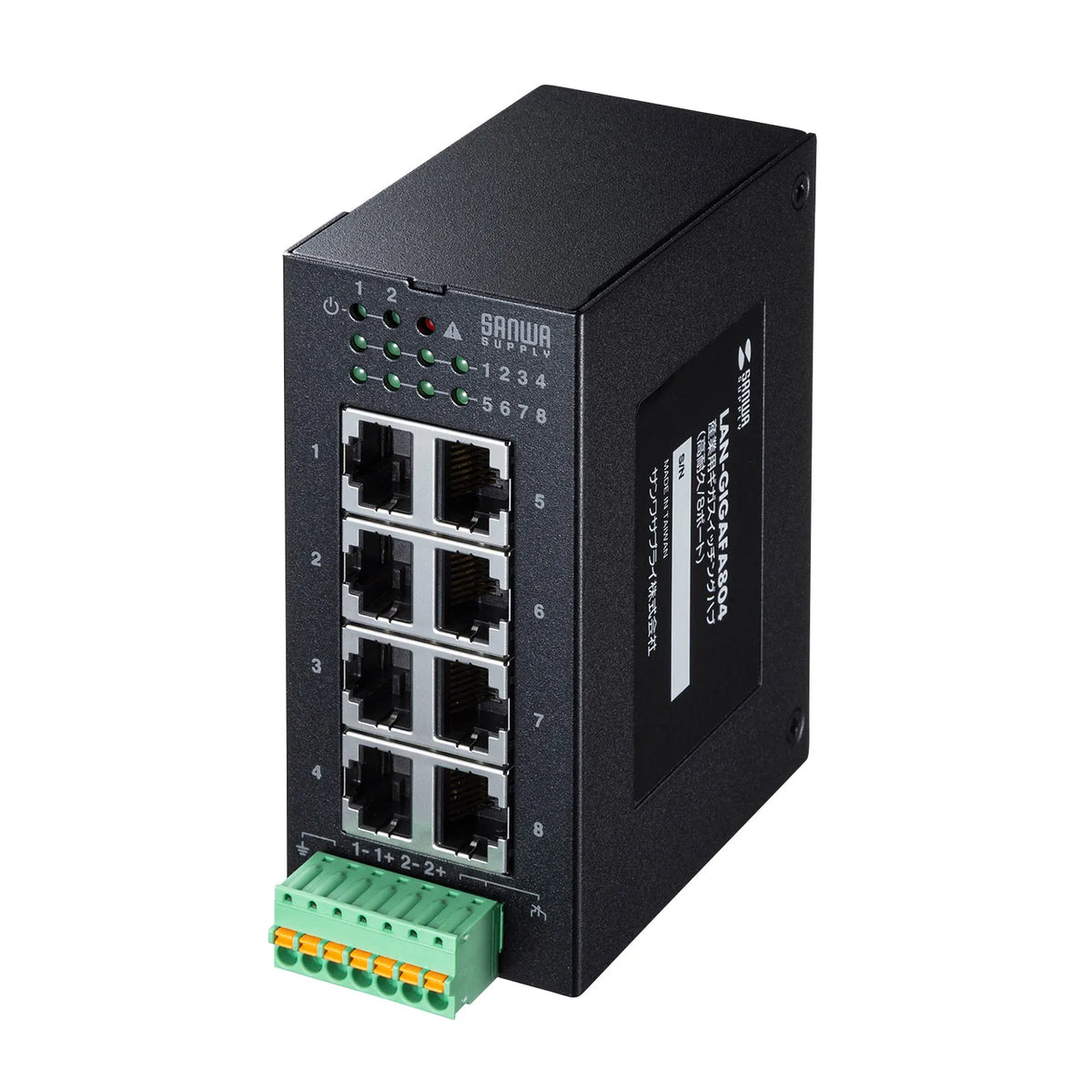

Industrial Gigabit Switching Hub (High Durability/8 Ports) LAN-GIGAFA804

[Industrial switching hub with excellent durability, redundant power supply and DIN rail mounting support (Gigabit communication compatible/8 ports)]

●This is an industrial unmanaged Gigabit Ethernet switching hub designed for easy installation in harsh environments with limited space.
●It has a durable operating temperature range of -10 to 60 degrees Celsius, making it ideal for use in control panels and other applications.
●It supports redundant power inputs in the range of DC12V to 48V, so even if one power supply fails, it can be switched to the other power supply to continue operation.

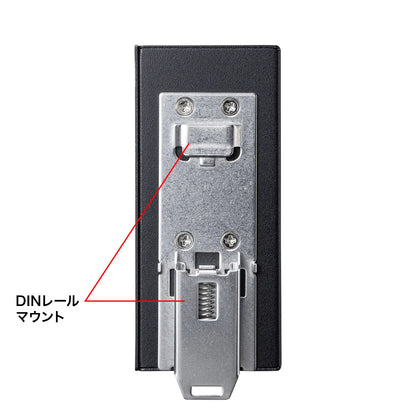

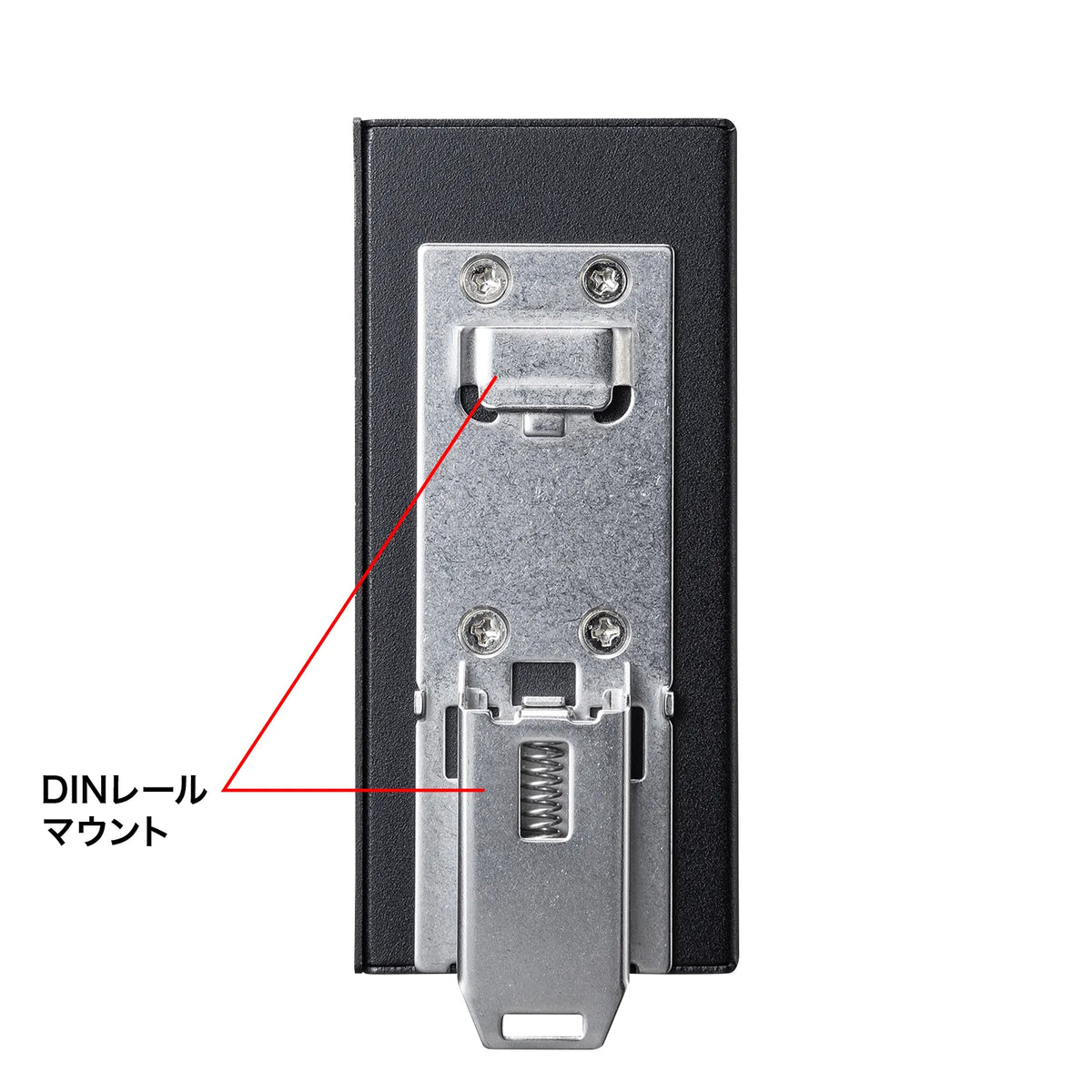

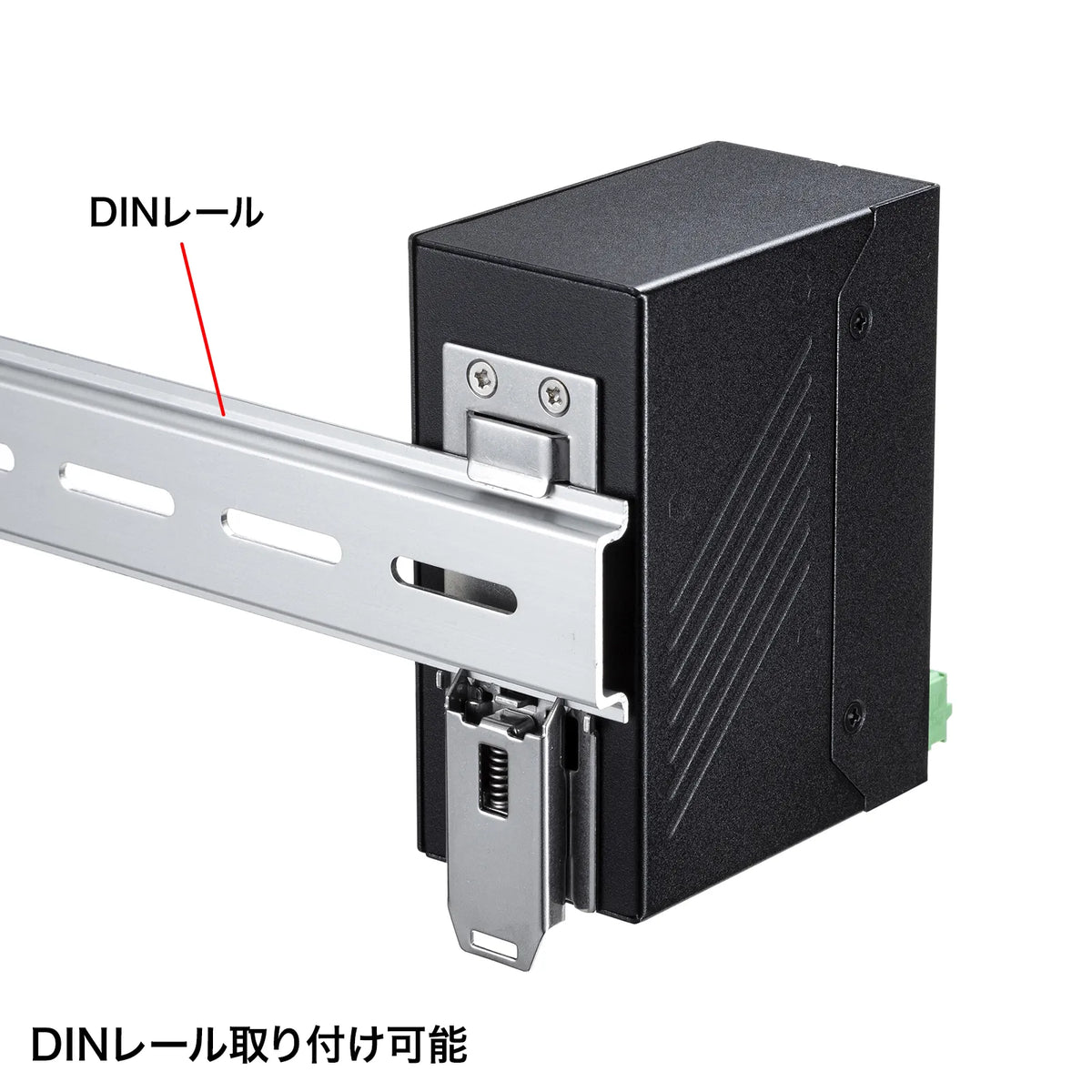

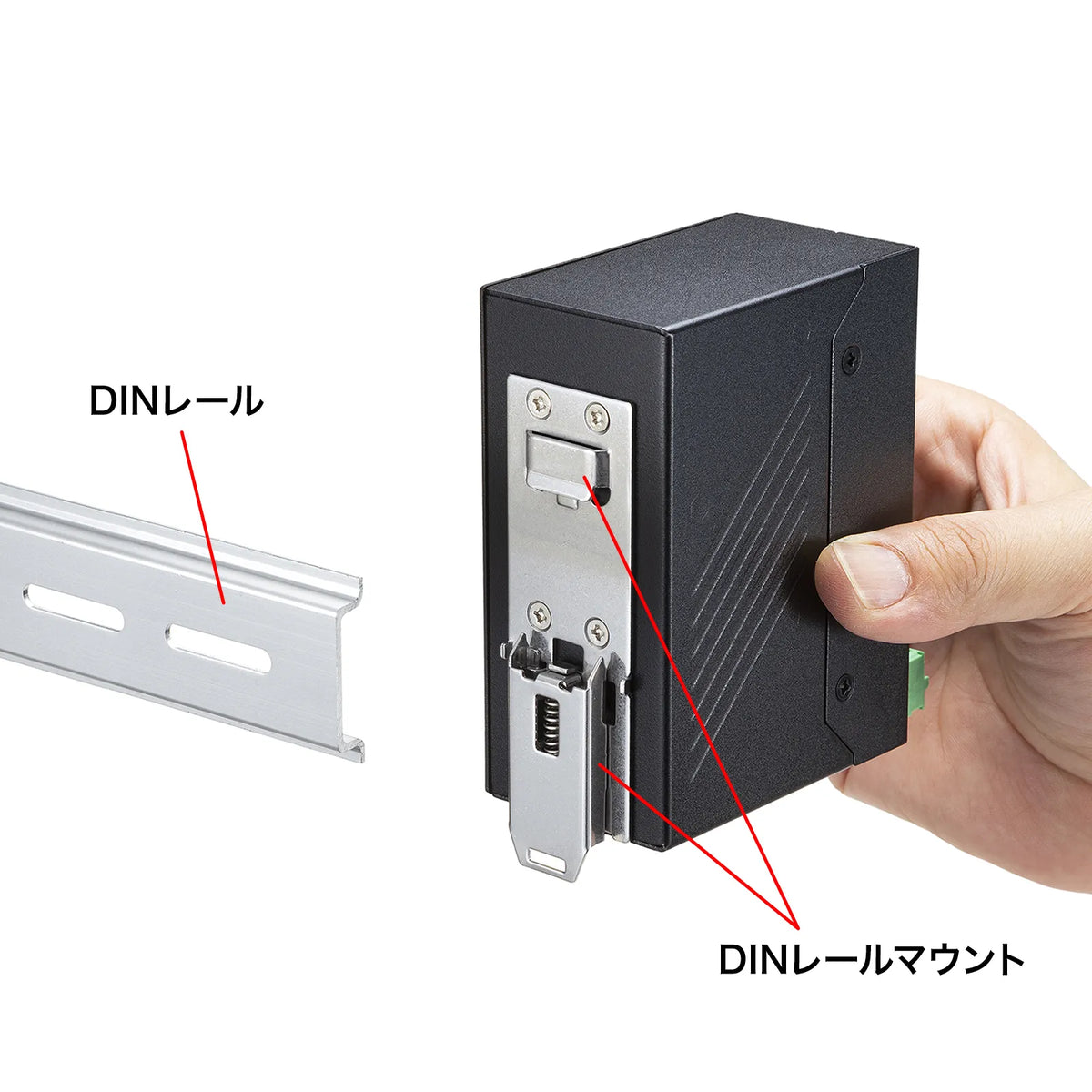

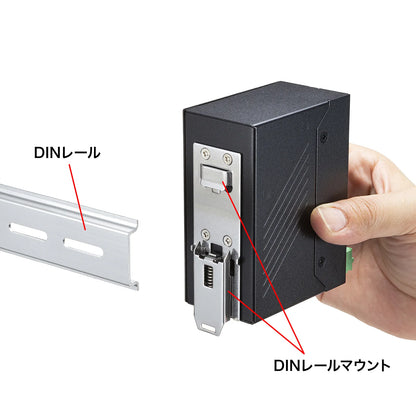

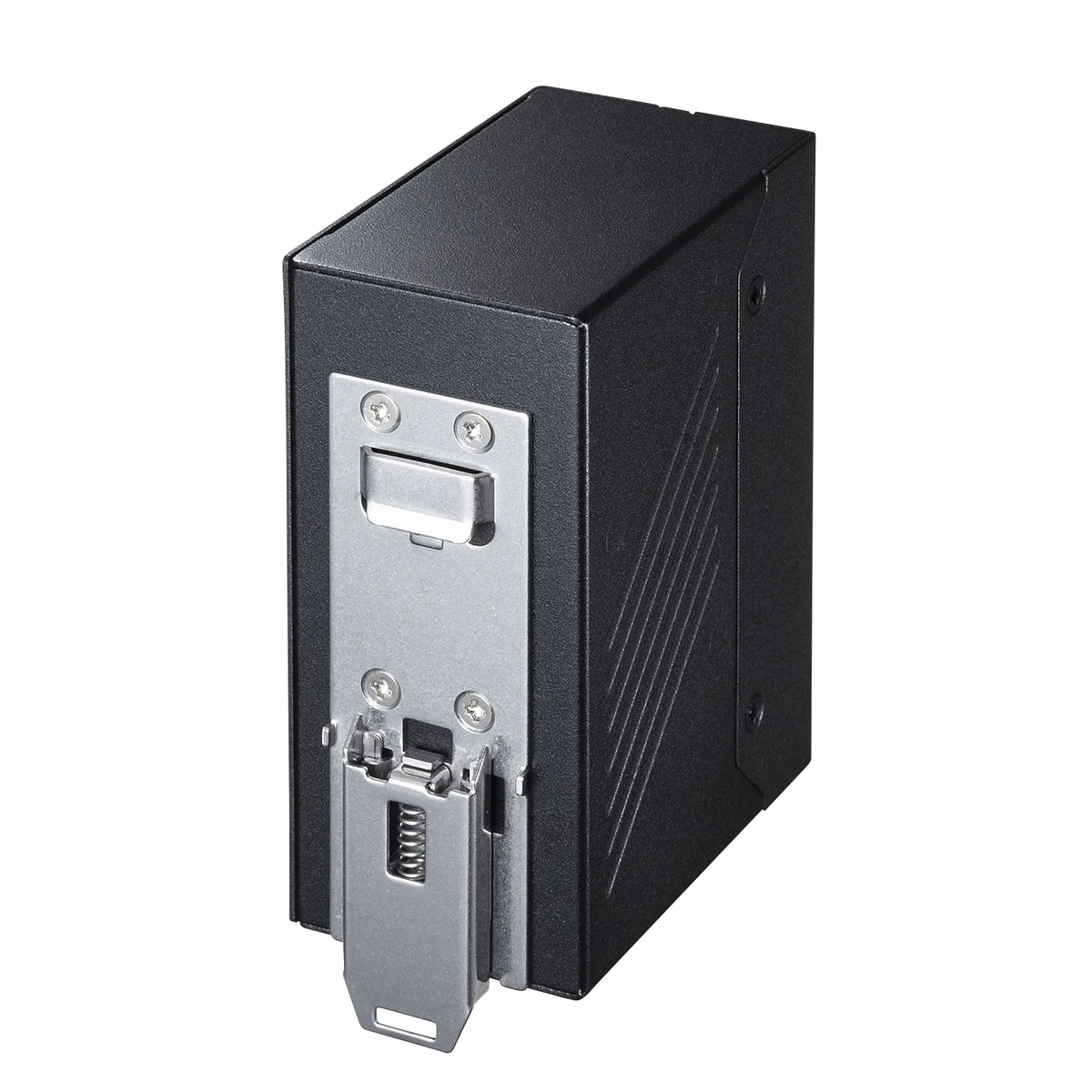

●It can be mounted on a DIN rail. The mount is pre-installed.

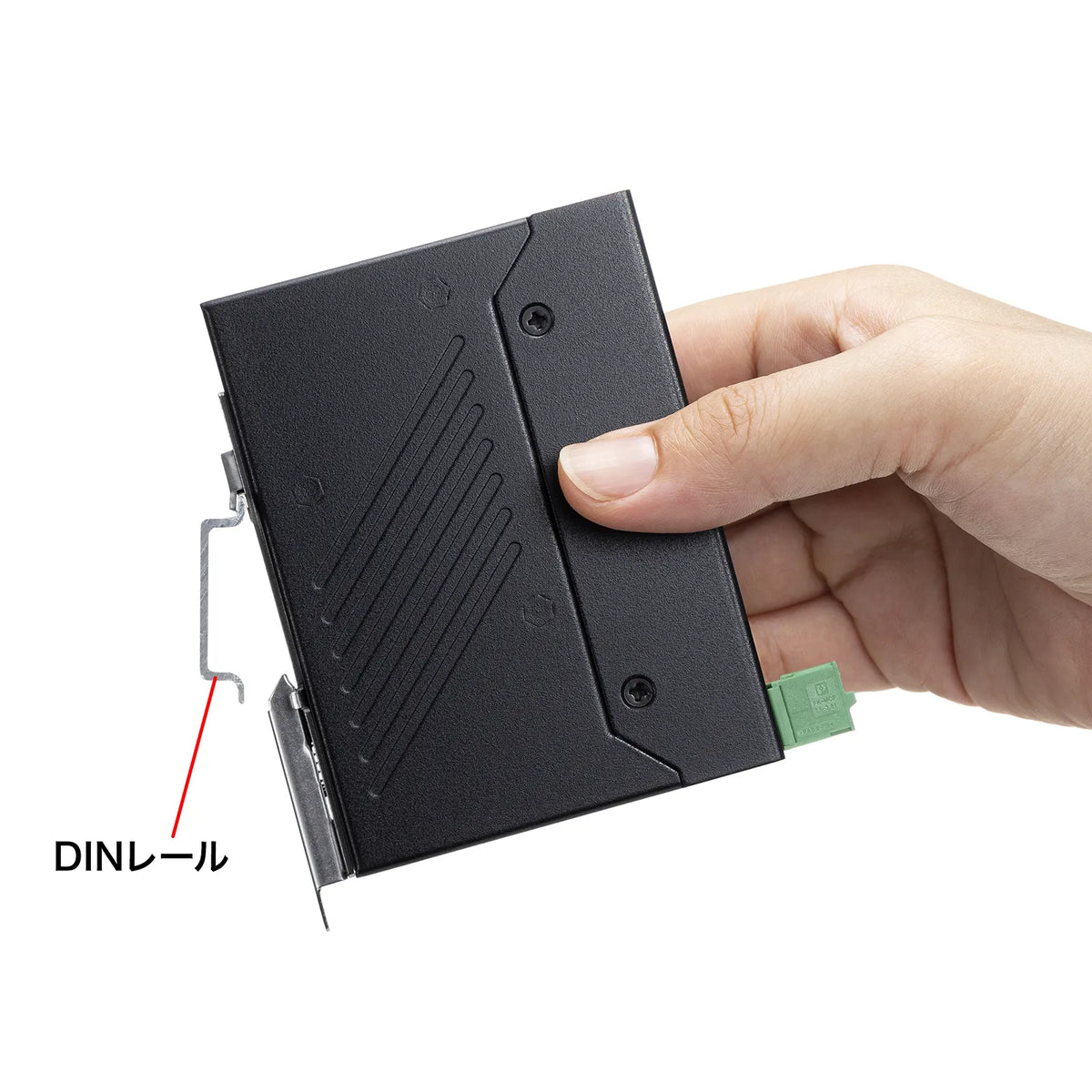

●It has an ultra-compact design with a low height to save space when mounted on a DIN rail. (Height when installed vertically: approx. 100mm)
●It has obtained various EMS and EMI certifications to ensure high durability.
●It is fanless, so it operates quietly.
●All ports support AUTO-MDIX and AUTO-Negotiation.

■Color: Black
■Compliant Standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T), IEEE802.1p (QoS)
IEEE 802.3az Energy Efficient Ethernet
■Compliant Standards:
FCC Part 15 Class A
VCCI Class A
ICES-003
EN 50121-4
EN 55032
EN 61000-4-2 (ESD)
EN 61000-4-3 (Radiated RFI)
EN 61000-4-4 (Burst)
EN 61000-4-5 (Surge)
EN 61000-4-6 (Induced RFI)
EN 61000-4-8 (Magnetic field)
EN 61000-6-2
EN 61000-6-4
■Access method: CSMA/CD
■Switching method: Store & Forward
■Maximum transmission speed: 1000Mbps (1000BASE-T)

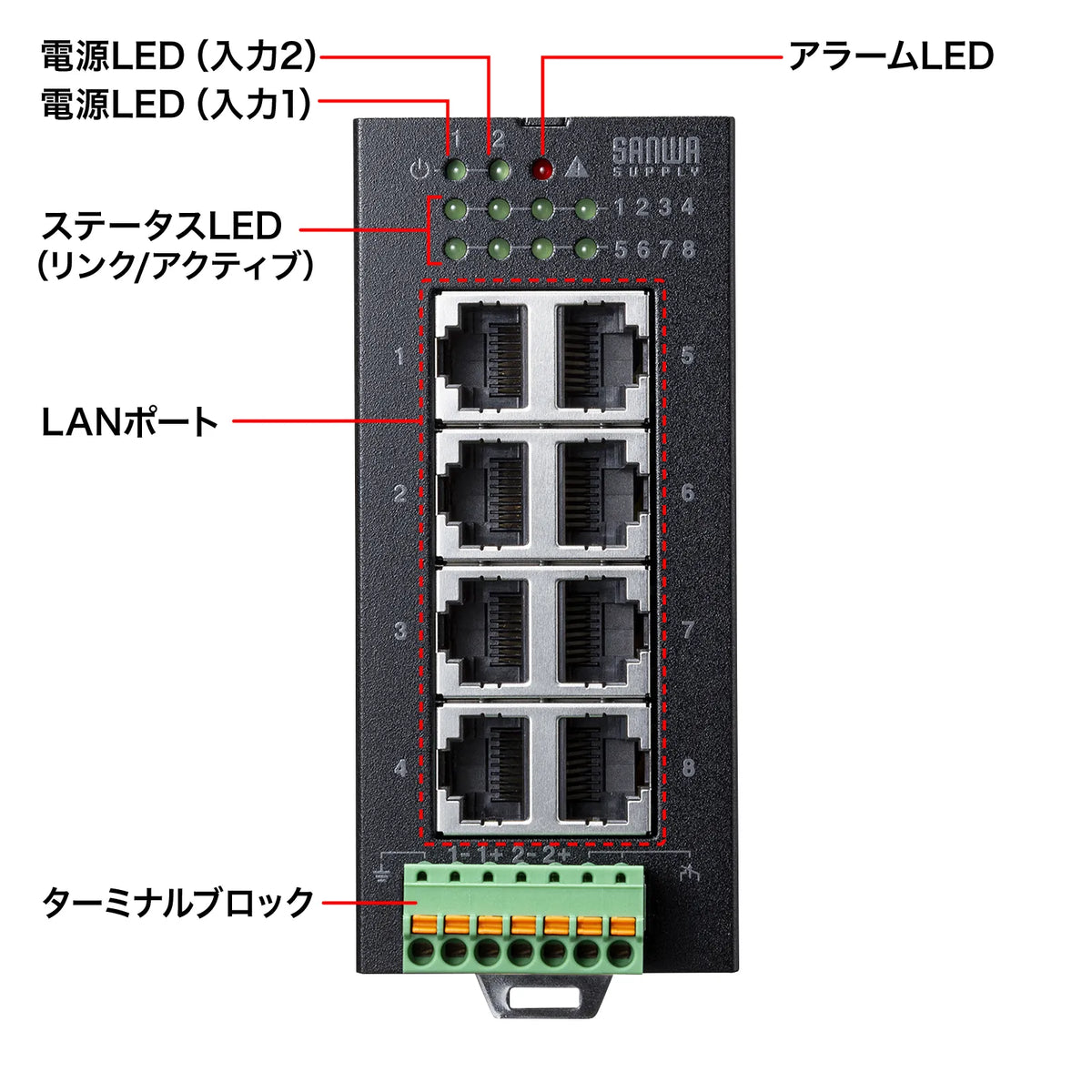

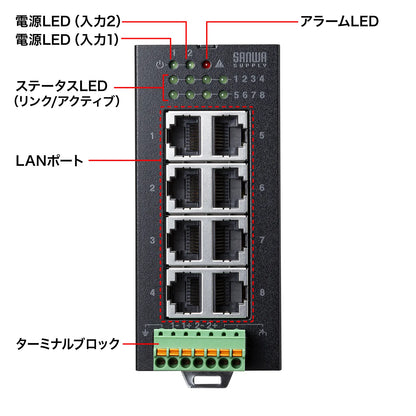

■Port configuration: 1000BASE-T/100BASE-TX/10BASE-T (RJ-45) x 8 ports
■Jumbo frame: Supported (12Kbytes)
■Compatible LAN cable: UTP Category 5e or higher (1000BASE-T), UTP Category 5 or higher (100BASE-TX), UTP Category 3 or higher (10BASE-T)
■Buffer memory: 1.5 Mbytes (dynamically assigned to each port)
■MAC address table: 4K
■Size: W45×D75×H100mm
■Weight: Approx. 336g
■Power consumption: Maximum/5.55W
■Operating environment:
Operating temperature/-10 to 60 degrees, Operating humidity/5 to 95% (non-condensing)
Storage temperature/-40 to 85 degrees, Storage humidity/5 to 95% (non-condensing)
■Number of ports: 8 ports
■Communication mode: Full duplex/Half duplex
■Flow control: Yes
■Switch fabric: 16Gbps
■Maximum packet forwarding capacity: 11.9Mbps
■Filtering speed: 1,488,000 packets/sec (1,000Mbps), 148,800 packets/sec (100Mbps), 14,880 packets/sec (10Mbps)
■Auto MDI/MDI-X: Supported
■Auto negotiation: Supported
■Power supply: DC12 to 48V (redundant power supply)
*Operable with only one power input. Redundant power supply is possible by using two inputs.
■Housing Material: Metal
■Compatible DIN Rail: Compatible (35mm)
■Fan Specifications: Silent Fanless
■MTBF: 3,093,836 hours (25°C) / 582,648 hours (60°C)
■VCCI Standard: VCCI Class A
■Dustproof Standard: IP40
■Relay Output: ON when 2 power inputs are made
*Please use devices connected to the relay output with 0.5A DC30V or less.
■Power Reverse Polarity Protection: Supported
■Overcurrent Protection: Supported
■Heat Generation: 19.98KJ/h
■Set Contents: Main unit, DIN rail mount (pre-installed at shipment), plug terminal block x 1, instruction manual
■Warranty Period: 3-year warranty
