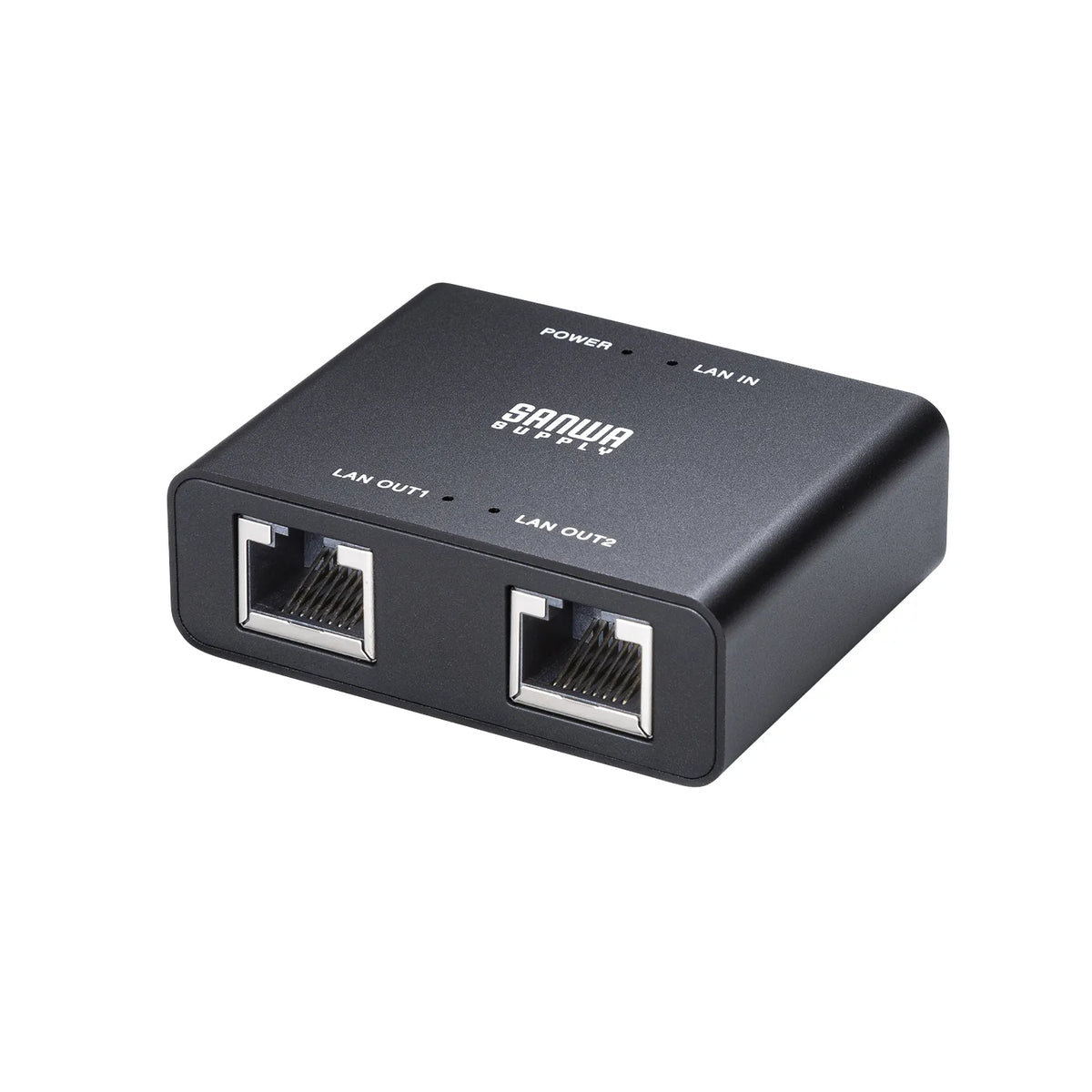

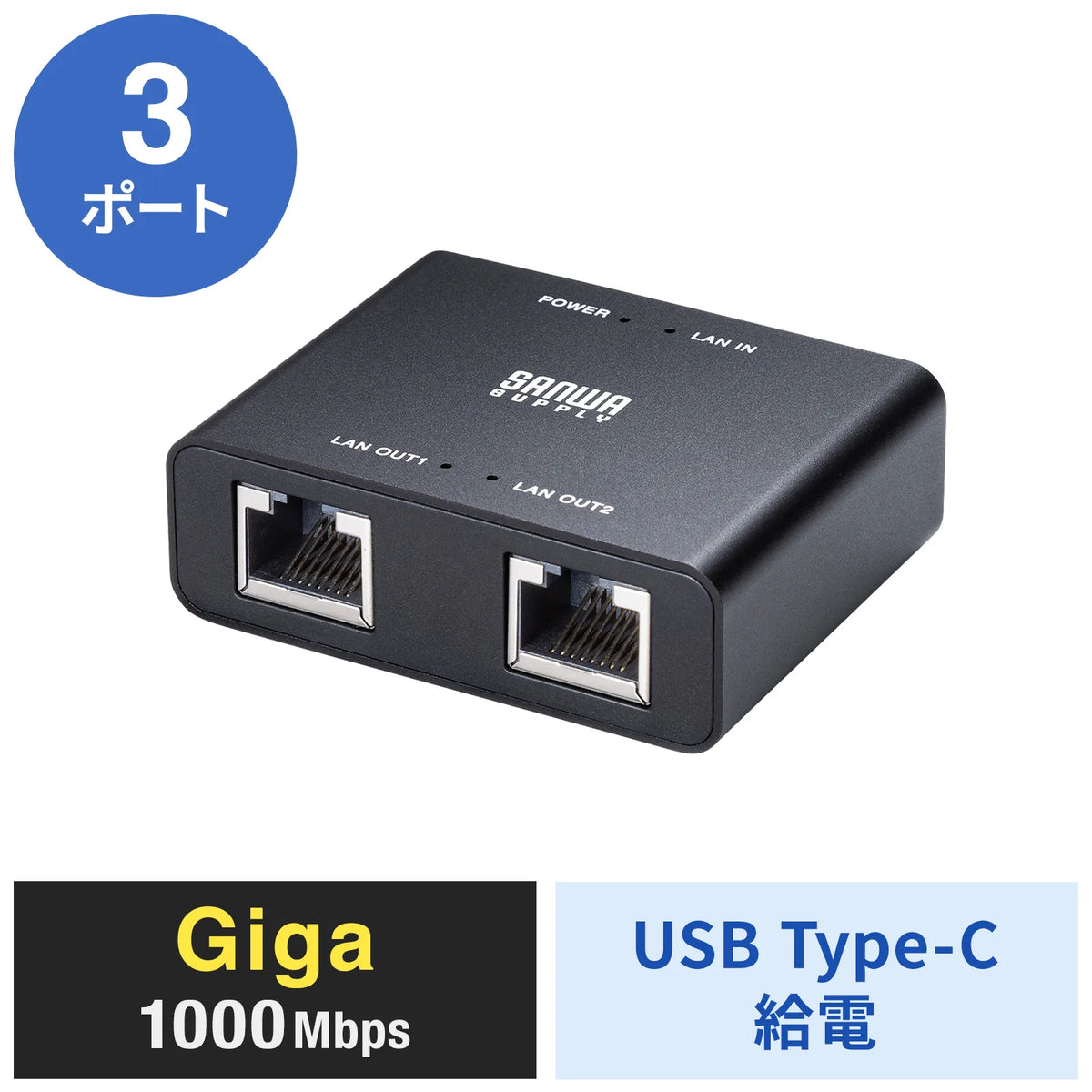

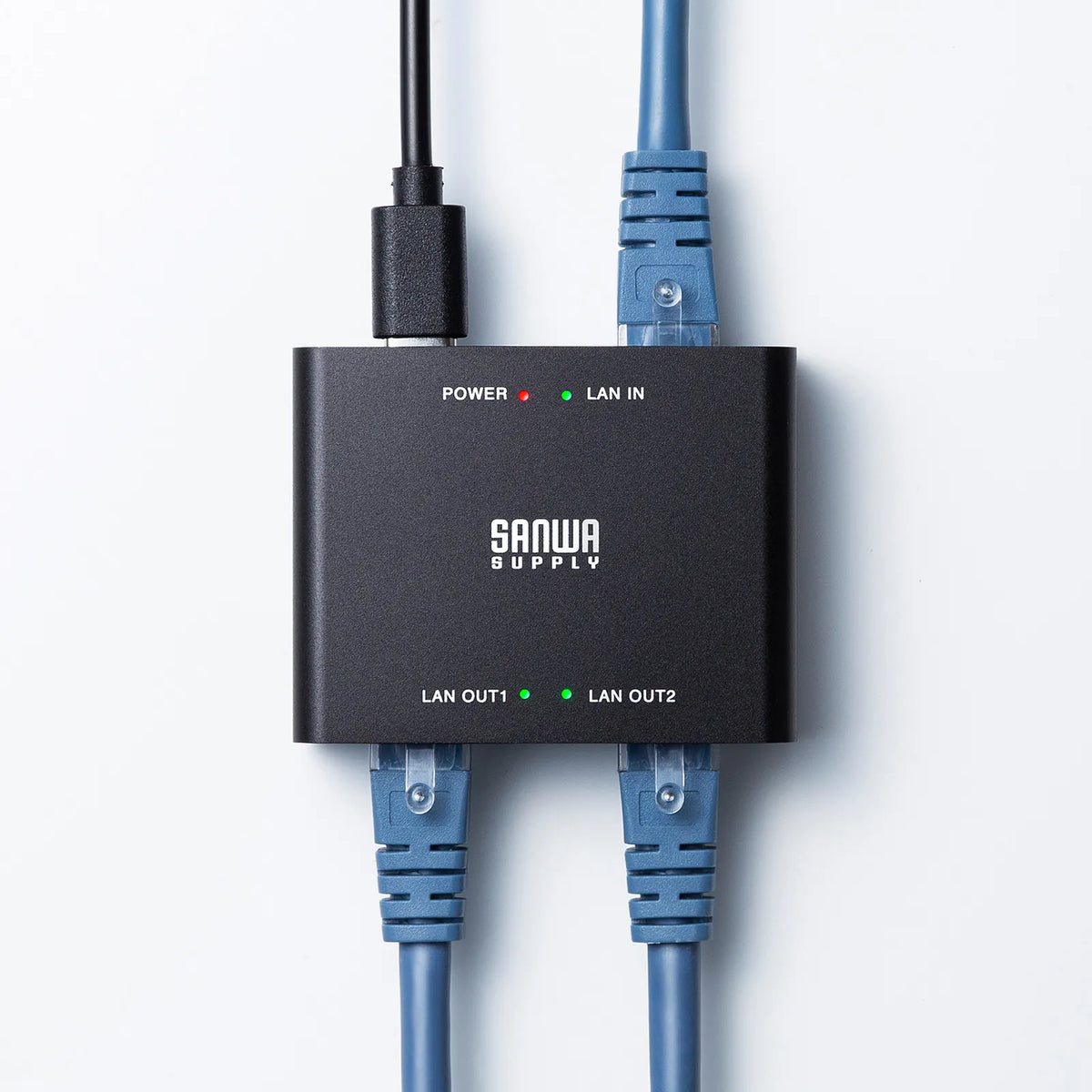

Gigabit-compatible switching hub (3 ports, Type-C power supply) LAN-GIGAC302BK

[An ultra-compact 3-port switching hub that can split one LAN cable into two connections. Easy to install with USB Type-C power supply.]

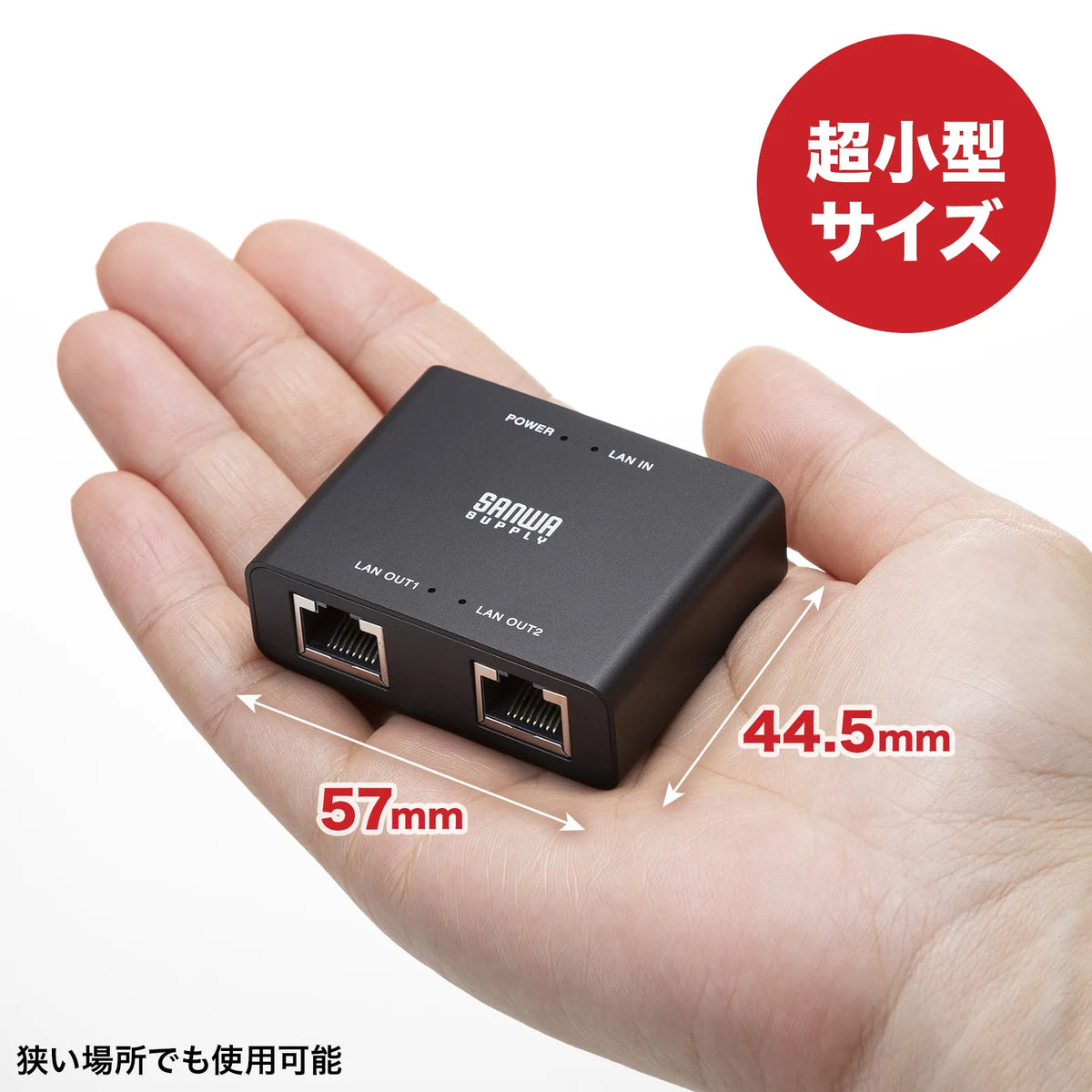

●An ultra-compact 3-port switching hub that supports 1000BASE-T. *1

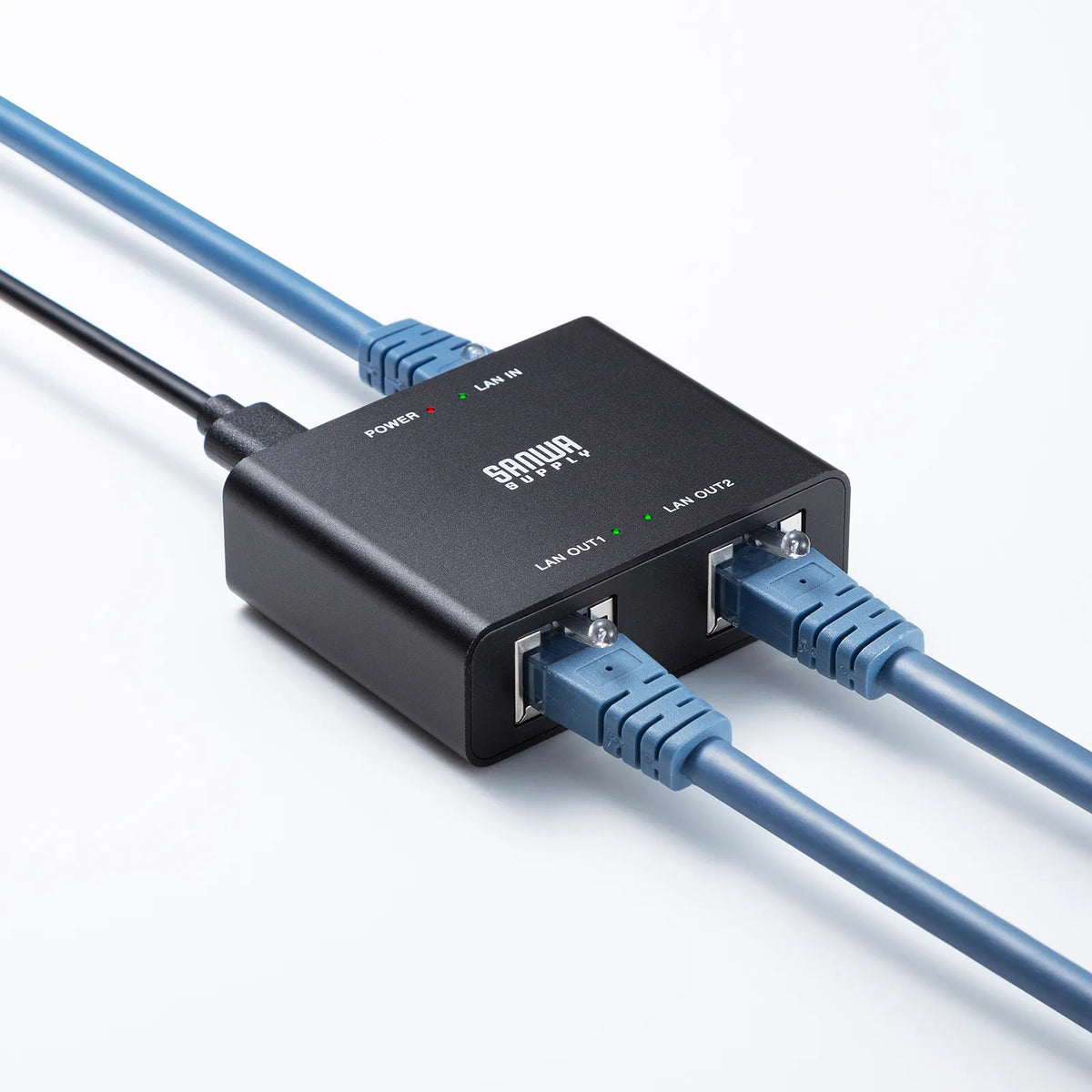

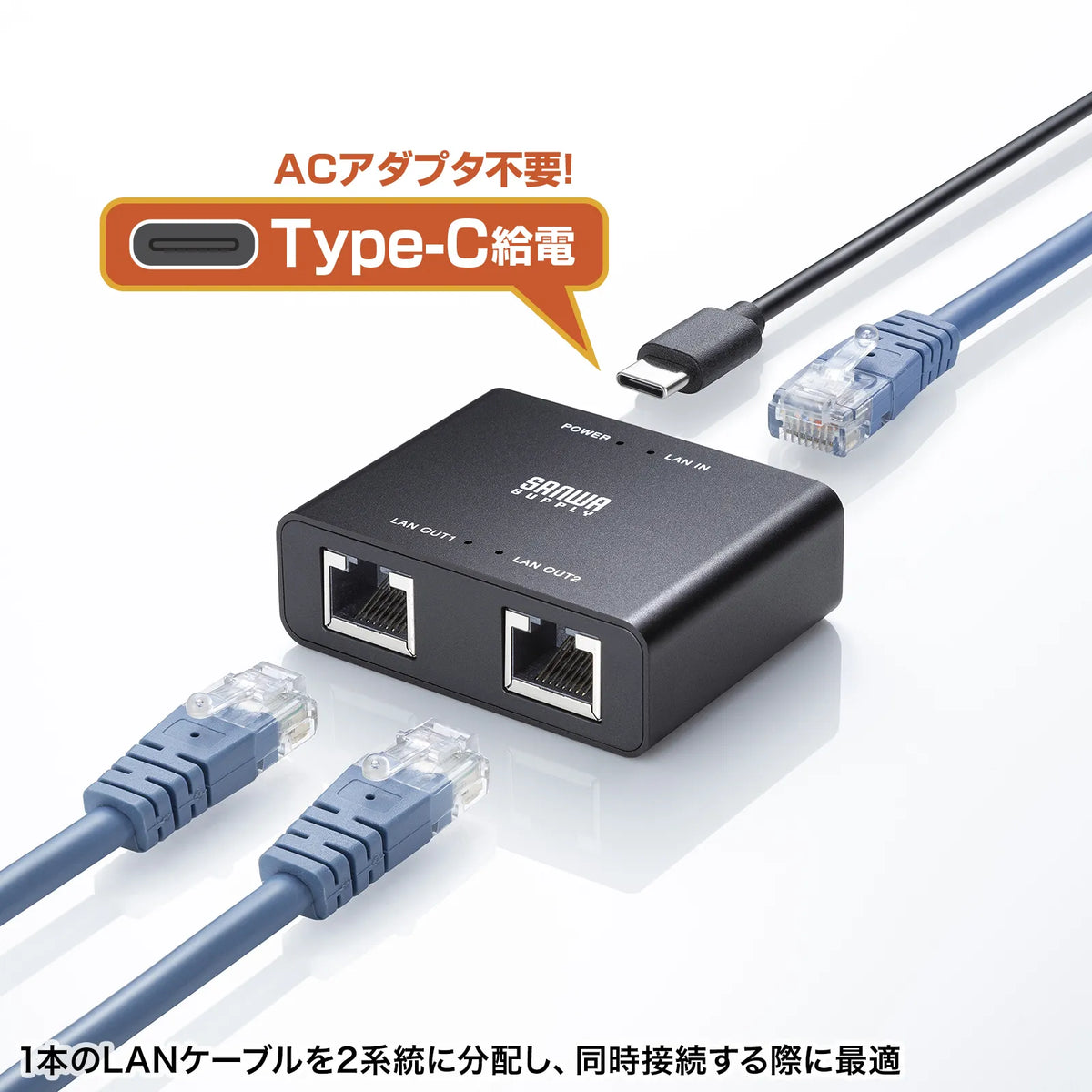

●Ideal for splitting one LAN cable into two connections for simultaneous connection.

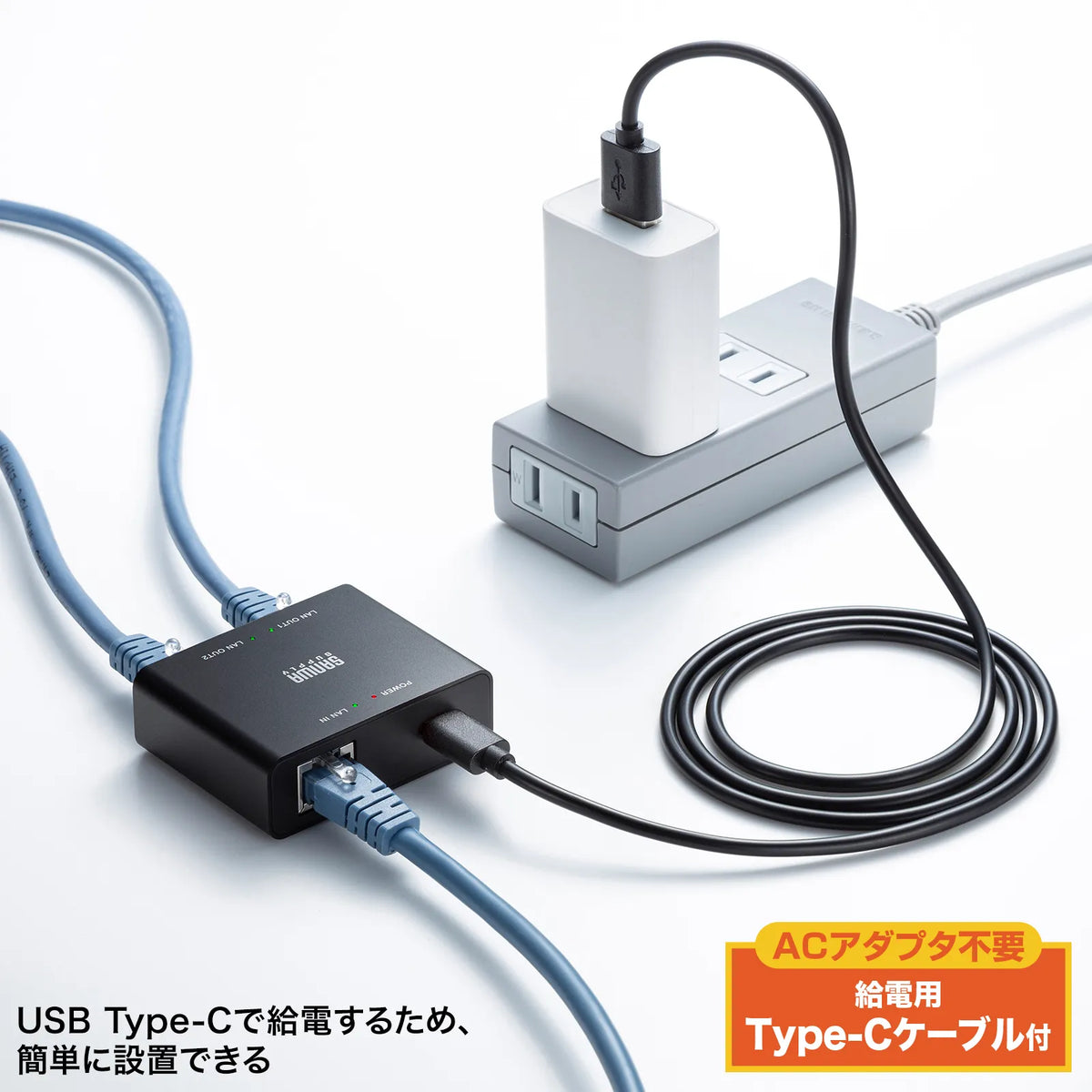

●Easy to install as it is powered by USB Type-C.

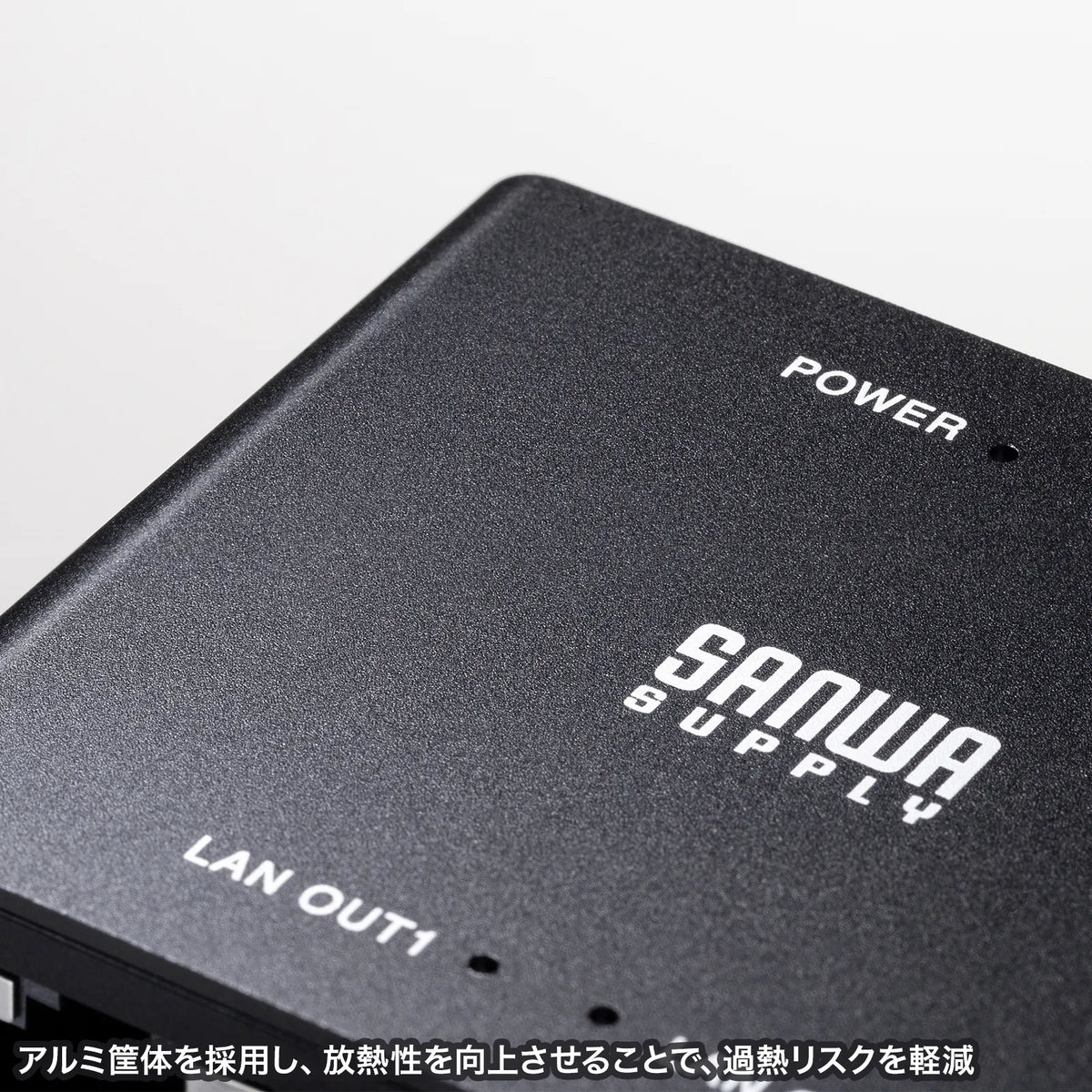

●Uses an aluminum casing to reduce the risk of overheating. *2
●Equipped with AUTO-MDIX function that can be used without worrying about straight cables or crossover cables.
●Equipped with AUTO-Negotiation function that can automatically switch between 10/100/1000Mbps depending on the connected device.

[Caution]
*1 This product has a switching hub function, but it does not support some functions.
A maximum of 2 devices can be connected below this product, and hierarchical connections are not supported.
*2 The amount of heat generated by this product differs depending on whether it is only powered on or communicating.
In particular, continuous high-volume communication may cause the unit to overheat.
Continuous use in poorly ventilated environments may lead to deterioration of internal components and reduce the product's lifespan.
When using the unit, do not place anything on top of it, and leave at least 10 cm of space around the ventilation openings.




■Number of ports: 3 ports
■Maximum transmission speed: 1000Mbps (1000BASE-T)
■Compliant standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)
■Access method: CSMA/CD
■Switching method: Store & Forward
■Communication mode: Full duplex/Half duplex

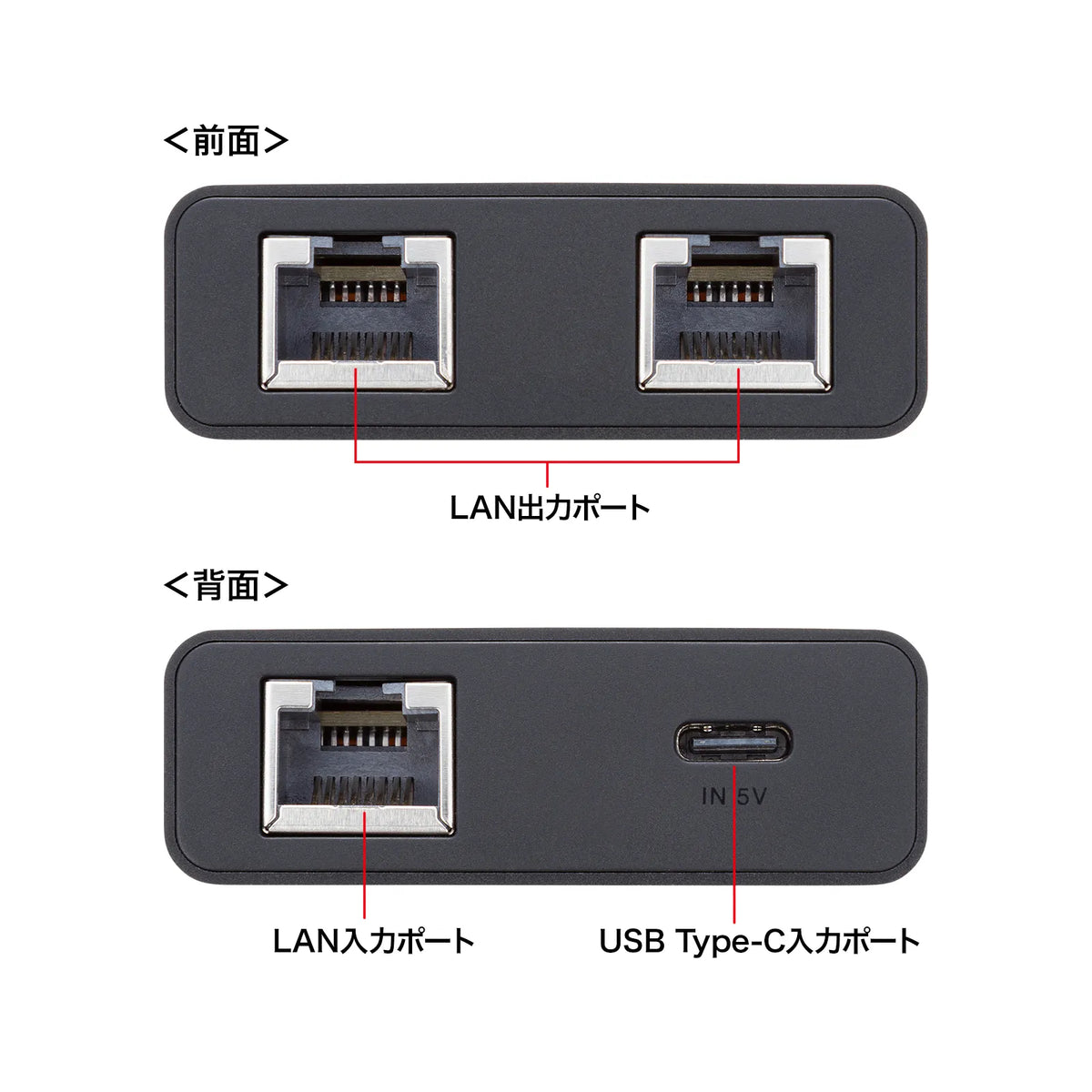

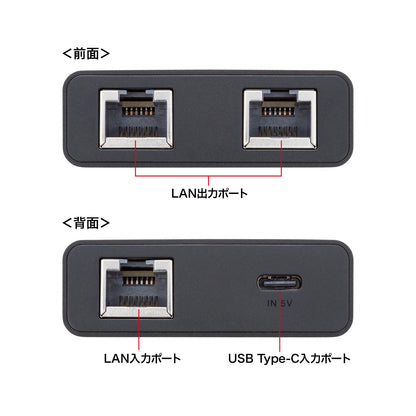

■Port configuration: 1000BASE-T/100BASE-TX/10BASE-T (RJ-45) 3 ports
■Auto MDI/MDI-X: Supported
■PoE support: Not supported
■Compatible LAN cable: UTP Category 5e or higher (1000BASE-T), UTP Category 5 or higher (100BASE-TX), UTP Category 3 or higher (10BASE-T)
■Buffer memory: 32K Byte Instruction Cache Memory
64K Byte Instruction Memory
■Flow control: Not supported
■Switch fabric: 1Gbps
■Maximum packet forwarding capacity: 1000Mbps
■Filtering speed: 1,488,000 packets/sec (1000Mbps), 148,800 packets/sec (100Mbps), 14,880 packets/sec (10Mbps)
■Auto negotiation: Supported
■Power supply: USB Type-C
(5V/500mA)
■Maximum power consumption: 2W
■Operating environment conditions: Temperature/0 to 40 degrees, Humidity/10 to 90%
(non-condensing)
■Storage environment conditions: Temperature/-10 to 60 degrees, Humidity/5 to 90%
(non-condensing)
■Housing material: Aluminum

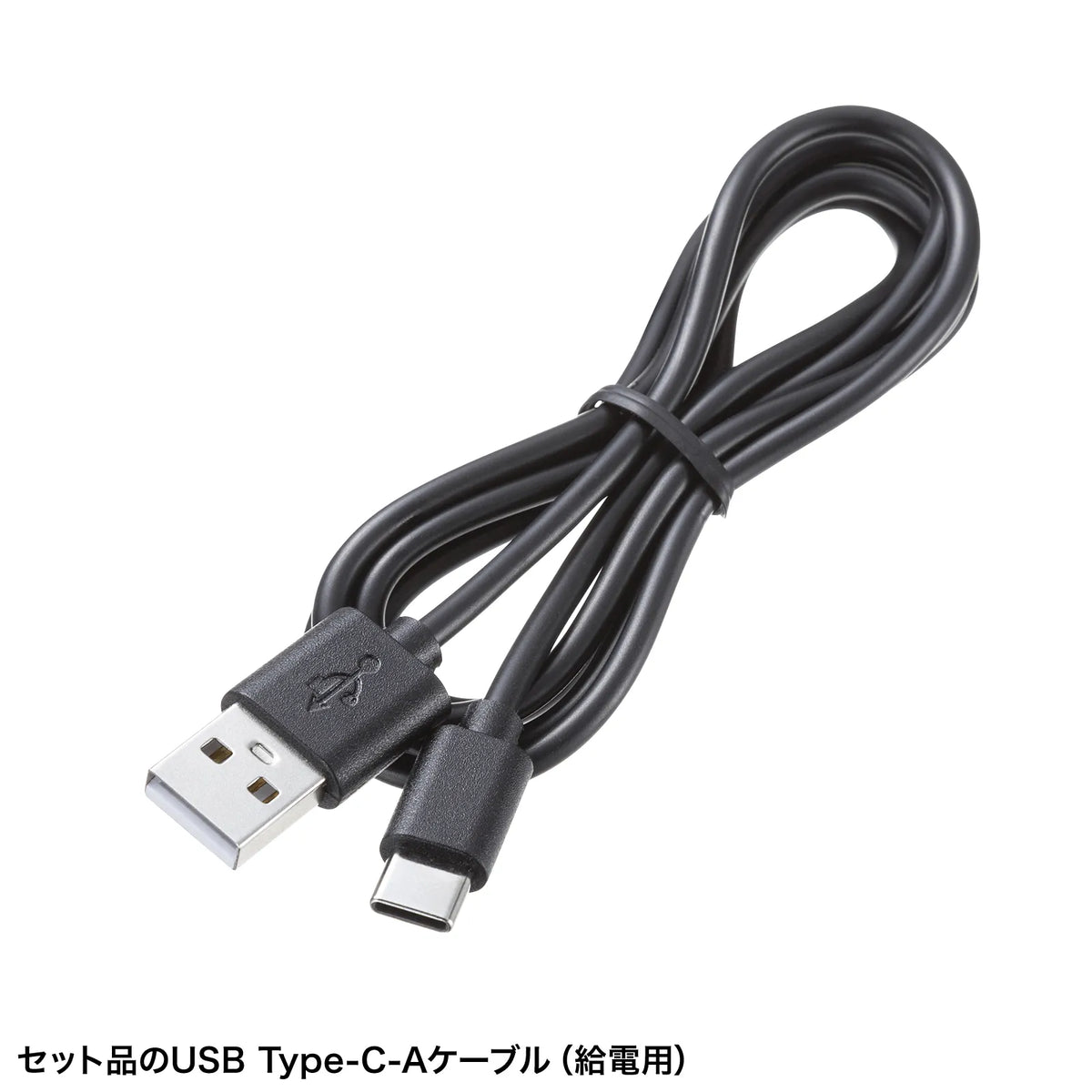

■Set contents: Main unit 1, USB Type-C to A cable (for power supply, 1m) 1, Instruction manual 1
■Color: Black
