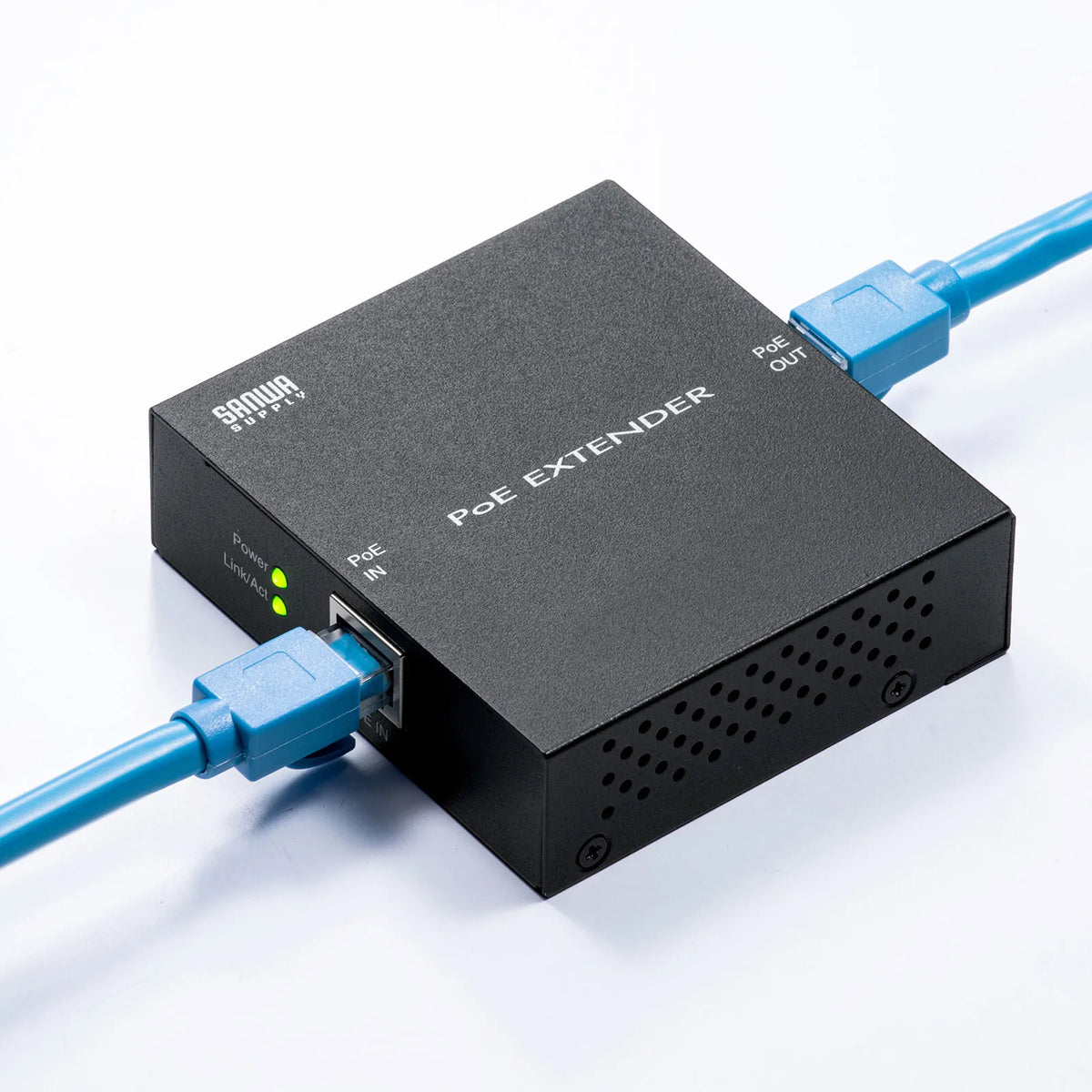

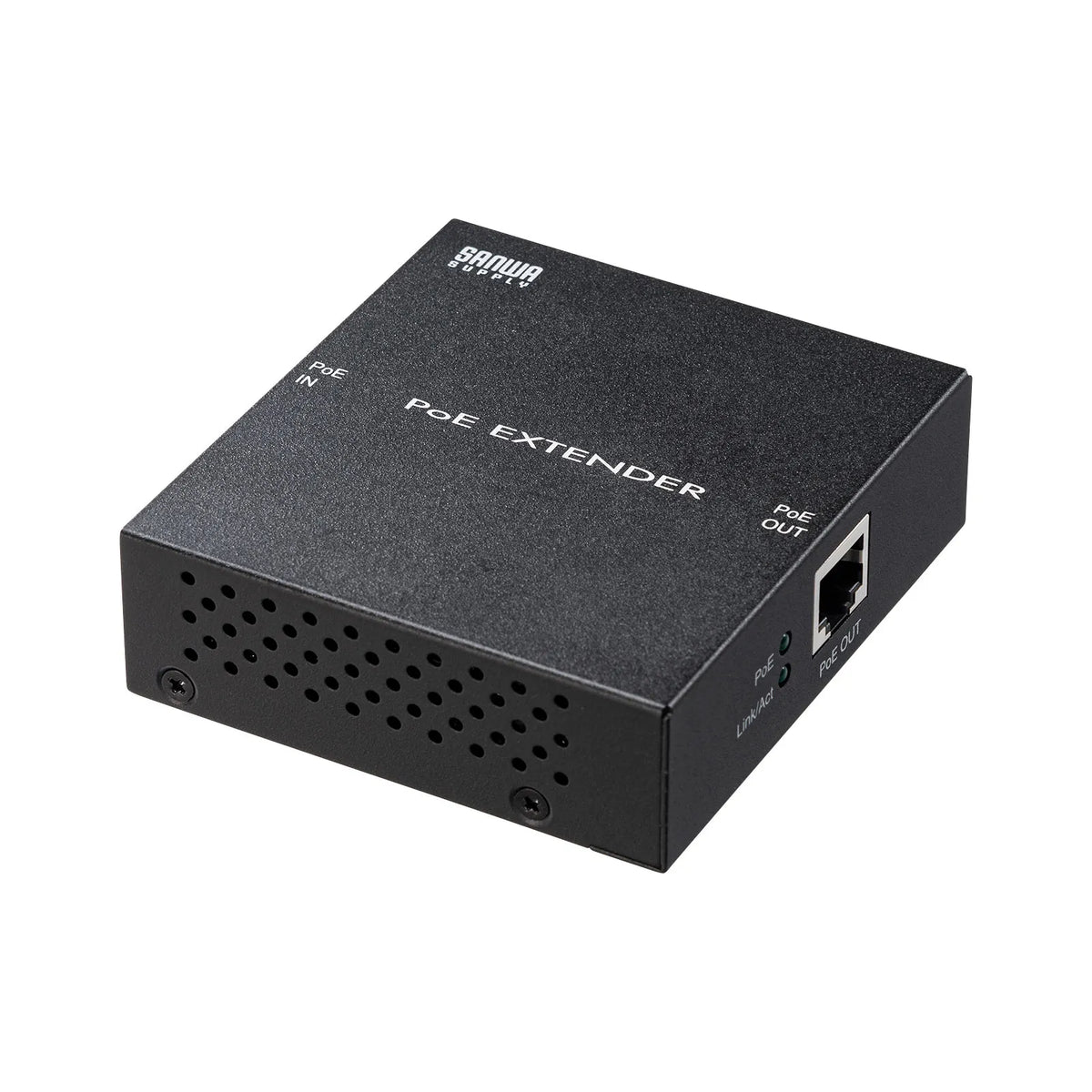

PoE Extender (with magnet) LAN-EXPOE2

[A PoE extender that operates on PoE power and can extend LAN cables up to 100m.]

●This PoE extender operates on PoE power and can extend LAN cables up to 100m. *1

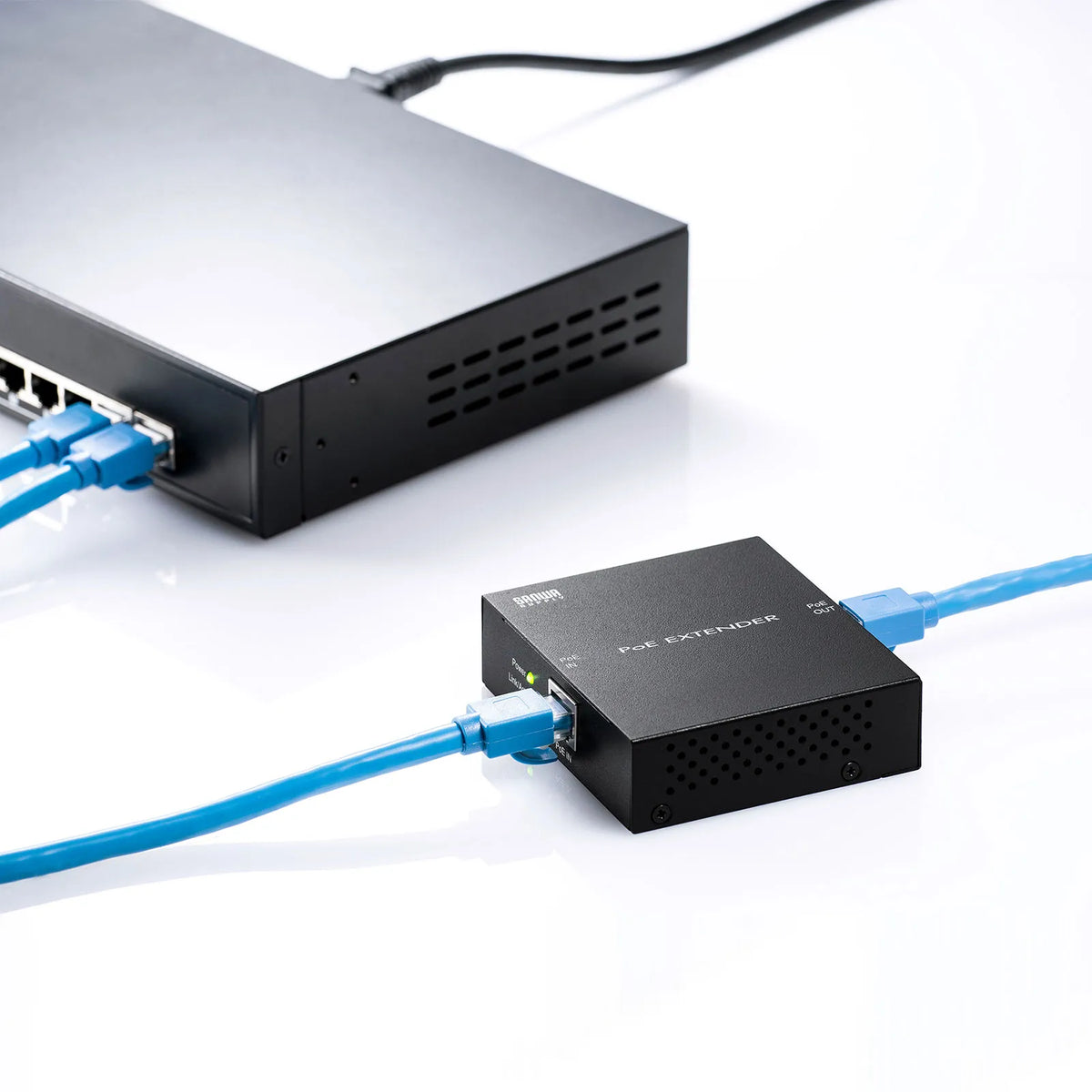

●The unit supports operation via PoE power, so no power cable is required when relaying or extending.
●It can extend not only LAN signals but also PoE power. *2
●By relaying up to 5 of these products, you can extend LAN cables up to approximately 600m. *3, *4, *5

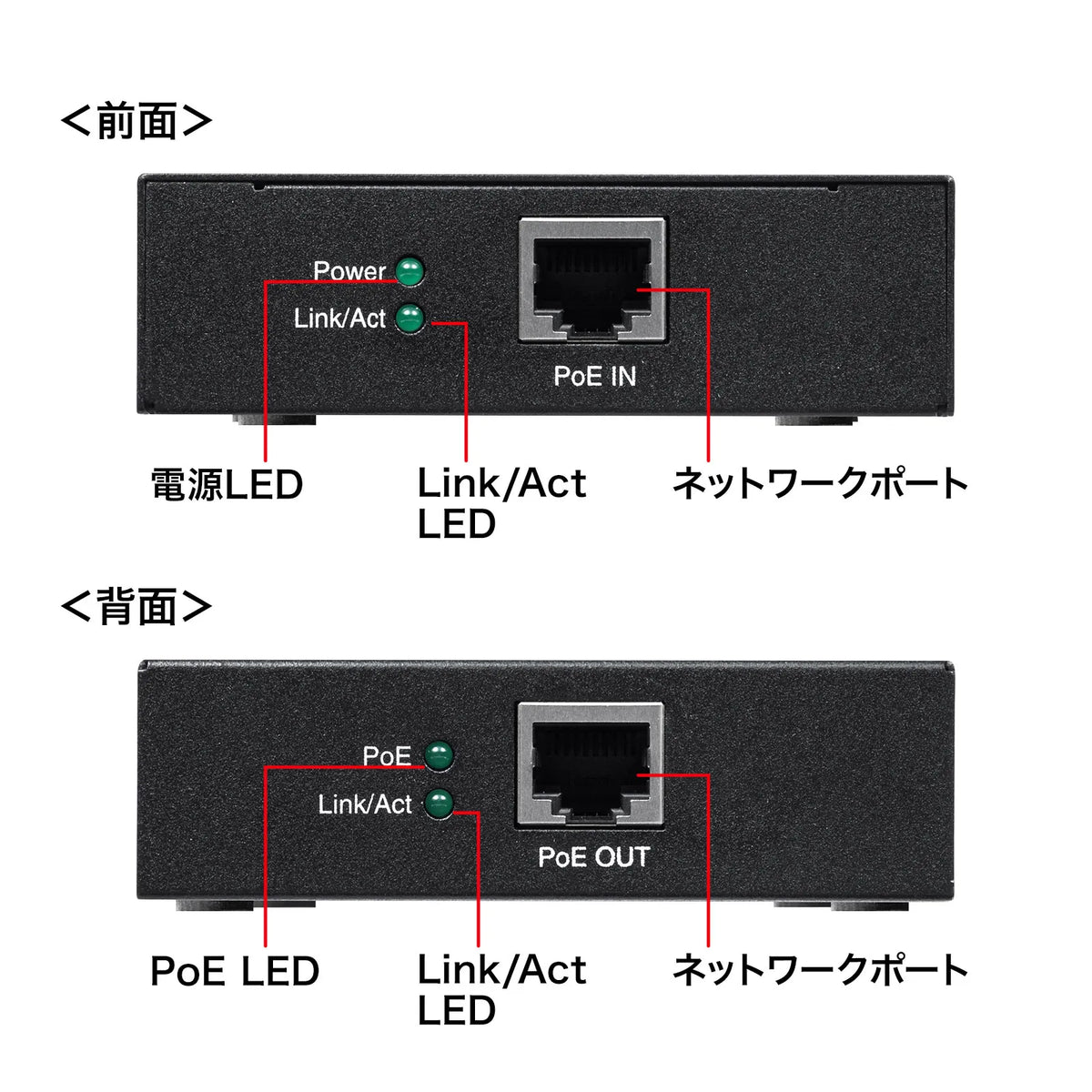

●Equipped with an LED that allows you to check the communication and power supply status.

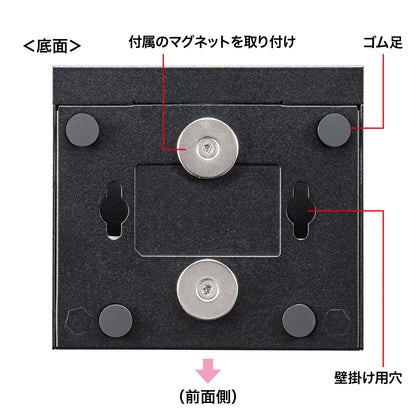

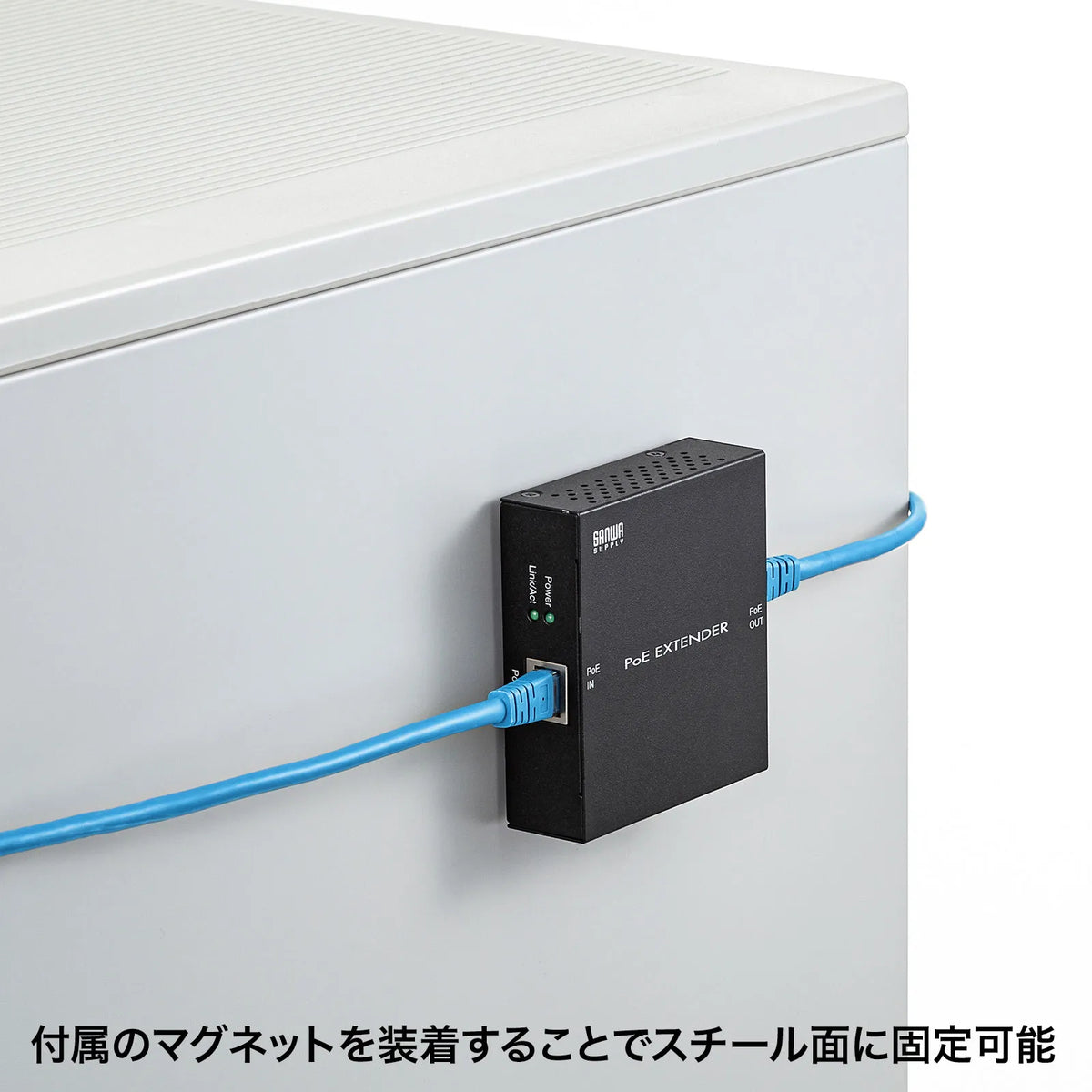

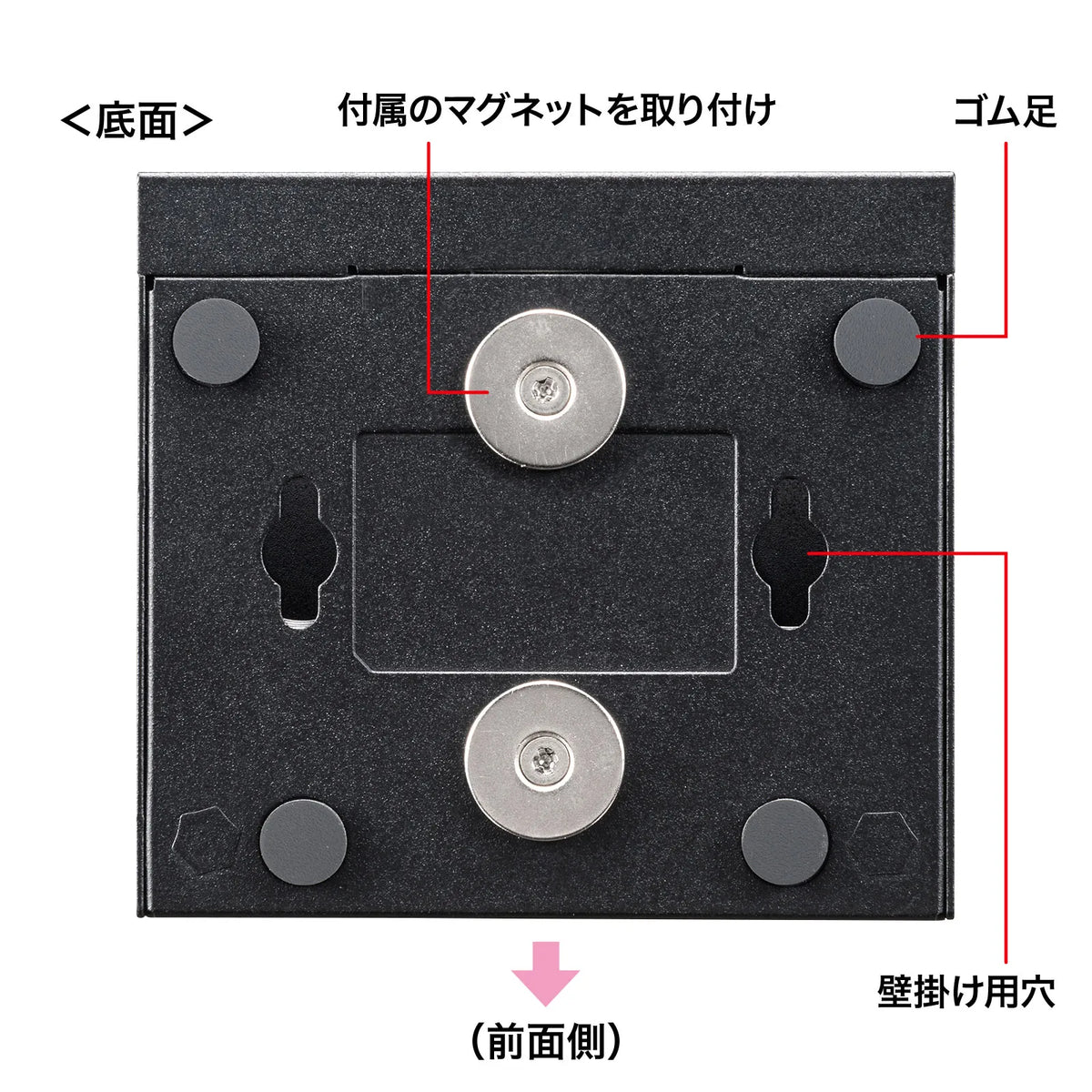

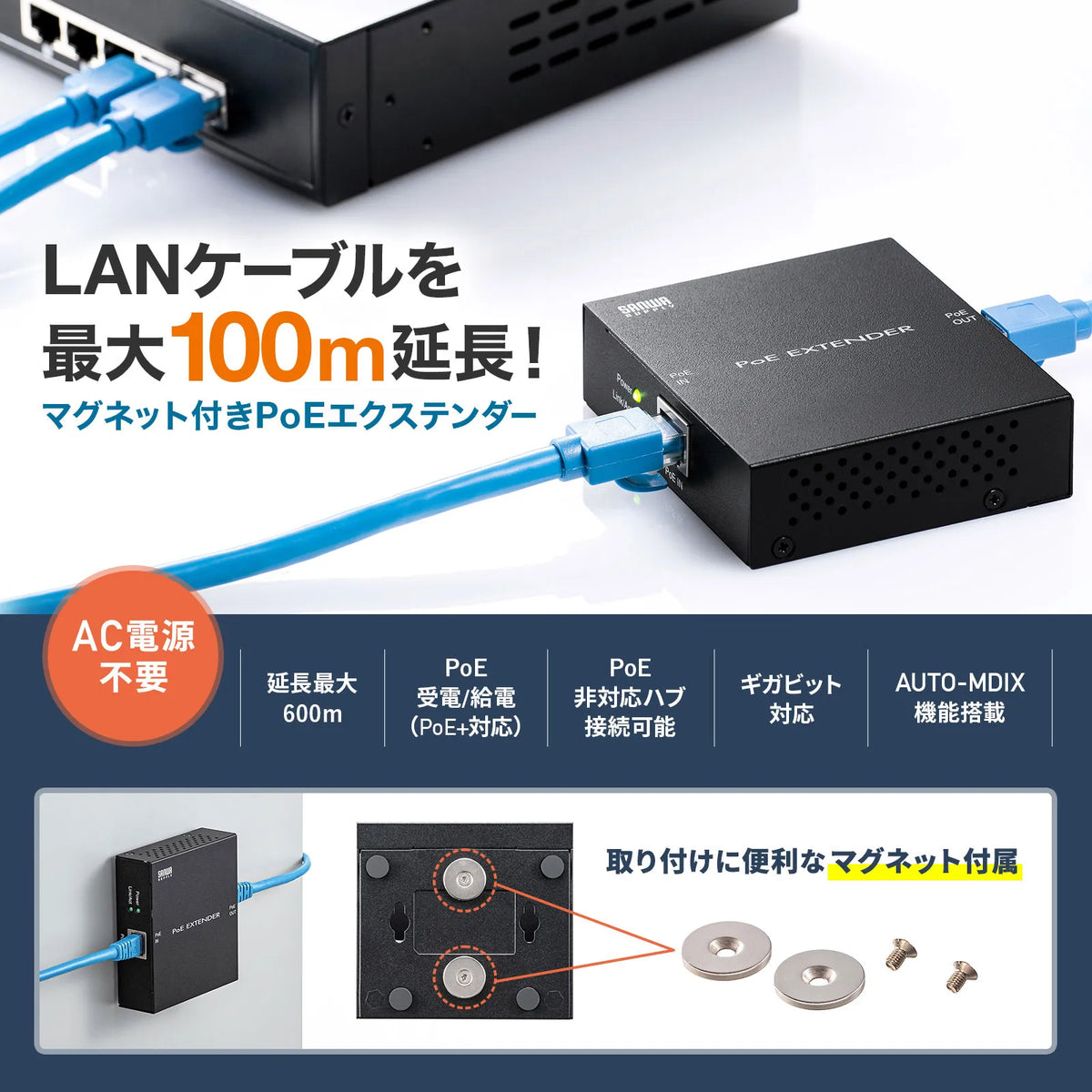

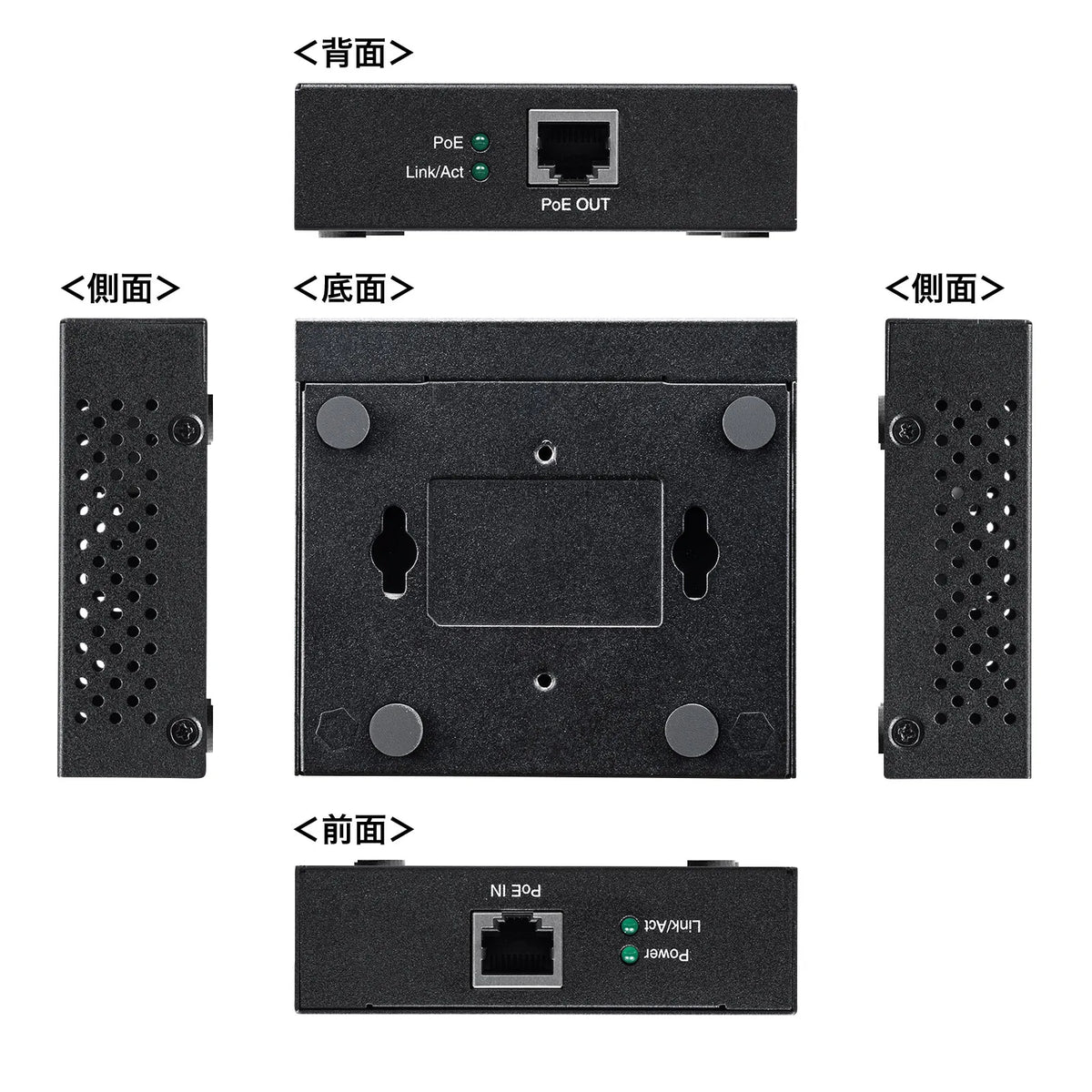

●Its compact size allows for space-saving installation and supports wall mounting and magnetic mounting.
●This product is for indoor use only.

*1 Theoretical value according to LAN cable standards
*2 Due to power loss on the LAN cable and power consumption by the product itself, the PoE power supplied when passing through this product will decrease.
*3 The maximum number of devices that can be extended may vary depending on the specifications of the PoE supply device and the cable length, as the power supplied will differ.
*4 If the PoE supply device is IEEE802.3at, PoE power output from this product is possible. (Compliant with IEEE802.3af/maximum 15.4W x 1 port)
*5 If the PoE supply device is IEEE802.3af, PoE power output from this product is not supported. (Power will be supplied, but the voltage and power output will not comply with the PoE standard)
*6 When using a LAN cable for PoE power supply, please select a Category 5e/6/6A straight cable or one with a thickness of 24AWG or greater.
Recommended Cables (Sanwa Supply)
・KB-T6POE series (22AWG)
・KB-T6TS series (23AWG)
・KB-T5T series (24AWG solid wire)

■Color: Black

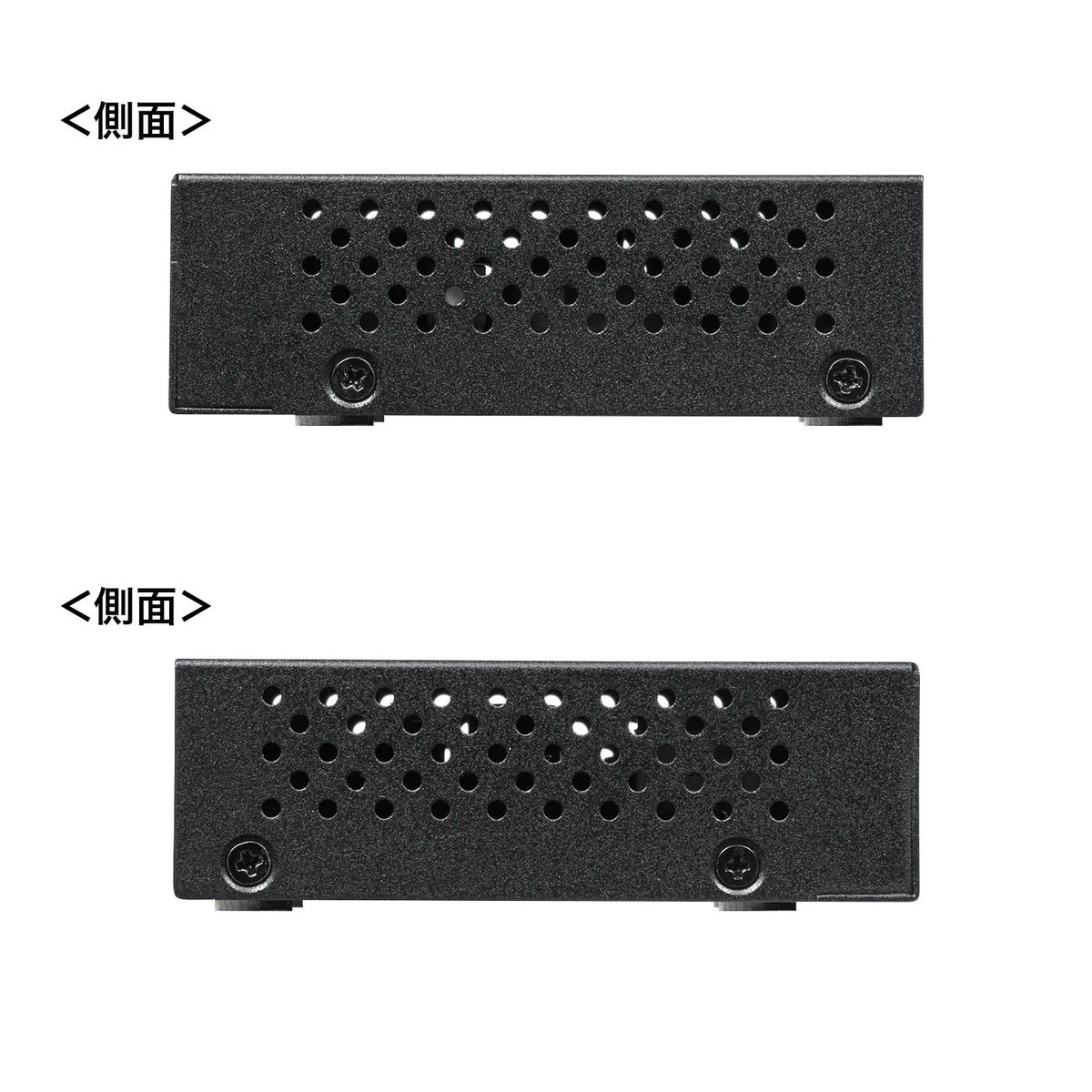

■Size: W86.8×D79.3×H25.8mm
■Weight: 196g
■Number of Ports: 1 port
■Maximum Transmission Speed: 1000Mbps (1000BASE-T)
■Standards:
IEEE802.3 (10BASE-T)
IEEE802.3u (100BASE-TX)
IEEE802.3ab (1000BASE-T)
IEEE802.3x (Flow control for Full-Duplex)
PoE Power Receiving Port IEEE802.3af/at
PoE Power Supply Port IEEE802.3af
*The power supply capacity will decrease due to the power consumption of this product itself. Therefore, it is not possible to supply the IEEE802.3at standard value (30W).
■Access method: CSMA/CD
■Switching method: Store & Forward
■Communication mode: Full duplex/Half duplex
■Port configuration: 1000BASE-T/100BASE-TX/10BASE-T (RJ-45) AUTO-MDIX PoE port (PSE) x 1 port
PoE port (PD) x 1 port
■PoE compatible: Yes
■PoE compatible port output: af standard 15.4W/1 port (maximum)
■PoE power supply method: Alternative A, Alternative B
■Compatible LAN cable: UTP category 5e/6/6a straight cable with a thickness of 24AWG or more
*Please use a PoE compatible LAN cable.
■Power Consumption (Maximum): Approx. 0.88W
■Operating Environment Conditions:
Temperature/10 to 40 degrees Celsius
Humidity/10 to 90% (non-condensing)
■Storage Environment Conditions:
Temperature/-40 to 70 degrees Celsius
Humidity/5 to 90% (non-condensing)
■Housing Material: Metal
■Magnetic Mounting: Yes

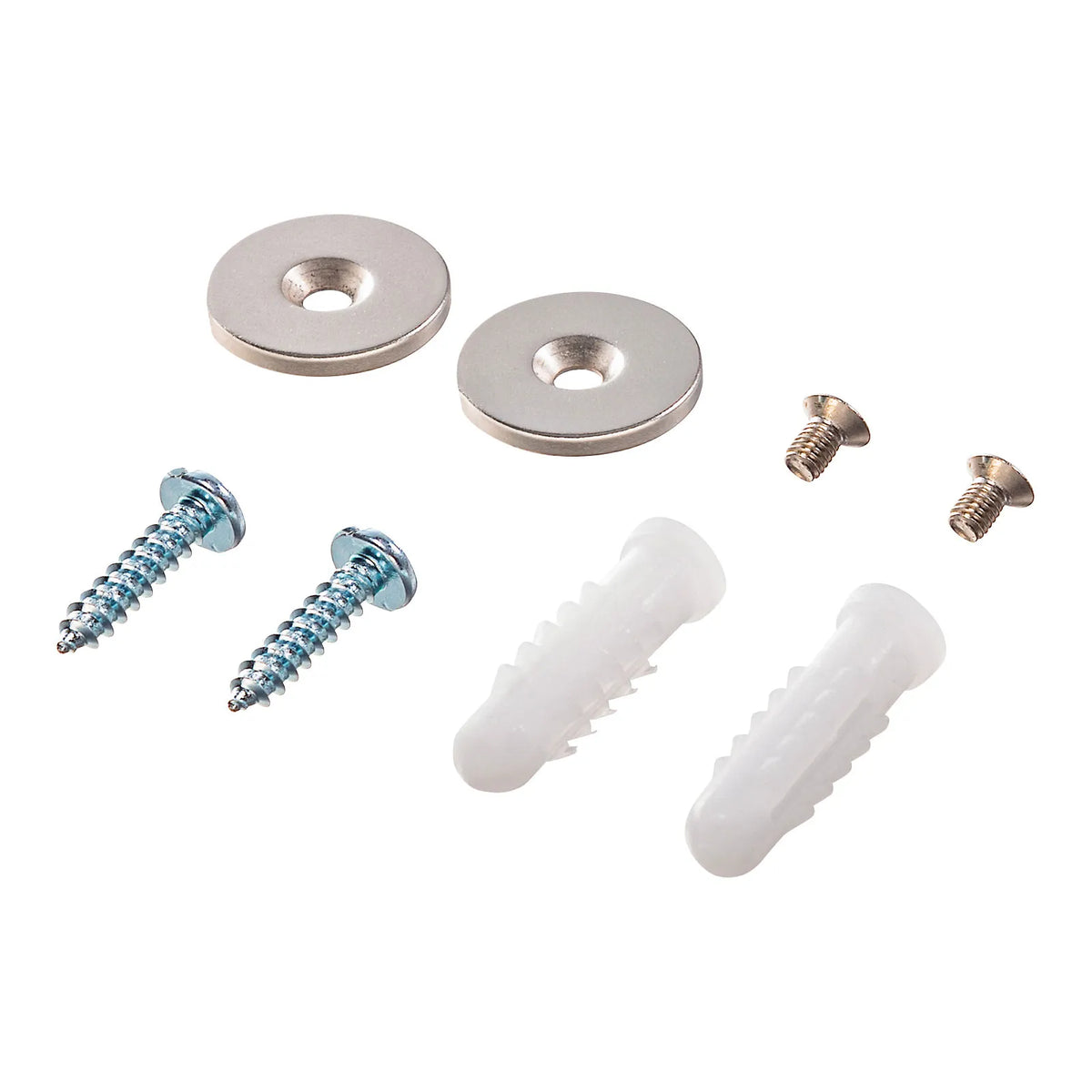

■Accessories: Wall mounting screws x 2, anchors x 2, instruction manual
