SANWA SUPPLY

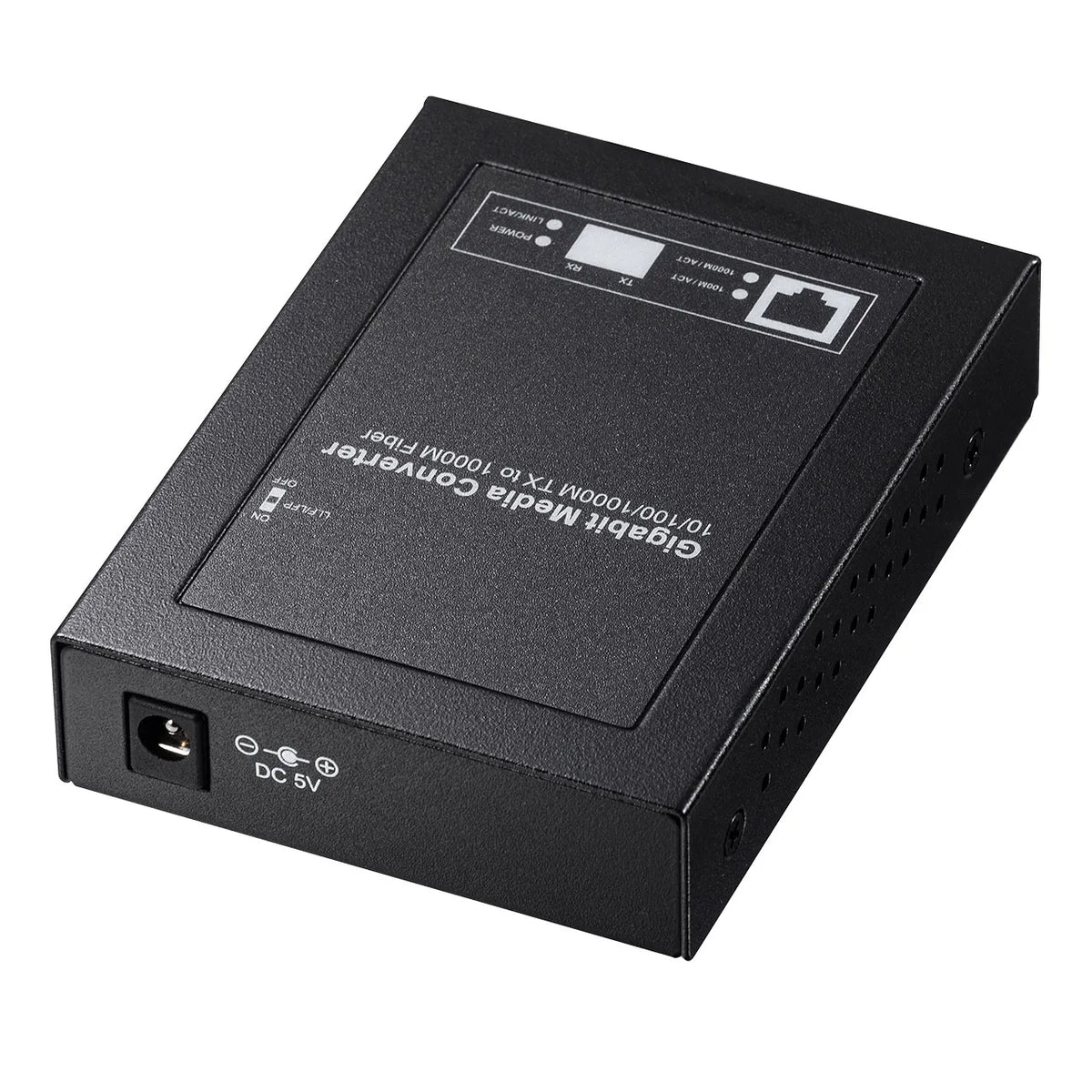

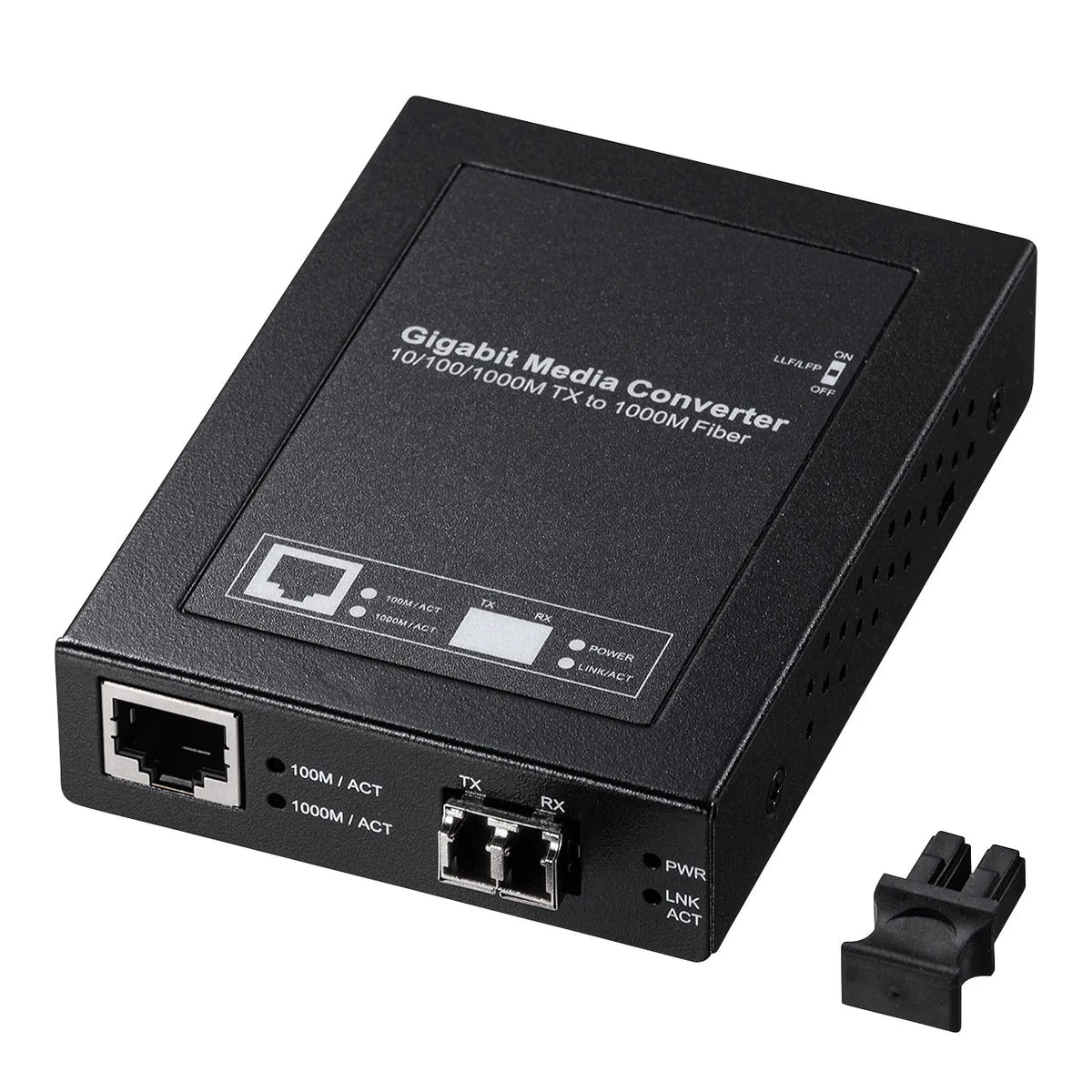

Optical Media Converter (Gigabit, Multimode) LAN-EC212RL
Optical Media Converter (Gigabit, Multimode) LAN-EC212RL
GTIN（JAN）：4969887755785
SKU：LAN-EC212RL
Regular price
¥34,993 JPY
Regular price
Sale price
¥34,993 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Optical Media Converter Ideal for Long-Distance Networks, Unaffected by Noise]

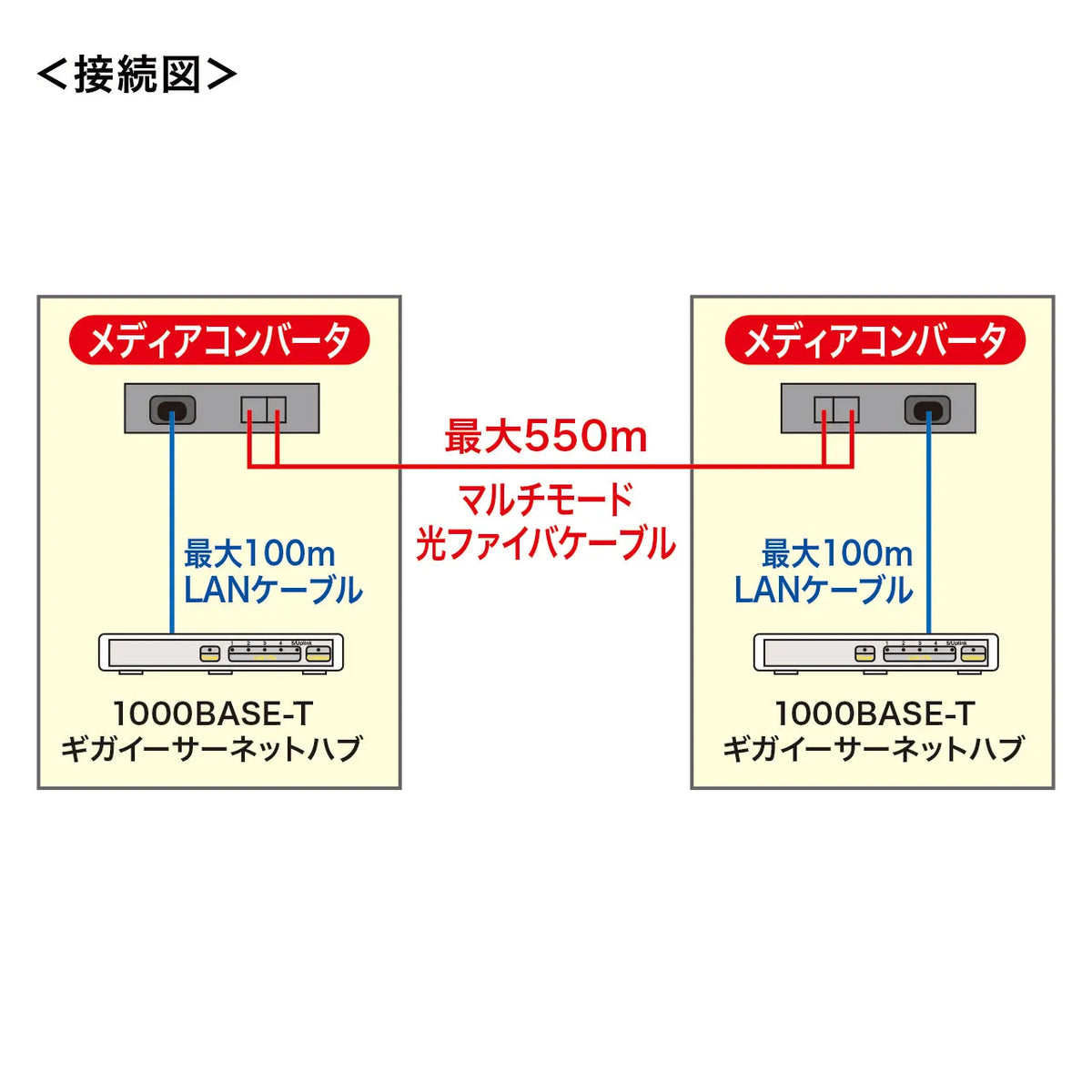

● Extends networks up to 550m at Gigabit speeds without any noise interference.
● Equipped with RJ-45 ports (for LAN cables) and LC ports (for fiber optic cables), it can integrate 10BASE-T/100BASE-TX/1000BASE-T into 1000BASE-SX.
● The RJ-45 port features auto-negotiation, full duplex support, flow control, and Auto-MDI/MDI-X support.
● Equipped with LLF (Link Loss Forwarding) and LFP (Link Fault Pass-Through) functions.
● Supports Jumbo Frame functionality.
■Standards:
IEEE802.3 10BASE-T
IEEE802.3ab 1000BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3z 1000BASE-X
IEEE802.3x Flow Control
■Connectors:
RJ-45 port x 1
LC connector port x 2
■Compatible Cables: Category 5e or higher LAN cable (1000BASE-T)
50/125um, 62.5/125um multimode fiber optic cable (1000BASE-SX)
■Packet Transfer Capability: 1,488,000pps/1000Mbps
■Maximum Frame Length: 9.6Kbytes
■Fiber Optic Specification:
Mo Dual/Multimode
Transmission Speed/1000Mbps
Transmission Method/Full Duplex
Maximum Transmission Distance/Maximum Extension 550m/50um, 220m/62.5um (MM850nm)
Minimum TX Power/-9.5dB
Maximum TX Power/-4dBm
Maximum RX Receiver Sensitivity/-23dBm
Power Budget/13.5dBm

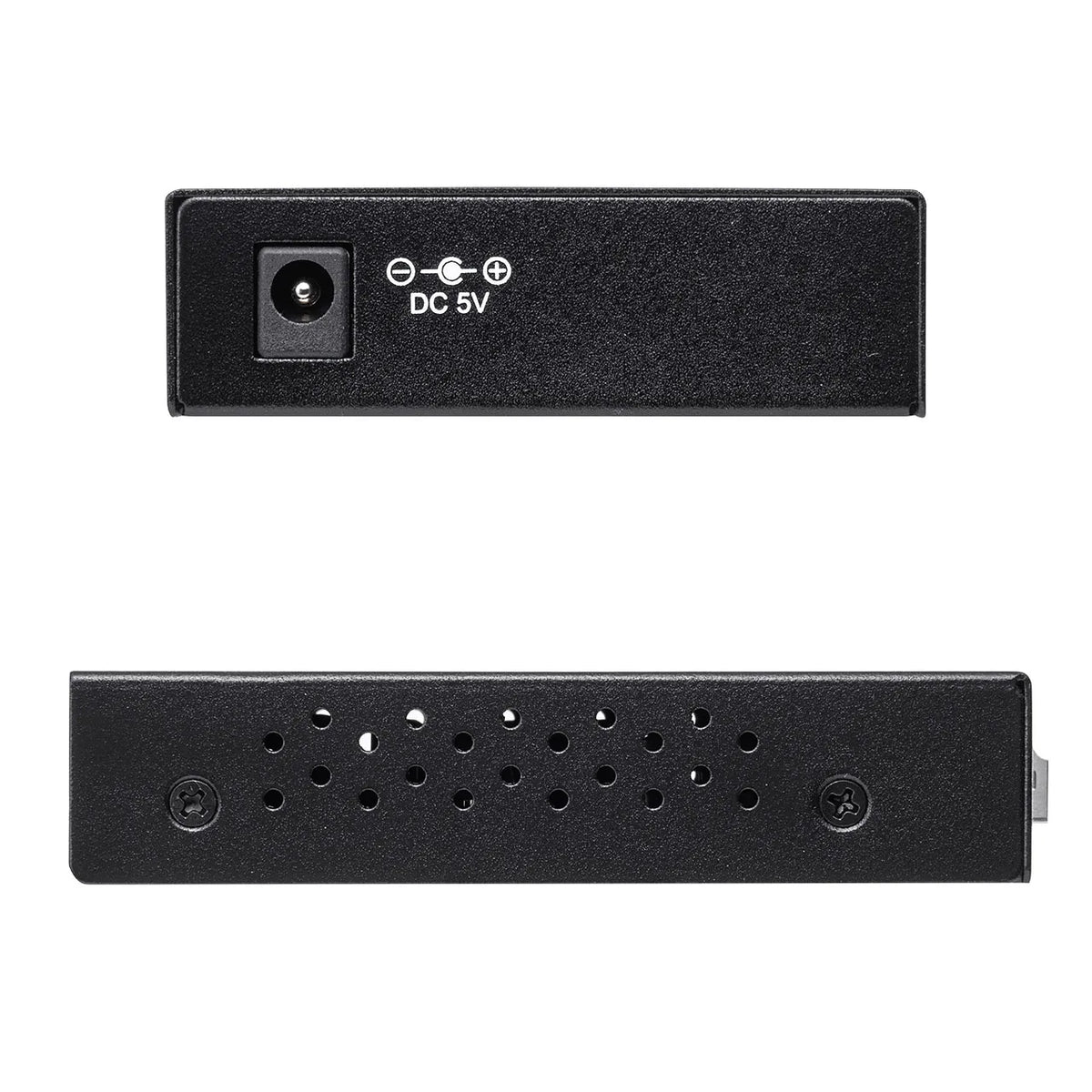

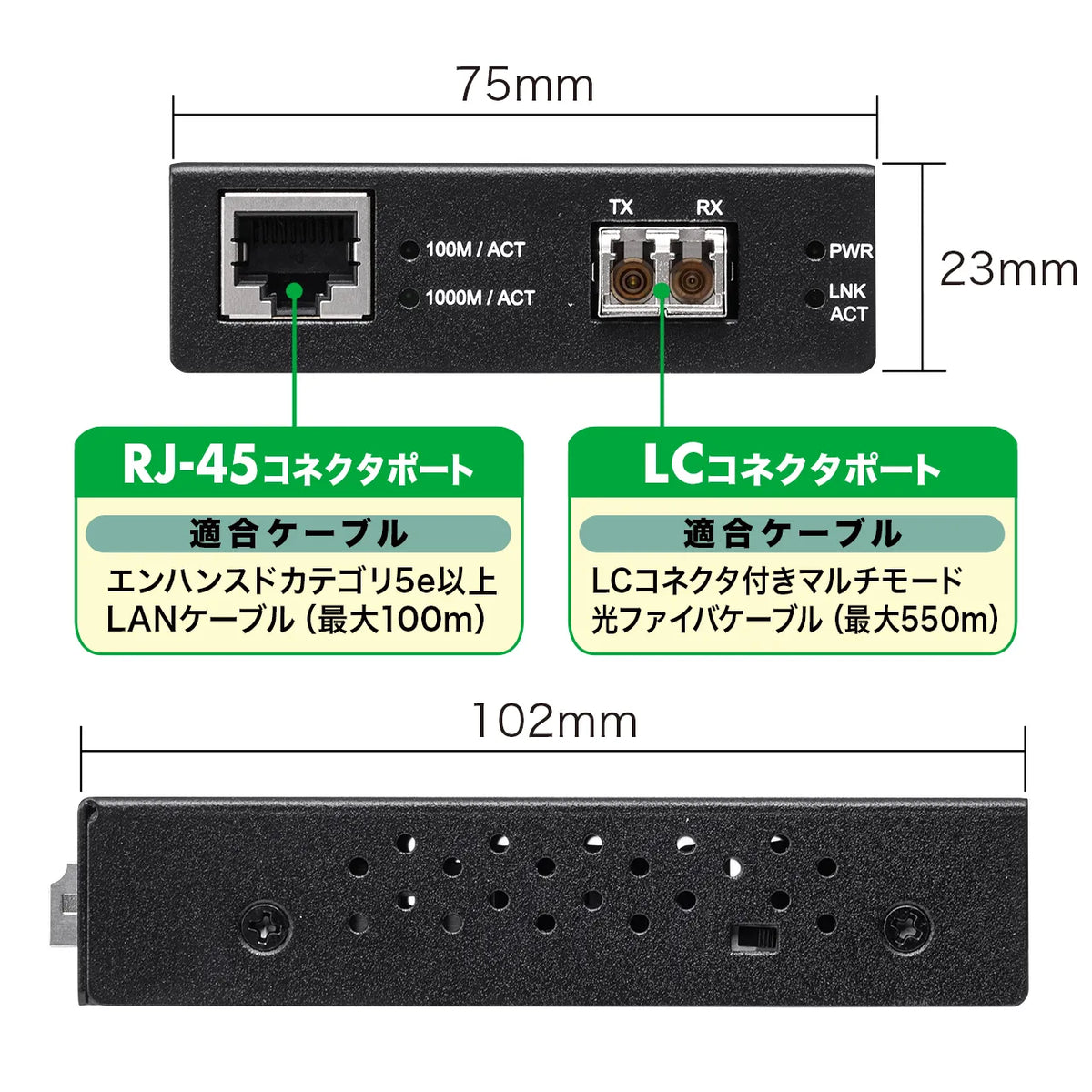

■Dimensions: W74×D102×H22mm
■Weight: 240g
■Operating Environment:
Temperature Range/0 to 45 degrees
Humidity Range/10 to 90%

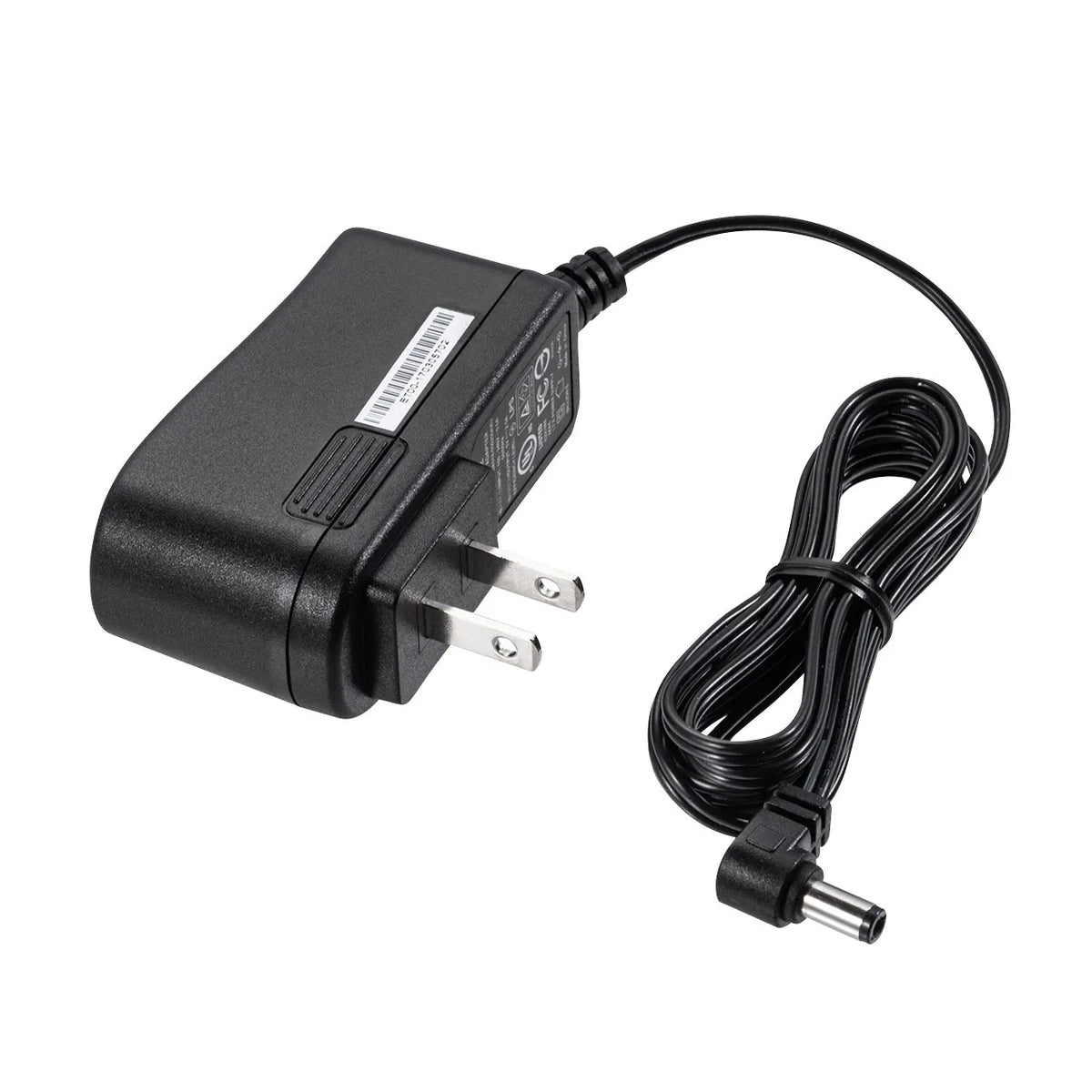

■Accessories: AC Adapter (DC5V/2A), Protective Cap
■Certifications:
FCC Class B
CE Class A
● Extends networks up to 550m at Gigabit speeds without any noise interference.
● Equipped with RJ-45 ports (for LAN cables) and LC ports (for fiber optic cables), it can integrate 10BASE-T/100BASE-TX/1000BASE-T into 1000BASE-SX.
● The RJ-45 port features auto-negotiation, full duplex support, flow control, and Auto-MDI/MDI-X support.
● Equipped with LLF (Link Loss Forwarding) and LFP (Link Fault Pass-Through) functions.
● Supports Jumbo Frame functionality.
■Standards:
IEEE802.3 10BASE-T
IEEE802.3ab 1000BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3z 1000BASE-X
IEEE802.3x Flow Control
■Connectors:
RJ-45 port x 1
LC connector port x 2
■Compatible Cables: Category 5e or higher LAN cable (1000BASE-T)
50/125um, 62.5/125um multimode fiber optic cable (1000BASE-SX)
■Packet Transfer Capability: 1,488,000pps/1000Mbps
■Maximum Frame Length: 9.6Kbytes
■Fiber Optic Specification:
Mo Dual/Multimode
Transmission Speed/1000Mbps
Transmission Method/Full Duplex
Maximum Transmission Distance/Maximum Extension 550m/50um, 220m/62.5um (MM850nm)
Minimum TX Power/-9.5dB
Maximum TX Power/-4dBm
Maximum RX Receiver Sensitivity/-23dBm
Power Budget/13.5dBm
■Dimensions: W74×D102×H22mm
■Weight: 240g
■Operating Environment:
Temperature Range/0 to 45 degrees
Humidity Range/10 to 90%
■Accessories: AC Adapter (DC5V/2A), Protective Cap
■Certifications:
FCC Class B
CE Class A
