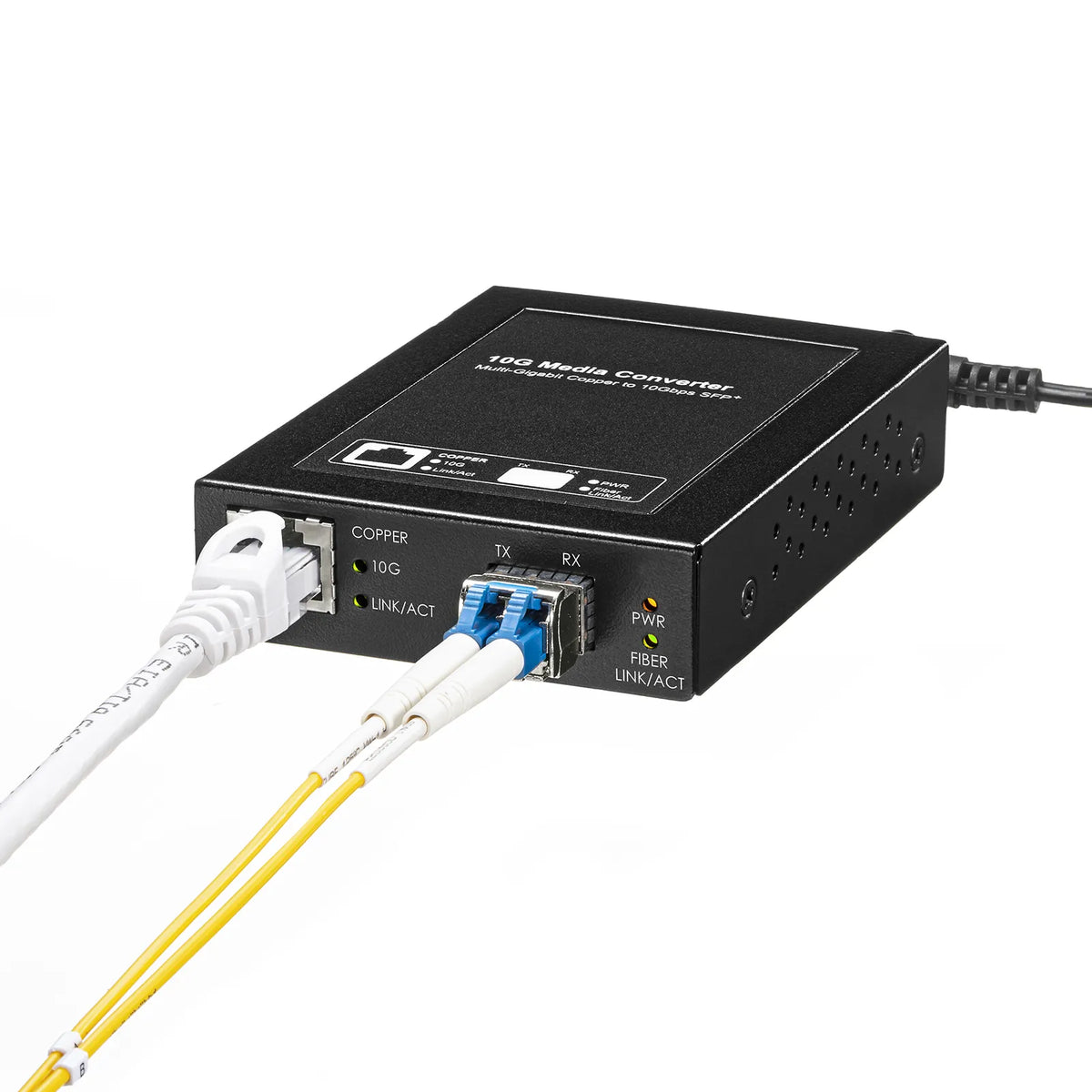

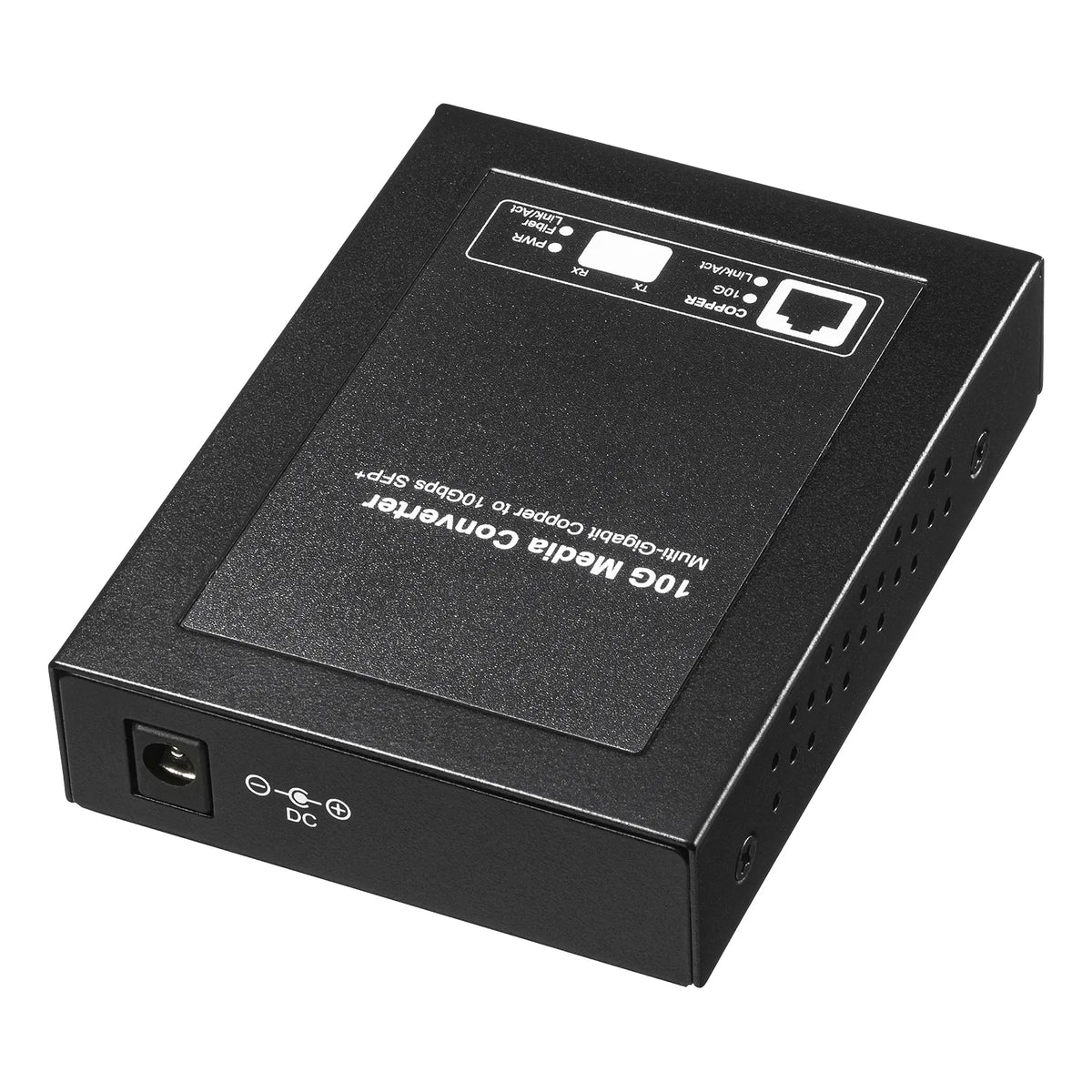

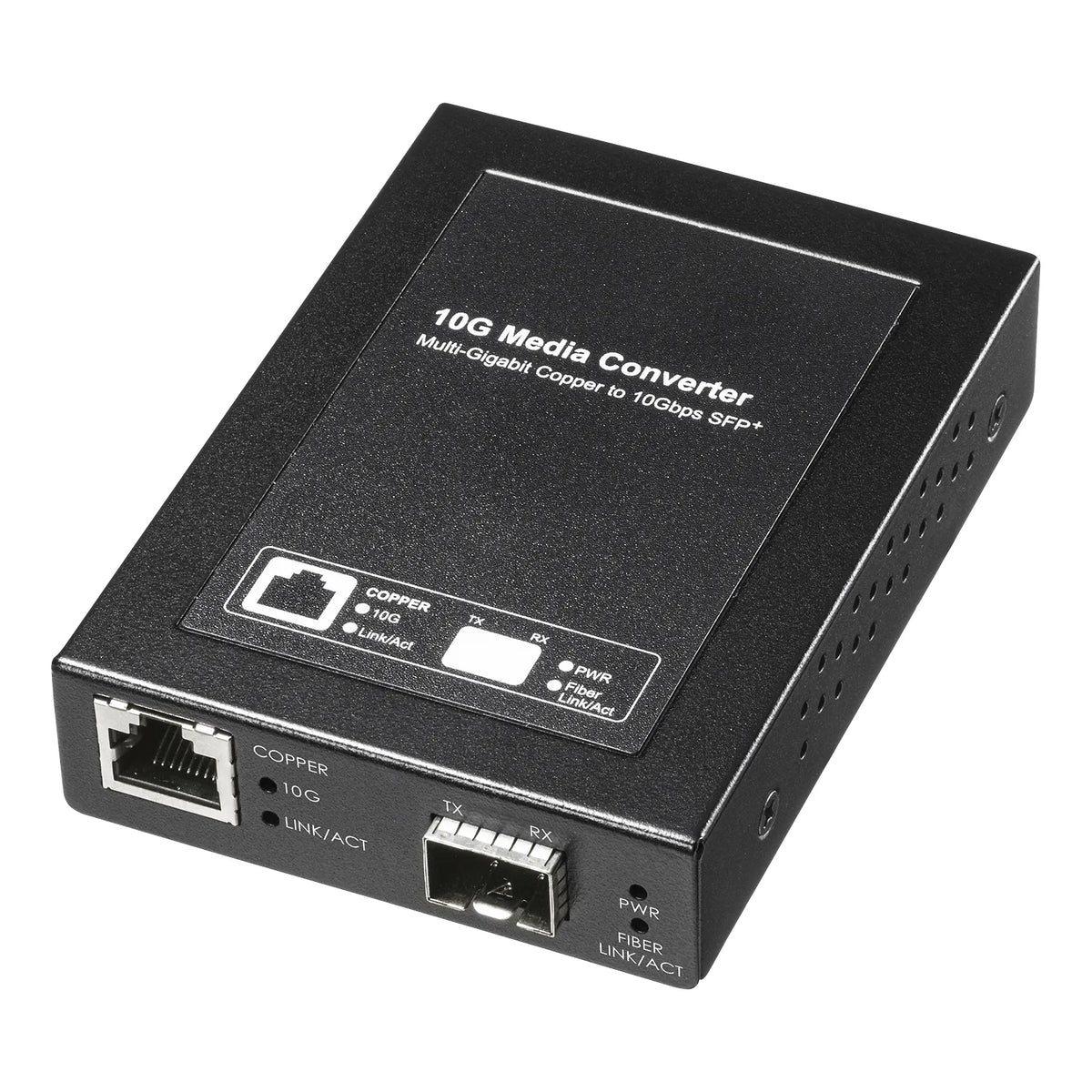

[10 Gigabit Network 10GBASE-T/R SFP+ Compatible Optical Media Converter.]

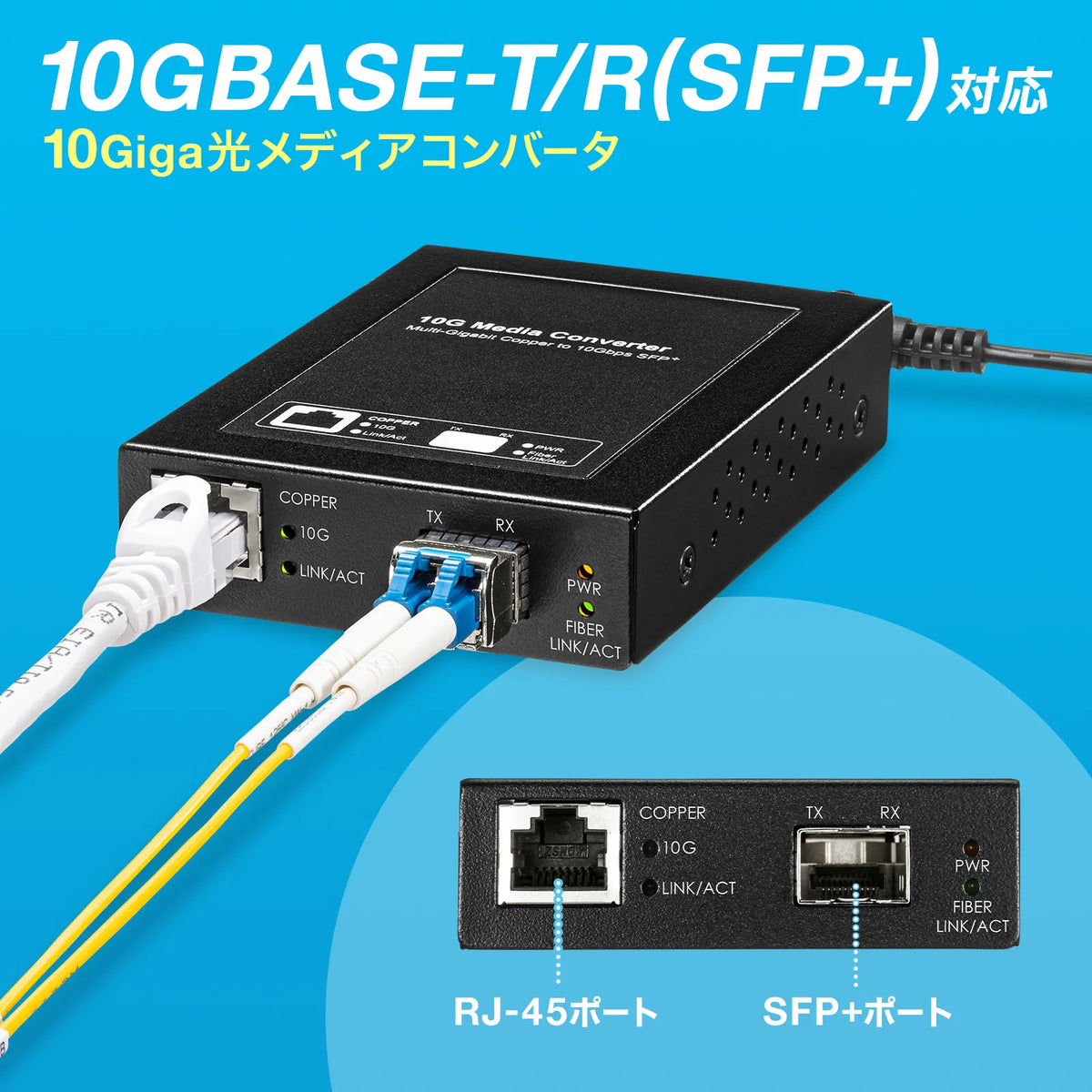

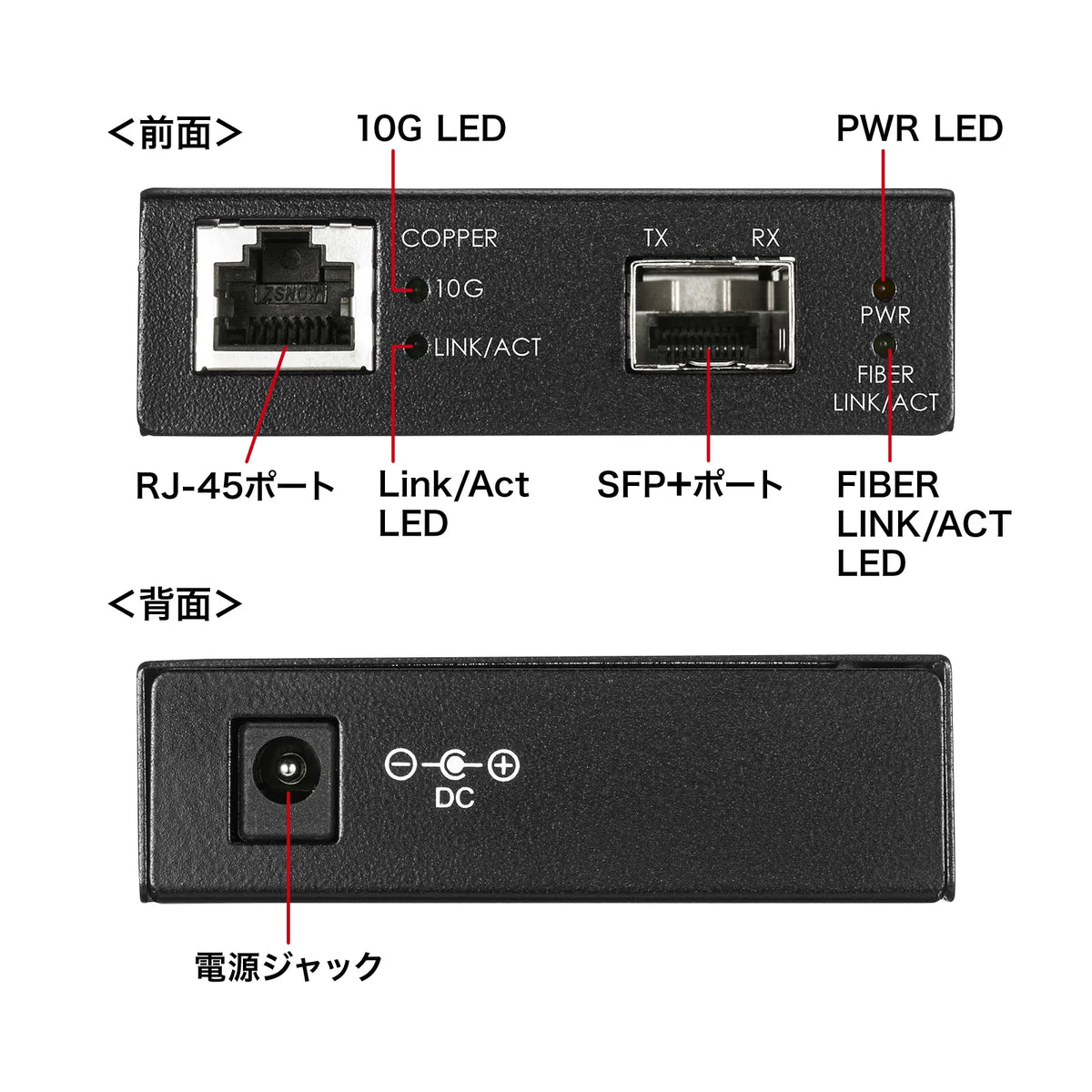

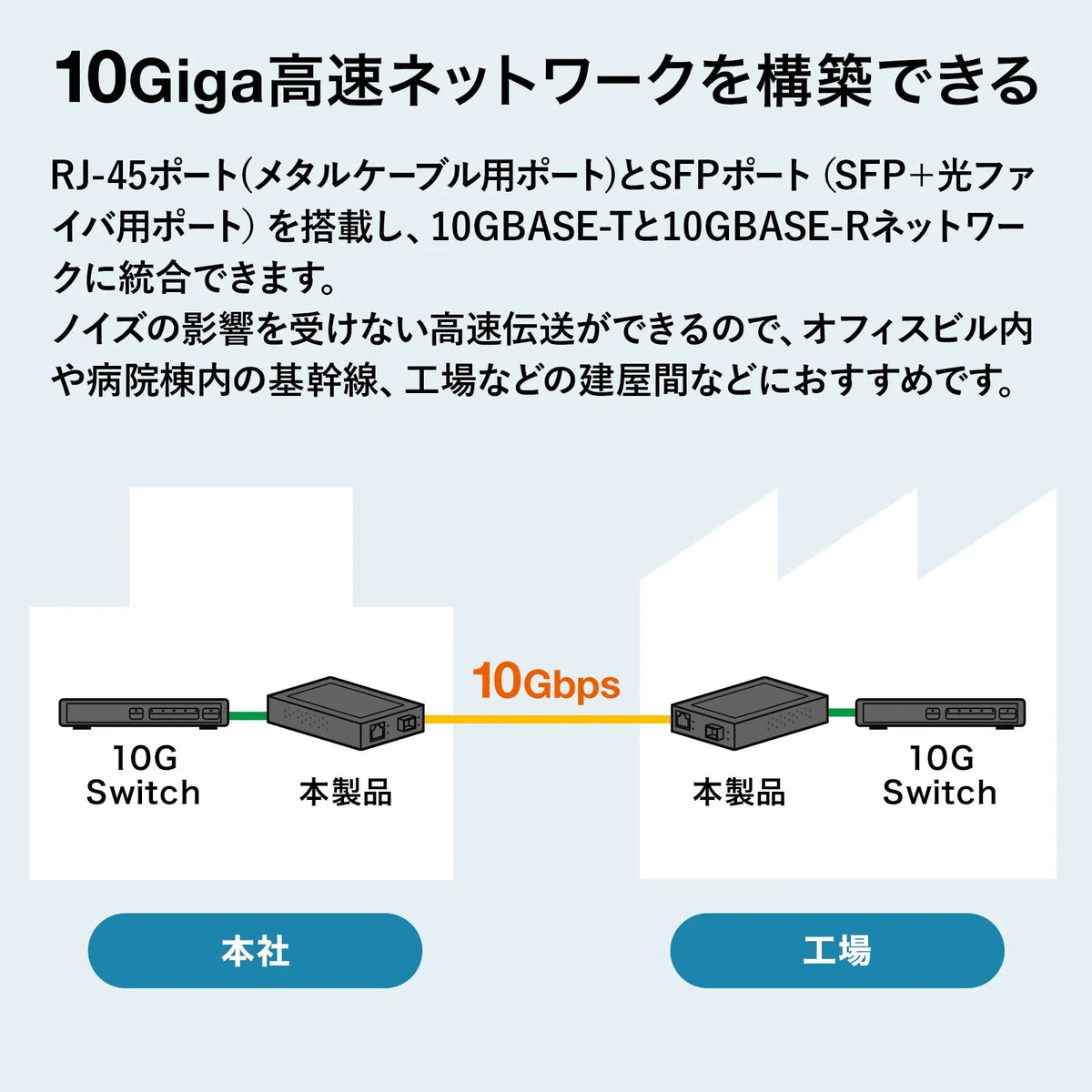

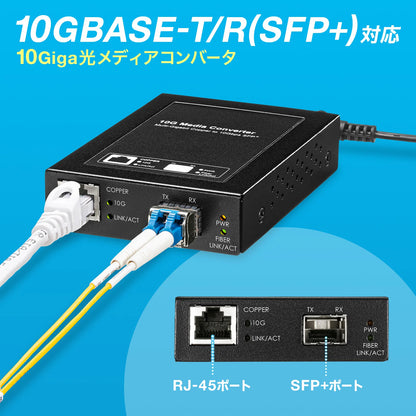

●Equipped with an RJ-45 port (for metal cables) and an SFP port (for SFP+ optical fiber), it can be integrated into 10GBASE-T and 10GBASE-R networks. ●Supports 10GBASE-T/1000BASE-T/100BASE-TX, 10Gbase-SR/LRM/LR/ER/ZR. ●The RJ-45 port has auto-negotiation function, full duplex support, flow control function, and Auto-MDI/MDI-X support. ●The SFP+ port supports both multimode and single mode. ●Supports Jumbo Frame 16Kbyte to improve transfer efficiency on the network. ●Equipped with an LED that shows the connection status at a glance.

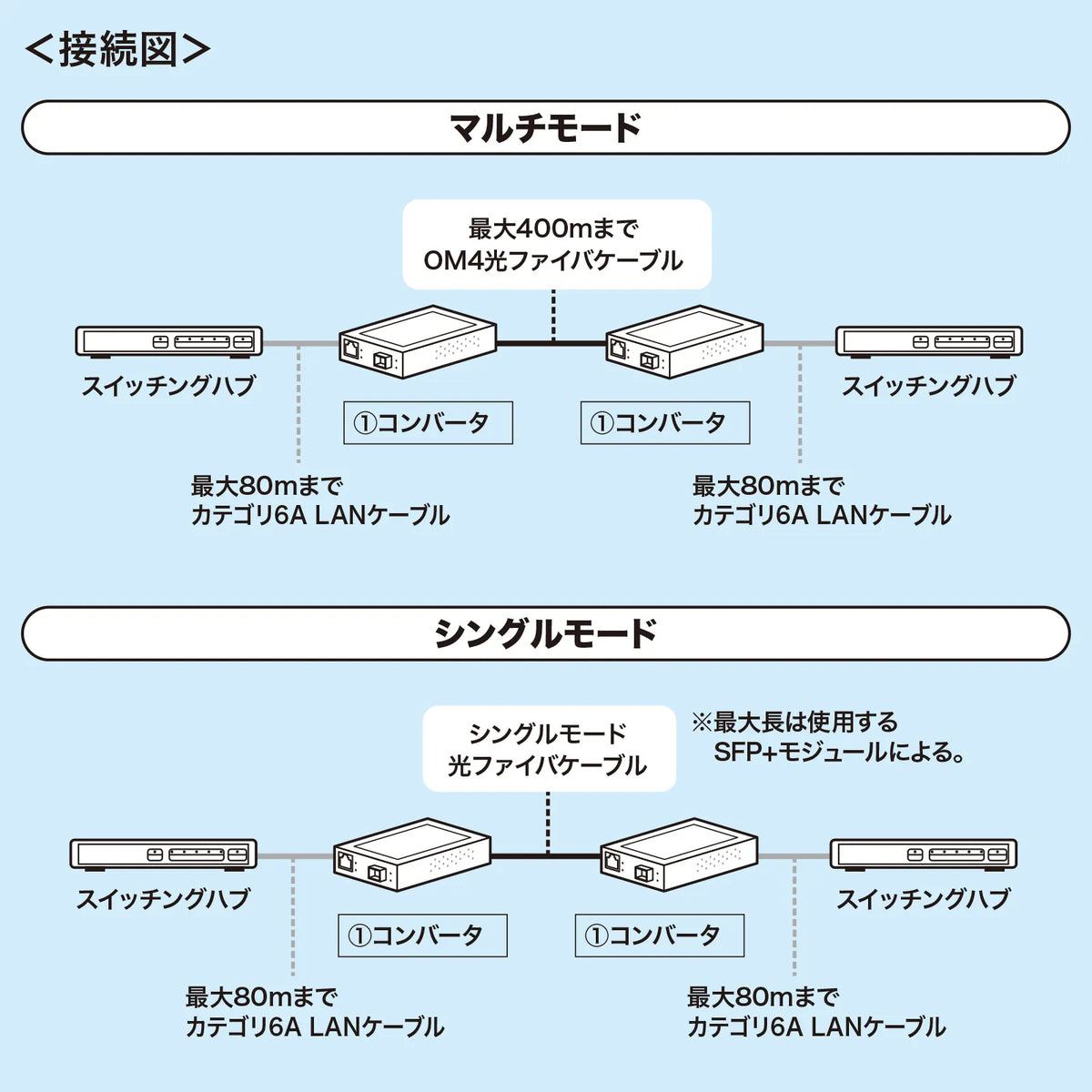

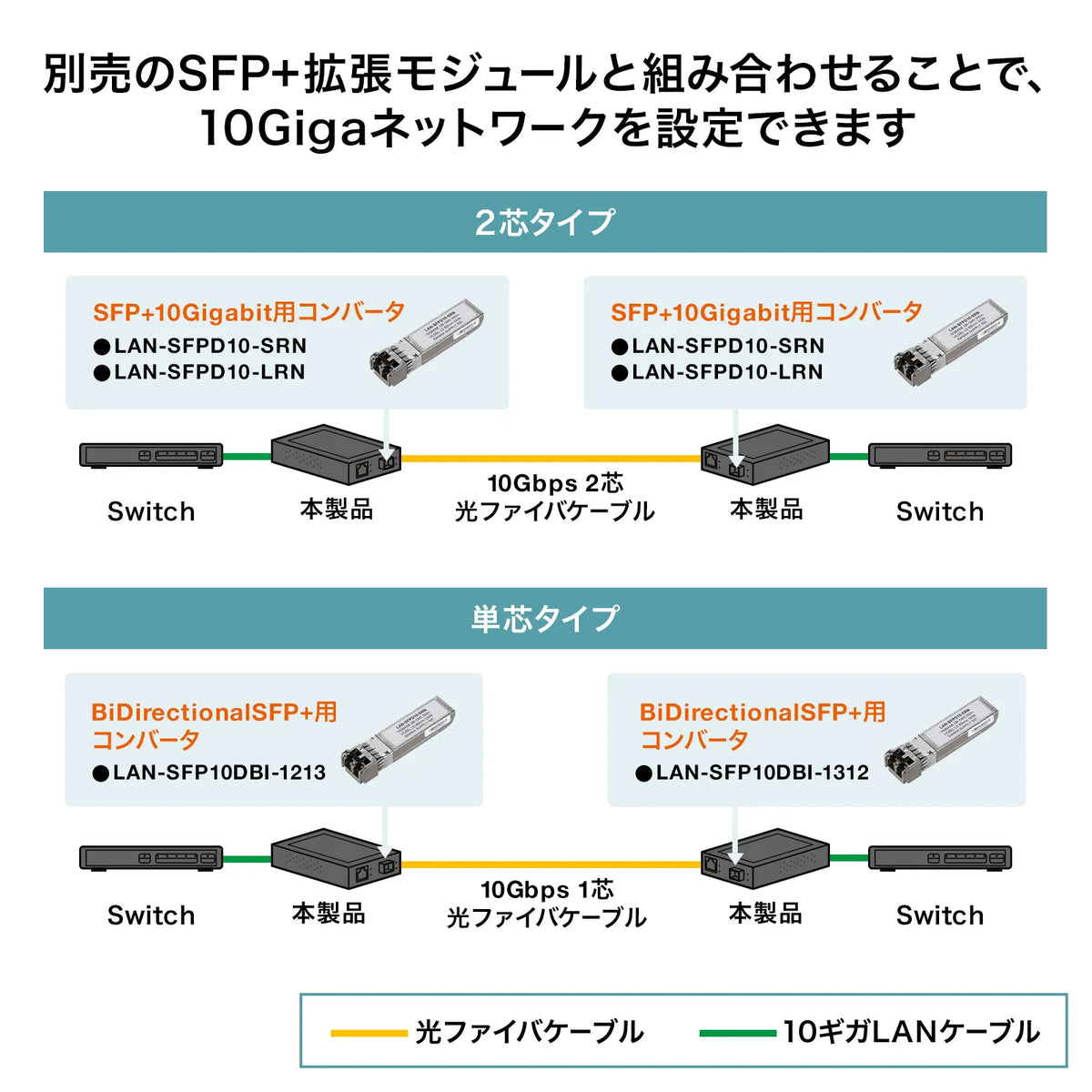

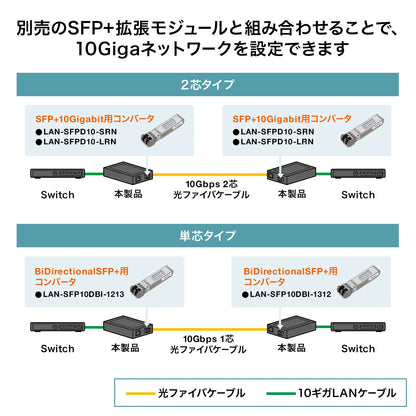

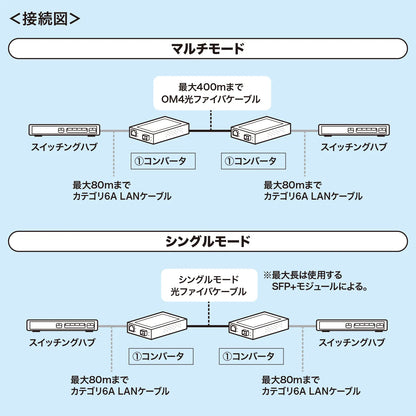

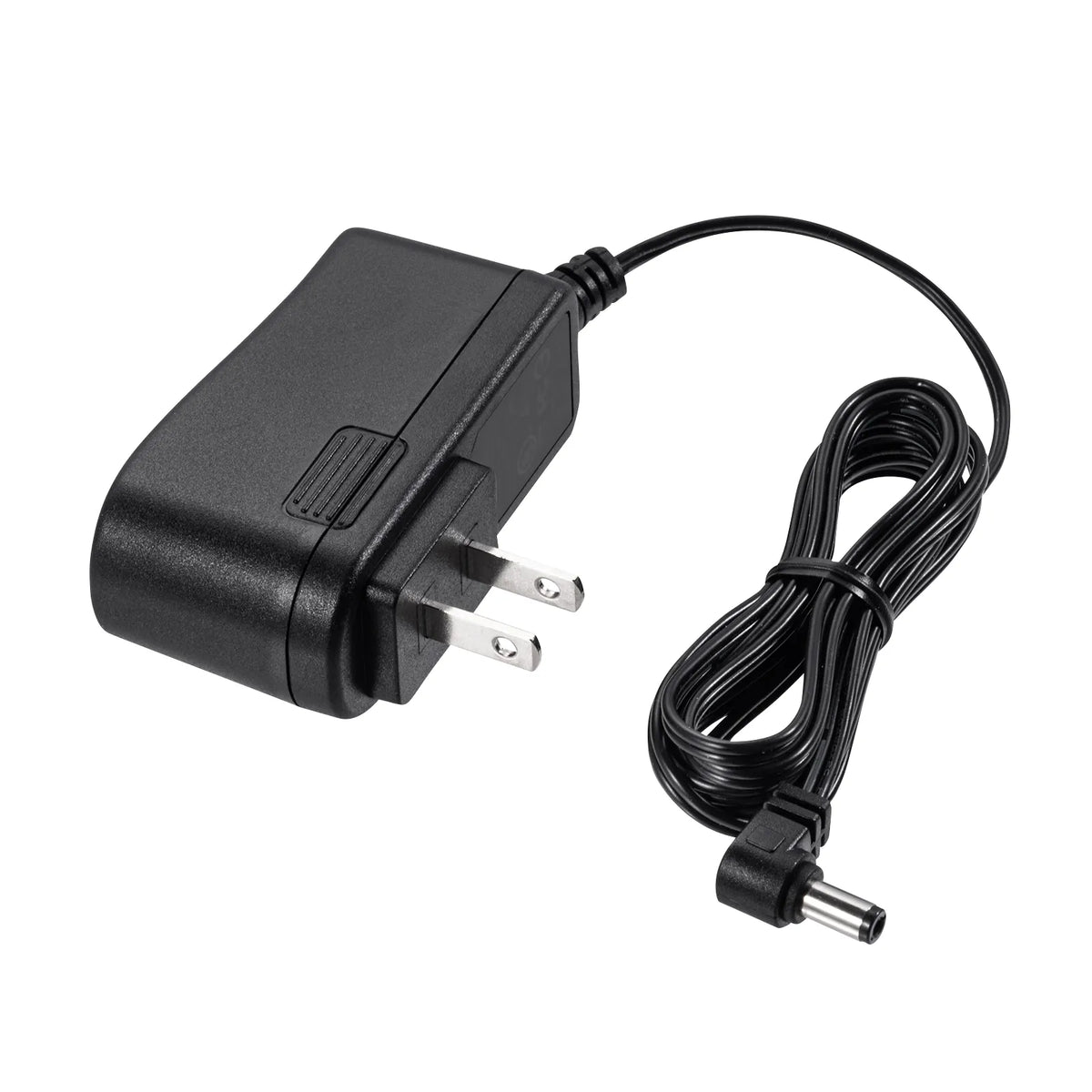

■Connector shape: RJ-45 connector x 1, SFP+ port x 1 ■Interface standards: IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBASE-T, 5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10G SFP+ ■Dimensions: W74 x D102 x H22mm ■Weight: 229g ■Standards: IEEE 802.3u/ab/bz/an/ae 10G SFP+ ■RJ-45 port: 100BASE-TX, 1000BASE-T, 2.5G/5G/10GBASE-T ■SFP+ port compatible module: ※Depending on SFP+ (10GBASE) SFP+ (10GBASE) MMF (850nm, 400m) SMF (1310nm, 10/30km) SMF (1550nm, 50/70/110km) WDM (BiDirectional TX 1270nm/RX 1330nm, 10km) WDM (BiDirectional TX 1330nm/RX 1270nm, 10km) WDM (BiDirectional TX 1310nm/RX 1550nm, 10/20/40/60km) WDM (BiDirectional TX 1550nm/RX 1310nm, 10/20/40/60km) ■Compatible SFP+ modules: LAN-SFPD10-SRN, LAN-SFPD10-LRN, LAN-SFP10DBI-1213, LAN-SFP10DBI-1312 ■Jumbo Frame: 16KB ■Compatible cable: Category 6A or higher LAN cable (10GBASE-T) *80m Optical fiber cable compatible with SFP+ modules ■Power supply/power consumption: DC5V, maximum 4.5W ■Operating temperature/humidity: 0 to 40 degrees Celsius, 90% RH (non-condensing) ■Humidity: 10 to 90% Rh (non-condensing) ■Set contents: Main unit, AC adapter (DC5V/2A)
