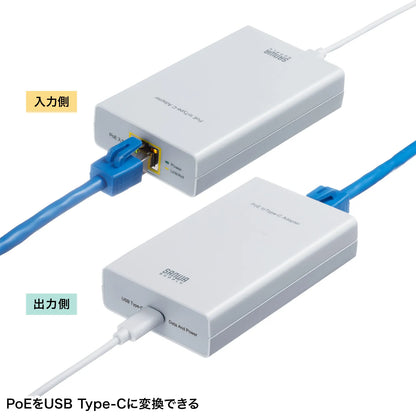

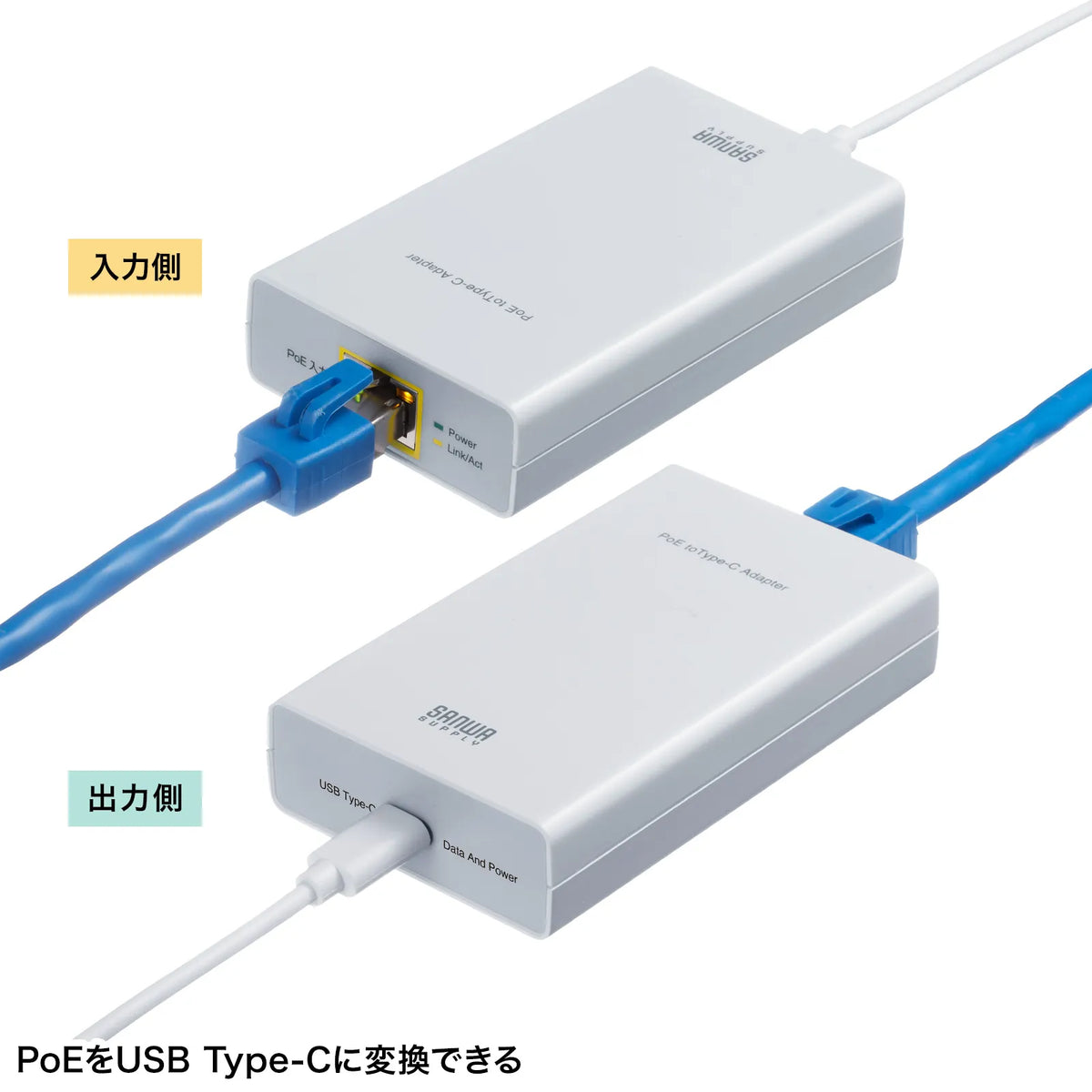

PoE-USB Type-C Conversion Adapter (PD60W Power Supply & Network Communication Compatible) LAN-ADPOEC

[A PoE-USB Type-C conversion adapter that converts PoE (Power Over Ethernet) to USB Type-C, enabling PD charging for tablet PCs and laptops while also allowing network communication.]

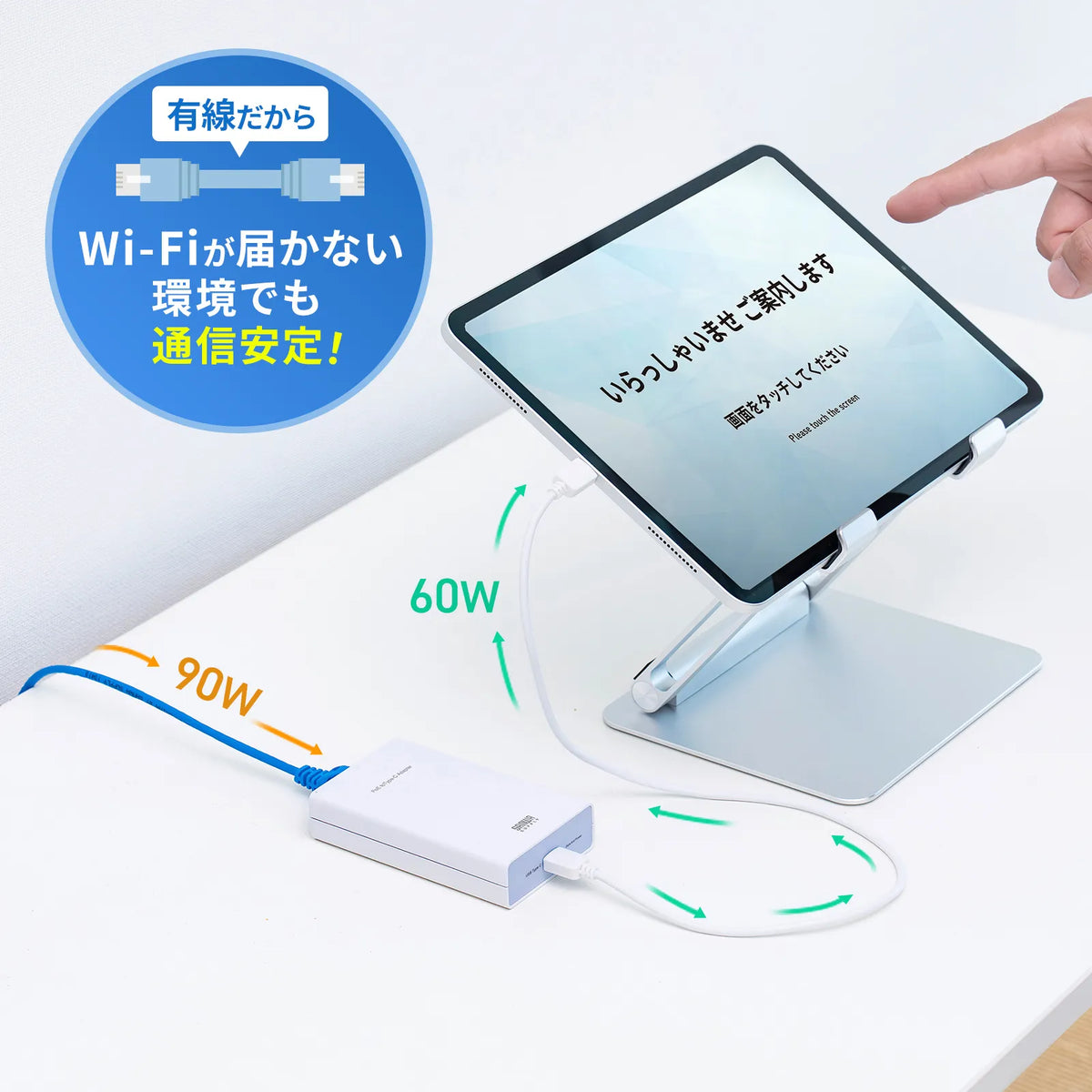

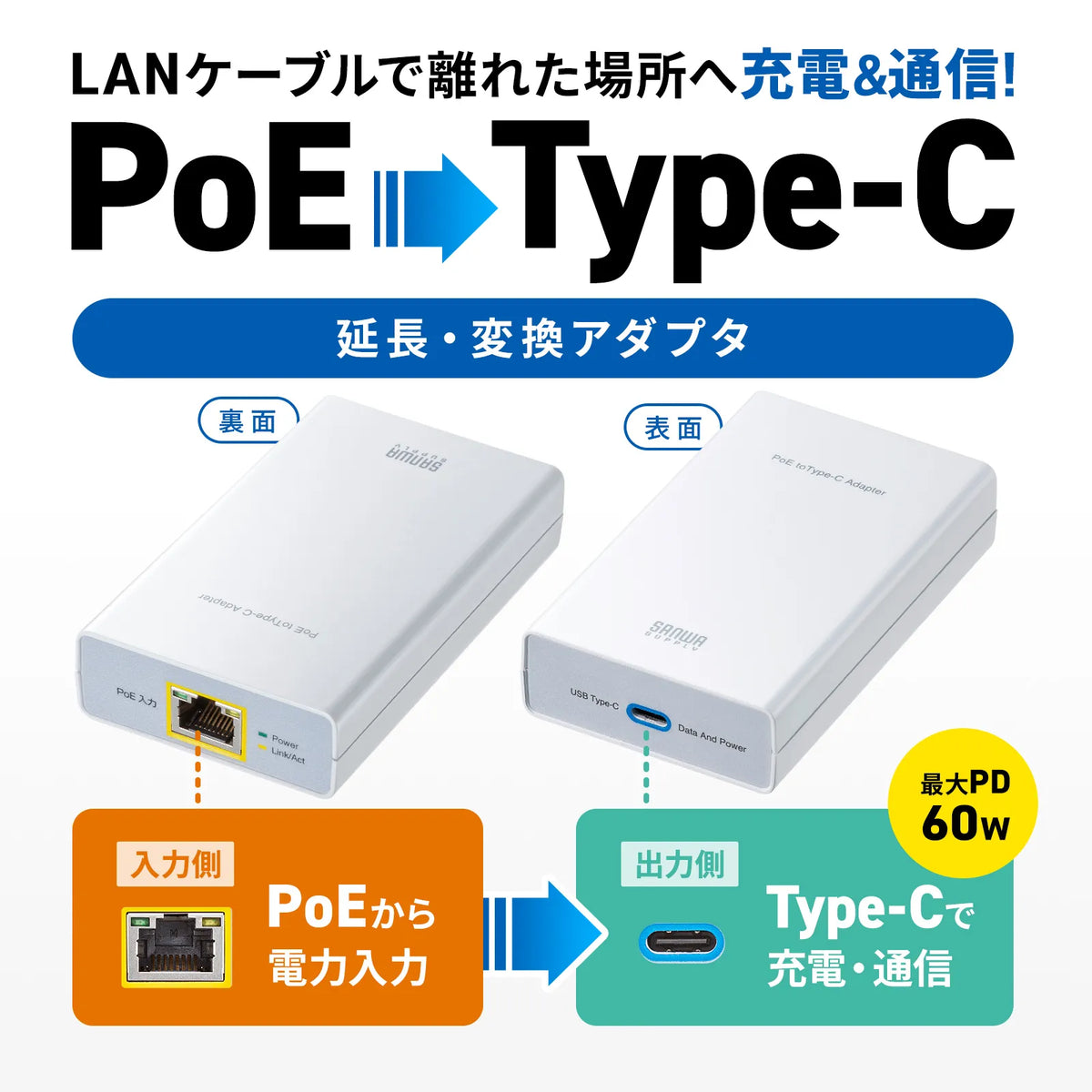

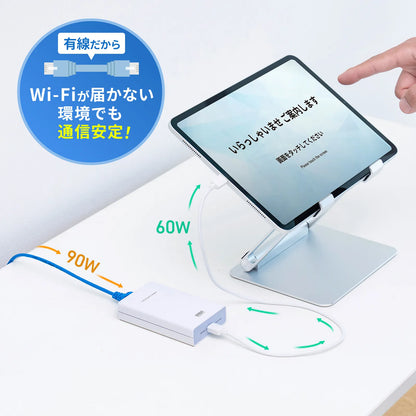

●This adapter converts PoE (Power Over Ethernet) to USB Type-C, allowing stable data communication while supplying PD power to PCs, tablets, POS terminals, etc.

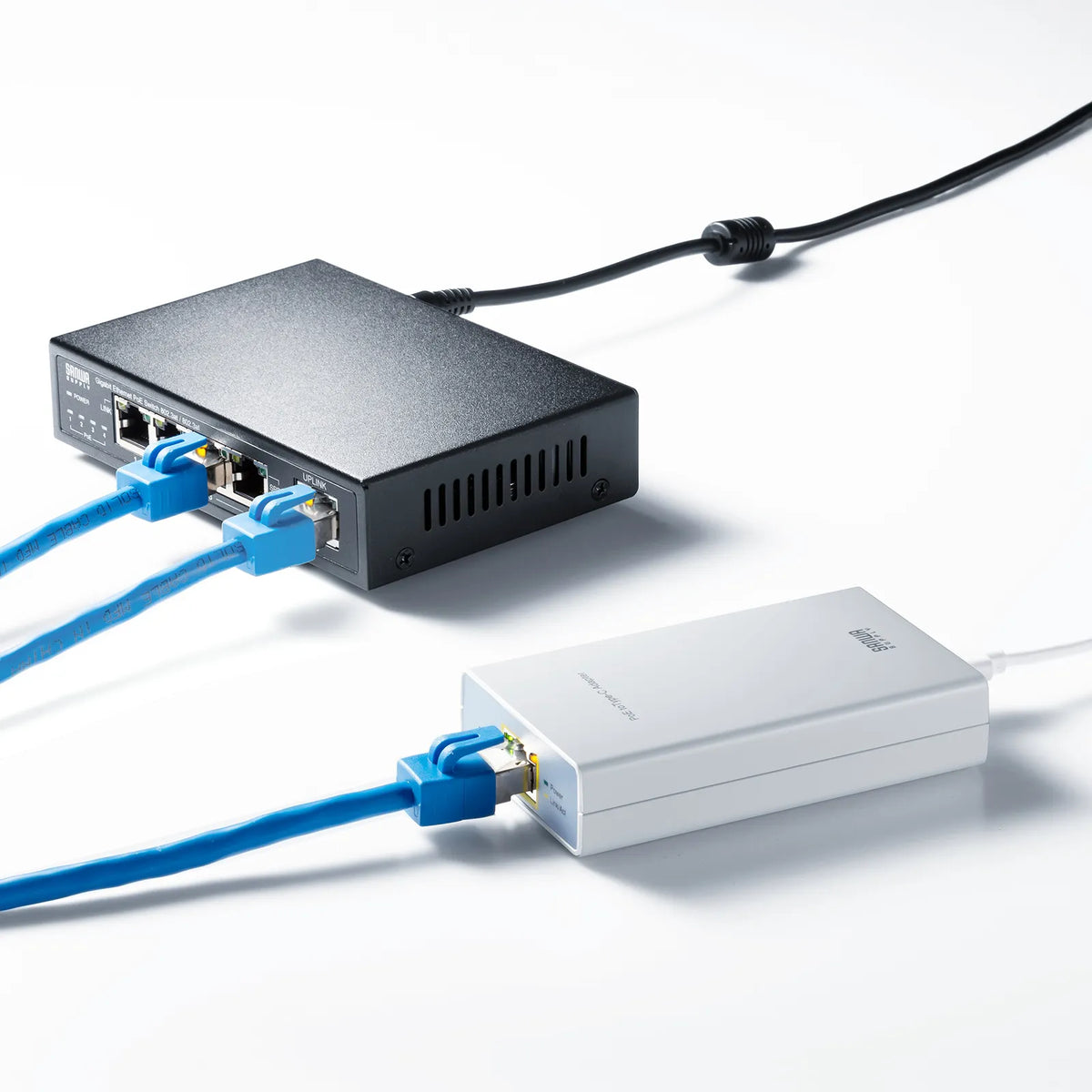

●Since the main unit operates on PoE power, no power supply is required at the location where the conversion adapter is installed.
●It supports the IEEE802.3bt (90W) PoE standard and supports PoE power input up to 90W. PD power supply from USB Type-C supports up to 60W.
*Only when there is PoE power supply of IEEE802.3bt (60W) or higher.

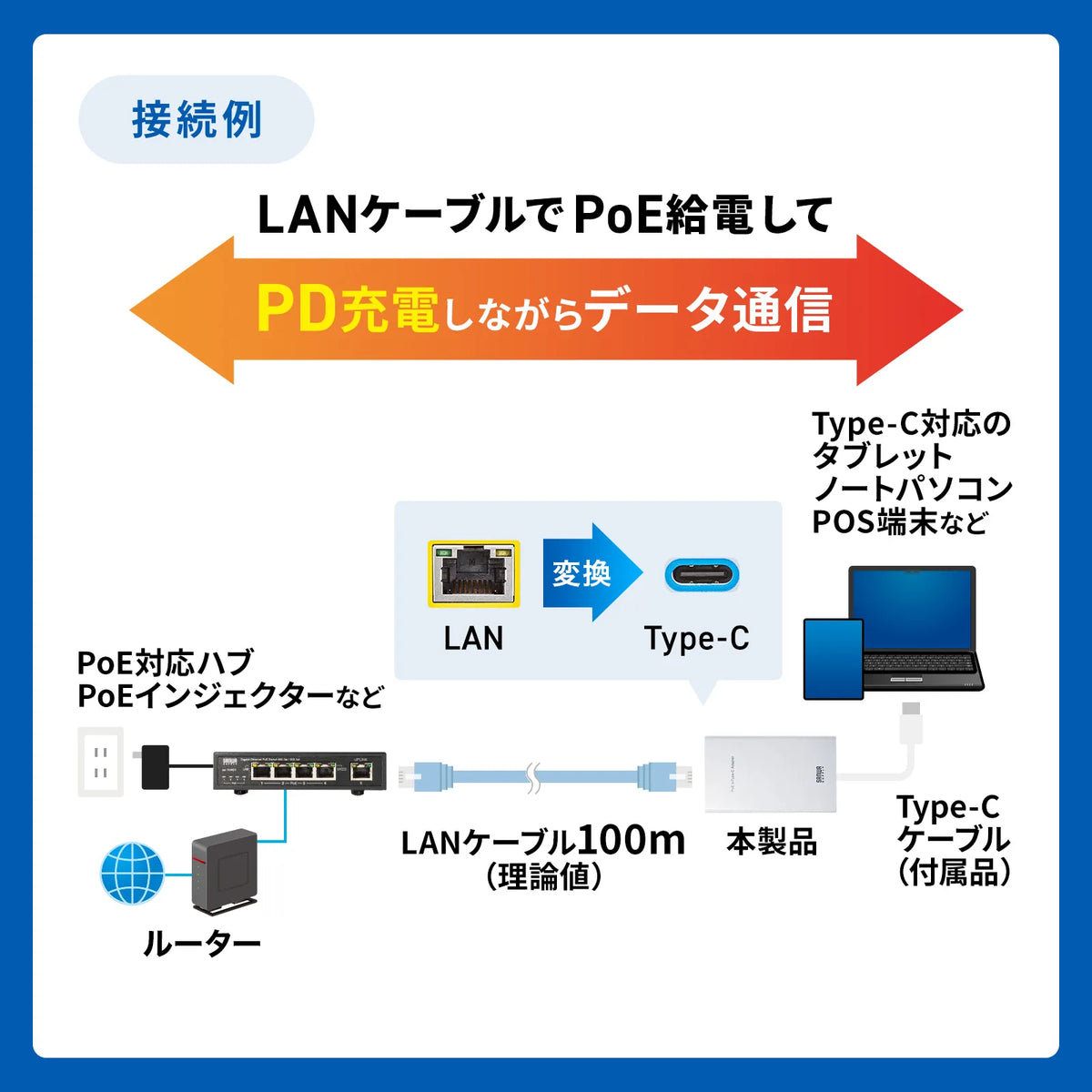

●By installing this product up to 100m away, you can supply PD power and perform data communication to PCs, tablets, etc. even in locations without power outlets.
*The maximum of 100m is a theoretical value according to the LAN standard, and the actual cable length that can be used for LAN communication and PoE power supply is within approximately 80m.

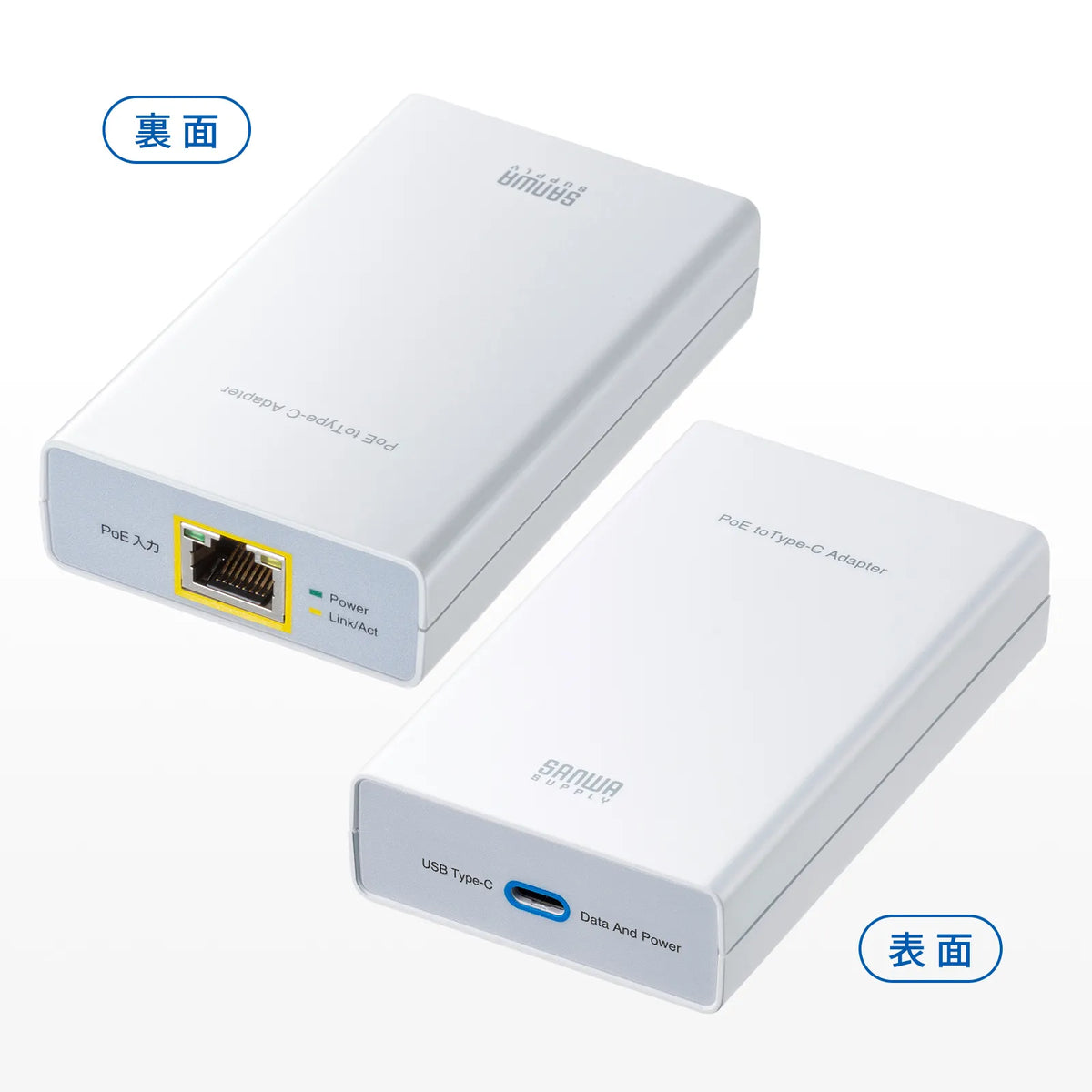

●Equipped with an LED that can be used to check the communication and power supply status.
●This product is for indoor use only.
≪Caution≫
*For use with PoE power supply, please select a Category 5e/6/6A straight cable with a thickness of 24AWG or more.
Recommended cables (Sanwa Supply)
KB-T6POE series (KB-T6POE-03BK, etc.) (22AWG)
KB-T6TS series (KB-T6TS-03BLN, etc.) (23AWG)
KB-T5T series (KB-T5T-03N, etc.) (24AWG solid wire)
*Please use the included Type-C-C cable to connect this product to USB Type-C devices.
*When using a commercially available USB Type-C to C cable, please use a Type-C to C cable that is 1 meter or less in length and supports PD power supply and data transfer.
Recommended Cable
KU30-CCP310 (1m)
KU31-CCP310 (1m)

■Maximum Transmission Speed: 100Mbps (100BASE-TX)
■Compliant Standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3x (Flow control for Full-Duplex)
PoE Power Receiving Port: IEEE802.3af/at/bt (up to 90W)
■Communication Mode: Full Duplex/Half Duplex

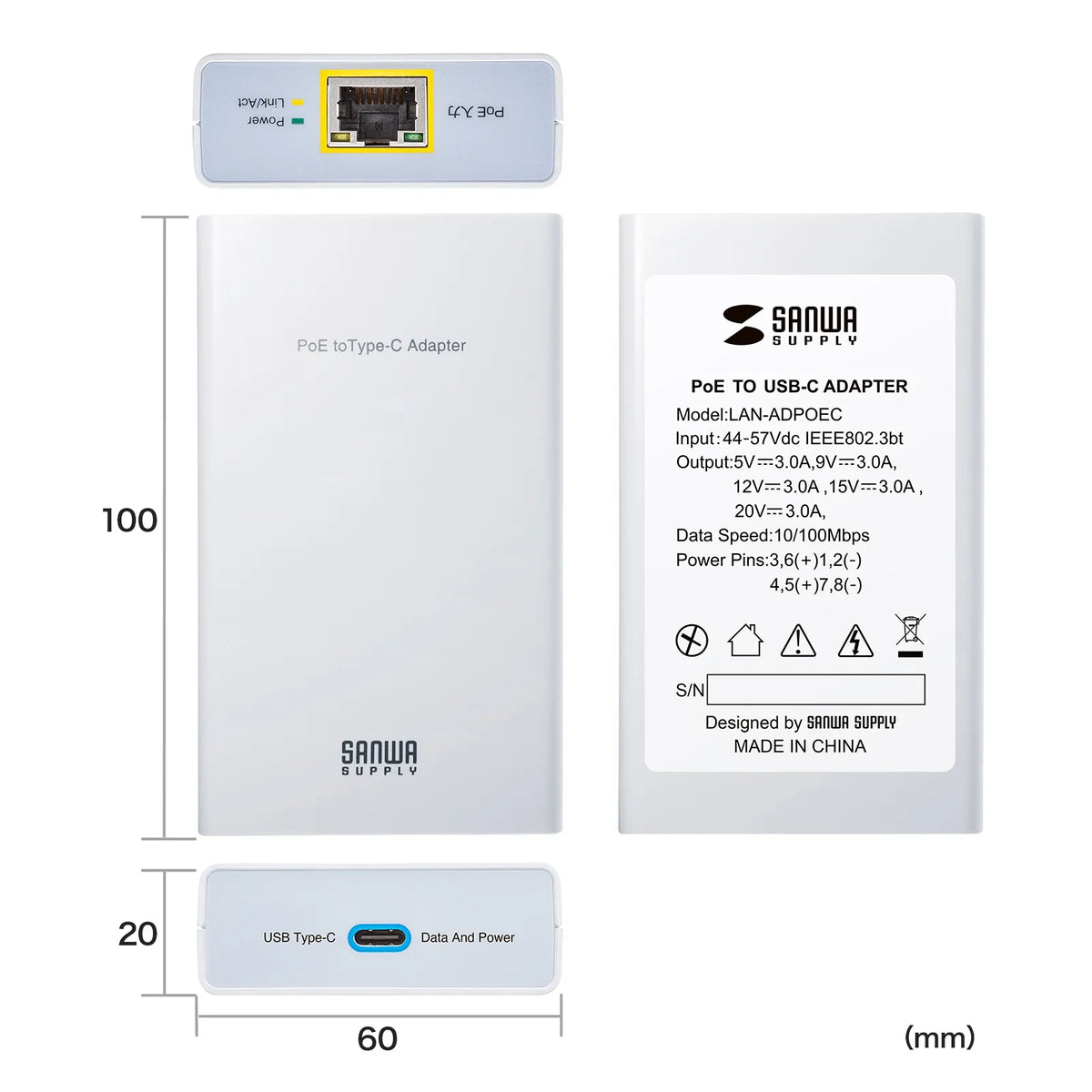

■Port Configuration:
100BASE-TX/10BASE-T (RJ-45) AUTO-MDIX PoE Port (PSE) ×1 Port
USB Type-C (PD compatible) ×1 Port
■PoE Support: Supported
■PoE Power Supply Method: Alternative A, Alternative B
■Compatible LAN cable: UTP Category 5e/6/6a straight cable with a thickness of 24AWG or greater
*Please use a PoE-compatible LAN cable.
■Power Consumption (Maximum): Approx. 10W
■Operating Environment Conditions:
Temperature: 0 to 40 degrees Celsius
Humidity: 20 to 80% (non-condensing)
■Storage Environment Conditions:
Temperature: -20 to 70 degrees Celsius
Humidity: 20 to 80% (non-condensing)
■Housing Material: Plastic

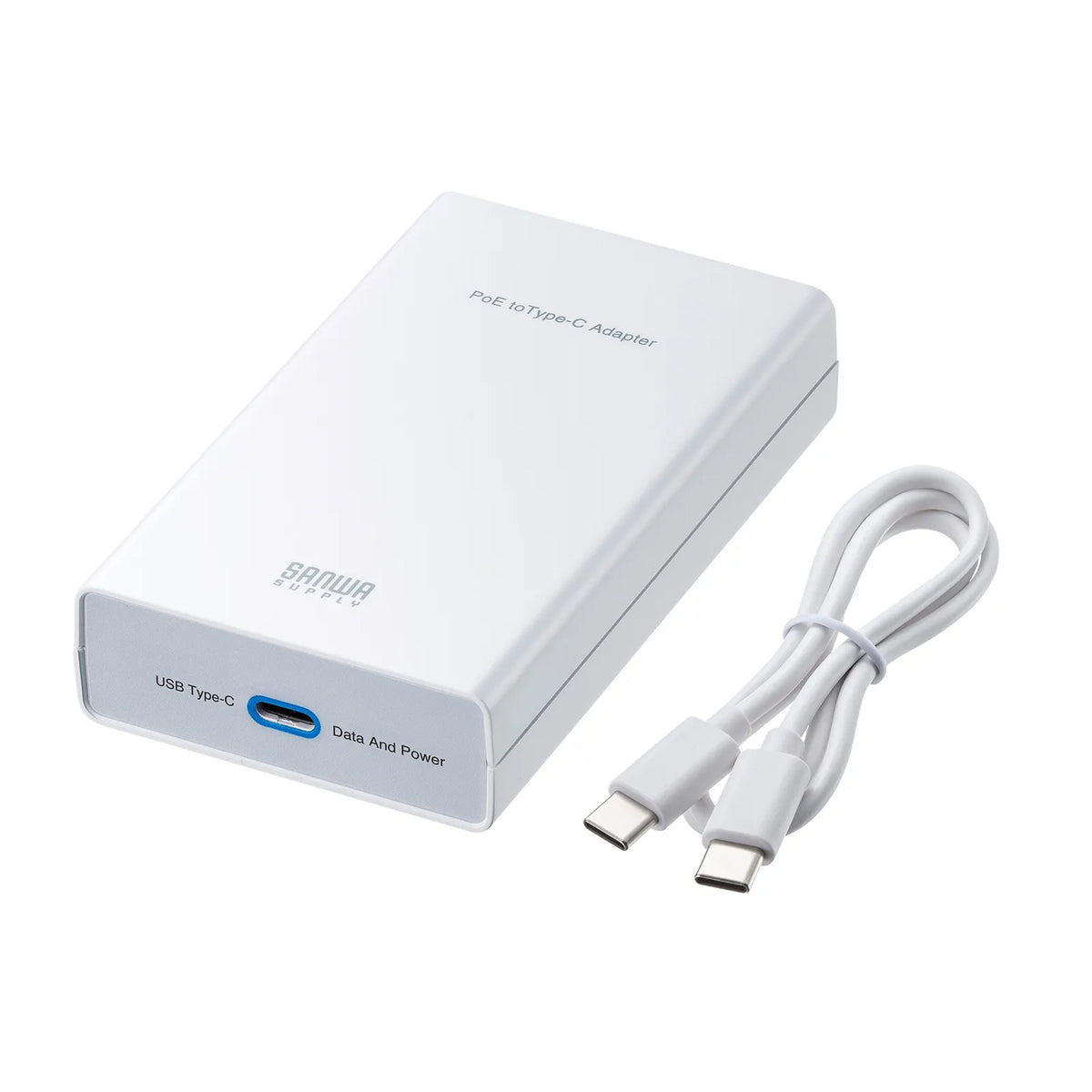

■Set Contents: USB Type-C to C cable (0.5m) x 1, Instruction manual (warranty) x 1
■Color: White
USB Hub Section
■Compatible Devices: Windows (DOS/V) PCs, Apple Mac series, iPad, Chrome OS PCs, iPhone 15/16 series equipped with a standard USB Type-C connector and supporting PD charging
*Nintendo Switch not supported
*Operation is not guaranteed on all devices.
■Interface standard: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
■Connector shape (upstream): USB 5Gbps Type-C connector female
■Maximum PD output: 60W *Requires PoE power supply of IEEE802.3bt (75W) or higher
