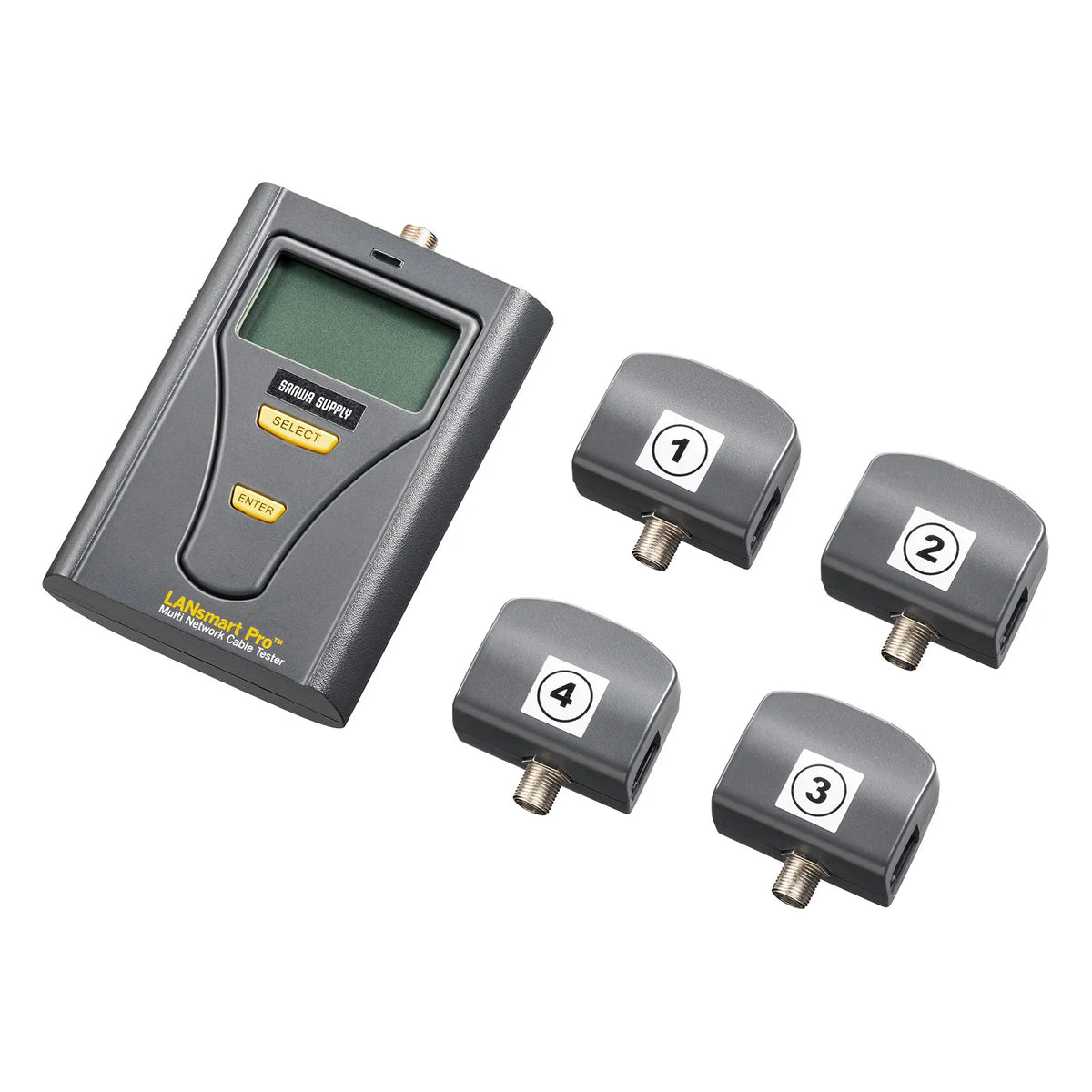

[LAN Cable Tester with Easy-to-View LCD Display of Cable Length Based on Cable Wiring Status]

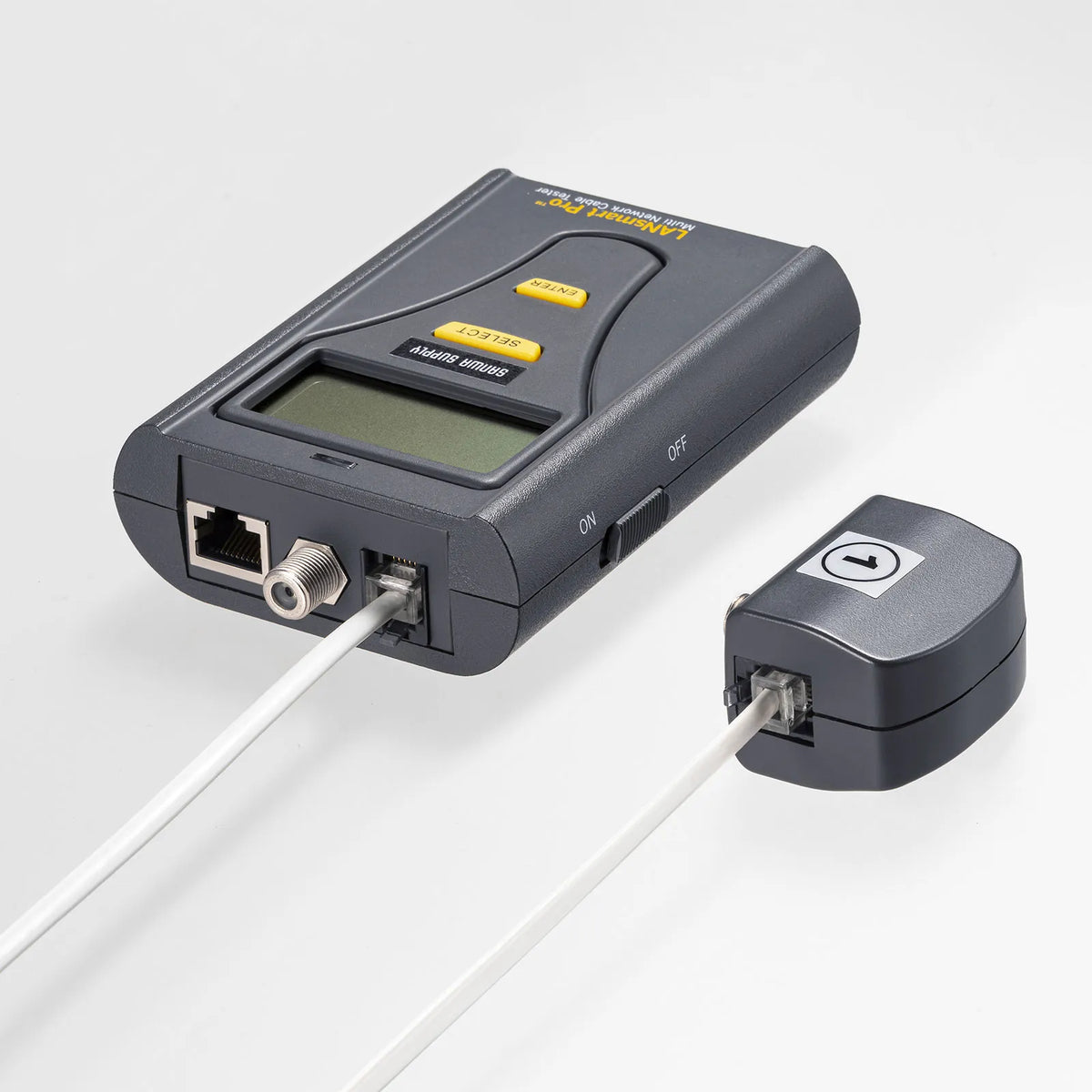

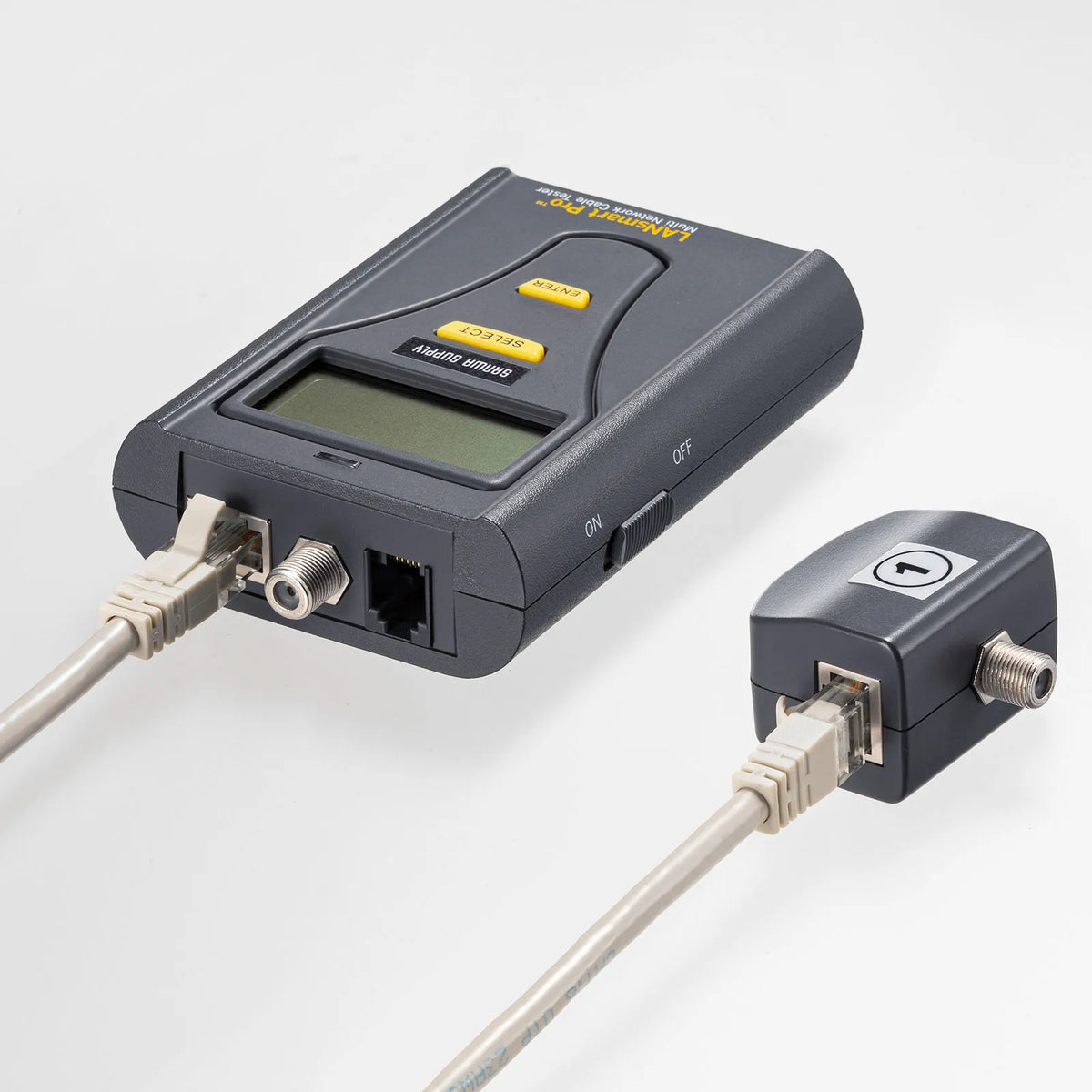

●Can test for short circuits, open circuits, miswired cables, reverse wiring, split pairs, and shielding status. ●Can test LAN cables, telephone cables, and CATV coaxial cables. ●Can also measure cable length. ●Equipped with a quick test function that is convenient for continuously measuring cables of the same specifications. ●Equipped with a PORT Finder function that communicates with hub and switch sockets. ●Equipped with analog tone and digital single tone/dual tone generator functions. ●Comes with 4 remote units, allowing for efficient testing of many wiring cables. ●Test results and wiring diagrams can be easily displayed on the LCD.

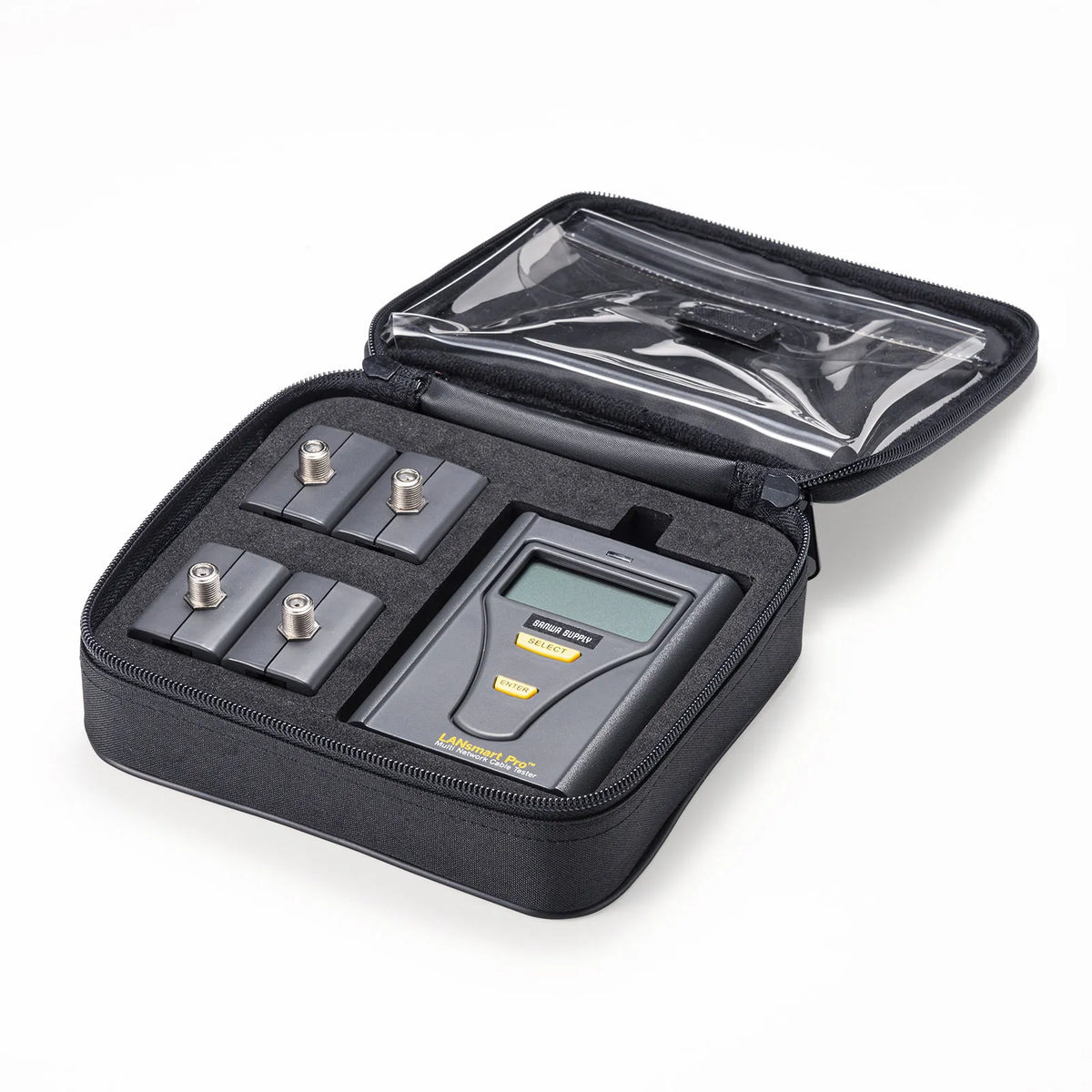

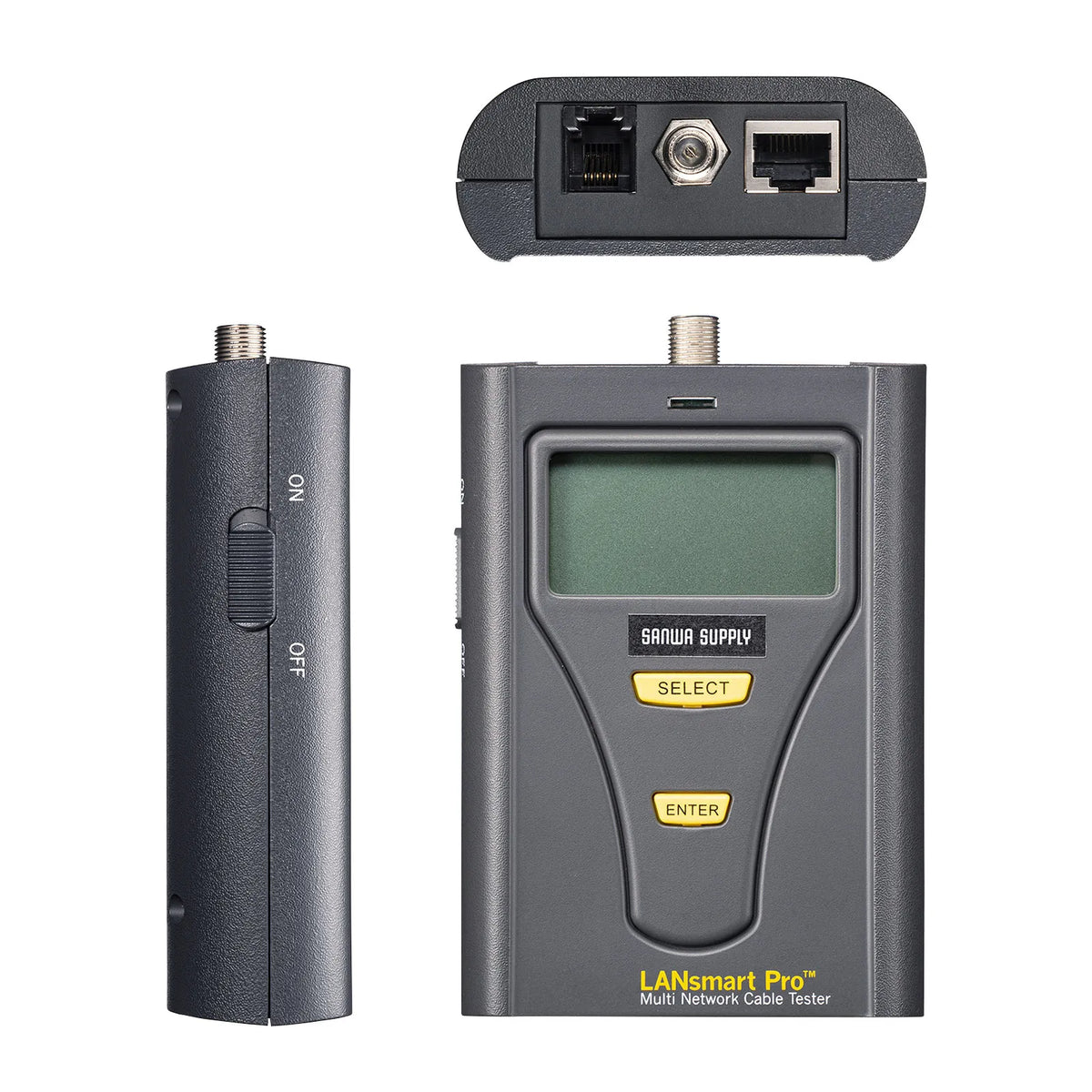

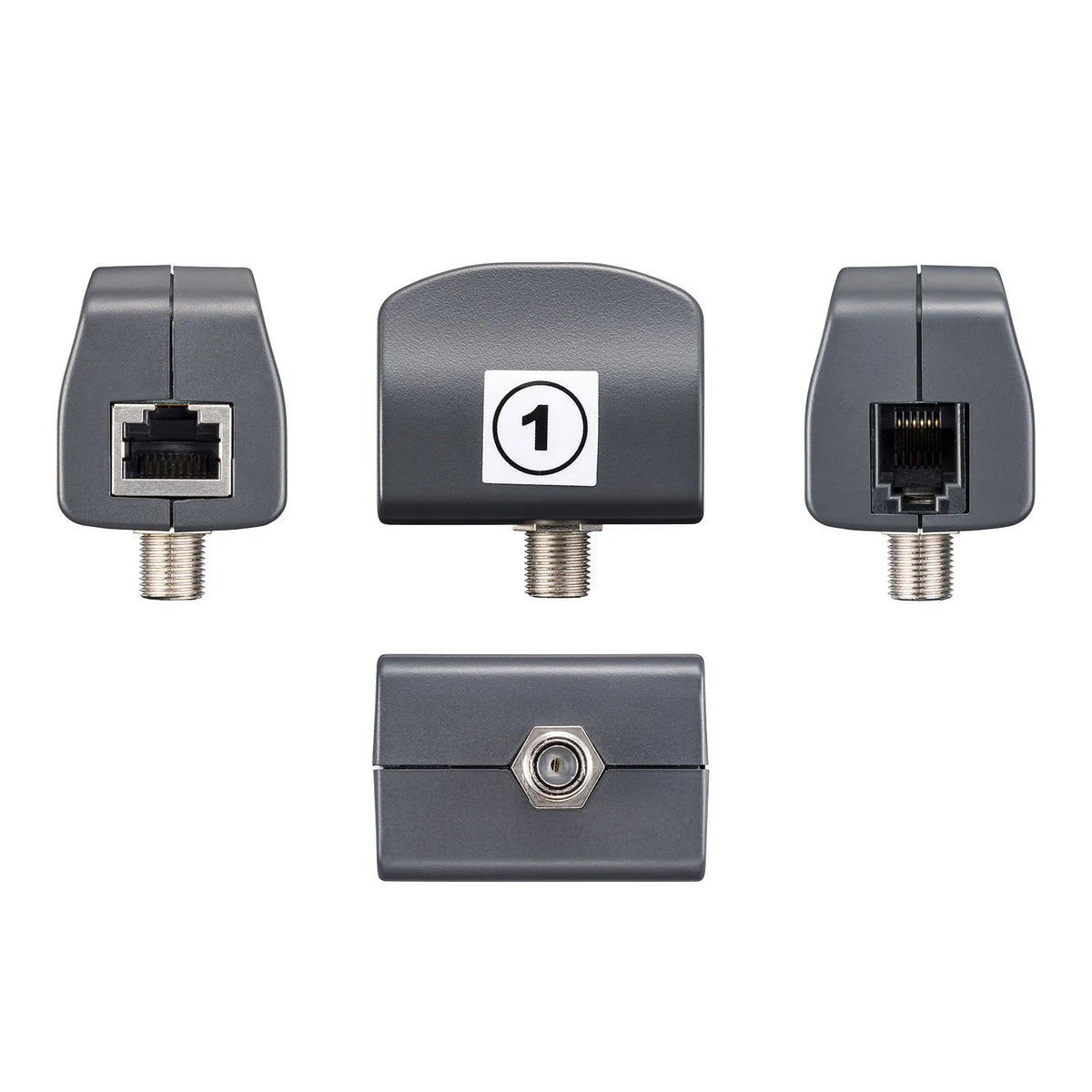

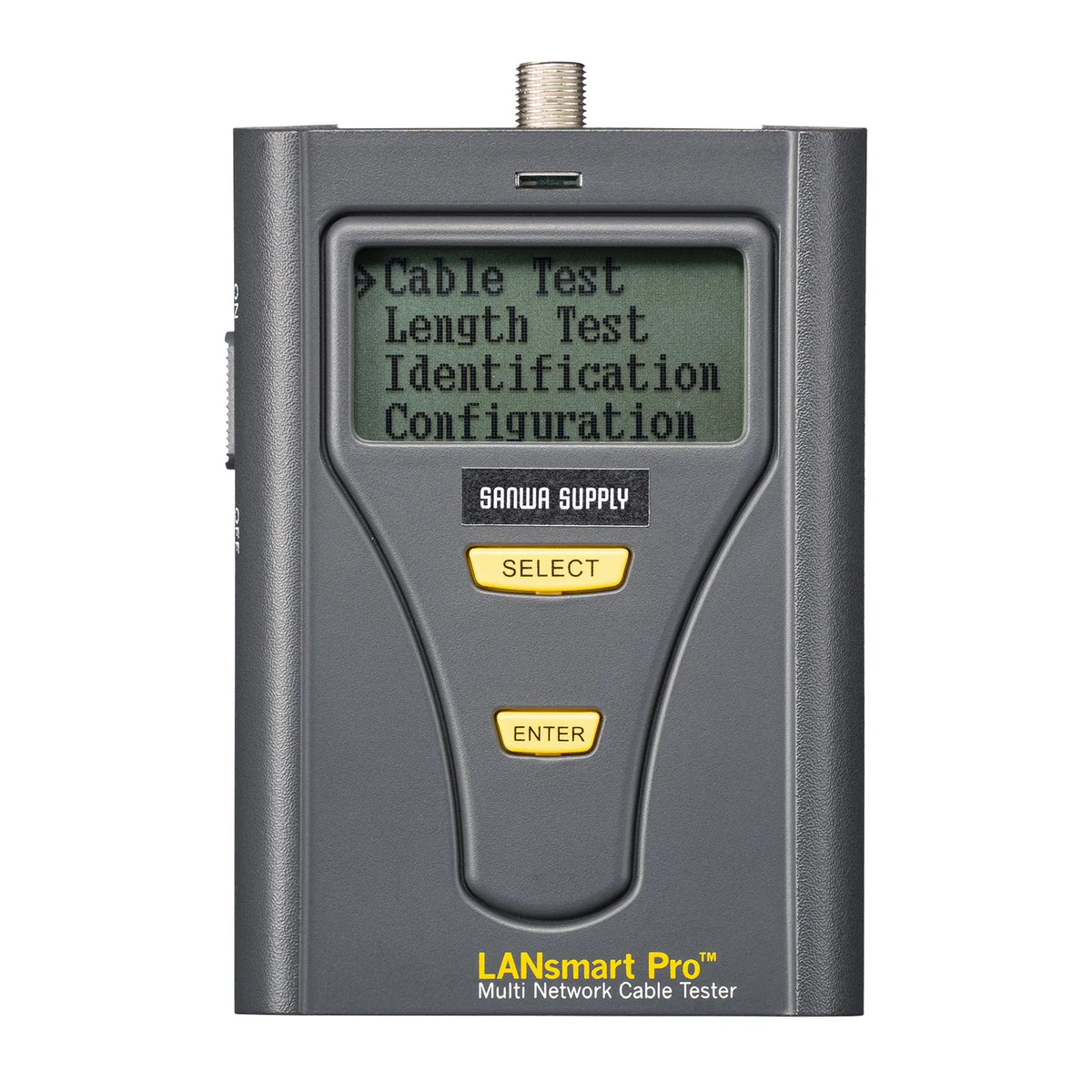

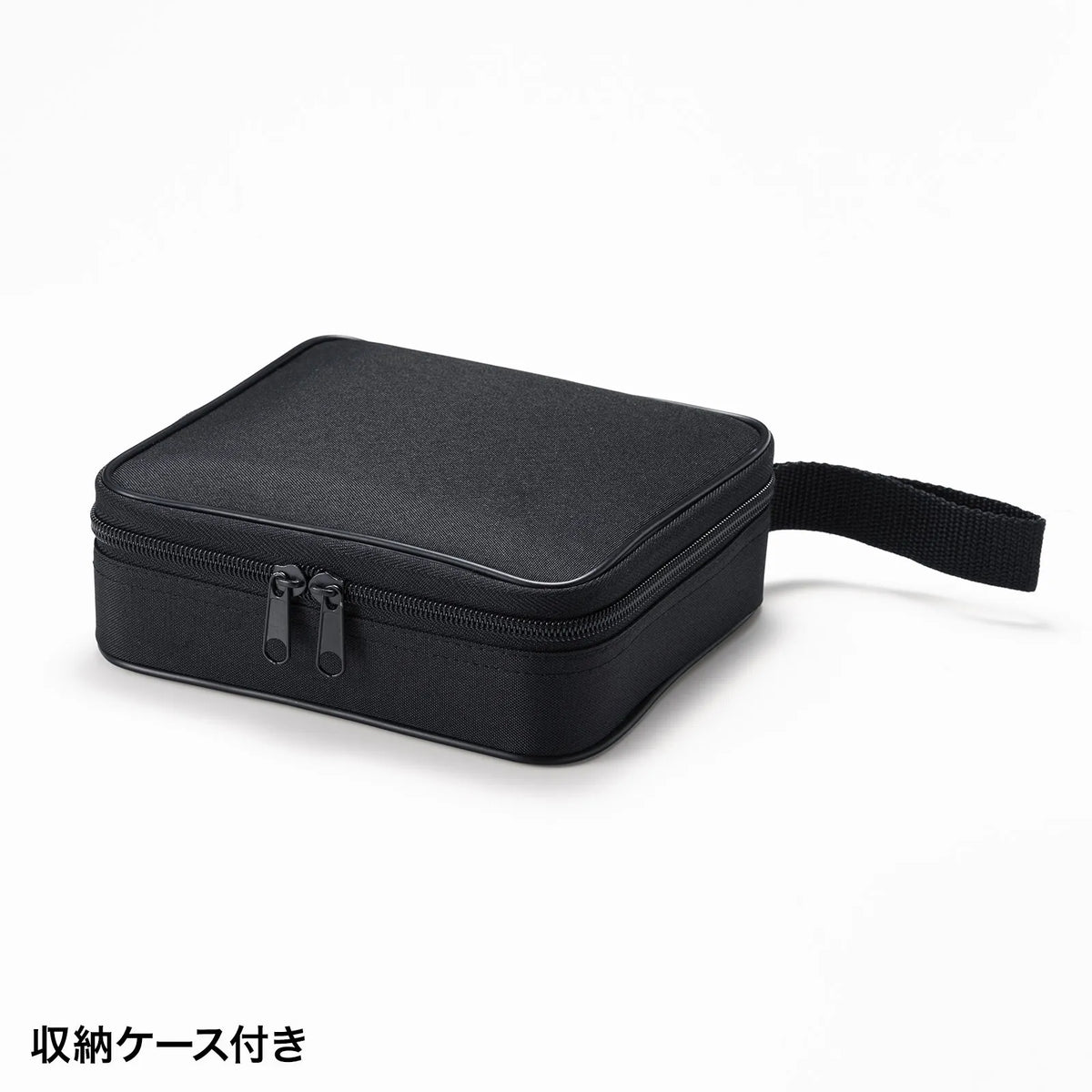

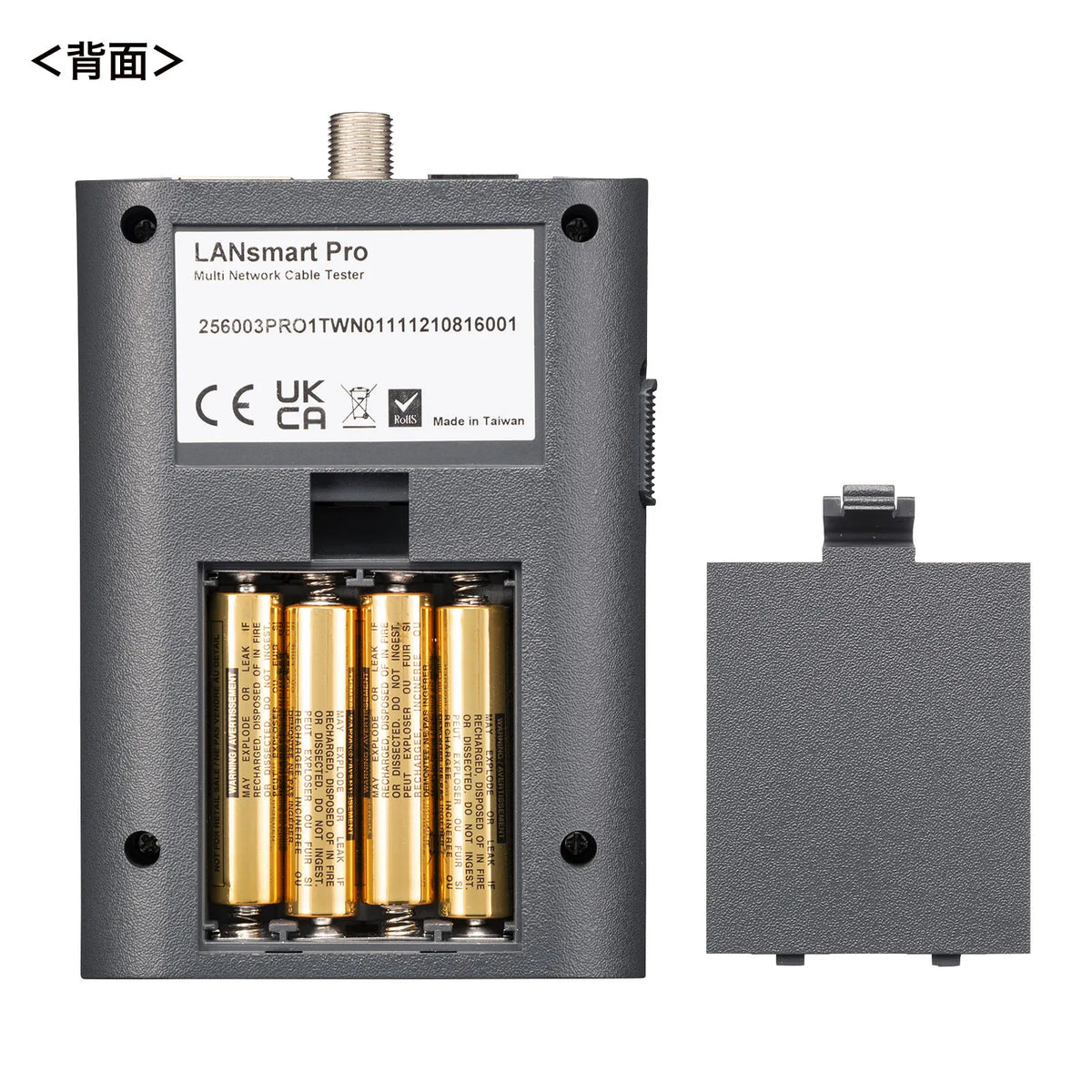

■Color: Black ■Compatible Connectors: RJ-45 connector, RJ-11 connector, other connectors RJ-12 connector, COAX connector (F connector) ■Measurement Contents (Wiring, etc.): Straight/Cross type discrimination, detailed wiring, wiring error, pair break detection ■Measurement Contents (Disconnection, etc.): Presence or absence of disconnection, identification of the disconnected core wire ■Measurement Function: Port finder function ■Measurement Compatible Cable Length: 300m ■Cable Length Measurement and Display: Measurement length/1 to 300m (Split pair is 1.2m to ), Measurement accuracy/10m or less/±2m 10m or more/±5%, Display resolution/1m ■Display Method: 128×64 dot matrix LCD (56×37.5mm) ■Remote Unit: 4 units (ID1 to ID4) ■Battery used: 4 x AAA batteries ■Remote units: ID1, ID2, ID3, ID4 ■PoE measurement: None ■Tone generator function: Yes Analog 1KHz, digital single tone/dual tone *A separate probe (LAN-T256712) is required to detect the tone of the tone generator. ■Size: Main unit/W80×D120×H33mm Remote unit/W44×D42×H28mm ■Weight: Main unit/120g (excluding batteries) Remote unit/20g ■Set contents: LAN cable tester, 4 remote units, 4 x AAA batteries (for testing), storage case, instruction manual and warranty
