SANWA SUPPLY

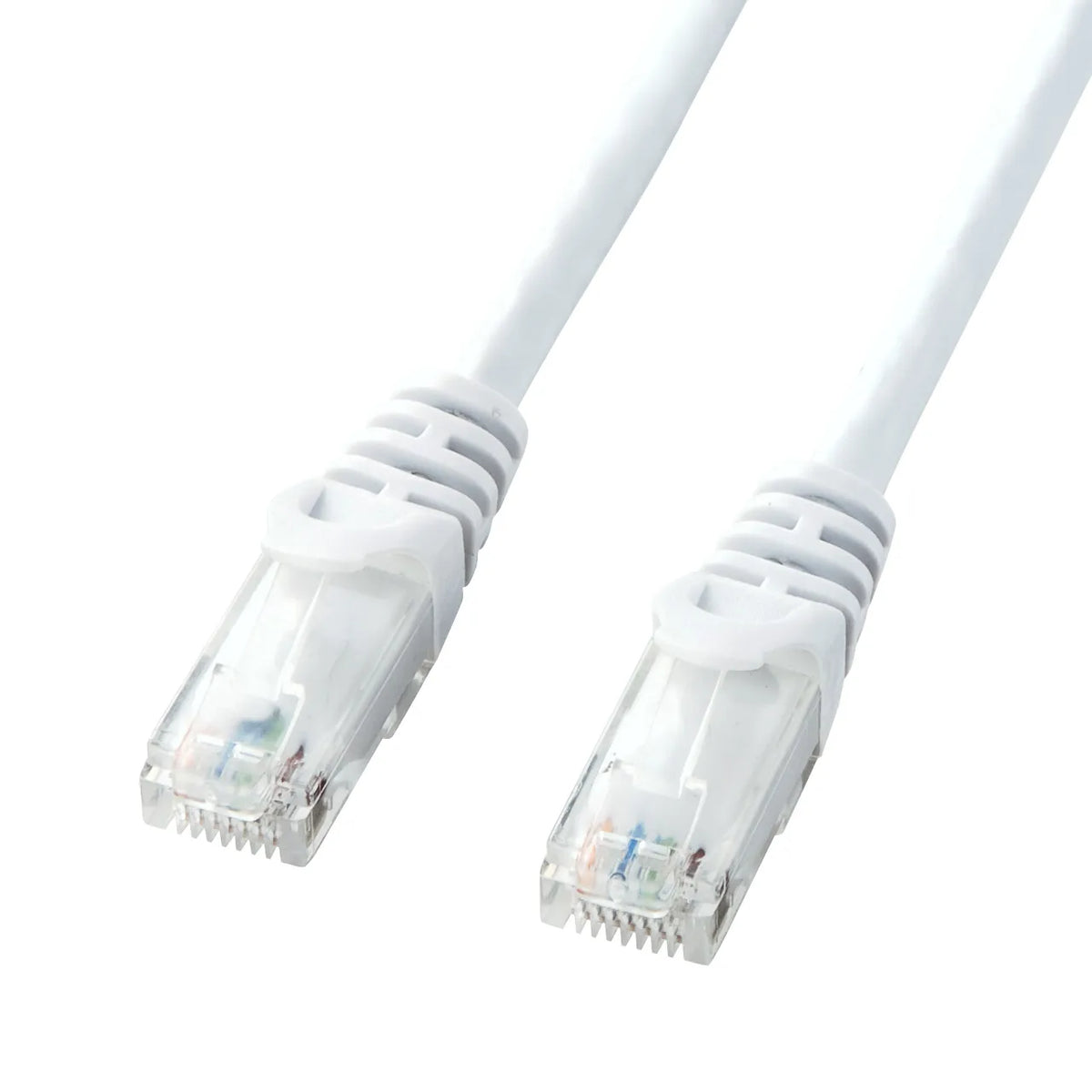

Category 6 UTP LAN Cable LA-Y6-01W
Category 6 UTP LAN Cable LA-Y6-01W
GTIN（JAN）：4969887840986
SKU：LA-Y6-01W
Regular price
¥508 JPY
Regular price
Sale price
¥508 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Soft stranded wire type, Gigabit fully compatible LAN cable with claw break prevention cover]
●This is a Gigabit fully compatible LAN cable that achieves a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 250MHz.

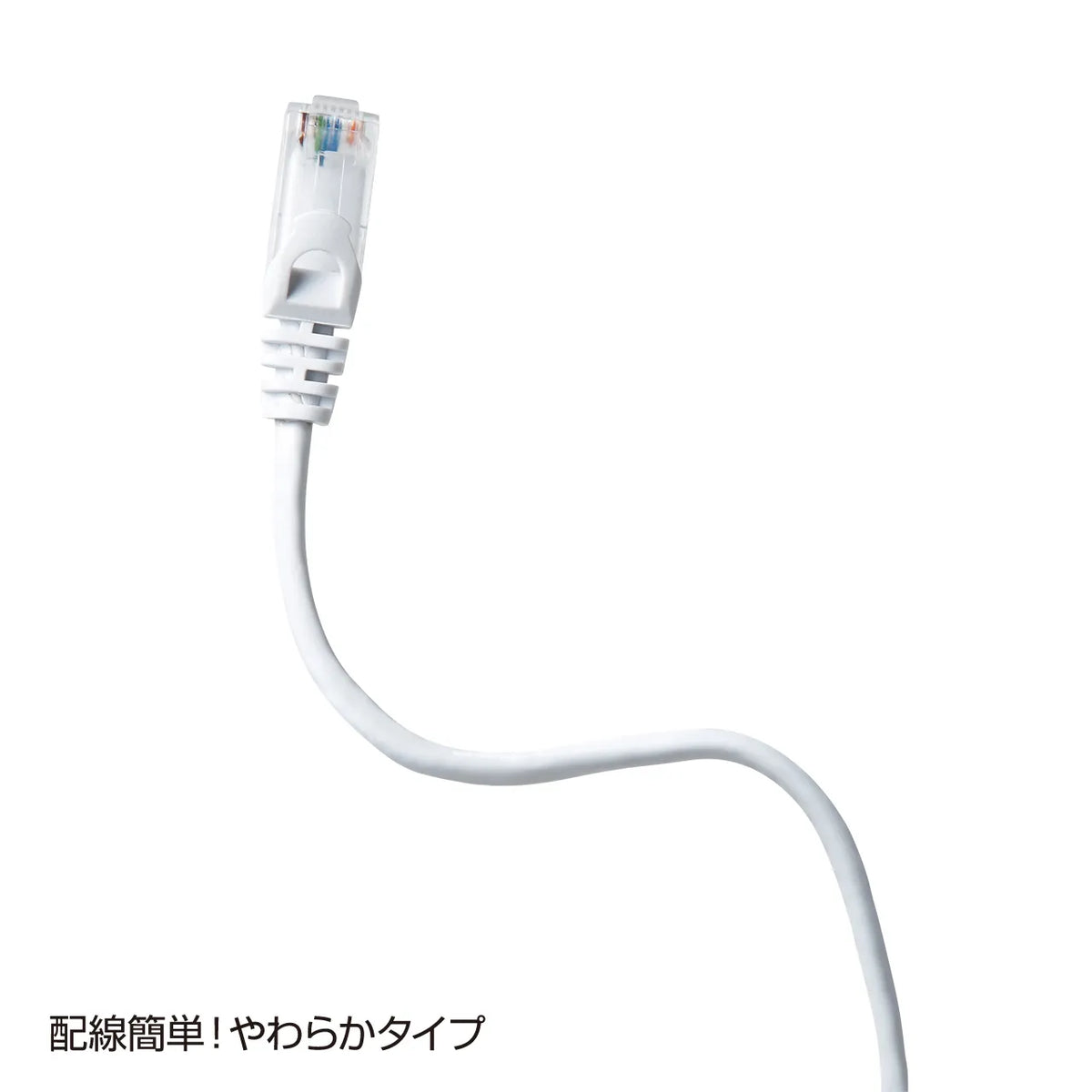

●It is a "stranded wire" specification that is softer than solid wire and easier to handle.

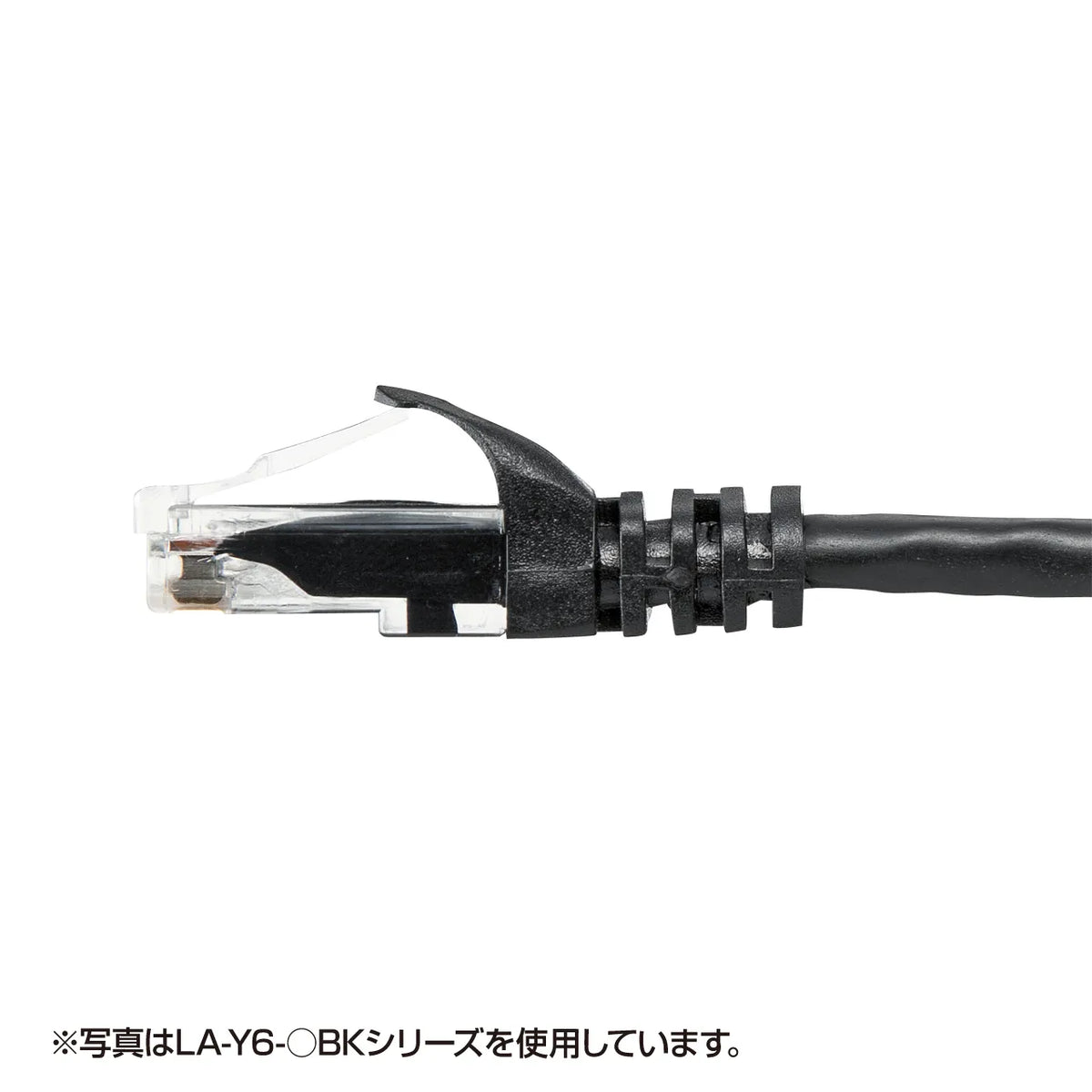

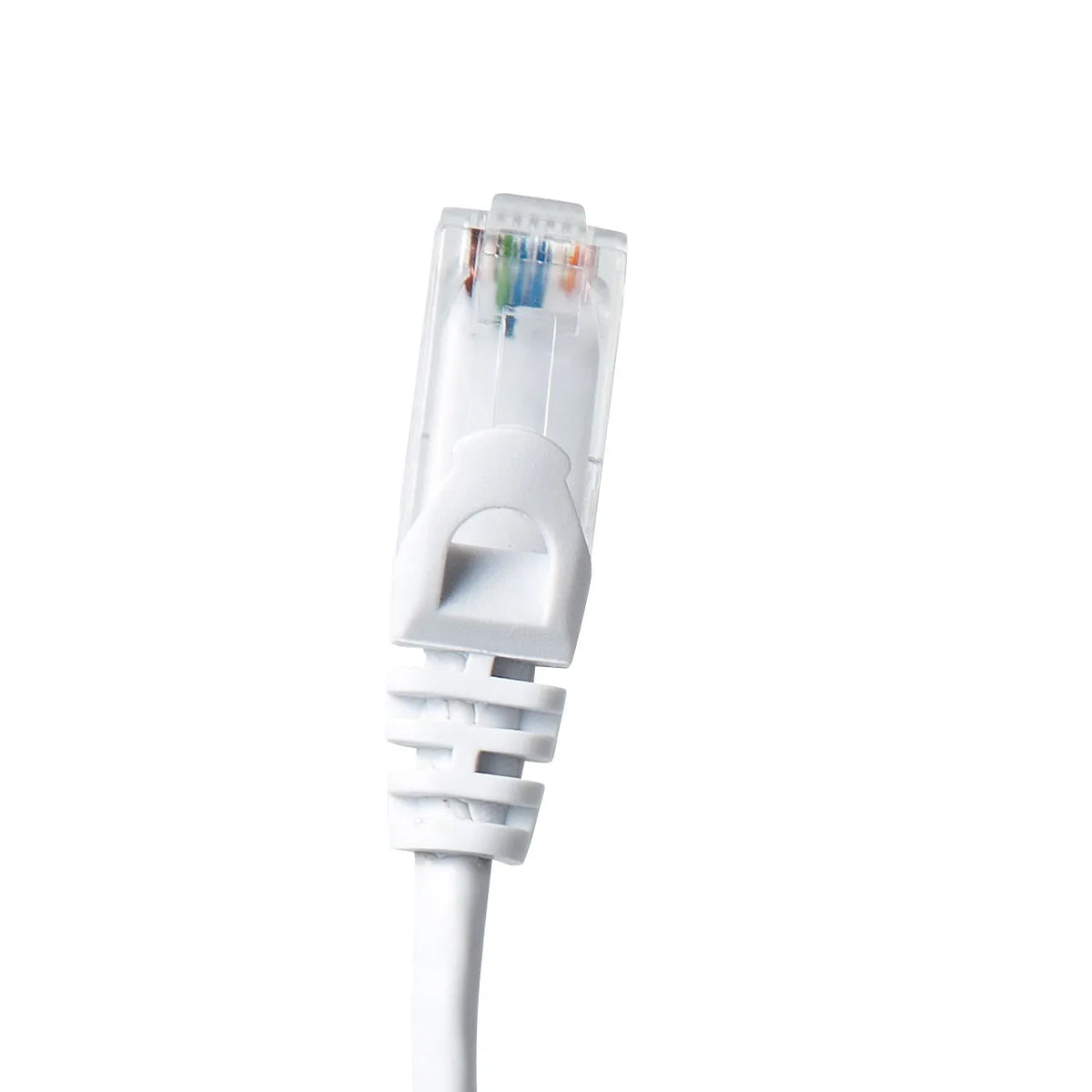

●It uses a connector with a claw break prevention cover to prevent the claws on the connector from breaking easily.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Compatible Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length: 1m
■Color: White
■Cable Diameter: 5.6mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection
■Cable Cable structure: UTP
■Cross separator: None
■Minimum bending radius:
During installation/115.0mm
After installation/85.0mm
■Cable conductor: 24AWG
■Cable conductor structure: Stranded wire
■PoE: Compatible
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch protection connector: No
■Latch protection cover: Yes
■Operating temperature range: -20 to 60℃
■Inspection: 100% continuity test
●This is a Gigabit fully compatible LAN cable that achieves a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 250MHz.
●It is a "stranded wire" specification that is softer than solid wire and easier to handle.
●It uses a connector with a claw break prevention cover to prevent the claws on the connector from breaking easily.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Compatible Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length: 1m
■Color: White
■Cable Diameter: 5.6mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection
■Cable Cable structure: UTP
■Cross separator: None
■Minimum bending radius:
During installation/115.0mm
After installation/85.0mm
■Cable conductor: 24AWG
■Cable conductor structure: Stranded wire
■PoE: Compatible
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch protection connector: No
■Latch protection cover: Yes
■Operating temperature range: -20 to 60℃
■Inspection: 100% continuity test
