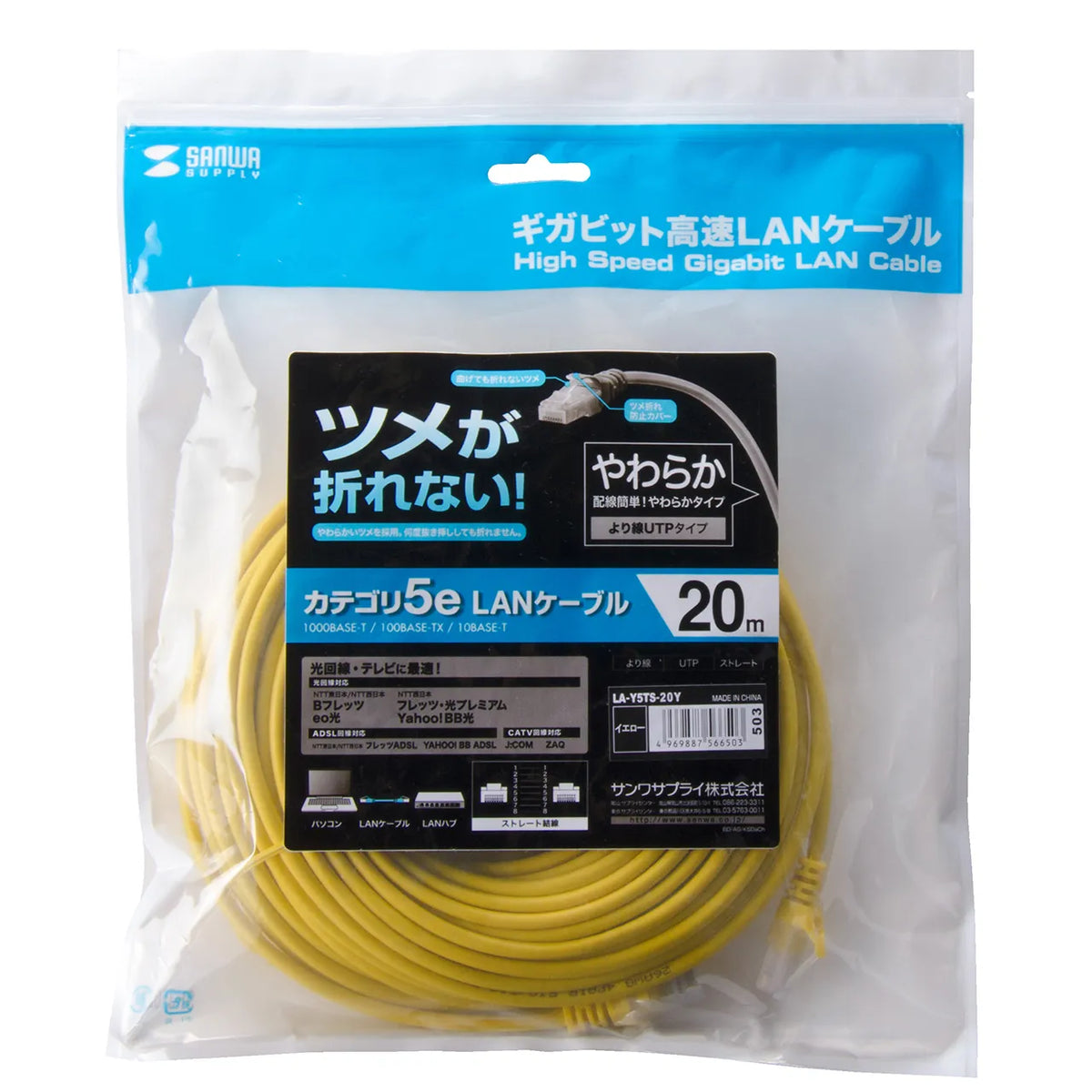

CAT5e LAN cable with anti-snag connector (LA-Y5TS-20Y)
CAT5e LAN cable with anti-snag connector (LA-Y5TS-20Y)
GTIN（JAN）：4969887566503
SKU：LA-Y5TS-20Y
Regular price
¥2,831 JPY
Regular price
Sale price
¥2,831 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[CAT5e Gigabit LAN Cable with Flexible Connectors for Excellent Bending Performance and a Connector Break Prevention Cover]
●Features flexible connectors with excellent bending performance that won't break even when bent 180°. It also has a double safety structure with a connector break prevention cover.
*Passed 1000 bending tests. (Sanwa Supply internal test)
●A Gigabit LAN cable achieving a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 100MHz.
●Stranded wire specification, which is softer and easier to handle than solid wire.
●Comes in simple packaging.
■Category: CAT5e
■Standard Name: 1000BASE-T
■Compatible Categories/Standards: Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 100MHz
■Cable Length (m): 20m
■Color: Yellow
■Cable Diameter (mm): 4.9mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection
■Cable Cable structure: UTP
■Cross separator: None
■Minimum bending radius: During installation/95.0mm, After installation/70.0mm
■Cable conductor: 26AWG
■Cable conductor structure: Stranded wire
■PoE: Supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch-break prevention connector: Yes
■Latch-break prevention cover: Yes
■Operating temperature range: -20 to 60℃
■Inspection: 100% continuity test
●Features flexible connectors with excellent bending performance that won't break even when bent 180°. It also has a double safety structure with a connector break prevention cover.
*Passed 1000 bending tests. (Sanwa Supply internal test)
●A Gigabit LAN cable achieving a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 100MHz.
●Stranded wire specification, which is softer and easier to handle than solid wire.
●Comes in simple packaging.
■Category: CAT5e
■Standard Name: 1000BASE-T
■Compatible Categories/Standards: Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 100MHz
■Cable Length (m): 20m
■Color: Yellow
■Cable Diameter (mm): 4.9mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection
■Cable Cable structure: UTP
■Cross separator: None
■Minimum bending radius: During installation/95.0mm, After installation/70.0mm
■Cable conductor: 26AWG
■Cable conductor structure: Stranded wire
■PoE: Supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch-break prevention connector: Yes
■Latch-break prevention cover: Yes
■Operating temperature range: -20 to 60℃
■Inspection: 100% continuity test
