SANWA SUPPLY

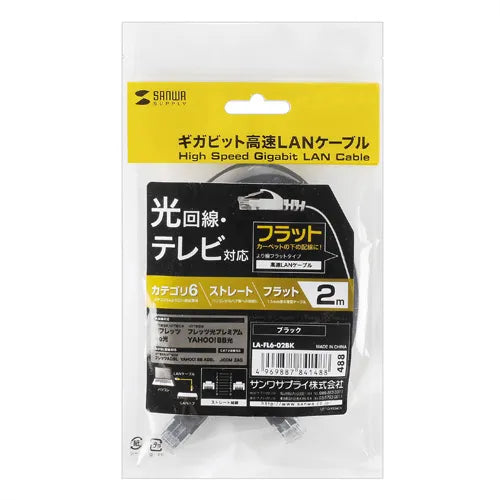

Category 6 Flat LAN Cable LA-FL6-02BK
Category 6 Flat LAN Cable LA-FL6-02BK
GTIN（JAN）：4969887841488
SKU：LA-FL6-02BK
Regular price
¥653 JPY
Regular price
Sale price
¥653 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[1.5mm thick flat type, Gigabit fully compatible LAN cable with anti-breakage latch cover]
●This is a Gigabit fully compatible LAN cable that achieves a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 250MHz.
●It is ultra-flat with a thickness of 1.5mm, so it can be neatly routed under carpets or in narrow gaps.
●An anti-breakage latch cover is used to prevent the latch on the connector from breaking.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Compatible Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length: 2m
■Color: Black
■Flat Cable Diameter: 1.5×6.2mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection ■ Cross separator: None
■ Minimum bending radius:
During laying: 30.0 mm
After installation: 25.0 mm
■ Cable conductor: 30AWG
■ Cable conductor structure: Stranded wire
■ PoE: Not supported
■ Sheath material: PVC
■ Color wiring: TIA/EIA-568B
■ Connector shape: RJ-45 connector
■ Slim connector: Yes
■ Latch protection connector: No
■ Latch protection cover: Yes
■ Operating temperature range: -20 to 60℃
■ Inspection: 100% continuity test
●This is a Gigabit fully compatible LAN cable that achieves a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 250MHz.
●It is ultra-flat with a thickness of 1.5mm, so it can be neatly routed under carpets or in narrow gaps.
●An anti-breakage latch cover is used to prevent the latch on the connector from breaking.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Compatible Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length: 2m
■Color: Black
■Flat Cable Diameter: 1.5×6.2mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection ■ Cross separator: None
■ Minimum bending radius:
During laying: 30.0 mm
After installation: 25.0 mm
■ Cable conductor: 30AWG
■ Cable conductor structure: Stranded wire
■ PoE: Not supported
■ Sheath material: PVC
■ Color wiring: TIA/EIA-568B
■ Connector shape: RJ-45 connector
■ Slim connector: Yes
■ Latch protection connector: No
■ Latch protection cover: Yes
■ Operating temperature range: -20 to 60℃
■ Inspection: 100% continuity test
