SANWA SUPPLY
Category 6 Flat LAN Cable LA-FL6-01W

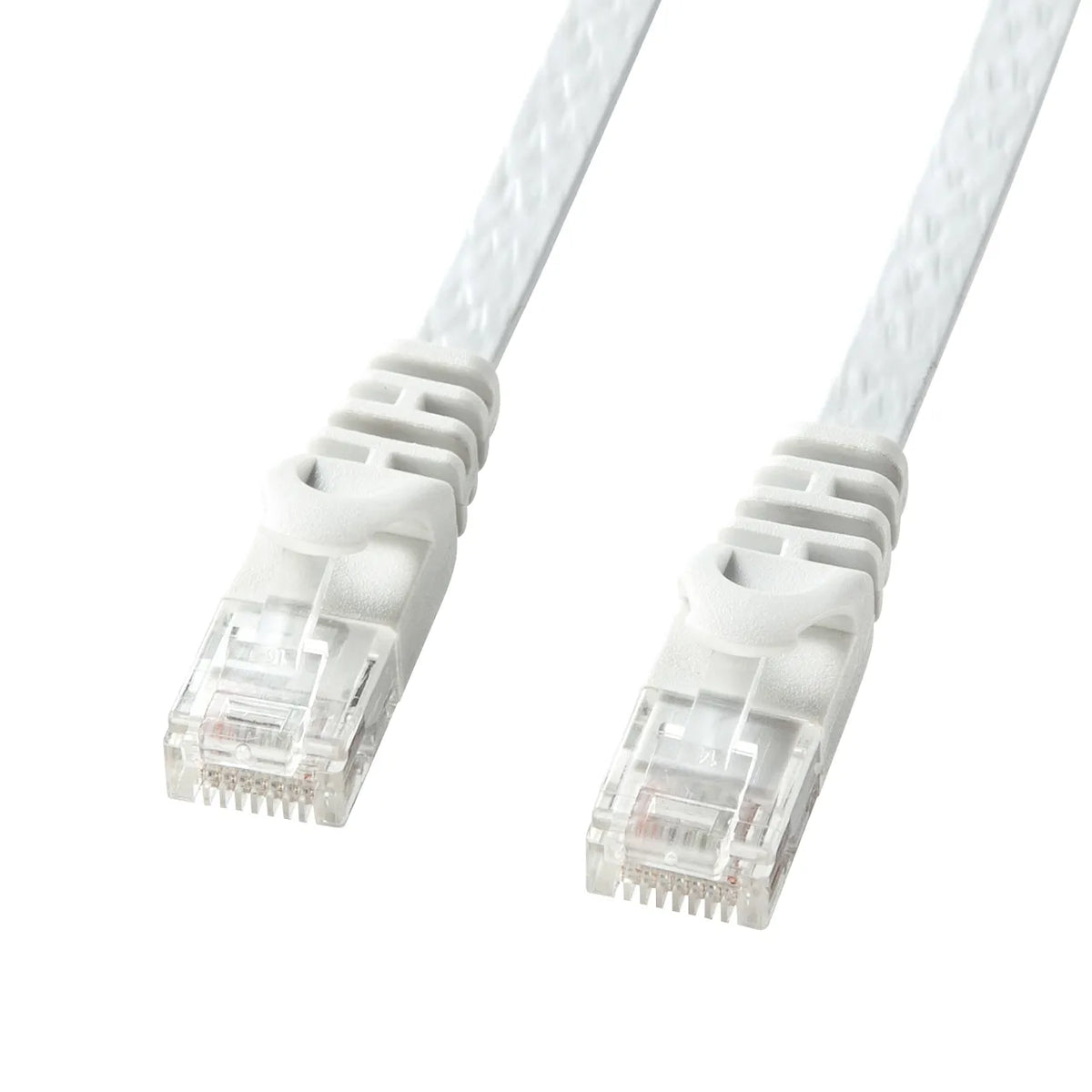

Category 6 Flat LAN Cable LA-FL6-01W
GTIN（JAN）：4969887841402
SKU：LA-FL6-01W
Regular price
¥537 JPY
Regular price
Sale price
¥537 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[1.5mm thick flat type, Gigabit fully compatible LAN cable with anti-breakage latch cover]
●This is a Gigabit fully compatible LAN cable that achieves a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 250MHz.

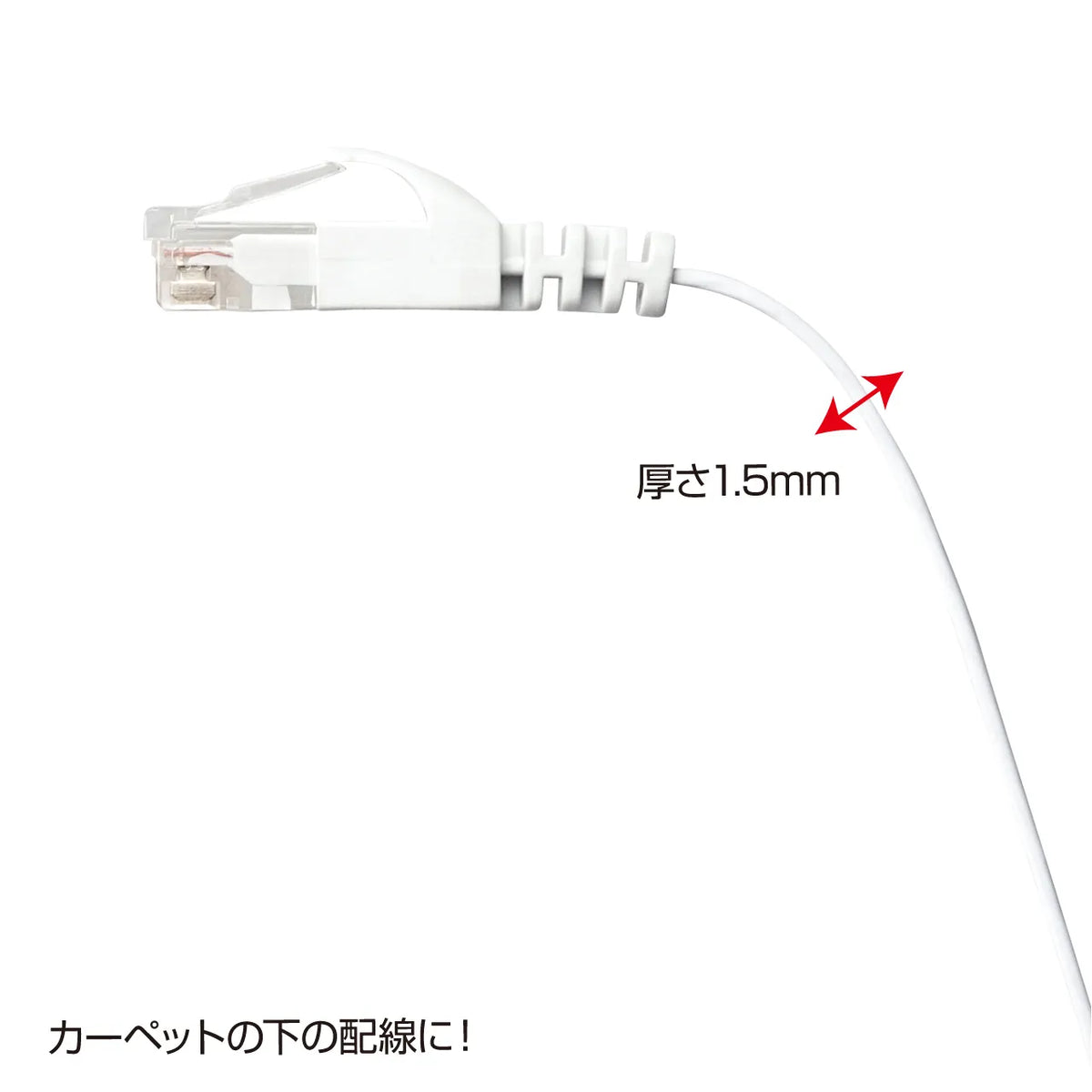

●It is ultra-flat with a thickness of 1.5mm, so it can be neatly routed under carpets or in narrow gaps.

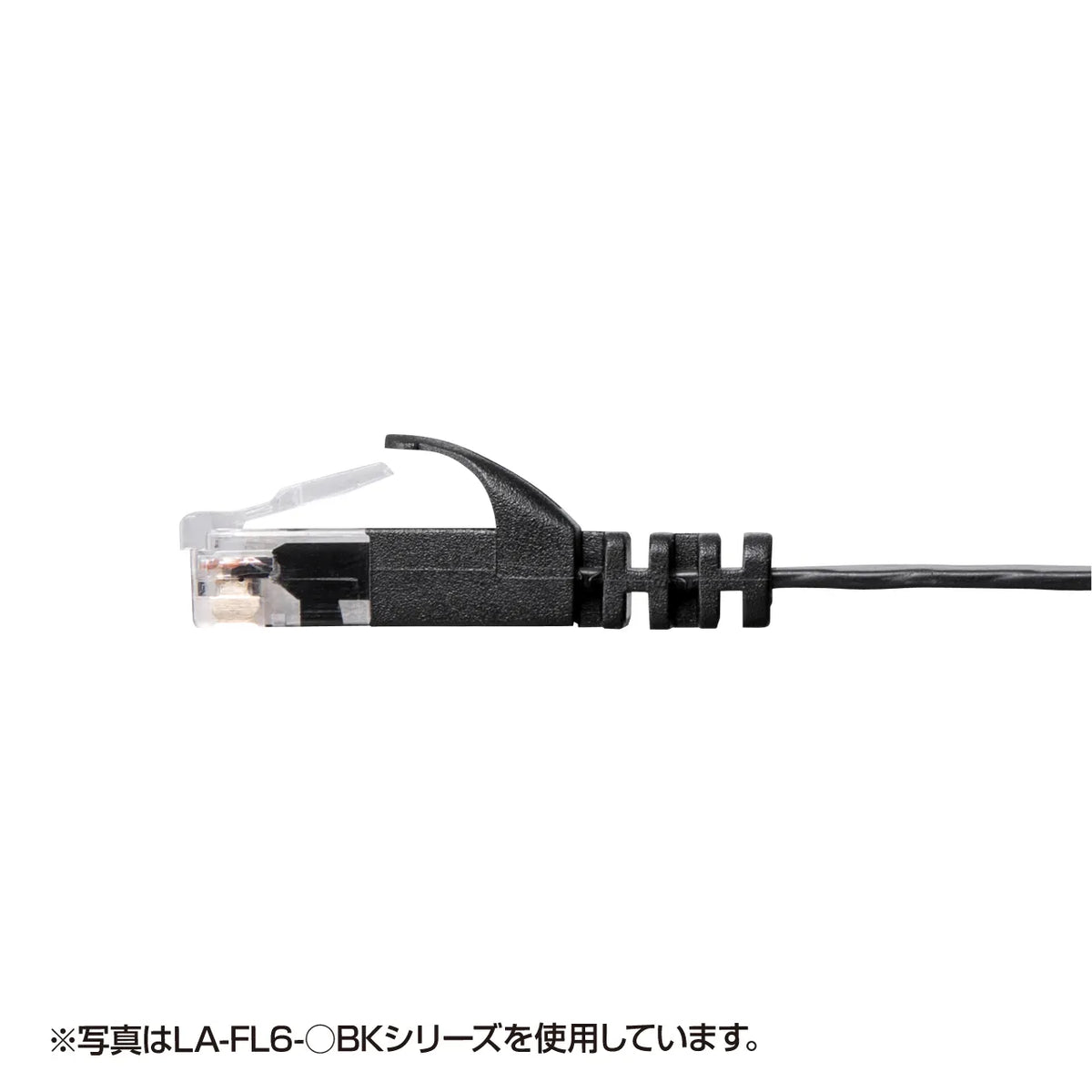

●An anti-breakage latch cover is used to prevent the latch on the connector from breaking.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Compatible Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length: 1m
■Color: White
■Flat Cable Diameter: 1.5×6.2mm
■Number of Cable Cores: 8 cores (4P)

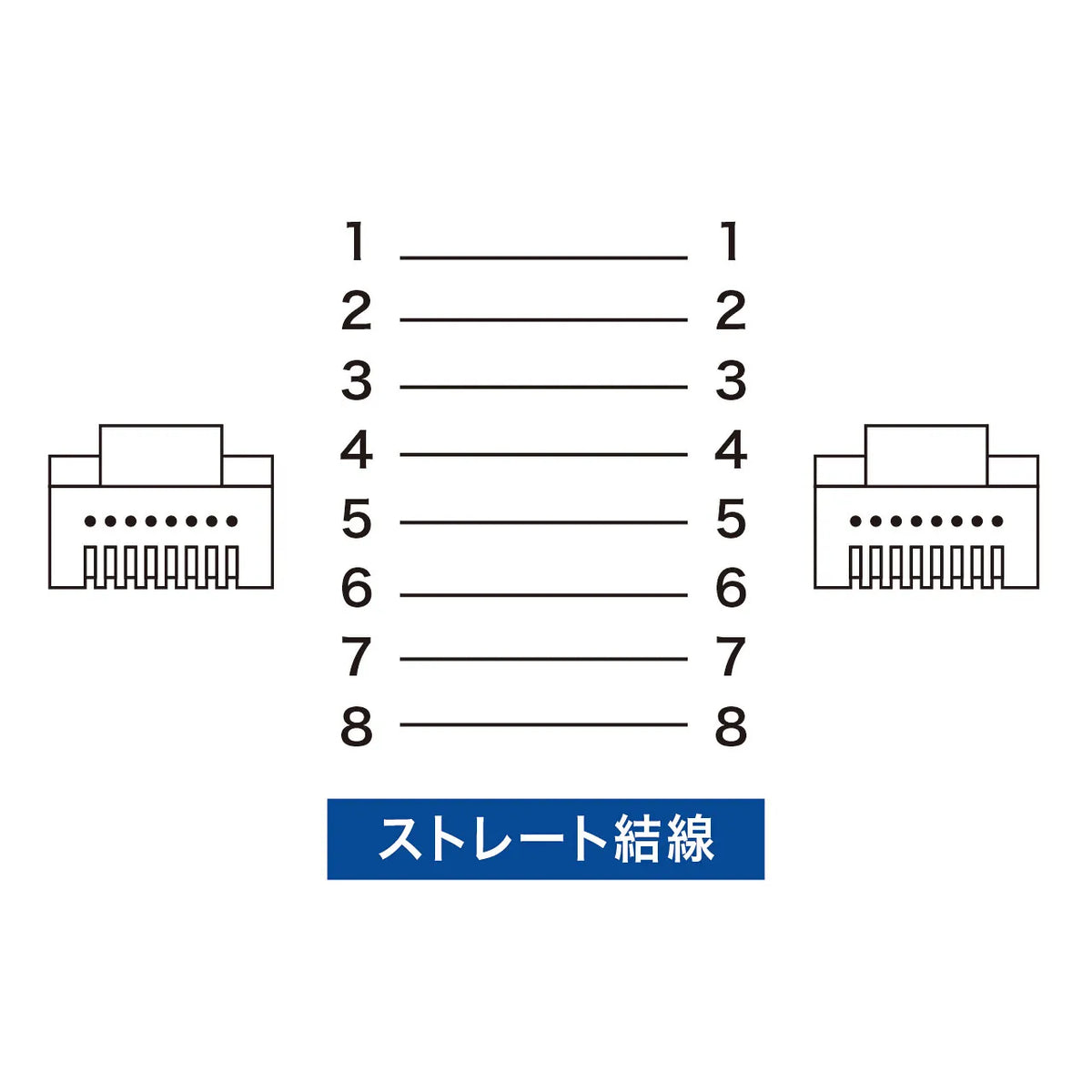

■Wiring Specifications : Straight connection
■Cable structure: UTP
■Cross separator: None
■Minimum bending radius:
During installation/30.0mm
After installation/25.0mm
■Cable conductor: 30AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: Yes
■Operating temperature range: -20 to 60 degrees
■Inspection: 100% continuity test
●This is a Gigabit fully compatible LAN cable that achieves a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 250MHz.
●It is ultra-flat with a thickness of 1.5mm, so it can be neatly routed under carpets or in narrow gaps.
●An anti-breakage latch cover is used to prevent the latch on the connector from breaking.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Compatible Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length: 1m
■Color: White
■Flat Cable Diameter: 1.5×6.2mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specifications : Straight connection
■Cable structure: UTP
■Cross separator: None
■Minimum bending radius:
During installation/30.0mm
After installation/25.0mm
■Cable conductor: 30AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: Yes
■Operating temperature range: -20 to 60 degrees
■Inspection: 100% continuity test
