SANWA SUPPLY

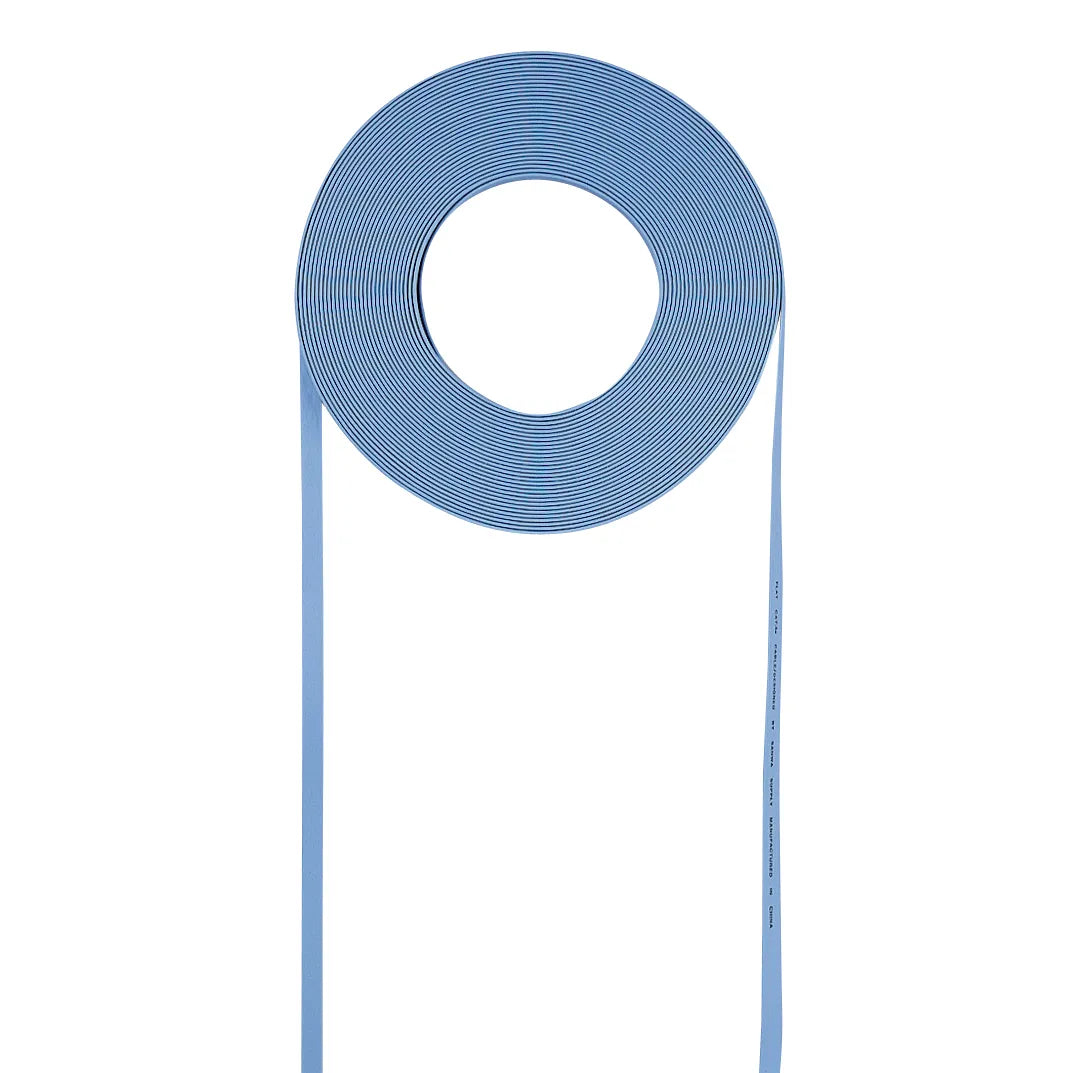

Ultra-flat cable only (light blue, 100m) LA-FL5-CB100LB
Ultra-flat cable only (light blue, 100m) LA-FL5-CB100LB
GTIN（JAN）：4969887653456
SKU：LA-FL5-CB100LB
Regular price
¥19,457 JPY
Regular price
Sale price
¥19,457 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Ultra-thin 1.4mm thickness for easy wiring.]
●This is a flat type cable that conforms to the Ethernet standard Category 5e (1000BASE-T), achieving a transmission speed of 1000Mbps (1Gbps).

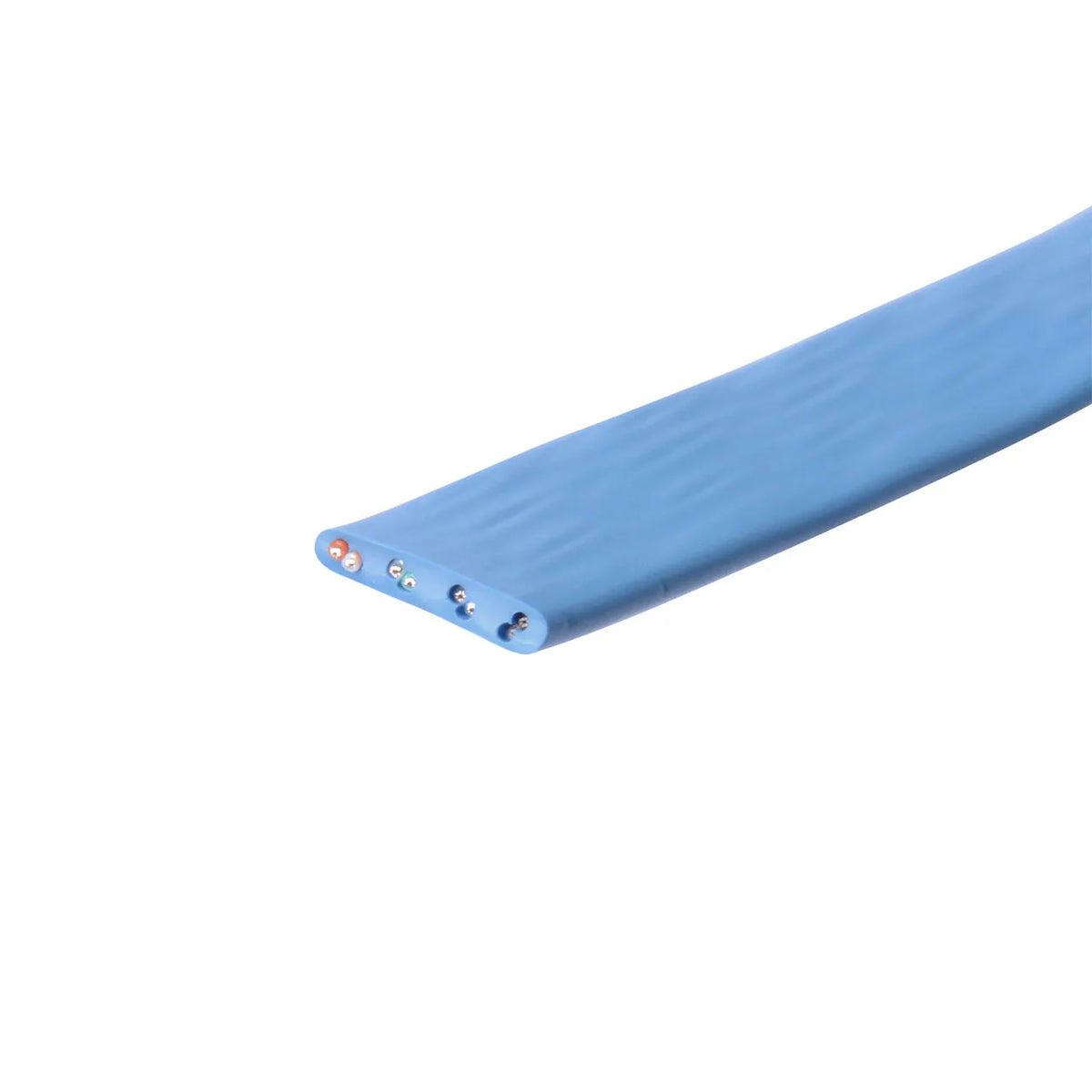

●It is an ultra-flat cable with a thickness of 1.4mm and a width of 8mm.
●It is a UTP enhanced Category 5 stranded flat cable for DIY projects.
●It comes with easy-to-understand length markings (1m pitch).
*When building your own cables, please use a cable length of 15m or less.
■Category: CAT5e
■Standard Name: 1000BASE-T
■Compatible Categories/Standards: Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 100MHz
■Cable Length: 100m
■Color: Light Blue
■Flat Cable Diameter: 1.4×8.0mm

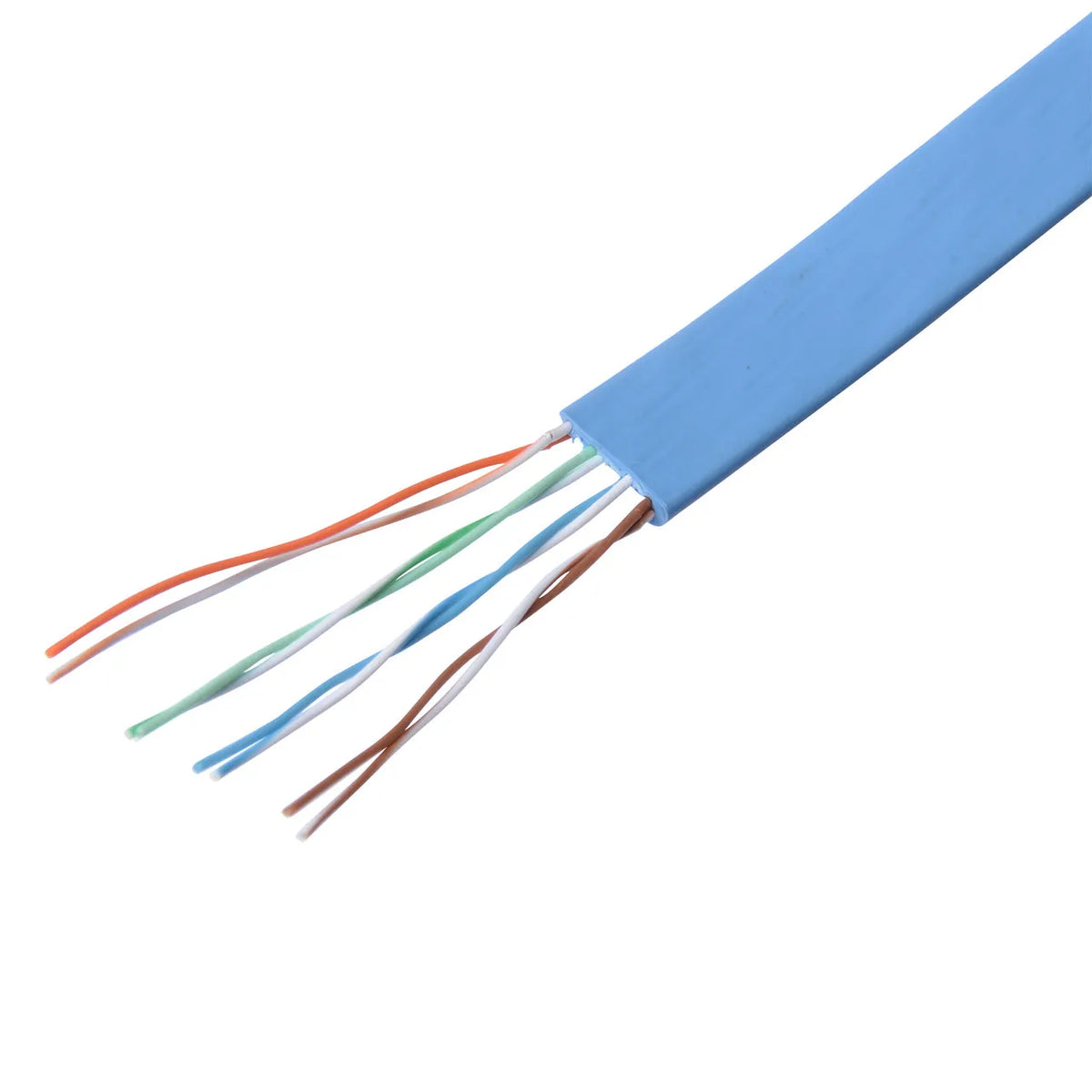

■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection
■Cable Structure: UTP
■Cable Conductor: 32AWG
■Cable Conductor Structure: Stranded wire
■PoE: Not supported
■Color Coding: TIA/EIA-568B
■Continuity Test: Continuity test performed on a 5000m roll
●This is a flat type cable that conforms to the Ethernet standard Category 5e (1000BASE-T), achieving a transmission speed of 1000Mbps (1Gbps).
●It is an ultra-flat cable with a thickness of 1.4mm and a width of 8mm.
●It is a UTP enhanced Category 5 stranded flat cable for DIY projects.
●It comes with easy-to-understand length markings (1m pitch).
*When building your own cables, please use a cable length of 15m or less.
■Category: CAT5e
■Standard Name: 1000BASE-T
■Compatible Categories/Standards: Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 100MHz
■Cable Length: 100m
■Color: Light Blue
■Flat Cable Diameter: 1.4×8.0mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection
■Cable Structure: UTP
■Cable Conductor: 32AWG
■Cable Conductor Structure: Stranded wire
■PoE: Not supported
■Color Coding: TIA/EIA-568B
■Continuity Test: Continuity test performed on a 5000m roll
