SANWA SUPPLY

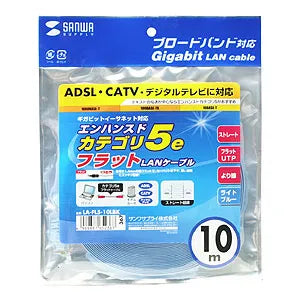

UTP Enhanced Category 5 Stranded Flat Cable (Light Blue, 10m) LA-FL5-10LBK
UTP Enhanced Category 5 Stranded Flat Cable (Light Blue, 10m) LA-FL5-10LBK
GTIN（JAN）：4969887652367
SKU：LA-FL5-10LBK
Regular price
¥1,707 JPY
Regular price
Sale price
¥1,707 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Ultra-thin at 1.4mm thick for easy wiring, and 1000BASE-T compatible!]
●This is a flat type cable that conforms to the Ethernet standard Category 5e (1000BASE-T), which achieves a transmission speed of 1000Mbps (1Gbps).
●It is an ultra-flat cable with a thickness of 1.4mm and a width of 8mm.
■Category: CAT5e
■Standard name: 1000BASE-T
■Compatible categories/standards: Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 1Gbps
■Frequency response: 100MHz
■Cable length: 10m
■Color: Light blue
■Cable diameter: 1.4mm x 8mm
■Number of cable cores: 8 cores (4P)
■Wiring specifications: Straight connection
■Cable structure : UTP
■Cross separator: None
■Minimum bending radius:
During installation/8.4mm
After installation/7.0mm
■Cable conductor: 32AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch protection connector: No
■Latch protection cover: No
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
●This is a flat type cable that conforms to the Ethernet standard Category 5e (1000BASE-T), which achieves a transmission speed of 1000Mbps (1Gbps).
●It is an ultra-flat cable with a thickness of 1.4mm and a width of 8mm.
■Category: CAT5e
■Standard name: 1000BASE-T
■Compatible categories/standards: Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 1Gbps
■Frequency response: 100MHz
■Cable length: 10m
■Color: Light blue
■Cable diameter: 1.4mm x 8mm
■Number of cable cores: 8 cores (4P)
■Wiring specifications: Straight connection
■Cable structure : UTP
■Cross separator: None
■Minimum bending radius:
During installation/8.4mm
After installation/7.0mm
■Cable conductor: 32AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch protection connector: No
■Latch protection cover: No
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
